Audio port Input/Output connectors - 5
BIOS - BIOS memory size - 256 Mbit
BIOS - BIOS type - UEFI AMI
Bluetooth Interface - Yes
Brand - ASUS
BrandPartCode - 90MB1EP0-M1EAY0
Category - Motherboards
category - PC Components|Mainboards|Intel Mainboards|Sockel 1700
Category 1 - Mainboards & Zubehör
Category 2 - Mainboards - Intel
Category Code - MBI
Category_1 - Motherboards
Category_2 - Motherboards - Intel 1700
Chipset - Intel B760 Express
code - 90MB1EP0-M1EAY0
Code - 90MB1EP0-M1EAY0
Description - ROG STRIX B760-A GAMING WIFI Just like its formidable sibling, the ROG Strix B760-A Gaming WiFi dishes up a vibrant take on the latest Intel platform, with PCIE 5.0, USB 3.2 GEN 2x2, and cyber-inspired ROG motifs emblazoned on a high-contrast backdrop. But this variant features DDR5, bringing even more bandwidth to the table for games and apps.
DisplayPort Input/Output connectors - 1
EAN -
ean - 4711387114063
EAN - 4711387114063
EAN_code - 4711387114063
Expansion slots - Number of M.2 (M) slots - 3
Expansion slots - PCI Express x1 (Gen 3.x) slots - 2
Expansion slots - PCI Express x16 (Gen 3.x) slots - 1
Features - Audio chip - Realtek ALC4080
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Motherboard chipset - Intel B760
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - ATX
Features - Windows operating systems supported - Windows 10 x64, Windows 11
Form Factor - ATX
Frequency speed - 4800/5000/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000/7200/7400/7600/7800 MHz
Full Description Line - Intel B760 Express|LGA1700|ATX|DDR5|7800/7600/7400/7200/7000/6800/6600/6400/6200/6000/5800/5600/5400/5200/5000/4800 MHz|Memory slots 4|2xPCI-Express 3.0 1x|1xPCI-Express 3.0 16x|1xPCI-Express 5.0 16x|3xM.2|1xHDMI|1xDisplayPort|4xUSB 2.0|3xUSB 3.2|2xUSB-C|1xRJ45|5xAudio port|SATA|USB 2.0|USB 3.2|Bluetooth|WiFi|Video Depending on CPU|LAN 2.5 Gigabit|Audio Realtek ALC4080|RAID SATA 0, 1, 5, 10
Graphics - Parallel processing technology support - Not supported
GTIN - 4711387114063
HDMI Input/Output connectors - 1
Integrated audio - Realtek ALC4080
Integrated LAN - 2.5 Gigabit
Integrated video - Depending on CPU
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Number of chassis fan connectors - 4
Internal I/O - Number of SATA III connectors - 4
Internal I/O - Peripheral (Molex) power connectors (4-pin) - 1
Internal I/O - RGB LED pin header - Yes
Internal I/O - S/PDIF out connector - Yes
Internal I/O - Thunderbolt headers - 1
Internal I/O - USB 2.0 connectors - 1
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1
Internal I/O - USB 3.2 Gen 2 (3.1 Gen 2) connectors - 1
LongDesc - ROG STRIX B760-A GAMING WIFIJust like its formidable sibling, the ROG Strix B760-A Gaming WiFi dishes up a vibrant take on the latest Intel platform, with PCIE 5.0, USB 3.2 GEN 2x2, and cyber-inspired ROG motifs emblazoned on a high-contrast backdrop. But this variant features DDR5, bringing even more bandwidth to the table for games and apps.M.2 Q-LATCHThe innovative Q-Latch makes it easy to install or remove an SSD from an M.2 slot. The design employs a simple locking mechanism to secure the drive, eliminating the need for a traditional screw.ALL-ROUND PERFORMANCEThe neat aesthetics of the Strix B760-A were no distraction when crafting this motherboard’s power delivery and thermal arrays. You’ll get a fully fledged gaming experience and then some with this beast.VRM HEATSINK ARRAYCovering the power solution are two thick heatsinks with strategic airflow channels for increased heat dissipation while powering high-performance Intel 13th Gen processors.LEADING CONNECTIVITYThe Strix B760-A is entirely well-connected with high-speed wireless and wired networking, a plethora of USB I/O, and SupremeFX audio to pump crystal-clear sound through speakers or headphones for enhanced immersion.SUPREMEFXROG SupremeFX is a unique blend of hardware and software technologies that provide superior audio. The Strix B760-A implementation features the ALC4080 codec for high-resolution playback up to 32-bit/384 kHz across all channels. Front-panel output is streamed through the integrated Savitech amplifier that can drive high-fidelity acoustics to a wide variety of speakers and headsets.PLAY IN STYLEBold aesthetics and Aura Sync RGB controls let the ROG Strix B760-A shine in every build.UNDENIABLY ROG STRIXDiagonal slats, brushed aluminum, and bold RGB have become hallmarks of the ROG aesthetic, and the Strix B760-A bears all of them with pride. Its white, silver, and black color scheme pairs well with both dark and lighter-colored components. 8-bit accents show some gaming pride.SOFTWARE UTILITIESA myriad of ROG-exclusive tools put advanced system tuning and configuration at your fingertips.
LongProductName - Intel B760, 4 x DIMM slots, Max. 128GB, DDR5, 2.5Gb Ethernet, 802.11 a/b/g/n/ac/ax, 256 Mb Flash ROM, UEFI AMI BIOS, ATX
LongSummaryDescription - ASUS ROG STRIX B760-A GAMING WIFI. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™.... Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 6E (802.11ax), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E.... Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: Intel
M.2 Expansion slots - 3
Manufacturer - Asus
Manufacturer - ASUS
Manufacturer_code - 90MB1EP0-M1EAY0
Memory - Maximum internal memory - 192 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Non-ECC - Yes
Memory - Number of memory slots - 4
Memory - Supported memory clock speed (max) - 7800 MHz
Memory - Supported memory clock speeds - 7800,7600,7400,7200,7000,6800,6600,6400,6200,6000,5800,5600,5400,5200,5000,4800 MHz
Memory - Supported memory types - DDR5-SDRAM
Memory - Unbuffered memory - Yes
Memory slots - 4
Memory type - DDR5
Model - ROG STRIX B760-A GAMING WIFI
MPN - 90MB1EP0-M1EAY0
Name - 1700 ASUS ROG STRIX B760-A Gaming WiFi ATX
name - ASUS ROG Strix B760-A Gaming WIFI, Intel B760 Mainboard, Sockel 1700, DDR5
Name - ASUS ROG STRIX B760-A GAMING WIFI, Mainboard (dark grey/silver) - 1700
Name - Asus | ROG STRIX B760-A GAMING WIFI | Processor family Intel | Processor socket LGA1700
Network - Bluetooth - Yes
Network - Bluetooth version - 5.3
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Top Wi-Fi standard - Wi-Fi 6E (802.11ax)
Network - Wi-Fi - Yes
Network - Wi-Fi standards - 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 340.00 mm
Package features > Gross height (mm) - 60.00 mm
Package features > Gross width (mm) - 270.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 157 pc(s)
Package features > Paper/Pasteboard - 250.00 g
Package features > Plastic (No PET) - 50.00 g
Package features > Tare weight (kg) - 0.30 kg
Package features > Volume (m3) - 0.01 m³
Package features > WEE classification - CL109:5:2017-04-01
Package features > WEEE tax - Yes
Packaging content - Cables included - SATA
PCI-Express 3.0 1x Expansion slots - 2
PCI-Express 3.0 16x Expansion slots - 1
PCI-Express 5.0 16x Expansion slots - 1
Processor - Compatible processor series - Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1700
Processor - Supported processor sockets - LGA 1700
Processor > Processor family - Intel
Processor > Processor socket - LGA1700
Producer product name - ROG STRIX B760-A GAMING WIFI
ProductName - ROG STRIX B760-A GAMING WIFI
RAID - SATA 0, 1, 5, 10

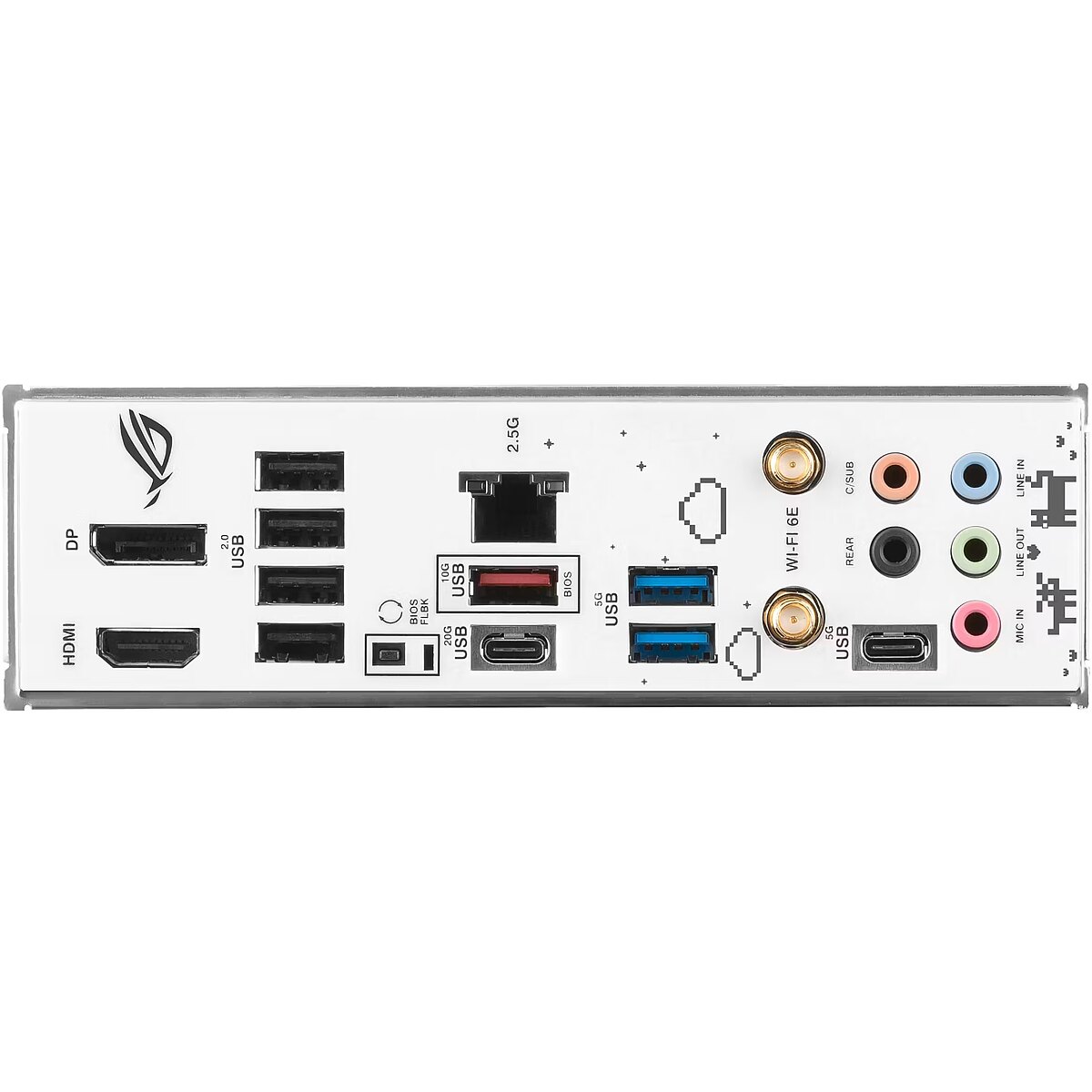

Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - DisplayPort version - 1.4
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - HDMI version - 2.1
Rear panel I/O ports - Headphone outputs - 1
Rear panel I/O ports - Line-in - Yes
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - USB 2.0 ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity - 1
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 1
Rear panel I/O ports - USB 3.2 Gen 2x2 Type-C ports quantity - 1
RJ45 Input/Output connectors - 1
SATA Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 37 cm
Shipping Box Height Shipping/Package Box Dimensions - 30 cm
Shipping box quantity - 4
Shipping Box Weight Shipping/Package Box Dimensions - 9.1 kg
Shipping Box Width Shipping/Package Box Dimensions - 30 cm
ShortSummaryDescription - ASUS ROG STRIX B760-A GAMING WIFI, Intel, LGA 1700, Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™..., LGA 1700, DDR5-SDRAM, 192 GB
Socket - LGA1700
Storage controllers - Number of HDDs supported - 4
Storage controllers - Number of storage drives supported - 7
Storage controllers - RAID levels - 0, 1, 5, 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Technical details > Gross weight - 1.30 kg
Technical details > Net weight - 1.00 kg
Technical details > Producer - Asus
Title - ASUS ROG STRIX B760-A GAMING WIFI Intel B760 LGA 1700 ATX
Unit Box Height - 0.27
Unit Box Length - 0.355
Unit Box Width - 0.07
Unit Brutto Volume - 0.008325 cubm
Unit Gross Weight - 2.27 kg
Unit Net Weight - 1.4 kg
URL - https://rog.asus.com/motherboards/rog-strix/rog-strix-b760-a-gaming-wifi/
USB-C Input/Output connectors - 2
USB 2.0 Input/Output connectors - 4
USB 2.0 Interface - Yes
USB 3.2 Input/Output connectors - 3
USB 3.2 Interface - Yes
Vendor Homepage - rog.asus.com/motherboards/rog-strix/rog-strix-b760-a-gaming-wifi/
Warranty - 36
Warranty - 36 month(s)
Warranty - 36 months
WarrantyInfo -
Weight - 2,10
Weight - 2.08
Weight & dimensions - Depth - 244 mm
Weight & dimensions - Width - 305 mm
WiFi Interface - Yes
