ID: 959936
Product code: ROG STRIX B760-A GAMING WIFI
In stock 3 units
Warranty: 3 years

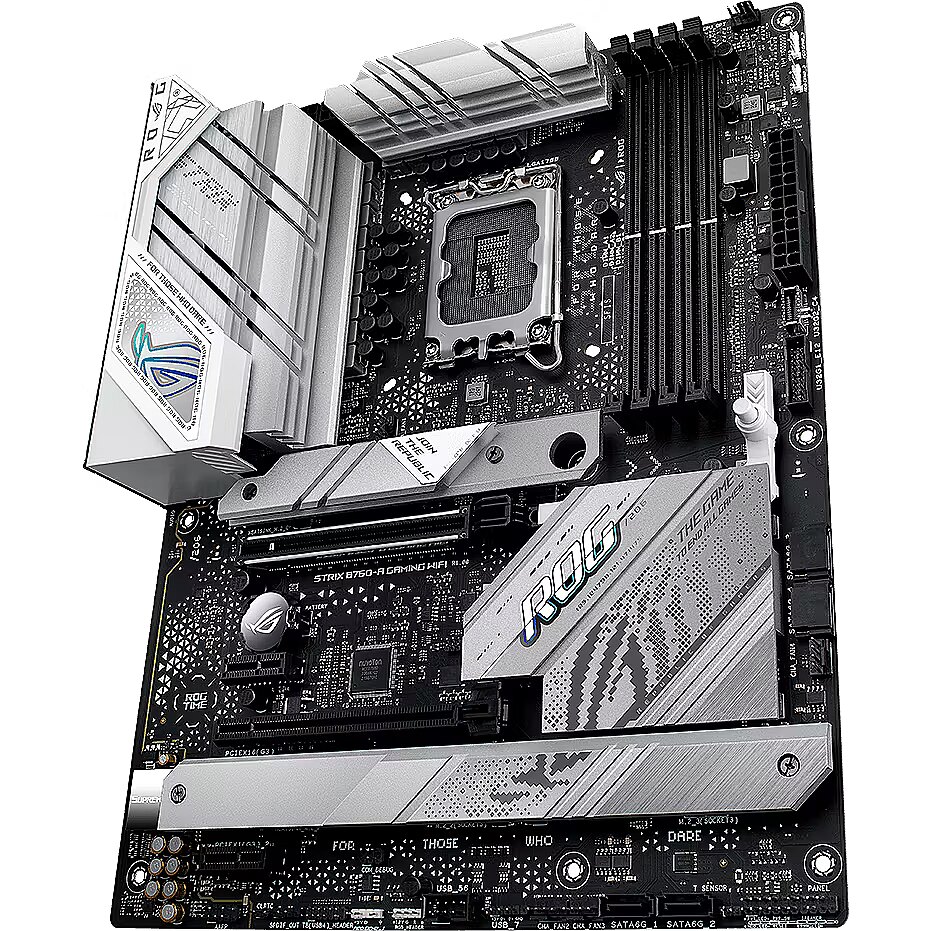

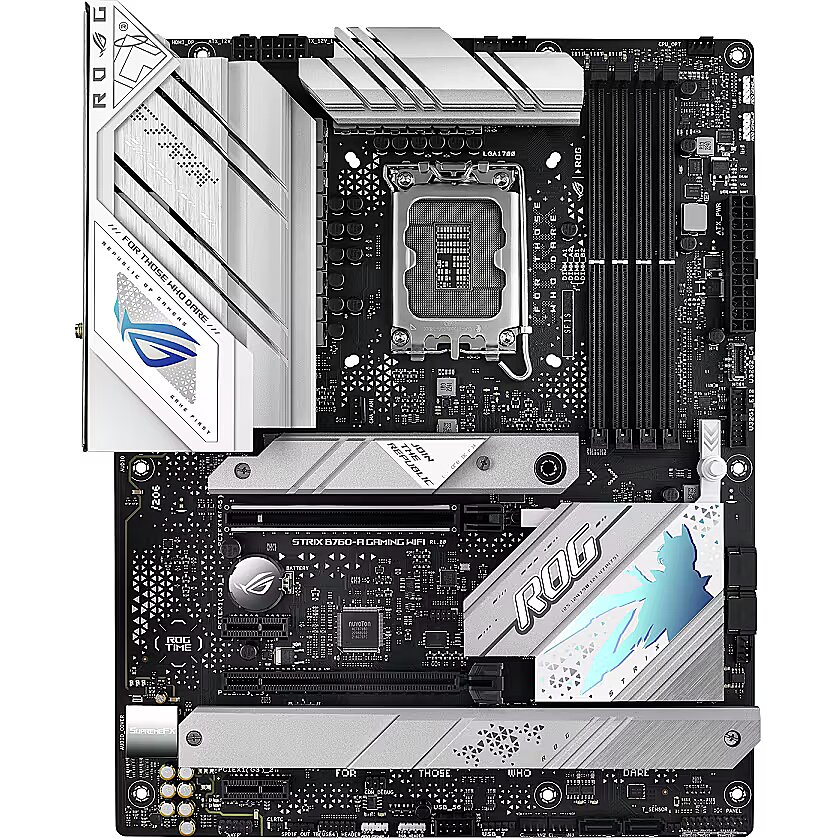

Asus ROG STRIX B760-A GAMING WIFI
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options More about shipping
- Delivery to Smartpost free of charge: 06.01.2025
- Delivery to Omniva parcel machine free of charge: 06.01.2025
- Piegāde uz DPD Pickup Paku Skapi free of charge: 06.01.2025
- Delivery to Latvian post office, parcel locker or Circle K free of charge: 06.01.2025
- Delivery to address in Riga 3.99 €: 06.01.2025
- Delivery to address in Latvia 6.99 €: 06.01.2025
- Delivery to Dateks.lv parcel drop-off point at 9 Zemitāna Street: 02.01.2025 after 15:00
Main product parameters All parameters
- Series: ASUS ROG Strix
- CPU Socket: LGA 1700
- Chipset: Intel B760
- Form factor: ATX
- Type: DDR5
- RAM Slots: 4
- Built-in Wi-Fi: Ir
Basic information
Series
: ASUS ROG Strix
CPU Socket
LGA 1700
The CPU socket is an important factor in selecting the board; the CPU board must be exactly compatible with the CPU that you want to install with the board. Irrespective of the fact that the CPU fits the socket of the motherboard also the support of this CPU has to be taken into account. For verifying which CPUs are supported by the selected motherboard you should visit the website of the manufacturer of the motherboard, find the CPU support section of the relevant motherboard and verify that the specification of this particular board provides for the support of the CPU that you have selected.
Chipset
Intel B760
The chip bus is the most important criterion of selecting the motherboard (the system logic chips or the voltage transformers). The chip bus determines the CPUs, memory ports and other parameters that are supported by the motherboard.
Each chipset is directly related to a certain CPU platform which are divided based upon the family of CPUs or the connection point of the CPU.
For verifying which chip bus is suitable for your CPU, etc. you should ask our managers.
Form factor
ATX
The physical size of the motherboard. Dateks.lv offers ATX (full size board), mATX (micro ATX) (a board of reduced size) and miniATX size motherboards. Within the housing of an ATX size computer it is possible to place both ATX and mATX motherboard, however, in the mATX housing it is not possible to place an ATX board.
The ATX board has at least 3 memory slots and at least 5 local slots PCI, which means that a well functioning powerful computer can be built on this board. However, a home or office computer does not need this high number of slots, therefore also microATX will be suitable.
The connector of the power supply unit of the motherboard is the power source socket which are currently of ATX and ATX2.0 standard. ATX is an older standard with a 20pin connector (20 "pins"), and ATX2.0 has 4 additional pins (20+4). The motherboards of ATX standard can operate with a ATX2.0 power supply unit (PSU), however the mother board of ATX2.0 standard requires an ATX2.0 power supply unit.
Form-factor is rather a recommendation. However, prior to buying a mother board you should verify the compatibility of the housing size to the motherboard size and its power supply connector.
Random-access memory (RAM)
Type
: DDR5
RAM Slots
4
The number of available memory slots indicates the number of memory modules (plates) that can be installed in the motherboard.
Memory support
DDR5 5600 (OC 7800)
The RAM bus determines what type of RAM is supported by the relevant motherboard.
The bus marking contains the memory type DDRII or DDRIII as well as the maximum memory clock frequency that is supported by the mother board. The type of memory is the most important index, memories of different types are physically different, therefore DDRIII memory cannot be connected to the mother board that supports DDRII memory (except the cases when the motherboard supports both types of memory). However the motherboard that support 800Mhz DDRII memory can work with the memory speeds of DDII667 and DDRII533. The mother board with the memory bus speed below the speed of the memory module will be able to operate as fast as the specified bus speed only, i.e. if the memory bus of the motherboard is DDRII667 and the memory DDRII800 is installed it will operate with the speed of DDRII667.
Graphics card
Video card port
PCI-EXPRESS
VGA port or the video card plug. The VGA port must comply with the specification of the video card port you have selected. Older video cards have an AGP port, new cards are manufacturer with a PCI-EXPRESS (PCI-X) port.AGP and PCI-Xpress video cards are not mutually compatible. Prior to buying the motherboard you should verify the compliance of the video card port of both the motherboard and the video card.
Integrated graphics
Only with iGPU-ready CPU
The parameter that determines whether a video card has been integrated with the motherboard. An integrated video card is suitable for working with the office software, Internet, watching films and playing simple games. If you wish to use graphics applications, play 3D games and watch 3D animations you would need an additional video card.
An integrated video card uses a fraction of the memory included in the mother board, therefore, if your motherboard has 1Gb memory and in the settings of the video card of the mother board it is stated that it takes 256mb the operating system will display the available memory volume of approximately 700 Mb.
Prior to buying a motherboard with a built-in video card you should verify whether it has an additional video card port for further upgrades if these are required
Ports and equipment
PCI ports
0
PCI ports present the most popular way of supplementing the computer functions with additional cards (sound, network, communications, video surveillance, etc.). Newer boards, thanks to the PCI-Express standard, have a small number of PCI extension ports, therefore, prior to buying the motherboard you should verify if the number of PCI ports allows the connection of all the PCI cards you need.
D-Sub
: 0
DVI
: 0
HDMI
: 1
DisplayPort
: 1
Integrated sound card
: Realtek ALC4080
Wireless connections
Built-in Bluetooth
: Ir
Built-in Wi-Fi
: Ir
External ports
External USB Type-C
: 2
External USB 2.0
: 4
External USB 3.0 (USB 3.2 Gen1)
: 3
External USB 3.1 (USB 3.2 Gen2)
: 2
Internal ports
Internal A-RGB 5V (3-pin)
: 3
Internal RGB 12V (4-pin)
: 1
Internal USB 2.0
: 1
Internal USB 3.0
: 1
Internal USB Type-C
: 1
M.2 Port
: 3
SATA3 ports
: 4
More detailed specification
Audio port Input/Output connectors - 5
BIOS - BIOS memory size - 256 Mbit
BIOS - BIOS type - UEFI AMI
Bluetooth Interface - Yes
Brand - ASUS
BrandPartCode - 90MB1EP0-M1EAY0
Category - Motherboards
category - PC Components|Mainboards|Intel Mainboards|Sockel 1700
Category Code - MBI
Category_1 - Motherboards
Category_2 - Motherboards - Intel 1700
Chipset - Intel B760 Express
CnCode CnCode - 84733020
code - 90MB1EP0-M1EAY0
Code - 90MB1EP0-M1EAY0
Description - ROG STRIX B760-A GAMING WIFI Just like its formidable sibling, the ROG Strix B760-A Gaming WiFi dishes up a vibrant take on the latest Intel platform, with PCIE 5.0, USB 3.2 GEN 2x2, and cyber-inspired ROG motifs emblazoned on a high-contrast backdrop. But this variant features DDR5, bringing even more bandwidth to the table for games and apps.
DisplayPort Input/Output connectors - 1
EAN -
ean - 4711387114063
EAN_code - 4711387114063
Expansion slots - Number of M.2 (M) slots - 3
Expansion slots - PCI Express x1 (Gen 3.x) slots - 2
Expansion slots - PCI Express x16 (Gen 3.x) slots - 1
Features - Audio chip - Realtek ALC4080
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Motherboard chipset - Intel B760
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - ATX
Features - Windows operating systems supported - Windows 10 x64, Windows 11
Form Factor - ATX
Frequency speed - 4800/5000/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000/7200/7400/7600/7800 MHz
Full Description Line - Intel B760 Express|LGA1700|ATX|DDR5|7800/7600/7400/7200/7000/6800/6600/6400/6200/6000/5800/5600/5400/5200/5000/4800 MHz|Memory slots 4|2xPCI-Express 3.0 1x|1xPCI-Express 3.0 16x|1xPCI-Express 5.0 16x|3xM.2|1xHDMI|1xDisplayPort|4xUSB 2.0|3xUSB 3.2|2xUSB-C|1xRJ45|5xAudio port|SATA|USB 2.0|USB 3.2|Bluetooth|WiFi|Video Depending on CPU|LAN 2.5 Gigabit|Audio Realtek ALC4080|RAID SATA 0, 1, 5, 10
Graphics - Parallel processing technology support - Not supported
GTIN - 4711387114063
HDMI Input/Output connectors - 1
Integrated audio - Realtek ALC4080
Integrated LAN - 2.5 Gigabit
Integrated video - Depending on CPU
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Number of chassis fan connectors - 4
Internal I/O - Number of SATA III connectors - 4
Internal I/O - Peripheral (Molex) power connectors (4-pin) - 1
Internal I/O - RGB LED pin header - Yes
Internal I/O - S/PDIF out connector - Yes
Internal I/O - Thunderbolt headers - 1
Internal I/O - USB 2.0 connectors - 1
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1
Internal I/O - USB 3.2 Gen 2 (3.1 Gen 2) connectors - 1
LongDesc - ROG STRIX B760-A GAMING WIFIJust like its formidable sibling, the ROG Strix B760-A Gaming WiFi dishes up a vibrant take on the latest Intel platform, with PCIE 5.0, USB 3.2 GEN 2x2, and cyber-inspired ROG motifs emblazoned on a high-contrast backdrop. But this variant features DDR5, bringing even more bandwidth to the table for games and apps.M.2 Q-LATCHThe innovative Q-Latch makes it easy to install or remove an SSD from an M.2 slot. The design employs a simple locking mechanism to secure the drive, eliminating the need for a traditional screw.ALL-ROUND PERFORMANCEThe neat aesthetics of the Strix B760-A were no distraction when crafting this motherboard’s power delivery and thermal arrays. You’ll get a fully fledged gaming experience and then some with this beast.VRM HEATSINK ARRAYCovering the power solution are two thick heatsinks with strategic airflow channels for increased heat dissipation while powering high-performance Intel 13th Gen processors.LEADING CONNECTIVITYThe Strix B760-A is entirely well-connected with high-speed wireless and wired networking, a plethora of USB I/O, and SupremeFX audio to pump crystal-clear sound through speakers or headphones for enhanced immersion.SUPREMEFXROG SupremeFX is a unique blend of hardware and software technologies that provide superior audio. The Strix B760-A implementation features the ALC4080 codec for high-resolution playback up to 32-bit/384 kHz across all channels. Front-panel output is streamed through the integrated Savitech amplifier that can drive high-fidelity acoustics to a wide variety of speakers and headsets.PLAY IN STYLEBold aesthetics and Aura Sync RGB controls let the ROG Strix B760-A shine in every build.UNDENIABLY ROG STRIXDiagonal slats, brushed aluminum, and bold RGB have become hallmarks of the ROG aesthetic, and the Strix B760-A bears all of them with pride. Its white, silver, and black color scheme pairs well with both dark and lighter-colored components. 8-bit accents show some gaming pride.SOFTWARE UTILITIESA myriad of ROG-exclusive tools put advanced system tuning and configuration at your fingertips.
LongProductName - Intel B760, 4 x DIMM slots, Max. 128GB, DDR5, 2.5Gb Ethernet, 802.11 a/b/g/n/ac/ax, 256 Mb Flash ROM, UEFI AMI BIOS, ATX
LongSummaryDescription - ASUS ROG STRIX B760-A GAMING WIFI. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™.... Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 6E (802.11ax), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E.... Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: Intel
M.2 Expansion slots - 3
Manufacturer - Asus
Manufacturer_code - 90MB1EP0-M1EAY0
Memory - ECC сompatibility - Non-ECC
Memory - Maximum internal memory - 192 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 4
Memory - Supported memory clock speed (max) - 7800 MHz
Memory - Supported memory clock speeds - 7800,7600,7400,7200,7000,6800,6600,6400,6200,6000,5800,5600,5400,5200,5000,4800 MHz
Memory - Supported memory types - DDR5-SDRAM
Memory - Unbuffered memory - Yes
Memory slots - 4
Memory type - DDR5
Model - ROG STRIX B760-A GAMING WIFI
name - ASUS ROG Strix B760-A Gaming WIFI, Intel B760 Mainboard, Sockel 1700, DDR5
Name - ASUS ROG STRIX B760-A GAMING WIFI, Mainboard (dark grey/silver) - 1700
Name - Asus | ROG STRIX B760-A GAMING WIFI | Processor family Intel | Processor socket LGA1700
Network - Bluetooth - Yes
Network - Bluetooth version - 5.3
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Top Wi-Fi standard - Wi-Fi 6E (802.11ax)
Network - Wi-Fi - Yes
Network - Wi-Fi standards - 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Packaging content - Cables included - SATA
PCI-Express 3.0 1x Expansion slots - 2
PCI-Express 3.0 16x Expansion slots - 1
PCI-Express 5.0 16x Expansion slots - 1
Processor - Compatible processor series - Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1700
Processor - Supported processor sockets - LGA 1700
Processor > Processor family - Intel
Processor > Processor socket - LGA1700
Producer product name - ROG STRIX B760-A GAMING WIFI
ProductName - ROG STRIX B760-A GAMING WIFI
RAID - SATA 0, 1, 5, 10
Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - DisplayPort version - 1.4
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - HDMI version - 2.1
Rear panel I/O ports - Headphone outputs - 1
Rear panel I/O ports - Line-in - Yes
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - USB 2.0 ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity - 1
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 1
Rear panel I/O ports - USB 3.2 Gen 2x2 Type-C ports quantity - 1
RJ45 Input/Output connectors - 1
SATA Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 37 cm
Shipping Box Height Shipping/Package Box Dimensions - 30 cm
Shipping box quantity - 4
Shipping Box Weight Shipping/Package Box Dimensions - 9.1 kg
Shipping Box Width Shipping/Package Box Dimensions - 30 cm
ShortSummaryDescription - ASUS ROG STRIX B760-A GAMING WIFI, Intel, LGA 1700, Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™..., LGA 1700, DDR5-SDRAM, 192 GB
Socket - LGA1700
Storage controllers - Number of HDDs supported - 4
Storage controllers - Number of storage drives supported - 7
Storage controllers - RAID levels - 0, 1, 5, 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Technical details > Producer - Asus, Asus
Title - ASUS ROG STRIX B760-A GAMING WIFI Intel B760 LGA 1700 ATX
Unit Box Height - 0.27
Unit Box Length - 0.355
Unit Box Width - 0.07
Unit Brutto Volume - 0.008325 cubm
Unit Gross Weight - 2.27 kg
Unit Net Weight - 1.4 kg
URL - https://rog.asus.com/motherboards/rog-strix/rog-strix-b760-a-gaming-wifi/
USB-C Input/Output connectors - 2
USB 2.0 Input/Output connectors - 4
USB 2.0 Interface - Yes
USB 3.2 Input/Output connectors - 3
USB 3.2 Interface - Yes
Vendor Homepage - rog.asus.com/motherboards/rog-strix/rog-strix-b760-a-gaming-wifi/
Warranty - 36
Warranty - 36 month(s)
Warranty - 36 months
WarrantyInfo -
Weight - 2,10
Weight & dimensions - Depth - 244 mm
Weight & dimensions - Width - 305 mm
WiFi Interface - Yes
BIOS - BIOS memory size - 256 Mbit
BIOS - BIOS type - UEFI AMI
Bluetooth Interface - Yes
Brand - ASUS
BrandPartCode - 90MB1EP0-M1EAY0
Category - Motherboards
category - PC Components|Mainboards|Intel Mainboards|Sockel 1700
Category Code - MBI
Category_1 - Motherboards
Category_2 - Motherboards - Intel 1700
Chipset - Intel B760 Express
CnCode CnCode - 84733020
code - 90MB1EP0-M1EAY0
Code - 90MB1EP0-M1EAY0
Description - ROG STRIX B760-A GAMING WIFI Just like its formidable sibling, the ROG Strix B760-A Gaming WiFi dishes up a vibrant take on the latest Intel platform, with PCIE 5.0, USB 3.2 GEN 2x2, and cyber-inspired ROG motifs emblazoned on a high-contrast backdrop. But this variant features DDR5, bringing even more bandwidth to the table for games and apps.
DisplayPort Input/Output connectors - 1
EAN -
ean - 4711387114063
EAN_code - 4711387114063
Expansion slots - Number of M.2 (M) slots - 3
Expansion slots - PCI Express x1 (Gen 3.x) slots - 2
Expansion slots - PCI Express x16 (Gen 3.x) slots - 1
Features - Audio chip - Realtek ALC4080
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Motherboard chipset - Intel B760
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - ATX
Features - Windows operating systems supported - Windows 10 x64, Windows 11
Form Factor - ATX
Frequency speed - 4800/5000/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000/7200/7400/7600/7800 MHz
Full Description Line - Intel B760 Express|LGA1700|ATX|DDR5|7800/7600/7400/7200/7000/6800/6600/6400/6200/6000/5800/5600/5400/5200/5000/4800 MHz|Memory slots 4|2xPCI-Express 3.0 1x|1xPCI-Express 3.0 16x|1xPCI-Express 5.0 16x|3xM.2|1xHDMI|1xDisplayPort|4xUSB 2.0|3xUSB 3.2|2xUSB-C|1xRJ45|5xAudio port|SATA|USB 2.0|USB 3.2|Bluetooth|WiFi|Video Depending on CPU|LAN 2.5 Gigabit|Audio Realtek ALC4080|RAID SATA 0, 1, 5, 10
Graphics - Parallel processing technology support - Not supported
GTIN - 4711387114063
HDMI Input/Output connectors - 1
Integrated audio - Realtek ALC4080
Integrated LAN - 2.5 Gigabit
Integrated video - Depending on CPU
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Number of chassis fan connectors - 4
Internal I/O - Number of SATA III connectors - 4
Internal I/O - Peripheral (Molex) power connectors (4-pin) - 1
Internal I/O - RGB LED pin header - Yes
Internal I/O - S/PDIF out connector - Yes
Internal I/O - Thunderbolt headers - 1
Internal I/O - USB 2.0 connectors - 1
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1
Internal I/O - USB 3.2 Gen 2 (3.1 Gen 2) connectors - 1
LongDesc - ROG STRIX B760-A GAMING WIFIJust like its formidable sibling, the ROG Strix B760-A Gaming WiFi dishes up a vibrant take on the latest Intel platform, with PCIE 5.0, USB 3.2 GEN 2x2, and cyber-inspired ROG motifs emblazoned on a high-contrast backdrop. But this variant features DDR5, bringing even more bandwidth to the table for games and apps.M.2 Q-LATCHThe innovative Q-Latch makes it easy to install or remove an SSD from an M.2 slot. The design employs a simple locking mechanism to secure the drive, eliminating the need for a traditional screw.ALL-ROUND PERFORMANCEThe neat aesthetics of the Strix B760-A were no distraction when crafting this motherboard’s power delivery and thermal arrays. You’ll get a fully fledged gaming experience and then some with this beast.VRM HEATSINK ARRAYCovering the power solution are two thick heatsinks with strategic airflow channels for increased heat dissipation while powering high-performance Intel 13th Gen processors.LEADING CONNECTIVITYThe Strix B760-A is entirely well-connected with high-speed wireless and wired networking, a plethora of USB I/O, and SupremeFX audio to pump crystal-clear sound through speakers or headphones for enhanced immersion.SUPREMEFXROG SupremeFX is a unique blend of hardware and software technologies that provide superior audio. The Strix B760-A implementation features the ALC4080 codec for high-resolution playback up to 32-bit/384 kHz across all channels. Front-panel output is streamed through the integrated Savitech amplifier that can drive high-fidelity acoustics to a wide variety of speakers and headsets.PLAY IN STYLEBold aesthetics and Aura Sync RGB controls let the ROG Strix B760-A shine in every build.UNDENIABLY ROG STRIXDiagonal slats, brushed aluminum, and bold RGB have become hallmarks of the ROG aesthetic, and the Strix B760-A bears all of them with pride. Its white, silver, and black color scheme pairs well with both dark and lighter-colored components. 8-bit accents show some gaming pride.SOFTWARE UTILITIESA myriad of ROG-exclusive tools put advanced system tuning and configuration at your fingertips.
LongProductName - Intel B760, 4 x DIMM slots, Max. 128GB, DDR5, 2.5Gb Ethernet, 802.11 a/b/g/n/ac/ax, 256 Mb Flash ROM, UEFI AMI BIOS, ATX
LongSummaryDescription - ASUS ROG STRIX B760-A GAMING WIFI. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™.... Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 6E (802.11ax), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E.... Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: Intel
M.2 Expansion slots - 3
Manufacturer - Asus
Manufacturer_code - 90MB1EP0-M1EAY0
Memory - ECC сompatibility - Non-ECC
Memory - Maximum internal memory - 192 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 4
Memory - Supported memory clock speed (max) - 7800 MHz
Memory - Supported memory clock speeds - 7800,7600,7400,7200,7000,6800,6600,6400,6200,6000,5800,5600,5400,5200,5000,4800 MHz
Memory - Supported memory types - DDR5-SDRAM
Memory - Unbuffered memory - Yes
Memory slots - 4
Memory type - DDR5
Model - ROG STRIX B760-A GAMING WIFI
name - ASUS ROG Strix B760-A Gaming WIFI, Intel B760 Mainboard, Sockel 1700, DDR5
Name - ASUS ROG STRIX B760-A GAMING WIFI, Mainboard (dark grey/silver) - 1700
Name - Asus | ROG STRIX B760-A GAMING WIFI | Processor family Intel | Processor socket LGA1700
Network - Bluetooth - Yes
Network - Bluetooth version - 5.3
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Top Wi-Fi standard - Wi-Fi 6E (802.11ax)
Network - Wi-Fi - Yes
Network - Wi-Fi standards - 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Packaging content - Cables included - SATA
PCI-Express 3.0 1x Expansion slots - 2
PCI-Express 3.0 16x Expansion slots - 1
PCI-Express 5.0 16x Expansion slots - 1
Processor - Compatible processor series - Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1700
Processor - Supported processor sockets - LGA 1700
Processor > Processor family - Intel
Processor > Processor socket - LGA1700
Producer product name - ROG STRIX B760-A GAMING WIFI
ProductName - ROG STRIX B760-A GAMING WIFI
RAID - SATA 0, 1, 5, 10
Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - DisplayPort version - 1.4
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - HDMI version - 2.1
Rear panel I/O ports - Headphone outputs - 1
Rear panel I/O ports - Line-in - Yes
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - USB 2.0 ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity - 1
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 1
Rear panel I/O ports - USB 3.2 Gen 2x2 Type-C ports quantity - 1
RJ45 Input/Output connectors - 1
SATA Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 37 cm
Shipping Box Height Shipping/Package Box Dimensions - 30 cm
Shipping box quantity - 4
Shipping Box Weight Shipping/Package Box Dimensions - 9.1 kg
Shipping Box Width Shipping/Package Box Dimensions - 30 cm
ShortSummaryDescription - ASUS ROG STRIX B760-A GAMING WIFI, Intel, LGA 1700, Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™..., LGA 1700, DDR5-SDRAM, 192 GB
Socket - LGA1700
Storage controllers - Number of HDDs supported - 4
Storage controllers - Number of storage drives supported - 7
Storage controllers - RAID levels - 0, 1, 5, 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Technical details > Producer - Asus, Asus
Title - ASUS ROG STRIX B760-A GAMING WIFI Intel B760 LGA 1700 ATX
Unit Box Height - 0.27
Unit Box Length - 0.355
Unit Box Width - 0.07
Unit Brutto Volume - 0.008325 cubm
Unit Gross Weight - 2.27 kg
Unit Net Weight - 1.4 kg
URL - https://rog.asus.com/motherboards/rog-strix/rog-strix-b760-a-gaming-wifi/
USB-C Input/Output connectors - 2
USB 2.0 Input/Output connectors - 4
USB 2.0 Interface - Yes
USB 3.2 Input/Output connectors - 3
USB 3.2 Interface - Yes
Vendor Homepage - rog.asus.com/motherboards/rog-strix/rog-strix-b760-a-gaming-wifi/
Warranty - 36
Warranty - 36 month(s)
Warranty - 36 months
WarrantyInfo -
Weight - 2,10
Weight & dimensions - Depth - 244 mm
Weight & dimensions - Width - 305 mm
WiFi Interface - Yes
