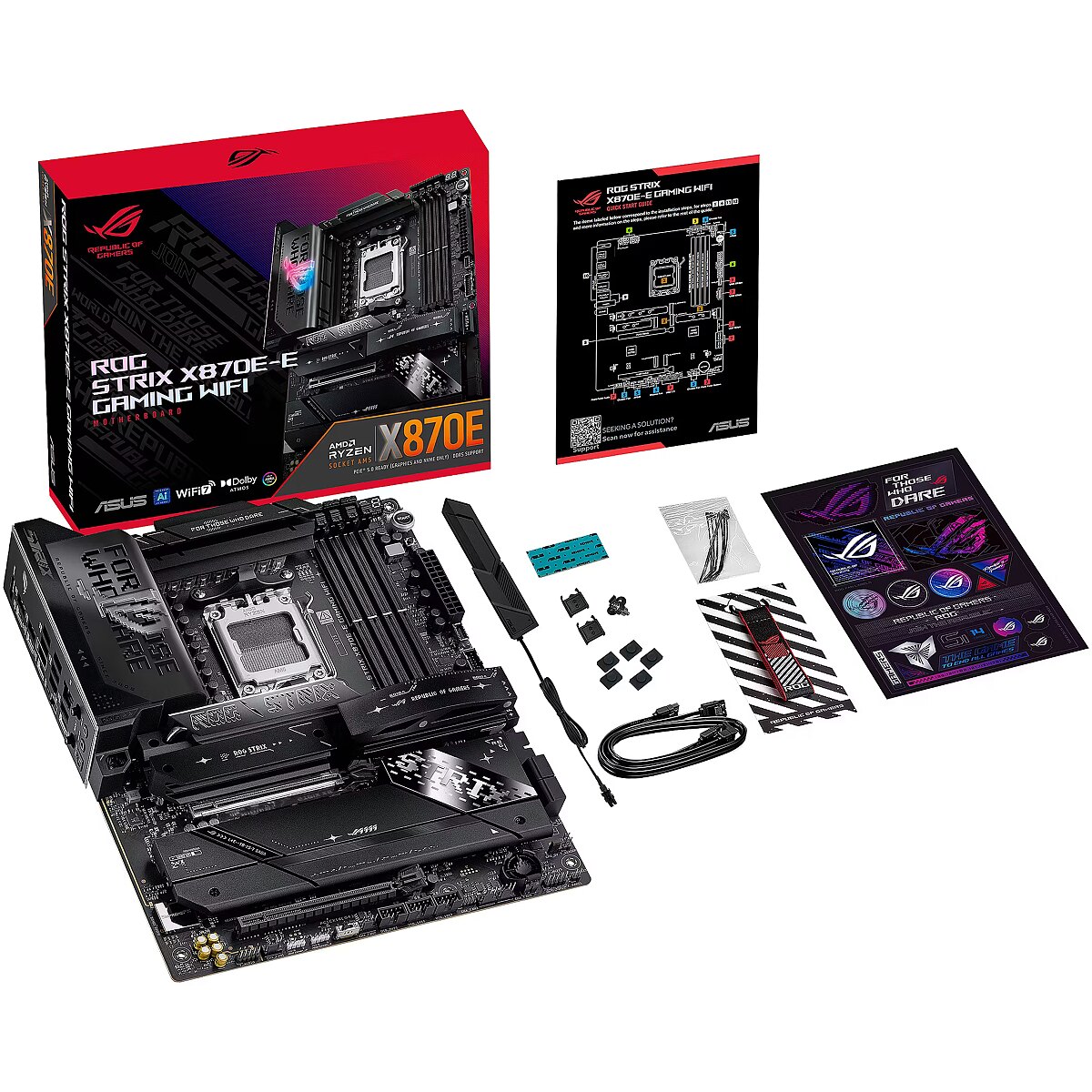

Accessories included - Kable 2 x kable SATA 6Gb/s Dodatkowy zestaw chłodzący 1 x podkładka termiczna do M.2 22110 Inne 1 x ruchome anteny ASUS Wi-Fi 1 x zestaw opasek kablowych 1 x pakiet M.2 Q-Latch 2 x M.2 Q-Slides 1 x brelok ROG 1 x naklejki ROG Strix 5 x gumki M.2 Dokumentacja 1 x skrócona instrukcja obsługi
BIOS - 256 Mb Flash ROM, UEFI AMI BIOS
BIOS - BIOS memory size - 256 Mbit
BIOS - BIOS type - UEFI AMI
BIOS - Clear CMOS button - Yes
Brand - ASUS
BrandPartCode - 90MB1IB0-M0EAY0
Category - Motherboards
category - PC Components|Mainboards|AMD Mainboards|Socket AM5
Category - Root/Electronics/PC parts/Motherboards
Category Code - MBA
Chipset - AMD X870E
Chipset manufacturer - AMD
Chipset type - AMD X870E
code - 90MB1IB0-M0EAY0
COM connector / port - No
CPU socket - Socket AM5
Description - Płyta główna ROG Strix X870E-E Gaming WiFi została zaprojektowana tak, aby wykorzystać pełen potencjał procesorów AMD Ryzen serii 9000. Dzięki obsłudze PCIe 5.0, AI Overclocking, AI Cooling II, AI Networking II i AEMP konfiguracja jest uproszczona, a wydajność jest zmaksymalizowana. Dwa porty USB4 typu C i WiFi 7 z Realtek 5Gb Ethernet zapewniają łączność najwyższej klasy, a solidne radiatory utrzymują dyski M.2 w chłodzie przy dużym obciążeniu. Ta płyta główna nie tylko spełnia wymagania gier i profesjonalnych aplikacji, ale także zapewnia moc i łączność niezbędne do zaawansowanych aplikacji AI PC.
Description - The ROG Strix X870E-E Gaming WiFi is engineered to harness the full potential of AMD Ryzen 9000 Series processors. Featuring PCIe 5.0 support, AI Overclocking, AI Cooling II, AI Networking II, and AEMP, setup is streamlined while performance is maximized. Dual USB4 Type-C ports and WiFi 7 with Realtek 5Gb Ethernet ensure top-tier connectivity, while robust heatsinks keep M.2 drives cool under heavy loads. This motherboard not only meets the demands of gaming and professional applications but also delivers the power and connectivity essential for advanced AI PC applications.
Detailed data on disk/drive interfaces - Łącznie obsługuje 5 gniazd M.2 i 4 porty SATA 6 Gb/s*
Procesory stacjonarne AMD Ryzen serii 9000, 8000 i 7000 Gniazdo M.2_1 (klucz M), typ 2242/2260/2280 (obsługuje tryb PCIe 5.0 x4) Gniazdo M.2_2 (klucz M), typ 2242/2260/2280 (obsługuje tryb PCIe 5.0 x4)** Gniazdo M.2_3 (klucz M), typ 2242/2260/2280/22110 (obsługuje tryb PCIe 5.0 x4)** Chipset AMD X870E Gniazdo M.2_4 (klucz M), typ 2280 (obsługuje tryb PCIe 4.0 x4) Gniazdo M.2_5 (klucz M), typ 2280 (obsługuje tryb PCIe 4.0 x4) 4 porty SATA 6 Gb/s *Technologia AMD RAIDXpert2 obsługuje zarówno PCIe RAID 0/1/5/10, jak i SATA RAID 0/1/5/10. Funkcja RAID 5 jest obsługiwana tylko przez procesory AMD Ryzen serii 9000.
** Gniazda M.2_2 i M.2_3 współdzielą przepustowość z PCIEX16(G5). Gdy gniazda M.2_2 i M.2_3 są zajęte przez urządzenia SSD, PCIEX16(G5) będzie działać tylko w trybie x8.
dimensionalWeight - 7517
dimension depth - 90 mm
dimension height - 290 mm
Dimensions - 30.5 x 24.4 cm
dimension weight - 2870 g
dimension width - 360 mm
ean - 4711387724163
Eans - 4711387724163
Expansion slots - 1 x PCIe 4.0 x 16
Expansion slots - 1 x PCIe 5.0 x 16
Expansion slots - Number of M.2 (M) slots - 5
Expansion slots - PCI Express x16 (Gen 4.x) slots - 1
Expansion slots - PCI Express x16 (Gen 5.x) slots - 1
External connectors - 1 x Flash BIOS Button
External connectors - 1 x HDMI
External connectors - 1 x Line Out
External connectors - 1 x MIC
External connectors - 1 x Przycisk Clear CMOS
External connectors - 1 x RJ-45
External connectors - 1 x S/PDIF
External connectors - 2 x SMA
External connectors - 2 x USB 3.1 Type-C
External connectors - 2 x USB4 Type-C
Features - Audio chip - Realtek ALC4080
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Motherboard chipset - AMD X870E
Features - Motherboard chipset family - AMD
Features - Motherboard form factor - ATX
Features - Product colour - Black
Features - Windows operating systems supported - Windows 11 x64
FireWire (IEEE 1394) - No
Form Factor - ATX
Form factor - ATX
Frequency speed - 8400 MHz
Full Description Line - AMD X870E|SAM5|ATX|DDR5|8400 MHz|Memory slots 4|1xPCI-Express 4.0 16x|1xPCI-Express 5.0 16x|5xM.2|1xHDMI|9xUSB 3.2|2xUSB-C|2xUSB4|1xOptical S/PDIF|SATA|USB 2.0|USB 3.2|SATA 3.0|Video|Audio Realtek ALC4082|LAN 5 Gigabit|RAID SATA 0, 1, 5, 10
Graphics - 1 x port HDMI 2 x porty USB4 (40 Gb/s) obsługują wyjścia wyświetlacza USB typu C
Graphics - On-board graphics card - No
Graphics - Parallel processing technology support - Not supported
GTIN - 4711387724163
guarantee - 36
guarantee_type - normal
HDMI Input/Output connectors - 1
Integrated audio - Realtek ALC4082
Integrated CPU - No
Integrated LAN - 5 Gigabit
Integrated video - Yes
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Number of chassis fan connectors - 5
Internal I/O - Number of SATA III connectors - 4
Internal I/O - USB 2.0 connectors - 3
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 2
Internal I/O - USB 3.2 Gen 2x2 connectors - 1
LongDesc - ASUS AI INTELLIGENCEai OVERCLOCKINGASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits.AI Overclockingai cOOLING IIBalance the thermals and acoustics of any build with a single click.AI NETWORKING IIAI Networking II combines intelligent technologies to continuously optimize network performance, provide trustworthy and seamless connectivity, and unleash the full speed of WiFi 7*.PerformanceOVERCLOCKINGDynamic OC SwitcherDynamic OC Switcher maximizes CPU performance by letting you set current and temperature thresholds to automatically switch between a manual overlock for heavy multithreaded workloads and Precision Boost Overdrive for single-threaded tasks. The latest Overclocking Load Guard has an enhanced instantaneous current protection mechanism to prevent users from experiencing system crashes during overclocking.
LongProductName - AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors, AMD X870E
LongSummaryDescription - ASUS ROG STRIX X870E-E GAMING WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5, Supported processor sockets: Socket AM5. Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10, 5. Ethernet interface type: 5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi standards: Wi-Fi 7 (802.11be). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: AMD
LPT connector / port - No
M.2 Expansion slots - 5
Max. number of ATA devices - 0
Max. number of SATA devices - 4
Max memory size - 192 GB
Memory - ECC - Yes
Memory - Maximum internal memory - 192 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Non-ECC - Yes
Memory - Number of memory slots - 4
Memory - Supported memory types - DDR5-SDRAM
Memory - Unbuffered memory - Yes
Memory slots - 4
Memory type - DDR5
Memory type - DDR5
Model - ROG Strix X870E-E Gaming
Model - ROG STRIX X870E-E GAMING WIFI
Name - ASUS ROG STRIX X870E-E GAMING WIFI
name - ASUS ROG Strix X870E-E Gaming WiFi Mainboard, AMD X870E, Sockel AM5, DDR5
name - ROG STRIX X870E-E GAMIN G WIFI DDR5 HDMI/USB-C
Network - Bluetooth - Yes
Network - Bluetooth version - 5.4
Network - Ethernet interface type - 5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Top Wi-Fi standard - Wi-Fi 7 (802.11be)
Network - Wi-Fi - Yes
Network - Wi-Fi standards - Wi-Fi 7 (802.11be)
Network interface - Bluetooth
Network interface - Wi-Fi 7 2x2 Wi-Fi 7 (802.11be) Obsługuje pasmo częstotliwości 2,4/5/6 GHz Obsługuje pasmo Wi-Fi 7 320 MHz, do 6,5 Gb/s szybkości transferu. Bluetooth v5.4
Network interface - Wi-Fi 802.11a/b/g/n/ac/ax/be
Number of DDR5 slots - 4
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 10
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 0
Onboard connectors - 1 x 4pin CPU fan
Onboard connectors - 1 x 4pin wentylator OPT CPU
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x USB C
Onboard connectors - 2 x 8pin 12V
Onboard connectors - 2 x USB 3.0 header
Onboard connectors - 3 x USB 2.0/1.1 header
Onboard connectors - 4 x SATA III 6Gb/s
Onboard connectors - 5 x M.2
Optical S/PDIF Input/Output connectors - 1
Other features - Weight - 2.06 kg
Other information -
Packaging content - Cables included - SATA
Packaging data - Package depth - 281 mm
Packaging data - Package height - 87 mm
Packaging data - Package weight - 3.02 kg
Packaging data - Package width - 365 mm
PCI-Express 4.0 16x Expansion slots - 1
PCI-Express 5.0 16x Expansion slots - 1
Processor - Processor manufacturer - AMD
Processor - Processor socket - Socket AM5
Processor - Supported processor sockets - Socket AM5
Processor family - AMD Ryzen
producer - Asus
Producer - Asus
producerCode - 90MB1IB0-M0EAY0
ProducerCode - ROG STRIX X870E-E GAMING WIFI
productName - ASUS ROG STRIX X870E-E GAMING WIFI AMD X870E Socket AM5 ATX
ProductName - ROG STRIX X870E-E GAMING WIFI
productSize - Normal
RAID - SATA 0, 1, 5, 10
RAID - Yes

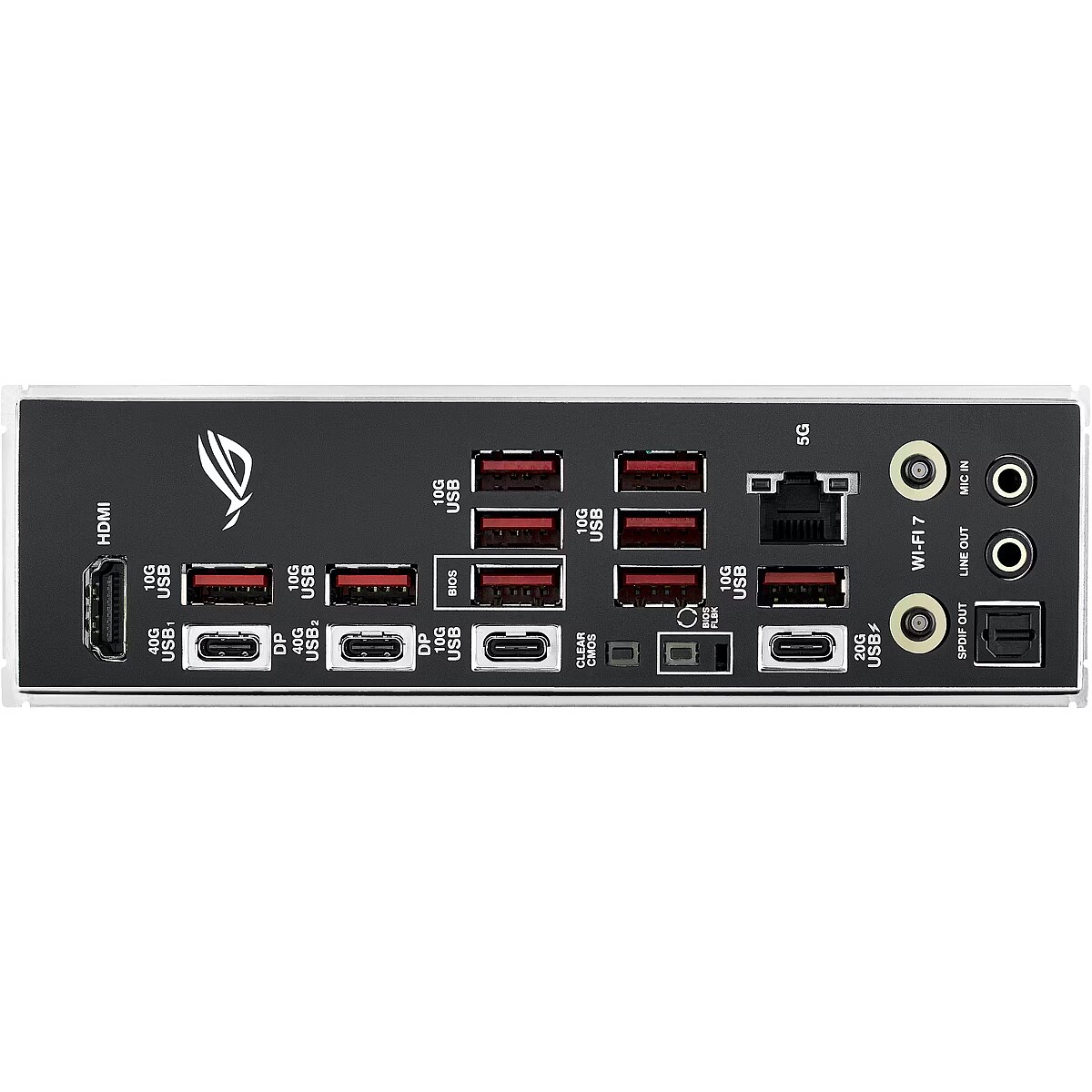

Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - Headphone outputs - 1
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - S/PDIF out port - Yes
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 9
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity - 1
Rear panel I/O ports - USB 3.2 Gen 2x2 Type-C ports quantity - 1
Rear panel I/O ports - USB4 Gen 2x2 ports quantity - 2
Rear panel I/O ports - WiFi-AP antenna jack - 1
SATA 3.0 Interface - Yes
SATA Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 46.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 31 cm
Shipping box quantity - 5
Shipping Box Weight Shipping/Package Box Dimensions - 15.3 kg
Shipping Box Width Shipping/Package Box Dimensions - 38 cm
ShortDescription - Socket AM5 | Chipset AMD X870E | DDR5
ShortSummaryDescription - ASUS ROG STRIX X870E-E GAMING WIFI, AMD, Socket AM5, Socket AM5, DDR5-SDRAM, 192 GB, DIMM
sizeX - 526
sizeY - 287
sizeZ - 249
Socket - SAM5
Software -
Sound card - ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 Czujnik impedancji dla przednich i tylnych wyjść słuchawkowych Obsługuje: wykrywanie gniazda, przesyłanie strumieniowe, zmianę przeznaczenia gniazda mikrofonowego na przednim panelu Wysokiej jakości wyjście odtwarzania stereo SNR 120 dB i wejście nagrywania SNR 110 dB Obsługuje odtwarzanie do 32-bitów/384 kHz Funkcje audio: Ekranowanie audio Wzmacniacz Savitech SV3H712 Pozłacane gniazda audio Tylny optyczny port wyjściowy S/PDIF Kondensatory audio klasy premium Osłona audio
Special functions - Extreme Engine Digi+ 5K Black Metallic Capacitors ASUS Q-Design M.2 Q-Latch M.2 Q-Release M.2 Q-Slide PCIe Slot Q-Release Slim (with PCIe SafeSlot) Q-Antenna Q-Code Q-Dashboard Q-DIMM Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) Q-Slot ASUS Thermal Solution M.2 heatsinks M.2 heatsink backplate VRM heatsink design ASUS EZ DIY BIOS FlashBack button BIOS FlashBack LED Clear CMOS button ProCool II Pre-mounted I/O shield SafeSlot SafeDIMM Aura Sync Addressable Gen 2 headers
Storage controllers - Number of HDDs supported - 4
Storage controllers - Number of storage drives supported - 9
Storage controllers - RAID levels - 0
Storage controllers - RAID levels - 0, 1, 10, 5
Storage controllers - RAID levels - 1
Storage controllers - RAID levels - 5
Storage controllers - RAID levels - 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Supported operating systems - Windows 11
Title - ASUS ROG STRIX X870E-E GAMING WIFI AMD X870E Socket AM5 ATX
Unit Box Height - 0.09
Unit Box Length - 0.36
Unit Box Width - 0.282
Unit Brutto Volume - 0.01096 cubm
Unit Gross Weight - 3.06 kg
Unit Net Weight - 2.2 kg
URL - https://rog.asus.com/motherboards/rog-strix/rog-strix-x870e-e-gaming-wifi/
USB-C Input/Output connectors - 2
USB 2.0 Interface - Yes
USB 3.2 Input/Output connectors - 9
USB 3.2 Interface - Yes
USB4 Input/Output connectors - 2
USB ports at back panel - 13
USB ports on motherboard - 10
Vendor Homepage - rog.asus.com/motherboards/rog-strix/rog-strix-x870e-e-gaming-wifi/
vendpn - ROG STRIX X870E-E GAMING WIFI
Warranty - 36 months
WarrantyInfo -
warrantyLength - 36
warrantyType - G
weight - 2872
Weight & dimensions - Depth - 244 mm
Weight & dimensions - Height - 50 mm
Weight & dimensions - Width - 305 mm
