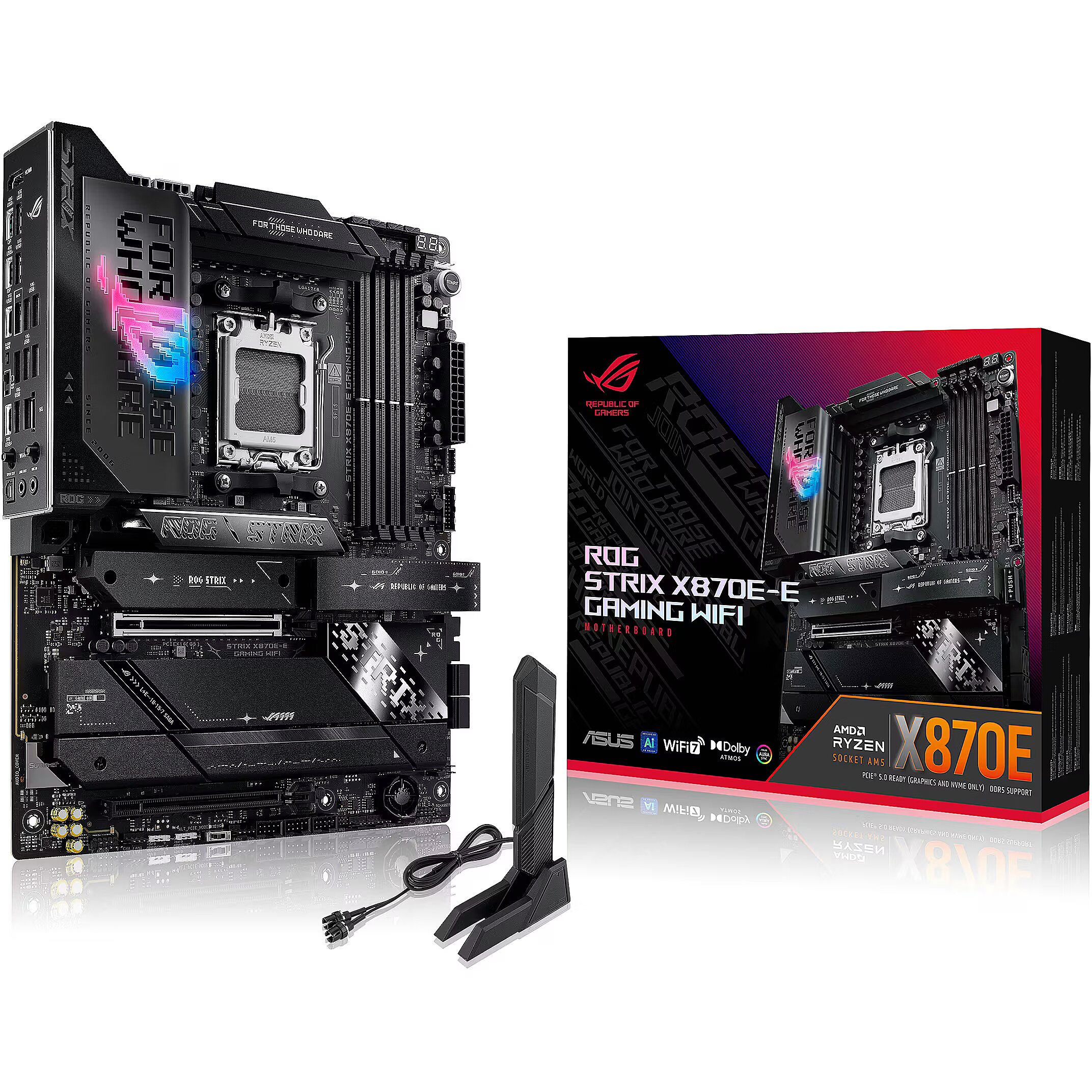

Asus ROG STRIX X870E-E GAMING WIFI

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 1147007 Product code: 90MB1IB0-M0EAY0
In stock 16 units
Warranty: 3 years
616.91 €
Delivery options More about shipping
  • Delivery to Smartpost free of charge: 29.11.2024
  • Delivery to Omniva parcel machine free of charge: 29.11.2024
  • Piegāde uz DPD Pickup Paku Skapi free of charge: 29.11.2024
  • Delivery to Latvian post office, parcel locker or Circle K free of charge: 29.11.2024
  • Delivery to address in Riga 3.99 €: 29.11.2024
  • Delivery to address in Latvia 6.99 €: 29.11.2024
  • Delivery to Dateks.lv parcel drop-off point at 9 Zemitāna Street: on Wednesday, 27.11.2024 after 15:00
Main product parameters All parameters
  • Series: ASUS ROG Strix
  • Plate size: ATX
  • Chipset: AMD X870E
  • Socket: AM5
  • Type: DDR5
  • RAM Slots: 4
  • Built-in Wi-Fi: Ir
  • M.2 ports: 5
Basic information
Series : ASUS ROG Strix
Plate size ATX

The physical size of the motherboard. Dateks.lv offers ATX (full size board), mATX (micro ATX) (a board of reduced size) and miniATX size motherboards. Within the housing of an ATX size computer it is possible to place both ATX and mATX motherboard, however, in the mATX housing it is not possible to place an ATX board.

The ATX board has at least 3 memory slots and at least 5 local slots PCI, which means that a well functioning powerful computer can be built on this board. However, a home or office computer does not need this high number of slots, therefore also microATX will be suitable.

The connector of the power supply unit of the motherboard is the power source socket which are currently of ATX and ATX2.0 standard. ATX is an older standard with a 20pin connector (20 "pins"), and ATX2.0 has 4 additional pins (20+4). The motherboards of ATX standard can operate with a ATX2.0 power supply unit (PSU), however the mother board of ATX2.0 standard requires an ATX2.0 power supply unit.

Form-factor is rather a recommendation. However, prior to buying a mother board you should verify the compatibility of the housing size to the motherboard size and its power supply connector.

Chipset AMD X870E

The chip bus is the most important criterion of selecting the motherboard (the system logic chips or the voltage transformers). The chip bus determines the CPUs, memory ports and other parameters that are supported by the motherboard.

Each chipset is directly related to a certain CPU platform which are divided based upon the family of CPUs or the connection point of the CPU.

For verifying which chip bus is suitable for your CPU, etc. you should ask our managers.
Socket AM5
The CPU socket is an important factor in selecting the board; the CPU board must be exactly compatible with the CPU that you want to install with the board. Irrespective of the fact that the CPU fits the socket of the motherboard also the support of this CPU has to be taken into account. For verifying which CPUs are supported by the selected motherboard you should visit the website of the manufacturer of the motherboard, find the CPU support section of the relevant motherboard and verify that the specification of this particular board provides for the support of the CPU that you have selected.
Random-access memory (RAM)
Type : DDR5
RAM Slots 4
The number of available memory slots indicates the number of memory modules (plates) that can be installed in the motherboard.
Memory support DDR5 5600MT/s (8000MT/s OC)

The RAM bus determines what type of RAM is supported by the relevant motherboard.

The bus marking contains the memory type DDRII or DDRIII as well as the maximum memory clock frequency that is supported by the mother board. The type of memory is the most important index, memories of different types are physically different, therefore DDRIII memory cannot be connected to the mother board that supports DDRII memory (except the cases when the motherboard supports both types of memory). However the motherboard that support 800Mhz DDRII memory can work with the memory speeds of DDII667 and DDRII533. The mother board with the memory bus speed below the speed of the memory module will be able to operate as fast as the specified bus speed only, i.e. if the memory bus of the motherboard is DDRII667 and the memory DDRII800 is installed it will operate with the speed of DDRII667.

Graphics card
VGA Port PCI-EXPRESS
VGA port or the video card plug. The VGA port must comply with the specification of the video card port you have selected. Older video cards have an AGP port, new cards are manufacturer with a PCI-EXPRESS (PCI-X) port.AGP and PCI-Xpress video cards are not mutually compatible. Prior to buying the motherboard you should verify the compliance of the video card port of both the motherboard and the video card.
Integrated graphics Only with iGPU-ready APU

The parameter that determines whether a video card has been integrated with the motherboard. An integrated video card is suitable for working with the office software, Internet, watching films and playing simple games. If you wish to use graphics applications, play 3D games and watch 3D animations you would need an additional video card.

An integrated video card uses a fraction of the memory included in the mother board, therefore, if your motherboard has 1Gb memory and in the settings of the video card of the mother board it is stated that it takes 256mb the operating system will display the available memory volume of approximately 700 Mb.
Prior to buying a motherboard with a built-in video card you should verify whether it has an additional video card port for further upgrades if these are required

Ports and equipment
D-Sub : 0
DisplayPort : 0
DVI : 0
HDMI : 1
Integrated sound card : Realtek ALC4080
PCI Ports 0
PCI ports present the most popular way of supplementing the computer functions with additional cards (sound, network, communications, video surveillance, etc.). Newer boards, thanks to the PCI-Express standard, have a small number of PCI extension ports, therefore, prior to buying the motherboard you should verify if the number of PCI ports allows the connection of all the PCI cards you need.
Wireless connections
Built-in Bluetooth : Ir
Built-in Wi-Fi : Ir
External ports
External USB 2.0 : Nav
External USB Type-C (USB 3.2 Gen2) : 1
External USB Type-C (USB 4.0) : 2
External USB 3.0 (USB 3.2 Gen1) : 0
External USB 3.1 (USB 3.2 Gen2) : 9
Internal ports
Internal A-RGB 5V (3-pin) : 3
Internal RGB 12V (4-pin) : 0
Internal USB 2.0 : 3
Internal USB 3.0 : 2
Internal USB Type-C : 1
M.2 ports : 5
SATA3 ports : 4
Power supply units (PSU)
More detailed specification
Additional information in manufacturers website Asus ROG STRIX X870E-E GAMING WIFI
Accessories included - Kable 2 x kable SATA 6Gb/s Dodatkowy zestaw chłodzący 1 x podkładka termiczna do M.2 22110 Inne 1 x ruchome anteny ASUS Wi-Fi 1 x zestaw opasek kablowych 1 x pakiet M.2 Q-Latch 2 x M.2 Q-Slides 1 x brelok ROG 1 x naklejki ROG Strix 5 x gumki M.2 Dokumentacja 1 x skrócona instrukcja obsługi
BIOS - 256 Mb  Flash ROM, UEFI AMI BIOS
BIOS - BIOS memory size - 256 Mbit
BIOS - BIOS type - UEFI AMI
BIOS - Clear CMOS button - Yes
Brand - ASUS
BrandPartCode - 90MB1IB0-M0EAY0
Category - Motherboards
category - PC Components|Mainboards|AMD Mainboards|Socket AM5
Category - Root/Electronics/PC parts/Motherboards
Category 1 - Mainboards & Zubehör
Category 2 - Mainboards - AMD
Category Code - MBA
Chipset - AMD X870E
Chipset manufacturer - AMD
Chipset type - AMD X870E
code - 90MB1IB0-M0EAY0
COM connector / port - No
CPU socket - Socket AM5
Description - Płyta główna ROG Strix X870E-E Gaming WiFi została zaprojektowana tak, aby wykorzystać pełen potencjał procesorów AMD Ryzen serii 9000. Dzięki obsłudze PCIe 5.0, AI Overclocking, AI Cooling II, AI Networking II i AEMP konfiguracja jest uproszczona, a wydajność jest zmaksymalizowana. Dwa porty USB4 typu C i WiFi 7 z Realtek 5Gb Ethernet zapewniają łączność najwyższej klasy, a solidne radiatory utrzymują dyski M.2 w chłodzie przy dużym obciążeniu. Ta płyta główna nie tylko spełnia wymagania gier i profesjonalnych aplikacji, ale także zapewnia moc i łączność niezbędne do zaawansowanych aplikacji AI PC.
Description - The ROG Strix X870E-E Gaming WiFi is engineered to harness the full potential of AMD Ryzen 9000 Series processors. Featuring PCIe 5.0 support, AI Overclocking, AI Cooling II, AI Networking II, and AEMP, setup is streamlined while performance is maximized. Dual USB4 Type-C ports and WiFi 7 with Realtek 5Gb Ethernet ensure top-tier connectivity, while robust heatsinks keep M.2 drives cool under heavy loads. This motherboard not only meets the demands of gaming and professional applications but also delivers the power and connectivity essential for advanced AI PC applications.
Detailed data on disk/drive interfaces - Łącznie obsługuje 5 gniazd M.2 i 4 porty SATA 6 Gb/s*
Procesory stacjonarne AMD Ryzen serii 9000, 8000 i 7000 Gniazdo M.2_1 (klucz M), typ 2242/2260/2280 (obsługuje tryb PCIe 5.0 x4) Gniazdo M.2_2 (klucz M), typ 2242/2260/2280 (obsługuje tryb PCIe 5.0 x4)** Gniazdo M.2_3 (klucz M), typ 2242/2260/2280/22110 (obsługuje tryb PCIe 5.0 x4)** Chipset AMD X870E Gniazdo M.2_4 (klucz M), typ 2280 (obsługuje tryb PCIe 4.0 x4) Gniazdo M.2_5 (klucz M), typ 2280 (obsługuje tryb PCIe 4.0 x4) 4 porty SATA 6 Gb/s *Technologia AMD RAIDXpert2 obsługuje zarówno PCIe RAID 0/1/5/10, jak i SATA RAID 0/1/5/10. Funkcja RAID 5 jest obsługiwana tylko przez procesory AMD Ryzen serii 9000.
** Gniazda M.2_2 i M.2_3 współdzielą przepustowość z PCIEX16(G5). Gdy gniazda M.2_2 i M.2_3 są zajęte przez urządzenia SSD, PCIEX16(G5) będzie działać tylko w trybie x8.
dimensionalWeight - 7517
dimension depth - 90 mm
dimension height - 290 mm
Dimensions - 30.5 x 24.4 cm
dimension weight - 2870 g
dimension width - 360 mm
ean - 4711387724163
EAN - 4711387724163
Eans - 4711387724163
Expansion slots - 1 x PCIe 4.0 x 16
Expansion slots - 1 x PCIe 5.0 x 16
Expansion slots - Number of M.2 (M) slots - 5
Expansion slots - PCI Express x16 (Gen 4.x) slots - 1
Expansion slots - PCI Express x16 (Gen 5.x) slots - 1
External connectors - 1 x Flash BIOS Button
External connectors - 1 x HDMI
External connectors - 1 x Line Out
External connectors - 1 x MIC
External connectors - 1 x Przycisk Clear CMOS
External connectors - 1 x RJ-45
External connectors - 1 x S/PDIF
External connectors - 2 x SMA
External connectors - 2 x USB 3.1 Type-C
External connectors - 2 x USB4 Type-C
Features - Audio chip - Realtek ALC4080
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Motherboard chipset - AMD X870E
Features - Motherboard chipset family - AMD
Features - Motherboard form factor - ATX
Features - Product colour - Black
Features - Windows operating systems supported - Windows 11 x64
FireWire (IEEE 1394) - No
Form Factor - ATX
Form factor - ATX
Frequency speed - 8400 MHz
Full Description Line - AMD X870E|SAM5|ATX|DDR5|8400 MHz|Memory slots 4|1xPCI-Express 4.0 16x|1xPCI-Express 5.0 16x|5xM.2|1xHDMI|9xUSB 3.2|2xUSB-C|2xUSB4|1xOptical S/PDIF|SATA|USB 2.0|USB 3.2|SATA 3.0|Video|Audio Realtek ALC4082|LAN 5 Gigabit|RAID SATA 0, 1, 5, 10
Graphics - 1 x port HDMI 2 x porty USB4 (40 Gb/s) obsługują wyjścia wyświetlacza USB typu C
Graphics - On-board graphics card - No
Graphics - Parallel processing technology support - Not supported
Gross Weight Kg - 2
GTIN - 4711387724163
guarantee - 36
guarantee_type - normal
HDMI Input/Output connectors - 1
Integrated audio - Realtek ALC4082
Integrated CPU - No
Integrated LAN - 5 Gigabit
Integrated video - Yes
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Number of chassis fan connectors - 5
Internal I/O - Number of SATA III connectors - 4
Internal I/O - USB 2.0 connectors - 3
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 2
Internal I/O - USB 3.2 Gen 2x2 connectors - 1
LongDesc - ASUS AI INTELLIGENCEai OVERCLOCKINGASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits.AI Overclockingai cOOLING IIBalance the thermals and acoustics of any build with a single click.AI NETWORKING IIAI Networking II combines intelligent technologies to continuously optimize network performance, provide trustworthy and seamless connectivity, and unleash the full speed of WiFi 7*.PerformanceOVERCLOCKINGDynamic OC SwitcherDynamic OC Switcher maximizes CPU performance by letting you set current and temperature thresholds to automatically switch between a manual overlock for heavy multithreaded workloads and Precision Boost Overdrive for single-threaded tasks. The latest Overclocking Load Guard has an enhanced instantaneous current protection mechanism to prevent users from experiencing system crashes during overclocking.
LongProductName - AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors, AMD X870E
LongSummaryDescription - ASUS ROG STRIX X870E-E GAMING WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5, Supported processor sockets: Socket AM5. Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10, 5. Ethernet interface type: 5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi standards: Wi-Fi 7 (802.11be). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: AMD
LPT connector / port - No
M.2 Expansion slots - 5
Manufacturer - ASUS
Manufacturer Code - 90MB1IB0-M0EAY0
Manufacturer Name - Asustek
Max. number of ATA devices - 0
Max. number of SATA devices - 4
Max memory size - 192 GB
Memory - ECC - Yes
Memory - Maximum internal memory - 192 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Non-ECC - Yes
Memory - Number of memory slots - 4
Memory - Supported memory types - DDR5-SDRAM
Memory - Unbuffered memory - Yes
Memory slots - 4
Memory type - DDR5
Memory type - DDR5
Model - ROG Strix X870E-E Gaming
Model - ROG STRIX X870E-E GAMING WIFI
MPN - 90MB1IB0-M0EAY0
Name - AM5 ASUS ROG STRIX X870E-E Gaming WIFI ATX
Name - ASUS ROG STRIX X870E-E GAMING WIFI
name - ASUS ROG Strix X870E-E Gaming WiFi Mainboard, AMD X870E, Sockel AM5, DDR5
name - ROG STRIX X870E-E GAMIN G WIFI DDR5 HDMI/USB-C
Network - Bluetooth - Yes
Network - Bluetooth version - 5.4
Network - Ethernet interface type - 5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Top Wi-Fi standard - Wi-Fi 7 (802.11be)
Network - Wi-Fi - Yes
Network - Wi-Fi standards - Wi-Fi 7 (802.11be)
Network interface - Bluetooth
Network interface - Wi-Fi 7 2x2 Wi-Fi 7 (802.11be) Obsługuje pasmo częstotliwości 2,4/5/6 GHz Obsługuje pasmo Wi-Fi 7 320 MHz, do 6,5 Gb/s szybkości transferu. Bluetooth v5.4
Network interface - Wi-Fi 802.11a/b/g/n/ac/ax/be
Number of DDR5 slots - 4
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 10
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 0
Onboard connectors - 1 x 4pin CPU fan
Onboard connectors - 1 x 4pin wentylator OPT CPU
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x USB C
Onboard connectors - 2 x 8pin 12V
Onboard connectors - 2 x USB 3.0 header
Onboard connectors - 3 x USB 2.0/1.1 header
Onboard connectors - 4 x SATA III 6Gb/s
Onboard connectors - 5 x M.2
Optical S/PDIF Input/Output connectors - 1
Other features - Weight - 2.06 kg
Other information -
Packaging content - Cables included - SATA
Packaging data - Package depth - 281 mm
Packaging data - Package height - 87 mm
Packaging data - Package weight - 3.02 kg
Packaging data - Package width - 365 mm
PCI-Express 4.0 16x Expansion slots - 1
PCI-Express 5.0 16x Expansion slots - 1
Processor - Processor manufacturer - AMD
Processor - Processor socket - Socket AM5
Processor - Supported processor sockets - Socket AM5
Processor family - AMD Ryzen
producer - Asus
Producer - Asus
producerCode - 90MB1IB0-M0EAY0
ProducerCode - ROG STRIX X870E-E GAMING WIFI
productName - ASUS ROG STRIX X870E-E GAMING WIFI AMD X870E Socket AM5 ATX
ProductName - ROG STRIX X870E-E GAMING WIFI
productSize - Normal
RAID - SATA 0, 1, 5, 10
RAID - Yes
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - Headphone outputs - 1
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - S/PDIF out port - Yes
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 9
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity - 1
Rear panel I/O ports - USB 3.2 Gen 2x2 Type-C ports quantity - 1
Rear panel I/O ports - USB4 Gen 2x2 ports quantity - 2
Rear panel I/O ports - WiFi-AP antenna jack - 1
SATA 3.0 Interface - Yes
SATA Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 46.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 31 cm
Shipping box quantity - 5
Shipping Box Weight Shipping/Package Box Dimensions - 15.3 kg
Shipping Box Width Shipping/Package Box Dimensions - 38 cm
Short description - ASUS ROG STRIX X870E-E GAMING WIFI X870E/AM5/ATX
ShortDescription - Socket AM5 | Chipset AMD X870E | DDR5
ShortSummaryDescription - ASUS ROG STRIX X870E-E GAMING WIFI, AMD, Socket AM5, Socket AM5, DDR5-SDRAM, 192 GB, DIMM
sizeX - 526
sizeY - 287
sizeZ - 249
Socket - SAM5
Software -
Sound card - ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 Czujnik impedancji dla przednich i tylnych wyjść słuchawkowych Obsługuje: wykrywanie gniazda, przesyłanie strumieniowe, zmianę przeznaczenia gniazda mikrofonowego na przednim panelu Wysokiej jakości wyjście odtwarzania stereo SNR 120 dB i wejście nagrywania SNR 110 dB Obsługuje odtwarzanie do 32-bitów/384 kHz Funkcje audio: Ekranowanie audio Wzmacniacz Savitech SV3H712 Pozłacane gniazda audio Tylny optyczny port wyjściowy S/PDIF Kondensatory audio klasy premium Osłona audio
Special functions - Extreme Engine Digi+ 5K Black Metallic Capacitors ASUS Q-Design M.2 Q-Latch M.2 Q-Release M.2 Q-Slide PCIe Slot Q-Release Slim (with PCIe SafeSlot) Q-Antenna Q-Code Q-Dashboard Q-DIMM Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) Q-Slot ASUS Thermal Solution M.2 heatsinks M.2 heatsink backplate VRM heatsink design ASUS EZ DIY BIOS FlashBack button BIOS FlashBack LED Clear CMOS button ProCool II Pre-mounted I/O shield SafeSlot SafeDIMM Aura Sync Addressable Gen 2 headers
Storage controllers - Number of HDDs supported - 4
Storage controllers - Number of storage drives supported - 9
Storage controllers - RAID levels - 0
Storage controllers - RAID levels - 0, 1, 10, 5
Storage controllers - RAID levels - 1
Storage controllers - RAID levels - 5
Storage controllers - RAID levels - 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Supported operating systems - Windows 11
Title - ASUS ROG STRIX X870E-E GAMING WIFI AMD X870E Socket AM5 ATX
Unit Box Height - 0.09
Unit Box Length - 0.36
Unit Box Width - 0.282
Unit Brutto Volume - 0.01096 cubm
Unit Gross Weight - 3.06 kg
Unit Net Weight - 2.2 kg
URL - https://rog.asus.com/motherboards/rog-strix/rog-strix-x870e-e-gaming-wifi/
USB-C Input/Output connectors - 2
USB 2.0 Interface - Yes
USB 3.2 Input/Output connectors - 9
USB 3.2 Interface - Yes
USB4 Input/Output connectors - 2
USB ports at back panel - 13
USB ports on motherboard - 10
Vendor Homepage - rog.asus.com/motherboards/rog-strix/rog-strix-x870e-e-gaming-wifi/
vendpn - ROG STRIX X870E-E GAMING WIFI
Warranty - 36 months
WarrantyInfo -
warrantyLength - 36
warrantyType - G
Weight - 2.88
weight - 2872
Weight & dimensions - Depth - 244 mm
Weight & dimensions - Height - 50 mm
Weight & dimensions - Width - 305 mm
616.91 €
Asus ROG STRIX X870E-E GAMING WIFI
Tālr. 67275758 gsm 26117175 (p.o.t.c.p. 9:00-18:00)
Intel technology provider Platinum 2020
All categories
