ID: 1016939
Product code: ROG STRIX Z790-F GAMING WIFI II
In stock 3 units
Warranty: 3 years

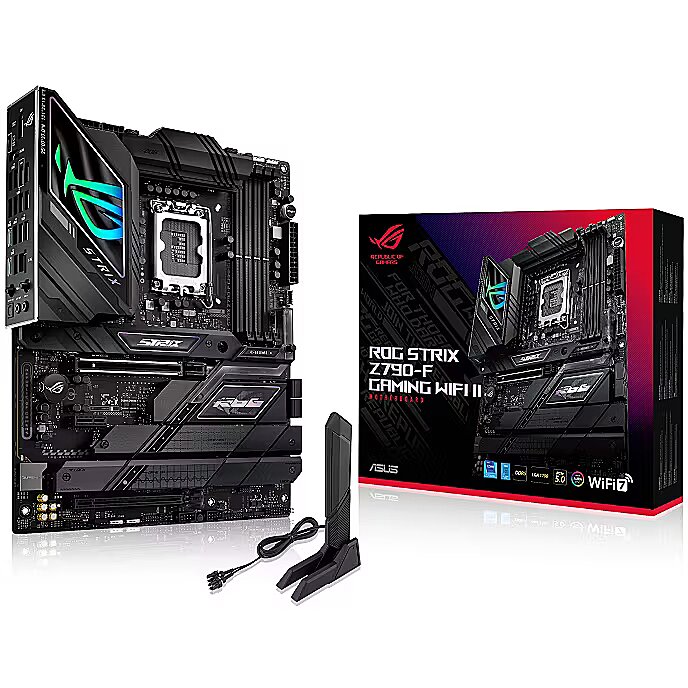

Asus ROG STRIX Z790-F GAMING WIFI II
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options More about shipping
- Delivery to Smartpost free of charge: 02.12.2024
- Delivery to Omniva parcel machine free of charge: 02.12.2024
- Piegāde uz DPD Pickup Paku Skapi free of charge: 02.12.2024
- Delivery to Latvian post office, parcel locker or Circle K free of charge: 02.12.2024
- Delivery to address in Riga 3.99 €: 02.12.2024
- Delivery to address in Latvia 6.99 €: 02.12.2024
- Delivery to Dateks.lv parcel drop-off point at 9 Zemitāna Street: on Thursday, 28.11.2024 after 15:00
Main product parameters All parameters
- Series: ASUS ROG Strix
- CPU Socket: LGA 1700
- Chipset: Intel Z790
- Form factor: ATX
- Type: DDR5
- RAM Slots: 4
- Built-in Wi-Fi: Ir
Basic information
Series
: ASUS ROG Strix
CPU Socket
LGA 1700
The CPU socket is an important factor in selecting the board; the CPU board must be exactly compatible with the CPU that you want to install with the board. Irrespective of the fact that the CPU fits the socket of the motherboard also the support of this CPU has to be taken into account. For verifying which CPUs are supported by the selected motherboard you should visit the website of the manufacturer of the motherboard, find the CPU support section of the relevant motherboard and verify that the specification of this particular board provides for the support of the CPU that you have selected.
Chipset
Intel Z790
The chip bus is the most important criterion of selecting the motherboard (the system logic chips or the voltage transformers). The chip bus determines the CPUs, memory ports and other parameters that are supported by the motherboard.
Each chipset is directly related to a certain CPU platform which are divided based upon the family of CPUs or the connection point of the CPU.
For verifying which chip bus is suitable for your CPU, etc. you should ask our managers.
Form factor
ATX
The physical size of the motherboard. Dateks.lv offers ATX (full size board), mATX (micro ATX) (a board of reduced size) and miniATX size motherboards. Within the housing of an ATX size computer it is possible to place both ATX and mATX motherboard, however, in the mATX housing it is not possible to place an ATX board.
The ATX board has at least 3 memory slots and at least 5 local slots PCI, which means that a well functioning powerful computer can be built on this board. However, a home or office computer does not need this high number of slots, therefore also microATX will be suitable.
The connector of the power supply unit of the motherboard is the power source socket which are currently of ATX and ATX2.0 standard. ATX is an older standard with a 20pin connector (20 "pins"), and ATX2.0 has 4 additional pins (20+4). The motherboards of ATX standard can operate with a ATX2.0 power supply unit (PSU), however the mother board of ATX2.0 standard requires an ATX2.0 power supply unit.
Form-factor is rather a recommendation. However, prior to buying a mother board you should verify the compatibility of the housing size to the motherboard size and its power supply connector.
Random-access memory (RAM)
Type
: DDR5
RAM Slots
4
The number of available memory slots indicates the number of memory modules (plates) that can be installed in the motherboard.
Memory support
DDR5 5600 (OC 8000)
The RAM bus determines what type of RAM is supported by the relevant motherboard.
The bus marking contains the memory type DDRII or DDRIII as well as the maximum memory clock frequency that is supported by the mother board. The type of memory is the most important index, memories of different types are physically different, therefore DDRIII memory cannot be connected to the mother board that supports DDRII memory (except the cases when the motherboard supports both types of memory). However the motherboard that support 800Mhz DDRII memory can work with the memory speeds of DDII667 and DDRII533. The mother board with the memory bus speed below the speed of the memory module will be able to operate as fast as the specified bus speed only, i.e. if the memory bus of the motherboard is DDRII667 and the memory DDRII800 is installed it will operate with the speed of DDRII667.
Graphics card
Video card port
PCI-EXPRESS
VGA port or the video card plug. The VGA port must comply with the specification of the video card port you have selected. Older video cards have an AGP port, new cards are manufacturer with a PCI-EXPRESS (PCI-X) port.AGP and PCI-Xpress video cards are not mutually compatible. Prior to buying the motherboard you should verify the compliance of the video card port of both the motherboard and the video card.
Integrated graphics
Only with iGPU-ready CPU
The parameter that determines whether a video card has been integrated with the motherboard. An integrated video card is suitable for working with the office software, Internet, watching films and playing simple games. If you wish to use graphics applications, play 3D games and watch 3D animations you would need an additional video card.
An integrated video card uses a fraction of the memory included in the mother board, therefore, if your motherboard has 1Gb memory and in the settings of the video card of the mother board it is stated that it takes 256mb the operating system will display the available memory volume of approximately 700 Mb.
Prior to buying a motherboard with a built-in video card you should verify whether it has an additional video card port for further upgrades if these are required
Ports and equipment
PCI ports
0
PCI ports present the most popular way of supplementing the computer functions with additional cards (sound, network, communications, video surveillance, etc.). Newer boards, thanks to the PCI-Express standard, have a small number of PCI extension ports, therefore, prior to buying the motherboard you should verify if the number of PCI ports allows the connection of all the PCI cards you need.
D-Sub
: 0
DVI
: 0
HDMI
: 1
DisplayPort
: 1
Integrated sound card
: Realtek ALC4080
Wireless connections
Built-in Bluetooth
: Ir
Built-in Wi-Fi
: Ir
External ports
External USB Type-C
: 2
External USB 2.0
: 6
External USB 3.0 (USB 3.2 Gen1)
: 4
External USB 3.1 (USB 3.2 Gen2)
: 2
Internal ports
Internal A-RGB 5V (3-pin)
: 3
Internal RGB 12V (4-pin)
: 1
Internal USB 2.0
: 2
Internal USB 3.0
: 1
Internal USB Type-C
: 1
M.2 Port
: 2
SATA3 ports
: 4
More detailed specification
Audio port Input/Output connectors - 2
BIOS - BIOS memory size - 256 Mbit
BIOS - BIOS type - UEFI AMI
BIOS - Clear CMOS button - Yes
Bluetooth Interface - Yes
Brand - ASUS
BrandPartCode - 90MB1FM0-M0EAY0
Category - Motherboards
category - PC Components|Mainboards|Intel Mainboards|Sockel 1700
Category - Root/Electronics/PC parts/Motherboards
Category Code - MBI
Category_1 - Motherboards
Category_2 - Motherboards - Intel 1700
Chipset - Intel Z790
code - 90MB1FM0-M0EAY0
Code - 90MB1FM0-M0EAY0
Description - ROG STRIX Z790-F GAMING WIFI II The ROG Strix Z790-F II strikes from the shadows with a flurry of advanced power and features to elevate the latest Intel® processors, graphics cards, storage and wireless networking to the next level. Armed with enhanced DDR5 support, ample cooling, PCIe 5.0 and WiFi 7, this high-performance ninja is ready for the toughest of missions.
dimensionalWeight - 1360
DisplayPort Input/Output connectors - 1
EAN - 4711387356548
ean - 4711387356548
Eans - 4711387356548
EAN_code - 4711387356548
Expansion slots - Number of M.2 (M) slots - 2
Expansion slots - PCI Express x1 (Gen 3.x) slots - 1
Expansion slots - PCI Express x16 (Gen 4.x) slots - 1
Expansion slots - PCI Express x16 (Gen 5.x) slots - 1
Features - Audio chip - Realtek ALC4080
Features - Audio output channels - 5.1 channels
Features - Component for - PC
Features - Motherboard chipset - Intel Z790
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - ATX
Features - Windows operating systems supported - Windows 10 x64
Features - Windows operating systems supported - Windows 10 x64, Windows 11
Features - Windows operating systems supported - Windows 11
Form Factor - ATX
Frequency speed - 4800/5000/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000/7200/7400/7600/7800/8000 MHz
Full Description Line - Intel Z790|LGA1700|ATX|DDR5|8000/7800/7600/7400/7200/7000/6800/6600/6400/6200/6000/5800/5600/5400/5200/5000/4800 MHz|Memory slots 4|1xPCI-Express 3.0 1x|1xPCI-Express 4.0 16x|1xPCI-Express 5.0 16x|5xM.2|1xHDMI|1xDisplayPort|6xUSB 2.0|6xUSB 3.2|2xUSB-C|1xOptical S/PDIF|1xRJ45|2xAudio port|SATA|USB 2.0|USB 3.2|Bluetooth|WiFi|Video Depending on CPU|LAN 2.5 Gigabit|Audio Realtek ALC4080|RAID SATA 0, 1, 5, 10; PCIe 0, 1, 5, 10
Graphics - Parallel processing technology support - Not supported
GTIN - 4711387356548
HDMI Input/Output connectors - 1
Integrated audio - Realtek ALC4080
Integrated LAN - 2.5 Gigabit
Integrated video - Depending on CPU
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Number of chassis fan connectors - 5
Internal I/O - Number of SATA III connectors - 4
Internal I/O - RGB LED pin header - Yes
Internal I/O - Thunderbolt headers - 1
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1
Internal I/O - USB 3.2 Gen 2x2 connectors - 1
Internal I/O > Number of SATA connectors - 4
Internal I/O > Supported hard disk drive interfaces - SATA, M.2
Link - https://rog.asus.com/motherboards/rog-strix/rog-strix-z790-f-gaming-wifi-ii/
LongDesc - ROG STRIX Z790-F GAMING WIFI IIThe ROG Strix Z790-F II strikes from the shadows with a flurry of advanced power and features to elevate the latest Intel® processors, graphics cards, storage and wireless networking to the next level. Armed with enhanced DDR5 support, ample cooling, PCIe 5.0 and WiFi 7, this high-performance ninja is ready for the toughest of missions.PCIE® SLOT Q-RELEASEA physical button unlocks the first PCIe slot’s security latch with one press, greatly simplifying the process of detaching a PCIe card from the motherboard when it’s time to upgrade to a new GPU or other compatible device.ALL-ROUND PERFORMANCERobust power delivery, breakneck DDR5 memory, speedy storage, and comprehensive cooling elevate any build with the ROG Strix Z790-A II at its center.AI OVERCLOCKINGTuning is now faster and smarter than ever before. ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits. Predicted values can be engaged automatically or used as a launching ground for further experimentation.LEADING CONNECTIVITYNext-gen connectivity and low-latency networking are hallmarks of the ROG ecosystem, and the Strix Z790-F II delivers both of them in full. Joining them is an advanced audio solution for immersive sound so you can pick out the slightest cues and nuances.WIFI 7With Multi-Link Operation (MLO)*, WiFi 7** can outperform WiFi 6E to deliver faster speeds, higher reliability and increased data transfer efficiency.Intel 2.5G EthernetLow-latency gaming, speedy file transfers, and high-resolution video streaming are among the many perks of onboard Intel® 2.5 Gbps Ethernet.PLAY IN STYLEBold aesthetics and Aura Sync RGB controls let the ROG Strix Z790-F II shine in every build.SOFTWARE UTILITIESA myriad of ROG-exclusive tools put advanced system tuning and configuration at your fingertipsAI COOLING IIBalance the thermals and acoustics of any build with a single click. A proprietary ASUS algorithm slashes unnecessary noise while running a quick stress test, and then monitors CPU temperatures to dynamically adjust fans to optimal speeds.DARE TO BE GREENWe at the Republic of Gamers are on a mission to create a sustainable future where all gamers can flourish on the planet we call home.Every step counts, and as part of ROG’s commitment to creating a more sustainable future, ROG has begun to utilize post-consumer recycled (PCR) plastic and paper materials certified by the Forest Stewardship Council (FSC™) in the packaging of motherboard.For those who dare, join us on our journey as we make the world a better place.INTEL® UNISON™Our latest ROG and ROG Strix Z790 WiFi 7 motherboards help you unify your tech life with a free 9-month subscription to Intel Unison.Intel Unison lets you use a compatible tablet as a second display, wirelessly transfer content between your phone, computer and tablet, and to do thing like accessing your smartphone’s picture photos while you’re working from on your PC. You can also keep an eye on your text messages and notifications while you’re working on your PC to stay connected without losing your flow, and you can even make phone calls without touching your phone.
LongProductName - Intel LGA1700 ATX, DDR5, 5x M.2, PCIe 5.0, WiFi 7, AI Cooling II, Aura Sync
LongSummaryDescription - ASUS ROG STRIX Z790-F GAMING WIFI II. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™.... Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi standards: Wi-Fi 7 (802.11be). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: Intel
M.2 Expansion slots - 5
Manufacturer - Asus
Manufacturer_code - 90MB1FM0-M0EAY0
Memory - Maximum internal memory - 192 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Non-ECC - Yes
Memory - Number of memory slots - 4
Memory - Supported memory clock speed (max) - 8000 MHz
Memory - Supported memory clock speeds - 4800
Memory - Supported memory clock speeds - 5000
Memory - Supported memory clock speeds - 5200
Memory - Supported memory clock speeds - 5400
Memory - Supported memory clock speeds - 5600
Memory - Supported memory clock speeds - 5800
Memory - Supported memory clock speeds - 6000
Memory - Supported memory clock speeds - 6200
Memory - Supported memory clock speeds - 6400
Memory - Supported memory clock speeds - 6600
Memory - Supported memory clock speeds - 6800
Memory - Supported memory clock speeds - 7000
Memory - Supported memory clock speeds - 7200
Memory - Supported memory clock speeds - 7400
Memory - Supported memory clock speeds - 7600
Memory - Supported memory clock speeds - 7800
Memory - Supported memory clock speeds - 8000 MHz
Memory - Supported memory clock speeds - 8000,7800,7600,7400,7200,7000,6800,6600,6400,6200,6000,5800,5600,5400,5200,5000,4800 MHz
Memory - Supported memory types - DDR5-SDRAM
Memory - Unbuffered memory - Yes
Memory > Supported memory types - DDR5
Memory slots - 4
Memory type - DDR5
Model - ROG STRIX Z790-F GAMING WIFI II
Name - ASUS ROG STRIX Z790-F GAMING WIFI II
name - ASUS ROG Strix Z790-F Gaming WiFi II, Intel Z790 Mainboard, Sockel 1700, DDR5
Name - ASUS ROG STRIX Z790-F GAMING WIFI II - Socket 1700 - motherboard
Name - Asus | ROG STRIX Z790-F GAMING WIFI II | Processor family Intel | Processor socket LGA1700 | DDR5 | Supported hard disk drive interfaces SATA, M.2 | Number of SATA connectors 4
Network - Bluetooth - Yes
Network - Bluetooth version - 5.4
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Top Wi-Fi standard - Wi-Fi 7 (802.11be)
Network - Wi-Fi - Yes
Network - Wi-Fi standards - Wi-Fi 7 (802.11be)
Optical S/PDIF Input/Output connectors - 1
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 300.00 mm
Package features > Gross height (mm) - 160.00 mm
Package features > Gross width (mm) - 300.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 60 pc(s)
Package features > Paper/Pasteboard - 180.00 g
Package features > Plastic (No PET) - 50.00 g
Package features > Tare weight (kg) - 0.23 kg
Package features > Volume (m3) - 0.01 m³
Package features > WEE classification - CL109:5:2017-04-01
Package features > WEEE tax - Yes
Packaging content - Cables included - SATA
PCI-Express 3.0 1x Expansion slots - 1
PCI-Express 4.0 16x Expansion slots - 1
PCI-Express 5.0 16x Expansion slots - 1
Processor - Compatible processor series - Intel® Celeron®
Processor - Compatible processor series - Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9
Processor - Compatible processor series - Intel® Core™ i3
Processor - Compatible processor series - Intel® Core™ i5
Processor - Compatible processor series - Intel® Core™ i7
Processor - Compatible processor series - Intel® Core™ i9
Processor - Compatible processor series - Intel® Pentium® Gold
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1700
Processor - Supported processor sockets - LGA 1700
Processor > Processor family - Intel
Processor > Processor socket - LGA1700
Producer - Asus
producerCode - 90MB1FM0-M0EAY0
ProducerCode - ROG STRIX Z790-F GAMING WIFI II
productName - ASUS ROG STRIX Z790-F GAMING WIFI II Intel Z790 LGA 1700 ATX
ProductName - ROG STRIX Z790-F GAMING WIFI II
productSize - Normal
RAID - SATA 0, 1, 5, 10; PCIe 0, 1, 5, 10
Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - Headphone outputs - 1
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - S/PDIF out port - Yes
Rear panel I/O ports - USB 2.0 ports quantity - 6
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity - 1
Rear panel I/O ports - USB 3.2 Gen 2x2 Type-C ports quantity - 1
Rear panel I/O ports - WiFi-AP antenna jack - 1
RJ45 Input/Output connectors - 1
SATA Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 37.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 30 cm
Shipping box quantity - 4
Shipping Box Weight Shipping/Package Box Dimensions - 9.75 kg
Shipping Box Width Shipping/Package Box Dimensions - 30 cm
ShortDescription - Socket 1700| Chipset Intel Z790 | DDR5 |
ShortSummaryDescription - ASUS ROG STRIX Z790-F GAMING WIFI II, Intel, LGA 1700, Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™..., LGA 1700, DDR5-SDRAM, 192 GB
sizeX - 360
sizeY - 270
sizeZ - 70
Socket - LGA1700
Storage controllers - Number of HDDs supported - 4
Storage controllers - Number of storage drives supported - 6
Storage controllers - RAID levels - 0
Storage controllers - RAID levels - 0, 1, 5, 10
Storage controllers - RAID levels - 1
Storage controllers - RAID levels - 5
Storage controllers - RAID levels - 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Technical details > Gross weight - 2.05 kg
Technical details > Net weight - 1.82 kg
Technical details > Producer - Asus
Technical details > Producer product name - ROG STRIX Z790-F GAMING WIFI II
Technical details > Warranty - 36 month(s)
Title - ASUS ROG STRIX Z790-F GAMING WIFI II Intel Z790 LGA 1700 ATX
Unit Box Height - 0.07
Unit Box Length - 0.355
Unit Box Width - 0.275
Unit Brutto Volume - 0.008438 cubm
Unit Gross Weight - 2.44 kg
Unit Net Weight - 1.7 kg
URL - https://rog.asus.com/motherboards/rog-strix/rog-strix-z790-f-gaming-wifi-ii/
USB-C Input/Output connectors - 2
USB 2.0 Input/Output connectors - 6
USB 2.0 Interface - Yes
USB 3.2 Input/Output connectors - 6
USB 3.2 Interface - Yes
Vendor Homepage - rog.asus.com/motherboards/rog-strix/rog-strix-z790-f-gaming-wifi-ii/spec/
Warranty - 36
Warranty - 36 months
WarrantyInfo -
warrantyLength - 36
warrantyType - G
Weight - 2,26
weight - 2250
Weight & dimensions - Depth - 244 mm
Weight & dimensions - Width - 305 mm
WiFi Interface - Yes
BIOS - BIOS memory size - 256 Mbit
BIOS - BIOS type - UEFI AMI
BIOS - Clear CMOS button - Yes
Bluetooth Interface - Yes
Brand - ASUS
BrandPartCode - 90MB1FM0-M0EAY0
Category - Motherboards
category - PC Components|Mainboards|Intel Mainboards|Sockel 1700
Category - Root/Electronics/PC parts/Motherboards
Category Code - MBI
Category_1 - Motherboards
Category_2 - Motherboards - Intel 1700
Chipset - Intel Z790
code - 90MB1FM0-M0EAY0
Code - 90MB1FM0-M0EAY0
Description - ROG STRIX Z790-F GAMING WIFI II The ROG Strix Z790-F II strikes from the shadows with a flurry of advanced power and features to elevate the latest Intel® processors, graphics cards, storage and wireless networking to the next level. Armed with enhanced DDR5 support, ample cooling, PCIe 5.0 and WiFi 7, this high-performance ninja is ready for the toughest of missions.
dimensionalWeight - 1360
DisplayPort Input/Output connectors - 1
EAN - 4711387356548
ean - 4711387356548
Eans - 4711387356548
EAN_code - 4711387356548
Expansion slots - Number of M.2 (M) slots - 2
Expansion slots - PCI Express x1 (Gen 3.x) slots - 1
Expansion slots - PCI Express x16 (Gen 4.x) slots - 1
Expansion slots - PCI Express x16 (Gen 5.x) slots - 1
Features - Audio chip - Realtek ALC4080
Features - Audio output channels - 5.1 channels
Features - Component for - PC
Features - Motherboard chipset - Intel Z790
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - ATX
Features - Windows operating systems supported - Windows 10 x64
Features - Windows operating systems supported - Windows 10 x64, Windows 11
Features - Windows operating systems supported - Windows 11
Form Factor - ATX
Frequency speed - 4800/5000/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000/7200/7400/7600/7800/8000 MHz
Full Description Line - Intel Z790|LGA1700|ATX|DDR5|8000/7800/7600/7400/7200/7000/6800/6600/6400/6200/6000/5800/5600/5400/5200/5000/4800 MHz|Memory slots 4|1xPCI-Express 3.0 1x|1xPCI-Express 4.0 16x|1xPCI-Express 5.0 16x|5xM.2|1xHDMI|1xDisplayPort|6xUSB 2.0|6xUSB 3.2|2xUSB-C|1xOptical S/PDIF|1xRJ45|2xAudio port|SATA|USB 2.0|USB 3.2|Bluetooth|WiFi|Video Depending on CPU|LAN 2.5 Gigabit|Audio Realtek ALC4080|RAID SATA 0, 1, 5, 10; PCIe 0, 1, 5, 10
Graphics - Parallel processing technology support - Not supported
GTIN - 4711387356548
HDMI Input/Output connectors - 1
Integrated audio - Realtek ALC4080
Integrated LAN - 2.5 Gigabit
Integrated video - Depending on CPU
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Number of chassis fan connectors - 5
Internal I/O - Number of SATA III connectors - 4
Internal I/O - RGB LED pin header - Yes
Internal I/O - Thunderbolt headers - 1
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1
Internal I/O - USB 3.2 Gen 2x2 connectors - 1
Internal I/O > Number of SATA connectors - 4
Internal I/O > Supported hard disk drive interfaces - SATA, M.2
Link - https://rog.asus.com/motherboards/rog-strix/rog-strix-z790-f-gaming-wifi-ii/
LongDesc - ROG STRIX Z790-F GAMING WIFI IIThe ROG Strix Z790-F II strikes from the shadows with a flurry of advanced power and features to elevate the latest Intel® processors, graphics cards, storage and wireless networking to the next level. Armed with enhanced DDR5 support, ample cooling, PCIe 5.0 and WiFi 7, this high-performance ninja is ready for the toughest of missions.PCIE® SLOT Q-RELEASEA physical button unlocks the first PCIe slot’s security latch with one press, greatly simplifying the process of detaching a PCIe card from the motherboard when it’s time to upgrade to a new GPU or other compatible device.ALL-ROUND PERFORMANCERobust power delivery, breakneck DDR5 memory, speedy storage, and comprehensive cooling elevate any build with the ROG Strix Z790-A II at its center.AI OVERCLOCKINGTuning is now faster and smarter than ever before. ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits. Predicted values can be engaged automatically or used as a launching ground for further experimentation.LEADING CONNECTIVITYNext-gen connectivity and low-latency networking are hallmarks of the ROG ecosystem, and the Strix Z790-F II delivers both of them in full. Joining them is an advanced audio solution for immersive sound so you can pick out the slightest cues and nuances.WIFI 7With Multi-Link Operation (MLO)*, WiFi 7** can outperform WiFi 6E to deliver faster speeds, higher reliability and increased data transfer efficiency.Intel 2.5G EthernetLow-latency gaming, speedy file transfers, and high-resolution video streaming are among the many perks of onboard Intel® 2.5 Gbps Ethernet.PLAY IN STYLEBold aesthetics and Aura Sync RGB controls let the ROG Strix Z790-F II shine in every build.SOFTWARE UTILITIESA myriad of ROG-exclusive tools put advanced system tuning and configuration at your fingertipsAI COOLING IIBalance the thermals and acoustics of any build with a single click. A proprietary ASUS algorithm slashes unnecessary noise while running a quick stress test, and then monitors CPU temperatures to dynamically adjust fans to optimal speeds.DARE TO BE GREENWe at the Republic of Gamers are on a mission to create a sustainable future where all gamers can flourish on the planet we call home.Every step counts, and as part of ROG’s commitment to creating a more sustainable future, ROG has begun to utilize post-consumer recycled (PCR) plastic and paper materials certified by the Forest Stewardship Council (FSC™) in the packaging of motherboard.For those who dare, join us on our journey as we make the world a better place.INTEL® UNISON™Our latest ROG and ROG Strix Z790 WiFi 7 motherboards help you unify your tech life with a free 9-month subscription to Intel Unison.Intel Unison lets you use a compatible tablet as a second display, wirelessly transfer content between your phone, computer and tablet, and to do thing like accessing your smartphone’s picture photos while you’re working from on your PC. You can also keep an eye on your text messages and notifications while you’re working on your PC to stay connected without losing your flow, and you can even make phone calls without touching your phone.
LongProductName - Intel LGA1700 ATX, DDR5, 5x M.2, PCIe 5.0, WiFi 7, AI Cooling II, Aura Sync
LongSummaryDescription - ASUS ROG STRIX Z790-F GAMING WIFI II. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™.... Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi standards: Wi-Fi 7 (802.11be). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: Intel
M.2 Expansion slots - 5
Manufacturer - Asus
Manufacturer_code - 90MB1FM0-M0EAY0
Memory - Maximum internal memory - 192 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Non-ECC - Yes
Memory - Number of memory slots - 4
Memory - Supported memory clock speed (max) - 8000 MHz
Memory - Supported memory clock speeds - 4800
Memory - Supported memory clock speeds - 5000
Memory - Supported memory clock speeds - 5200
Memory - Supported memory clock speeds - 5400
Memory - Supported memory clock speeds - 5600
Memory - Supported memory clock speeds - 5800
Memory - Supported memory clock speeds - 6000
Memory - Supported memory clock speeds - 6200
Memory - Supported memory clock speeds - 6400
Memory - Supported memory clock speeds - 6600
Memory - Supported memory clock speeds - 6800
Memory - Supported memory clock speeds - 7000
Memory - Supported memory clock speeds - 7200
Memory - Supported memory clock speeds - 7400
Memory - Supported memory clock speeds - 7600
Memory - Supported memory clock speeds - 7800
Memory - Supported memory clock speeds - 8000 MHz
Memory - Supported memory clock speeds - 8000,7800,7600,7400,7200,7000,6800,6600,6400,6200,6000,5800,5600,5400,5200,5000,4800 MHz
Memory - Supported memory types - DDR5-SDRAM
Memory - Unbuffered memory - Yes
Memory > Supported memory types - DDR5
Memory slots - 4
Memory type - DDR5
Model - ROG STRIX Z790-F GAMING WIFI II
Name - ASUS ROG STRIX Z790-F GAMING WIFI II
name - ASUS ROG Strix Z790-F Gaming WiFi II, Intel Z790 Mainboard, Sockel 1700, DDR5
Name - ASUS ROG STRIX Z790-F GAMING WIFI II - Socket 1700 - motherboard
Name - Asus | ROG STRIX Z790-F GAMING WIFI II | Processor family Intel | Processor socket LGA1700 | DDR5 | Supported hard disk drive interfaces SATA, M.2 | Number of SATA connectors 4
Network - Bluetooth - Yes
Network - Bluetooth version - 5.4
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Top Wi-Fi standard - Wi-Fi 7 (802.11be)
Network - Wi-Fi - Yes
Network - Wi-Fi standards - Wi-Fi 7 (802.11be)
Optical S/PDIF Input/Output connectors - 1
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 300.00 mm
Package features > Gross height (mm) - 160.00 mm
Package features > Gross width (mm) - 300.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 60 pc(s)
Package features > Paper/Pasteboard - 180.00 g
Package features > Plastic (No PET) - 50.00 g
Package features > Tare weight (kg) - 0.23 kg
Package features > Volume (m3) - 0.01 m³
Package features > WEE classification - CL109:5:2017-04-01
Package features > WEEE tax - Yes
Packaging content - Cables included - SATA
PCI-Express 3.0 1x Expansion slots - 1
PCI-Express 4.0 16x Expansion slots - 1
PCI-Express 5.0 16x Expansion slots - 1
Processor - Compatible processor series - Intel® Celeron®
Processor - Compatible processor series - Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9
Processor - Compatible processor series - Intel® Core™ i3
Processor - Compatible processor series - Intel® Core™ i5
Processor - Compatible processor series - Intel® Core™ i7
Processor - Compatible processor series - Intel® Core™ i9
Processor - Compatible processor series - Intel® Pentium® Gold
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1700
Processor - Supported processor sockets - LGA 1700
Processor > Processor family - Intel
Processor > Processor socket - LGA1700
Producer - Asus
producerCode - 90MB1FM0-M0EAY0
ProducerCode - ROG STRIX Z790-F GAMING WIFI II
productName - ASUS ROG STRIX Z790-F GAMING WIFI II Intel Z790 LGA 1700 ATX
ProductName - ROG STRIX Z790-F GAMING WIFI II
productSize - Normal
RAID - SATA 0, 1, 5, 10; PCIe 0, 1, 5, 10
Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - Headphone outputs - 1
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - S/PDIF out port - Yes
Rear panel I/O ports - USB 2.0 ports quantity - 6
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity - 1
Rear panel I/O ports - USB 3.2 Gen 2x2 Type-C ports quantity - 1
Rear panel I/O ports - WiFi-AP antenna jack - 1
RJ45 Input/Output connectors - 1
SATA Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 37.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 30 cm
Shipping box quantity - 4
Shipping Box Weight Shipping/Package Box Dimensions - 9.75 kg
Shipping Box Width Shipping/Package Box Dimensions - 30 cm
ShortDescription - Socket 1700| Chipset Intel Z790 | DDR5 |
ShortSummaryDescription - ASUS ROG STRIX Z790-F GAMING WIFI II, Intel, LGA 1700, Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™..., LGA 1700, DDR5-SDRAM, 192 GB
sizeX - 360
sizeY - 270
sizeZ - 70
Socket - LGA1700
Storage controllers - Number of HDDs supported - 4
Storage controllers - Number of storage drives supported - 6
Storage controllers - RAID levels - 0
Storage controllers - RAID levels - 0, 1, 5, 10
Storage controllers - RAID levels - 1
Storage controllers - RAID levels - 5
Storage controllers - RAID levels - 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Technical details > Gross weight - 2.05 kg
Technical details > Net weight - 1.82 kg
Technical details > Producer - Asus
Technical details > Producer product name - ROG STRIX Z790-F GAMING WIFI II
Technical details > Warranty - 36 month(s)
Title - ASUS ROG STRIX Z790-F GAMING WIFI II Intel Z790 LGA 1700 ATX
Unit Box Height - 0.07
Unit Box Length - 0.355
Unit Box Width - 0.275
Unit Brutto Volume - 0.008438 cubm
Unit Gross Weight - 2.44 kg
Unit Net Weight - 1.7 kg
URL - https://rog.asus.com/motherboards/rog-strix/rog-strix-z790-f-gaming-wifi-ii/
USB-C Input/Output connectors - 2
USB 2.0 Input/Output connectors - 6
USB 2.0 Interface - Yes
USB 3.2 Input/Output connectors - 6
USB 3.2 Interface - Yes
Vendor Homepage - rog.asus.com/motherboards/rog-strix/rog-strix-z790-f-gaming-wifi-ii/spec/
Warranty - 36
Warranty - 36 months
WarrantyInfo -
warrantyLength - 36
warrantyType - G
Weight - 2,26
weight - 2250
Weight & dimensions - Depth - 244 mm
Weight & dimensions - Width - 305 mm
WiFi Interface - Yes
