ID: 872247
Product code: PRIME H610M-R D4
Can be ordered 172 units Availability: 14 days after order approval
Warranty: 3 years

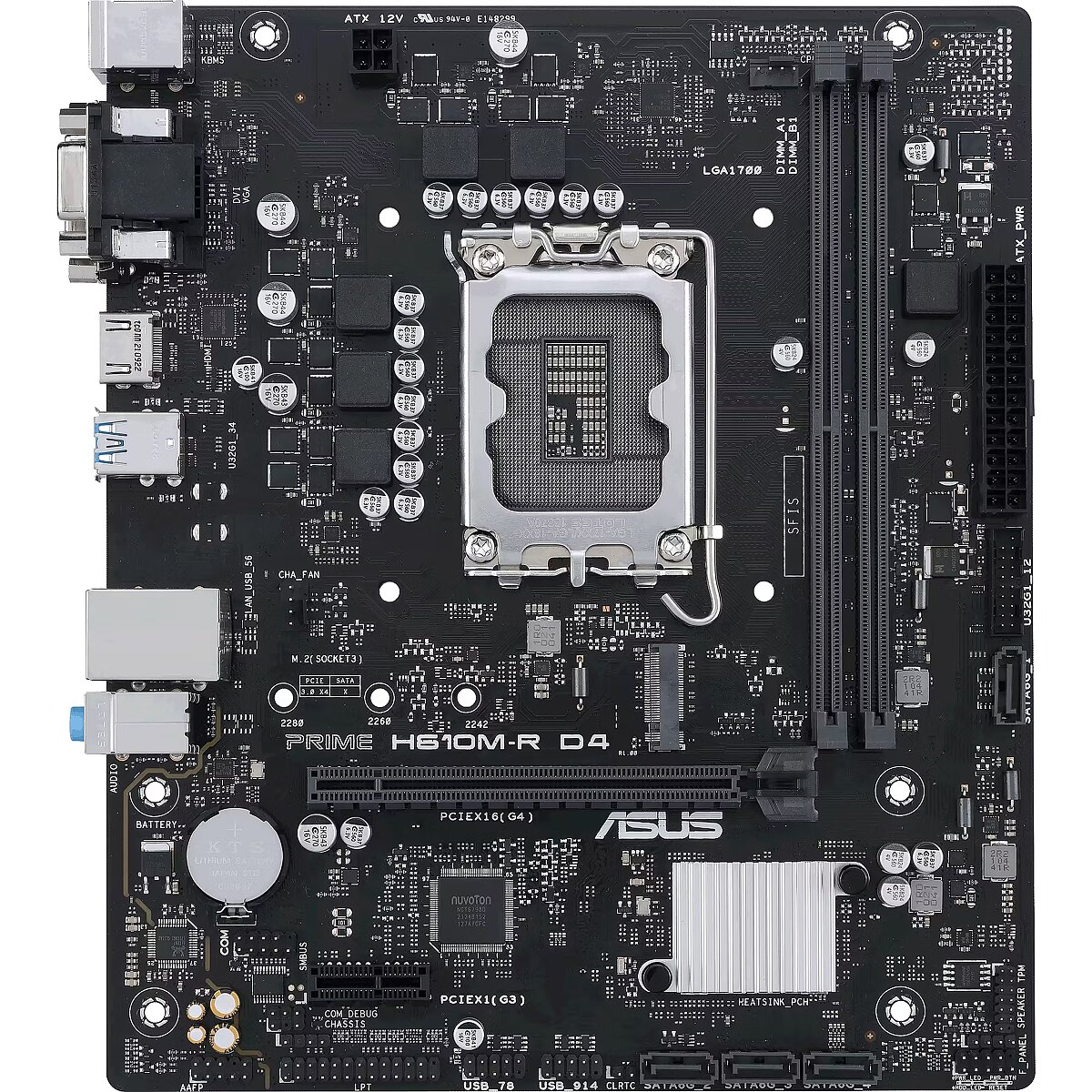

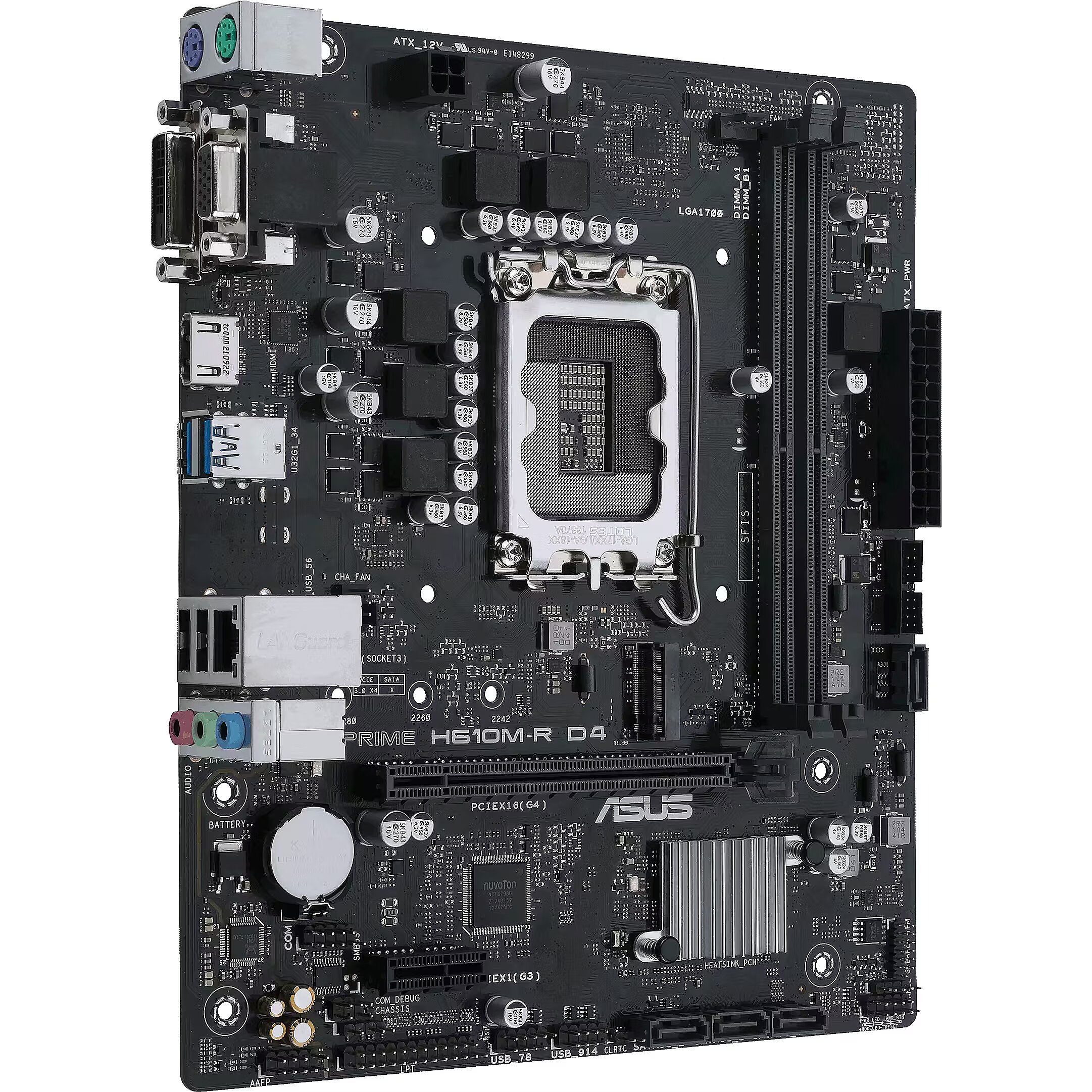

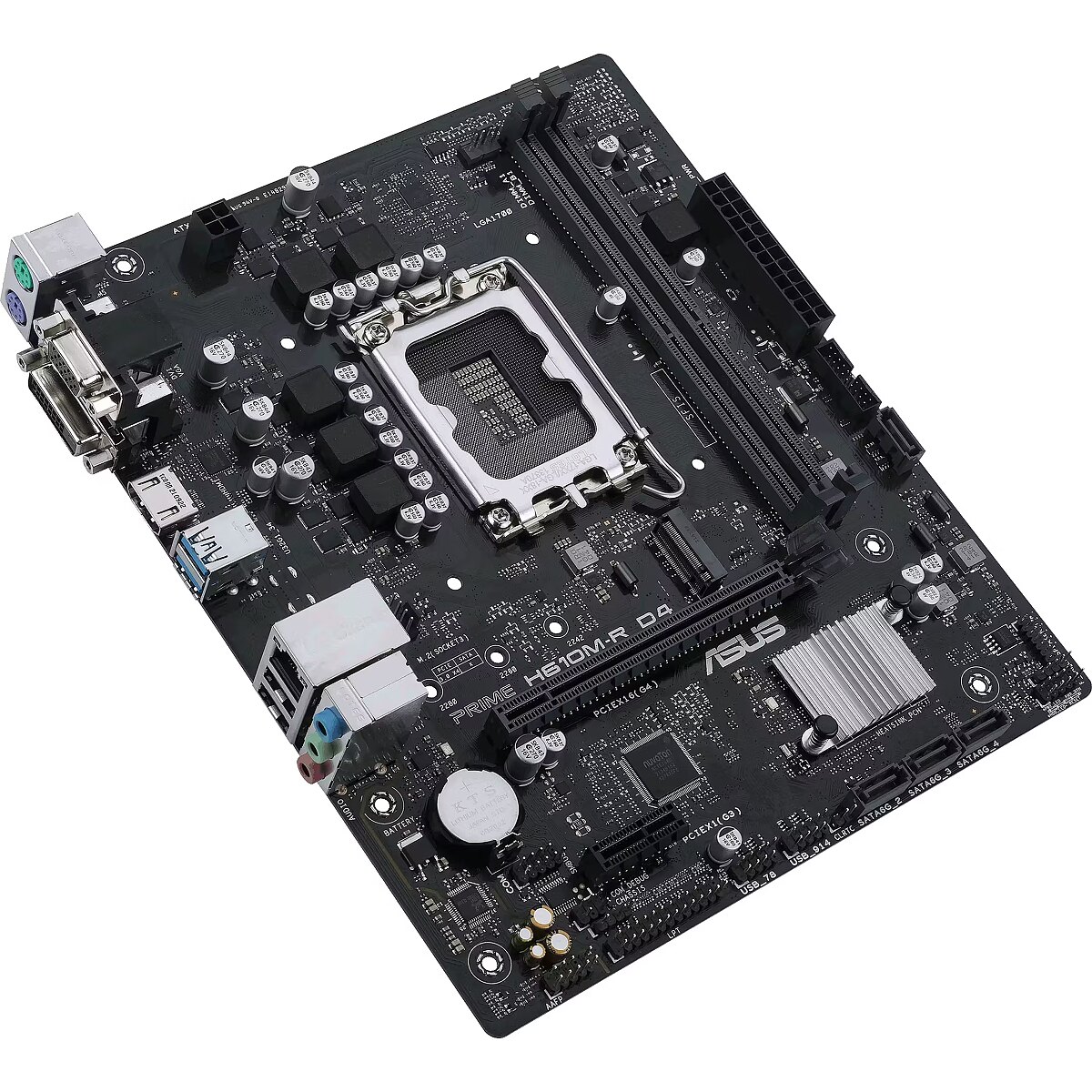

Asus PRIME H610M-R D4 (BULK)
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options More about shipping
- Delivery to Smartpost free of charge: 11.12.2024
- Delivery to Omniva parcel machine free of charge: 11.12.2024
- Piegāde uz DPD Pickup Paku Skapi free of charge: 11.12.2024
- Delivery to Latvian post office, parcel locker or Circle K free of charge: 11.12.2024
- Delivery to address in Riga 3.99 €: 11.12.2024
- Delivery to address in Latvia 6.99 €: 11.12.2024
- Delivery to Dateks.lv parcel drop-off point at 9 Zemitāna Street: 09.12.2024 after 15:00
Main product parameters All parameters
- Series: ASUS Prime
- CPU Socket: LGA 1700
- Chipset: Intel H610
- Form factor: Micro ATX
- Type: DDR4
- RAM Slots: 2
- Built-in Wi-Fi: Nav
Basic information
Series
: ASUS Prime
CPU Socket
LGA 1700
The CPU socket is an important factor in selecting the board; the CPU board must be exactly compatible with the CPU that you want to install with the board. Irrespective of the fact that the CPU fits the socket of the motherboard also the support of this CPU has to be taken into account. For verifying which CPUs are supported by the selected motherboard you should visit the website of the manufacturer of the motherboard, find the CPU support section of the relevant motherboard and verify that the specification of this particular board provides for the support of the CPU that you have selected.
Chipset
Intel H610
The chip bus is the most important criterion of selecting the motherboard (the system logic chips or the voltage transformers). The chip bus determines the CPUs, memory ports and other parameters that are supported by the motherboard.
Each chipset is directly related to a certain CPU platform which are divided based upon the family of CPUs or the connection point of the CPU.
For verifying which chip bus is suitable for your CPU, etc. you should ask our managers.
Form factor
Micro ATX
The physical size of the motherboard. Dateks.lv offers ATX (full size board), mATX (micro ATX) (a board of reduced size) and miniATX size motherboards. Within the housing of an ATX size computer it is possible to place both ATX and mATX motherboard, however, in the mATX housing it is not possible to place an ATX board.
The ATX board has at least 3 memory slots and at least 5 local slots PCI, which means that a well functioning powerful computer can be built on this board. However, a home or office computer does not need this high number of slots, therefore also microATX will be suitable.
The connector of the power supply unit of the motherboard is the power source socket which are currently of ATX and ATX2.0 standard. ATX is an older standard with a 20pin connector (20 "pins"), and ATX2.0 has 4 additional pins (20+4). The motherboards of ATX standard can operate with a ATX2.0 power supply unit (PSU), however the mother board of ATX2.0 standard requires an ATX2.0 power supply unit.
Form-factor is rather a recommendation. However, prior to buying a mother board you should verify the compatibility of the housing size to the motherboard size and its power supply connector.
Random-access memory (RAM)
Type
: DDR4
RAM Slots
2
The number of available memory slots indicates the number of memory modules (plates) that can be installed in the motherboard.
Memory support
DDR4 3200
The RAM bus determines what type of RAM is supported by the relevant motherboard.
The bus marking contains the memory type DDRII or DDRIII as well as the maximum memory clock frequency that is supported by the mother board. The type of memory is the most important index, memories of different types are physically different, therefore DDRIII memory cannot be connected to the mother board that supports DDRII memory (except the cases when the motherboard supports both types of memory). However the motherboard that support 800Mhz DDRII memory can work with the memory speeds of DDII667 and DDRII533. The mother board with the memory bus speed below the speed of the memory module will be able to operate as fast as the specified bus speed only, i.e. if the memory bus of the motherboard is DDRII667 and the memory DDRII800 is installed it will operate with the speed of DDRII667.
Graphics card
Video card port
PCI-EXPRESS
VGA port or the video card plug. The VGA port must comply with the specification of the video card port you have selected. Older video cards have an AGP port, new cards are manufacturer with a PCI-EXPRESS (PCI-X) port.AGP and PCI-Xpress video cards are not mutually compatible. Prior to buying the motherboard you should verify the compliance of the video card port of both the motherboard and the video card.
Integrated graphics
Only with iGPU-ready CPU
The parameter that determines whether a video card has been integrated with the motherboard. An integrated video card is suitable for working with the office software, Internet, watching films and playing simple games. If you wish to use graphics applications, play 3D games and watch 3D animations you would need an additional video card.
An integrated video card uses a fraction of the memory included in the mother board, therefore, if your motherboard has 1Gb memory and in the settings of the video card of the mother board it is stated that it takes 256mb the operating system will display the available memory volume of approximately 700 Mb.
Prior to buying a motherboard with a built-in video card you should verify whether it has an additional video card port for further upgrades if these are required
Ports and equipment
PCI ports
0
PCI ports present the most popular way of supplementing the computer functions with additional cards (sound, network, communications, video surveillance, etc.). Newer boards, thanks to the PCI-Express standard, have a small number of PCI extension ports, therefore, prior to buying the motherboard you should verify if the number of PCI ports allows the connection of all the PCI cards you need.
D-Sub
: 1
DVI
: 1
HDMI
: 1
DisplayPort
: 0
Integrated sound card
: Realtek Audio CODEC
Wireless connections
Built-in Bluetooth
: Nav
Built-in Wi-Fi
: Nav
External ports
External USB Type-C
: 0
External USB 2.0
: 2
External USB 3.0 (USB 3.2 Gen1)
: 2
External USB 3.1 (USB 3.2 Gen2)
: 0
Internal ports
Internal A-RGB 5V (3-pin)
: 0
Internal RGB 12V (4-pin)
: 0
Internal USB 2.0
: 2
Internal USB 3.0
: 0
Internal USB Type-C
: 0
M.2 Port
: 1
SATA3 ports
: 4
More detailed specification
15pin D-sub Input/Output connectors - 1
Audio port Input/Output connectors - 3
BIOS - BIOS memory size - 128 Mbit
BIOS - BIOS type - UEFI AMI
BIOS - Clear CMOS jumper - Yes
Brand - ASUS
BrandPartCode - 90MB1B40-M0ECY0
Category - Motherboards
category - PC Components|Mainboards|Intel Mainboards|Sockel 1700
Category - Root/Electronics/PC parts/Motherboards
Category 1 - Mainboards & Zubehör
Category 2 - Mainboards - Intel
Category Code - MBI
category_en - Computers & Components > Computer components > Motherboards > Intel motherboards
category_lv - Datortehnika > Datoru komponentes > Pamatplates > Intel mātesplates
category_ru - Datortehnika > Datoru komponentes > Pamatplates > Intel mātesplates
Chipset - Intel H610
code - 90MB1B40-M0ECY0
Code - 90MB1B40-M0ECY0
Description - Intel® H610 (LGA 1700) mic-ATX motherboard with DDR4, PCIe 4.0, M.2 slot, Realtek 1 Gb Ethernet, HDMI®,D-Sub, DVI, USB 3.2 Gen 1 ports, SATA 6 Gbps , COM header, LPT header, TPM header - Intel® LGA 1700 socket: Ready for 12th Gen Intel® processors - Comprehensive cooling: PCH heatsink - Ultrafast connectivity: 32Gbps M.2 slot, Realtek 1 Gb Ethernet and USB 3.2 Gen 1 - 5X Protection III: Multiple hardware safeguards for all-round protection
description_en - ASUS PRIME H610M-R D4
Processor manufacturer: Intel
Processor socket: LGA 1700
Compatible processors: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,...
Supported memory types: DDR4-SDRAM
Number of memory slots: 2
PCI Express X1 (Gen 3.x) slots: 1
Maximum internal memory: 64GB
Memory Slot Type: DIMM
Supported storage disk interfaces: M.2, SATA III
Supported storage disk types: HDD & SSD
Maximum resolution: 3840 x 2160 pixels
USB connector: USB Type-A
Weight: 0.842 kg
description_lv - ASUS PRIME H610M-R D4
Procesora ražotājs: Intel
Procesora ligzda: LGA 1700
Savietojami procesori: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,....
Atbalstītās atmiņas veidi: DDR4-SDRAM
Atmiņas slotu skaits: 2
PCI Express X1 (Gen 3.x) sloti: 1
Maksimālā iekšējā atmiņa: 64GB
Atmiņas slotu tips: DIMM
Atbalstītie glabāšanas diska interfeisi: M.2, SATA III
Atbalstītie atmiņas disku veidi: HDD & SSD
Maksimālā izšķirtspēja: 3840 x 2160 pikseļi
USB savienotājs: USB Type-A
Svars: 0.842 kg
description_ru - ASUS PRIME H610M-R D4
Производитель процессора: Intel
Разъем процессора: LGA 1700
Совместимые процессоры: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,...
Поддерживаемые типы памяти: DDR4-SDRAM.
Количество слотов памяти: 2
Слоты PCI Express X1 (Gen 3.x): 1
Максимальная внутренняя память: 64 ГБ
Тип слота памяти: DIMM
Поддерживаемые интерфейсы накопителей: M.2, SATA III.
Поддерживаемые типы дисков: HDD и SSD.
Максимальное разрешение: 3840 x 2160 пикселей.
USB-разъем: USB Тип-A
Вес: 0,842 кг
dimensionalWeight - 632
DVI-D Input/Output connectors - 2
EAN - 4711081758372
ean - 4711081758372
Eans - 4711081758372
Expansion slots - Number of M.2 (M) slots - 1
Expansion slots - PCI Express x1 (Gen 3.x) slots - 1
Expansion slots - PCI Express x16 (Gen 4.x) slots - 1
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Motherboard chipset - Intel H610
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - micro ATX
Features - Windows operating systems supported - Windows 10 x64
Features - Windows operating systems supported - Windows 10 x64, Windows 11 x64
Features - Windows operating systems supported - Windows 11 x64
Form Factor - Micro-ATX
Frequency speed - 2133/2400/2666/2800/2933/3000/3200 MHz
Full Description Line - Intel H610|LGA1700|Micro-ATX|DDR4|3200/3000/2933/2800/2666/2400/2133 MHz|Memory slots 2|1xPCI-Express 1x|1xPCI-Express 16x|1xM.2|1x15pin D-sub|2xDVI-D|1xHDMI|2xUSB 2.0|2xUSB 3.2|2xPS/2|1xRJ45|3xAudio port|SATA|USB 2.0|Video Depending on CPU|LAN Gigabit|TPM Header
Graphics - Maximum resolution - 3840 x 2160 pixels
Graphics - Parallel processing technology support - Not supported
Gross weight - 0.78 kg
gross_weight - 1.2 kg
GTIN - 4711081758372
HDMI Input/Output connectors - 1
Integrated LAN - Gigabit
Integrated video - Depending on CPU
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - Audio connector - Yes
Internal I/O - Chassis intrusion connector - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Number of chassis fan connectors - 1
Internal I/O - Number of COM connectors - 1
Internal I/O - Number of SATA III connectors - 4
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1
Internal I/O > Number of SATA connectors - 4
Internal I/O > Supported hard disk drive interfaces - SATA, M.2
Link - https://www.asus.com/me-en/Motherboards-Components/Motherboards/PRIME/PRIME-H610M-R-D4/
Link - https://www.blobs.lt/products/7/4/8/8/6/3/5f7ec7b99bea0c2e6c7deaf66bf9a686/original.webp
Logistics data - Harmonized System (HS) code - 84733020
LongDesc - FLEXIBILITYComprehensive controls form the foundation of the ASUS Prime series. The Prime H610 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.All-Around Energy EfficiencyThe Energy Processing Unit (EPU) automatically optimizes power consumption and maximizes energy savings with Away mode — a smart setting that creates an extreme energy-saving scenario by shutting down unused I/O controllers.Precise Digital Power ControlThe Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency and power-efficiency settings. It also allows you to fine-tune your CPU for ultimate stability and performance.UEFI BIOSThe renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans.Advanced Tuning for Serious TweakersAn intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, and various advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want.Quick and Simple SetupEZ mode displays vital settings and stats and also offers guided wizards, drag-and-drop functionality, and one-click application of important settings — all to help you get your rig up and running in no time.COOLINGPrime H610 series are engineered with an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.PERFORMANCEPrime H610 series are built to handle the additional cores and increased bandwidth of 12th Generation Intel® processors. ASUS H610 motherboards provide all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options.StorageM.2 slot (up to 32 Gbps)Prime H610M-R D4 offers one M.2 slot that supports data-transfer speeds of up to 32 Gbps via PCIe 3.0, enabling quicker boot-up and app load times with OS or application drives.ConnectivityPCIe® 4.0Prime H610 motherboards are designed specifically for 12th Generation Intel® Core™ CPUs and offer PCIe® 4.0 connectivity for the latest GPUs. The wide bandwidth and superfast transmission speeds allow you to create feature-rich builds that can handle high loads effortlessly.USB 3.2 Gen 1 Type-ANumerous USB ports support high-end rigs loaded with peripherals, including rear-panel USB Type-A connectors with fast USB 3.2 Gen 1 connectivity for compatible cases.AudioCombined onboard features deliver elevated audioIntelligent design and premium hardware create audio quality unlike anything you've ever experienced.Audio ShieldingSeparates analog/digital signal domains, significantly reducing multi-lateral interference.Separate Layer for Left and Right TracksEnsures minimal crosstalk between audio paths.Q-LED CoreThe Q-LED Core display produces light patterns by power LED during the Power-On Self-Test (POST) that can help users troubleshoot potential issues.
LongProductName - mATX, Socket LGA 1700, Intel H610 Chipset, 2x DIMM DDR4, UEFI AMI BIOS
LongSummaryDescription - ASUS PRIME H610M-R D4. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel Pentium G. Supported memory types: DDR4-SDRAM, Maximum internal memory: 64 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD. Maximum resolution: 3840 x 2160 pixels. USB connector type: USB Type-A
M.2 Expansion slots - 1
Manufacturer - ASUS
Memory - ECC сompatibility - Non-ECC
Memory - Maximum internal memory - 64 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 2
Memory - Supported memory clock speeds - 2133
Memory - Supported memory clock speeds - 2133,2400,2666,2800,2933,3000,3200 MHz
Memory - Supported memory clock speeds - 2400
Memory - Supported memory clock speeds - 2666
Memory - Supported memory clock speeds - 2800
Memory - Supported memory clock speeds - 2933
Memory - Supported memory clock speeds - 3000
Memory - Supported memory clock speeds - 3200 MHz
Memory - Supported memory types - DDR4-SDRAM
Memory - Unbuffered memory - Yes
Memory > Memory slots - 2
Memory > Supported memory types - DDR4 DIMM
Memory slots - 2
Memory type - DDR4
Model - Asus
Model - PRIME H610M-R D4-SI
MPN - 90MB1B40-M0ECY0
Name - 1700 ASUS PRIME H610M-R DDR4
Name - Asus PRIME H610M-R D4-SI
name - ASUS Prime H610M-R D4-SI, Intel H610 Mainboard, Sockel 1700, DDR4
Name - Asus | PRIME H610M-R D4-SI | Processor family Intel | Processor socket LGA1700 | DDR4 DIMM | Memory slots 2 | Supported hard disk drive interfaces SATA, M.2 | Number of SATA connectors 4 | Chipset Intel H610 | Mic-ATX
Network - Ethernet interface type - Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Wake-on-LAN ready - Yes
Network - Wi-Fi - No
Other features - Weight - 842 g
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 53 mm
Package features > Gross depth master carton - 275 mm
Package features > Gross height (mm) - 228 mm
Package features > Gross height master carton - 255 mm
Package features > Gross width (mm) - 247 mm
Package features > Gross width master carton - 510 mm
Package features > Net weight master carton - 7.8 kg
Package features > Packing quantity - 10 pc(s)
Package features > Palette Qty - 480 pc(s)
Package features > Paper/Pasteboard - 170.00 g
Package features > Plastic (No PET) - 60.00 g
Package features > Tare weight (kg) - 0.087 kg
Package features > Tare weight master carton - 0.608 kg
Package features > Volume (m3) - 0.002984748 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
Packaging content - Cables included - SATA
Packaging content - Drivers included - Yes
PCI-Express 1x Expansion slots - 1
PCI-Express 16x Expansion slots - 1
Performance > Chipset - Intel H610
Performance > Motherboard form factor - Mic-ATX
Processor - Compatible processor series - Intel Pentium G
Processor - Compatible processor series - Intel® Celeron®
Processor - Compatible processor series - Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel Pentium G
Processor - Compatible processor series - Intel® Core™ i3
Processor - Compatible processor series - Intel® Core™ i5
Processor - Compatible processor series - Intel® Core™ i7
Processor - Compatible processor series - Intel® Core™ i9
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1700
Processor - Supported processor sockets - LGA 1700
Processor > Compatible processor series - Supports 12th Gen Intel processors
Processor > Processor family - Intel
Processor > Processor socket - LGA1700
Producer - ASUS
Producer - Asus
producerCode - 90MB1B40-M0ECY0
ProducerCode - PRIME H610M-R D4-SI
Producer product name - PRIME H610M-R D4-SI
productName - ASUS PRIME H610M-R D4 Intel H610 LGA 1700 micro ATX
ProductName - PRIME H610M-R D4
productSize - Normal
PS/2 Input/Output connectors - 2

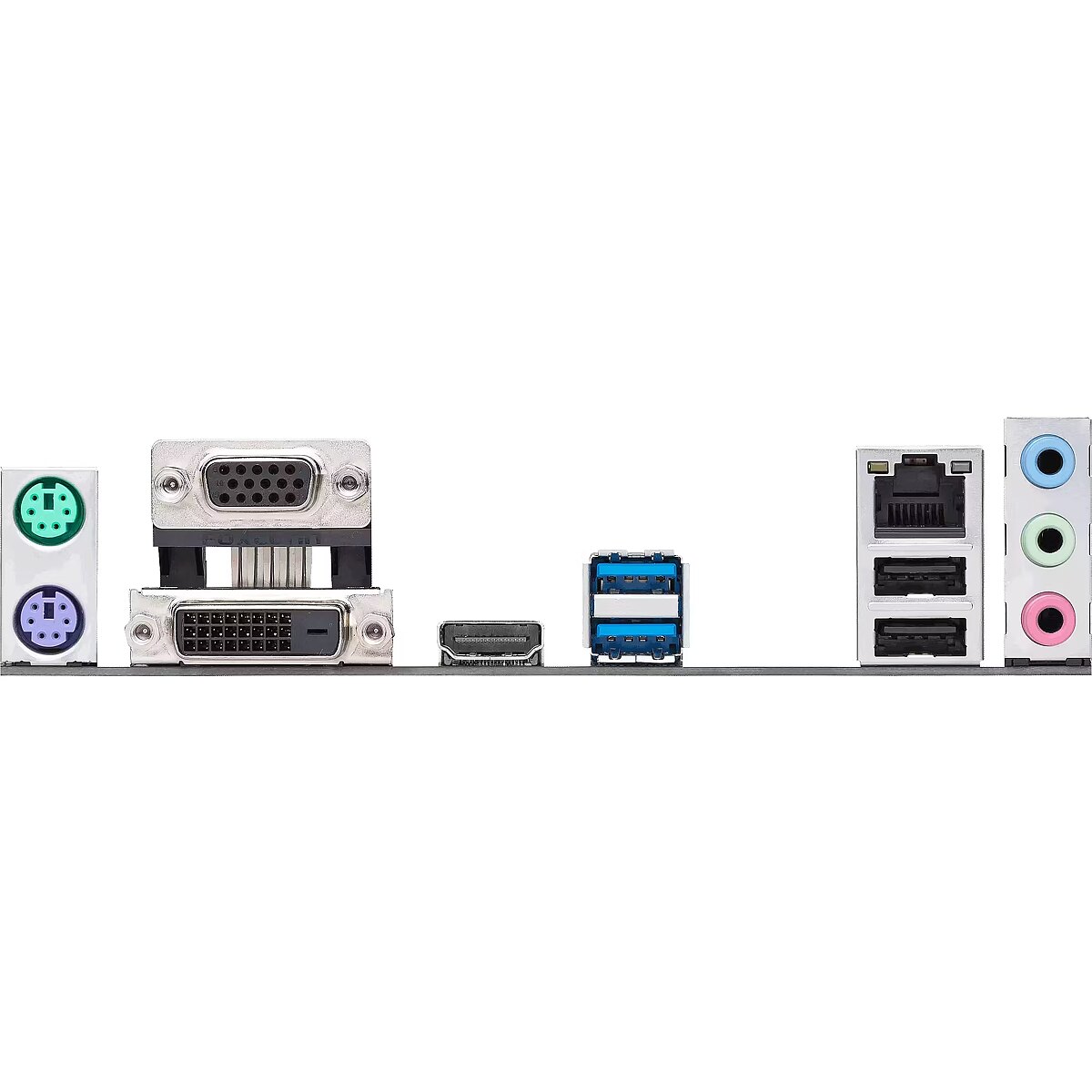

Rear panel I/O ports - DVI-D ports quantity - 1
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - HDMI version - 2.1
Rear panel I/O ports - Headphone outputs - 3
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - PS/2 ports quantity - 2
Rear panel I/O ports - USB 2.0 ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 2
Rear panel I/O ports - USB connector type - USB Type-A
Rear panel I/O ports - VGA (D-Sub) ports quantity - 1
RJ45 Input/Output connectors - 1
SATA Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 25 cm
Shipping Box Height Shipping/Package Box Dimensions - 5 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 0.78 kg
Shipping Box Width Shipping/Package Box Dimensions - 23 cm
ShortDescription - Socket 1700| Chipset Intel H610 | DDR4 |
ShortSummaryDescription - ASUS PRIME H610M-R D4, Intel, LGA 1700, Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel Pentium G, LGA 1700, DDR4-SDRAM, 64 GB
sizeX - 250
sizeY - 230
sizeZ - 55
Socket - LGA1700
Storage controllers - Number of storage drives supported - 5
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Technical details > Net weight - 0.693 kg
Technical details > Producer - Asus
Technical details > Warranty - 36 month(s)
Title - ASUS PRIME H610M-R D4 Intel H610 LGA 1700 micro ATX
title_en - Asus PRIME H610M-R D4 Motherboard Intel H610 LGA 1700 micro ATX
title_lv - Asus PRIME H610M-R D4 Mātesplāte Intel H610 LGA 1700 mikro ATX
title_ru - Asus PRIME H610M-R D4 Материнская плата Intel H610 LGA 1700 micro ATX
TPM - Header
Unit Box Height - 0.05
Unit Box Length - 0.25
Unit Box Width - 0.23
Unit Brutto Volume - 0.002875 cubm
Unit Gross Weight - 0.78 kg
Unit Net Weight - 0.68 kg
URL - https://www.asus.com/me-en/Motherboards-Components/Motherboards/PRIME/PRIME-H610M-R-D4/
USB 2.0 Input/Output connectors - 2
USB 2.0 Interface - Yes
USB 3.2 Input/Output connectors - 2
Vendor Homepage - www.asus.com/me-en/motherboards-components/motherboards/prime/prime-h610m-r-d4/
Warranty - 36
Warranty - 36 months
WarrantyInfo -
warrantyLength - 36
warrantyType - G
Weight - 0.74
weight - 0.842 kg
weight - 780
Weight & dimensions - Depth - 193 mm
Weight & dimensions - Height - 51 mm
Weight & dimensions - Width - 226 mm
Audio port Input/Output connectors - 3
BIOS - BIOS memory size - 128 Mbit
BIOS - BIOS type - UEFI AMI
BIOS - Clear CMOS jumper - Yes
Brand - ASUS
BrandPartCode - 90MB1B40-M0ECY0
Category - Motherboards
category - PC Components|Mainboards|Intel Mainboards|Sockel 1700
Category - Root/Electronics/PC parts/Motherboards
Category 1 - Mainboards & Zubehör
Category 2 - Mainboards - Intel
Category Code - MBI
category_en - Computers & Components > Computer components > Motherboards > Intel motherboards
category_lv - Datortehnika > Datoru komponentes > Pamatplates > Intel mātesplates
category_ru - Datortehnika > Datoru komponentes > Pamatplates > Intel mātesplates
Chipset - Intel H610
code - 90MB1B40-M0ECY0
Code - 90MB1B40-M0ECY0
Description - Intel® H610 (LGA 1700) mic-ATX motherboard with DDR4, PCIe 4.0, M.2 slot, Realtek 1 Gb Ethernet, HDMI®,D-Sub, DVI, USB 3.2 Gen 1 ports, SATA 6 Gbps , COM header, LPT header, TPM header - Intel® LGA 1700 socket: Ready for 12th Gen Intel® processors - Comprehensive cooling: PCH heatsink - Ultrafast connectivity: 32Gbps M.2 slot, Realtek 1 Gb Ethernet and USB 3.2 Gen 1 - 5X Protection III: Multiple hardware safeguards for all-round protection
description_en - ASUS PRIME H610M-R D4
Processor manufacturer: Intel
Processor socket: LGA 1700
Compatible processors: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,...
Supported memory types: DDR4-SDRAM
Number of memory slots: 2
PCI Express X1 (Gen 3.x) slots: 1
Maximum internal memory: 64GB
Memory Slot Type: DIMM
Supported storage disk interfaces: M.2, SATA III
Supported storage disk types: HDD & SSD
Maximum resolution: 3840 x 2160 pixels
USB connector: USB Type-A
Weight: 0.842 kg
description_lv - ASUS PRIME H610M-R D4
Procesora ražotājs: Intel
Procesora ligzda: LGA 1700
Savietojami procesori: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,....
Atbalstītās atmiņas veidi: DDR4-SDRAM
Atmiņas slotu skaits: 2
PCI Express X1 (Gen 3.x) sloti: 1
Maksimālā iekšējā atmiņa: 64GB
Atmiņas slotu tips: DIMM
Atbalstītie glabāšanas diska interfeisi: M.2, SATA III
Atbalstītie atmiņas disku veidi: HDD & SSD
Maksimālā izšķirtspēja: 3840 x 2160 pikseļi
USB savienotājs: USB Type-A
Svars: 0.842 kg
description_ru - ASUS PRIME H610M-R D4
Производитель процессора: Intel
Разъем процессора: LGA 1700
Совместимые процессоры: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,...
Поддерживаемые типы памяти: DDR4-SDRAM.
Количество слотов памяти: 2
Слоты PCI Express X1 (Gen 3.x): 1
Максимальная внутренняя память: 64 ГБ
Тип слота памяти: DIMM
Поддерживаемые интерфейсы накопителей: M.2, SATA III.
Поддерживаемые типы дисков: HDD и SSD.
Максимальное разрешение: 3840 x 2160 пикселей.
USB-разъем: USB Тип-A
Вес: 0,842 кг
dimensionalWeight - 632
DVI-D Input/Output connectors - 2
EAN - 4711081758372
ean - 4711081758372
Eans - 4711081758372
Expansion slots - Number of M.2 (M) slots - 1
Expansion slots - PCI Express x1 (Gen 3.x) slots - 1
Expansion slots - PCI Express x16 (Gen 4.x) slots - 1
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Motherboard chipset - Intel H610
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - micro ATX
Features - Windows operating systems supported - Windows 10 x64
Features - Windows operating systems supported - Windows 10 x64, Windows 11 x64
Features - Windows operating systems supported - Windows 11 x64
Form Factor - Micro-ATX
Frequency speed - 2133/2400/2666/2800/2933/3000/3200 MHz
Full Description Line - Intel H610|LGA1700|Micro-ATX|DDR4|3200/3000/2933/2800/2666/2400/2133 MHz|Memory slots 2|1xPCI-Express 1x|1xPCI-Express 16x|1xM.2|1x15pin D-sub|2xDVI-D|1xHDMI|2xUSB 2.0|2xUSB 3.2|2xPS/2|1xRJ45|3xAudio port|SATA|USB 2.0|Video Depending on CPU|LAN Gigabit|TPM Header
Graphics - Maximum resolution - 3840 x 2160 pixels
Graphics - Parallel processing technology support - Not supported
Gross weight - 0.78 kg
gross_weight - 1.2 kg
GTIN - 4711081758372
HDMI Input/Output connectors - 1
Integrated LAN - Gigabit
Integrated video - Depending on CPU
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - Audio connector - Yes
Internal I/O - Chassis intrusion connector - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Number of chassis fan connectors - 1
Internal I/O - Number of COM connectors - 1
Internal I/O - Number of SATA III connectors - 4
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1
Internal I/O > Number of SATA connectors - 4
Internal I/O > Supported hard disk drive interfaces - SATA, M.2
Link - https://www.asus.com/me-en/Motherboards-Components/Motherboards/PRIME/PRIME-H610M-R-D4/
Link - https://www.blobs.lt/products/7/4/8/8/6/3/5f7ec7b99bea0c2e6c7deaf66bf9a686/original.webp
Logistics data - Harmonized System (HS) code - 84733020
LongDesc - FLEXIBILITYComprehensive controls form the foundation of the ASUS Prime series. The Prime H610 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.All-Around Energy EfficiencyThe Energy Processing Unit (EPU) automatically optimizes power consumption and maximizes energy savings with Away mode — a smart setting that creates an extreme energy-saving scenario by shutting down unused I/O controllers.Precise Digital Power ControlThe Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency and power-efficiency settings. It also allows you to fine-tune your CPU for ultimate stability and performance.UEFI BIOSThe renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans.Advanced Tuning for Serious TweakersAn intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, and various advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want.Quick and Simple SetupEZ mode displays vital settings and stats and also offers guided wizards, drag-and-drop functionality, and one-click application of important settings — all to help you get your rig up and running in no time.COOLINGPrime H610 series are engineered with an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.PERFORMANCEPrime H610 series are built to handle the additional cores and increased bandwidth of 12th Generation Intel® processors. ASUS H610 motherboards provide all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options.StorageM.2 slot (up to 32 Gbps)Prime H610M-R D4 offers one M.2 slot that supports data-transfer speeds of up to 32 Gbps via PCIe 3.0, enabling quicker boot-up and app load times with OS or application drives.ConnectivityPCIe® 4.0Prime H610 motherboards are designed specifically for 12th Generation Intel® Core™ CPUs and offer PCIe® 4.0 connectivity for the latest GPUs. The wide bandwidth and superfast transmission speeds allow you to create feature-rich builds that can handle high loads effortlessly.USB 3.2 Gen 1 Type-ANumerous USB ports support high-end rigs loaded with peripherals, including rear-panel USB Type-A connectors with fast USB 3.2 Gen 1 connectivity for compatible cases.AudioCombined onboard features deliver elevated audioIntelligent design and premium hardware create audio quality unlike anything you've ever experienced.Audio ShieldingSeparates analog/digital signal domains, significantly reducing multi-lateral interference.Separate Layer for Left and Right TracksEnsures minimal crosstalk between audio paths.Q-LED CoreThe Q-LED Core display produces light patterns by power LED during the Power-On Self-Test (POST) that can help users troubleshoot potential issues.
LongProductName - mATX, Socket LGA 1700, Intel H610 Chipset, 2x DIMM DDR4, UEFI AMI BIOS
LongSummaryDescription - ASUS PRIME H610M-R D4. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel Pentium G. Supported memory types: DDR4-SDRAM, Maximum internal memory: 64 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD. Maximum resolution: 3840 x 2160 pixels. USB connector type: USB Type-A
M.2 Expansion slots - 1
Manufacturer - ASUS
Memory - ECC сompatibility - Non-ECC
Memory - Maximum internal memory - 64 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 2
Memory - Supported memory clock speeds - 2133
Memory - Supported memory clock speeds - 2133,2400,2666,2800,2933,3000,3200 MHz
Memory - Supported memory clock speeds - 2400
Memory - Supported memory clock speeds - 2666
Memory - Supported memory clock speeds - 2800
Memory - Supported memory clock speeds - 2933
Memory - Supported memory clock speeds - 3000
Memory - Supported memory clock speeds - 3200 MHz
Memory - Supported memory types - DDR4-SDRAM
Memory - Unbuffered memory - Yes
Memory > Memory slots - 2
Memory > Supported memory types - DDR4 DIMM
Memory slots - 2
Memory type - DDR4
Model - Asus
Model - PRIME H610M-R D4-SI
MPN - 90MB1B40-M0ECY0
Name - 1700 ASUS PRIME H610M-R DDR4
Name - Asus PRIME H610M-R D4-SI
name - ASUS Prime H610M-R D4-SI, Intel H610 Mainboard, Sockel 1700, DDR4
Name - Asus | PRIME H610M-R D4-SI | Processor family Intel | Processor socket LGA1700 | DDR4 DIMM | Memory slots 2 | Supported hard disk drive interfaces SATA, M.2 | Number of SATA connectors 4 | Chipset Intel H610 | Mic-ATX
Network - Ethernet interface type - Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Wake-on-LAN ready - Yes
Network - Wi-Fi - No
Other features - Weight - 842 g
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 53 mm
Package features > Gross depth master carton - 275 mm
Package features > Gross height (mm) - 228 mm
Package features > Gross height master carton - 255 mm
Package features > Gross width (mm) - 247 mm
Package features > Gross width master carton - 510 mm
Package features > Net weight master carton - 7.8 kg
Package features > Packing quantity - 10 pc(s)
Package features > Palette Qty - 480 pc(s)
Package features > Paper/Pasteboard - 170.00 g
Package features > Plastic (No PET) - 60.00 g
Package features > Tare weight (kg) - 0.087 kg
Package features > Tare weight master carton - 0.608 kg
Package features > Volume (m3) - 0.002984748 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
Packaging content - Cables included - SATA
Packaging content - Drivers included - Yes
PCI-Express 1x Expansion slots - 1
PCI-Express 16x Expansion slots - 1
Performance > Chipset - Intel H610
Performance > Motherboard form factor - Mic-ATX
Processor - Compatible processor series - Intel Pentium G
Processor - Compatible processor series - Intel® Celeron®
Processor - Compatible processor series - Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel Pentium G
Processor - Compatible processor series - Intel® Core™ i3
Processor - Compatible processor series - Intel® Core™ i5
Processor - Compatible processor series - Intel® Core™ i7
Processor - Compatible processor series - Intel® Core™ i9
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1700
Processor - Supported processor sockets - LGA 1700
Processor > Compatible processor series - Supports 12th Gen Intel processors
Processor > Processor family - Intel
Processor > Processor socket - LGA1700
Producer - ASUS
Producer - Asus
producerCode - 90MB1B40-M0ECY0
ProducerCode - PRIME H610M-R D4-SI
Producer product name - PRIME H610M-R D4-SI
productName - ASUS PRIME H610M-R D4 Intel H610 LGA 1700 micro ATX
ProductName - PRIME H610M-R D4
productSize - Normal
PS/2 Input/Output connectors - 2
Rear panel I/O ports - DVI-D ports quantity - 1
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - HDMI version - 2.1
Rear panel I/O ports - Headphone outputs - 3
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - PS/2 ports quantity - 2
Rear panel I/O ports - USB 2.0 ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 2
Rear panel I/O ports - USB connector type - USB Type-A
Rear panel I/O ports - VGA (D-Sub) ports quantity - 1
RJ45 Input/Output connectors - 1
SATA Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 25 cm
Shipping Box Height Shipping/Package Box Dimensions - 5 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 0.78 kg
Shipping Box Width Shipping/Package Box Dimensions - 23 cm
ShortDescription - Socket 1700| Chipset Intel H610 | DDR4 |
ShortSummaryDescription - ASUS PRIME H610M-R D4, Intel, LGA 1700, Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel Pentium G, LGA 1700, DDR4-SDRAM, 64 GB
sizeX - 250
sizeY - 230
sizeZ - 55
Socket - LGA1700
Storage controllers - Number of storage drives supported - 5
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Technical details > Net weight - 0.693 kg
Technical details > Producer - Asus
Technical details > Warranty - 36 month(s)
Title - ASUS PRIME H610M-R D4 Intel H610 LGA 1700 micro ATX
title_en - Asus PRIME H610M-R D4 Motherboard Intel H610 LGA 1700 micro ATX
title_lv - Asus PRIME H610M-R D4 Mātesplāte Intel H610 LGA 1700 mikro ATX
title_ru - Asus PRIME H610M-R D4 Материнская плата Intel H610 LGA 1700 micro ATX
TPM - Header
Unit Box Height - 0.05
Unit Box Length - 0.25
Unit Box Width - 0.23
Unit Brutto Volume - 0.002875 cubm
Unit Gross Weight - 0.78 kg
Unit Net Weight - 0.68 kg
URL - https://www.asus.com/me-en/Motherboards-Components/Motherboards/PRIME/PRIME-H610M-R-D4/
USB 2.0 Input/Output connectors - 2
USB 2.0 Interface - Yes
USB 3.2 Input/Output connectors - 2
Vendor Homepage - www.asus.com/me-en/motherboards-components/motherboards/prime/prime-h610m-r-d4/
Warranty - 36
Warranty - 36 months
WarrantyInfo -
warrantyLength - 36
warrantyType - G
Weight - 0.74
weight - 0.842 kg
weight - 780
Weight & dimensions - Depth - 193 mm
Weight & dimensions - Height - 51 mm
Weight & dimensions - Width - 226 mm
