ID: 902749
Product code: H610M-HVS/M.2 R2.0
In stock 28 units
Warranty: 2 years

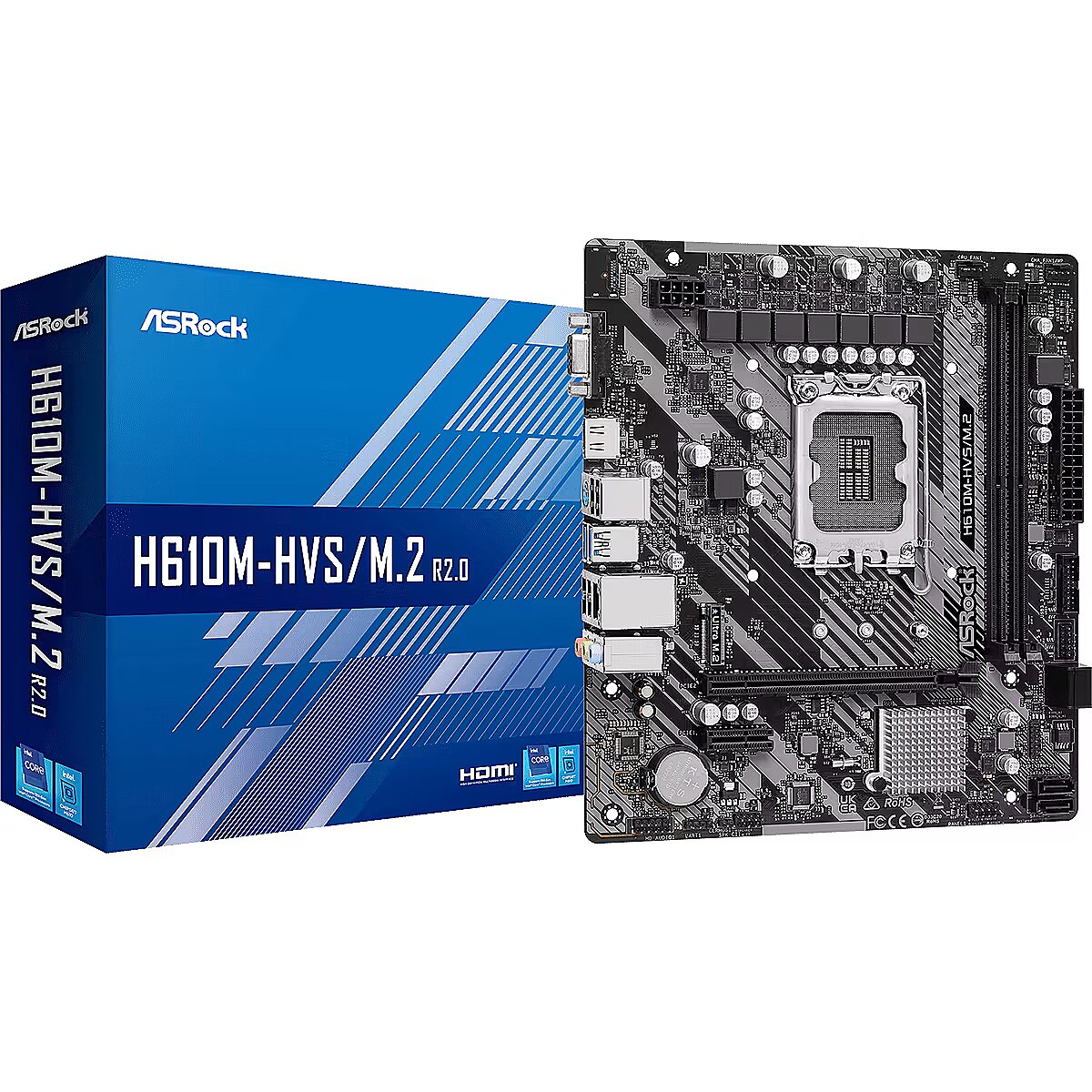

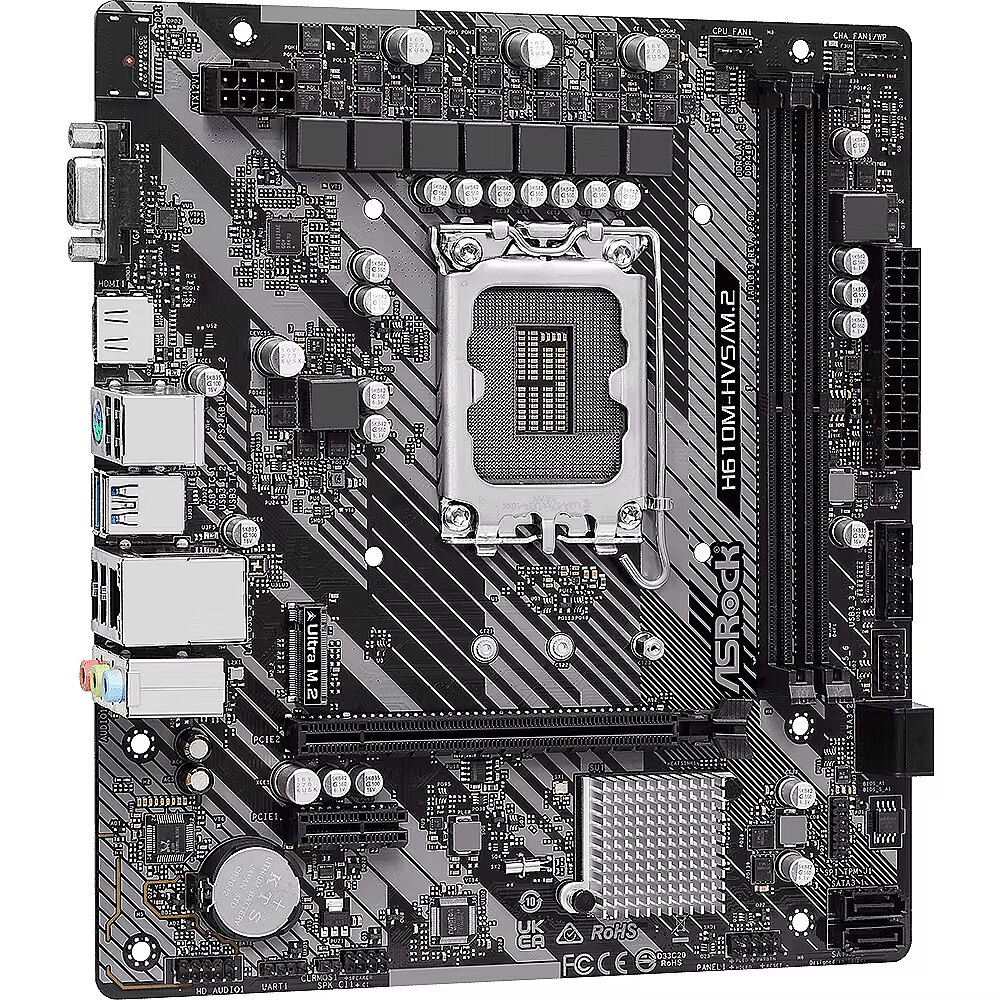

Asrock H610M-HVS/M.2 R2.0
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options More about shipping
- Delivery to Smartpost free of charge: 28.11.2024
- Delivery to Omniva parcel machine free of charge: 28.11.2024
- Piegāde uz DPD Pickup Paku Skapi free of charge: 28.11.2024
- Delivery to Latvian post office, parcel locker or Circle K free of charge: 28.11.2024
- Delivery to address in Riga 3.99 €: 28.11.2024
- Delivery to address in Latvia 6.99 €: 28.11.2024
- Delivery to Dateks.lv parcel drop-off point at 9 Zemitāna Street: on Thuesday, 26.11.2024 after 15:00
Main product parameters All parameters
- Series: Nav
- CPU Socket: LGA 1700
- Chipset: Intel H610
- Form factor: Micro ATX
- Type: DDR4
- RAM Slots: 2
- Built-in Wi-Fi: Nav
Basic information
Series
: Nav
CPU Socket
LGA 1700
The CPU socket is an important factor in selecting the board; the CPU board must be exactly compatible with the CPU that you want to install with the board. Irrespective of the fact that the CPU fits the socket of the motherboard also the support of this CPU has to be taken into account. For verifying which CPUs are supported by the selected motherboard you should visit the website of the manufacturer of the motherboard, find the CPU support section of the relevant motherboard and verify that the specification of this particular board provides for the support of the CPU that you have selected.
Chipset
Intel H610
The chip bus is the most important criterion of selecting the motherboard (the system logic chips or the voltage transformers). The chip bus determines the CPUs, memory ports and other parameters that are supported by the motherboard.
Each chipset is directly related to a certain CPU platform which are divided based upon the family of CPUs or the connection point of the CPU.
For verifying which chip bus is suitable for your CPU, etc. you should ask our managers.
Form factor
Micro ATX
The physical size of the motherboard. Dateks.lv offers ATX (full size board), mATX (micro ATX) (a board of reduced size) and miniATX size motherboards. Within the housing of an ATX size computer it is possible to place both ATX and mATX motherboard, however, in the mATX housing it is not possible to place an ATX board.
The ATX board has at least 3 memory slots and at least 5 local slots PCI, which means that a well functioning powerful computer can be built on this board. However, a home or office computer does not need this high number of slots, therefore also microATX will be suitable.
The connector of the power supply unit of the motherboard is the power source socket which are currently of ATX and ATX2.0 standard. ATX is an older standard with a 20pin connector (20 "pins"), and ATX2.0 has 4 additional pins (20+4). The motherboards of ATX standard can operate with a ATX2.0 power supply unit (PSU), however the mother board of ATX2.0 standard requires an ATX2.0 power supply unit.
Form-factor is rather a recommendation. However, prior to buying a mother board you should verify the compatibility of the housing size to the motherboard size and its power supply connector.
Random-access memory (RAM)
Type
: DDR4
RAM Slots
2
The number of available memory slots indicates the number of memory modules (plates) that can be installed in the motherboard.
Memory support
DDR4 3200
The RAM bus determines what type of RAM is supported by the relevant motherboard.
The bus marking contains the memory type DDRII or DDRIII as well as the maximum memory clock frequency that is supported by the mother board. The type of memory is the most important index, memories of different types are physically different, therefore DDRIII memory cannot be connected to the mother board that supports DDRII memory (except the cases when the motherboard supports both types of memory). However the motherboard that support 800Mhz DDRII memory can work with the memory speeds of DDII667 and DDRII533. The mother board with the memory bus speed below the speed of the memory module will be able to operate as fast as the specified bus speed only, i.e. if the memory bus of the motherboard is DDRII667 and the memory DDRII800 is installed it will operate with the speed of DDRII667.
Graphics card
Video card port
PCI-EXPRESS
VGA port or the video card plug. The VGA port must comply with the specification of the video card port you have selected. Older video cards have an AGP port, new cards are manufacturer with a PCI-EXPRESS (PCI-X) port.AGP and PCI-Xpress video cards are not mutually compatible. Prior to buying the motherboard you should verify the compliance of the video card port of both the motherboard and the video card.
Integrated graphics
Only with iGPU-ready CPU
The parameter that determines whether a video card has been integrated with the motherboard. An integrated video card is suitable for working with the office software, Internet, watching films and playing simple games. If you wish to use graphics applications, play 3D games and watch 3D animations you would need an additional video card.
An integrated video card uses a fraction of the memory included in the mother board, therefore, if your motherboard has 1Gb memory and in the settings of the video card of the mother board it is stated that it takes 256mb the operating system will display the available memory volume of approximately 700 Mb.
Prior to buying a motherboard with a built-in video card you should verify whether it has an additional video card port for further upgrades if these are required
Ports and equipment
PCI ports
0
PCI ports present the most popular way of supplementing the computer functions with additional cards (sound, network, communications, video surveillance, etc.). Newer boards, thanks to the PCI-Express standard, have a small number of PCI extension ports, therefore, prior to buying the motherboard you should verify if the number of PCI ports allows the connection of all the PCI cards you need.
D-Sub
: 1
DVI
: 0
HDMI
: 1
DisplayPort
: 0
Integrated sound card
: Realtek ALC887
Wireless connections
Built-in Bluetooth
: Nav
Built-in Wi-Fi
: Nav
External ports
External USB Type-C
: 0
External USB 2.0
: 4
External USB 3.0 (USB 3.2 Gen1)
: 2
External USB 3.1 (USB 3.2 Gen2)
: 0
Internal ports
Internal A-RGB 5V (3-pin)
: 0
Internal RGB 12V (4-pin)
: 0
Internal USB 2.0
: 1
Internal USB 3.0
: 1
Internal USB Type-C
: 0
M.2 Port
: 1
SATA3 ports
: 4
More detailed specification
15pin D-sub Input/Output connectors - 1
Accessories included - Quick installation guide Support CD I/O cover 2 x SATA data cables 1 x M.2 screw
Audio-In Input/Output connectors - 1
Audio-Out Input/Output connectors - 1
BIOS - Legal AMI UEFI 28Mb BIOS with multilingual GUI support ACPI 6.0 compliant wake-up events SMBIOS 2.7 support CPU Core/Cache, CPU Core/Cache Load Line, CPU GT, CPU GT Load Line, DRAM, +0.82V PCH, +1.05V PCH, VCCIN AUX, +1.8V PROC, +1 .05 V PROC Voltage regulation
BIOS - BIOS type - UEFI AMI
category - PC Components|Mainboards|Intel Mainboards|Sockel 1700
Category - Root/Electronics/PC parts/Motherboards
Category Code - MBI
Category_1 - Motherboards
Category_2 - Motherboards - Intel 1700
Chipset - Intel H610
Chipset manufacturer - Intel
Chipset type - Intel H610
code - 90-MXBJJ0-A0UAYZ
Code - H610M-HVS/M.2 R2.0
COM connector / port - No
CPU socket - LGA1700
Description - - Supports 12th Gen Intel® Core™ Processors (LGA1700) - 7 Phase Power Design - Supports DDR4 3200MHz - 1 PCIe 4.0 x16, 1 PCIe 3.0 x1 - Graphics Output Options: HDMI, D-Sub - Realtek ALC897 7.1 CH HD Audio Codec - 4 SATA3 - 1 Ultra M.2 (PCIe Gen3 x4) - 4 USB 3.2 Gen1 (2 Rear, 2 Front) - 6 USB 2.0 (4 Rear, 2 Front) - Realtek Gigabit LAN
Description - H610M-HVS/M.2 R2.0 motherboard Supports 13th, 12th and next generation Intel Core processors (LGA1700) 6+1+1 phase power supply design Supports DDR4 3200MHz 1 PCIe 4.0 x16, 1 PCIe 3.0 x1 Graphics output options: HDMI, D-Sub Realtek ALC897 7.1 CH HD audio codec 4SATA3 1 Ultra M.2 (PCIe Gen3 x4) 4 USB 3.2 Gen1 ports (2 rear, 2 front) 6 USB 2.0 ports (4 rear, 2 front) Realtek gigabit network card
Detailed data on disk/drive interfaces - Supports 13th, 12th and next generation Intel Core processors (LGA1700) 6+1+1 power phase design Supports Intel Hybrid Technology Supports Intel Turbo Boost Max 3.0 technology
dimensionalWeight - 810
dimension depth - 60 mm
dimension height - 240 mm
Dimensions - 22 x 19.3 cm
dimension weight - 837 g
dimension width - 280 mm
EAN - 4710483939914
ean - 4710483939914
Eans - 4710483939914
EAN_code - 4710483939914
Expansion slots - 1 x M.2
Expansion slots - 1 x PCIe 3.0 x 1
Expansion slots - 1 x PCIe 4.0 x 16
Expansion slots - PCI Express x1 (Gen 3.x) slots - 1
Expansion slots - PCI Express x16 (Gen 4.x) slots - 1
External connectors - 1 x D-Sub
External connectors - 1 x HDMI
External connectors - 1 x Line In
External connectors - 1 x Line Out
External connectors - 1 x MIC
External connectors - 1 x PS/2 Keyboard/MouseCombo
External connectors - 1 x RJ-45
External connectors - 2 x USB 3.0
External connectors - 4 x USB 2.0
Features - Audio chip - Realtek ALC887 / Realtek ALC897
Features - Audio output channels - 7.1 channels
Features - Motherboard chipset - Intel H610
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - micro ATX
Features - PC health monitoring - CPU
Features - PC health monitoring - Fan
Features - PC health monitoring - Temperature
Features - PC health monitoring - Voltage
Features - Windows operating systems supported - Windows 10 x64
Features - Windows operating systems supported - Windows 11 x64
FireWire (IEEE 1394) - No
Form Factor - Micro-ATX
Form factor - micro ATX
Frequency speed - 3200 MHz
Full Description Line - Intel H610|LGA1700|Micro-ATX|DDR4|3200 MHz|Memory slots 2|1xPCI-Express 3.0 1x|1xPCI-Express 4.0 16x|1xM.2|1x15pin D-sub|1xHDMI|1xAudio-In|1xAudio-Out|1xMicrophone|4xUSB 2.0|2xUSB 3.2|1xPS/2|1xRJ45|SATA 3.0|Video|LAN Gigabit|Audio
Graphics - Intel Xe Graphics Architecture (Gen 12) Dual graphics output: support HDMI and D-Sub ports by independent display controllers Support Compatible HDMI 2.1 TMDS with maximum resolution of 4K x 2K (4096x2160) @ 60Hz Supports D-Sub with max. Resolution up to 1920x1200 @ 60Hz Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible Port
Graphics - HDCP - Yes
Graphics - Maximum resolution - 4096 x 2160 pixels
Graphics - Parallel processing technology support - Not supported
Gross weight - 2.30 kg
guarantee - 36
guarantee_type - normal
HDMI Input/Output connectors - 1
Included Accessories - - Quick Installation Guide, Support CD, I/O Shield;
- 2 x SATA Data Cables;
- 1 x Screw for M.2 Socket
Integrated audio - Yes
Integrated CPU - No
Integrated LAN - Gigabit
Integrated video - Yes
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - Chassis intrusion connector - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Number of chassis fan connectors - 1
Internal I/O - Number of M.2 (M) slots - 1
Internal I/O - Number of SATA III connectors - 4
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 1
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1
Internal I/O > Number of SATA connectors - 4
Internal I/O > Supported hard disk drive interfaces - SATA3, M.2
Link - https://www.asrock.com/MB/Intel/H610M-HDVM.2/index.asp#Specification
LPT connector / port - No
M.2 Expansion slots - 1
Manufacturer - Asrock
Manufacturer_code - 90-MXBJJ0-A0UAYZ
Max. number of ATA devices - 0
Max. number of SATA devices - 4
Max memory size - 64 GB
Memory - Maximum internal memory - 64 GB
Memory - Number of memory slots - 2
Memory - Supported memory clock speeds - 3200 MHz
Memory - Supported memory types - DDR4-SDRAM
Memory - Unbuffered memory - Yes
Memory > Memory slots - 2
Memory > Supported memory types - DDR4 DIMM
Memory bus frequency - 3200 MHz
Memory slots - 2
Memory type - DDR4
Memory type - DDR4
Microphone Input/Output connectors - 1
Model - H610M-HVS/M.2
Model - H610M-HVS/M.2 R2.0
Name - ASRock H610M-HVS/M.2 R2.0
Name - ASRock H610M-HVS/M.2 R2.0 - Socket 1700 - motherboard
name - ASRock H610M-HVS/M.2 R2.0, Intel H610 Mainboard - Sockel 1700, DDR4
Name - ASRock | H610M-HVS/M.2 R2.0 | Processor family Intel | Processor socket LGA1700 | DDR4 DIMM | Memory slots 2 | Supported hard disk drive interfaces SATA3, M.2 | Number of SATA connectors 4 | Chipset H610 | Micro ATX
name - Motherboard H610M-HVS/M.2 R2.0 s1700 2DDR4 D-Sub/HDMI mATX
Network - Ethernet interface type - Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - LAN controller - Realtek RTL8111H
Network - Wake-on-LAN ready - Yes
Network - Wi-Fi - No
Network interface - 1 x 10/100/1000 Mbit/s
Network interface - PCIE x1 Gigabit LAN 10/100/1000 Mb/s 1 x Realtek RTL8111H Supports Wake-on-LAN function Supports lightning/ESD protection Supports energy-saving 802.3az Ethernet Supports PXE
Number of DDR4 slots - 2
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 5
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 0
Onboard connectors - 1 x 4pin CPU/Water Pump Fan Connector
Onboard connectors - 1 x 4pin CPU fan
Onboard connectors - 1 x 8pin 12V power
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x TPM header
Onboard connectors - 1 x USB 2.0/1.1 header
Onboard connectors - 1 x USB 3.0 header
Other information -
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 70.00 mm
Package features > Gross height (mm) - 295.00 mm
Package features > Gross width (mm) - 360.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 232 pc(s)
Package features > Paper/Pasteboard - 490.00 g
Package features > Plastic (No PET) - 10.00 g
Package features > Tare weight (kg) - 0.50 kg
Package features > Volume (m3) - 0.01 m³
Package features > WEEE tax - No
Packaging content - Cables included - SATA
Packaging content - Drivers included - Yes
PCI-Express 3.0 1x Expansion slots - 1
PCI-Express 4.0 16x Expansion slots - 1
Performance > Chipset - H610
Performance > Motherboard form factor - Micro ATX
Processor - Compatible processor series - Intel® Celeron®
Processor - Compatible processor series - Intel® Core™ i3
Processor - Compatible processor series - Intel® Core™ i5
Processor - Compatible processor series - Intel® Core™ i7
Processor - Compatible processor series - Intel® Core™ i9
Processor - Compatible processor series - Intel® Pentium®
Processor - Maximum number of SMP processors - 1
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1700
Processor > Compatible processor series - Supports 13th Gen and 12th Gen and Next Gen Intel Core Processors
Processor > Processor family - Intel
Processor > Processor socket - LGA1700
Processor family - Intel Core
producer - ASRock
Producer - ASRock
producerCode - H610M-HVS/M.2 R2.0
ProducerCode - H610M-HVS/M.2 R2.0
Producer product name - H610M-HVS/M.2 R2.0
productName - Asrock H610M-HVS/M.2 R2.0 Intel H610 LGA 1700 micro ATX
productSize - Normal
PS/2 Input/Output connectors - 1
RAID - No
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - HDMI version - 2.1
Rear panel I/O ports - PS/2 ports quantity - 1
Rear panel I/O ports - USB 2.0 ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 2
Rear panel I/O ports - VGA (D-Sub) ports quantity - 1
RJ45 Input/Output connectors - 1
SATA 3.0 Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 27.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 6 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 0.83 kg
Shipping Box Width Shipping/Package Box Dimensions - 24 cm
ShortDescription - Socket 1700 | Chipset Intel H610 | DDR4 |
sizeX - 270
sizeY - 60
sizeZ - 250
Socket - LGA1700
Software -
Sound card - 7.1 CH HD Audio (Realtek ALC897 Audio Codec) Supports Surge Protection
Special functions -
Storage controllers - Supported storage drive interfaces - SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Supported operating systems - Windows 10
Supported operating systems - Windows 11
Technical details > Net weight - 1.80 kg
Technical details > Producer - ASRock
Technical_details - Type: motherboard EAN: 4710483939914 Manufacturer number: 90-MXBJJ0-A0UAYZ Socket: 1700 Max CPUs supported: 1 Operating system: Windows 10 ready, Windows 11 ready Processor: Core i3 12xxx (Alder Lake), Core i3 12xxxT (Alder Lake), Core i3 12xxxF (Alder Lake), Core i5 12xxx (Alder Lake), Core i5 12xxxK (Alder Lake), Core i5 12xxxKF (Alder Lake), Core i5 12xxxT (Alder Lake), Core i5 12xxxF (Alder Lake), Core i5 13xxxK (Raptor Lake), Core i5 13xxxKF (Raptor Lake), Core i7 12xxx (Alder Lake), Core i7 12xxxK (Alder Lake), Core i7 12xxxKF (Alder Lake), Core i7 12xxxT (Alder Lake), Core i7 12xxxF (Alder Lake), Core i7 13xxxK (Raptor Lake), Core i7 13xxxKF (Raptor Lake), Core i9 12xxx (Alder Lake), Core i9 12xxxK ( Alder Lake), Core i9 12xxxKF (Alder Lake), Core i9 12xxxT (Alder Lake), Core i9 12xxxF (Alder Lake), Core i9 12xxxKS (Alder Lake), Core i9 13xxxK (Raptor Lake), Core i9 13xxxK (Raptor Lake ), Core i9 13xxxKF (Raptor Lake), Pentium Gold Gxxxx (Alder Lake), Celeron Gxxxx (Alder Lake) Chipset: Intel® H610 Slots: 1x (of which: 1x PCIe x16) : 2 BIOS: 128Mbit UEFI AMI BIOS : Yes : Yes Form factor: µATX Use: personal computer Power supply: ATX12V (24-pin + 8-pin) Memory: 64GB : 2x DDR4 : SDRAM DDR4 DDR4-3200/3000/2933/2800/2666/2400/2133Mhz : 2 : 8th : Yes : 8192 Mbit Connections (external): 1 : 2 The designation USB 3.2 Gen 1 corresponds to the former designations USB 3.1 Gen 1 or USB 3.0. : 4 : 1 : 1 : 1 : 1 : 1 : 1 : 1 Connections (internal): 4 : 1 : M : PCIe : 42 - 80mm : 4 Connections (optional): 2 : 2 : Yes RGB default: AURA sync SATA Controller: Intel® H610 USB Controller: Intel® H610 Onboard graphics: The graphics connections on the mainboard can only be used when using a CPU with an integrated graphics chip. Sound: Realtek ALC897/887 LAN: Realtek RTL8111H Additional information: A BIOS update may be required to support the latest processor cores. Accessories: quick installation guide, support CD, I/O shield, 2x SATA cables, M.2 screws
Dimensions: Width: 244mm x Height: 201mm
Unit Box Height - 0.06
Unit Box Length - 0.275
Unit Box Width - 0.24
Unit Brutto Volume - 0.00396 cubm
Unit Gross Weight - 0.83 kg
Unit Net Weight - 0.63 kg
USB 2.0 Input/Output connectors - 4
USB 3.2 Input/Output connectors - 2
USB ports at back panel - 6
USB ports on motherboard - 4
Vendor Homepage - www.asrock.com/MB/Intel/H610M-HVSM.2%20R2.0/index.asp
vendpn - H610M-HVS/M.2 R2.0
Warranty - 24
Warranty - 24 month(s)
Warranty - 36 months
warrantyLength - 24
warrantyType - G
Weight - 0,83
weight - 790
Weight & dimensions - Depth - 188 mm
Weight & dimensions - Width - 197 mm
Accessories included - Quick installation guide Support CD I/O cover 2 x SATA data cables 1 x M.2 screw
Audio-In Input/Output connectors - 1
Audio-Out Input/Output connectors - 1
BIOS - Legal AMI UEFI 28Mb BIOS with multilingual GUI support ACPI 6.0 compliant wake-up events SMBIOS 2.7 support CPU Core/Cache, CPU Core/Cache Load Line, CPU GT, CPU GT Load Line, DRAM, +0.82V PCH, +1.05V PCH, VCCIN AUX, +1.8V PROC, +1 .05 V PROC Voltage regulation
BIOS - BIOS type - UEFI AMI
category - PC Components|Mainboards|Intel Mainboards|Sockel 1700
Category - Root/Electronics/PC parts/Motherboards
Category Code - MBI
Category_1 - Motherboards
Category_2 - Motherboards - Intel 1700
Chipset - Intel H610
Chipset manufacturer - Intel
Chipset type - Intel H610
code - 90-MXBJJ0-A0UAYZ
Code - H610M-HVS/M.2 R2.0
COM connector / port - No
CPU socket - LGA1700
Description - - Supports 12th Gen Intel® Core™ Processors (LGA1700) - 7 Phase Power Design - Supports DDR4 3200MHz - 1 PCIe 4.0 x16, 1 PCIe 3.0 x1 - Graphics Output Options: HDMI, D-Sub - Realtek ALC897 7.1 CH HD Audio Codec - 4 SATA3 - 1 Ultra M.2 (PCIe Gen3 x4) - 4 USB 3.2 Gen1 (2 Rear, 2 Front) - 6 USB 2.0 (4 Rear, 2 Front) - Realtek Gigabit LAN
Description - H610M-HVS/M.2 R2.0 motherboard Supports 13th, 12th and next generation Intel Core processors (LGA1700) 6+1+1 phase power supply design Supports DDR4 3200MHz 1 PCIe 4.0 x16, 1 PCIe 3.0 x1 Graphics output options: HDMI, D-Sub Realtek ALC897 7.1 CH HD audio codec 4SATA3 1 Ultra M.2 (PCIe Gen3 x4) 4 USB 3.2 Gen1 ports (2 rear, 2 front) 6 USB 2.0 ports (4 rear, 2 front) Realtek gigabit network card
Detailed data on disk/drive interfaces - Supports 13th, 12th and next generation Intel Core processors (LGA1700) 6+1+1 power phase design Supports Intel Hybrid Technology Supports Intel Turbo Boost Max 3.0 technology
dimensionalWeight - 810
dimension depth - 60 mm
dimension height - 240 mm
Dimensions - 22 x 19.3 cm
dimension weight - 837 g
dimension width - 280 mm
EAN - 4710483939914
ean - 4710483939914
Eans - 4710483939914
EAN_code - 4710483939914
Expansion slots - 1 x M.2
Expansion slots - 1 x PCIe 3.0 x 1
Expansion slots - 1 x PCIe 4.0 x 16
Expansion slots - PCI Express x1 (Gen 3.x) slots - 1
Expansion slots - PCI Express x16 (Gen 4.x) slots - 1
External connectors - 1 x D-Sub
External connectors - 1 x HDMI
External connectors - 1 x Line In
External connectors - 1 x Line Out
External connectors - 1 x MIC
External connectors - 1 x PS/2 Keyboard/MouseCombo
External connectors - 1 x RJ-45
External connectors - 2 x USB 3.0
External connectors - 4 x USB 2.0
Features - Audio chip - Realtek ALC887 / Realtek ALC897
Features - Audio output channels - 7.1 channels
Features - Motherboard chipset - Intel H610
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - micro ATX
Features - PC health monitoring - CPU
Features - PC health monitoring - Fan
Features - PC health monitoring - Temperature
Features - PC health monitoring - Voltage
Features - Windows operating systems supported - Windows 10 x64
Features - Windows operating systems supported - Windows 11 x64
FireWire (IEEE 1394) - No
Form Factor - Micro-ATX
Form factor - micro ATX
Frequency speed - 3200 MHz
Full Description Line - Intel H610|LGA1700|Micro-ATX|DDR4|3200 MHz|Memory slots 2|1xPCI-Express 3.0 1x|1xPCI-Express 4.0 16x|1xM.2|1x15pin D-sub|1xHDMI|1xAudio-In|1xAudio-Out|1xMicrophone|4xUSB 2.0|2xUSB 3.2|1xPS/2|1xRJ45|SATA 3.0|Video|LAN Gigabit|Audio
Graphics - Intel Xe Graphics Architecture (Gen 12) Dual graphics output: support HDMI and D-Sub ports by independent display controllers Support Compatible HDMI 2.1 TMDS with maximum resolution of 4K x 2K (4096x2160) @ 60Hz Supports D-Sub with max. Resolution up to 1920x1200 @ 60Hz Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible Port
Graphics - HDCP - Yes
Graphics - Maximum resolution - 4096 x 2160 pixels
Graphics - Parallel processing technology support - Not supported
Gross weight - 2.30 kg
guarantee - 36
guarantee_type - normal
HDMI Input/Output connectors - 1
Included Accessories - - Quick Installation Guide, Support CD, I/O Shield;
- 2 x SATA Data Cables;
- 1 x Screw for M.2 Socket
Integrated audio - Yes
Integrated CPU - No
Integrated LAN - Gigabit
Integrated video - Yes
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - Chassis intrusion connector - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Number of chassis fan connectors - 1
Internal I/O - Number of M.2 (M) slots - 1
Internal I/O - Number of SATA III connectors - 4
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 1
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1
Internal I/O > Number of SATA connectors - 4
Internal I/O > Supported hard disk drive interfaces - SATA3, M.2
Link - https://www.asrock.com/MB/Intel/H610M-HDVM.2/index.asp#Specification
LPT connector / port - No
M.2 Expansion slots - 1
Manufacturer - Asrock
Manufacturer_code - 90-MXBJJ0-A0UAYZ
Max. number of ATA devices - 0
Max. number of SATA devices - 4
Max memory size - 64 GB
Memory - Maximum internal memory - 64 GB
Memory - Number of memory slots - 2
Memory - Supported memory clock speeds - 3200 MHz
Memory - Supported memory types - DDR4-SDRAM
Memory - Unbuffered memory - Yes
Memory > Memory slots - 2
Memory > Supported memory types - DDR4 DIMM
Memory bus frequency - 3200 MHz
Memory slots - 2
Memory type - DDR4
Memory type - DDR4
Microphone Input/Output connectors - 1
Model - H610M-HVS/M.2
Model - H610M-HVS/M.2 R2.0
Name - ASRock H610M-HVS/M.2 R2.0
Name - ASRock H610M-HVS/M.2 R2.0 - Socket 1700 - motherboard
name - ASRock H610M-HVS/M.2 R2.0, Intel H610 Mainboard - Sockel 1700, DDR4
Name - ASRock | H610M-HVS/M.2 R2.0 | Processor family Intel | Processor socket LGA1700 | DDR4 DIMM | Memory slots 2 | Supported hard disk drive interfaces SATA3, M.2 | Number of SATA connectors 4 | Chipset H610 | Micro ATX
name - Motherboard H610M-HVS/M.2 R2.0 s1700 2DDR4 D-Sub/HDMI mATX
Network - Ethernet interface type - Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - LAN controller - Realtek RTL8111H
Network - Wake-on-LAN ready - Yes
Network - Wi-Fi - No
Network interface - 1 x 10/100/1000 Mbit/s
Network interface - PCIE x1 Gigabit LAN 10/100/1000 Mb/s 1 x Realtek RTL8111H Supports Wake-on-LAN function Supports lightning/ESD protection Supports energy-saving 802.3az Ethernet Supports PXE
Number of DDR4 slots - 2
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 5
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 0
Onboard connectors - 1 x 4pin CPU/Water Pump Fan Connector
Onboard connectors - 1 x 4pin CPU fan
Onboard connectors - 1 x 8pin 12V power
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x TPM header
Onboard connectors - 1 x USB 2.0/1.1 header
Onboard connectors - 1 x USB 3.0 header
Other information -
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 70.00 mm
Package features > Gross height (mm) - 295.00 mm
Package features > Gross width (mm) - 360.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 232 pc(s)
Package features > Paper/Pasteboard - 490.00 g
Package features > Plastic (No PET) - 10.00 g
Package features > Tare weight (kg) - 0.50 kg
Package features > Volume (m3) - 0.01 m³
Package features > WEEE tax - No
Packaging content - Cables included - SATA
Packaging content - Drivers included - Yes
PCI-Express 3.0 1x Expansion slots - 1
PCI-Express 4.0 16x Expansion slots - 1
Performance > Chipset - H610
Performance > Motherboard form factor - Micro ATX
Processor - Compatible processor series - Intel® Celeron®
Processor - Compatible processor series - Intel® Core™ i3
Processor - Compatible processor series - Intel® Core™ i5
Processor - Compatible processor series - Intel® Core™ i7
Processor - Compatible processor series - Intel® Core™ i9
Processor - Compatible processor series - Intel® Pentium®
Processor - Maximum number of SMP processors - 1
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1700
Processor > Compatible processor series - Supports 13th Gen and 12th Gen and Next Gen Intel Core Processors
Processor > Processor family - Intel
Processor > Processor socket - LGA1700
Processor family - Intel Core
producer - ASRock
Producer - ASRock
producerCode - H610M-HVS/M.2 R2.0
ProducerCode - H610M-HVS/M.2 R2.0
Producer product name - H610M-HVS/M.2 R2.0
productName - Asrock H610M-HVS/M.2 R2.0 Intel H610 LGA 1700 micro ATX
productSize - Normal
PS/2 Input/Output connectors - 1
RAID - No
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - HDMI version - 2.1
Rear panel I/O ports - PS/2 ports quantity - 1
Rear panel I/O ports - USB 2.0 ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 2
Rear panel I/O ports - VGA (D-Sub) ports quantity - 1
RJ45 Input/Output connectors - 1
SATA 3.0 Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 27.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 6 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 0.83 kg
Shipping Box Width Shipping/Package Box Dimensions - 24 cm
ShortDescription - Socket 1700 | Chipset Intel H610 | DDR4 |
sizeX - 270
sizeY - 60
sizeZ - 250
Socket - LGA1700
Software -
Sound card - 7.1 CH HD Audio (Realtek ALC897 Audio Codec) Supports Surge Protection
Special functions -
Storage controllers - Supported storage drive interfaces - SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Supported operating systems - Windows 10
Supported operating systems - Windows 11
Technical details > Net weight - 1.80 kg
Technical details > Producer - ASRock
Technical_details - Type: motherboard EAN: 4710483939914 Manufacturer number: 90-MXBJJ0-A0UAYZ Socket: 1700 Max CPUs supported: 1 Operating system: Windows 10 ready, Windows 11 ready Processor: Core i3 12xxx (Alder Lake), Core i3 12xxxT (Alder Lake), Core i3 12xxxF (Alder Lake), Core i5 12xxx (Alder Lake), Core i5 12xxxK (Alder Lake), Core i5 12xxxKF (Alder Lake), Core i5 12xxxT (Alder Lake), Core i5 12xxxF (Alder Lake), Core i5 13xxxK (Raptor Lake), Core i5 13xxxKF (Raptor Lake), Core i7 12xxx (Alder Lake), Core i7 12xxxK (Alder Lake), Core i7 12xxxKF (Alder Lake), Core i7 12xxxT (Alder Lake), Core i7 12xxxF (Alder Lake), Core i7 13xxxK (Raptor Lake), Core i7 13xxxKF (Raptor Lake), Core i9 12xxx (Alder Lake), Core i9 12xxxK ( Alder Lake), Core i9 12xxxKF (Alder Lake), Core i9 12xxxT (Alder Lake), Core i9 12xxxF (Alder Lake), Core i9 12xxxKS (Alder Lake), Core i9 13xxxK (Raptor Lake), Core i9 13xxxK (Raptor Lake ), Core i9 13xxxKF (Raptor Lake), Pentium Gold Gxxxx (Alder Lake), Celeron Gxxxx (Alder Lake) Chipset: Intel® H610 Slots: 1x (of which: 1x PCIe x16) : 2 BIOS: 128Mbit UEFI AMI BIOS : Yes : Yes Form factor: µATX Use: personal computer Power supply: ATX12V (24-pin + 8-pin) Memory: 64GB : 2x DDR4 : SDRAM DDR4 DDR4-3200/3000/2933/2800/2666/2400/2133Mhz : 2 : 8th : Yes : 8192 Mbit Connections (external): 1 : 2 The designation USB 3.2 Gen 1 corresponds to the former designations USB 3.1 Gen 1 or USB 3.0. : 4 : 1 : 1 : 1 : 1 : 1 : 1 : 1 Connections (internal): 4 : 1 : M : PCIe : 42 - 80mm : 4 Connections (optional): 2 : 2 : Yes RGB default: AURA sync SATA Controller: Intel® H610 USB Controller: Intel® H610 Onboard graphics: The graphics connections on the mainboard can only be used when using a CPU with an integrated graphics chip. Sound: Realtek ALC897/887 LAN: Realtek RTL8111H Additional information: A BIOS update may be required to support the latest processor cores. Accessories: quick installation guide, support CD, I/O shield, 2x SATA cables, M.2 screws
Dimensions: Width: 244mm x Height: 201mm
Unit Box Height - 0.06
Unit Box Length - 0.275
Unit Box Width - 0.24
Unit Brutto Volume - 0.00396 cubm
Unit Gross Weight - 0.83 kg
Unit Net Weight - 0.63 kg
USB 2.0 Input/Output connectors - 4
USB 3.2 Input/Output connectors - 2
USB ports at back panel - 6
USB ports on motherboard - 4
Vendor Homepage - www.asrock.com/MB/Intel/H610M-HVSM.2%20R2.0/index.asp
vendpn - H610M-HVS/M.2 R2.0
Warranty - 24
Warranty - 24 month(s)
Warranty - 36 months
warrantyLength - 24
warrantyType - G
Weight - 0,83
weight - 790
Weight & dimensions - Depth - 188 mm
Weight & dimensions - Width - 197 mm
