Accessories included - EAP655-Wall Installation Guide Mounting kit
Antenna - Built-in
Antenna - Antenna gain level (max) - 5 dBi
Antenna - Antennas quantity - 2
Antenna - Antenna type - Internal
ARTIKEL1 - AX3000 WALL-PLATE WI-FI 6 AP
ARTIKEL2 - DUAL-BAND
Brand - TP-Link
BrandPartCode - EAP655-WALL
Category - Wireless Access Points
Category 1 - Netzwerk
Category 2 - Accesspoints
Category_1 - Network and Servers
Category_2 - Network - WiFi Access Points
Color - White
Description - Wireless, wall-mounted WiFi 6 access point, AX3000 Blazing Fast WiFi 6 AX3000: Simultaneous 574Mbps speed on the 2.4GHz band and 2402Mbps speed on the 5GHz band, for a total WiFi speed of 2976Mbps. High connectivity performance: Data transmission to multiple devices at the same time and lower latency. Full Wi-Fi coverage in the room: Ensure a strong signal and Wi-Fi coverage in every corner of the room. Gigabit Ports: Connect multiple wired devices with three Gigabit downlink ports, including one with PoE Pass-Through. Centralized management: Integration with the Omada SDN platform provides Cloud access and remote management. Secure guest network: Multiple authentication methods are available (SMS/Facebook Wi-Fi/Voucher) and numerous technologies that protect access to the wireless network.§ Easy Installation and PoE Support: The design is easy to install thanks to compatibility with 86mm and EU standard junction box and support for 802.3af/at PoE. Blazing fast Wi-Fi 6, AX3000 Wi-Fi 6 delivers faster speeds, lower latency, less interference, and more capacity. Enjoy more than twice the speed of Wi-Fi 5 available in the next era of Wi-Fi 6, reaching speeds up to 2976Mbps. Not only Speed but also Safety Secure your network and its data against Brute Force attacks and snooping with enterprise-grade WPA3 encryption, portal authentication, and guest network segregation. Gigabit ports. Network connection Devices such as VoIP phones can be powered without the use of additional electrical cables, thanks to the PoE Pass-Through function of one of the Downlink ports. Four ports (1 Uplink + 3 Downlink) transmit data at high speed, allowing devices to connect to your gigabit network. Seamless deployment with PoE power Thanks to the support for PoE 802.3af/802.3at, there is no need to distribute additional cabling. Connect the device to your existing Ethernet cables and you're done! Quick and simple installation Thanks to the easy-to-install design, there is no need to spend time and money on a specialist who will install our EAP. Automatic Channel Selection and Power Control optimize performance Provides high wireless performance while reducing WiFi interference by automatically adjusting the channel settings and transmission power levels of neighboring access points on the same network. Integration with the Omada SDN platform The Omada Software Defined Networking (SDN) platform integrates network devices such as Access Points, Switches and Routers to provide 100% centralized cloud management and a highly scalable network managed from a single interface. Easy management through the Omada app Network configuration via the application takes only a few minutes. Omada allows you to adjust settings to your preferences, monitor network status and manage connected clients - all from your smartphone or tablet.
Design - Cable lock slot - No
Design - Certification - FCC, RoHS
Design - LED indicators - Yes
Design - Placement - Wall
Design - Product colour - White
Design - Reset button - Yes
dimensionalWeight - 216
dimension depth - 115 mm
dimension height - 55 mm
Dimensions - 143 × 86 × 42.6 mm
dimension weight - 435 g
dimension width - 180 mm
ean - 4897098683576
EAN - 4897098683576
EANCode - 4897098683576
EAN_code - 4897098683576
Features - 2.4 GHz - Yes
Features - 5 GHz - Yes
Features - 6 GHz - No
Features - Airtime Fairness (ATF) - Yes
Features - Automatic channel selection - Yes
Features - Band steering - Yes
Features - BeamForming - Yes
Features - Cabling technology - 10/100/1000Base-T(X)
Features - Ethernet LAN data rates - 10
Features - Ethernet LAN data rates - 10,100,1000 Mbit/s
Features - Ethernet LAN data rates - 100
Features - Ethernet LAN data rates - 1000 Mbit/s
Features - Frequency band - 2.4, 5 GHz
Features - Maximum data transfer rate - 2402 Mbit/s
Features - Maximum data transfer rate (2.4 GHz) - 574 Mbit/s
Features - Maximum data transfer rate (5 GHz) - 2402 Mbit/s
Features - Networking standards - IEEE 802.1x
Features - Networking standards - IEEE 802.3af
Features - Networking standards - IEEE 802.3at
Features - Networking standards - IEEE 802.11a
Features - Networking standards - IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at
Features - Networking standards - IEEE 802.11ac
Features - Networking standards - IEEE 802.11ax
Features - Networking standards - IEEE 802.11b
Features - Networking standards - IEEE 802.11g
Features - Networking standards - IEEE 802.11n
Features - Number of users - 100 user(s)
Features - Quality of Service (QoS) support - Yes
Features - Rate limiting - Yes
Features - Transmitting power (CE) - 20 - 23 - 26 dBm
Features - Transmitting power (FCC) - 21 - 21 dBm
Features - VLAN support - Yes
Features - Wi-Fi Multimedia (WMM)/(WME) - Yes
Features - Wireless isolation - Yes
Gross Weight Kg - 2,5
GRUPPE1 - Network
GRUPPE2 - Wireless Lan Ap
GTIN - 0840030703577
GTIN - 840030703577
GTIN - 4897098682111
GTIN - 4897098683576
guarantee - 60
guarantee_type - normal
HERSTELLER - TP-LINK
HSTNUMMER - EAP655-WALL

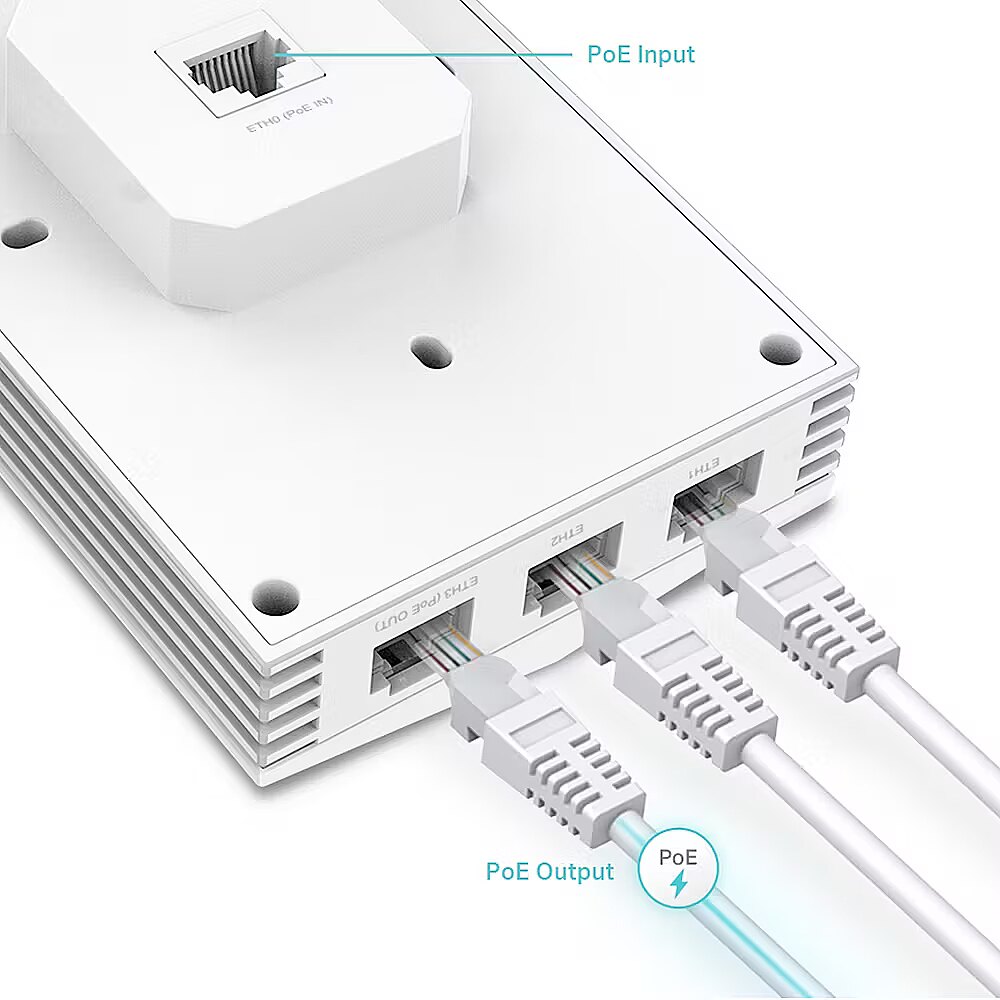

I/O ports - 1 x 10/100/1000 Mbit/s PoE
I/O ports - 2 x 10/100/1000 Mbit/s
LongDesc - Match Your Roomwith AX3000 WiFi 6AX3000 Wall Plate WiFi 6 Access PointAX3000 WiFi 6 Speed2402 Mbps on 5 GHz + 574 Mbps on 2.4 GHzHigh-Efficiency WiFi 6More connected devices enjoy faster speedsCentralized Cloud ManagementManage the whole network locally or from the cloud160 MHz ChannelDouble the data at peak transmission times on asingle stream with HE160Enhanced SecurityWith guest networks, Captive Portal, and WPA3 encryption Seamless RoamingUninterrupted streaming when moving between APsFour Gigabit PortsThree downlink gigabit ports, one with PoE pass-through 802.3af/at PoE SupportFlexible and convenient deployment Quick, Simplified InstallationCompatible with 86 mm & EU & US standard junction boxLightning-Fast AX3000 WiFi 6 SpeedsWiFi 6 brings faster speeds, lower lag, less interference, and higher capacity. Enjoy more than twice the speed of WiFi 5 with new-era business WiFi 6 with speeds up to 2976 MbpsBetter User Experience with High-PerformanceWiFi 6 ConnectivityThe latest WiFi 6 features and advanced wireless techniques guarantee higher network efficiency and lower latency.More than Speed, Security MattersSafeguard your network against brute force attack and snooping with WPA3 enterprise-grade security protection, portal authentication, and segregated guest networks.Secure Guest Network with Up to 16 SSIDsGuest networks provide enhanced security. Different SSIDs also enable flexible access management.Boost Business with Facebook WiFi and SMS LoginCaptive portals (including SMS, Facebook WiFi, Voucher) and 802.1x authentication ensure authorized guests can access the network. Boost your business with a customized marketing pageWPA3 for Worry-Free Open Public NetworksWPA3 provides more data security for previously unsecured and open WiFi hotspots with advanced enterprise security.Full Gigabit Ports to Bridge NetworkWired devices like VoIP phones can be powered with no need for extra electrical cables. The four data ports (1 uplink + 3 downlinks) transfer data at multiple gigabits, allowing you to connect several devices to your gigabits network. One of the downlink ports offers PoE pass-through to eliminate the need for that extra power portQuick, Simplified InstallationWith an easy-to-install design, there is no need to bring someone in to install our EAP.Auto Channel Selection and Power Adjustment to Optimize Overall PerformanceProvides powerful wireless performance while significantly reducing WiFi interference by automatically adjusting the channel settings and transmission power levels of neighboring APs in the same networkSeamless Integration into Omada SDNThe Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches, and routers to provide 100% centralized cloud management and create a highly scalable network—all controlled from a single interfaceEasy Management with the Omada AppFollow configuration instructions on the Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status, and manage clients, all from the convenience of your mobile device.
LongProductName - 2.4 GHz (574 Mbps), 5 GHz (2402 Mbps), 4 x Gigabit Ethernet Port, 802.11ax/ac/n/g/b/a, 143 x 86 x 42.6 mm
LongSummaryDescription - TP-Link Omada AX3000 Wall Plate WiFi 6 Access Point. Maximum data transfer rate: 2402 Mbit/s, Maximum data transfer rate (2.4 GHz): 574 Mbit/s, Maximum data transfer rate (5 GHz): 2402 Mbit/s. Security algorithms: HTTPS, SNMP, SNMPv2, SNMPv3, SSH, WPA-Enterprise, WPA2-Enterprise, WPA3-Enterprise, Service Set Identifier (SSID) features: Multiple SSIDs. WAN connection: Ethernet (RJ-45). Power consumption (typical): 12 W. Placement: Wall, Product colour: White, Certification: FCC, RoHS
Management, monitoring, configuration - Omada app Central management: Omada hardware controller (OC300); Omada hardware controller (OC200); Omada' Software Controller Cloud-based Omada controller Cloud access: Yes (via OC300, OC200, Omada software controller or Omada Cloud based controller) Email notifications Diode switch Access control by MAC addresses SNMP v1, v2c, v3 System log: Local and remote SSH Web Based Management: HTTP/HTTPS L3 management Multi-site management VLAN management Unattended ZTP configuration: Yes. Requires the use of the Cloud-based Omada controller.
Management features - Firmware upgradeable - Yes
Management features - Syslog - Yes
Management features - Web-based management - Yes
Manufacturer - TP-Link
Manufacturer Code - EAP655-WALL
Manufacturer Name - TP-LINK
Manufacturer_code - EAP655-Wall
MPN - EAP655-WALL
name - Access Point AX3000 EAP655-Wall
Name - TP-Link EAP655 wall, access point
Name - TP-Link Omada EAP655-Wall AX3000 Wifi6
Network architecture - GigabitEthernet
Number of antennas - 4
Operating frequency - 2,4 GHz
Operating frequency - 5 GHz
Operational conditions - Operating relative humidity (H-H) - 10 - 90%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 90%
Operational conditions - Storage temperature (T-T) - -40 - 70 °C
Other features -
Packaging content - Mounting kit - Yes
Packaging content - Number of products included - 1 pc(s)
Packaging data - Package depth - 184 mm
Packaging data - Package height - 56 mm
Packaging data - Package type - Box
Packaging data - Package weight - 400 g
Packaging data - Package width - 117 mm
Performance - Compatible operating systems - Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux
Ports & interfaces - DC-in jack - Yes
Ports & interfaces - Ethernet LAN (RJ-45) ports - 4
Ports & interfaces - WAN connection - Ethernet (RJ-45)
Power - Power consumption (typical) - 12 W
Power - Power over Ethernet (PoE) - Yes
Power supply -
producer - TP-LINK
producerCode - EAP655-WALL
ProductName - AX3000 Wall Plate WiFi 6 Access Point
productName - TP-Link Omada AX3000 Wall Plate WiFi 6 Access Point
productSize - Normal
Security - Welcome page authentication§ Access control MAC address filtering Wireless client isolation VLANs Detection of unauthorized APs 802.1X support WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise encryption
Security - Access Control List (ACL) - Yes
Security - IP address filtering - Yes
Security - MAC address filtering - Yes
Security - Number of SSID supported - 16
Security - Remote Authentication Dial-In User Service (RADIUS) - Yes
Security - Security algorithms - HTTPS
Security - Security algorithms - HTTPS, SNMP, SNMPv2, SNMPv3, SSH, WPA-Enterprise, WPA2-Enterprise, WPA3-Enterprise
Security - Security algorithms - SNMP
Security - Security algorithms - SNMPv2
Security - Security algorithms - SNMPv3
Security - Security algorithms - SSH
Security - Security algorithms - WPA-Enterprise
Security - Security algorithms - WPA2-Enterprise
Security - Security algorithms - WPA3-Enterprise
Security - Service Set Identifier (SSID) features - Multiple SSIDs
Short description - TP-LINK EAP655-Wall AX3000 Wall-Plate Dual-Band Wi-Fi 6 Access Point
ShortSummaryDescription - TP-Link Omada AX3000 Wall Plate WiFi 6 Access Point, 2402 Mbit/s, 574 Mbit/s, 2402 Mbit/s, 10,100,1000 Mbit/s, 2.4, 5 GHz, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x,...
sizeX - 120
sizeY - 180
sizeZ - 50
Software -
Special functions -
Standards - 802.3af
Standards - 802.3at
Stck_Kart - 30
Stck_Pal - 0
Storno - Y
Sustainability - Sustainability certificates - RoHS
System Requirements -
Technical details - Compliance certificates - RoHS
Title - TP-Link Omada AX3000 Wall Plate WiFi 6 Access Point
URL - https://www.tp-link.com/uk/business-networking/wall-plate-ap/eap655-wall/
vendpn - EAP655-Wall
WarrantyInfo -
warrantyLength - 24
warrantyType - G
Weight - 0,43
Weight - 0.44
weight - 433
Weight & dimensions - Depth - 86 mm
Weight & dimensions - Height - 42.6 mm
Weight & dimensions - Width - 143 mm
