2.5GbE LAN Ports - 1
10/100/1000M LAN Ports - 4
Accessories included -
Antenna > Antennas quantity - 6
Antenna Gain - 6 dB
brand - MikroTik
category - MikroTik > Mobilā tīkla produkti > 5G Rūteri
Category 1 - Netzwerk
Category 2 - Accesspoints
Category Code - WRO
CnCode CnCode - 85176200
Code - S53UG+M-5HaxD2HaxD-TC&RG502Q-EA
Color - Black
Color - White
Description - Chateau 5G ax Mobile internet has never been faster! Generation 6 version of Chateau 5G. Much faster wireless, improved CPU, and now – with 2.5 Gigabit Ethernet! With the Generation6 802.11ax wireless standard and Wave 2 support, Chateau 5G ax can deliver unprecedented speed. If we compare it to the previous generation, we’re looking at up to 40% higher speed in the 5 GHz and up to 90% higher speed in the 2.4 GHz spectrum! We’ve made massive improvements to the wireless radio and antennas. Chateau 5G ax supports MIMO 4x4 on 5G and LTE. There are 6 built-in LTE/5G antennas. One pair of external antennas provides even better wireless network coverage in the largest homes, and the other - improved LTE/5G connectivity. With speeds like that, the ports also had to rise to the occasion. We kept four Gigabit Ethernet ports and added a 2.5 Gigabit Ethernet port on top. And let’s not forget the USB 3.0 which can be handy for storage purposes. The modern quad-core CPU running at 1.8 GHz combined with a solid GB of RAM packs a hefty punch when it comes to heavy operations like complex firewall rules, IPsec hardware encryption, using more threads or experimenting with advanced RouterOS features. And with the addition of WPA3 advanced encryption support, you’re safer than ever before. Mobile internet has never been faster In a perfect setup and the ideal environment, the 5G modem can reach incredible speeds: up to 5 Gbps for downloads and up to 900 Mbps for uploads. But even without reaching the maximum capacity, you’re still getting an ultra-fast connection that can surpass the best copper and fibre networks!
Description - On the surface, the new Chateau is very similar to previous models. We had a fantastic launch of 5G and LTE18 with our partners from LMT - the leading mobile operator in Latvia. Our Chateau has replaced the usual brands - and customer satisfaction has increased dramatically. Most users appreciated the improved speed and stability, as well as the wealth of useful RouterOS features and overall flexibility. And don't forget the sleek design that fits anywhere - from traditional homes and luxury residences to modern offices and corporate environments. The next obvious step in the Chateau series was to improve wireless capabilities. With Generation6 802.11ax wireless standard and Wave 2 support, the Chateau 5G ax can deliver unprecedented speeds. If we compare it to the previous generation, we see up to 40% higher speeds in the 5 GHz band and up to 90% higher speeds in the 2.4 GHz band! We have made huge improvements to the wireless radio and antennas. Chateau 5G axe supports 4x4 MIMO in 5G and LTE. 6 LTE/5G antennas built-in. One pair of external antennas provides even better wireless coverage in the largest homes, while the other pair provides improved LTE/5G connectivity A state-of-the-art quad-core processor clocked at 1.8 GHz, combined with robust GB of RAM, provides powerful power when it comes to heavy operations such as complex firewall rules, IPsec hardware encryption, using more threads or experimenting with advanced RouterOS features. And with the added support for advanced WPA3 encryption, you're safer than ever before. Mobile internet has never been faster In the ideal configuration and environment, a 5G modem can reach incredible speeds: up to 5 Gbps for download and up to 900 Mbps for upload. But even without reaching maximum throughput, you still get an ultra-fast connection that can outperform the best copper and fibre networks! The most advanced software on the market - RouterOS We have been developing our own software since 1996. Over the years we have managed to create the most powerful and flexible networking software on the market. With each new version, our priority has remained the same: to give users the freedom to explore different configurations and always have the right tools for the job. Run a secure VPN from your office directly to your home, enable parental controls, QoS (traffic prioritisation for specific needs such as streaming), complex firewall rules, IPsec hardware acceleration, VLANs, email or SMS notifications. You can even automate complex trigger notifications (Your bandwidth has reached X for Y minutes!) and modify queues based on bandwidth usage. If you can imagine it RouterOS can achieve this. There are no paid firewalls or confusing subscriptions. You get all the features - from consumer to enterprise grade. For mobile operators and ISPs, this is a breakthrough. Finally - one product to satisfy the most diverse group of people. Built with security in mind RouterOS not only offers robust security options, but we also focus on production security. There is no outsourcing, every Chateau device is assembled from our EU contract manufacturers and all components come from reputable, trusted partners such as Qualcomm. We work with European legislators and work hard to ensure full compliance with all necessary security policies. MikroTik is a smooth, long-term partnership with no surprises. The all-round champion... master of many! Chateau is an extraordinary choice for any mobile operator. It can be customised with different labels or branding imprints. Operators can use TR-069 technology to create customised remote customer management options, such as configuring the router via the same website that customers use to pay their mobile bills. Advanced users, experienced system administrators and network enthusiasts can benefit from the amazing depth of RouterOS. And non-technology-savvy households can skip all this, using a simple, straightforward website instead. It's time for the perfect network without compromise. Secure remote working options and incredibly fast internet connections are no longer a luxury. They are a necessity. Chateau is the solution.
dimension depth - 75 mm
dimension height - 350 mm
Dimensions -
Dimensions - 240 x 156 x 44 mm
dimension weight - 1120 g
dimension width - 250 mm
EAN - 4752224007872
ean - 4752224007872
Features > MU-MiMO - Yes
Full Description Line - Chateau 5G ax|Wireless Router|Wi-Fi 6|IEEE 802.11a/b/g|IEEE 802.11n|IEEE 802.11ac|IEEE 802.11ax|USB 2.0|4x10/100/1000M|1x2.5GbE|Antenna Gain 6 dB|Wireless Frequency Range 2.4 GHz/5GHz|Included Accessories 24V 1.2A power adapter; UTP Flat Cable (1.5m)|Power supply requirements 1 (DC jack); 12-28 V; 19W|Dimensions 240 x 156 x 44 mm
guarantee - 12
guarantee_type - normal
Hard drive > Storage capacity - 128 MB, NAND MB
height - 0.097 m

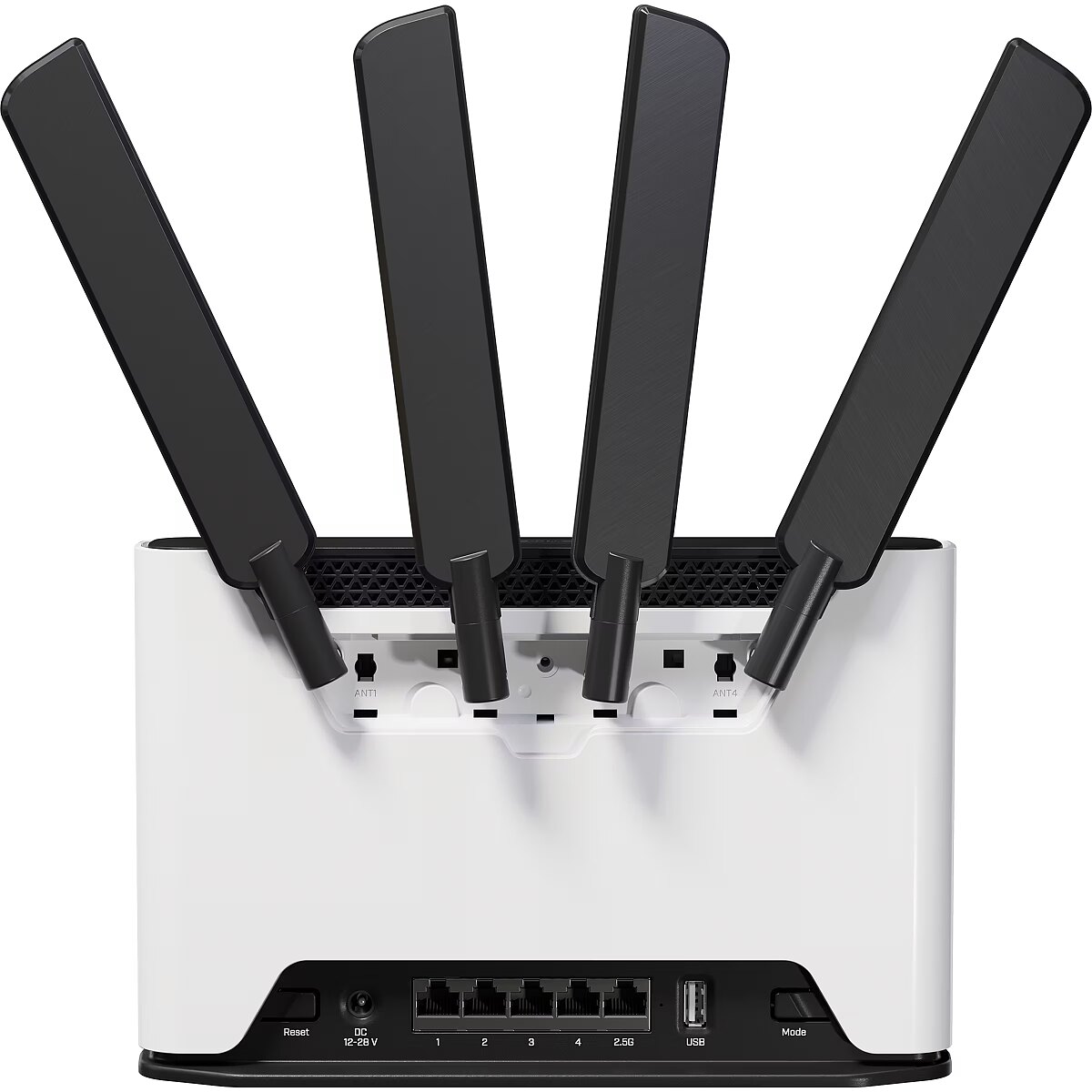

I/O ports - 1 x 10/100/1000/2500 RJ-45 port
I/O ports - 4 x 10/100/1000 Mbit/s
IEEE 802.11a/b/g Network standard - Yes
IEEE 802.11ac Network standard - Yes
IEEE 802.11ax Network standard - Yes
IEEE 802.11n Network standard - Yes
Included Accessories - 24V 1.2A power adapter; UTP Flat Cable (1.5m)
length - 0.35 m
Link - https://help.mikrotik.com/docs/display/QG/Quick+Guide+-+Chateau+5G+ax
Link - https://help.mikrotik.com/docs/display/UM/Chateau+5G+ax
Link - https://wiki.mikrotik.com/wiki/Manual:TOC
Management, monitoring, configuration -
Manufacturer - MikroTik
Model - S53UG+M-5HaxD2HaxD-TC&RG502Q-EA

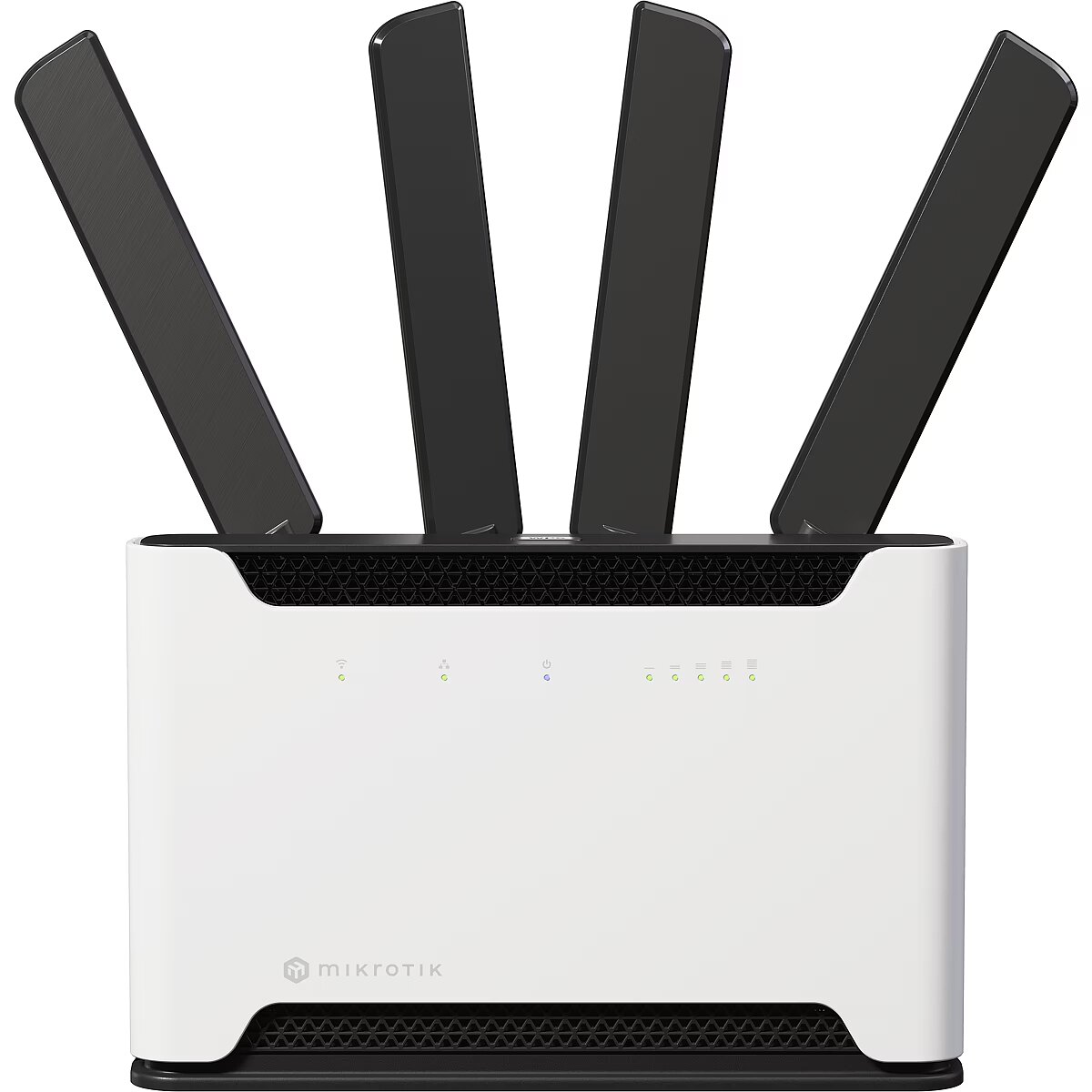

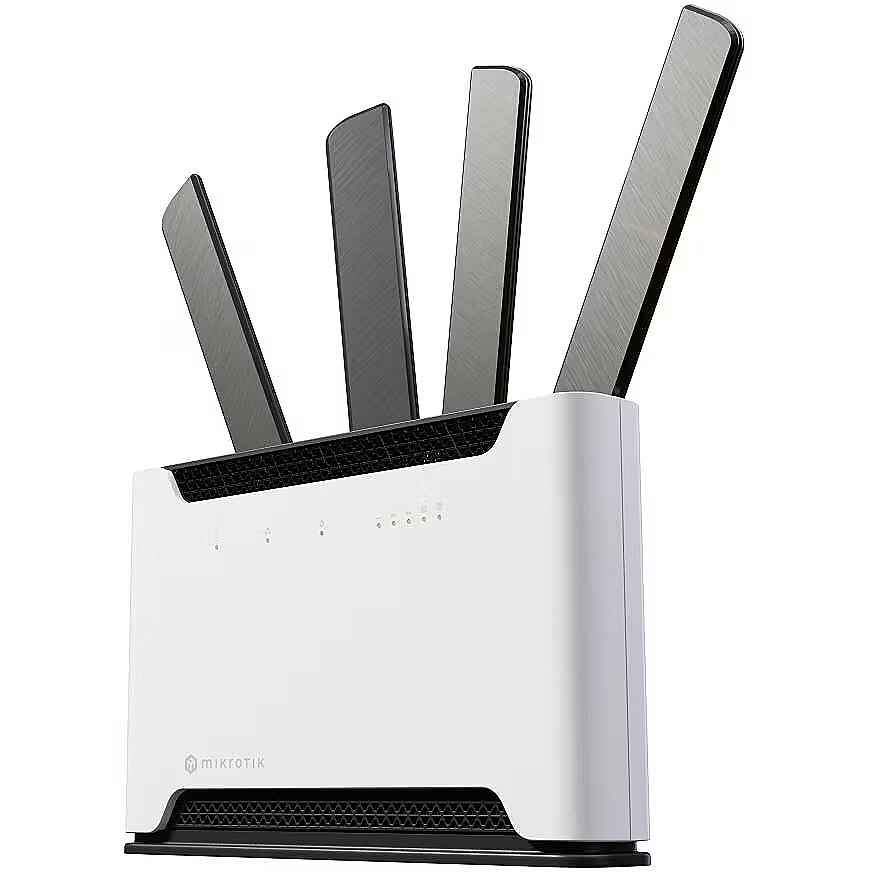

Model name - Chateau 5G ax
mpn - S53UG+M-5HaxD2HaxD-TC&RG502Q-EA
MPN - S53UG+M-5HaxD2HaxD-TC&RG502Q-EA
name - Access point Chateau 5G ax S53UG+M-5H XD-TC&RG502Q-EA
Name - MikroTik S53UG+M-5HaxD2HaxD-TC&RG502Q-EA
Name - MikroTik S53UG+M-5HaxD2HaxD-TC&RG502Q-EA - Chateau 5G ax | Chateau 5G ax | S53UG+M-5HaxD2HaxD-TC&RG502Q-EA | 802.11ax | Ethernet LAN (RJ-45) ports 4 | MU-MiMO Yes | 1
Network architecture - GigabitEthernet
Network Device Type - Wireless Router
Number of antennas - 6
Operating frequency - 2,4 GHz
Operating frequency - 5 GHz
Operational conditions > Operating temperature (T-T) - -40°C to +70°C °C
Other features -
Other features > Box contents - 24 V 1.2 A power adapter + UTP Flat Cable (1.5m)
Other features > Ethernet LAN (RJ-45) ports - 4
Other features > Special features - The next obvious step in the Chateau series was perfecting the wireless capabilities. With the Generation6 802.11ax wireless standard and Wave 2 support, Chateau 5G ax can deliver unprecedented speed. If we compare it to the previous generation, we’re looking at up to 40% higher speed in the 5 GHz and up to 90% higher speed in the 2.4 GHz spectrum! We’ve made massive improvements to the wireless radio and antennas. Chateau 5G ax supports MIMO 4x4 on 5G and LTE. There are 6 built-in LTE/5G antennas. One pair of external antennas provides even better wireless network coverage in the largest homes, and the other - improved LTE/5G connectivity. The modern quad-core CPU running at 1.8 GHz combined with a solid GB of RAM packs a hefty punch when it comes to heavy operations like complex firewall rules, IPsec hardware encryption, using more threads or experimenting with advanced RouterOS features. And with the addition of WPA3 advanced encryption support, you’re safer than ever before.
Other features > USB ports quantity - 1
Other features > Wireless standard - 2.4 GHz 802.11ax dual-chain, 5 GHz 802.11ax dual-chain
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 332.00 mm
Package features > Gross height (mm) - 57.00 mm
Package features > Gross width (mm) - 183.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 499 pc(s)
Package features > Paper/Pasteboard - 50.00 g
Package features > Plastic (No PET) - 10.00 g
Package features > Tare weight (kg) - 0.06 kg
Package features > Volume (m3) - 0.00 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
PDF - https://www.blobs.lt/products/1/6/7/2/7/3/931cd13af96880e4a5c34cdd826866c6/original.pdf
Power > Power consumption (max) - 19 W
Power supply -
Power supply requirements - 1 (DC jack); 12-28 V; 19W
producer - MikroTik
Producer product family - Chateau 5G ax
Producer product name - S53UG+M-5HaxD2HaxD-TC&RG502Q-EA
Security -
Shipping Box Depth Shipping/Package Box Dimensions - 35 cm
Shipping Box Height Shipping/Package Box Dimensions - 8 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 1.266 kg
Shipping Box Width Shipping/Package Box Dimensions - 25 cm
Software -
Special functions -
Standards - 802.11ax
System Requirements -
Technical details > Gross weight - 1.03 kg
Technical details > Net weight - 0.97 kg
Technical details > Other features - Quad-Core IPQ-6010 1.8 GHz CPU, 1 GB RAM (DDR3L), 1x2.5G Ethernet port, 1xMicro SIM slot, 1xM.2 slot, LTE20 (2.0 Gbps Downlink, 200 Mbps Uplink)
Technical details > Producer - MikroTik
Technical details > Software type - RouterOS v7, License level 4
title - MikroTik Chateau 5G ax
Unit Brutto Volume - 0.007 cubm
Unit Gross Weight - 1.27 kg
Unit Net Weight - 0.3 kg
USB 2.0 Fixed ports - Yes
Vendor Homepage - https://mikrotik.com/product/chateau_5g_ax
vendpn - S53UG+M-5HAXD2HAXD-TC&RG502Q-EA
Warranty - 12
Warranty - 12 month(s)
Warranty - 12 months
weight - 1.4 kg
Weight - 1.26
Wi-Fi 6 Network standard - Yes
width - 0.25 m
Wireless Frequency Range - 2.4 GHz/5GHz
Wireless LAN features > Dual-band - Y
Wireless LAN features > Wi-Fi band - 802.11ax
