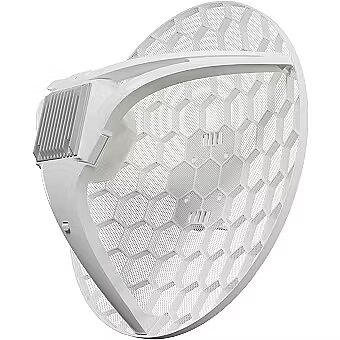

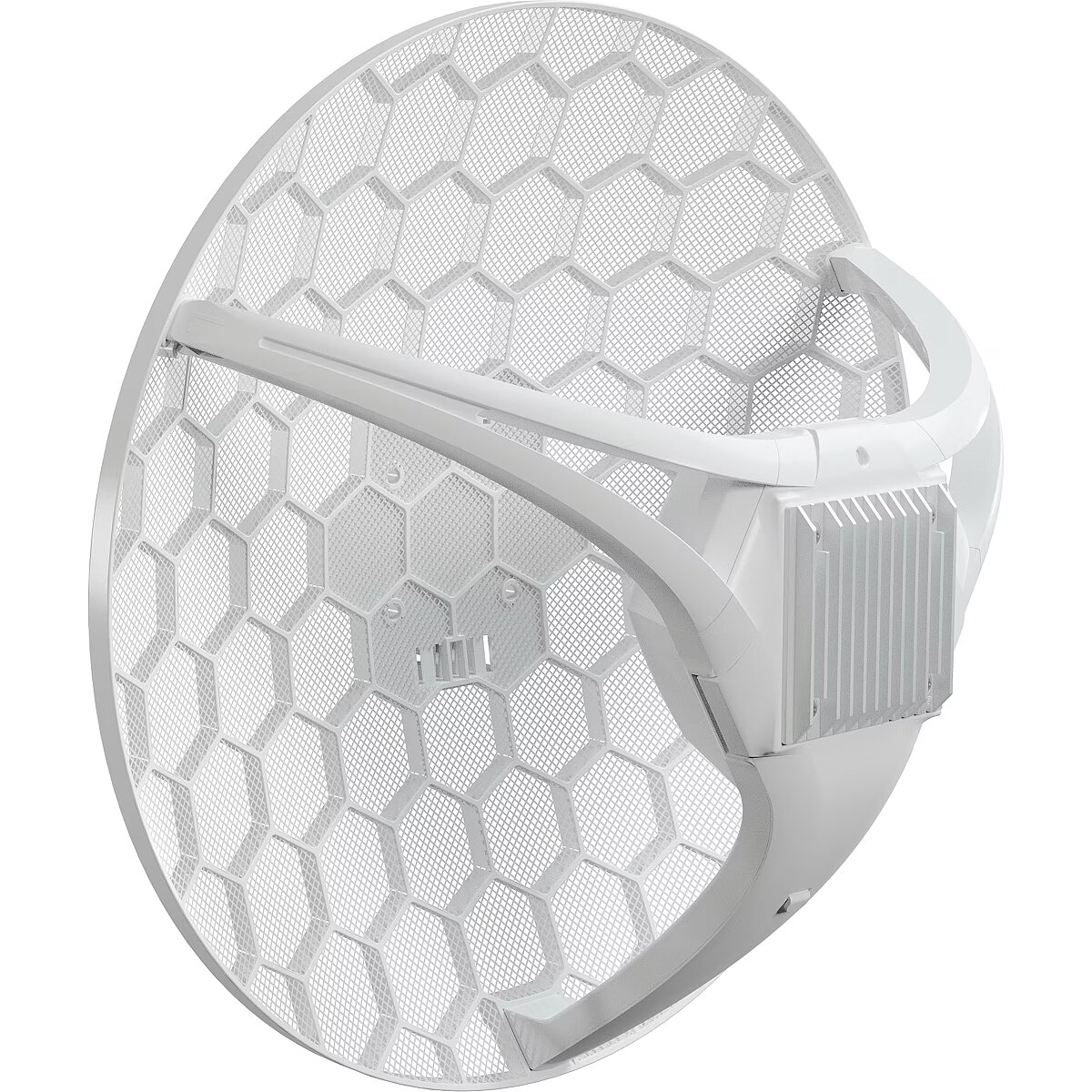

MikroTik LHG LTE18 kit

Accessories included - 24V 0.8A power supply K-LHG kit Gigabit PoE injector Hose clamp 2
Antenna - Built-in
Antenna Gain - 17 dB
Antenna gain - 17 dBi
brand - MikroTik
category - MikroTik > Mobilā tīkla produkti > LHG
Category - Root/Electronics/Networks and communication/Routers
Category 1 - Netzwerk
Category 2 - Netzwerkartikel
Category Code - WOD
Code - LHGGM&EG18-EA
Color - White
CPU - 88F3720 800 MHz
Description - LHG LTE18 Like previous LHG LTE models, this is the last mile internet solution for situations where even your phone may not have any signal. The new LHG is equipped with a state-of-the-art LTE Category 18 modem for the fastest mobile internet no matter where you are. This kit supports speeds of up to one Gbps! With a large 17 dBi high-gain antenna, the LHG LTE18 kit can connect to cell towers in extreme rural areas where nothing else is available. It has a huge heat sink so you don't have to worry about overheating. The mesh antenna design can withstand harsh, windy weather. The unit can be mounted in a variety of ways, including on poles and masts. The LHG LTE18 kit includes a CAT18 LTE 1.2Gbps modem, which allows the device to use multiple bands simultaneously. This is a huge advantage when there are a lot of LTE users in the area. It provides better response in a crowded environment and higher performance in weaker signal situations in the countryside. If you are competing for traffic in an area with poor connectivity, the new LHG will give you the edge. Inside is a powerful high-gain antenna that supports various LTE bands. It goes up to 2.7 GHz. It also offers a wide range of low frequencies. Note that the device only supports 2x2 DL MIMO, as the LHG only has 2 antenna ports. You will be using a Gigabit Ethernet port with PoE input for power from the Ethernet switch. But we have also included an injector. There is a standard MicroSIM slot for LTE connectivity. At the heart of this useful gadget is a powerful 64-bit dual-core ARM processor. So don't wait for cable or satellite providers to get to you, choose the LHG LTE18 kit and always stay connected!
Description - Like the previous LHG LTE models, this is a last mile-internet solution for situations when even your phone might not have any signal. The new LHG comes with a cutting-edge Category 18 LTE modem – for the fastest mobile internet no matter where you are. This kit supports speeds up to one Gbps! Due to its large high-gain 17 dBi antenna, LHG LTE18 kit can connect to cell towers in extreme rural locations where nothing else is available. There is a massive heat sink, so you don’t have to worry about overheating. The grid antenna design can withstand harsh, windy weather. And it can be mounted in different ways, including poles and masts. The LHG LTE18 kit features a 1.2 Gbps CAT18 LTE modem, which enables carrier aggregation and allows the device to use multiple bands at the same time. That is a huge advantage when there are a lot of LTE users in the area. It provides better responsiveness in a crowded environment and higher efficiency for weaker signal situations in the countryside. If you’re competing for traffic in a place with poor connectivity, the new LHG will give you the upper hand. We have seen internet speed doubling in rural areas after switching to carrier aggregation, so there is no need to wait for cable network expansions There’s a mighty high-gain antenna inside that supports a variety of LTE bands. It goes as high as 2.7 GHz. And it offers extensive low frequency coverage as well. Keep in mind that the device only supports 2x2 DL MIMO as the LHG has only 2 antenna ports. You’ll be using the Gigabit Ethernet port with PoE-in for powering from an ethernet switch. But we’ve included an injector as well. There’s a standard MicroSIM slot for LTE connectivity. And at the heart of this useful gadget, we have a powerful 64 bit dual-core ARM CPU.
Design > Form factor - Pole and Mast Mountable
dimension depth - 460 mm
dimension height - 430 mm
Dimensions - 391 x 391 x 227 mm
dimension weight - 3000 g
dimension width - 150 mm
EAN - 4752224007414
ean - 4752224007414
Eans - 4752224007414
Features > Mesh Support - No
Features > Mobile Broadband - 3G/4G data sharing
Features > MU-MiMO - Yes
Full Description Line - Network Device Type Bridge|Antenna Gain 17 dB|Dimensions 391 x 391 x 227 mm
guarantee - 12
guarantee_type - normal
height - 0.17 m
I/O ports - 1 x 10/100/1000 Mbit/s
I/O ports - 1 x SIM card slot
length - 0.47 m
Management, monitoring, configuration -
Manufacturer - MikroTik
mpn - LHGGM&EG18-EA
MPN - LHGGM&EG18-EA
Name - LHG LTE18 Kit | LHGGM&EG18-EA | No Wi-Fi | 10/100/1000 Mbit/s | Ethernet LAN (RJ-45) ports 1 | Mesh Support No | MU-MiMO Yes | 3G/4G data sharing
Name - MikroTik LHGGM&EG18-EA
name - MikroTik LHG LTE18 kit LHGGM&EG18-EA
Name - NET MikroTik LHGGM&EG18-EA
Network architecture - GigabitEthernet
Network Device Type - Bridge
Number of antennas - 1
Operating frequency - 900 MHz
Other features -
Other features > Ethernet LAN (RJ-45) ports - 1
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 391.00 mm
Package features > Gross height (mm) - 237.00 mm
Package features > Gross width (mm) - 391.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 48 pc(s)
Package features > Paper/Pasteboard - 200.00 g
Package features > Plastic (No PET) - 20.00 g
Package features > Tare weight (kg) - 0.22 kg
Package features > Volume (m3) - 0.04 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
Performance > Ethernet LAN data rates - 10/100/1000 Mbit/s
Ports & interfaces > Gigabit Ethernet (copper) ports quantity - 1
Ports & interfaces > POE - PoE passive
Ports & interfaces > Predominant port type - 10/100/1000 Mbps (RJ-45)
Power supply -
producer - MikroTik
Producer - MikroTik
ProducerCode - LHGGM&EG18-EA
Producer product family - LHG LTE18 Kit
Producer product name - LHGGM&EG18-EA
RAM - 256 MB
Security -
Shipping Box Depth Shipping/Package Box Dimensions - 46.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 44.5 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 2.268 kg
Shipping Box Width Shipping/Package Box Dimensions - 16.5 cm
ShortDescription -
Software -
Software > Operating system installed - RouterOS
Special functions -
Standards - 802.3af
Standards - 802.3at
System Requirements -
Technical details > Gross weight - 0.82 kg
Technical details > Net weight - 0.60 kg
Technical details > Producer - MikroTik
title - MikroTik LHG LTE18 kit
Unit Brutto Volume - 0.03414 cubm
Unit Gross Weight - 2.27 kg
Unit Net Weight - 2 kg
Vendor Homepage - mikrotik.com/product/lhg_lte18
vendpn - LHGGM&EG18-EA
Warranty - 12
Warranty - 12 month(s)
Warranty - 12 months
Weight - 2.34
weight - 2.67 kg
width - 0.44 m
Wireless LAN features > Wi-Fi band - No Wi-Fi
