Accessories included - RUTX12 router 4W power supply 4 x LTE antenna (rotatable, SMA male) 2 x WiFi antenna (magnetic mounting, RP-SMA male, 1.5 m cable) GNSS antenna (glued, SMA male, 3m cable) Bluetooth antenna (magnetic mounting, RP-SMA male, 1.5 m cable) Ethernet cable (1.5 m) SIM Adapter kit Quick Start Guide RMS leaflet
Aero2 support - No
Antenna - Detachable external

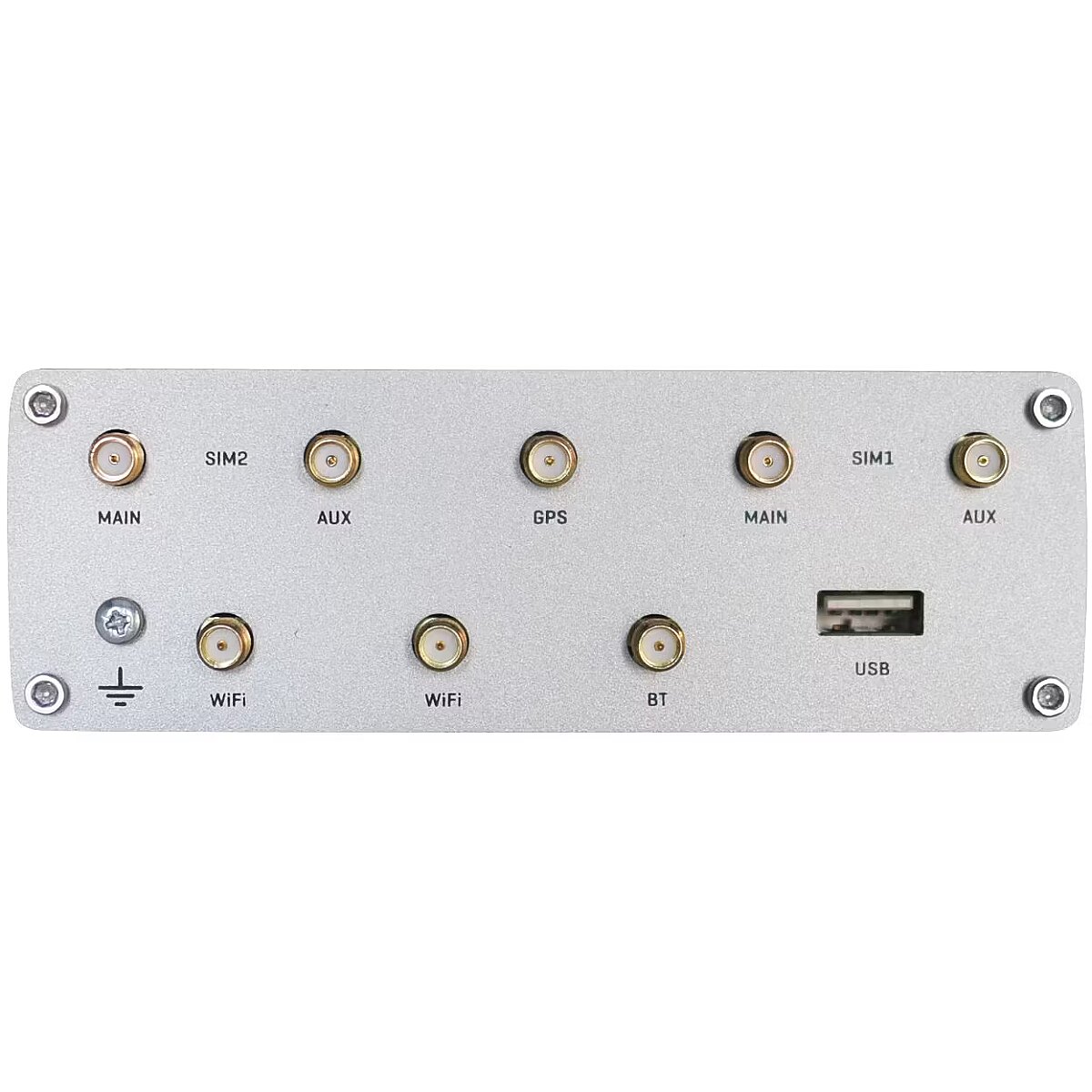

Antenna > Antenna type - 4xSMA for LTE, 2xRP-SMA for WiFi, 1xRP-SMA for Bluetooth, 1xSMA for GNNS
Card reader - None
Category - Root/Electronics/Networks and communication/Routers
Category 1 - Netzwerk
Category 2 - Router
Certificates -
Code - RUTX12000000
Color - Aluminium
Data transmission - Bluetooth
Data transmission - LTE
Data transmission - UMTS

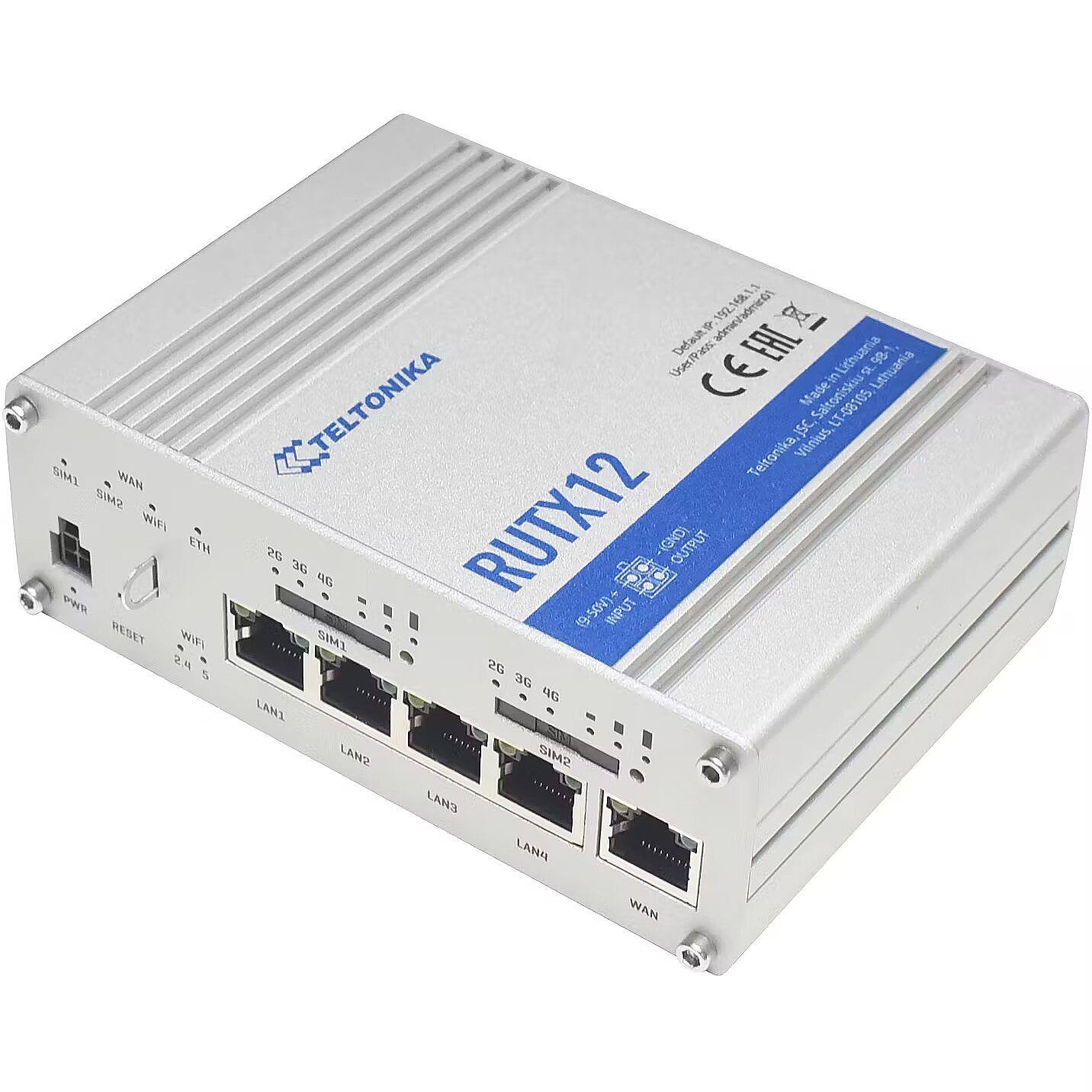

Description - RUTX12 router RUTX12 is a very powerful tool for LTE Cat 6 communication. Equipped with two LTE Cat 6 modems working together, they can provide speeds of up to 600 Mb/s with load balancing function. 5 Gigabit Ethernet interfaces, 802.11ac Dual Band WiFi, Bluetooth LE and USB interfaces, and dual SIM slots make this product indispensable in important solutions where uninterrupted connectivity is a must.
Description - TELTONIKA IOT ROUTER RUTX12 2XLTE+ETH+WIFI
dimension depth - 60 mm
dimension height - 355 mm
Dimensions - 132 x 44 x 95 mm
dimension weight - 1122 g
dimension width - 175 mm
EAN - 4779027312743
ean - 4779027312743
Eans - 4779027312743
Environment requirements - Operating temperature range: -40 °C to 75 °C
Features > Mesh Support - No
Features > Mobile Broadband - 4G
Features > MU-MiMO - Yes
guarantee - 24
guarantee_type - normal
Height - 60.000000
I/O ports - 1 x USB 2.0
I/O ports - 2 x SIM card slot
I/O ports - 5 x 10/100/1000 Mbit/s
Length - 360.000000
Link - https://teltonika-networks.com/lt/product/rutx12/
Link - https://wiki.teltonika-networks.com/view/RUTX12
LTE network - 700 MHz
LTE network - 800 MHz
LTE network - 850 MHz
LTE network - 900 MHz
LTE network - 1500 MHz
LTE network - 1800 MHz
LTE network - 2100 MHz
LTE network - 2300 MHz
LTE network - 2500 MHz
LTE network - 2600 MHz
Management, monitoring, configuration - Cellular features: Multiple PDN, Auto APN, Band lock, SIM switch, Operator black/white list (planned), Data/SMS limits Network: Failover (Network backup), VLAN, QoS, Load Balancing Network: Static routes, Dynamic routes (BGP, OSPFv2, RIPv1/v2, EIGRP, NHRP), Routing rules Management and monitoring: WEB UI, CLI, SSH, SMS, TR-069, SNMP, JSON-RPC, MQTT, RMS Cloud: RMS, FOTA, Telenor, Azure IoT Hub, Cloud of Things, Cumulocity, ThingWorx HotspotL External/Internal Radius, SMS OTP, MAC authentication, Walled Garden Supported Hotspot Platforms: Iron WiFi, Hotspot System, Cloud4Wi, SAI + WiFi, MugiCloud, Purple.ai
Manufacturer - TELTONIKA
Manufacturer - Teltonika
ManufacturerPartNumber - RUTX12000000
Model - RUTX12
MPN - RUTX12000000
Name - Dual LTE Cat 6 Router | RUTX12 | 802.11ac | 867 Mbit/s | 10/100/1000 Mbit/s | Ethernet LAN (RJ-45) ports 4 | Mesh Support No | MU-MiMO Yes | 4G | Antenna type 4xSMA for LTE, 2xRP-SMA for WiFi, 1xRP-SMA for Bluetooth, 1xSMA for GNNS | 1 x USB A
name - Router LTE RUTX12 (Cat 6), WiFi, BLE
Name - Teltonika RUTX12
Name - Teltonika RUTX12Dual LTE Cat6 Dual-Band Wifi Industrial Router
Number of antennas - 8-connectors
Operating frequency - 2,4 GHz
Operating frequency - 5 GHz
Other features - Network support: 2 x 4G/LTE (Cat 6), 3G CPU: Qualcomm, 4 x ARM Cortex A7, 717 MHz Memory: 256 MB Flash, 256 MB RAM GNSS: GPS, GLONASS, BeiDou, Galileo, QZSS Bluetooth: 4.0 (Low energy) Housing: Aluminum, can be mounted on a DIN rail and can be grounded
Other features > Ethernet LAN (RJ-45) ports - 4
Other features > USB ports quantity - 1 x USB A
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 355.00 mm
Package features > Gross height (mm) - 60.00 mm
Package features > Gross width (mm) - 175.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 464 pc(s)
Package features > Paper/Pasteboard - 81 g
Package features > Tare weight (kg) - 0.081 kg
Package features > Volume (m3) - 0.00 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
Performance > Ethernet LAN data rates - 10/100/1000 Mbit/s
Performance > Wi-Fi data rate (max) - 867 Mbit/s
PeriodofWarranty - 2 Y
Ports & interfaces > WAN connection - 1 x WAN port (can be configured as LAN) 10/100/1000 Mbps
Power supply - 2 x external SIM slot (2FF)
producer - TELTONIKA
Producer - Teltonika
ProducerCode - RUTX12
Producer product family - Dual LTE Cat 6 Router
Producer product name - RUTX12
Security - Authentication: Pre-shared key, digital certificates, X.509 certificates Firewall: Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T Attack prevention: DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks) VLAN: Port based and tag based VLAN separation Mobile quota control: Custom data limits for both SIM cards WEB filter: Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only Access control: Flexible access control of TCP, UDP, ICMP packets, MAC address filter WiFi security: WPA3-EAP, WPA3-SAE, WPA2-Enterprise-PEAP, WPA2-PSK, WEP; AES-CCMP, TKIP, Auto Cipher modes, client separation
ShortDescription - Teltonika RUTX12 Router 4G LTE Cat6, WiFi Dual Band 802.11ac, 1x WAN/LAN + 4x LAN Gigabit, 2x SIM, BT, GPS, VPN
SIM card - Mini
Software - Operating system RutOS (OpenWrt based Linux OS)
Special functions -
Standards - 802.3
Standards - 802.3az
Standards - 802.3u
Standards - 802.11a
Standards - 802.11ac
Standards - 802.11b
Standards - 802.11e
Standards - 802.11g
Standards - 802.11n
Standards - 802.11r
System Requirements -
Technical details > Gross weight - 0.621 kg
Technical details > Net weight - 0.54 kg
Technical details > Producer - Teltonika
Technical details > Software type - RutOS (OpenWrt based Linux OS)
Type - GSM 3G/4G
UMTS network - 850 MHz
UMTS network - 900 MHz
UMTS network - 1800 MHz
UMTS network - 2100 MHz
vendpn - RUTX12 000000
Warranty - 24
Warranty - 24 month(s)
Weight - 1.000000
Weight - 1.06
Weight - 540 g
Width - 170.000000
Wireless LAN features > Wi-Fi band - 802.11ac
