10/100M LAN Ports - 2
Accessories included - - Urządzenie CPE510
- Pasywny adapter PoE 24V 1A
- Paski do montażu
- Przewód zasilający
- Skrócona instrukcja obsługi
Antenna - Built-in
Antenna - Antenna direction type - Omni-directional
Antenna - Antenna features - Integrated antenna
Antenna - Antenna gain level (max) - 13 dBi
Antenna - Antennas quantity - 1
Antenna - Antenna type - Internal
Antenna > Antenna type - 1xInternal
Antenna Gain - 13 dB
Antenna gain - 13 dBi
Antenna Type - Built-in
ARTIKEL1 - CPE510 OUTD WLAN ACCESS POINT
ARTIKEL2 - HIGH POWER WISP CLIENT ROUTER
Brand - TP-Link
BrandPartCode - CPE510
BrandPartCode - CPE510 V1
Breite - 0.14
Built-in flash memory - 8 MB
Built-in RAM memory - 64 MB
Category - Root/Electronics/Networks and communication/Access points
Category - Wireless Access Points
Category Code - WOD
Category_1 - Network and Servers
Category_2 - Network - WiFi Access Points
Certificates - Certification - - FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark
- RoHS
Certificates - Certification - FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark
RoHS
Code - CPE510
Color - White
Data transmission speed - 300 Mbps
Description - TP-LINK’s 5GHz 300Mbps 13dBi Outdoor CPE, the CPE510 is dedicated to cost effective solutions for outdoor wireless networking applications. With its centralized management application, it is ideal for point-to-point, point-to-multipoint and outdoor Wi-Fi coverage applications. Professional performance, coupled with user-friendly design, makes CPE510 an ideal choice for both business and home users. - Built-in 13dBi 2x2 dual-polarized directional MIMO antenna - Adjustable transmission power from 0 to 27dBm/500mw - System-level optimizations for more than 15km long range wireless transmission - TP-LINK Pharos MAXtream TDMA (Time-Division-Multiple-Access) technology improves product performance in throughput, capacity and latency performance, ideal for PTMP applications - Centralized Management System – Pharos Control - AP / Client / Repeater / AP Router / AP Client Router (WISP) operation modes - Passive PoE Adapter supports up to 60 meter (200 feet) Power over Ethernet deployment and allows the device to be reset remotely
Description - Zewnętrzne urządzenie CPE 5GHz 300MbpsWyróżnione funkcje:
- Wbudowana kierunkowa antena MIMO 2x2 o wzmocnieniu 13dBi
- Regulowana moc nadajnika
- System zoptymalizowany pod kątem transmisji na długie dystanse
- Technologia TP-LINK Pharos MAXtream TDMA poprawia wydajność przesyłu danych i zmniejsza opóźnienia w transmisji do zastosowań w połączeniach typu punkt-wielopunkt
- Centralny system zarządzania - Pharos Control
- Tryby pracy Access Point / Client / Repeater / AP Router / WISP
- Dołączony adapter Pasywnego PoE pozwala na zasilenie uzrądzenia oddalonego do 60 metrów oraz na jego zdalny reset
Design - Certification - - FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark
- RoHS
Design - Housing material - Plastic
Design - Internal - No
Design - International Protection (IP) code - IP5X
Design - LED indicators - Yes
Design - Placement - Pole
Design - Placement - Pole, Wall
Design - Product colour - White
Design - Reset button - Yes
dimensionalWeight - 756
dimension depth - 110 mm
dimension height - 270 mm
Dimensions - 224 x 79 x 60 mm
dimension weight - 900 g
dimension width - 135 mm
EAN - 6935364070922
ean - 6935364082260
EANCode - 6935364070922
Eans - 6935364070922
EAN_code - 6935364070922
Features - 2.4 GHz - No
Features - 5 GHz - Yes
Features - 6 GHz - No
Features - Automatic channel scanning - Yes
Features - Automatic channel selection - Yes
Features - Bandwidth - 5 GHz
Features - Cabling technology - 10/100Base-T(X)
Features - Ethernet LAN data rates - 10,100 Mbit/s
Features - Ethernet LAN data rates - 100
Features - Frequency band - 5.15 - 5.85 GHz
Features - Maximum data transfer rate - 300 Mbit/s
Features - Maximum data transfer rate (5 GHz) - 300 Mbit/s
Features - Maximum outdoor range - 15000 m
Features - Networking standards - IEEE 802.11a
Features - Networking standards - IEEE 802.11a, IEEE 802.11n
Features - Networking standards - IEEE 802.11n
Features - Receiver sensitivity - 802.11a:
54M: -75dBm, 48M: -76dBm, 36M: -83dBm, 6-24M: -95dBm
802.11n:
MCS15: -73dBm, MCS14: -74dBm, MCS13: -76dBm,
MCS12: -80dBm, MCS11: -83dBm, MCS10: -88dBm,
MCS9: -90dBm, MCS8: -93dBm, MCS7: -73dBm,
MCS6: -74dBm, MCS5: -76dBm, MCS4: -80dBm,
MCS3: -83dBm, MCS2: -88dBm, MCS1: -90dBm, MCS0: -93dBm
Features - Receiver sensitivity - 802.11a:
54M: -75dBm, 48M: -76dBm, 36M: -83dBm, 6-24M: -95dBm
802.11n:
MCS15: -73dBm, MCS14: -74dBm, MCS13: -76dBm,
MCS12: -80dBm, MCS11: -83dBm, MCS10: -88dBm,
MCS9: -90dBm, MCS8: -93dBm, MCS7: -73dBm,
MCS6: -74dBm, MCS5: -76dBm, MCS4: -80dBm,
MCS3: -83dBm, MCS2: -88dBm, MCS1: -90dBm, MCS0: -93dBm
Features - Receiver sensitivity - 802.11a:54M: -75dBm, 48M: -76dBm, 36M: -83dBm, 6-24M: -95dBm802.11n:MCS15: -73dBm, MCS14: -74dBm, MCS13: -76dBm,MCS12: -80dBm, MCS11: -83dBm, MCS10: -88dBm,MCS9: -90dBm, MCS8: -93dBm, MCS7: -73dBm,MCS6: -74dBm, MCS5: -76dBm, MCS4: -80dBm,MCS3: -83dBm, MCS2: -88dBm, MCS1: -90dBm, MCS0: -93dBm
Features - Throughput data rate - 300 Mbit/s
Features - Virtual LAN features - Tagged VLAN
Features - VLAN support - Yes
Features - Wi-Fi data rate (max) - 300 Mbit/s
Features - Wireless isolation - Yes
Features > Mesh Support - No
Features > Mobile Broadband - No mobile broadband
Features > MU-MiMO - Yes
Full Description Line - Data transmission speed 300 Mbps|IEEE 802.11a|IEEE 802.11n|Antenna Type Built-in|Antenna Gain 13 dB|Wireless Frequency Range 5.15~5.85GHz
Gewicht - 0.71
Gross Weight Kg - 0,91
GRUPPE1 - Network
GRUPPE2 - Wireless Lan Ap
GTIN - 0758399148703
GTIN - 758399148703
GTIN - 0769118363444
GTIN - 769118363444
GTIN - 0801940481498
GTIN - 801940481498
GTIN - 0804904109407
GTIN - 804904109407
GTIN - 5054629497135
GTIN - 6935364070922
GTIN - 6935364070939
GTIN - 6935364082260
guarantee - 36
guarantee_type - normal
HERSTELLER - TP-LINK
Hoehe - 0.11
HSTNUMMER - CPE510
I/O ports - 2 x 10/100 Mbit/s
IEEE 802.11a Network standard - Yes
IEEE 802.11n Network standard - Yes
Laenge - 0.28
Link - https://www.tp-link.com/us/business-networking/outdoor-radio/cpe510/
Logistics data - Harmonized System (HS) code - 85176990
LongDesc - What this product doesTP-LINK’s 5GHz 300Mbps 13dBi Outdoor CPE, the CPE510 is dedicated to cost effective solutions for outdoor wireless networking applications. With its centralized management application, it is ideal for point-to-point, point-to-multipoint and outdoor Wi-Fi coverage applications. Professional performance, coupled with user-friendly design, makes CPE510 an ideal choice for both business and home users.Enterprise Hardware DesignWith Qualcomm Atheros enterprise level chipsets, high gain antennas and high quality material, specially designed enclosure, and PoE power supply, CPE510 is specially designed for outdoor use and can operate flawlessly in almost any climate, with operating temperatures ranging from -30℃ (-22℉) to +70 ℃ (158℉).Advanced Antenna SystemBuilt-in High Gain Dual-Polarized Antenna and dedicated metal reflection ensures higher gain and lower noise interference.High Power & High SensitivityIn advanced, high power Tx (up to 27dBm/500mw) and high sensitivity Rx (up to -95dBm) radio front-end design breaks down the barriers of traditional Wi-Fi transmission range, making CPE510 an ideal product for outdoor wireless networking applications.Professional Outdoor DesignCPE510 is designed to work in harsh environments, even in some of the world’s most hostile climate conditions.Weatherproof DesignWith its outdoor weatherproof enclosure and industrial-level hardware design, CPE510 can continue operating in various weather conditions, such as sunshine, rainfall, wind, snow or extremely low/high temperature environment(-30°C~70°C).Double Protection against ESD AttacksBesides its grounding terminal, CPE510 offers another way to eliminate ESD attacks via the PoE adapter and Ethernet cable with grounding wire. The CPE510’s additional security measures provide up to 15KV ESD and 6000V lightning protection for more reliable operation.TP-LINK MAXtream TDMA TechnologyAs network scale increases, wireless competition and collisions among CPEs and base stations will be so enormous that the real throughput of the network will drop, resulting in a serious impact on end-user experience, to mitigate these effects, the CPE510 uses MAXtream TDMA Technology.Pharos Control – Centralized Management SystemCPE510 also comes equipped with centralized management software that helps users easily manage all the devices in their network from a single PC - Pharos Control. Functions like device discovery, status monitoring, firmware upgrading, and network maintenance can be managed using Pharos Control.PharOSUser-friendly web-based management system allows professionals to apply more specific configurations
LongDesc - TP-LINK’s 5GHz 300Mbps 13dBi Outdoor CPE, the CPE510 is dedicated to cost effective solutions for outdoor wireless networking applications. With its centralized management application, it is flexible and ideal for point-to-point, point-to-multipoint and outdoor Wi-Fi coverage applications. Professional performance, coupled with user-friendly design, makes CPE510 an ideal choice for both business and home users.Enterprise HardwareWith Qualcomm Atheros enterprise level chipsets, high gain antennas and high quality material, specially designed enclosure, and PoE power supply, CPE510 is specially designed for outdoor use and can operate flawlessly in almost any climate, with operating temperatures ranging from -30℃ (-22℉) to +70 ℃ (158℉).Advanced Antenna System- Built-in High Gain Dual-Polarized Antenna- Dedicated metal reflector ensures higher gain and lower noise interference15km+ Wireless Data TransmissionSpecially designed for outdoor uses, ideal for long distance wireless data transmission, covering a range of 15km+ , tested in the field.TP-LINK MAXtream TDMA TechnologyAs network scale increases, wireless competition and collisions among CPEs and base stations will be so enormous that the real throughput of the network will drop, resulting in a serious impact on end-user experience. To mitigate these effects, the CPE510 uses MAXtream TDMA Technology.
LongProductName - 5GHz 300Mbps 13dBi Outdoor CPE, 560 Mhz, 64MB DDR2 RAM, 8MB Flash, IPX5, IEEE 802.11 a/n, 27dBm/500mw (Adjustable power by 1dBm)
LongProductName - 560 Mhz, 64MB DDR2 RAM, 8MB Flash, IPX5, IEEE 802.11 a/n, 27dBm/500mw (Adjustable power by 1dBm)
LongSummaryDescription - TP-Link 5GHz 300Mbps 13dBi Outdoor CPE. 5 GHz, Maximum data transfer rate: 300 Mbit/s. Security algorithms: AES, TKIP, WPA, WPA-PSK, WPA2, WPA2-PSK. Ethernet LAN data rates: 10,100 Mbit/s. Power over Ethernet (PoE). Product colour: White
LongSummaryDescription - TP-Link CPE510. Maximum data transfer rate: 300 Mbit/s. Security algorithms: 64-bit WEP, 128-bit WEP, 152-bit WEP, TKIP, WPA, WPA-PSK, WPA2, WPA2-PSK. Ethernet LAN data rates: 10,100 Mbit/s. Power over Ethernet (PoE). Product colour: White
Management features - Firmware upgradeable - Yes
Management features - Management platform - Pharos Control
Management features - Syslog - Yes
Management features - Web-based management - Yes
Manufacturer - TP-Link
Manufacturer Code - CPE510
Manufacturer Name - TP-LINK
Manufacturer_code - CPE510
Name - 5GHz 300Mbps 13dBi Outdoor CPE | CPE510 | 802.11n | 300 Mbit/s | 10/100 Mbit/s | Ethernet LAN (RJ-45) ports 1 | Mesh Support No | MU-MiMO Yes | No mobile broadband | Antenna type 1xInternal
name - CPE510 Outdoor 5GHz 13dBi 300 MbPS
Name - TP-Link CPE510
Name - TP-Link CPE510 OUT/000M/300M/AP - 2x2 13dBi, PoE, IPX5
Network architecture - FastEthernet
Number of antennas - 1
Operating frequency - 5 GHz
Operational conditions - Operating relative humidity (H-H) - 10 - 90%
Operational conditions - Operating temperature (T-T) - -30 - 70 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 95%
Operational conditions - Storage temperature (T-T) - -40 - 70 °C
Other features -
Other features > Ethernet LAN (RJ-45) ports - 1
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 105 mm
Package features > Gross height (mm) - 268 mm
Package features > Gross width (mm) - 131 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 469 pc(s)
Package features > Paper/Pasteboard - 200.00 g
Package features > Plastic (No PET) - 50.00 g
Package features > Tare weight (kg) - 0.25 kg
Package features > Volume (m3) - 0.00368634 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
Packaging content - Cables included - AC
Packaging content - Mounting kit - Yes
Packaging content - PoE adapter included - Yes
Packaging content - Quantity per pack - 1 pc(s)
Packaging data - Cables included - AC
Packaging data - Package depth - 132 mm
Packaging data - Package depth - 270 mm
Packaging data - Package height - 106 mm
Packaging data - Package weight - 720 g
Packaging data - Package width - 132 mm
Packaging data - Package width - 270 mm
Performance - Built-in processor - Yes
Performance - Compatible operating systems - Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux.
Performance - Flash memory - 8 MB
Performance - Internal memory - 64 MB
Performance - Processor architecture - MIPS 74Kc
Performance - Processor frequency - 560 MHz
Performance - Processor model - Qualcomm Atheros
Performance > Ethernet LAN data rates - 10/100 Mbit/s
Performance > Wi-Fi data rate (max) - 300 Mbit/s
Polarization - Linear horizontal
Polarization - Linear vertical
Ports & interfaces - DC-in jack - Yes
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Ports & interfaces - WAN connection - Ethernet (RJ-45)
Power - AC input frequency - 50 - 60 Hz
Power - AC input voltage - 100 - 240 V
Power - DC voltage range - 16 - 27 V
Power - Input current - 0.8 A
Power - Input frequency - 50/60 Hz
Power - Input voltage - 100 - 240 V
Power - Power consumption (typical) - 13 W
Power - Power over Ethernet (PoE) - Yes
Power supply - Pasywny adapter PoE 24V 1A
Processor - Qualcomm Atheros Enterprise AR9350B 560MHz, MIPS 74Kc
producer - TP-LINK
Producer - TP-Link
producerCode - CPE510
ProducerCode - CPE510
Producer product family - 5GHz 300Mbps 13dBi Outdoor CPE
Producer product name - CPE510
ProductName - 5GHz 300Mbps 13dBi Outdoor CPE
ProductName - CPE510
productName - TP-LINK 5GHz 300Mbps 13dBi Outdoor CPE
productSize - Normal
Protocols - Management protocols - TDMA
Protocols - Universal Plug and Play (UPnP) - Yes
Security - WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP), 64/128/152-bit WEP
Security - Auto Wireless Distribution System (WDS) - Yes
Security - IGMP snooping - Yes
Security - IP address filtering - Yes
Security - MAC address filtering - Yes
Security - Security algorithms - 64-bit WEP
Security - Security algorithms - 64-bit WEP, 128-bit WEP, 152-bit WEP, TKIP, WPA, WPA-PSK, WPA2, WPA2-PSK
Security - Security algorithms - 128-bit WEP
Security - Security algorithms - 152-bit WEP
Security - Security algorithms - AES, TKIP, WPA, WPA-PSK, WPA2, WPA2-PSK
Security - Security algorithms - TKIP
Security - Security algorithms - WPA
Security - Security algorithms - WPA-PSK
Security - Security algorithms - WPA2
Security - Security algorithms - WPA2-PSK
Security - Service Set Identifier (SSID) features - SSID broadcast, SSID broadcast on/off
Shipping Box Depth Shipping/Package Box Dimensions - 57 cm
Shipping Box Height Shipping/Package Box Dimensions - 30 cm
Shipping box quantity - 20
Shipping Box Weight Shipping/Package Box Dimensions - 19.7 kg
Shipping Box Width Shipping/Package Box Dimensions - 55 cm
Short description - TP-LINK WLAN 300MBit Access Point 5GHz CPE510
ShortDescription - Wbudowana kierunkowa antena MIMO 2x2 o wzmocnieniu 13dBi
ShortSummaryDescription - TP-Link 5GHz 300Mbps 13dBi Outdoor CPE, 5 GHz, 300 Mbit/s, AES, TKIP, WPA, WPA-PSK, WPA2, WPA2-PSK, 10,100 Mbit/s
ShortSummaryDescription - TP-Link CPE510, 300 Mbit/s, 64-bit WEP, 128-bit WEP, 152-bit WEP, TKIP, WPA, WPA-PSK, WPA2, WPA2-PSK, 10,100 Mbit/s
sizeX - 272
sizeY - 130
sizeZ - 107
Software -
Special functions -
Standards - 802.11a
Standards - 802.11n
Stck_Kart - 20
Stck_Pal - 40
Storno - Y
System Requirements - - Microsoft Windows 98SE, NT, 2000, XP, Vista™, Windows 8, Windows 7, MAC OS, NetWare, UNIX, Linux.
- Zalecamy korzystanie z przeglądarek: Google Chrome, Safari oraz Firefox.
Technical details > Gross weight - 0.73 kg
Technical details > Net weight - 0.48 kg
Technical details > Other features - Passive PoE Adapter supports up to 60 meter (200 feet) Power over Ethernet deployment and allows the device to be reset remotely.
Technical details > Producer - TP-LINK
Technical_details - What this product does
TP-LINK’s 5GHz 300Mbps 13dBi Outdoor CPE, the CPE510 is dedicated to cost effective solutions for outdoor wireless networking applications. With its centralized management application, it is ideal for point-to-point, point-to-multipoint and outdoor Wi-Fi coverage applications. Professional performance, coupled with user-friendly design, makes CPE510 an ideal choice for both business and home users. Enterprise Hardware Design
With Qualcomm Atheros enterprise level chipsets, high gain antennas and high quality material, specially designed enclosure, and PoE power supply, CPE510 is specially designed for outdoor use and can operate flawlessly in almost any climate, with operating temperatures ranging from -30? (-22?) to +70 ? (158?). Advanced Antenna System
Built-in High Gain Dual-Polarized Antenna and dedicated metal reflection ensures higher gain and lower noise interference. High Power & High Sensitivity
In advanced, high power Tx (up to 27dBm/500mw) and high sensitivity Rx (up to -95dBm) radio front-end design breaks down the barriers of traditional Wi-Fi transmission range, making CPE510 an ideal product for outdoor wireless networking applications.
Professional Outdoor Design
CPE510 is designed to work in harsh environments, even in some of the world’s most hostile climate conditions. Weatherproof Design
With its outdoor weatherproof enclosure and industrial-level hardware design, CPE510 can continue operating in various weather conditions, such as sunshine, rainfall, wind, snow or extremely low/high temperature environment(-30°C~70°C). Double Protection against ESD Attacks
Besides its grounding terminal, CPE510 offers another way to eliminate ESD attacks via the PoE adapter and Ethernet cable with grounding wire. The CPE510’s additional security measures provide up to 15KV ESD and 6000V lightning protection for more reliable operation. TP-LINK MAXtream TDMA Technology
As network scale increases, wireless competition and collisions among CPEs and base stations will be so enormous that the real throughput of the network will drop, resulting in a serious impact on end-user experience, to mitigate these effects, the CPE510 uses MAXtream TDMA Technology. Pharos Control – Centralized Management System
CPE510 also comes equipped with centralized management software that helps users easily manage all the devices in their network from a single PC - Pharos Control. Functions like device discovery, status monitoring, firmware upgrading, and network maintenance can be managed using Pharos Control. PharOS
User-friendly web-based management system allows professionals to apply more specific configurations Transfer Rate LAN 10/100 MBit/s Keys Reset Wi-Fi Speed 11 MBit/s (IEEE802.11b 2,4 GHz), 54 MBit/s (IEEE802.11g 2,4 GHz), 300 MBit/s (IEEE802.11n 2,4 GHz), 300 MBit/s (IEEE802.11ac 5 GHz) Encryption 64-Bit-WEP, 128-Bit-WEP, 152-Bit-WEP, WPA, WPA-PSK, WPA2, WPA2-PSK Ports RJ-45 LAN 2 Power Operating 13 watt(s) Remarks operatingsarten: AP, Client, Repeater, AP-Router, AP-Client-Router (WISP-Client); 1x abgeschirmter 10/100Mbit/s-Ethernet-Port (LAN0, Passive-PoE-Eingang), 1x abgeschirmter 10/100Mbit/s-Ethernet-Port (LAN1, Passive-PoE-Passthrough), 1x Erdungsconnection Features dualpolarisierte 13 dBi-Richtantennen for 2x2-MIMO, Sendeleistung up to50 0mW for große Übertragungsdistanzen, geeignet for Langstreckenübertragungen, Pharos-MAXtream-TDMA, Zentrales Management-System (Pharos Control), support passives PoE up to60 Meter sowie einen Remote-Neustart Product dimensions 224 x 60 x 79 mm
Title - TP-Link 5GHz 300Mbps 13dBi Outdoor CPE

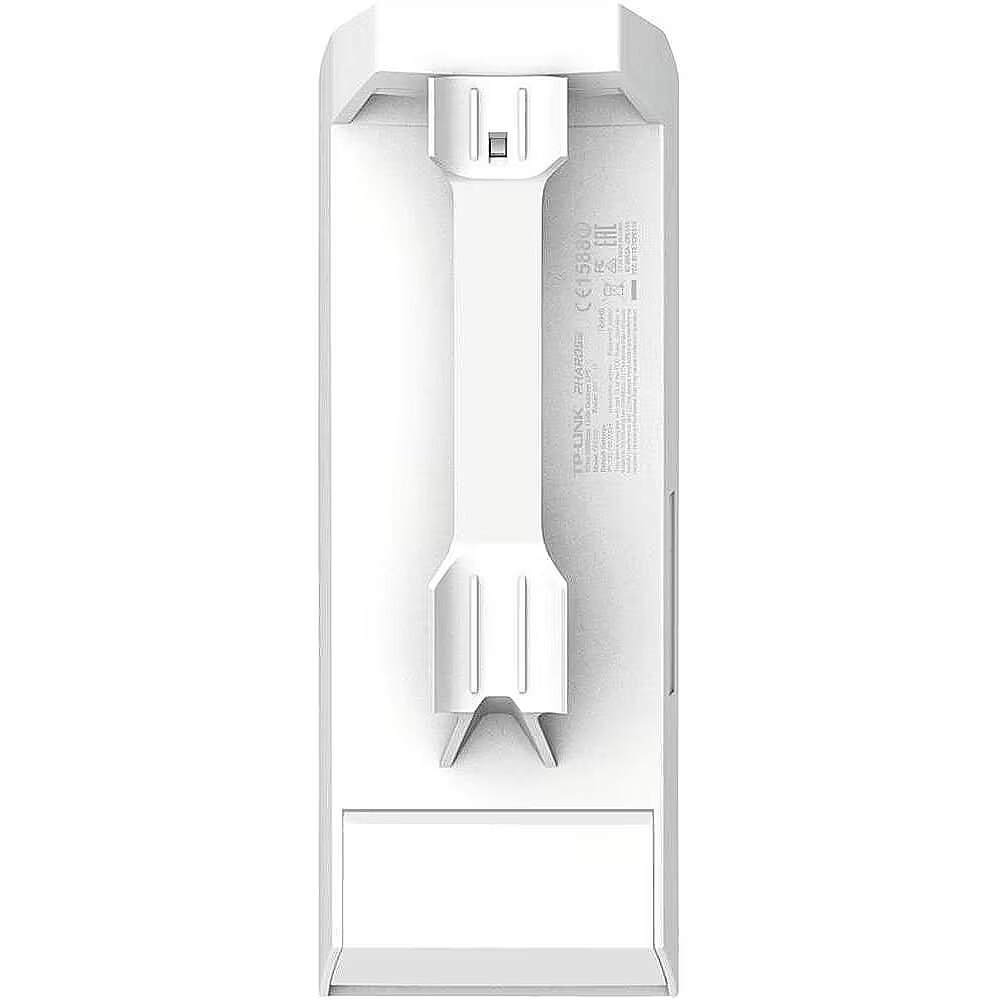

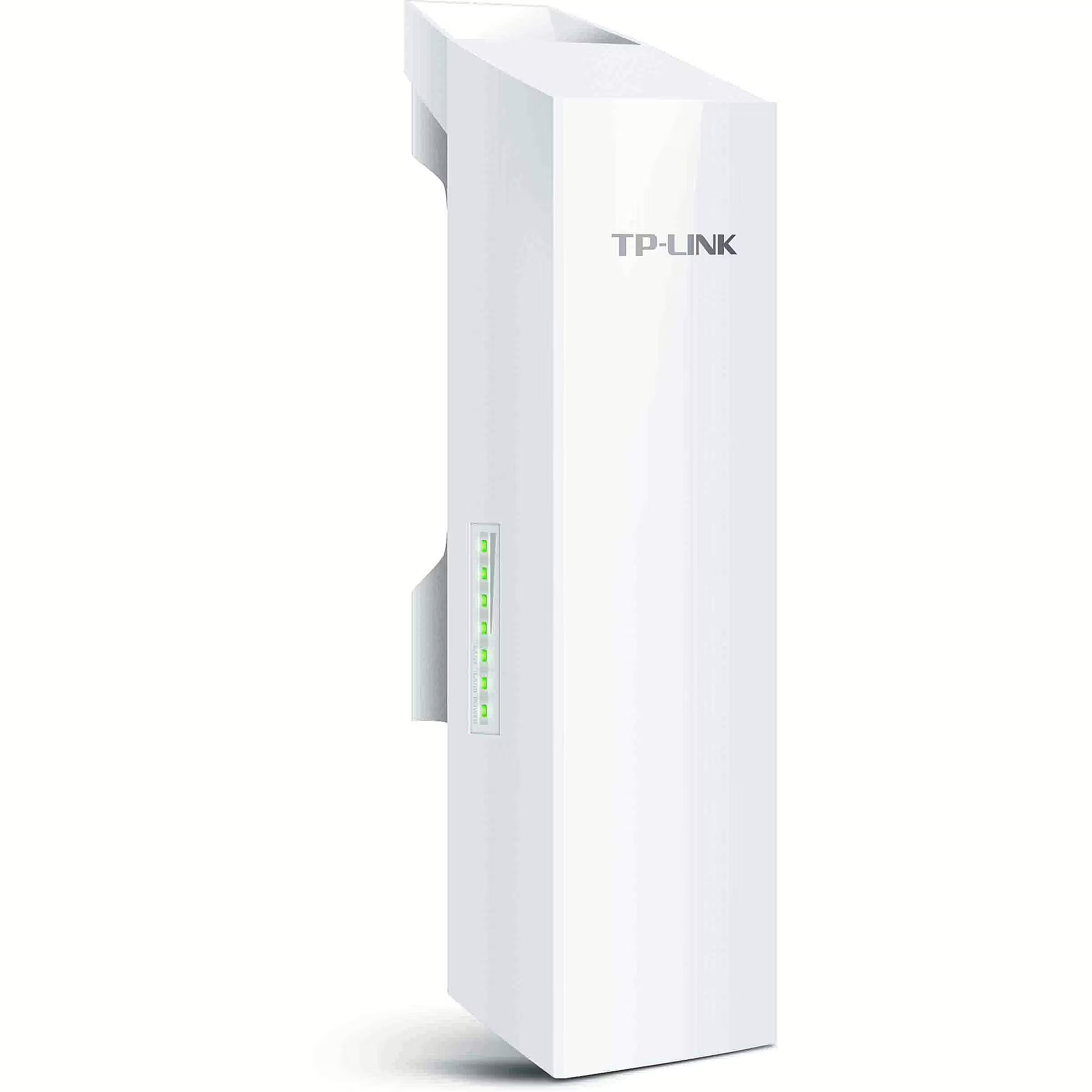

Title - TP-Link CPE510 wireless access point 300 Mbit/s White Power over Ethernet (PoE)
Type - Directional
Unit Box Height - 0.108
Unit Box Length - 0.272
Unit Box Width - 0.133
Unit Brutto Volume - 0.004703 cubm
Unit Gross Weight - 0.985 kg
Unit Net Weight - 0.59 kg
URL - https://www.tp-link.com/en/products/details/?categoryid=&model=CPE510#over
URL - https://www.tp-link.com/us/products/details/cat-37_CPE510.html
Usage - Outside
Vendor Homepage - http://www.tp-link.com/en/products/details/?categoryid=&model=CPE510
vendpn - CPE510
Warranty - 36
Warranty - 36 month(s)
Warranty - 36 months
WarrantyInfo - 2 year
WarrantyInfo - 3 Years
warrantyLength - 36
warrantyType - G
Weight - 0,73
weight - 730
Weight & dimensions - Depth - 75 mm
Weight & dimensions - Depth - 79 mm
Weight & dimensions - Height - 60 mm
Weight & dimensions - Height - 60.3 mm
Weight & dimensions - Width - 224 mm
Weight & dimensions - Width - 224.4 mm
Wireless Frequency Range - 5.15~5.85GHz
Wireless LAN features > Wi-Fi band - 802.11n
Wireless LAN features > Wi-Fi standards - 802.11a/n
