Accessories included - Quick Installation Guide
Card's length - 240 to 280 mm
category - PC Components|Graphics Cards|AMD
Category 1 - Grafikkarten
Category 2 - AMD PCI-Express Grafikkarten
Category Code - VGP
Category_1 - Graphics Cards
Category_2 - Graphics Cards PCIe - AMD
Chipset - AMD Radeon RX 7800 XT
Chipset - Radeon RX 7800 XT
Chipset manufacturer - AMD
code - 90-GA4SZZ-00UANF
Cooling - Active
Core Boost frequency - 2475 MHz
Core frequency - 2169 MHz
Description - Clock: GPU / Memory Boost Clock*: Up to 2475 MHz / 19.5 Gbps Game Clock**: 2169 MHz / 19.5 Gbps Key Specification AMD Radeon™ RX 7800 XT GPU 16GB GDDR6 on 256-Bit Memory Bus 60 AMD RDNA™ 3 Compute Units (with RT+AI Accelerators) 64MB AMD Infinity Cache™ technology Microsoft® DirectX® 12 Ultimate PCI® Express 4.0 Support 2 x 8-pin Power Connectors 3 x DisplayPort™ 2.1***, 1 x HDMI™ 2.1 Key Features Dual Fan Design Stylish Metal Backplate Striped Ring Fan Ultra-fit Heatpipe LED Indicator 0dB Silent Cooling Super Alloy Graphics Card

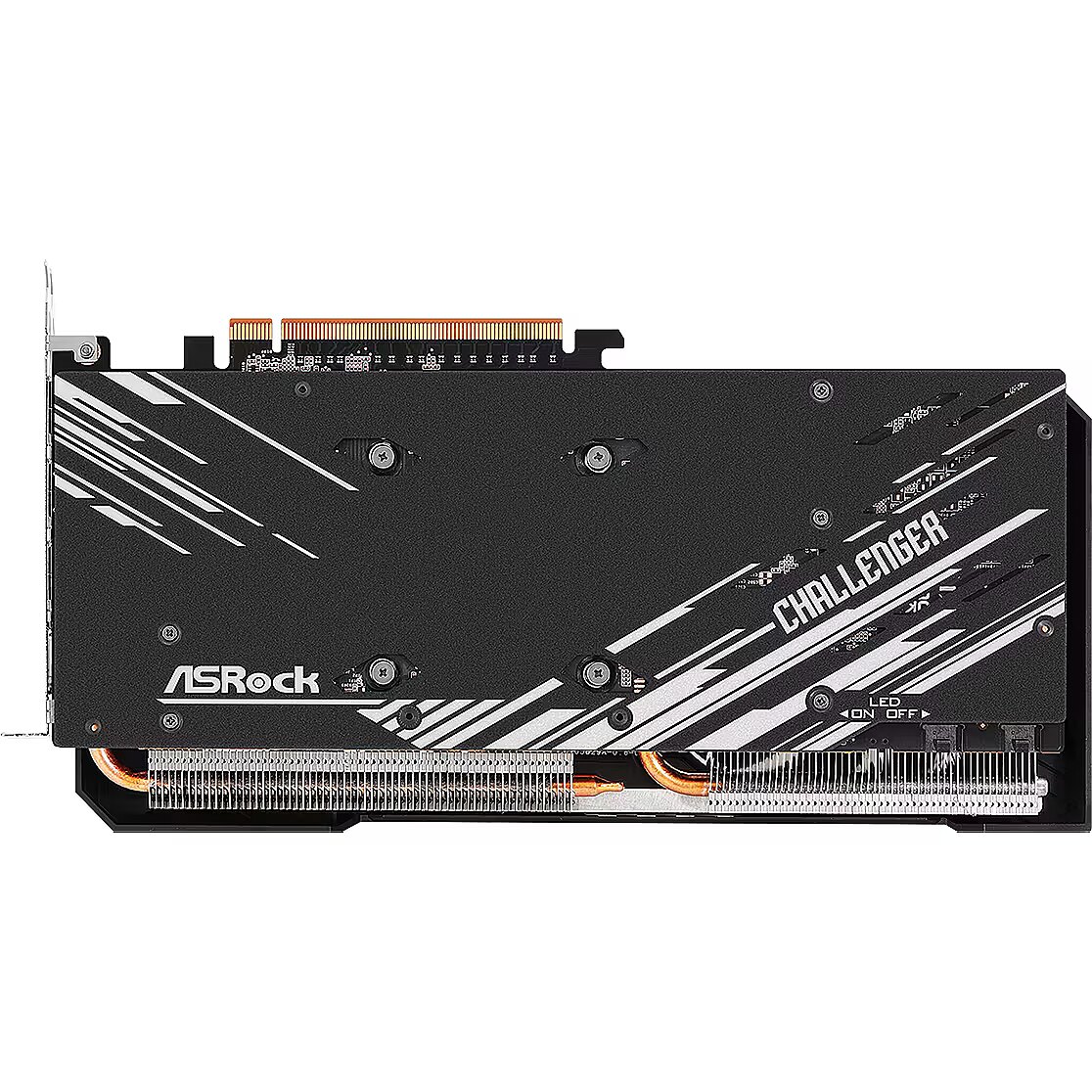

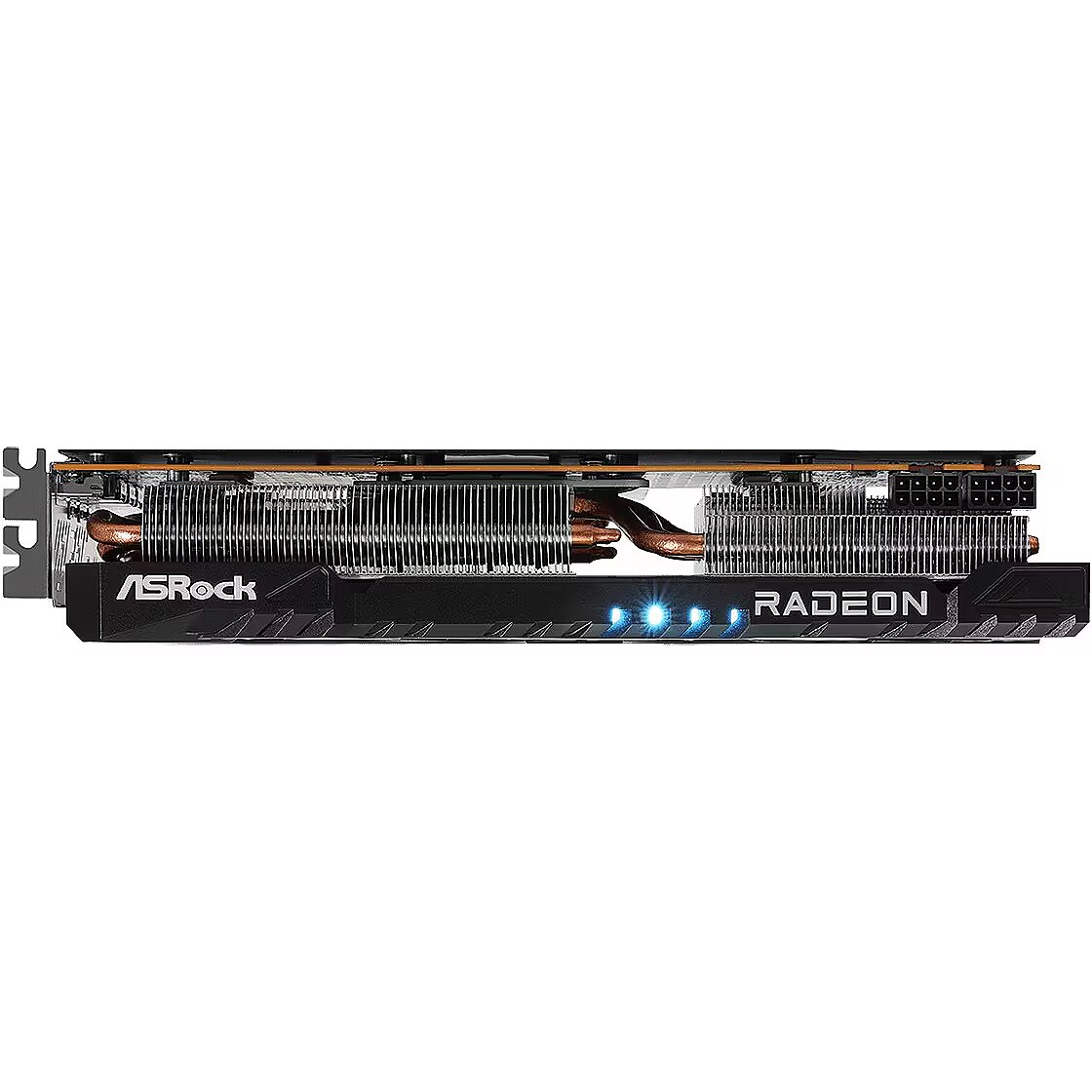

Description - TWO FANS Two fans provide effective cooling, so that your gaming equipment always operates at an appropriately low temperature. The stylish and simple design is optimized for a great gaming experience. Stylish metal backplate Solid, fancy, cool. Designed to avoid bending the PCB. Fancy appearance makes the graphics card more visually legendary. It also helps improve cooling with high-quality thermal pads fitted on the back. Striped ring fan Designed for increased airflow The all-new ASRock ring fan has a larger side intake and provides better airflow through the cooling system. LED indicators More decorations. More beauty. LED indicator decorated the graphics card to make it more beautiful. Quiet Cooling 0dB 0dB Silent Cooling Technology allows you to stop the fans while controlling your computer. Ultra-fit heat pipe Consolidated to maximize contact. The heat pipes are consolidated to maximize contact between each other and the GPU backplane for optimized heat dissipation. Welding of high-density metals Improve heat dissipation. They effectively insulate the entire gap between the pipe and the stacked fins, thereby effectively improving heat dissipation. Nano thermal paste Excellent thermal teamwork. Eliminate gaps in the contact area to maximize heat transfer and thermal efficiency. High-class thermal pad Better heat transfer. High-quality thermal pad helps transfer component heat to the heatsink, improving heat dissipation. Precise tightening torque Optimized assembly pressure. ASRock adopts precise screw tightening torque when mounting its graphics cards to optimize the cooler mounting pressure to improve thermal efficiency while avoiding damage to the GPU die. ASRock Tweak 2.0 It provides intelligent control over fan speed and full ability to fine-tune cooling settings for the highest performance 8K Resolution Support Not only 4K resolution is supported, but the next-generation 8K image is also supported, providing an amazing visual experience PCI Express 4.0 support This graphics card supports PCI Express 4.0, with a bandwidth of 16 GT/s, and provides twice the bandwidth compared to PCI Express 3.0. Get ready for the new generation of computer games. AMD Eyefinity Technology The unique multi-display technology allows you to project high-quality images with one graphics card onto three, four or even six monitors from one computer. This reduces system complexity by allowing several graphics cards to be connected and synchronized into one large display wall. GAME AMD Radeon RX 7700 XT and 7800 XT graphics cards take gamers to a new level of performance. Equipped with up to 16GB of GDDR6 memory, AMD RDNA 3 unified compute units and next-generation features that enable ultra-fast and ultra-smooth 1440p gaming and the flexibility to enjoy incredibly detailed 4K graphics. Dive even deeper with the AMD Radiance Display Engine and DisplayPort 2.1 to experience up to 68 billion colors in video playback and support for resolutions up to 8K. STREAM Get ready for next-gen, high-quality streaming with your favorite OBS Studio software and new AV14 hardware encoders. With improved encoding performance and better image quality when streaming, Radeon RX 7700 XT and 7800 XT graphics cards are the ultimate plug-and-play solution for gamers and streamers. Enable AMD Noise Suppression5 powered by artificial intelligence to eliminate background noise and communicate clearly with your audience or team members. ACHIEVEMENT Pair AMD Radeon RX 7700 XT and 7800 XT graphics cards with AMD Ryzen processors to activate AMD3 intelligent technologies. You can unleash exceptional performance that will give you an edge in the game. Upgrade your AMD Radeon RX 7000 Series graphics cards with AMD Software: Adrenalin Edition, packed with bulletproof drivers for the best PC gaming experience. ACHIEVEMENT INCREASED EFFICIENCY. MAXIMIZE FIDELITY AMD FidelityFX Super Resolution Technology1 takes upscaling technology to the next level. It delivers incredible image quality while increasing frame rates in supported games. AMD Radeon Super Resolution (RSR)2 leverages FSR technology at the driver level, delivering faster performance in thousands of games.
Design - Cooling type - Active
Design - Number of fans - 2 fan(s)
dimensionalWeight - 1544
dimension depth - 90 mm
dimension height - 220 mm
Dimensions - 267 x 130 x 51 mm
Dimensions - 267 x 130 x 51mm
dimension weight - 1390 g
dimension width - 395 mm
DisplayPort Input/Output connectors - 3
ean - 4710483943683
EAN - 4710483943683
EAN_code - 4710483943683
Full Description Line - AMD Radeon RX 7800 XT|Graphics memory size 16 GB|GDDR6|256 bit|PCIE 4.0 16x|Memory CLK 19.5 Gbps|GPU clock 2169 MHz|GPU boost clock 2475 MHz|7680x4320|1xHDMI|3xDisplayPort|Included Accessories 1 x Quick Installation Guide
GPU boost clock - 2475 MHz
GPU clock - 2169 MHz
Graphic card features - HDCP/Overclock Edition
Graphics card connector - PCI-E 16x ver. 4.0
Graphics connector - PCIE 4.0 16x
Graphics memory size - 16 GB
Graphics memory type - GDDR6
guarantee - 36
guarantee_type - normal
HDMI Input/Output connectors - 1
Included Accessories - 1 x Quick Installation Guide
Manufacturer - Asrock
Manufacturer - ASRock
Manufacturer_code - 90-GA4SZZ-00UANF
Max resolution - 7680x4320
Memory - Data transfer rate - 19.5 Gbit/s
Memory - Discrete graphics card memory - 16 GB
Memory - Graphics card memory type - GDDR6
Memory - Memory bus - 256 bit
Memory bus - 256 bit
Memory bus - 256-bit
Memory CLK - 19.5 Gbps
Memory frequency - 19.5 Gbps
Memory type - DDR6
Model - RX7800XT CL 16GO
MPN - 90-GA4SZZ-00UANF

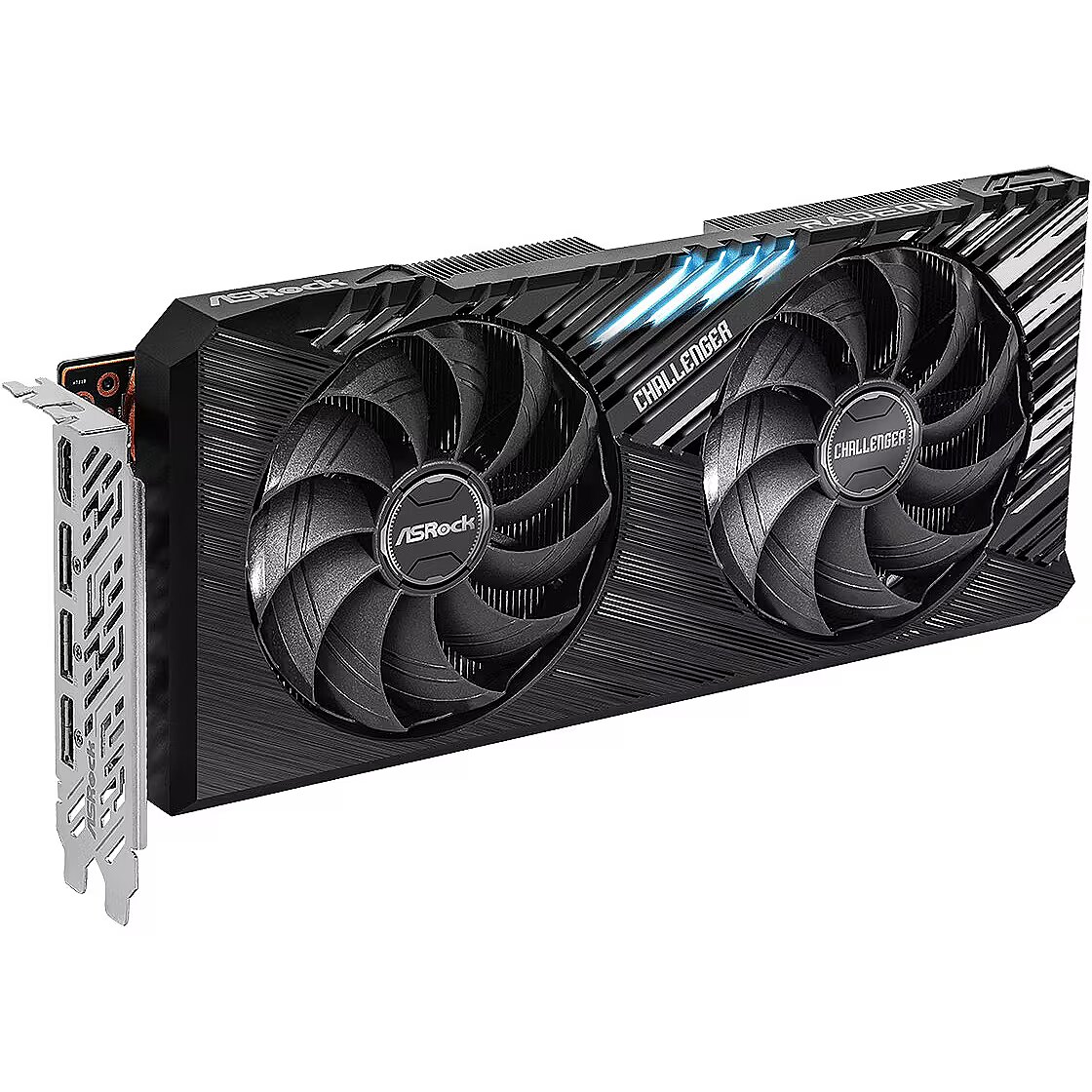

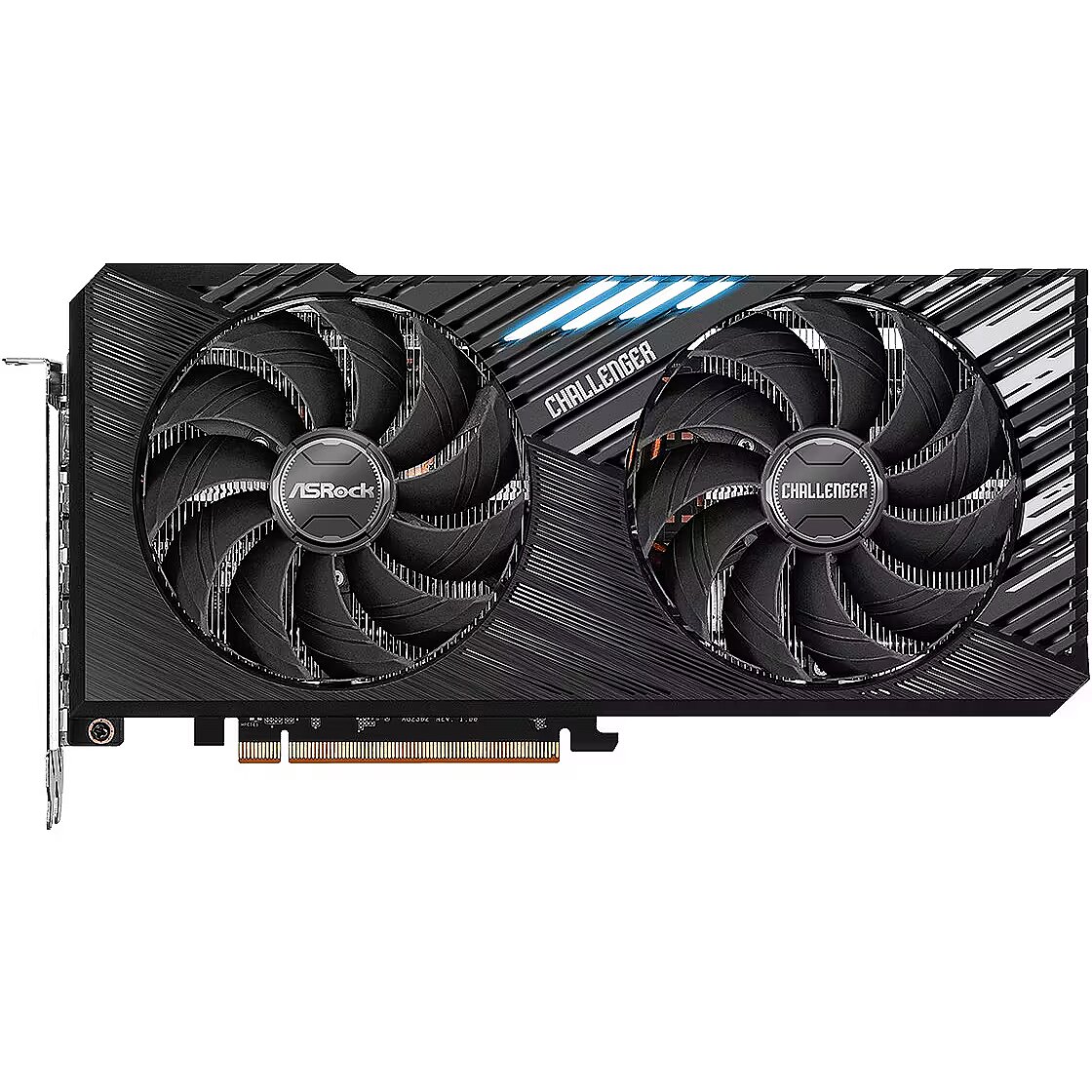

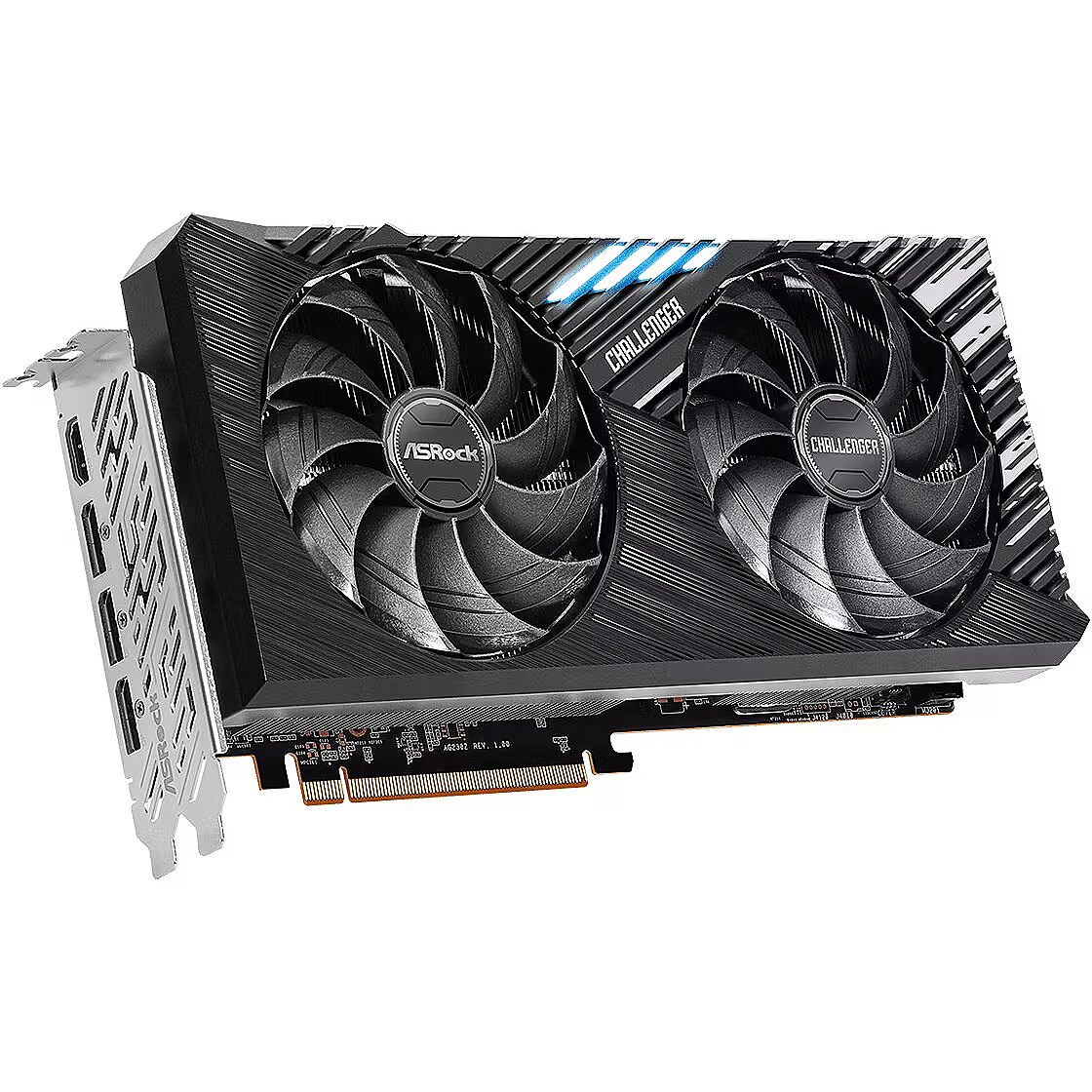

Name - ASRock Radeon RX 7800 XT Challenger 16 GB OC, graphics card (white, RDNA 3, GDDR6, 3x DisplayPort, 1x HDMI 2.1)
name - ASRock Radeon RX 7800 XT Challenger 16GO, 16384 MB GDDR6
name - Graphics card Radeon RX 7800 XT CHALLENGER OC 16G GDDR6 256bit
Name - RX 7800 XT 16GB ASRock Radeon Challenger OC GDDR6
Other features - 3840 Streaming Processors Compute Units 60 Maximum Digital Resolution: 7680x4320 HDCP Multi-view - 4 Recommended 750W power supply Power Connector 2 x 8-pin
Other information - Weight: 985 g

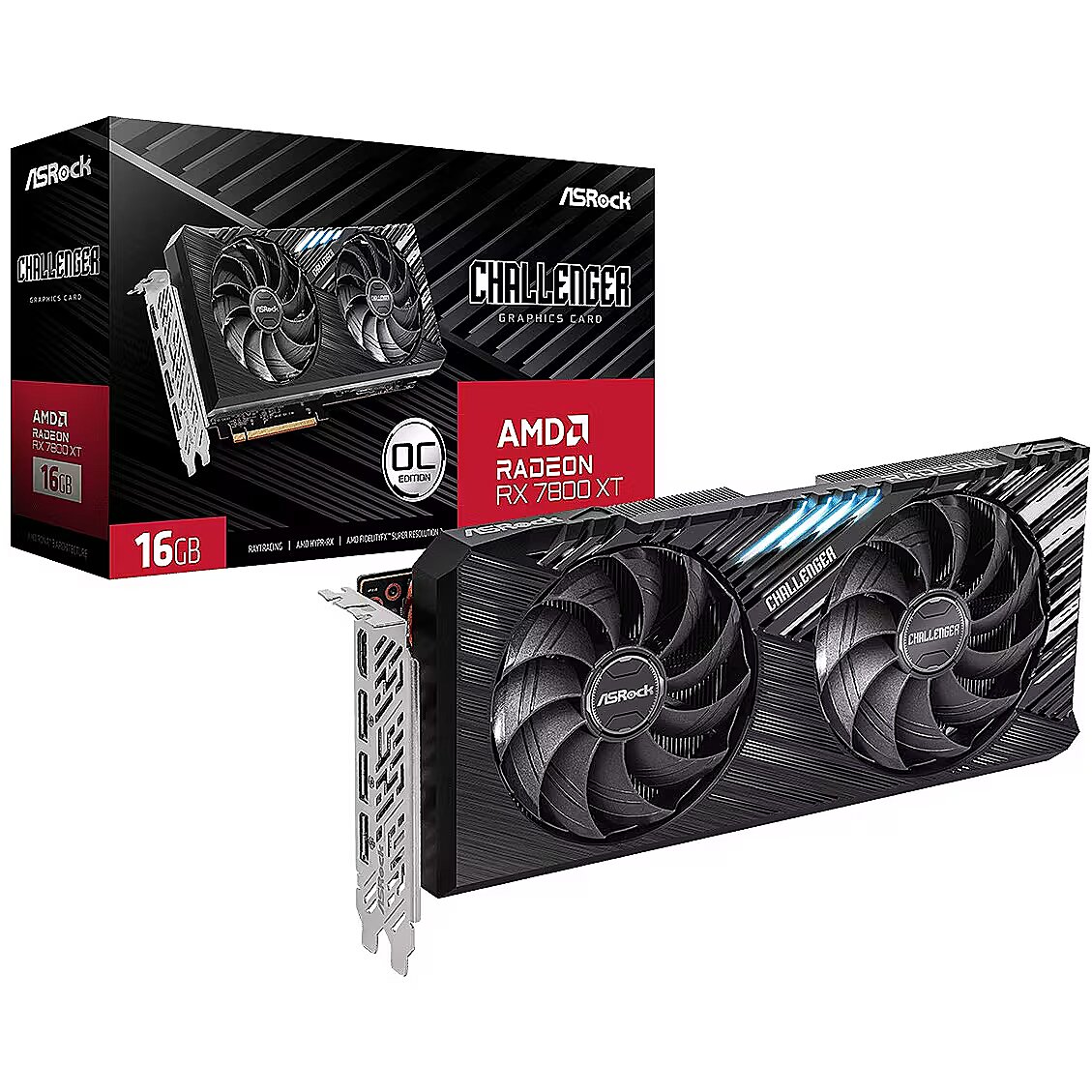

Packaging data - Package type - Box
Performance - DirectX version - 12 Ultimate
Performance - Dual Link DVI - No
Performance - HDCP - Yes
Performance - OpenGL version - 4.6
Performance - TV tuner integrated - No
Ports & interfaces - DisplayPorts quantity - 3
Ports & interfaces - DisplayPort version - 2.1
Ports & interfaces - HDMI ports quantity - 1
Ports & interfaces - HDMI version - 2.1
Ports & interfaces - Interface type - PCI Express x16 4.0
Power - Minimum system power supply - 750 W
Power - Supplementary power connectors - 2x 8-pin
Power connectors - 8+8 pin
Processor - CUDA - No
Processor - Graphics processor - Radeon RX 7800 XT
Processor - Graphics processor family - AMD
Processor - Maximum displays per videocard - 4
Processor - Maximum resolution - 7680 x 4320 pixels
Processor - Processor boost clock speed - 2475 MHz
Processor - Processor boost clock speed (Gaming mode) - 2169 MHz
Processor - Stream processors - 3840
producer - ASRock
producerCode - RX7800XT CL 16GO
productName - ASRock Radeon RX 7800 XT Challenger 16GB OC graphics card
productSize - Normal
Shipping Box Depth Shipping/Package Box Dimensions - 39.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 9 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 1.4 kg
Shipping Box Width Shipping/Package Box Dimensions - 22 cm
sizeX - 390
sizeY - 220
sizeZ - 90
Stream processors - 3840
Supported standards - DirectX 12 Ultimate
Supported standards - OpenGL 4.6
Technical_details - The ASRock Radeon RX 7800 XT Challenger 16GB OC GPU is based on RDNA 3 architecture and is designed for 4K and 1440p performance, power efficiency and demanding gaming. With 16 GB of GDDR6 video memory, support for the PCIe 4.0 standard and features such as Infinity Cache, the AMD Radeon RX 7800 XT GPUs use RDNA3 technology to ensure a smooth gaming experience with great looks. With functions such as Radeon image sharpening, FidelityFX, TressFX, TrueAudio Next and VR technologies, the Radeon RX 7800 XT chip of the ASRock Radeon RX 7800 XT Challenger 16 GB OC ensures high IPC values. Improved graphic effects of the ASRock Radeon RX 7800 XT Challenger 16 GB OC such as volumetric lighting, blurring and depth of field as well as shorter latencies make gamers' hearts beat faster. Item no.: 100016578 Graphics card type color white EAN 4710483943683 Manufacturer no. 90-GA4SZZ-00UANF Slot PCIe x16 version 4.0 occupied slots 2.5 GPU name AMD Radeon RX 7800 XT Required power supply power at least 750 W Memory capacity 16 GB (GDDR6) Connections 1x HDMI version 2.1, 3x Displayport version 2.1 Power supply Average consumption 270 W Cooling Cooling with fan Operating systems Supports Windows 11, Windows 10 Feature Hardware Raytracing, AMD FreeSync Technology, Video Streaming up to 8K, Radeon VR Ready Premium, AMD FidelityFX, Radeon Image Sharpening, Radeon Anti-Lag, Radeon Software, Game Driver Optimizations Dimensions Width: 130mm x Height: 51mm x Depth/Length: 267mm
Unit Brutto Volume - 0.007821 cubm
Unit Gross Weight - 1.4 kg
Unit Net Weight - 0.985 kg
Vendor Homepage - www.asrock.com/Graphics-Card/AMD/Radeon%20RX%207800%20XT%20Challenger%2016GB%20OC/
vendpn - RX7800XT CL 16GO
Version - Box
Video ports - 1 x HDMI
Video ports - 3 x DisplayPort
VRAM memory size - 16 GB
Warranty - 24 months
warrantyLength - 24
warrantyType - G
Weight - 1,40
Weight - 1.38
weight - 1387
Weight & dimensions - Depth - 130 mm
Weight & dimensions - Height - 51 mm
Weight & dimensions - Weight - 985 g
Weight & dimensions - Width - 267 mm
