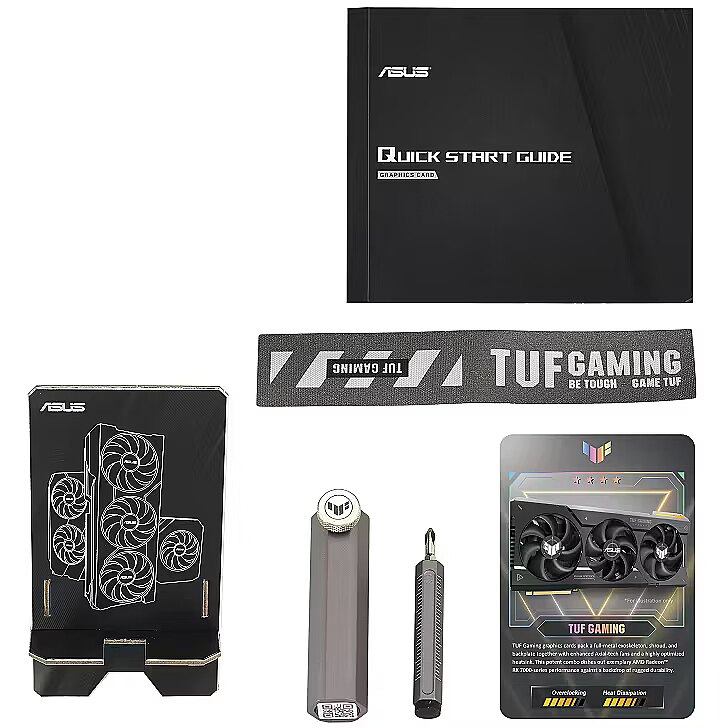

Accessories included - 1 x TUF Reliability Certificate 1 x TUF Gaming Graphics Card Holder 1 x TUF Velcro with Velcro 1 x collector card 1 x Thank you card 1 x Speedsetup manual
Brand - ASUS
BrandPartCode - 90YV0IG0-M0NA00
Category - Graphics Cards
category - PC Components|Graphics Cards|AMD|Radeon RX 7900 XTX
Category - Root/Electronics/PC parts/Graphic cards
Category 1 - Grafikkarten
Category 2 - AMD PCI-Express Grafikkarten
Chipset - Radeon RX 7900 XTX
Chipset manufacturer - AMD
code - 90YV0IG0-M0NA00
Cooling - Active
Core Boost frequency - 2615 MHz
Core frequency - 2455 MHz
Description - ASUS TUF Gaming Radeon RX 7900 XTX OC Edition 24 GB GDDR6 optimised inside and out for lower temperatures and durability Axial-tech fans have been enlarged to provide 14% more airflow Dual ball bearing fans last up to twice as long as conventional designs Military-grade capacitors withstanding 20,000 hours at 105°C make the GPU power rail more durable Metal exoskeleton increases structural rigidity and vents for enhanced heat dissipation Precision automated Auto-Extreme manufacturing for greater reliability GPU Tweak III software provides intuitive performance tuning, temperature control and system monitoring
Design - Cooling technology - ASUS Axial-tech
Design - Cooling type - Active
Design - Form factor - Full-Height/Full-Length (FH/FL)
Design - Illumination - Yes
Design - Illumination colour - Blue
Design - Illumination colour - Blue, Green, Red
Design - Illumination colour - Green
Design - Illumination colour - Red
Design - Number of fans - 3 fan(s)
Design - Number of slots - 3.63
Design - Product colour - Grey
dimensionalWeight - 6006
dimension depth - 420 mm
dimension height - 230 mm
Dimensions - 352,9 x 158,2 x 72,6 mm
dimension weight - 2450 g
dimension width - 130 mm
ean - 4711387020067
EAN - 4711387020067
Eans - 4711387020067
Graphics card connector - PCI-E ver. 4.0
Gross Weight Kg - 3,3
GTIN - 4711387020067
guarantee - 36
guarantee_type - normal
LongDesc - FLYIN’ TUFThe AMD RDNA™ 3 Architecture elevated by buffed cooling and power delivery to effortlessly churn out frames at 4K resolution and beyond,and backed with an arsenal of rugged reinforcements to cover your six.Lock, load, and dominate with the TUF Gaming Radeon™ RX 7900 XTX.AXIAL-TECH UPGRADESAir SuperiorityBigger and better. Axial-tech fans spin on dual-ball bearings and have been scaled up to propel 14% more air through the card, setting the stage for lower temperatures, less noise, and higher performance.NEW DIRECTIONWell-maintained FormationThe two side fans spin counterclockwise to minimize turbulence and maximize air dispersion through the heatsink. All three fans come to a standstill when GPU temps are below 55 Celsius, letting you play less-demanding games or perform light tasks in relative silence. Fans start up again when temps are over 60 Celsius, referencing a speed curve that balances performance and acoustics for work or play.3.63-SLOT DESIGNPhase That BlazeA generously sized heatsink efficiently soaks up heat from the AMD Radeon™ RX 7900 XT GPU, allowing it to be whisked away by the three Axial-tech fans.MILITARY-GRADE 20K CAPACITORSResilient SquadronA lineup of capacitors rated to last 20,000 hours at 105 Celsius brings higher temperature and ripple tolerance to the GPU power rail, arming the card for long-term deployment in challenging conditions.METAL EXOSKELETONSuit UpA diecast frame, aluminum shroud, and backplate prevent PCB flex and feature large vents to further increase heat dissipation.LOCK, LOAD, AND LET THE PERFORMANCE FLOWThe Radeon™ RX 7900 XT gloriously presented on a backdrop of low noise and rugged durability.AUTO-EXTREME TECHNOLOGYRELIABILITY BOOSTAuto-Extreme Technology is an automated manufacturing process that sets new standards in the industry by allowing all soldering to be completed in a single pass. This reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting in less environmental impact, lower manufacturing power consumption, and a more reliable product overall.AURA SYNCLight ‘em Up!Aura-compatible ARGB lighting on the shroud adds a dash of customizable color or functional effects to your build. Pair up with a vast range of compatible system components and coordinate the glow to create a theme that’s uniquely you.GRAPHICS CARD HOLDERPillar of SupportThe bundled graphics card holder banishes sag and also contains a screwdriver to help you build.GPU Tweak IIIASUS GPU Tweak III is more intuitive and feature-rich than ever before. A revamped interface offers greater accessibility by integrating core functions into a centralized dashboard, and our Voltage-Frequency tuner has been overhauled to make overclocking even easier. Additional goodies like 0dB fan technology, automatic profile swapping, a fully customizable on-screen display, and logging capabilities ensure that you get the most out of your graphics card.QuantumCloudQuantumCloud is a safe and easy-to-use application that lets you effortlessly earn extra money by sharing your graphics card’s computing power. Earnings are accessible through your PayPal or WeChat account, and QuantumCloud also supports multiple exchange methods, including Steam. In addition, QuantumCloud doesn’t collect any personal data, so your privacy stays protected. Get started right away with just one click!Pair with a PSUUse our wattage calculator to estimate how much power you’ll need to fuel your rig and then pick a compatible ROG Thor, ROG Loki, or ROG Strix AURA PSU for ultimate performance.
LongProductName - TUF Gaming Radeon RX 7900 XTX OC Edition 24GB GDDR6 optimized inside and out for lower temps and durability
LongSummaryDescription - ASUS TUF Gaming TUF-RX7900XTX-O24G-GAMING. Graphics processor family: AMD, Graphics processor: Radeon RX 7900 XTX. Discrete graphics card memory: 24 GB, Graphics card memory type: GDDR6, Memory bus: 384 bit. Maximum resolution: 7680 x 4320 pixels. OpenGL version: 4.6. Interface type: PCI Express 4.0. Cooling type: Active, Number of fans: 3 fan(s), Illumination colour: Blue, Green, Red
Manufacturer - ASUS
Manufacturer Code - 90YV0IG0-M0NA00
Manufacturer Name - Asustek
Memory - Data transfer rate - 20 Gbit/s
Memory - Discrete graphics card memory - 24 GB
Memory - Graphics card memory type - GDDR6
Memory - Memory bus - 384 bit
Memory bus - 384-bit
Memory frequency - 20 Gbps
Memory type - DDR6
Model - RX 7900 XTX GAMING OC 24GB
MPN - 90YV0IG0-M0NA00
Name - ASUS Radeon RX 7900 XTX TUF GAMING 24GB OC
name - ASUS Radeon RX 7900 XTX TUF O24G, 24576 MB GDDR6
name - Graphics card Radeon RX 7900 XTX GAMING OC 24GB GDDR6 384bit 3DP
Name - RX 7900XTX 24GB ASUS TUF Gaming GDDR6 3Fan
Other features -
Other information - Recommended power supply: 850 W Maximum display support: 4
Packaging data - Package depth - 226 mm
Packaging data - Package height - 126 mm
Packaging data - Package type - Box
Packaging data - Package weight - 3.16 kg
Packaging data - Package width - 420 mm
Performance - AMD FreeSync - Yes
Performance - DirectX version - No
Performance - Dual Link DVI - No
Performance - HDCP - Yes
Performance - HDCP version - 2.3
Performance - NVIDIA G-SYNC - No
Performance - OpenGL version - 4.6
Performance - TV tuner integrated - No
Ports & interfaces - DisplayPorts quantity - 3
Ports & interfaces - HDMI ports quantity - 1
Ports & interfaces - HDMI version - 2.1
Ports & interfaces - Interface type - PCI Express 4.0
Power - Minimum system power supply - 850 W
Power - Supplementary power connectors - 3x 8-pin
Processor - Graphics processor - Radeon RX 7900 XTX
Processor - Graphics processor family - AMD
Processor - Maximum displays per videocard - 4
Processor - Maximum resolution - 7680 x 4320 pixels
Processor - Parallel processing technology support - Not supported
Processor - Processor boost clock speed - 2565 MHz
Processor - Processor boost clock speed (Gaming mode) - 2395 MHz
Processor - Processor boost clock speed (OC mode) - 2615 MHz
Processor - Stream processors - 6144
producer - Asus
Producer - Asus
producerCode - 90YV0IG0-M0NA00
ProducerCode - TUF-RX7900XTX-O24G-GAMING
productName - ASUS TUF Gaming TUF-RX7900XTX-O24G-GAMING AMD Radeon RX 7900 XTX 24 GB GDDR6
ProductName - TUF-RX7900XTX-O24G-GAMING
productSize - Normal
Short description - ASUS VGA 24GB RX7900XTX TUF GAMING OC Edition 3xDP/HDMI TUF Gaming AMD Radeon RX7900 XTX OC Edition 20GB
ShortDescription - Chipset AMD 7900XTX | 24GB
ShortSummaryDescription - ASUS TUF Gaming TUF-RX7900XTX-O24G-GAMING, Radeon RX 7900 XTX, 24 GB, GDDR6, 384 bit, 7680 x 4320 pixels, PCI Express 4.0
sizeX - 420
sizeY - 220
sizeZ - 325
Supported standards - OpenGL 4.6
Title - ASUS TUF Gaming TUF-RX7900XTX-O24G-GAMING AMD Radeon RX 7900 XTX 24 GB GDDR6
URL - https://www.asus.com/motherboards-components/graphics-cards/tuf-gaming/tuf-rx7900xtx-o24g-gaming/
vendpn - TUF-RX7900XTX-O24G-GAMING
Version - Box
Video ports - 1 x HDMI
Video ports - 3 x DisplayPort
VRAM memory size - 24 GB
Warranty - 36 months
WarrantyInfo -
warrantyLength - 36
warrantyType - G
Weight - 3.22
weight - 3220
Weight & dimensions - Depth - 76.2 mm
Weight & dimensions - Depth - 158.2 mm
Weight & dimensions - Height - 76.2 mm
Weight & dimensions - Height - 158.2 mm
Weight & dimensions - Length - 352.9 mm
Weight & dimensions - Width - 352.9 mm
