TP-LINK 32 CHANNEL NETWORK VIDEO RECORDER

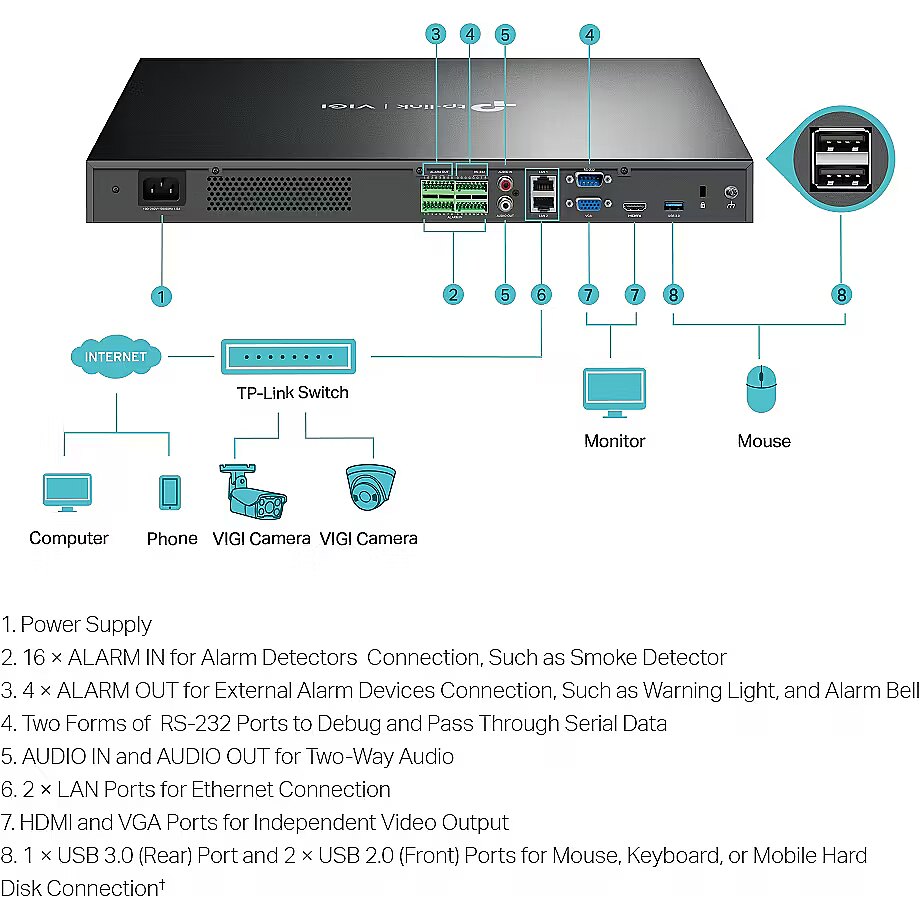

15pin D-sub Input/Output connectors - 1
Accessories included - VIGI NVR4032H recorder Mouse Installation Guide Power cable HDD power cables HDD data cables Mounting brackets Screws Rubber feet
Alarm In Input/Output connectors - 16
Alarm inputs - 16
Alarm Out Input/Output connectors - 4
Alarm outputs - 4
ARTIKEL1 - 32 CHANNEL NETWORK
ARTIKEL2 - VIDEO RECORDER
Audio-In Input/Output connectors - 1
Audio-Out Input/Output connectors - 1
Brand - TP-Link
BrandPartCode - VIGI NVR4032H
Breite - 0
Category - Network Video Recorders (NVR)
Category Code - NVR
Channels - 32
Connectors - 1 x HDMI
Connectors - 1 x USB 3.0
Connectors - 2 x 3,5 mm minijack
Connectors - 2 x D-Sub
Connectors - 2 x RJ-45
Connectors - 2 x USB 2.0
Connectors - RS-232 (COM)
Description - VIGI 32 Channel Network Video Recorder Face Recognition: Enhances access management and maximizes security. Smart Search by Motion and Object: Quickly find target footage for improved playback efficiency. H.265+: Without using any extra bandwidth, your camera transmits compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality. 320 Mbps Incoming and Outgoing Bandwidth: Ensures your NVR manages more cameras with high resolutions. Mass Storage: Supports 4× SATA, up to 10 TB each 16-ch@2MP/ 8-ch@4MP Decoding Capacity†: Allows you to enjoy more channels, live view, and playback at the same time. 1 HDMI and 1 VGA Interface: Supports independent video output. 16-Channel Simultaneous Playback: Replay the feed from up to 16 cameras at the same time, increase replay speed, and find events in the video schedule to easily review footage. Plug & Play: Allows new and unused VIGI IP Cameras to be added automatically to the new NVR and activated instantly, making installation faster than ever before. Remote Monitoring: The dedicated VIGI app, web UI, and VIGI Security Manager enable remote monitoring, providing ease and convenience. Two-Way Audio: With voice intercom support, carry two-way conversations while watching your feed from anywhere. Suitable for management. ONVIF Ensures Compatibility: Easily adds IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility.r
Description - VIGI NVR4032H VIGI 32-channel network video recorder Ability to decode 16 channels @ 2MP or 8 channels @ 4MP: Enjoy more channels, live view and playback at the same time. HDMI and VGA interfaces: Support independent video outputs. H.265+: Cameras don't have to use excessive network bandwidth - devices transmit compressed video to save disk space and reduce network load, all without sacrificing recording quality. Up to 320Mbps incoming and outgoing bandwidth: Enables your NVR to manage more high-resolution cameras. Mass storage: Support for 4 drives with SATA connector, up to 10 TB each. 16-Channel Simultaneous Playback: Watch up to 16 cameras at the same time, increase speed, and find events in your video schedule to view videos with ease. Two Ethernet ports: Supports three network modes, including multi-address mode, backup connection and bandwidth balancing. Plug & Play: Automatically adding new, unused VIGI IP cameras to the NVR and immediately activating them makes device installation faster than ever before. Remote monitoring: Dedicated VIGI application, graphical Web interface and VIGI Security Manager enable remote monitoring in a simple and convenient way. Rack Mount: Space saving and easy installation. Compliance with ONVIF standards: Easily add VIGI and third-party IP cameras to create a strong and diverse network thanks to high compatibility. Different perspectives on one screen 4K HDMI video output and 32MP decoding capability A clear image in 8MP resolution ensures you can capture every detail. The decoding efficiency of 16 channels in 2MP resolution or 8 channels in 4MP resolution enables you to enjoy live view and playback of multiple channels at the same time. Independent video outputs Significantly reduced time needed to change screens. Connect the HDMI and VGA ports to two different screens and choose what you want to display on them. This way you can enjoy multi-channel live streams simultaneously. The VGA and HDMI ports display live streams and their configuration and playback interfaces. This allows users to play recorded video or configure devices while viewing live video at the same time. Multiple ports for a variety of functions The VIGI NVR4032H recorder is equipped with many communication options, such as 16× alarm inputs, 4× alarm outputs, two-way audio transmission, video input, independent video outputs and many more options suitable for company monitoring. High bandwidth for high resolution cameras 320Mbps video link bandwidth High bandwidth allows you to connect more high resolution cameras to your NVR. Up to 32 HD cameras can be connected to the VIGI network video recorder, which has been verified in laboratory tests using VIGI cameras. Security for every day and hour 4 SATA interfaces (up to 10TB each) Automatic and continuous recording of footage up to 40 TB from connected cameras ensures the security of your data, that you can access quickly and conveniently. Space saving and easy installation. Rack mounting Just mount the NVR in a rack, connect it with the appropriate cables and it will be ready for operation. Thanks to this, the device can be successfully used in many industrial and commercial applications. Forget about long compatibility lists. Compliance with ONVIF standards Simple addition of IP cameras from VIGI and other manufacturers allows you to create a strong and diverse network thanks to high compatibility. One ecosystem. Complete security. Run your business with peace of mind The professional TP-Link monitoring system will enable you to protect your company regardless of the place and time. Unique functions, trustworthy quality, simple installation and convenient management are a combination that will ensure the security of your company.
Desktop/pedestal Mounting Type - Yes
dimension depth - 440 mm
dimension height - 100 mm
Dimensions - 440 × 330 × 44 mm
dimension weight - 4400 g
dimension width - 530 mm
ean - 4895252500752
EANCode - 4895252500752
Features - Buzzer off - Yes
Features - Product colour - Black
Features - Rack mounting - Yes
Full Description Line - Channels 32|Drives/bays 4|Desktop/pedestal|Integrated LAN Gigabit|1x15pin D-sub|1xHDMI|1xAudio-In|1xAudio-Out|1xRS232|2xRJ45|16xAlarm In|4xAlarm Out|Power supply requirements 100-240 VAC, 50 to 60HZ, 1.5A|Power consumption 48 Watts|Dim. 440 × 330 × 44 mm|Temp. range -10–55 °C
GRUPPE1 - Security
GRUPPE2 - Recording Equipment
GTIN - 4895252500752
GTIN - 4895252500769
guarantee - 36
guarantee_type - normal
Hard drive - HDD interface - SATA
Hard drive - Maximum storage capacity - 10 TB
Hard drive - Number of HDDs supported - 4
HDD interface - SATA
HDMI Input/Output connectors - 1
HERSTELLER - TP-LINK
Hoehe - 0
HSTNUMMER - VIGI NVR4032H
Integrated LAN - Gigabit
Laenge - 0
LongDesc - Security Never Shuts Down32 Channel Network Video RecorderEvery angle all on one screen.4K HDMI Video Output & 32MP Decoding CapacitySharp image definition up to 8MP ensures you capture every detail. 16-ch@2MP/ 8-ch@4MP decoding capacity allows you to enjoy more-channels live view and playback at the same timeIndependent Video OutputGreatly reduces the time spent on switching between screens.Connect the HDMI and VGA ports to the two different screens and freely choose what live views each screen shows. That way, you will enjoy multi-channels live views simultaneously.The VGA and HDMI ports display live views and configuration & playback interface, respectively. It will allow users to play back the videos or configure the devices while watching live views at the same time.Rich Ports for Diversified Functions.Equipped with a variety of ports, VIGI NVR4032H integrates 16× alarm in, 4× alarm out, two-way audio, video input, independent video output, and more, suitable for SMB surveillance scenarios.Dual Ethernet Ports DesignSupports a variety of network modes to meet your different needs.Higher bandwidth for high-definition cameras.320 Mbps Video Access BandwidthHigh video access bandwidth ensures your NVR manages more cameras with high resolutions.Based on laboratory testing using VIGI cameras, VIGI NVR can manage up to 32 HD cameras.Smart Video Coding by H.265+Compresses the video size without sacrificing video quality, easing the network load and saving disk space.Security for every hour and every day.4 SATA (1 up to 10TB)Automatically and continuously stores up to 40 TB of footage from connected cameras to secure your data for quick, convenient access.Space-saving and easy installation.Rack MountingJust simply plug your NVR into the rack and connect it to the appropriate power and communication cables. Then, it is ready to go. This will give more convenience for many industrial and commercial applications.No need to check long compatibility lists.ONVIF Ensures CompatibilityEasily add IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibilityOne system. Full security.Run your business with peace of mind.The VIGI professional surveillance system by TP-Link is dedicated to protecting the business you’ve worked hard to build — whenever, wherever. Our outstanding functions, reliable quality guarantees, and simplified installation work together to ensure your business stays safe and sound.
LongProductName - 32 ch, 320 Mbps In / 320 Mbps Out, H.265+/H.265/ H.264+/H.264, 3840 x 2160
LongSummaryDescription - TP-Link VIGI 32 Channel Network Video Recorder. Video input channels: 32 channels, Maximum resolution: 3840 x 2160 pixels, Number of simultaneously playbacked channels: 16 channels. Maximum storage capacity: 10 TB, HDD interface: SATA. Ethernet LAN data rates: 10,100,1000 Mbit/s, Supported network protocols: UPnP, NTP, ONVIF, CGI. Product colour: Black. Power consumption (max): 48 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz
Max. capacity of disks - 10 TB
Max. number of disks - 4
Model - VIGI NVR4032H
name - VIGI NVR4032H 32 Channel Video Record
Number of Channels - 32
Number of drives/bays - 4
Operating temperature range - -10–55 °C
Operational conditions - Operating relative humidity (H-H) - 10 - 90%
Operational conditions - Operating temperature (T-T) - -10 - 55 °C
Other features -
Packaging content - Cables included - AC, Power
Packaging content - Quick installation guide - Yes
Performance - Alarm input channels - 16
Performance - Alarm output channels - 4
Performance - Audio system - 2-way
Performance - Backup function - Yes
Performance - Input bandwidth - 320 Mbit/s
Performance - Maximum resolution - 3840 x 2160 pixels
Performance - Number of simultaneously playbacked channels - 16 channels
Performance - Output bandwidth - 320 Mbit/s
Performance - Playback modes - Digital zoom, Fast play, Forward, Full screen, Pause, Play, Stop
Performance - Recording modes - Manual, Schedule
Performance - Supported resolutions - 3840 x 2160, 1920 x 1080, 1680 x 1050, 1440 x 900, 1280 x 1024, 1280 x 720, 1024 x 768
Performance - Video formats supported - H.264, H.264+, H.265, H.265+
Performance - Video input channels - 32 channels
Performance - Video loss detection - Yes
Performance - Video motion detection - Yes
Performance - Video recording modes - 720p, 1080p
Ports & interfaces - Audio output - 1
Ports & interfaces - Ethernet LAN (RJ-45) ports - 2
Ports & interfaces - Ethernet LAN data rates - 10,100,1000 Mbit/s
Ports & interfaces - HDMI ports quantity - 1
Ports & interfaces - Line-in - Yes
Ports & interfaces - RS-232 ports - 1
Ports & interfaces - Supported network protocols - UPnP, NTP, ONVIF, CGI
Ports & interfaces - USB 2.0 ports quantity - 2
Ports & interfaces - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 1
Ports & interfaces - VGA (D-Sub) output ports - 1
Power - AC input frequency - 50/60 Hz
Power - AC input voltage - 100 - 240 V
Power - Power consumption (max) - 48 W
Power consumption - 48 Watts
Power supply requirements - 100-240 VAC, 50 to 60HZ, 1.5A
producer - TP-LINK
ProductName - VIGI 32 Channel Network Video Recorder
Recording modes - 1 channel, resolution: 3840x2160/30Hz,1920x1080/60Hz,1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz,1280x720/60Hz, 1024x768/60Hz
Resolution - 1920 x 1080 (FHD 1080)
RJ45 Input/Output connectors - 2
RS232 Input/Output connectors - 1
Shipping Box Depth Shipping/Package Box Dimensions - 53 cm
Shipping Box Height Shipping/Package Box Dimensions - 10.2 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 5.25 kg
Shipping Box Width Shipping/Package Box Dimensions - 44 cm
ShortSummaryDescription - TP-Link VIGI 32 Channel Network Video Recorder, 32 channels, 3840 x 2160 pixels, 16 channels, 720p, 1080p, 3840 x 2160, 1920 x 1080, 1680 x 1050, 1440 x 900, 1280 x 1024, 1280 x 720, 1024 x 768, H.264, H.264+, H.265, H.265+
Special functions -
Stck_Kart - 1
Stck_Pal - 0
Storno - Y
System requirements - Browser supported - Chrome (57+), Firefox (52+), Edge (91+)
System requirements - Mobile operating systems supported - Android, iOS
Title - TP-Link VIGI 32 Channel Network Video Recorder
Unit Box Height - 0.102
Unit Box Length - 0.53
Unit Box Width - 0.44
Unit Brutto Volume - 0.02379 cubm
Unit Gross Weight - 5.25 kg
Unit Net Weight - 4 kg
URL - https://www.tp-link.com/en/business-networking/vigi-network-video-recorder/vigi-nvr4032h/
Vendor Homepage - ww.tp-link.com/us/business-networking/vigi-network-video-recorder/vigi-nvr4032h/#specifications
vendpn - VIGI NVR4032H
Video compression - H.264
Video compression - H.264+
Video compression - H.265
Video compression - H.265+
Viewing modes - 1 channel, resolution: 1920x1080/60Hz,1680x1050/60Hz,1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz,1024x768/60Hz
Warranty - 36 months
WarrantyInfo -
Weight - 4 kg
Weight & dimensions - Depth - 330 mm
Weight & dimensions - Height - 44 mm
Weight & dimensions - Package depth - 528 mm
Weight & dimensions - Package height - 100 mm
Weight & dimensions - Package weight - 5.22 kg
Weight & dimensions - Package width - 440 mm
Weight & dimensions - Weight - 4 kg
Weight & dimensions - Width - 440 mm
Wireless communication - WiFi
