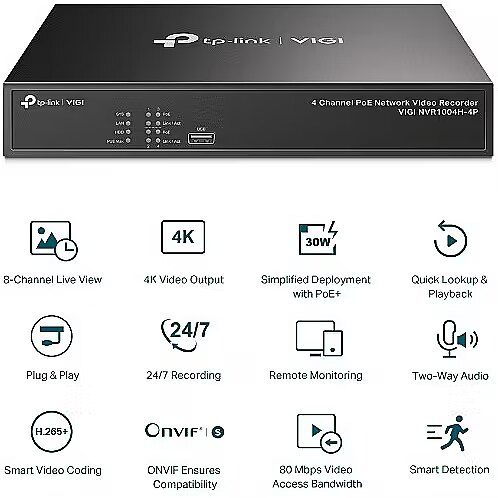

TP-LINK 4CH POE NETWORK VIDEO RECORDER 4 FE POE+ PORTS

15pin D-sub Input/Output connectors - 1
Accessories included - VIGI NVR1004H-4P recorder Charger HDD screws Mouse Quick Installation Guide
ARTIKEL1 - 4CH POE NETWORK VIDEO RECORDER
ARTIKEL2 - 4 FE POE+ PORTS
Audio-In Input/Output connectors - 1
Audio-Out Input/Output connectors - 1
Brand - TP-Link
BrandPartCode - VIGI NVR1004H-4P
Category - Network Video Recorders (NVR)
Category Code - NVR
Channels - 4
CnCode CnCode - 85219000
Connectors - 2 x USB 2.0
Connectors - RJ-45
Description - VIGI 4 Channel PoE+ Network Video Recorder - 4K HDMI Video Output & 16MP Decoding Capacity: Sharp image definition up to 8MP and a 4-channel display ensures you capture every detail, from every angle†. - Simplified Deployment with PoE+: Easily connect and power your PoE camera with one RJ45 cable transmitting both data and power. No power adapter needed. - 4-Channel Simultaneous Playback§: Replay the feed from up to 4 cameras at the same time, increase replay speed, and find events in the video schedule to easily review footage. - H.265+: Without using any extra bandwidth, your camera transmits compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality. - ONVIF Ensures Compatibility?: Easily add IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility. - Plug & Play: Allows new and unused VIGI IP Cameras to be added automatically to the new NVR and activated instantly, making installation faster than ever before. - 24/7 Continuous Recording: Stores up to 10 TB of footage from connected cameras to secure your data for quick, convenient access. - Remote Monitoring: The dedicated VIGI app and VIGI Security Manager enable remote monitoring, providing ease and convenience. - Two-Way Audio: With voice intercom support, carry two-way conversations while watching your feed from anywhere. Suitable for management. - 80 Mbps Video Access Bandwidth: High video access bandwidth ensures your NVR manages more cameras with high resolution. Based on laboratory testing using VIGI cameras, VIGI NVR can manage up to four 4MP cameras.
Description - VIGI NVR1004H-4P VIGI 4-channel network video recorder with PoE+ power supply 4K HDMI video output and 16MP decoding capability: Crisp 8MP video and 4 channel display ensures you can capture every detail from any angle. Simplify deployment with PoE+: With an RJ45 Ethernet cable, you can provide network access and power to PoE cameras at the same time, without the need for an additional power supply. 4-Channel Live View: Play streams from up to 4 cameras at the same time, speed up replays, and find events in the video schedule to conveniently review recordings. H.265+: The camera does not need to use excessive network bandwidth - the device sends a compressed video image to save disk space and reduce network load. Compliance with ONVIF standards: The design of the device is fully compliant with ONVIF standards, therefore connecting VIGI cameras or cameras from other manufacturers is not a problem and allows you to create a powerful and diverse network. Plug & Play: Allows you to automatically add new, unused VIGI IP cameras. Activation is instant and installation is faster than ever before. 24/7 recording: The material obtained from connected cameras is automatically saved on the disk (up to 10 TB), thanks to which access to recordings is quick and convenient. Remote Monitoring: The VIGI app is a convenient and easy-to-use app that gives you access to remote monitoring. 80Mbps Video Access Bandwidth: High video access bandwidth ensures that the NVR supports more high-definition cameras. Based on lab tests using VIGI cameras, VIGI NVR can manage up to four 4MP cameras. Two-way audio transmission: Thanks to the intercom support, you can make two-way conversations from anywhere, while seeing the camera image at the same time. Different perspectives on one screen. 4K HDMI video output and 16MP decoding capability. The clear 8MP image and 4 channel display ensures you can capture every detail from any angle. 4 dedicated PoE+ ports (53 W total power) for easy deployment of IP cameras. The NVR is equipped with 4 10/100Mbps PoE+ ports, each offering up to 30W of power. The device is designed to simultaneously provide network access and PoE power via a single Ethernet cable. Thanks to this, it offers a convenient possibility to implement various monitoring installations for small businesses, such as shops, warehouses, restaurants or financial institutions. Accessing your recordings is easier than ever before. Simultaneous playback from 4 channels. The device gives you the ability to simultaneously play recordings from up to 4 cameras, increase the preview speed and search for events in video schedules for faster viewing of the material. More compression. Noticeable space saving. Same quality. The camera does not need to use excessive network bandwidth - the device transmits a compressed video image to save disk space and reduce network load. Forget long compatibility lists. Compliant with ONVIF standards. Easily add VIGI and third-party IP cameras to create a powerful and diverse network with barrier-free compatibility. Plug&Play. Allows you to automatically add new, unused VIGI IP cameras. Activation is instant and installation is faster than ever before. Security for every day and every hour. 24/7 continuous recording. Up to 10 TB (720 days) of video can be stored on a SATA hard drive for local storage security. Keep an eye on everything, even when you're on the move. Remote monitoring. VIGI's dedicated application, web interface and VIGI Security Manager enable remote monitoring in an easy and convenient way. Greet guests at the entrance. Two-way audio. With voice intercom support, make two-way conversations while watching your feed from anywhere. Suitable for management. More throughput for high-resolution cameras. 80 Mb/s video access bandwidth. High-bandwidth video access ensures that the NVR manages high-definition cameras. Based on lab tests using VIGI cameras, VIGI NVR can manage up to four HD cameras. One system. Full security. Run your business with peace of mind. The professional TP-Link monitoring system will allow you to protect your company - regardless of the place and time. Unique features, trustworthy quality, simple installation and convenient management are a combination that will ensure the security of your company.
dimensionalWeight - 1394
dimension depth - 65 mm
dimension height - 285 mm
Dimensions - 246.2 x 148.2 x 45 mm
Dimensions - 246.2 × 148.2 × 45 mm
dimension weight - 1486 g
dimension width - 370 mm
ean - 4897098688748
EAN - 4897098688748
EANCode - 4897098688748
Features - LED indicators - Yes
Features - Product colour - Black
Full Description Line - Channels 4|SATA|1x15pin D-sub|1xHDMI|1xAudio-In|1xAudio-Out|2xUSB 2.0|1xRJ45|Included Accessories Power Adapter;HDD Screws;Mouse;Quick Installation Guide|Power supply requirements 53.5V DC/1.31A|Power consumption 4.25 Watts|Dim. 246.2 × 148.2 × 45 mm|Temp. range -10–55 °C
Gross Weight Kg - 1,4
GRUPPE1 - Security
GRUPPE2 - Recording Equipment
GTIN - 4897098688748
GTIN - 4897098688755
guarantee - 36
guarantee_type - normal
Hard drive - HDD interface - SATA
Hard drive - Maximum storage capacity - 10 TB
HDD interface - SATA
HDMI Input/Output connectors - 1
HERSTELLER - TP-LINK
HSTNUMMER - VIGI NVR1004H-4P
Included Accessories - Power Adapter;
HDD Screws;
Mouse;
Quick Installation Guide

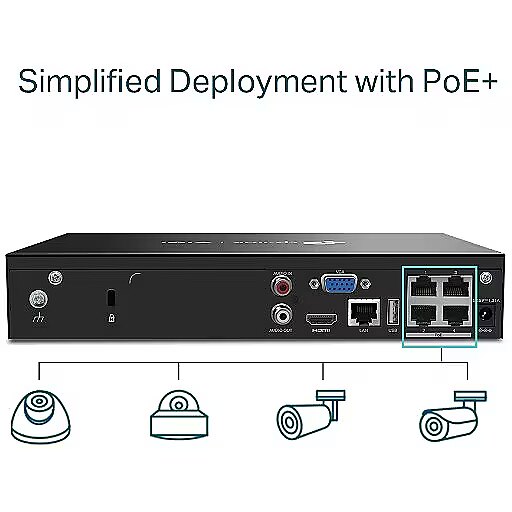

LongDesc - Security Never Shuts DownVIGI NVR1004H-4P 4 Channel PoE Network Video RecorderEvery angle all on one screen.4K HDMI Video Output & 16MP Decoding CapacitySharp image definition up to 8MP and a 4-channel display ensures you capture every detail, from every angle.Dedicated 4 PoE+ ports (53 W budget) for simplified IP camera deployment .Features 4× 10/100Mbps PoE+ ports, the NVR supports up to 30 W on each PoE+ port. Designed to use a single Ethernet cable for both data and power transmission, it offers flexible installation to fit in various surveillance scenarios for small businesses, such as groceries, warehouses, restaurants, and financial institutions.Reviewing footage is faster than ever.4-Channel Simultaneous PlaybackReplay the feed from up to 4 cameras at the same time, increase replay speed, and find events in the video schedule to easily review footage.More compression. More savings. Same quality.Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.No need to check long compatibility lists.ONVIF Ensures CompatibilityEasily add IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility.Plug & Play.Allows new and unused VIGI IP Cameras to be added automatically to the new NVR and activated instantly, making installation faster than ever before.Security for every hour and every day.24/7 Continuous RecordingStores up to 10 TB of footage from managed cameras to secure your data for quick, convenient access.Keep an eye on things even when you are on the move.Remote MonitoringThe dedicated VIGI app, web UI, and VIGI Security Manager enable remote monitoring, providing ease and convenience.Greet your visitors before they enter.Two-Way AudioWith voice intercom support, carry two-way conversations while watching your feed from anywhere. Suitable for management.Higher bandwidth for high-definition cameras.80 Mbps Video Access BandwidthHigh video access bandwidth ensures your NVR manages cameras with high resolutions. Based on laboratory testing using VIGI cameras, VIGI NVR can manage up to four HD cameras.One system. Full security.Run your business with peace of mind.The VIGI professional surveillance system by TP-Link is dedicated to protecting the business you’ve worked hard to build — whenever, wherever. Our outstanding functions, reliable quality guarantees, and simplified installation work together to ensure your business stays safe and sound.
LongProductName - 80 Mbps / 60 Mbps, 4 Channel, 2-ch 8MP, 4-ch 4MP, 1 RJ-45 10/100 Mbps, 2× USB 2.0, 246.2 x 148.2 x 45 mm
LongSummaryDescription - TP-Link VIGI 4 Channel PoE+ Network Video Recorder. Video input channels: 4 channels, Maximum resolution: 3840 x 2160 pixels, Video recording modes: 720p, 1080p, 2160p. Maximum storage capacity: 10 TB, HDD interface: SATA. Supported network protocols: TCP/IP, DHCP, DNS, NTP, UPnP. Product colour: Black. Power consumption (typical): 4.25 W, Output current: 1.31 A, Output voltage: 53.5 V
Manufacturer Code - VIGI NVR1004H-4P
Manufacturer Name - TP-LINK
Max. capacity of disks - 10 TB
Max. number of disks - 1
Model - VIGI NVR1004H-4P
name - Video Recorder VIGI NVR1004H-4P 4 Channels
Number of Channels - 4
Operating temperature range - -10–55 °C
Operational conditions - Operating temperature (T-T) - -10 - 55 °C
Other features - Supported protocols: TCP/IP, DHCP, DNS, NTP, UPnP Inbound throughput: 80 Mbps Bandwidth for outbound traffic: 60 Mb/s Permissible operating temperature: -10-55 °C
Performance - Alarm input channels - 4
Performance - Alarm output channels - 1
Performance - Input bandwidth - 80 Mbit/s
Performance - Maximum resolution - 3840 x 2160 pixels
Performance - Output bandwidth - 60 Mbit/s
Performance - Resolution at capture speed - 1280x720@60fps
Performance - Resolution at capture speed - 1280x720@60fps, 1920x1080@60fps, 3840x2160@30fps
Performance - Resolution at capture speed - 1920x1080@60fps
Performance - Resolution at capture speed - 3840x2160@30fps
Performance - Supported resolutions - 3840x2160,1920x1080, 1680x1050, 1440x900, 1280x1024, 1024x768, 1280x720
Performance - Video formats supported - H.264
Performance - Video formats supported - H.264+
Performance - Video formats supported - H.264, H.264+, H.265, H.265+
Performance - Video formats supported - H.265
Performance - Video formats supported - H.265+
Performance - Video input channels - 4 channels
Performance - Video recording modes - 720p
Performance - Video recording modes - 720p, 1080p, 2160p
Performance - Video recording modes - 1080p
Performance - Video recording modes - 2160p
PoE+ ports - 4
Ports & interfaces - Audio RCA inputs - 1
Ports & interfaces - Audio RCA outputs - 1
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Ports & interfaces - HDMI output - Yes
Ports & interfaces - HDMI ports quantity - 1
Ports & interfaces - Supported network protocols - TCP/IP, DHCP, DNS, NTP, UPnP
Ports & interfaces - USB 2.0 ports quantity - 2
Ports & interfaces - VGA (D-Sub) output ports - 1
Power - Output current - 1.31 A
Power - Output voltage - 53.5 V
Power - Power consumption (typical) - 4.25 W
Power - Total Power over Ethernet (PoE) budget - 53 W
Power consumption - 4.25 Watts
Power supply - Power adapter: 53.5V DC/1.31A Power consumption: 4.25W (without disk) PoE standard: 802.3af/at PoE ports: 1-4 Total PoE Budget: 53W
Power supply requirements - 53.5V DC/1.31A
producer - TP-LINK
producerCode - VIGI NVR1004H-4P
productName - TP-Link VIGI 4 Channel PoE+ Network Video Recorder
ProductName - VIGI 4 Channel PoE+ Network Video Recorder
productSize - Normal
Recording modes -
Resolution - 1024 x 768 (XGA)
Resolution - 1280 x 720 (HD)
Resolution - 1280 x 1024 (SXGA)
Resolution - 1440 x 900
Resolution - 1680 x 1050 (WSXGA+)
Resolution - 1920 x 1080 (FHD 1080)
Resolution - 3840 x 2160
RJ45 Input/Output connectors - 1
SATA Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 37 cm
Shipping Box Height Shipping/Package Box Dimensions - 6.5 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 1.5 kg
Shipping Box Width Shipping/Package Box Dimensions - 28.5 cm
Short description - TP-LINK 4 Channel PoE Network Video Recorder VIGI NVR1004H-4P +++ 1x SATA Interface up to 10 TB
ShortSummaryDescription - TP-Link VIGI 4 Channel PoE+ Network Video Recorder, 4 channels, 3840 x 2160 pixels, 720p, 1080p, 2160p, 3840x2160,1920x1080, 1680x1050, 1440x900, 1280x1024, 1024x768, 1280x720, 1280x720@60fps, 1920x1080@60fps, 3840x2160@30fps, H.264, H.264+, H.265, H.265+
sizeX - 370
sizeY - 290
sizeZ - 65
Special functions -
Stck_Kart - 10
Stck_Pal - 0
Storage - HDD interface - SATA
Storage - Maximum storage capacity - 10 TB
Storno - Y
Title - TP-Link VIGI 4 Channel PoE+ Network Video Recorder
Unit Box Height - 0.065
Unit Box Length - 0.37
Unit Box Width - 0.285
Unit Brutto Volume - 0.006854 cubm
Unit Gross Weight - 1.5 kg
Unit Net Weight - 1 kg
URL - https://www.tp-link.com/uk/business-networking/vigi-network-video-recorder/vigi-nvr1004h-4p/
USB 2.0 Input/Output connectors - 2
Vendor Homepage - www.tp-link.com/my/business-networking/vigi-network-video-recorder/vigi-nvr1004h-4p/
vendpn - VIGI NVR1004H-4P
Video compression - H.264
Video compression - H.265
Video compression - H.265+
Viewing modes -
Warranty - 36 months
WarrantyInfo -
warrantyLength - 36
warrantyType - G
weight - 1525
Weight & dimensions - Depth - 148.2 mm
Weight & dimensions - Height - 45 mm
Weight & dimensions - Width - 246.2 mm
Wireless communication - No
Wireless LAN features - Wi-Fi - No
