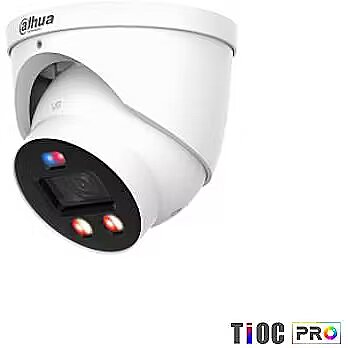

Dahua Eyeball, 1850p, 6MP, White

Alarm In Input/Output connectors - 1
Alarm Out Input/Output connectors - 1
Audio-In Input/Output connectors - 1
Audio-Out Input/Output connectors - 1
Camera design - Eyeball
Category Code - FNC
Description - > 6-MP 1/1.8" CMOS image sensor, low luminance, and high definition image. > Outputs max. 6 MP (3288 × 1850)@25/30 fps. > H.265 codec, high compression rate, ultra-low bit rate. > Built-in multi-core light, the max. IR distance is 30 m and the max. warm light distance is 30 m. > ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments. > Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes. > Intelligent monitoring: Intrusion, tripwire (the two function support the classification and accurate detection of vehicle and human). > Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection. > Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 512 G Micro SD card; built-in dual Mic; 1-ch speaker; support two-way talk. > 12 VDC/PoE power supply. > IP67 protection. > Sound and light alarm (red and blue lights). > SMD 4.0. > Supports AI SSA and one-tap arming and disarming. > SMD area can be set in warm light areas that support triggering alarms.
Dimensions - Φ122.0 mm × 116.1 mm
Effective pixels - 3288 (H) × 1850 (V)
Electronic Shutter Speed - Auto/Manual 1/3 s–1/100,000 s
Environment - Outdoor
Full Description Line - Type HDTV/Megapixel/Outdoor|Pixel Resolution 6 Mega Pixel|IR Illumination|Sensor size 1/1.8"|Microphone Built-in|Lens Mount M16|Min. Illumination 0.0004 Lux|Effective pixels 3288 (H) × 1850 (V)|Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s|1xAudio-In|1xAudio-Out|1xRJ45|1xAlarm In|1xAlarm Out|Supports card capacities up to 512GB|Power options PoE/12V|Power supply requirements 12 VDC; PoE|Environment Outdoor|Operating temperature range –40 °C to +60 °C|Dimensions Φ122.0 mm × 116.1 mm
IR Illumination - Yes
Lens Mount - M16
Microphone - Built-in
Min. Illumination - 0.0004 Lux
Network Camera Type - HDTV/Megapixel/Outdoor
Operating temperature range - –40 °C to +60 °C
Pixel Resolution - 6 Mega Pixel
Power consumption - 10 Watts
Power options - 12V/PoE
Power supply requirements - 12 VDC; PoE
Product Net Weight - 0.8 kg
RJ45 Input/Output connectors - 1
Sensor size - 1/1.8"
Shipping Box Depth Shipping/Package Box Dimensions - 16 cm
Shipping Box Height Shipping/Package Box Dimensions - 14 cm
Shipping Box Weight Shipping/Package Box Dimensions - 1 kg
Shipping Box Width Shipping/Package Box Dimensions - 16 cm
Supports card capacities up to - 512GB
Unit Box Height - 0.14
Unit Box Length - 0.16
Unit Box Width - 0.16
Unit Calculated Volume - 0.003584 cubm
Unit Calculated Weight - 1 kg
Units per Shipping Box - 1
Vendor Homepage - www.dahuasecurity.com/products/All-Products/Network-Cameras/WizSense-Series/3-Series/TiOC/IPC-HDW3649H-AS-PV-PRO
Warranty - 36 months
