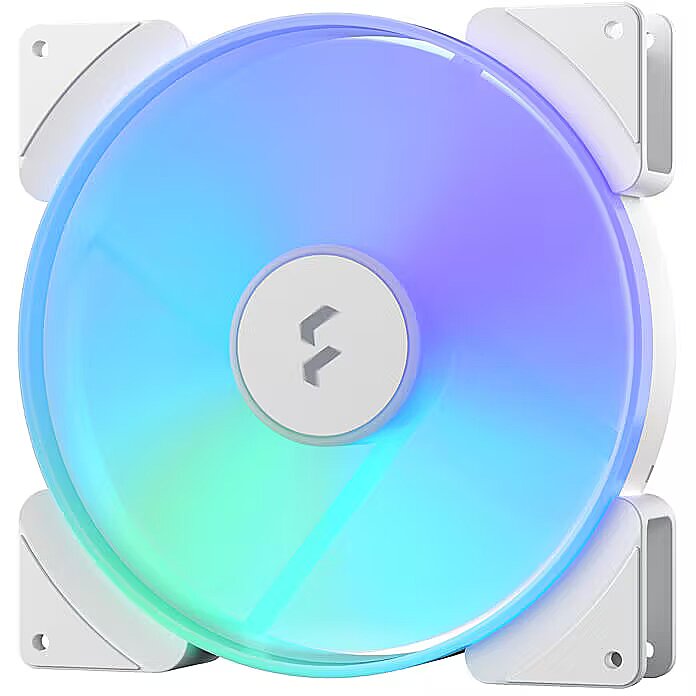

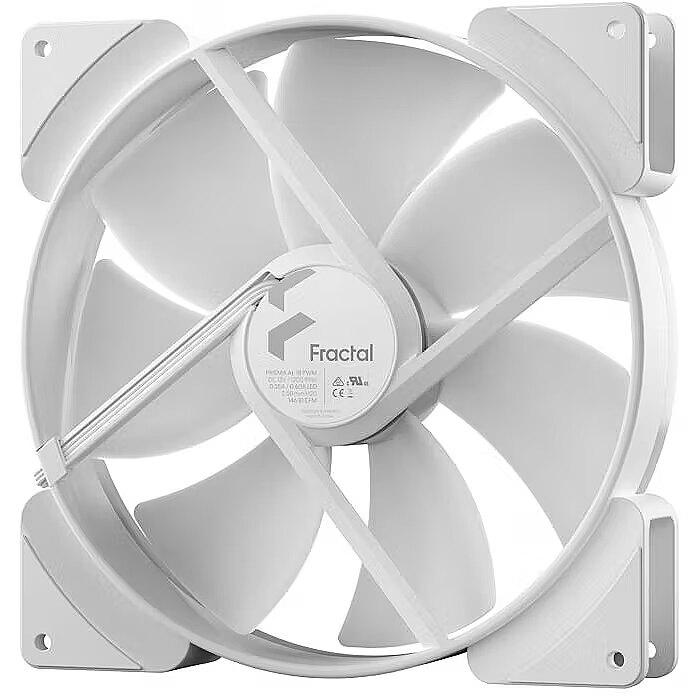

Fractal Design Prisma AL-18 ARGB PWM White

Accessories included - Prisma AL-18 180 mm fan 4x fan screws 4x 43 mm M4 radiator bolts 4x 43 mm 6-32 radiator bolts
Air flow rates - 146.8 cfm
Category_1 - Computer Cases and Cooling
Category_2 - Fans
Code - FD-FAN-PRI-AL18-PWM-WT
Connector type - 4-pin
Description - Prisma AL-18 PWM The Prisma AL-18 is a powerful 180mm ARGB fan that packs a punch in the airflow department. Massive blades, a solid 38mm thickness and a wide 300-1200rpm range with PWM control allow the AL-18 to deliver exceptionally high airflow while remaining exceptionally quiet. Massive 180 x 38 mm RGB fan that provides exceptionally high airflow while remaining very quiet Twelve individually addressable RGB LEDs mounted in the hub Specially designed fan blades and outer ring ensure an extremely even glow PWM accuracy PWM control with a wide speed range of 300-1200 rpm ideal for radiators Trip Wire technology introduces a microturbulent layer to increase blade efficiency Aerodynamic stator struts with built-in wiring reduce noise and turbulence Manually controlled The Adjust R1 RGB Controller (sold separately) allows you to physically control colors and effects Fits standard 180mm fan mounts with 165 x 165mm screw holes Black braided power cables add extra style High quality LLS bearing Long life plain bearing with 90,000 hours MTTF ensures long-term reliability Smooth operation Integrated synthetic rubber corners reduce fan vibrations Chain connections Connect RGB cables to simplify wiring and run multiple fans or additional RGB devices with a single connector
Design > Colour of product - White
Design > Illumination colour - Addressable hub-mounted RGB
dimension depth - 40 mm
dimension height - 260 mm
Dimensions - Size 180 x 180 x 38 mm Spacing of screw holes 165 x 165 mm
dimension weight - 580 g
dimension width - 185 mm
EAN - 7340172705734
ean - 7340172705734
EAN_code - 7340172705734
Fan - 18 cm
Fan speed (max) - 1200 rpm
Fan speed (min) - 300 rpm
guarantee - 24
guarantee_type - normal
Illumination - ARGB
Link - https://www.fractal-design.com/products/fans/prisma/prisma-al-18-pwm/white-rgb/
Manufacturer - Fractal Design
Manufacturer_code - FD-FAN-PRI-AL18-PWM-WT
Name - Fractal Design Prisma AL-18 ARGB PWM white, case fan (white)
Name - Fractal Design | Prisma AL-18 PWM | White | ARGB Fan
name - Prisma AL-18 ARGB 180mm single PWM White
Noise - 37.4 dB
Number of fans - 1
Other features - Colour - White Type LED Addressable RGB Power connector 4-pin LLS bearing Number of blades 7 Noise level 14.9 37.4 dB(A) Maximum airflow (CFM) 43.1 146.8 CFM Maximum air flow (m3/h) 73.27 249.56 m/h Maximum pressure 0.44 2.50 mmH2O Fan input power 4.2 W at 12 V DC Maximum fan input current 0.35 A Fan input voltage 12V Minimum start-up voltage 6V LED rated voltage 5V LED rated current 0.6A LED rated input power 3.0W MTTF 90,000 hours Cable length 1000 mm
Other features > Airflow - 249.56 m3/h
Other features > Air pressure - 2.50 mmH2O
Other features > Bearing technology - LLS
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 182.00 mm
Package features > Gross depth master carton - 440 mm
Package features > Gross height (mm) - 40.00 mm
Package features > Gross height master carton - 235 mm
Package features > Gross width (mm) - 182.00 mm
Package features > Gross width master carton - 275 mm
Package features > Net weight master carton - 6.696 kg
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 652 pc(s)
Package features > Paper/Pasteboard - 240.00 g
Package features > Plastic (No PET) - 60.00 g
Package features > Tare weight (kg) - 0.30 kg
Package features > Tare weight master carton - 0.483 kg
Package features > Volume (m3) - 0.00 m³
Package features > WEEE tax - No
Performance > Rotational speed (max) - 1200 RPM
Performance > Rotational speed (min) - 300 RPM
Performance > Type - ARGB Fan
producer - Fractal Design
Technical details > Fan connector - 4-pin
Technical details > Gross weight - 0.87 kg
Technical details > Net weight - 0.57 kg
Technical details > Noise level (max) - 37.4 dB
Technical details > Producer - Fractal Design
Technical details > Producer product name - Prisma AL-18 PWM
Technical details > Quantity - Package contents: Prisma AL-18 180 mm fan, 4x fan screws, 4x 43 mm M4 radiator screws, 4x 43 mm 6-32 radiator screws
Type of cooling - Active
vendpn - FD-FAN-PRI-AL18-PWM-WT
Warranty - 24
Warranty - 24 month(s)
Weight - 0,57
Weight - 570 g
Weight & dimensions > Fan dimensions (W x D x H) - 180 x 180 x 38 mm
