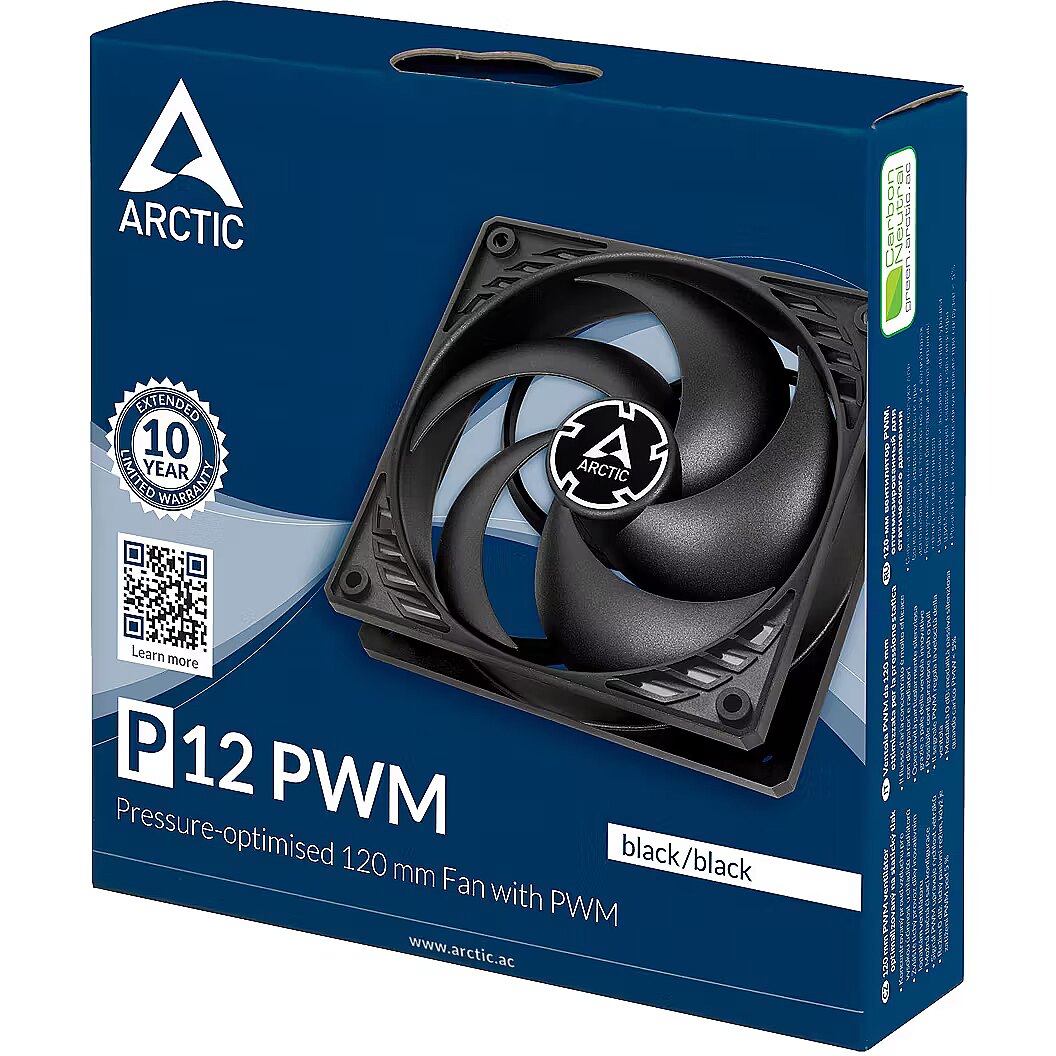

Arctic P12 PWM, Black

Air flow - 56.3 cfm
Bearing type - Fluid
Brand - ARCTIC
BrandPartCode - ACFAN00119A
category - Aircooling|Fans|PWM Fans
Category - Computer Cooling Systems
Category - Datortehnika :: Datoru komponentes :: Korpusa ventilatori
Category - Root/Electronics/PC parts/Cooling/Casing fans
Category 1 - Gehäuse
Category 2 - Gehäuselüfter
Category Code - COS
Category_1 - Computer Cases and Cooling
Category_2 - Fans
Code - ACFAN00119A
code - ACFAN00119A
Colour - Black
Desc - Ligdza (socket): 4-pin, Diametrs: 120 mm, Ventilators ātrums (apgr.min.): 1800 apgr.min., Apgaismojums: Nav, Skaits komplektācijā: 1, Garantija: 2 gadi
Description - P12 PWM Pressure-optimised 120 mm Fan with PWM OPTIMISED FOR STATIC PRESSURE During the development of the new P12 PWM, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the P12 PWM is particularly suitable for use on heatsinks and radiators.
Design - Fan connector - 4-pin
Design - Number of fan blades - 5
Design - Number of fans - 1 fan(s)
Design - Product colour - Black
Dimensions - 120x120x25mm
EAN - 4895213701389
ean - 4895213701389
Eans - 4895213701389
EAN_code - 4895213701389
Fan size group - 120mm
Fan speed - 200 - 1800 rpm
Full Description Line - P12 PWM|Air flow 56.3 cfm|Colour Black|Dimensions 120x120x25mm
Gross Weight Kg - 0,17
GTIN - 0872767009332
GTIN - 872767009332
GTIN - 4895213701389
ImageUrl - https://www.balticdata.lv/Gfx/ProductImages/Info/Product_47431_1.jpg
LargeDescHTML - Optimised for Static PressureDuring the development of the new P12 PWM, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the P12 PWM is particularly suitable for use on heatsinks and radiators.Strong Cooling PerformanceNumerous improvements, such as an updated engine technology and a newly developed fan design, have noticeably increased the performance of P-fans.
In internal performance tests leveled to 28 dB (A), the new P-fans left many competitors behind. More information can be found in our FAQ.More Efficient TechnologyThe motor is powered by a Neodym-Iron-Boron-Magnet ring of the newest generation, which allows the new P12 PWM to run much more efficiently than its predecessors. This saves energy and lowers the coil temperature without comprimising the performance.Maximum Quietness, Minimum VibrationEven at low speeds the operating sound of the new ARCTIC motor is barely noticeable.
Due to a sinus-magnetizing the new motor only creates about 5 % of the vibration from commutation of a regular DC-motor without filter. Consequently, there is no need for rubber spacers due to the steady and smooth torque of the new motor.Extended Life SpanA 10 °C lower motor temperature roughly doubles the life span of a fan.
The new ARCTIC motor has a four times longer service life through its low coil temperature.
Consequently, we have extended the warranty to 10 years.200 to 1800 RPM regulated via PWMThanks to the 4-pin connector, the RPM can be regulated in a broad spectrum via PWM.
In this way, noise is kept at a minimum while maximum cooling performance is guaranteed when needed.High Quality BearingThanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is achieved. As a result, there is less heat development as well as less bearing noise, which means you can enjoy a longer service life from your fan.Two Way InstallationPush warm air out of the casePull cool air into your case
Logistics data - Harmonized System (HS) code - 84733080
LongDesc - Our coolers have pushed the limits further every year - and all that at dropping noise levels. We have put our utmost effort into innovative technologies and fair prices, what made us well known for products with an unparalleled price/performance ratio. We provide you headroom for over-clocking and guarantee you lowest noise levels at affordable prices.
LongProductName - 120 mm, 200 - 1800 RPM, PWM, 56.3 CFM, 95.65 m3/h, 12 V DC, 4-pin, 139 g, Black/Black
LongSummaryDescription - ARCTIC P12 PWM (Black/Black) Pressure-optimised 120 mm Fan with PWM. Type: Fan, Fan diameter: 12 cm, Rotational speed (min): 200 RPM, Rotational speed (max): 1800 RPM, Noise level (high speed): 24.5 dB, Noise level: 0.3 sone, Maximum airflow: 56.3 cfm, Airflow: 95.65 m³/h, Maximum air pressure: 2.2 mmH2O, Bearing type: Fluid Dynamic Bearing (FDB). Voltage: 12 V. Width: 120 mm, Depth: 120 mm, Height: 25 mm. Product colour: Black
Mainboard connection - 4-pin
Manufacturer - Arctic
Manufacturer - ARCTIC
Manufacturer Code - ACFAN00119A
Manufacturer Name - Arctic Cooling
Manufacturer_code - ACFAN00119A
Model - ACFAN00119A
Model name - P12 PWM
MPN - ACFAN00119A
Name - 120mm Arctic P12 PWM black/black
Name - Arctic 120mm Fan P12 PWM Black
Name - Arctic P12 PWM black 120x120x25 - ACFAN00119A
name - Arctic P12 PWM Lüfter, schwarz - 120mm
Name - Arctic P12 PWM wentylator, czarny - 120mm
Other features - Country of origin - China
Packaging content - Number of screws - 4
Packaging content - Package type - Box
Packaging content - Screws included - Yes
Performance - Airflow - 95.65 m³/h
Performance - Bearing type - Fluid Dynamic Bearing (FDB)
Performance - Compatible processor series - Not supported
Performance - Fan diameter - 12 cm
Performance - Maximum airflow - 56.3 cfm
Performance - Maximum air pressure - 2.2 mmH2O
Performance - Noise level - 0.3 sone
Performance - Noise level (high speed) - 24.5 dB
Performance - Pulse-width modulation (PWM) support - Yes
Performance - Rotational speed (max) - 1800 RPM
Performance - Rotational speed (min) - 200 RPM
Performance - Suitable location - Computer case
Performance - Supported processor sockets - Not supported
Performance - Type - Fan
Power - Power consumption (typical) - 0.96 W
Power - Rated current - 0.08 A
Power - Starting voltage - 3.9 V
Power - Voltage - 12 V
Producer - Arctic
ProducerCode - ACFAN00119A
ProductName - P12 PWM (Black/Black) Pressure-optimised 120 mm Fan with PWM
Shipping Box Depth Shipping/Package Box Dimensions - 39 cm
Shipping Box Height Shipping/Package Box Dimensions - 52 cm
Shipping box quantity - 72
Shipping Box Weight Shipping/Package Box Dimensions - 12.8 kg
Shipping Box Width Shipping/Package Box Dimensions - 17 cm
ShortDescription -
Short description - Lüfter Gehäuse Arctic P12 PWM (black)
ShortSummaryDescription - ARCTIC P12 PWM (Black/Black) Pressure-optimised 120 mm Fan with PWM, Fan, 12 cm, 1800 RPM, 24.5 dB, 56.3 cfm, 95.65 m³/h
Title - ARCTIC P12 PWM (Black/Black) Pressure-optimised 120 mm Fan with PWM
Unit Brutto Volume - 0.0004788 cubm
Unit Gross Weight - 0.178 kg
Unit Net Weight - 0.139 kg
URL - https://www.arctic.ac/eu_en/p12-pwm.html
Vendor Homepage - www.arctic.de/en/P12-PWM/ACFAN00119A
Warranty - 24 months
WarrantyInfo - 10 years
Weight - 0,17
Weight - 0.16
Weight & dimensions - Cable length - 0.4 m
Weight & dimensions - Depth - 120 mm
Weight & dimensions - Height - 25 mm
Weight & dimensions - Package depth - 123 mm
Weight & dimensions - Package height - 27 mm
Weight & dimensions - Package weight - 170 g
Weight & dimensions - Package width - 123 mm
Weight & dimensions - Weight - 139 g
Weight & dimensions - Width - 120 mm
