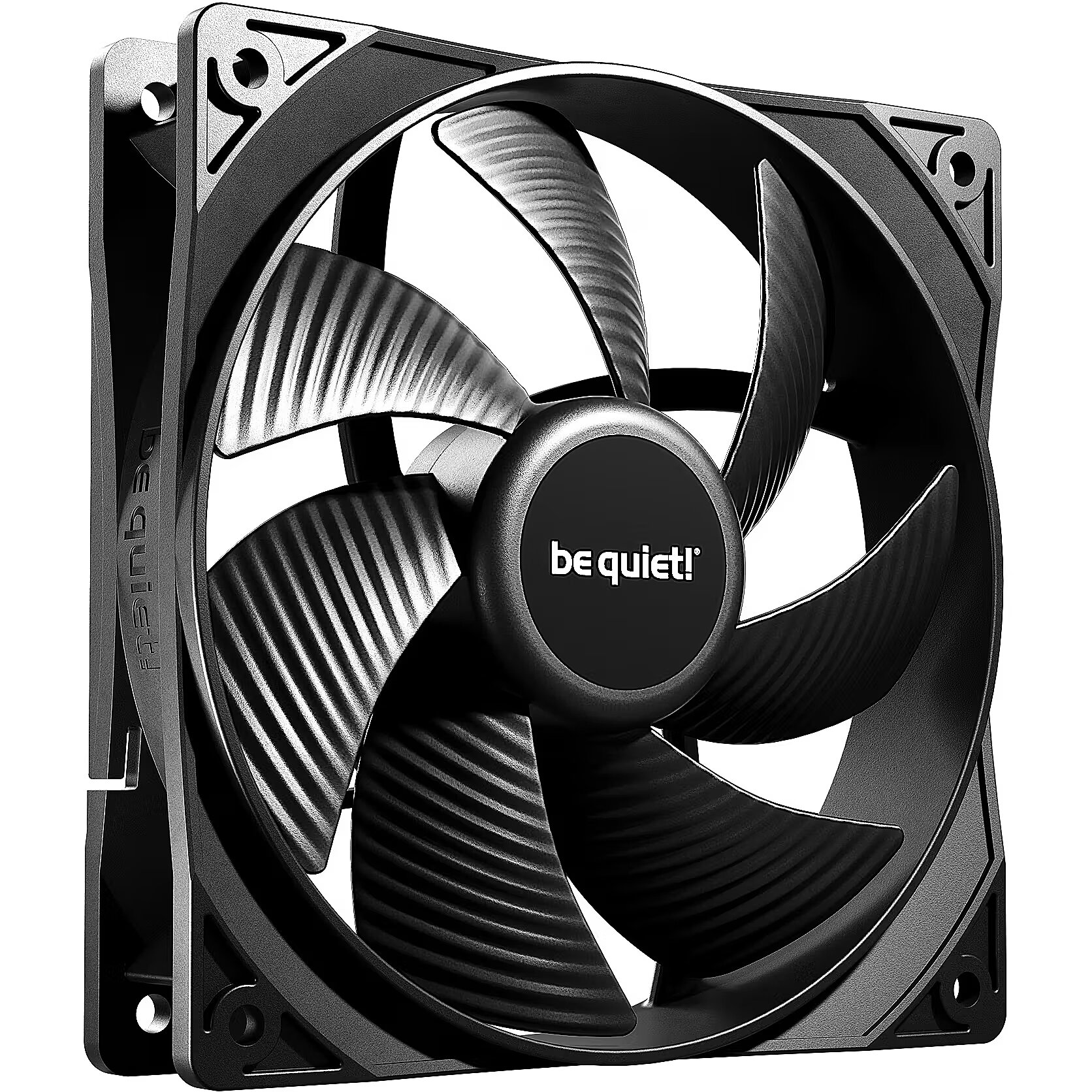

Be Quiet Pure Wings 3, 120mm, PWM

Air flow - 49.9 cfm
Air flow rates - 49.9 cfm
Brand - be quiet!
BrandPartCode - BL105
category - Aircooling|Fans|PWM Fans
Category - Computer Cooling Systems
Category - Root/Electronics/PC parts/Cooling/Casing fans
Category 1 - Gehäuse
Category 2 - Gehäuselüfter
Category Code - COS
Category_1 - Computer Cases and Cooling
Category_2 - Fans
code - BL105
Colour - Black
Connector type - 4-pin
Cooling technology - Air
Description - Pure Wings 3 120mm PWM Efficient, Progressive, Quiet With a low minimum RPM and high maximum speed, the Pure Wings 3 120mm PWM is the perfect PC addition for any application. The fan offers exceptional reliability and ensures long-lasting operation in a gaming setup. Optimized fan frame ensures exceptional performance on coolers Newly designed fan blades and changed angle provide exceptional air pressure Pure Wings 3 120mm PWM can operate at very low minimum speeds, ensuring very quiet operation The long-life rifle bearing guarantees a service life of 80,000 hours Product concept, design and quality control in Germany
Description - PURE WINGS 3 120mm PWM Performant, Progressive, Quiet With low minimum rpm and high top-end speed, Pure Wings 3 120mm PWM are the perfect addition to PCs for any application. The fan offers outstanding reliability and makes for a long-lasting, companion for your gaming system. - Optimized fan frame for outstanding performance on radiators - Newly designed fan blades and re-arranged angle for extraordinary air pressure - Pure Wings 3 120mm PWM can be operated with very low minimum rpm for very quiet operation - Long life rifle bearing gives an operating lifetime of 80,000 hours - Product conception, design and quality control in Germany
Design - Fan connector - 4-pin
Design - Illumination LED - No
Design - Number of fans - 1 fan(s)
Design - Product colour - Black
dimensionalWeight - 115
dimension depth - 30 mm
dimension height - 155 mm
Dimensions - 120 x 120 x 25
Dimensions - 120 x 120 x 25 mm
dimension weight - 170 g
dimension width - 125 mm
ean - 4260052190777
EAN - 4260052190777
Eans - 4260052190777
EAN_code - 4260052190777
Fan - 12 cm
Fan size group - 120mm
Fan speed - 1600 rpm
Fan speed (max) - 1600 rpm
Full Description Line - Pure Wings 3 120mm PWM|Number of fans 1|Nominal voltage 12 V|Air flow 49.9 cfm|Noise level, max 25.5 dB|Colour Black|Dimensions 120 x 120 x 25
GTIN - 4260052190777
guarantee - 36
guarantee_type - normal
Illumination - No
Logistics data - Products per shipping (inner) case - 60 pc(s)
Logistics data - Shipping (inner) case gross weight - 11.7 kg
Logistics data - Shipping (inner) case height - 33 cm
Logistics data - Shipping (inner) case length - 42.7 cm
Logistics data - Shipping (inner) case width - 35.5 cm
LongDesc - Performant, Progressive, QuietWith low minimum rpm and high top-end speed, Pure Wings 3 120mm PWM are the perfect addition to PCs for any application. The fan offers outstanding reliability and makes for a long-lasting, companion for your gaming system. Its iconic design lets anyone immediately recognize it as be quiet! fan and adds a touch of elegance to any configuration.
LongProductName - Pure Wings 3 120mm PWM, 1600RPM, 49.9 cfm/ 84.8 m3/h
LongSummaryDescription - be quiet! Pure Wings 3 120mm PWM. Type: Fan, Fan diameter: 12 cm, Rotational speed (max): 1600 RPM, Noise level (high speed): 25.5 dB, Maximum airflow: 49.9 cfm, Airflow: 84.8 m³/h, Maximum air pressure: 1.45 mmH2O. Voltage: 5 - 13.2 V. Width: 120 mm, Depth: 120 mm, Height: 25 mm. Product colour: Black
Mainboard connection - 4-pin
Manufacturer - Be quiet
Manufacturer - Be Quiet!
Manufacturer_code - BL105
Model - BL105
Model name - Pure Wings 3 120mm PWM
MPN - BL105
Name - 120mm be quiet! Pure Wings 3 PWM
name - be quiet! Lüfter Pure Wings 3 PWM Lüfter - 120mm
Name - be quiet! PURE WINGS 3 120mm PWM
Name - be quiet! Pure Wings 3 120mm PWM, case fan (black)
name - Be quiet Pure Wings 3 120 mm PWM
Noise - 25.5 dB
Noise level, max - 25.5 dB
Nominal voltage - 12 V
Number of fans - 1
Other features -
Packaging content - Number of screws - 4
Packaging content - Screws included - Yes
Performance - Airflow - 84.8 m³/h
Performance - Fan's mean time to failure (MTTF) - 80000 h
Performance - Fan bearing technology - Rifle bearing
Performance - Fan diameter - 12 cm
Performance - Maximum airflow - 49.9 cfm
Performance - Maximum air pressure - 1.45 mmH2O
Performance - Noise level (high speed) - 25.5 dB
Performance - Pulse-width modulation (PWM) support - Yes
Performance - Quantity per pack - 1 pc(s)
Performance - Rotational speed (max) - 1600 RPM
Performance - Suitable location - Computer case
Performance - Type - Fan
Power - Fan current - 0.1 A
Power - Fan power consumption - 2.4 W
Power - Rated voltage - 12 V
Power - Voltage - 5 - 13.2 V
producer - Be quiet!
Producer - be quiet!
producerCode - BL105
ProducerCode - BL105
productName - Fan Be Quiet! Pure Wings 3 120mm PWM
ProductName - Pure Wings 3 120mm PWM
productSize - Normal
Shipping Box Depth Shipping/Package Box Dimensions - 46.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 28 cm
Shipping box quantity - 60
Shipping Box Weight Shipping/Package Box Dimensions - 11 kg
Shipping Box Width Shipping/Package Box Dimensions - 27 cm
ShortDescription -
ShortSummaryDescription - be quiet! Pure Wings 3 120mm PWM, Fan, 12 cm, 1600 RPM, 25.5 dB, 49.9 cfm, 84.8 m³/h
sizeX - 160
sizeY - 120
sizeZ - 30
Technical details - Compliance certificates - CE, RoHS, UKCA, WEEE
Technical details - Sustainability certificates - Triman
Technical details - Sustainability compliance - Yes
Title - be quiet! Pure Wings 3 120mm PWM Computer case Fan 12 cm Black 1 pc(s)
Type of cooling - Active
Unit Box Height - 0.125
Unit Box Length - 0.13
Unit Box Width - 0.03
Unit Brutto Volume - 0.0005859 cubm
Unit Gross Weight - 0.183 kg
Unit Net Weight - 0.148 kg
URL - https://www.bequiet.com/en/download/casefans/4603?utm_source=newsletter
Vendor Homepage - www.bequiet.com/en/casefans/4606
vendpn - BL105
Warranty - 36 months
WarrantyInfo - 3 Years
warrantyLength - 36
warrantyType - G
Weight - 0,17
Weight - 0.18
weight - 175
Weight & dimensions - Cable length - 0.46 m
Weight & dimensions - Depth - 25 mm
Weight & dimensions - Depth - 120 mm
Weight & dimensions - Height - 25 mm
Weight & dimensions - Package depth - 155 mm
Weight & dimensions - Package height - 27 mm
Weight & dimensions - Package weight - 175 g
Weight & dimensions - Package width - 122 mm
Weight & dimensions - Weight - 148 g
Weight & dimensions - Width - 120 mm
