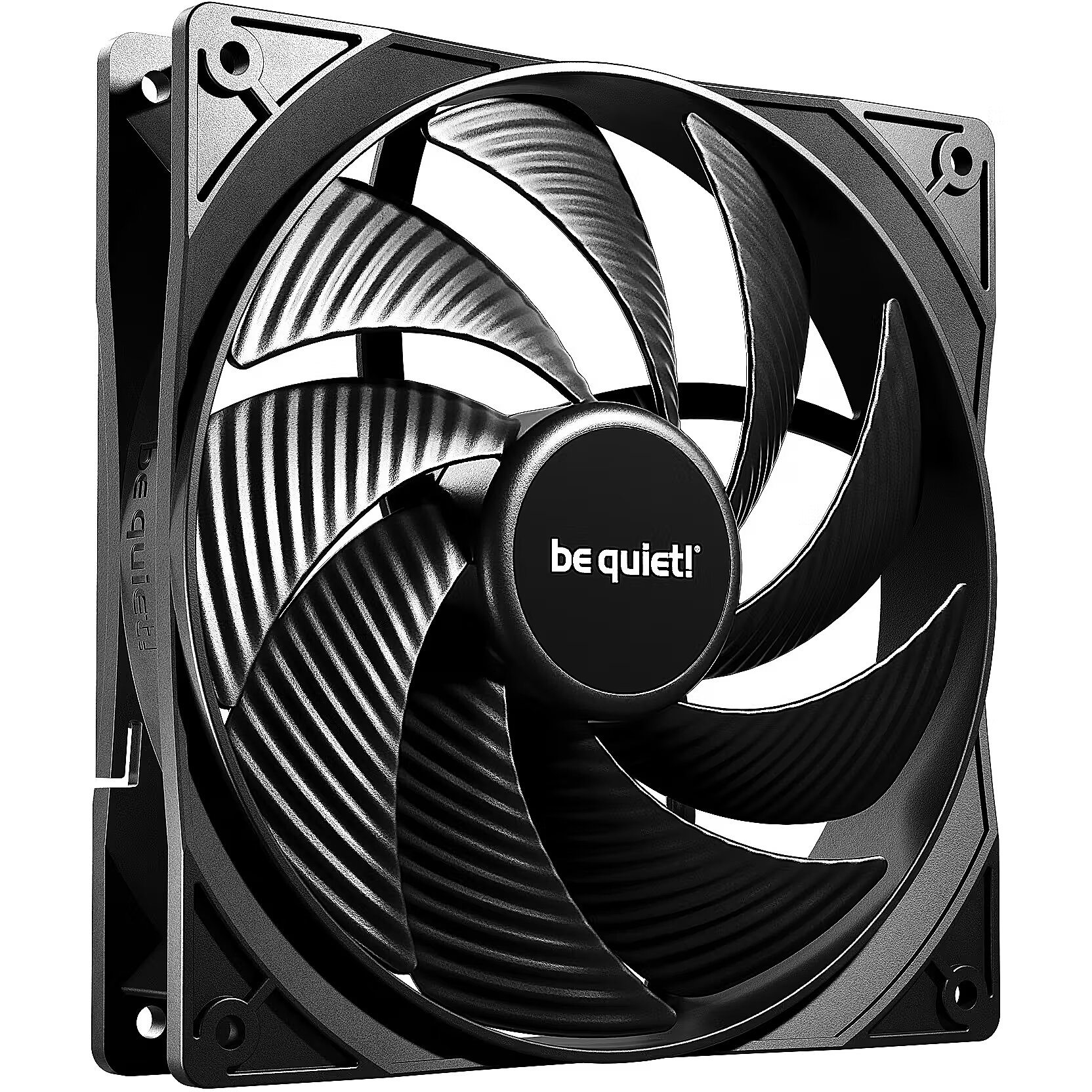

Be Quiet Pure Wings 3, 140mm, PWM, High-speed

Air flow - 72.2 cfm
Brand - be quiet!
BrandPartCode - BL109
category - Aircooling|Fans|PWM Fans
Category - Computer Cooling Systems
Category - Root/Electronics/PC parts/Cooling/Casing fans
Category Code - COS
Category_1 - Computer Cases and Cooling
Category_2 - Fans
code - BL109
Colour - Black
Connector type - 4-pin
Cooling technology - Air
Description - PURE WINGS 3 140mm PWM high-speed Efficient, Progressive, Quiet Pure Wings 3 140mm PWM high-speed are the perfect addition to demanding PCs with exceptionally high performance and progressive features such as a closed-loop speed motor. The innovative closed-loop motor maintains speed regardless of resistance Optimized fan frame ensures exceptional performance on coolers Newly designed fan blades and changed angle provide exceptional air pressure Pure Wings 3 140mm PWM high-speed can operate at very low minimum speeds, which ensures very quiet operation The long-life rifle bearing guarantees a service life of 80,000 hours Product concept, design and quality control in Germany
Description - PURE WINGS 3 140mm PWM high-speed Performant, Progressive, Quiet Pure Wings 3 140mm PWM high-speed are the perfect addition to demanding PCs with extraordinarily high performance and progressive features such as a speed-regulating closed loop motor. - Innovative closed loop motor keeps the rpm no matter the air resistance - Optimized fan frame for outstanding performance on radiators - Newly designed fan blades and re-arranged angle for extraordinary air pressure - Pure Wings 3 140mm PWM high-speed can be operated with very low minimum rpm for very quiet operation - Long life rifle bearing gives an operating lifetime of 80,000 hours - Product conception, design and quality control in Germany
Design - Fan connector - 4-pin
Design - Illumination LED - No
Design - Number of fans - 1 fan(s)
Design - Power management - 4-pin PWM plug
Design - Product colour - Black
Designation - CE+WEEE
dimensionalWeight - 152
dimension depth - 30 mm
dimension height - 175 mm
Dimensions - 140 x 140 x 25 mm
dimension weight - 220 g
dimension width - 145 mm
ean - 4260052190814
Eans - 4260052190814
EAN_code - 4260052190814
Fan - 14 cm
Fan size group - 140mm
Fan speed - 1800
Fan speed (max) - 1800 rpm
Full Description Line - Pure Wings 3 140mm PWM high-speed|Number of fans 1|Air flow 72.2 cfm|Noise level, max 30.5 dB|Colour Black|Dimensions 140 x 140 x 25 mm
GTIN - 4260052190814
guarantee - 36
guarantee_type - normal
Illumination - No
Logistics data - Products per shipping (inner) case - 72 pc(s)
Logistics data - Shipping (inner) case gross weight - 17.5 kg
Logistics data - Shipping (inner) case height - 37 cm
Logistics data - Shipping (inner) case length - 48.2 cm
Logistics data - Shipping (inner) case width - 39.5 cm
LongDesc - Performant, Progressive, QuietPure Wings 3 140mm PWM high-speed are the perfect addition to demanding PCs with extraordinarily high performance and progressive features such as a speed-regulating closed loop motor. This makes the fan a versatile companion for your gaming system. Its iconic design lets anyone immediately recognize it as be quiet! fan and adds a touch of elegance to any configuration.
LongProductName - Pure Wings 3 140mm PWM high-speed, 1800RPM, 72.2 cfm/ 122.6m3/h
LongSummaryDescription - be quiet! Pure Wings 3 140mm PWM high-speed. Type: Fan, Fan diameter: 14 cm, Rotational speed (max): 1800 RPM, Noise level (high speed): 30.5 dB, Maximum airflow: 72.2 cfm, Airflow: 122.6 m³/h, Maximum air pressure: 2.44 mmH2O. Voltage: 5 - 13.2 V. Width: 140 mm, Depth: 140 mm, Height: 25 mm. Product colour: Black
Mainboard connection - 4-pin
Manufacturer - Be quiet
Manufacturer_code - BL109
Model - BL109
Model name - Pure Wings 3 140mm PWM high-speed
name - be quiet! Lüfter Pure Wings 3 PWM - 140mm, High Speed
Name - be quiet! PURE WINGS 3 140mm PWM high-speed
Name - be quiet! Pure Wings 3 140mm PWM high-speed, case fan
name - Pure Wings 3 140 mm PWM high-speed
Noise - 30.5 dB
Noise level, max - 30.5 dB
Number of fans - 1
Other features -
Packaging content - Number of screws - 4
Packaging content - Screws included - Yes
Performance - Airflow - 122.6 m³/h
Performance - Fan's mean time to failure (MTTF) - 80000 h
Performance - Fan bearing technology - Rifle bearing
Performance - Fan diameter - 14 cm
Performance - Maximum airflow - 72.2 cfm
Performance - Maximum air pressure - 2.44 mmH2O
Performance - Noise level (high speed) - 30.5 dB
Performance - Pulse-width modulation (PWM) support - Yes
Performance - Quantity per pack - 1 pc(s)
Performance - Rotational speed (max) - 1800 RPM
Performance - Suitable location - Computer case
Performance - Suitable location - Water- and air-cooling systems
Performance - Type - Fan
Power - Fan current - 0.12 A
Power - Fan power consumption - 6 W
Power - Rated voltage - 12 V
Power - Voltage - 5 - 13.2 V
producer - Be quiet!
Producer - be quiet!
producerCode - BL109
ProducerCode - BL109
productName - Fan Be Quiet! Pure Wings 3 140mm PWM high-speed
ProductName - Pure Wings 3 140mm PWM high-speed
productSize - Normal
Shipping Box Depth Shipping/Package Box Dimensions - 47.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 39 cm
Shipping box quantity - 72
Shipping Box Weight Shipping/Package Box Dimensions - 17.85 kg
Shipping Box Width Shipping/Package Box Dimensions - 35.5 cm
ShortDescription -
ShortSummaryDescription - be quiet! Pure Wings 3 140mm PWM high-speed, Fan, 14 cm, 1800 RPM, 30.5 dB, 72.2 cfm, 122.6 m³/h
sizeX - 175
sizeY - 145
sizeZ - 30
Technical details - Compliance certificates - CE, RoHS, UKCA, WEEE
Technical details - Sustainability certificates - Triman
Technical details - Sustainability compliance - Yes
Title - be quiet! Pure Wings 3 140mm PWM high-speed Computer case Fan 14 cm Black 1 pc(s)
Type of cooling - Active
Unit Box Height - 0.145
Unit Box Length - 0.15
Unit Box Width - 0.03
Unit Brutto Volume - 0.0009134 cubm
Unit Gross Weight - 0.248 kg
Unit Net Weight - 0.188 kg
URL - https://www.bequiet.com/en/download/casefans/4603?utm_source=newsletter
vendpn - BL109
Warranty - 36 months
WarrantyInfo - 3 Years
warrantyLength - 36
warrantyType - G
Weight - 0,22
Weight - 188 g
weight - 220
Weight & dimensions - Cable length - 0.46 m
Weight & dimensions - Depth - 25 mm
Weight & dimensions - Depth - 140 mm
Weight & dimensions - Height - 25 mm
Weight & dimensions - Package depth - 174 mm
Weight & dimensions - Package height - 27 mm
Weight & dimensions - Package weight - 221 g
Weight & dimensions - Package width - 142 mm
Weight & dimensions - Weight - 188 g
Weight & dimensions - Width - 140 mm
