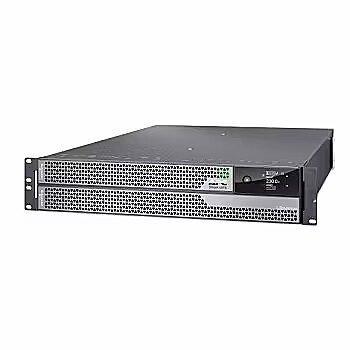

APC Smart-UPS ULTRA SRTL5KRM2UI 5000VA, 5000W, IEC, 2U

ARTIKEL1 - APC SMART-UPS ULTRA ON-LINE
ARTIKEL2 - LITHIUM ION 5KVA/5KW 2U RACK/TOW
Battery - Automatic battery test - Yes
Battery - Battery life (max) - 10 year(s)
Battery - Battery recharge time - 1.5 h
Battery - Battery technology - Lithium-Ion (Li-Ion)
Battery - Battery voltage - 180 V
Battery - Cold start - Yes
Battery - Typical backup time at full load - 5.25 min
Brand - APC
BrandPartCode - SRTL5KRM2UI
Breite - 0.59
Category - Uninterruptible Power Supplies (UPSs)
Description - APC SMART-UPS ULTRA ON-LINE LITHIUM ION, 5KVA/5KW, 2U RACK/TOWER, 230V
Design - Display type - LCD
Design - Form factor - Rackmount
Design - International Protection (IP) code - IP20
Design - Product colour - Black
Design - Rack capacity - 2U
EANCode - 0731304435754
Features - Auto-restart - Yes
Features - Crest factor - 3:1
Features - Emergency Power Off (EPO) - Yes
Features - Heat dissipation - 931 BTU/h
Features - Input frequency - 40/70 Hz
Features - Input operation voltage (max) - 275 V
Features - Input operation voltage (min) - 180 V
Features - Noise level - 55 dB
Features - Output frequency - 50/60 Hz
Features - Output operation voltage (max) - 220 V
Features - Output power - 5000 W
Features - Output power capacity - 5 kVA
Features - Output power factor - 1
Features - Output voltage Total Harmonic Distortion (THD) - 2%
Features - Power factor - 1
Features - Surge energy rating - 1260 J
Features - UPS topology - Double-conversion (Online)
Features - Waveform - Sine
Gewicht - 39.36
GRUPPE1 - Power Protection
GRUPPE2 - UPS (Uninterruptable Power Supply)
GTIN - 0731304435754
GTIN - 731304435754
Height - 395.000000
HERSTELLER - APC
Hoehe - 0.4
HSTNUMMER - SRTL5KRM2UI
Laenge - 0.99
Length - 980.000000
LongDesc - Always stay online and prevent data lossAn APC Smart-UPS Ultra On-Line Li-Ion always supplies perfectly clean power to all connected equipment thanks to its double conversion technology. Even power outages have no influence on this. The APC Smart-UPS On-Line then automatically supplies emergency power without having to switch. This way you prevent unwanted failure of, for example, a server, storage or switch. With the integrated network card and associated APC PowerChute Network Shutdown software, the UPS can send a shutdown signal via the network to multiple physical and/or virtual servers and have them shut down automatically and in a controlled manner when the UPS battery is almost empty. This way you prevent data loss, downtime and physical damage to hardware.UltraThanks to next-gen semiconductor technology, this APC Ultra UPS delivers 5000W in just a 2U form factor. Lithium-IonThe APC SRTL5KRM2UI uses Li-Ion batteries, which provides unique advantages:-Longer life span. Li-Ion batteries can last up to 10 years, making the UPS truly maintenance-free.-Smaller and lighter. Li-Ion batteries are smaller and weigh approximately 30% less than lead acid batteries, saving space, 2U form factor and simplifying installation.-Better performance at high temperature. Li-Ion batteries perform well at high ambient temperatures (up to 40°C), in contrast to lead acid batteries where this is at the expense of battery life.-5 year manufacturer's warranty. Standard long warranty on the UPS including the battery.-Lower costs: The above benefits reduce the total costs over the entire lifespan of the UPS by up to 53% (compared to a UPS with lead-acid batteries.)Battery lifeYou can easily read the expected battery life in the runtime graph, which you can find between the product images. You can easily see how long the UPS supplies emergency power at a certain load.Extend the runtimeYou can easily increase the number of minutes that the APC SRTL5KRM2UI can independently supply emergency power by connecting up to 9 additional external battery packs (SRTL180RM2UBP). A runtime of several hours is even possible.Manage your Smart-UPSThanks to the integrated network card, you can easily connect the APC UPS to your network. This way you can monitor and manage the UPS remotely (SNMP) and the UPS can send a shutdown signal to multiple physical and/or virtual servers using PowerChute Network Shutdown software.PowerChute Network ShutdownPowerChute Network Shutdown is UPS management software that works with the UPS Network Management Card to protect Windows, Linux and Host ESXi, as well as hyperconverged and virtual infrastructure*. In the event of a power outage, PowerChute can properly shut down your virtual machines and the preconfigured boot sequence ensures they are turned back on.*An additional license is required for HCI and virtual machine support: 1 year: SWPCNS1Y-DIGIUp to (Replace the bold number in the article number for the desired variant)6 years: SWPCNS6Y-DIGIRemote management and monitoring of your networkThe network card can be managed remotely via the easy-to-use web browser interface, remote management software EcoStruxure™ IT (SFTWES1-DIGI) or another SNMP-compatible system. Tip EcoStruxure™ IT also includes the functionalities of the support contract below.Support contractThe optional network card support contract license* ensures that you are always up to date and secure and includes additional benefits such as frequent updates with:• New and improved features• Security updates• Advanced support(The support contract functionality is included free of charge in the first year of the UPS)*The above license and available in the variants: 1 year: SWNMC3SU-1Y-DIGIUp to (Replace the bold number in the article number for the desired variant)6 years: SWNMC3SU-6Y-DIGIAvailabilityThe Smart-UPS On-Line has an internal bypass and uses double conversion, which increases the availability and lifespan of connected hardware.SafetyIn addition, a Smart-UPS On-Line protects connected devices against peak voltage caused by lightning, among other things. This APC emergency power supply is therefore ideally suited for business use. Easy to useThe APC Smart-UPS SRTL is easy to operate thanks to a graphic LCD screen with auto-rotation. Rack/tower convertibleThe APC Smart-UPS SRTL is rack/tower convertible. This means that both the feet and the 4 post rack mounting brackets are included. So you can mount it horizontally in a rack, but also place it upright.Green PremiumThis label represents Schneider Electric's commitment to delivering products with best-in-class environmental performance. Green Premium promises to comply with the latest regulations, transparency on environmental effects and circular and low CO2 emission products.Green Premium:- Stands for an energy-efficient product that helps our customers achieve their CO2 reduction goals and save energy costs at the same time. The energy efficiency of this product is at least 10% higher than the market average.- Provides insight into the environmental effects of the product, this data is available 24/7 via the digital product environmental profile, see https://checkaproduct.se.com/- Commits to minimal use of hazardous substances within and beyond regulatory compliance (RoHS-/REACh)Certainty in a connected worldOver the past 40 years, 120 million APC UPSs have been installed in more than 160 countries.Included in the box1x SRTL5KRM2UI1x C13 to C14 power cord 1.2 meters1x C13 to C14 power cord 2 meters1x Installation manual1x Rack mounting brackets1x USB cable
LongProductName - APC Smart-UPS Ultra On-Line Li-Ion SRTL5KRM2UI, 5KW, 2U Rack/Tower, 6x C13 & 4x C19, NMC
LongSummaryDescription - APC Smart-UPS Ultra On-Line Li-Ion SRTL5KRM2UI, 5KW, 2U Rack/Tower, 6x C13 & 4x C19, NMC. UPS topology: Double-conversion (Online), Output power capacity: 5 kVA, Output power: 5000 W. AC outlet types: C13 coupler, C19 coupler, Power plug: Hardwire, AC outlets quantity: 10 AC outlet(s). Battery technology: Lithium-Ion (Li-Ion), Battery voltage: 180 V, Typical backup time at full load: 5.25 min. Form factor: Rackmount, Product colour: Black, Rack capacity: 2U. Width: 432 mm, Depth: 701 mm, Height: 86 mm
Manufacturer - APC
ManufacturerPartNumber - SRTL5KRM2UI
Operational conditions - Non-operating altitude - 0 - 15240 m
Operational conditions - Operating altitude - 0 - 3048 m
Operational conditions - Operating relative humidity (H-H) - 0 - 95%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 0 - 95%
Operational conditions - Storage temperature (T-T) - -15 - 45 °C
Other features - Nominal input voltage - 230 V
Other features - Nominal output voltage - 230 V
PeriodofWarranty - 5 Y
Ports & interfaces - AC outlets quantity - 10 AC outlet(s)
Ports & interfaces - AC outlet types - C13 coupler, C19 coupler
Ports & interfaces - Power plug - Hardwire
Ports & interfaces - Serial interface - Yes
Ports & interfaces - Serial ports quantity - 1
Ports & interfaces - USB port - Yes
ProductName - APC Smart-UPS Ultra On-Line Li-Ion SRTL5KRM2UI, 5KW, 2U Rack/Tower, 6x C13 & 4x C19, NMC
ShortSummaryDescription - APC Smart-UPS Ultra On-Line Li-Ion SRTL5KRM2UI, 5KW, 2U Rack/Tower, 6x C13 & 4x C19, NMC, Double-conversion (Online), 5 kVA, 5000 W, Sine, 180 V, 275 V
Stck_Kart - 1
Stck_Pal - 2
Storno - Y
Technical details - Sustainability certificates - CE, Green Premium, RoHS
Technical details - Sustainability compliance - Yes
Title - APC Smart-UPS Ultra On-Line Li-Ion SRTL5KRM2UI, 5KW, 2U Rack/Tower, 6x C13 & 4x C19, NMC
UPS devices and accessories - Yes
URL - https://www.apc.com/shop/no/en/products/APC-Smart-UPS-Ultra-On-Line-Lithium-ion-5KVA-5KW-2U-Rack-Tower-230V/P-SRTL5KRM2UI
WarrantyInfo - 5 years
Weight - 49.900000
Weight & dimensions - Depth - 701 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Package depth - 984 mm
Weight & dimensions - Package height - 392 mm
Weight & dimensions - Package weight - 38.5 kg
Weight & dimensions - Package width - 585 mm
Weight & dimensions - Weight - 29.2 kg
Weight & dimensions - Width - 432 mm
Width - 585.000000
