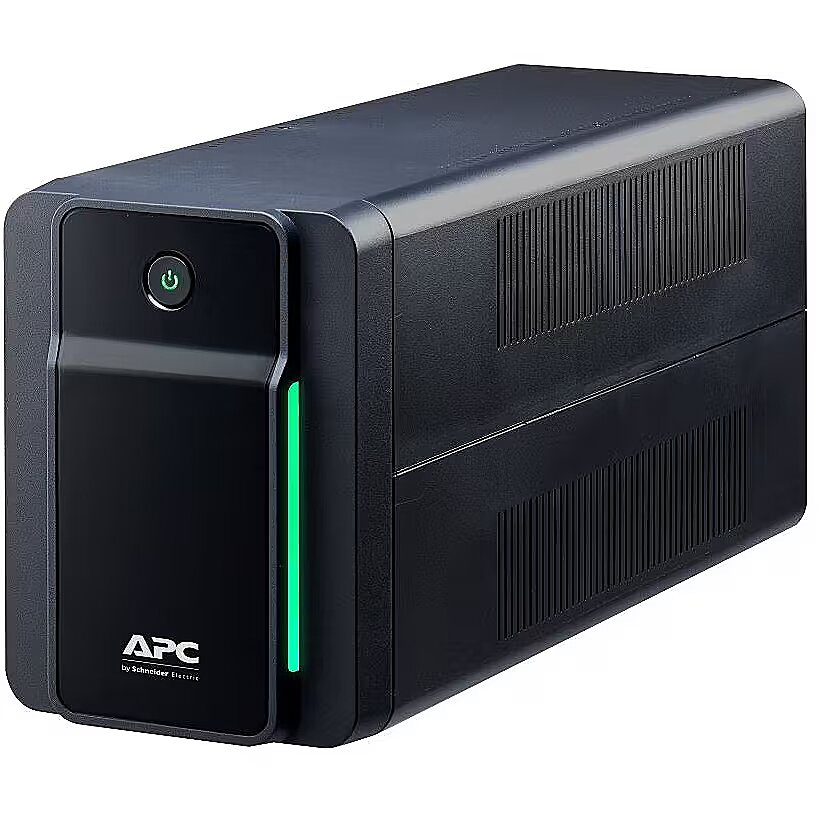

APC Back-UPS BX750MI 750VA, 410W, IEC

Accessories included -
Active power - 410 W
Alarm -

Alarm when on battery

Distinctive low battery alarm

Apparent power - 750 VA
ARTIKEL1 - APC BACK-UPS 750VA 230V AVR IEC
ARTIKEL2 - SOCKETS
Backup time (100% load) - 1 min
Battery - Battery life (max) - 2 year(s)
Battery - Battery recharge time - 6 h
Battery - Battery technology - Sealed Lead Acid (VRLA)
Battery - Typical backup time at full load - 1 min
Battery - Typical backup time at half load - 8.5 min
BatteryType - Lead-acid
Brand - APC
BrandPartCode - BX750MI
Breite - 0.25
Category - Root/Accessories | Exploitation/Power supply/UPSs and power strips/UPSs
Category - Uninterruptible Power Supplies (UPSs)
Category 1 - Energie & USV
Category 2 - USV & Stromversorgung
Category_1 - Power
Category_2 - UPS
Charging time - 6 h
Chassis type - Tower
Color - Black
ControlPanel - LED Status display with on line : on battery
Depth - 355 mm
Depth, mm - 355
Description - APC BACK-UPS 750VA, 230V, AVR, IEC SOCKETS
Description - Seria APC Back-UPS BX to ekonomiczne rozwiązanie do ochrony zasilania w domu i biurze domowym. Szeroka gama serii VA z funkcjami premium dodatkowo umożliwia wykorzystanie możliwości pojedynczego zasilacza UPS
Design - Cable length - 1.2 m
Design - Certification - CB Meet EN62040-1 / CE / IEC-62040-1 / IEC-62040-2
Design - Form factor - Compact
Design - International Protection (IP) code - IP20
Design - LED indicators - Yes
Design - Product colour - Black
dimension depth - 200 mm
dimension height - 240 mm
Dimensions - 160 x 120 x 355 mm
dimension weight - 6300 g
dimension width - 430 mm
ean - 731304410799
EAN - 0731304410799
EANCode - 0731304410799
Eans - 731304410799
EAN_code - 0731304410799
Environment requirements - Środowisko pracy: 0 - 40 °C Wilgotność względna podczas pracy: 0 - 95% Wysokość robocza: 0-3000 metrów Temperatura przechowywania: 15 - 40 °C Wilgotność względna przechowywania: 0-95%
Features - Audible alarm(s) - Yes
Features - Audible alarm modes - Low battery alarm
Features - Automatic Voltage Regulation (AVR) - Yes
Features - Input frequency - 50/60 Hz
Features - Input operation voltage (max) - 300 V
Features - Input operation voltage (min) - 140 V
Features - Input power factor - 0.63
Features - Noise level - 40 dB
Features - Output frequency - 50/60 Hz
Features - Output frequency regulation - 0.5 Hz
Features - Output operation voltage (max) - 230 V
Features - Output operation voltage (min) - 230 V
Features - Output power - 410 W
Features - Output power capacity - 0.75 kVA
Features - Output voltage regulation - 10%
Features - Response time - 6 ms
Features - Surge energy rating - 273 J
Features - Surge protection - Yes
Features - UPS topology - Line-Interactive
Features - Waveform - Sine
Form factor - Rack
FormFactor - Tower
GrossWeight - 8.000 kg
Gross Weight Kg - 5,9
GRUPPE1 - Power Protection
GRUPPE2 - UPS (Uninterruptable Power Supply)
GTIN - 0731304410799
GTIN - 731304410799
guarantee - 24
guarantee_type - external
Height - 160 mm
Height - 250.000000
Height, mm - 160
HERSTELLER - APC
Hoehe - 0.2
HSTNUMMER - BX750MI
I/O connectors - 1 x USB (Type B)
I/O connectors - 2 x RJ-45 (iLO Remote Management Network)
InputConnections - -
InputFrequency - 50/60 Hz +/- 5 Hz auto-sensing
Input power ports - IEC-C14
InputVoltage - 230 V
InterfacePorts - -
Laenge - 0.43
Length - 200.000000
Logistics data - Harmonized System (HS) code - 85078000
LongDesc -
LongDesc - Security through emergency powerAn APC Back-UPS has a built-in battery that ensures that all connected equipment, such as a PC and NAS, but also your WIFI internet (router + modem) continues to function if the power goes out. In addition, this APC emergency power supply can also automatically shut down a NAS or PC in time via the USB connection. Useful when the APC ups is almost empty. This prevents downtime, damage to equipment, and loss of data.Safety and convenienceIn addition, this secure APC Back-UPS protects by are surge protected outputs that protect valuable equipment against peak voltage caused by lightning strikes, for example. Thanks to the 1Gb Network Dataline Surge Protection, the UPS also protects your Ethernet data line (internet cable) and the equipment connected to it against "backdoor" peak voltage, all without sacrificing internet speed. It is also extra quiet due to the fanless design.Battery lifeYou can easily read the expected battery life in the runtime graph, which you can find between the product images. You can easily see how long the UPS supplies emergency power at a certain load.Extend the lifespanThe internal battery cartridge (RBC17) can be replaced. This way you can easily and cheaply extend the lifespan of the APC Back-UPS BX750MI.Warranty extensionThe factory warranty of the BX750MI is 2 years and can be upgraded to 5 years with the APC service pack (WBEXTWAR3YR-SP-01A).InsuranceDespite the high risk of lightning strikes and surges, APC has full confidence in its products and offers this APC Back-UPS:- Equipment protection policy of 50,000 eurosSave on operational costsThe UPS is equipped with AVR, which extends battery life and maximizes runtime by correcting low and high voltages without discharging the battery. Furthermore, the emergency power supply has 4 battery+surge protected outputs. PowerChute Serial Shutdown software and a USB cable are also included.Automatic Voltage Regulation (AVR)Automatically steps up low voltage and steps down high voltage to levels that are suitable for your equipment.Dataline surge protectionProvides protection of connected equipment from power surges on the data lines.PowerChute Serial EditionThis software supports numerous operating systems and processors.USB connectionUse your PC to access additional power protection and management features for your UPS via a USB Port.Audible alarmsProvides notification of changing utility power and UPS power conditionsLED status displayQuickly understand unit and power status with visual indicators.Intelligent battery managementMaximizes battery performance, life, and reliability through intelligent, precision charging.Automatic self-testPeriodic battery self-test ensures early detection of a battery that needs to be replaced.Battery failure notificationProvides early-warning fault analysis on batteries enabling timely preventive maintenanceSurge only outletsProtect secondary electronics from surges and spikes without reducing battery power used to run primary electronics during an outage.Battery and surge protected outletsBack up and protect your hardware and data during power outages, surges and spikes.Safety-agency approvedEnsures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.Battery-protected and surge-only outletsReserves power capacity and run time for connected equipment that require UPS battery back-up while providing surge only protection for less critical equipment
LongProductName - APC Back-UPS BX750MI - 750VA, 4x C13, USB
LongSummaryDescription - APC Back-UPS BX750MI - 750VA, 4x C13, USB. UPS topology: Line-Interactive, Output power capacity: 0.75 kVA, Output power: 410 W. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 4 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Typical backup time at full load: 1 min, Typical backup time at half load: 8.5 min. Form factor: Compact, Product colour: Black, Cable length: 1.2 m. Width: 120 mm, Depth: 355 mm, Height: 160 mm
Manufacturer - APC
Manufacturer Code - BX750MI
Manufacturer Name - APC by Schneider Electric
ManufacturerPartNumber - BX750MI
Manufacturer_code - BX750MI
MANUFDATASHEET - https://www.apc.com/my/en/product/BX750MI/apc-backups-750va-230v-avr-4-iec-outlets/
MPN - BX750MI
Name - APC Back-UPS BX750MI 750VA 410W 230V
Name - APC Back-UPS BX MI 750VA / 230V IEC
Name - APC Back BX750MI
name - BX750MI Back-UPS 750VA, 230V, AVR, 4 IEC
No. of batteries - 1
Nominal input voltage, V - 230
Nominal output voltage, V - 230
Number of phases input - 1 (230V)
Operational conditions - Operating altitude - 0 - 3000 m
Operational conditions - Operating relative humidity (H-H) - 0 - 95%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage temperature (T-T) - -15 - 40 °C
Other features -
OutputConnections - 4x IEC 60320 C13
OutputFrequency - 50/60 Hz +/- 1 Hz Sync to mains
Output power, W - 410
Output power capacity (VA) - 750
Output power ports - 4 x IEC-C13
OutputVoltage - -
PackageContents - -
Packaging data - Cables included - Input power cable
Packaging data - Manual - Yes
PeriodofWarranty - 2 Y
Ports & interfaces - AC outlets quantity - 4 AC outlet(s)
Ports & interfaces - AC outlet types - C13 coupler
Ports & interfaces - Ethernet LAN (RJ-45) ports - 2
Ports & interfaces - Power plug - C14 coupler
Ports & interfaces - USB 2.0 ports quantity - 1
Ports & interfaces - USB port - Yes
Ports & interfaces - USB port type - USB Type-B
PowerVAW - 750 VA
PowerW - 410 W
ProdDesc - APC Back-UPS 750VA, 230V, AVR, IEC Sockets
producer - APC
Producer - APC
ProducerCode - BX750MI
ProductName - APC Back-UPS BX750MI - 750VA, 4x C13, USB
ProductPicture - http://www.tdbaltic.ee/images/ds4/BX750MI-01.jpg
ProductPicture2 - http://www.tdbaltic.ee/images/ds4/BX750MI-02.jpg
ProductPicture3 -
ProductPicture4 -
RechargeTime - 8 h
RJ45 - Yes
Runtime - 7.25/0.75
ShortDescription -
Short description - APC Back-UPS BX 750 VA BX750MI
ShortSummaryDescription - APC Back-UPS BX750MI - 750VA, 4x C13, USB, Line-Interactive, 0.75 kVA, 410 W, Sine, 140 V, 300 V
SmartSlot - -
Software -
Special functions - AVR
Stck_Kart - 1
Stck_Pal - 40
Storno - Y
Technical details - Compliance certificates - RoHS
Title - APC Back-UPS BX750MI - 750VA, 4x C13, USB
Topology - Line interactive
UPS Architecture - line-interactive
UPS devices and accessories - Yes
URL - https://www.apc.com/shop/uk/en/products/APC-Back-UPS-750VA-230V-AVR-IEC-Sockets/P-BX750MI
USB - -
vendpn - BX750MI
Warranty - 2 years
WarrantyInfo - 2 years
WaveformType - Stepped approximation to a sinewave
Weight - 5.4 kg
Weight - 5.400 kg
Weight - 6,35
Weight - 6.38
Weight - 6.500000
Weight & dimensions - Depth - 355 mm
Weight & dimensions - Height - 160 mm
Weight & dimensions - Package depth - 430 mm
Weight & dimensions - Package height - 250 mm
Weight & dimensions - Package weight - 5.9 kg
Weight & dimensions - Package width - 197 mm
Weight & dimensions - Weight - 5.4 kg
Weight & dimensions - Width - 120 mm
Weight, kg - 5.4
Width - 120 mm
Width - 430.000000
Width, mm - 120
