Accessories included -
Active power - 540 W
Alarm -
Alarm when on batteryDistinctive low battery alarmOverload continuous tone alarm
Apparent power - 900 VA
ARTIKEL1 - BACK UPS PRO BR 900VA 6 OUTLETS
ARTIKEL2 - AVR LCD INTERFACE BACK UPS PRO B
Battery - Automatic battery test - Yes
Battery - Battery life (max) - 5 year(s)
Battery - Battery recharge time - 12 h
Battery - Battery technology - Sealed Lead Acid (VRLA)
Battery - Cold start - Yes
Battery - Hot-swap battery - Yes
BatteryType - Lead-acid
Brand - APC
BrandPartCode - BR900MI
Breite - 0.26
Category - Root/Accessories | Exploitation/Power supply/UPSs and power strips/UPSs
Category - Uninterruptible Power Supplies (UPSs)
Category 1 - Energie & USV
Category 2 - USV & Stromversorgung
Category_1 - Power
Category_2 - UPS
Charging time - 12 h
Chassis type - Tower
Color - -
Color - Black
ControlPanel - Multifunction LCD status and control console
Depth - 310 mm
Description - Power supply BR900MI UPS Back Pro BR 900VA 6xC13, AVR,LCD
Design - Cable length - 1.83 m
Design - Certification - A-tick, C-tick, CE, EAC, GS Mark, RCM, TISI
Design - Cooling type - Passive
Design - Display type - LCD
Design - Form factor - Tower
Design - LED indicators - Yes
Design - Product colour - Black
dimension depth - 250 mm
dimension height - 440 mm
Dimensions - 190 x 91 x 310 mm
dimension weight - 8000 g
dimension width - 150 mm
ean - 731304346944
EAN - 0731304346944
EANCode - 0731304346944
Eans - 0731304346944
EAN_code - 0731304346944
Environment requirements - Working temperature: 0 - 40 ° C Relative humidity during work: 095% Working height: 0-3000 meters Storage temperature: -15 - 45 ° C Relative humidity during storage: 0-95% Storage height: 0-15000 meters Noise heard at a distance of 1 meter from the surface of the device: 45.0dBA
Features - Audible alarm(s) - Yes
Features - Audible alarm modes - Alarm when on battery, Low battery alarm, Overload alarm
Features - Automatic Voltage Regulation (AVR) - Yes
Features - ECO mode - Yes
Features - Input frequency - 50/60 Hz
Features - Input operation voltage (max) - 294 V
Features - Input operation voltage (min) - 176 V
Features - Maximum current - 10 A
Features - Noise level - 45 dB
Features - Output frequency - 50/60 Hz
Features - Output power - 540 W
Features - Output power capacity - 0.9 kVA
Features - Response time - 12 ms
Features - Surge protection - Yes
Features - Surge protection features - Network
Features - UPS topology - Line-Interactive
Features - Waveform - Sine
Filters / protection - Overload
FormFactor - Tower
Gewicht - 8.11
GrossWeight - 8.000 kg
Gross Weight Kg - 8
GRUPPE1 - Power Protection
GRUPPE2 - UPS (Uninterruptable Power Supply)
GTIN - 731304346944
GTIN - 0731304346944
guarantee - 24
guarantee_type - external
Height - 190 mm
HERSTELLER - APC
Hoehe - 0.15
HSTNUMMER - BR900MI
I/O connectors - 1 x USB (Type B)
I/O connectors - 2 x RJ-11
I/O connectors - 2 x RJ-45 LAN
InputConnections - IEC 60320 C14
InputFrequency - 50/60 Hz +/- 3 Hz Auto-sensing
Input power ports - IEC-C14
InputVoltage - 176 - 294V
InterfacePorts - USBRJ45 network line - 10/100/1000 Base-T Ethernet
Laenge - 0.44
Logistics data - Harmonized System (HS) code - 85078000
LongDesc -
LongDesc - Security through emergency powerThe APC Back-UPS PRO BR900MI has a built-in battery that ensures that all connected equipment, such as a PC, NAS, router, modem and media box, continues to work if the power goes out. In addition, this APC emergency power supply can also automatically shut down a NAS or PC in time via the USB connection. Useful when the APC ups is almost empty. This prevents downtime, damage to equipment, and loss of data.Safety and convenienceIn addition, this safe APC Back-UPS PRO protects valuable equipment against peak voltage caused by lightning strikes, for example. With these UPS you can secure both your power and network connections (1Gbit). Because the APC Back-UPS PRO is also equipped with an LCD screen, it is easy to use.InsuranceDespite the high risk of lightning strikes and surges, APC has full confidence in its products and offers this APC Back-UPS:- Equipment protection policy of 150,000 eurosExtend the lifespanThe internal battery cartridge (APCRBC164) can be replaced easily, safely and independently by the user. This without having to switch off the APC BR900MI or connected equipment. This way you can easily and cheaply extend the lifespan of the APC Back-UPS.Warranty extensionThe factory warranty of the BR900MI is 3 years and can be upgraded to 6 years with the APC service pack (WBEXTWAR3YR-SP-01).Save on operational costsThe BR900MI features a customizable AVR, which extends battery life and maximizes runtime by correcting low and high voltages without discharging the battery. In addition, the UPS has Greenmode, a smart power-saving operating mode that optimally combines efficiency and protection. Furthermore, the emergency power supply has 6 Battery+surge protected outputs. PowerChute Serial Shutdown software and a USB cable are also included.Green PremiumThis label represents Schneider Electric's commitment to delivering products with best-in-class environmental performance. Green Premium promises to comply with the latest regulations, transparency on environmental effects and circular and low CO2 emission products.Green Premium:- Stands for an energy-efficient product that helps our customers achieve their CO2 reduction goals and save energy costs at the same time. The energy efficiency of this product is at least 10% higher than the market average.- Provides insight into the environmental effects of the product, this data is available 24/7 via the digital product environmental profile, see https://checkaproduct.se.com/- Commits to minimal use of hazardous substances within and beyond regulatory compliance (RoHS/REACh)
LongProductName - APC Back-UPS PRO BR900MI - 6x C13 output, USB, 900VA
LongSummaryDescription - APC Back-UPS PRO BR900MI - 6x C13 output, USB, 900VA. UPS topology: Line-Interactive, Output power capacity: 0.9 kVA, Output power: 540 W. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 6 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery life (max): 5 year(s), Battery recharge time: 12 h. Form factor: Tower, Product colour: Black, Cable length: 1.83 m. Width: 91 mm, Depth: 310 mm, Height: 190 mm
Manufacturer - APC
Manufacturer Code - BR900MI
Manufacturer Name - APC by Schneider Electric
Manufacturer_code - BR900MI
MANUFDATASHEET - https://www.apc.com/shop/my/en/products/APC-Back-UPS-Pro-900VA-230V-AVR-LCD-6-IEC-outlets/P-BR900MI
MPN - BR900MI
Name - APC Back-UPS Pro 900VA BR900MI
Name - APC Back-UPS Pro BR BR900MI 900VA 540W
Name - APC Back Pro BR900MI
name - Power supply BR900MI UPS Back Pro BR 900VA 6xC13, AVR,LCD
No. of batteries - 1
Number of phases input - 1 (230V)
Operational conditions - Non-operating altitude - 0 - 15000 m
Operational conditions - Operating altitude - 0 - 3000 m
Operational conditions - Operating relative humidity (H-H) - 0 - 95%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 0 - 95%
Operational conditions - Storage temperature (T-T) - -15 - 45 °C
Other features -
Other features - Nominal input voltage - 230 V
Other features - Nominal output voltage - 230 V

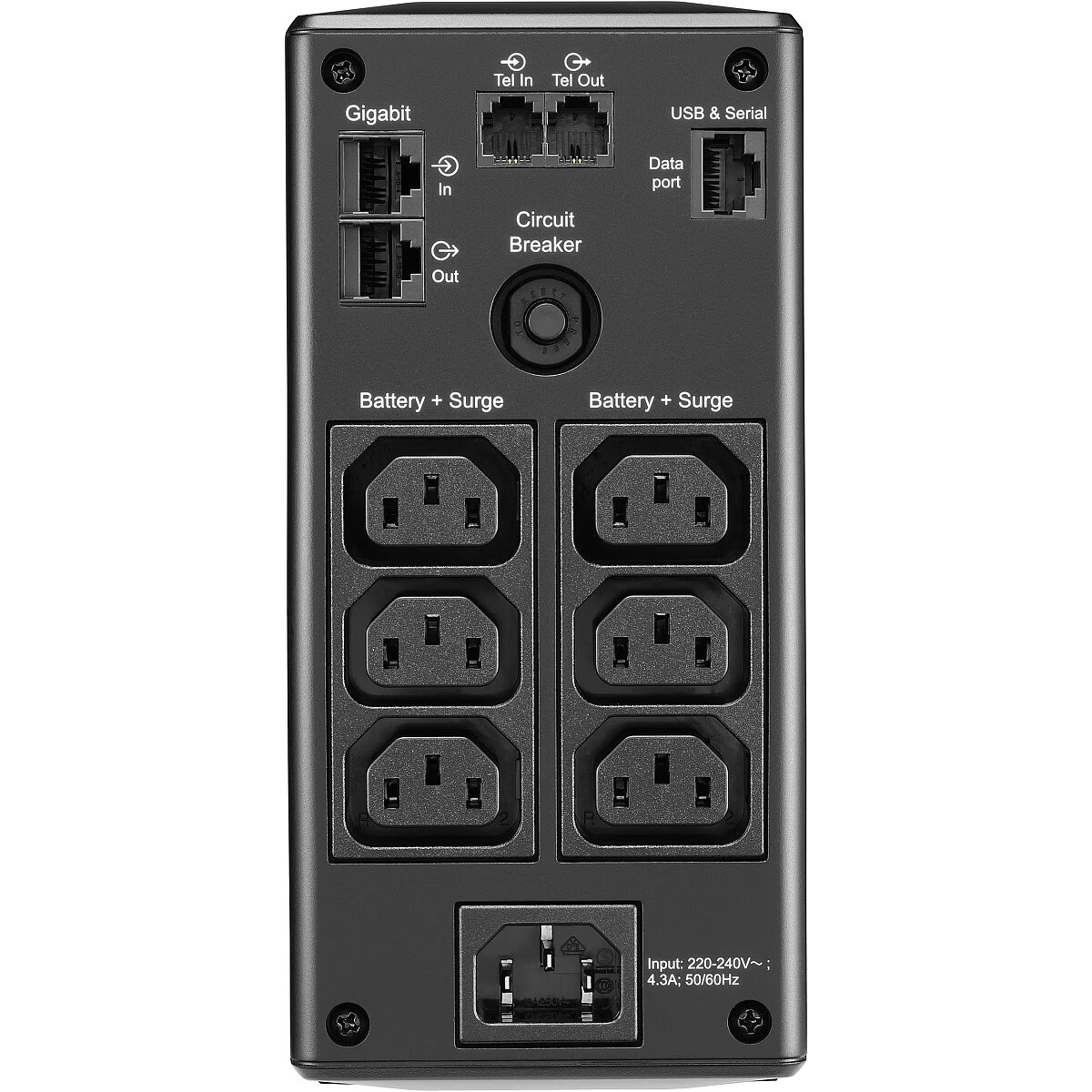

OutputConnections - 6x IEC 60320 C13 (Battery Backup)
OutputFrequency - 50/60 Hz +/- 1 Hz Sync to mains
Output power ports - 6 x IEC-C13
OutputVoltage - -
PackageContents - USB cableUser manual
Packaging data - Cables included - USB cable
Packaging data - Manual - Yes
Ports & interfaces - AC outlets quantity - 6 AC outlet(s)
Ports & interfaces - AC outlet types - C13 coupler
Ports & interfaces - Cabling technology - 10/100/1000Base-T(X)
Ports & interfaces - Ethernet LAN (RJ-45) ports - 2
Ports & interfaces - Power plug - C14 coupler
Ports & interfaces - USB port - Yes
PowerVAW - 900 VA
PowerW - 540 W
ProdDesc - Back UPS Pro BR 900VA, 6 Outlets, AVR, LCD Interface
producer - APC
Producer - APC
ProducerCode - BR900MI
ProductName - APC Back-UPS PRO BR900MI - 6x C13 output, USB, 900VA
ProductPicture - http://www.tdbaltic.ee/images/ds4/BR900MI-01.jpg
ProductPicture2 -
ProductPicture3 -
ProductPicture4 -
RechargeTime - 12 h
RJ45 - Yes

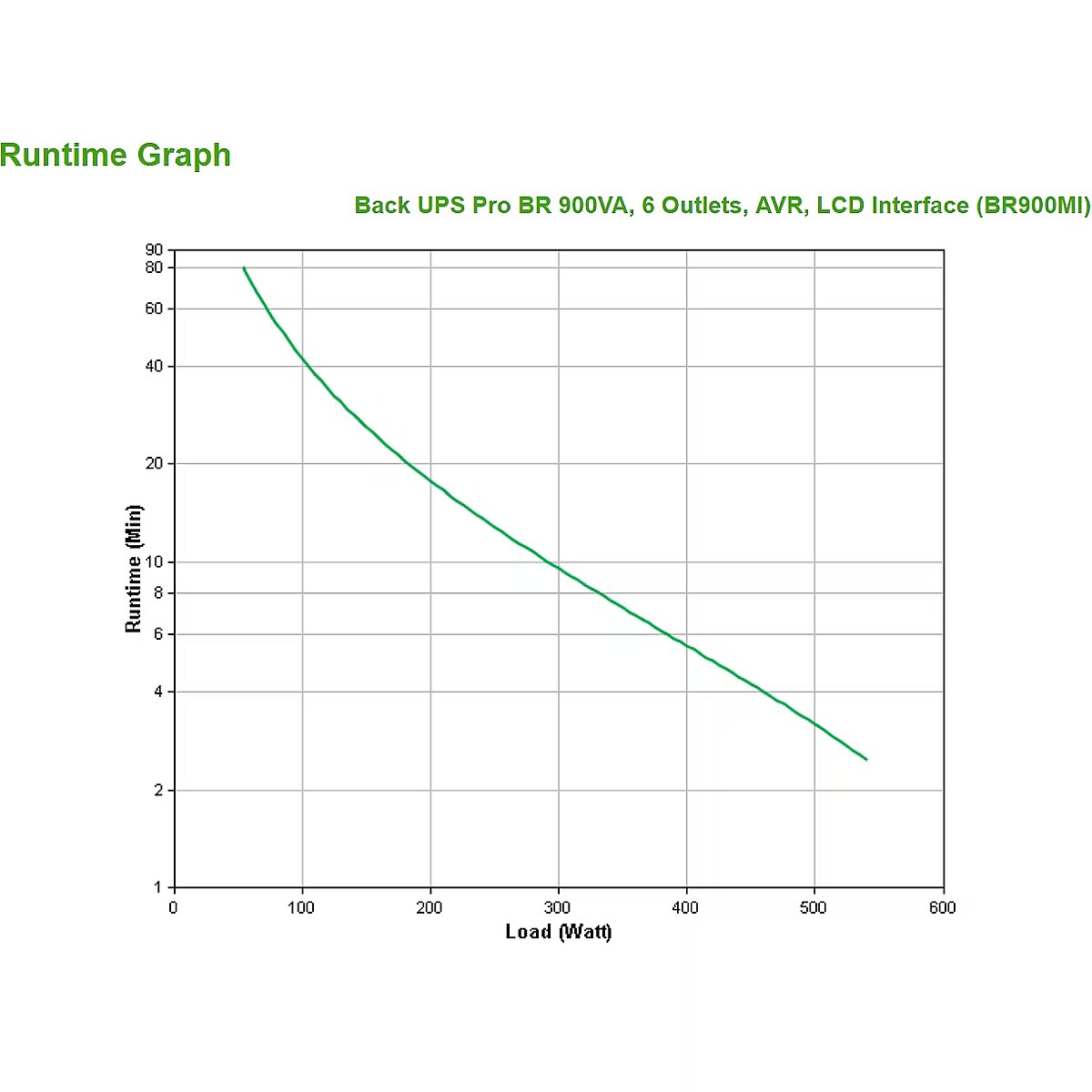

Runtime - 11.3/2.5
ShortDescription -
Short description - APC Back-UPS Pro BR 900 VA BR900MI
ShortSummaryDescription - APC Back-UPS PRO BR900MI - 6x C13 output, USB, 900VA, Line-Interactive, 0.9 kVA, 540 W, Sine, 176 V, 294 V
SmartSlot - -
Software -
Special functions -
Stck_Kart - 1
Stck_Pal - 80
Storno - Y
Technical details - Sustainability certificates - Green Premium
Title - APC Back-UPS PRO BR900MI - 6x C13 output, USB, 900VA
Topology - Line interactive
Transfer time (max) - 10 ms
UPS Architecture - line-interactive
URL - https://www.apc.com/shop/ye/en/products/Back-UPS-Pro-BR-900VA-6-Outlets-AVR-LCD-Interface/P-BR900MI
USB - Yes
vendpn - BR900MI
Voltage - 12 V
Warranty - -
WarrantyInfo - 2 years repair or replace, 3 years repair or replace for European Union countries
WaveformType - Stepped Approximation to Sine Wave
Weight - 7 kg
Weight - 7.100 kg
Weight - 8,10
Weight - 8.18
Weight & dimensions - Depth - 310 mm
Weight & dimensions - Height - 190 mm
Weight & dimensions - Package depth - 143 mm
Weight & dimensions - Package height - 255 mm
Weight & dimensions - Package weight - 8 kg
Weight & dimensions - Package width - 440 mm
Weight & dimensions - Weight - 7.1 kg
Weight & dimensions - Width - 91 mm
Width - 91 mm
