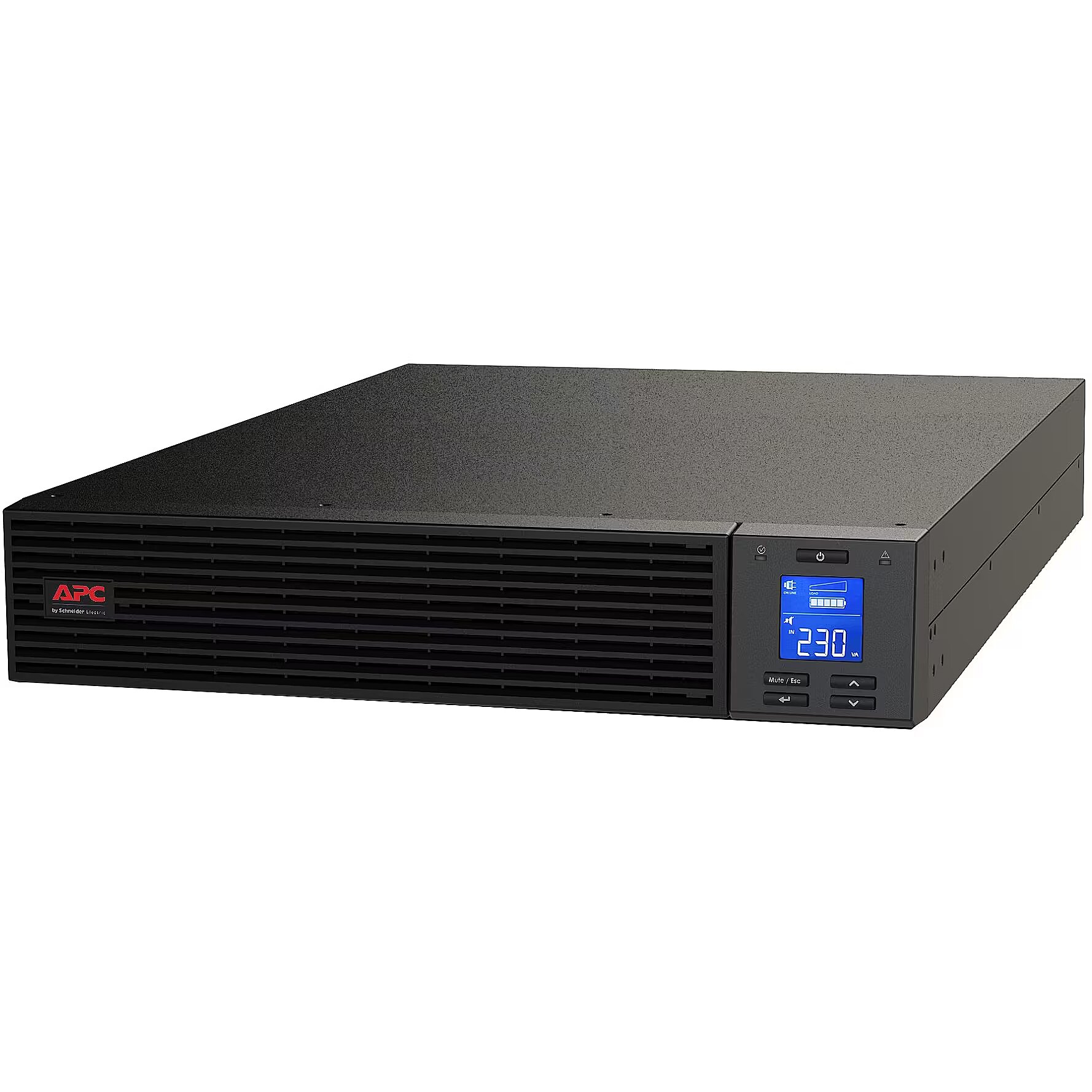

APC Easy-UPS SRV2KRIRK 2000VA, 1600W, IEC, 2U

Accessories included - Basic RS-232 cable for UPS signaling CD with software Rack mount brackets Support rails for installation in a cabinet USB cable User manual
Active power - 1600 W
Apparent power - 2000 VA
ARTIKEL1 - EASY UPS SRV RM 2000VA 230V
ARTIKEL2 - IN
ARTIKEL2 - WITH RAILKIT IN
Battery - Automatic battery test - Yes
Battery - Battery recharge time - 4 h
Battery - Battery technology - Sealed Lead Acid (VRLA)
Brand - APC
BrandPartCode - SRV2KRI
Breite - 0.56
Category - Uninterruptible Power Supplies (UPSs)
Certification - CE, IEC 62040-1-1, IEC 62040-1-2
Charging time - 4 h
Chassis type - Rack
Color - Black
Depth, mm - 462
Description - APC EASY UPS SRV RM 2000VA 230V
Description - APC EASY UPS SRV RM 2000VA 230V ,WITH RAILKIT
Description - High-quality double-conversion UPS, designed with your basic power protection needs in mind, even under the most unstable power conditions
Design - Certification - CE, IEC 62040-1-1, IEC 62040-1-2
REACH
Design - Display type - LCD
Design - Form factor - Rackmount
Design - LED indicators - Yes
Design - Product colour - Black
Design - Rack capacity - 2U
dimension depth - 320 mm
dimension height - 700 mm
Dimensions - 8,6 x 43,7 x 46,2 cm
dimension weight - 24500 g
dimension width - 560 mm
ean - ABEAN-AU60842
EANCode - 0731304341697
Environment requirements - Working temperature
0-40 ° C Relative humidity during operation
0 - 95 (non-condensing)% Working height
0-3000 meters Storage temperature
-20 - 50 ° C Relative humidity during storage
0 - 95 (non-condensing)% Storage height
0-15,000 meters Audible noise at a distance of 1 meter from the surface of the device
50.0 dBA Protection class
IP 20
Features - Audible alarm(s) - Yes
Features - Audible alarm modes - Alarm when on battery, Fault, Low battery alarm, Overload alarm
Features - Auto-restart - Yes
Features - Crest factor - 3:1
Features - ECO mode - Yes
Features - Efficiency - 88%
Features - Emergency Power Off (EPO) - No
Features - Input frequency - 40/70 Hz
Features - Input operation voltage (max) - 280 V
Features - Input operation voltage (min) - 160 V
Features - Input power factor - 0.95
Features - Maintenance-free - Yes
Features - Noise level - 50 dB
Features - Number of input phases - 1
Features - Number of output phases - 1
Features - Output frequency - 50/60 Hz
Features - Output operation voltage (max) - 240 V
Features - Output operation voltage (min) - 220 V
Features - Output power - 1600 W
Features - Output power capacity - 2 kVA
Features - Output power factor - 0.8
Features - Output voltage regulation - 1%
Features - Output voltage Total Harmonic Distortion (THD) - 3%
Features - Socket circuit breaker - Yes
Features - Surge energy rating - 600 J
Features - UPS topology - Double-conversion (Online)
Features - Waveform - Sine
Form factor - Rack
Gewicht - 24.46
GRUPPE1 - Power Protection
GRUPPE2 - UPS (Uninterruptable Power Supply)
GTIN - 0731304341697
GTIN - 731304341697
guarantee - 24
guarantee_type - external
Height - 220.000000
Height - 225.000000
Height, mm - 86
HERSTELLER - APC
Hoehe - 0.3
HSTNUMMER - SRV2KRI
HSTNUMMER - SRV2KRIRK
I/O connectors - 1 x RS-232 (COM)
I/O connectors - 1 x USB (Power)
Input connection - IEC-320 C14
Input frequency, Hz - 40-70
Input power ports - IEC-C14
Laenge - 0.7
Length - 700.000000
Length - 703.000000
Logistics data - Harmonized System (HS) code - 85078000
LongDesc - Automatic internal bypassSupplies utility power to the connected loads in the event of a UPS power overload or fault.Automatic restart of loads after UPS shutdownAutomatically starts up the connected equipment upon the return of utility power.ECO ModeOperating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection.Input power factor correctionMinimizes installation costs by enabling the use of smaller generators and cabling.Intelligent battery managementMaximizes battery performance, life, and reliability through intelligent, precision charging.LCD displayAlpha-Numeric Display which displays system parameters and alarms.Serial connectivityProvides management of the UPS via a serial port.USB connectivityProvides management of the UPS via a USB port (not available on all models).FeaturesManagement SoftwareAllows you to easily monitor your utility power and manage your UPS.ECO ModeOperating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection.Input power factor correctionMinimizes installation costs by enabling the use of smaller generators and cabling.High efficiencyHigh efficiency rates that remain stable even at lower operating power levels.SmartSlotCustomize UPS capabilities with management cards.Intuitive LCD interfaceProvides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.Double conversion on-line topologyGuarantees a consistently high level of power quality. Any disturbances on the distribution waveform are regenerated via the zero transfer time AC to DC then DC to AC conversion process. The battery is only used as a back-up source.Generator compatibleEnsures clean, uninterrupted power to protected equipment when generator power is used.Wide input voltage rangeDesigned for harsh electrical environments to save battery life.ServiceabilityDisconnected battery notificationWarns when a battery is not available to provide backup power.Audible alarmsProvides notification of changing utility power and UPS power conditions.Automatic self-testPeriodic battery self-test ensures early detection of a battery that needs to be replaced.Predicitive failure notificationProvides early-warning fault analysis ensuring proactive component replacement.ManageabilitySerial connectivityProvides management of the UPS via a serial port.SmartSlotCustomize UPS capabilities with management cards.LCD graphics displayText and mimic diagrams that display modes of operation, system parameters and alarms.Network manageableProvides remote power management of the UPS over the network.LED IndicatorsProvide easy-to-read status of the unit and utility power conditions.AvailabilityIntelligent battery managementMaximizes battery performance, life, and reliability through intelligent, precision charging.
LongProductName - Easy UPS On-Line, SRV, RM, 2000VA, 230V
LongSummaryDescription - APC SRV2KRI. UPS topology: Double-conversion (Online), Output power capacity: 2 kVA, Output power: 1600 W. AC outlet types: C13 coupler, AC outlets quantity: 4 AC outlet(s), USB port type: USB Type-B. Battery technology: Sealed Lead Acid (VRLA), Battery recharge time: 4 h. Form factor: Rackmount, Product colour: Black, Rack capacity: 2U. Width: 437 mm, Depth: 462 mm, Height: 86 mm
Manufacturer - APC
ManufacturerPartNumber - SRV2KRI
ManufacturerPartNumber - SRV2KRIRK
name - Easy UPS SRV 2kVA/1600Ww/rail kit SRV2KRIRK
Nominal input voltage, V - 230
Nominal output voltage, V - 230
Number of phases input - 1 (230V)
Operating temperature range (T-T), °C - 0-40
Operational conditions - Operating altitude - 0 - 3000 m
Operational conditions - Operating relative humidity (H-H) - 0 - 95%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 0 - 95%
Operational conditions - Storage temperature (T-T) - -20 - 50 °C
Other features - Approvals: CE, IEC 62040-1-1, IEC 62040-1-2
Other features - Nominal input voltage - 230 V
Other features - Nominal output voltage - 230 V
Output power, W - 2000
Output power capacity (VA) - 2000
Output power ports - 4 x IEC-C13
Packaging data - Cables included - USB cable
Packaging data - Manual - Yes
Packaging data - Software CD - Yes
PeriodofWarranty - 2 Y
Ports & interfaces - AC outlets quantity - 4 AC outlet(s)
Ports & interfaces - AC outlet types - C13 coupler
Ports & interfaces - Serial interface - Yes
Ports & interfaces - Serial ports quantity - 1
Ports & interfaces - SmartSlot - Yes
Ports & interfaces - USB port - Yes
Ports & interfaces - USB port type - USB Type-B
producer - APC
ProductName - SRV2KRI
ShortSummaryDescription - APC SRV2KRI, Double-conversion (Online), 2 kVA, 1600 W, Sine, 160 V, 280 V
Software -
Special functions -
Stck_Kart - 1
Stck_Pal - 1
Stck_Pal - 8
Storage temperature range (T-T), °C - -20-50
Storno - N
Technical details - Sustainability certificates - RoHS
Title - APC SRV2KRI uninterruptible power supply (UPS) Double-conversion (Online) 2 kVA 1600 W 4 AC outlet(s)
UPS Architecture - on-line double conversion
UPS devices and accessories - Yes
URL - https://www.apc.com/shop/my/en/products/APC-Easy-UPS-On-Line-SRV-RM-2000VA-230V/P-SRV2KRI?isCurrentSite=true
vendpn - SRV2KRIRK
WarrantyInfo - 2 years repair or replace
Weight - 18.2 kg
Weight - 23.110000
Weight - 24.660000
Weight & dimensions - Depth - 462 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Package depth - 599 mm
Weight & dimensions - Package height - 142 mm
Weight & dimensions - Package weight - 20.7 kg
Weight & dimensions - Package width - 551 mm
Weight & dimensions - Weight - 18.2 kg
Weight & dimensions - Width - 437 mm
Weight, kg - 18.2
Width - 547.000000
Width - 557.000000
Width, mm - 437
