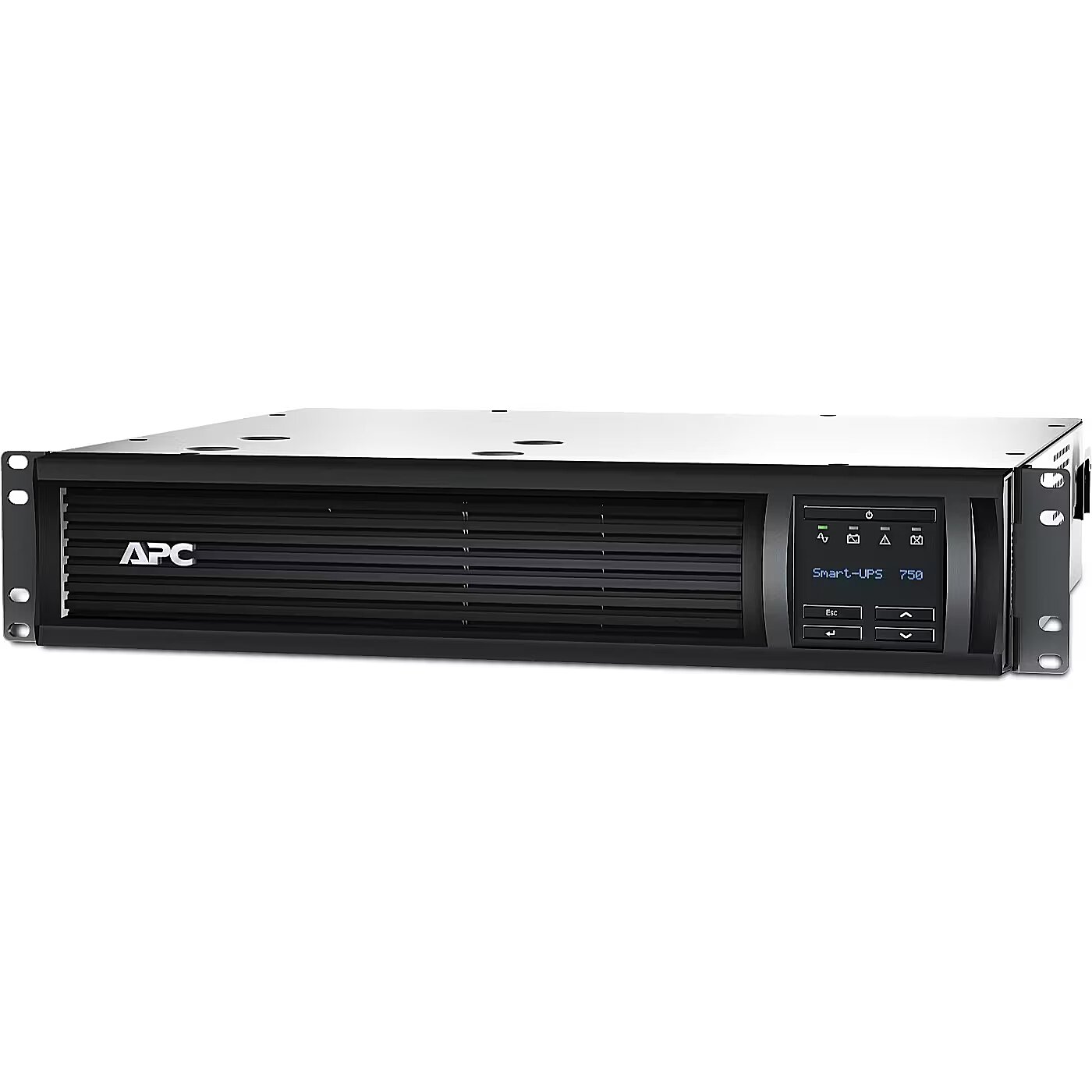

APC Smart-ups SMT750RMI2UC 750VA, 500W, IEC, 2U

Accessories included - CD with software Documentation on CD User's manual Mounting brackets for industrial cabinets USB cable
Active power - 500 W
Alarm - Provides notification of changing utility power and UPS conditions
Apparent power - 750 VA
ARTIKEL1 - SMART-UPS 750VA LCD RM 2U
ARTIKEL2 - 230V WITH SMARTCONNECT IN
Backup time (100% load) - 5.5 min
Battery - Automatic battery test - Yes
Battery - Battery capacity - 168 VAh
Battery - Battery life (max) - 5 year(s)
Battery - Battery recharge time - 3 h
Battery - Battery technology - Sealed Lead Acid (VRLA)
Battery - Cold start - Yes
Battery - Hot-swap battery - Yes
Battery - Typical backup time at full load - 5.5 min
Battery - Typical backup time at half load - 16 min
BatteryType - Lead-acid
Brand - APC
BrandPartCode - SMT750RMI2UC
Category - Root/Accessories | Exploitation/Power supply/UPSs and power strips/UPSs
Category - Uninterruptible Power Supplies (UPSs)
Category 1 - Energie & USV
Category 2 - USV & Stromversorgung
Category_1 - Power
Category_2 - UPS
Certificates - Certification - CE, CSA, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, TUV, UL 1778, VDE, REACH, PEP, EOLI
Certificates - Compliance certificates - RoHS
Charging time - 3 h
Chassis type - Rack
Color - Black
Color - Silver
ControlPanel - Multi-function LCD status and control console
Depth - 409 mm
Description - APC Smart-UPS 750 VA LCD for rack mounting (RM), 2U, 230 V, with SmartConnect service Intelligent and efficient power protection in networks, from the basic level to the possibility of scaling back-up time. The perfect solution for servers, POS terminals, routers, switches, hubs and other network devices.
Description - APC SMART-UPS 750VA LCD RM 2U 230V WITH SMARTCONNECT
Design - Form factor - Rackmount
Design - LED indicators - Battery replacement
Design - Product colour - Black
Design - Rack capacity - 2U
Designation - CE+WEEE
dimension depth - 600 mm
dimension height - 240 mm
Dimensions - 432 x 409 x 86 mm 2U
dimension weight - 22000 g
dimension width - 540 mm
ean - 731304340324
EAN - 0731304340324
EANCode - 0731304340324
Eans - 731304340324
EAN_code - 0731304340324
Environment requirements - Operating temperature: 0 - 40°C Relative humidity during operation: 0 - 95% Height m.p. during work: 0-3000 meters Temperature (storage): -15 - 45 ° C Relative humidity (storage): 0 - 95% Height m.p. (storage): 0-15000 meters
Features - Audible alarm(s) - Yes
Features - Auto-restart - Yes
Features - Automatic Voltage Regulation (AVR) - Yes
Features - Efficiency - 97.7%
Features - Hold time (max) - 2 ms
Features - Input frequency - 50/60 Hz
Features - Input operation voltage (max) - 302 V
Features - Input operation voltage (min) - 151 V
Features - Noise level - 42 dB
Features - Output operation voltage (max) - 240 V
Features - Output operation voltage (min) - 220 V
Features - Output power - 500 W
Features - Output power capacity - 0.75 kVA
Features - Surge energy rating - 459 J
Features - Surge protection - Yes
Features - UPS topology - Line-Interactive
Features - Waveform - Pure sine
Filters / protection - Surge
Filters / protection - Voltage drop
FormFactor - Rack
GrossWeight - 21.230 kg
Gross Weight Kg - 21,33
GRUPPE1 - Power Protection
GRUPPE2 - UPS (Uninterruptable Power Supply)
GTIN - 731304340324
GTIN - 0731304340324
guarantee - 36
guarantee_type - external
Height - 86 mm
Height - 240.000000
HERSTELLER - APC
Hold-up time (maks) - 10 ms
HSTNUMMER - SMT750RMI2UC
I/O connectors - 1 x USB 2.0
I/O connectors - 2 x RJ-45 LAN
InputConnections - IEC-320 C14
InputFrequency - 50/60 Hz +/- 3 Hz (auto sensing)
Input power ports - IEC-C14
Input power ports - Wtyczka sieciowa
InputVoltage - 230 V
InterfacePorts -

RJ-45 Serial

SmartSlot

USB

Laenge - 0.59
Length - 540.000000
Logistics data - Harmonized System (HS) code - 85078000
Logistics data - Products per pallet - 16 pc(s)
Logistics data - Total carbon footprint (kg of CO2e) - 821.3
LongDesc -
LongDesc - Stay always online and prevent data lossAs soon as the power fails, an APC Smart-UPS immediately supplies emergency power to all connected equipment. Because an APC UPS does this automatically, you prevent unwanted failure of, for example, a PC, server or switch. With the free APC PowerChute software, you can even have critical IT hardware shut down automatically and in a controlled manner when the battery of the UPS is almost empty. This prevents data loss, downtime and physical damage to hardware.SafetyIn addition, a Smart-UPS protects connected devices against peak voltage caused by lightning, among other things. This APC emergency power supply is ideally suited for (small) business use.Battery lifeYou can easily read the expected battery life in the runtime graph, which you can find between the product images. This makes it easy to see how long the UPS will supply emergency power at a certain load.SmartConnectOut-of-box remote UPS monitoring, free during a 6-month trial period. Using the SmartConnect Ethernet port, you can easily connect the Smart-UPS to your network and monitor it remotely via the secure APC SmartConnect cloud-based web portal*. In addition, the UPS can always be monitored via this port via EcoStruxure IT Expert (SFTWES1-DIGI).* Extend access to SmartConnect via the following licenses:1 year Standard Plan: ERWPMON1-1Y-DIGI3 years Standard Plan: ERWPMON1-3Y-DIGI1 year Advanced Plan: ERWPLUS1-1Y-DIGI3 years Advanced Plan: ERWPLUS1-3Y-DIGIPowerChuteBy connecting the UPS to a maximum of one server via a USB cable, it can automatically provide it with a shutdown signal during a prolonged power failure and thus still prevent a hard shutdown. This exact moment can be set via the free APC PowerChute Serial Edition software.Network Management CardIf you connect the UPS via the optional APC Network Management Card (AP9640/AP9641) directly to your network, it can be easily managed remotely via SNMP or our remote management software Ecostruxure IT Expert (SFTWES1-DIGI). You can also automatically send a shutdown signal via the network to multiple physical and/or virtual servers. By means of the APC PowerChute Network Shutdown Software belonging to the network card, it is even possible to differentiate the shutdown moment and the order in which this happens.Ease of useBy means of physical buttons and an LCD screen, it is possible to set and read out the basic functionalities. Thanks to the supplied 4-post rail kit, you can easily mount the UPS in a rack.Extend the lifespanThe internal battery cartridge (APCRBC123) can be replaced easily, safely and independently by the user. This without having to switch off the APC SMT750RMI2UC or connected equipment. This way you can easily and cheaply extend the lifespan of the APC Smart-UPS and your equipment always stays online.Warranty extensionThe factory warranty of the SMT750RMI2UC is 3 years, with the exception of the battery cartridge, which has a factory warranty of 2 years. Both are extended by 3 years to 6 and 5 years respectively with the APC service pack (WBEXTWAR3YR-SP-02).Switched Outlet Groups: Remote reboot and phased start-upThanks to the Switched Outlet Groups it is possible to configure a phased/delayed power-on per UPS outlet group. This reduces the peak load on the UPS and brings it closer to the constant load, which can limit oversizing of the UPS.It is also possible to reset a group of multiple UPS outputs and the equipment connected to them. If SmartConnect Advanced (ERWPLUS1-1Y-DIGI), a UPS with SmartConnect port + Ecostruxure IT Expert (SFTWES1-DIGI) or a network card (ap9640) in combination with Ecostruxure IT Expert (SFTWES1-DIGI) are used, this can even be done remotely.This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 750VA line interactive 2U rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with IEC 320 C14 input, 4x IEC 320 C13 outlets, and 2x IEC jumper cables. It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SMT UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. It is compatible with a dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications.
LongProductName - APC Smart-UPS SMT750RMI2UC - 4x C13, USB, Rack Mountable, SmartConnect, 750VA
LongSummaryDescription - APC Smart-UPS SMT750RMI2UC - 4x C13, USB, Rackmount 2U, SmartConnect, 750VA. UPS topology: Line-Interactive, Output power capacity: 0.75 kVA, Output power: 500 W. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 4 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 168 VAh, Typical backup time at full load: 5.5 min. Form factor: Rackmount, Product colour: Black, Rack capacity: 2U. Compliance certificates: RoHS, Certification: CE, CSA, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, TUV, UL 1778, VDE, REACH, PEP, EOLI
Manufacturer - APC
Manufacturer Code - SMT750RMI2UC
Manufacturer Name - APC by Schneider Electric
ManufacturerPartNumber - SMT750RMI2UC
Manufacturer_code - SMT750RMI2UC
MANUFDATASHEET - https://www.apc.com/shop/hr/en/products/APC-Smart-UPS-Line-Interactive-750VA-Rackmount-2U-230V-4x-IEC-C13-outlets-SmartConnect-Port-SmartSlot-AVR-LCD/P-SMT750RMI2UC
MPN - SMT750RMI2UC
Name - APC Smart-UPS 750VA SMT750RMI2UC LCD - with SmartConnect
Name - APC Smart-UPS Rack 2HE SMT750RMI2UC 750VA 500W Line Interactive
Name - APC Smart SMT750RMI2UC
name - SMT750RMI2UC SmartUPS
No. of batteries - 1
Number of phases input - 1 (230V)
Operational conditions - Non-operating altitude - 0 - 15000 m
Operational conditions - Operating altitude - 0 - 3000 m
Operational conditions - Operating relative humidity (H-H) - 0 - 95%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 0 - 95%
Operational conditions - Storage temperature (T-T) - -15 - 45 °C
Other features - Output frequency (synchronized with the mains): 50 / 60Hz +/- 3 Hz Input frequency: 50/60 Hz +/- 3 Hz (automatic detection) Noise heard at a distance of 1 m from the surface of the device: 42.0dBA
OutputConnections -

4x IEC 320 C13

2x IEC Jumpers

OutputFrequency - 50/60 Hz +/- 3 Hz Sync to mains
Output power ports - 4 x IEC-C13
OutputVoltage - 230 V
PackageContents -

CD with software

Documentation CD

Installation guide

Rack Mounting support rails

Smart UPS signalling RS-232 cable

USB cable

Packaging content - Cables included - RS-232, USB cable
Packaging content - Quick installation guide - Yes
Packaging content - Rack mount kit - Yes
Packaging data - Package depth - 584 mm
Packaging data - Package height - 241 mm
Packaging data - Package weight - 21.2 kg
Packaging data - Package width - 546 mm
Packaging data - Software CD - Yes
PeriodofWarranty - 2 Y
Ports & interfaces - AC outlets quantity - 4 AC outlet(s)
Ports & interfaces - AC outlet types - C13 coupler
Ports & interfaces - Number of output IEC jumpers - 2
Ports & interfaces - Power plug - C14 coupler
Ports & interfaces - Serial interface - Yes
Ports & interfaces - Serial interface type - RJ-45
Ports & interfaces - SmartSlot - Yes
Ports & interfaces - USB port - Yes
PowerVAW - 750 VA
PowerW - 500 W
ProdDesc - APC Smart-UPS 750VA LCD RM 2U 230V with SmartConnect
producer - APC
Producer - APC
ProducerCode - SMT750RMI2UC
ProductName - APC Smart-UPS SMT750RMI2UC - 4x C13, USB, Rackmount 2U, SmartConnect, 750VA
ProductPicture - http://www.tdbaltic.ee/images/ds4/SMT750RMI2UC-01.jpg
ProductPicture2 -
ProductPicture3 -
ProductPicture4 -
RechargeTime - 3 h
RJ45 - Yes
Runtime - 16/5.5
ShortDescription -
Short description - APC Smart-UPS 750 VA LCD RM mit SmartConnect
ShortSummaryDescription - APC Smart-UPS SMT750RMI2UC - 4x C13, USB, Rackmount 2U, SmartConnect, 750VA, Line-Interactive, 0.75 kVA, 500 W, Pure sine, 151 V, 302 V
SmartSlot - Yes
Software - PowerNet MIB v4.2.8
Special functions -
Stck_Kart - 1
Stck_Pal - 8
Storno - Y
Sustainability - Sustainability certificates - Green Premium
Title - APC Smart-UPS SMT750RMI2UC - 4x C13, USB, Rackmount 2U, SmartConnect, 750VA
Topology - Line interactive
UPS Architecture - line-interactive
UPS devices and accessories - Yes
URL - https://www.apc.com/
USB - Yes
vendpn - SMT750RMI2UC
Voltage - 230 V
Warranty - 3 years
WarrantyInfo - 3 years
WaveformType - Sine wave
Weight - 16.600 kg
Weight - 17.27 kg
Weight - 21.74
Weight - 22,40
Weight - 25.100000
Weight & dimensions - Depth - 406 mm
Weight & dimensions - Height - 89 mm
Weight & dimensions - Weight - 17.3 kg
Weight & dimensions - Width - 432 mm
Width - 432 mm
Width - 580.000000
