Accessories included -
Active power - 500 W
Alarm - Alarm when on battery : distinctive low battery alarm : configurable delays
Apparent power - 750 VA
ARTIKEL1 - SMART-UPS 750VA LCD 230V
ARTIKEL2 - WITH SMARTCONNECT IN
Battery - Automatic battery test - Yes
Battery - Battery life (max) - 5 year(s)
Battery - Battery recharge time - 3 h
Battery - Battery technology - Sealed Lead Acid (VRLA)
Battery - Cold start - Yes
Battery - Hot-swap battery - Yes
Battery - Typical backup time at full load - 4.6 min
Battery - Typical backup time at half load - 15.8 min
Battery recharge time, h - 3
BatteryType -
Maintenance-free sealed Lead-Acid battery with suspended electrolyteleakproof
Brand - APC
BrandPartCode - SMT750IC
Category - Root/Accessories | Exploitation/Power supply/UPSs and power strips/UPSs
Category - Uninterruptible Power Supplies (UPSs)
Category 1 - Energie & USV
Category 2 - USV & Stromversorgung
Category_1 - Network and Servers
Category_2 - Network - Network Accessories
Certification - CE, CSA, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, UL 1778, VDE
Charging time - 3 h
Chassis type - Tower
Color - Black
Connections - Smart-Slot
Connections - USB
ControlPanel - Multi-function LCD status and control console
Depth - 358 mm
Depth, mm - 358
Description - APC SMART-UPS 750VA LCD 230V WITH SMARTCONNECT
Description - APC Smart-UPS 750VA LCD 230V z SmartConnect Inteligentna i wydajna ochrona zasilania sieciowego od poziomu podstawowego do skalowalnego czasu pracy. Idealny UPS dla serwerów, punktów sprzedaży, routerów, przełączników, koncentratorów i innych urządzeń sieciowych.
Design - Cable length - 1.83 m
Design - Certification - CE, CSA, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, UL 1778, VDE, REACH, PEP, EOLI
Design - Display type - LCD
Design - Form factor - Tower
Design - LED indicators - Status
Design - Product colour - Black
dimension depth - 300 mm
dimension height - 490 mm
Dimensions - 157 x 138 x 358 mm
dimension weight - 13700 g
dimension width - 280 mm
ean - 731304340317
EAN - 0731304340317
EANCode - 0731304340317
Eans - 0731304340317
EAN_code - 0731304340317
Environment requirements - Temperatura robocza: 0 - 40 ° C Wilgotność względna podczas pracy: 0 - 95% Wysokość robocza: 0-3000 metrów Temperatura przechowywania: -15 - 45 ° C Wilgotność względna pamięci: 0 - 95% Wysokość składowania: 0-15000 metrów Słyszalny hałas na 1 metr od powierzchni urządzenia: 40,0 dBA Rozpraszanie ciepła online: 90,0 TBT / godz
Features - Audible alarm(s) - Yes
Features - Auto-restart - Yes
Features - Automatic Voltage Regulation (AVR) - Yes
Features - Efficiency - 98%
Features - Input frequency - 50/60 Hz
Features - Input operation voltage (max) - 302 V
Features - Input operation voltage (min) - 151 V
Features - Noise level - 40 dB
Features - Output operation voltage (max) - 240 V
Features - Output operation voltage (min) - 220 V
Features - Output power - 500 W
Features - Output power capacity - 0.75 kVA
Features - Surge energy rating - 540 J
Features - UPS topology - Line-Interactive
Features - Waveform - Sine
Filters / protection - Voltage drop
FormFactor - Tower
Form factor - Tower
Frequency range, Hz - 47 - 53 Hz for 50 Hz nominal, 57 - 63 Hz for 60 Hz nominal
GrossWeight - 13.000 kg
Gross Weight Kg - 14,23
GRUPPE1 - Power Protection
GRUPPE2 - UPS (Uninterruptable Power Supply)
GTIN - 731304340317
GTIN - 0731304340317
guarantee - 36
guarantee_type - external
Height - 157 mm
Height - 295.000000
Height, mm - 157
HERSTELLER - APC
HSTNUMMER - SMT750IC
I/O connectors - 1 x USB 2.0
Input connection - IEC-320 C14
InputConnections - IEC-320 C14
InputFrequency - 50/60 Hz +/- 3 Hz (auto sensing)
Input frequency, Hz - 50/60 +/- 3
Input power ports - IEC-C14
InputVoltage - 230 V
Input voltage, V - 160 - 286 (151 - 302)
InterfacePorts - SmartSlotUSB
Length - 290.000000
Logistics data - Harmonized System (HS) code - 85078000
Logistics data - Products per pallet - 24 pc(s)
LongDesc -
LongDesc - Always stay online and prevent data lossAs soon as the power goes out, an APC Smart-UPS immediately provides emergency power to all connected equipment. Because an APC UPS does this automatically, you prevent unwanted failure of, for example, a PC, server or switch. With the free APC PowerChute software you can even have critical IT hardware shut down automatically and in a controlled manner when the battery of the UPS is almost empty. This way you prevent data loss, downtime and physical damage to hardware.SafetyIn addition, a Smart-UPS protects connected devices against peak voltage caused by lightning, among other things. This APC emergency power supply is ideally suited for (small) business use.Battery lifeYou can easily read the expected battery life in the runtime graph, which you can find between the product images. You can easily see how long the UPS supplies emergency power at a certain load.SmartConnectOut-of-box remote UPS monitoring, free for a 6-month trial period. Using the SmartConnect ethernet port, you can easily connect the Smart-UPS to your network and easily monitor it remotely via the secure APC SmartConnect cloud-based web portal*. In addition, the UPS can always be monitored via this port via EcoStruxure IT Expert (SFTWES1-DIGI).* Extend access to SmartConnect through the following licenses:1 year Standard Plan: ERWPMON1-1Y-DIGI3 year Standard Plan: ERWPMON1-3Y-DIGI1 year Advanced Plan: ERWPLUS1-1Y-DIGI3 year Advanced Plan: ERWPLUS1-3Y-DIGIPowerChuteBy connecting the UPS to a maximum of one server via a USB cable, it can automatically provide it with a shutdown signal during a prolonged power outage and thus prevent a hard shutdown. This exact moment can be set via the free APC PowerChute Serial Edition software.Network Management CardIf you connect the UPS directly to your network via the optional APC Network Management Card (AP9640/AP9641), it can easily be managed remotely via SNMP or our remote management software Ecostruxure IT Expert (SFTWES1-DIGI). You can also automatically send a shutdown signal via the network to multiple physical and/or virtual servers. By means of the APC PowerChute Network Shutdown Software associated with the network card can even be differentiated in the shutdown moment and the order in which this happens.Ease of useBy means of physical buttons and an LCD screen make it possible to set and read the basic functionalities.Extend the lifespanThe internal battery cartridge (RBC48) can be replaced easily, safely and independently by the user. This without having to switch off the APC SMT750IC or connected equipment. This way you can easily and cheaply extend the lifespan of the APC Smart-UPS and your equipment always remains online.Warranty extensionThe manufacturer's warranty of the SMT750IC is 3 years, with the exception of the battery cartridge, which has a 2-year manufacturer's warranty. Both are extended by 3 years to 6 and 5 years respectively with the APC service pack (WBEXTWAR3YR-SP-02).Green PremiumThis label represents Schneider Electric's commitment to delivering products with best-in-class environmental performance. Green Premium promises to comply with the latest regulations, transparency on environmental effects and circular and low CO2 emission products.Green Premium:- Stands for an energy-efficient product that helps our customers achieve their CO2 reduction goals and save energy costs at the same time. The energy efficiency of this product is at least 10% higher than the market average.- Provides insight into the environmental effects of the product, this data is available 24/7 via the digital product environmental profile, see https://checkaproduct.se.com/- Commits to minimal use of hazardous substances within and beyond regulatory compliance (RoHS/REACh)Included in the box1x SMT750IC1x USB cable 2 meters2x C13 to C14 power cord 2 meters1x Software CD with PowerChute Serial Edition1x Cat5E ethernet cable1x Documentation CD
LongProductName - APC Smart-UPS SMT750IC - 6x C13, USB, SmartConnect, 750VA
LongSummaryDescription - APC Smart-UPS SMT750IC - 6x C13, USB, SmartConnect, 750VA. UPS topology: Line-Interactive, Output power capacity: 0.75 kVA, Output power: 500 W. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 6 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Typical backup time at full load: 4.6 min, Typical backup time at half load: 15.8 min. Form factor: Tower, Product colour: Black, Cable length: 1.83 m. Width: 138 mm, Depth: 358 mm, Height: 157 mm
Manufacturer - APC
Manufacturer Code - SMT750IC
Manufacturer Name - APC by Schneider Electric
ManufacturerPartNumber - SMT750IC
Manufacturer_code - SMT750IC
MANUFDATASHEET - https://www.apc.com/shop/no/en/products/apc-smart-ups-750va-lcd-230v-with-smartconnect/P-SMT750IC
Maximum power, W - 500
MPN - SMT750IC
Name - APC Smart-UPS 750VA SMT750IC LCD ++
Name - APC Smart-UPS Tower SMT750iC 750VA 500W SmartConnect Port Smartslot
Name - APC Smart SMT750IC
name - SMT750IC Smart-UPS 750VA 500W Tower SmartConnect
No. of batteries - 1
Noise level, dB - 40
Nominal input voltage, V - 230 (220, 240)
Nominal output voltage, V - 230 (220, 240)
Number of phases input - 1 (230V)
Operating relative humidity range, % - 0 - 95
Operating temperature range (T-T), °C - 0 - 40
Operational conditions - Non-operating altitude - 0 - 15000 m
Operational conditions - Operating altitude - 0 - 3000 m
Operational conditions - Operating relative humidity (H-H) - 5 - 95%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 0 - 95%
Operational conditions - Storage temperature (T-T) - -15 - 45 °C
Other features - Częstotliwość wyjściowa (synchronizacja z siecią): 50 / 60Hz +/- 3 Hz Inne napięcia wyjściowe: 220, 240 V Częstotliwość wejściowa: 50/60 Hz +/- 3 Hz (automatyczne wykrywanie) Długość przewodu: 1,83 metra Zakres napięcia wejściowego dla operacji głównych: 160 - 280V Zakres regulacji napięcia wejściowego do pracy w sieci: 151 - 302V Liczba kabli zasilających: 1 Inne napięcia wejściowe: 220, 240 V Dodatkowy port interfejsu: SmartSlot

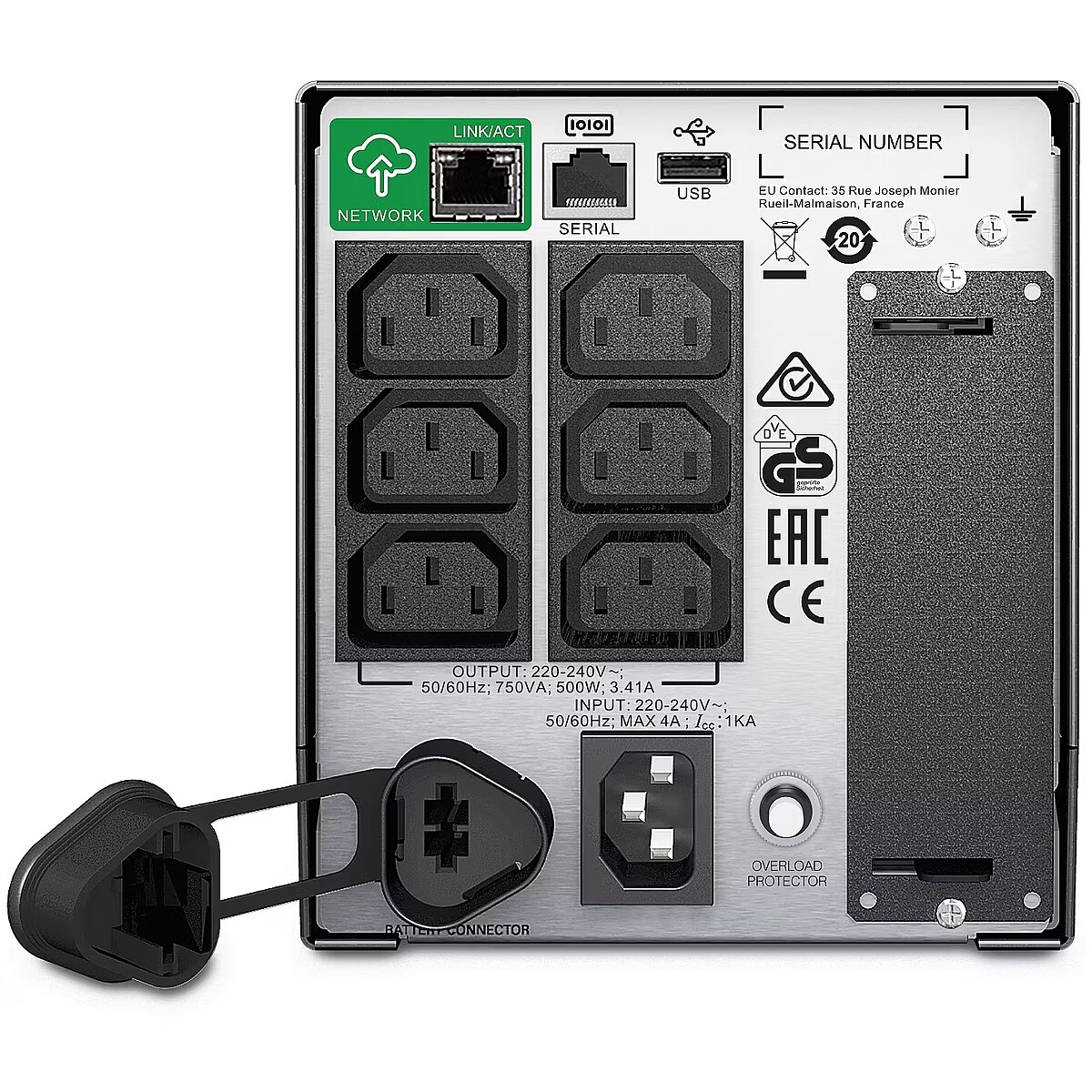

OutputConnections - (6) IEC 320 C13 (Battery Backup)(2) IEC Jumpers (Battery Backup)
OutputFrequency - 50/60Hz +/- 3 Hz
Output interface - 6 x IEC 320 C13, 2 x IEC Jumpers
Output power, W - 500
Output power capacity (VA) - 750
Output power ports - 6 x IEC-C13
OutputVoltage - 230 V
PackageContents - CD with softwareDocumentation CDUSB cable
Packaging data - Bundled software - Powershute Serial Edition
Packaging data - Cables included - USB cable
Packaging data - Manual - Yes
Packaging data - Quick installation guide - Yes
PeriodofWarranty - 3 Y
Ports & interfaces - AC outlets quantity - 6 AC outlet(s)
Ports & interfaces - AC outlet types - C13 coupler
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Ports & interfaces - Number of output IEC jumpers - 2
Ports & interfaces - Power plug - C14 coupler
Ports & interfaces - SmartSlot - Yes
Ports & interfaces - USB port - Yes
PowerVAW - 750 VA
PowerW - 500 W
ProdDesc - APC Smart-UPS 750VA LCD 230V with SmartConnect
producer - APC
Producer - APC
ProducerCode - SMT750IC
ProductName - APC Smart-UPS SMT750IC - 6x C13, USB, SmartConnect, 750VA
ProductPicture - http://www.tdbaltic.ee/images/ds4/SMT750IC-01v2.jpg
ProductPicture2 -
ProductPicture3 -
ProductPicture4 -
RechargeTime - 3 h
RJ45 - -
Runtime - -
Runtime - 5 min (full load) / 16 min (half load)
ShortDescription -
Short description - APC Smart-UPS 750 VA LCD mit SmartConnect
ShortSummaryDescription - APC Smart-UPS SMT750IC - 6x C13, USB, SmartConnect, 750VA, Line-Interactive, 0.75 kVA, 500 W, Sine, 151 V, 302 V
SmartSlot - Yes
Software - PowerNet MIB v4.2.8
Special functions - Zgłoszony do opatentowania tryb pracy, który omija nieużywane podzespoły elektryczne w dobrych warunkach zasilania, aby osiągnąć bardzo wysoką wydajność pracy bez poświęcania żadnej ochrony. Dynamicznie podaje miesiąc i rok, kiedy zaleca się wymianę baterii, aby pomóc w długoterminowym planowaniu konserwacji. SmartConnect - Innowacyjna, łatwa w użyciu funkcja zdalnego monitorowania, która zapewnia automatyczne powiadomienia, aktualizacje oprogramowania układowego i zaawansowane usługi pomocy technicznej. SmartSlot - Dostosuj możliwości UPS za pomocą kart zarządzania.
Stck_Kart - 1
Stck_Pal - 24
Storage temperature range (T-T), °C - -15 - 45
Storno - Y
Surge energy rating, J - 540
Technical details - Compliance certificates - RoHS
Technical details - Sustainability certificates - Green Premium
Title - APC Smart-UPS SMT750IC - 6x C13, USB, SmartConnect, 750VA
Topology - Line interactive
Transfer time (max) - 10 ms
UPS Architecture - line-interactive
UPS devices and accessories - Yes
URL - https://www.apc.com/shop/uk/en/products/APC-Smart-UPS-750VA-LCD-230V-with-SmartConnect/P-SMT750IC
USB - Yes
vendpn - SMT750IC
Voltage - 230 V
Warranty - 2 years
WarrantyInfo - 3 years
WaveformType - Sine wave
Weight - 13,60
Weight - 13.3
Weight - 13.18 kg
Weight - 13.180 Kg
Weight - 13.550000
Weight & dimensions - Depth - 358 mm
Weight & dimensions - Height - 157 mm
Weight & dimensions - Package depth - 499 mm
Weight & dimensions - Package height - 301 mm
Weight & dimensions - Package weight - 14.2 kg
Weight & dimensions - Package width - 278 mm
Weight & dimensions - Weight - 13.2 kg
Weight & dimensions - Width - 138 mm
Weight, kg - 13.18
Width - 138 mm
Width - 480.000000
Width, mm - 138
