APC Smart-UPS X SMX2200RMHV2U 2200VA, 1980W, IEC, 2U

Accessories included - - CD with software
- Rack Mounting brackets
- Smart UPS signalling RS-232 cable
- USB cable
- User Manual
Active power - 1980 W
Alarm - Alarm when on battery : distinctive low battery alarm : configurable delays
Apparent power - 2200 VA
ARTIKEL1 - APC SMART-UPS X 2200VA
ARTIKEL2 - RACK/TOWER LCD 200-240V IN
Backup time (100% load) - 9.8 min
Battery - Automatic battery test - Yes
Battery - Battery capacity - 702 VAh
Battery - Battery life (max) - 5 year(s)
Battery - Battery recharge time - 3 h
Battery - Battery technology - Sealed Lead Acid (VRLA)
Battery - Hot-swap battery - Yes
Battery - Typical backup time at full load - 9.8 min
Battery - Typical backup time at half load - 25.3 min
Battery capacity - 600 VAh
Battery recharge time, h - 3
BatteryType -

Maintenance-free sealed Lead-Acid battery with suspended electrolyte

leakproof

Brand - APC
BrandPartCode - SMX2200RMHV2U
Breite - 0.6
Cable length, m - 1.83
Category - Uninterruptible Power Supplies (UPSs)
Category 1 - Energie & USV
Category 2 - USV & Stromversorgung
Certification - C-tick, CE, CSA, EN 50091-1, EN 50091-2, FCC Part 15 Class A, GOST, IEC 60950, IRAM, UL 1778, VDE
Charging time - 3 h
Chassis type - Rack
Chassis type - Tower
Color - Black
Connections - SmartSlot
Connections - USB
Connectors - 1 x USB (Typ B)
Connectors - SmartSlot
ControlPanel - LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : and Overload Indicators, Multi-function LCD status and control console
Depth - 667 mm
Depth, mm - 667
Description - APC SMART-UPS X 2200VA RACK/TOWER LCD 200-240V
Description - APC Smart-UPS X 2200VA Rack/Tower LCD 200-240VAPC Smart-UPS,1980 Watts /2200 VA, Input 208V, 230V/Output 230V, Interface Port SmartSlot, USB, Extended runtime model, Rack Height 2U
Design - Cable length - 1.83 m
Design - Certification - CE, CSA, EAC, EN/IEC 62040-1, EN/IEC 62040-2, FCC Part 15 Class A, IEC 60950, IRAM, RCM, UL 1778, VDE, REACH, PEP, EOLI
Design - Form factor - Rackmount/Tower
Design - LED indicators - Battery replacement
Design - Product colour - Black
Design - Rack capacity - 2U
Designation - CE+WEEE
dimension depth - 600 mm
dimension height - 240 mm
Dimensions - - Height: 85 mm
- Width: 432 mm
- Depth: 667 mm
- Rack Height 2U
dimension weight - 47800 g
dimension width - 870 mm
ean - 731304272687
EAN - 0731304272687
EANCode - 0731304272687
Environment requirements - - Operating Environment: 0 - 45 °C
- Relative Humidity: 0 - 95%
- The height above sea level Operating: 0-3000 m
- Temperature (storage): -15 - 45 °C
- Relative humidity (storage) 0 - 95%
- The height above sea level (storage): 0-15000 m
- The noise level at 1 meter from surface of unit 55.00 dBA
- Thermal Dissipation 150.00 BTU/hr.
Features - Audible alarm(s) - Yes
Features - Auto-restart - Yes
Features - Automatic Voltage Regulation (AVR) - Yes
Features - Efficiency - 98.1%
Features - Emergency Power Off (EPO) - Yes
Features - Hold time (max) - 10 ms
Features - Hold time (min) - 2 ms
Features - Input frequency - 50/60 Hz
Features - Noise level - 55 dB
Features - Output frequency regulation - 50/60 Hz
Features - Output operation voltage (max) - 240 V
Features - Output operation voltage (min) - 208 V
Features - Output power - 1980 W
Features - Output power capacity - 2.2 kVA
Features - Response time - 4 ms
Features - Surge energy rating - 645 J
Features - Surge protection - Yes
Features - UPS topology - Line-Interactive
Features - Waveform - Sine
FormFactor -

Rack

Tower

Form factor - Rack / Tower
Frequency range, Hz - 50/60 +/- 3
Gewicht - 48.6
GrossWeight - 46.600 kg
Gross Weight Kg - 45,36
GRUPPE1 - Power Protection
GRUPPE2 - UPS (Uninterruptable Power Supply)
GTIN - 731304272687
GTIN - 0731304272687
guarantee - 36
guarantee_type - external
Height - 85 mm
Height - 600.000000
Height, mm - 85
HERSTELLER - APC
Hoehe - 0.25
HSTNUMMER - SMX2200RMHV2U
Input connection - IEC-320 C20, CEE 7 / EU1-16P
InputConnections -

British BS1363A

IEC-320 C20

Schuko CEE 7/EU1-16P

InputFrequency - 50/60 Hz +/- 3 Hz (auto sensing)
Input frequency, Hz - 50/60 +/- 3
Input power ports - IEC-C20
Input power ports - Type F Schuko
Input power ports - Type G British
InputVoltage - 208V, 230V
Input voltage, V - 140 - 280
InterfacePorts -

SmartSlot

USB

Laenge - 0.87
Length - 250.000000
Logistics data - Harmonized System (HS) code - 85078000
Logistics data - Products per pallet - 8 pc(s)
LongDesc -
LongDesc - This APC Smart-UPS is designed for IT managers or network administrators to maintain business uptime, data transfer and continuity during prolonged power outages. The 2200VA line interactive 2U rack/tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SMX comes with IEC 320 C20 input (includes BS1363A, IEC 320 C20 and Schuko CEE 7/EU1-16P power cords), 8x IEC 320 C13 and 1x IEC 320 C19 outlets. The UPS has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. Connect to 10 of the SMX120RMBP2U external battery packs to increase the amount of time the UPS can provide battery power to devices (battery packs sold separately). Use the intuitive LCD interface and PowerChute software to configure settings and monitor usage. This uninterrupted power supply can connect to EcoStruxure IT or third-party centralized management platforms. The SMX2200RMHV2U converts from a tower or stand-alone UPS to a rack mount UPS, offering flexibility in various installations. The SMX UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. This is compatible with dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications. The Smart-UPS comes with a pair of tower-mounting stabilizing feet and rack-mounting brackets. The 3 switchable outlet groups allow more granular management of the power supplied to your devices. The Emergency Power Off feature enables the UPS to remotely shutdown during emergencies.
LongProductName - Smart-UPS X, Line Interactive, 2200VA, Rack/tower convertible 2U, 208V-230V, 8x C13+1x C19 IEC, SmartSlot, Extended runtime
LongSummaryDescription - APC Smart-UPS X, Line Interactive, 2200VA, Rack/tower convertible 2U, 208V-230V, 8x C13+1x C19 IEC, SmartSlot, Extended runtime. UPS topology: Line-Interactive, Output power capacity: 2.2 kVA, Output power: 1980 W. AC outlet types: C13 coupler, C19 coupler, Power plug: C20 coupler, AC outlets quantity: 9 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 702 VAh, Typical backup time at full load: 9.8 min. Form factor: Rackmount/Tower, Product colour: Black, Rack capacity: 2U. Width: 432 mm, Depth: 667 mm, Height: 85 mm
Manufacturer - APC
Manufacturer Code - SMX2200RMHV2U
Manufacturer Name - APC by Schneider Electric
ManufacturerPartNumber - SMX2200RMHV2U
MANUFDATASHEET - https://www.apc.com/shop/iq/en/products/APC-Smart-UPS-X-2200VA-Rack-Tower-LCD-200-240V/P-SMX2200RMHV2U
Maximum power, W - 1980
MPN - SMX2200RMHV2U
Name - APC Smart-UPS SMX2200RMHV2U 2200VA 19" 2HE Rack/Tower
name - SMX2200RMHV2U X 2200VA USB/RS/LCD/RT 2U
No. of batteries - 1
Noise level, dB - 55
Nominal input voltage, V - 208, 230 (220, 240)
Nominal output voltage, V - 230 (208, 220, 240)
Number of phases input - 1 (230V)
Operating relative humidity range, % - 0 - 95
Operating temperature range (T-T), °C - 0 - 40
Operational conditions - Non-operating altitude - 0 - 15000 m
Operational conditions - Operating altitude - 0 - 3000 m
Operational conditions - Operating relative humidity (H-H) - 0 - 95%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 0 - 95%
Operational conditions - Storage temperature (T-T) - -15 - 45 °C
Other features - - Output Power: 1980W
- Output voltage: 208/220/230/240V
- Waveform Type: Sine wave
- 2 x IEC Jumpers
- Input voltage: 208/230V, 140-280V
- Cord Length: 1.83 m
- Power Switching time: 2-4 ms
- Emergency power supply
- Surge energy rating: 645 joules
Other features - Nominal input voltage - 230 V
Other features - Nominal output voltage - 230 V

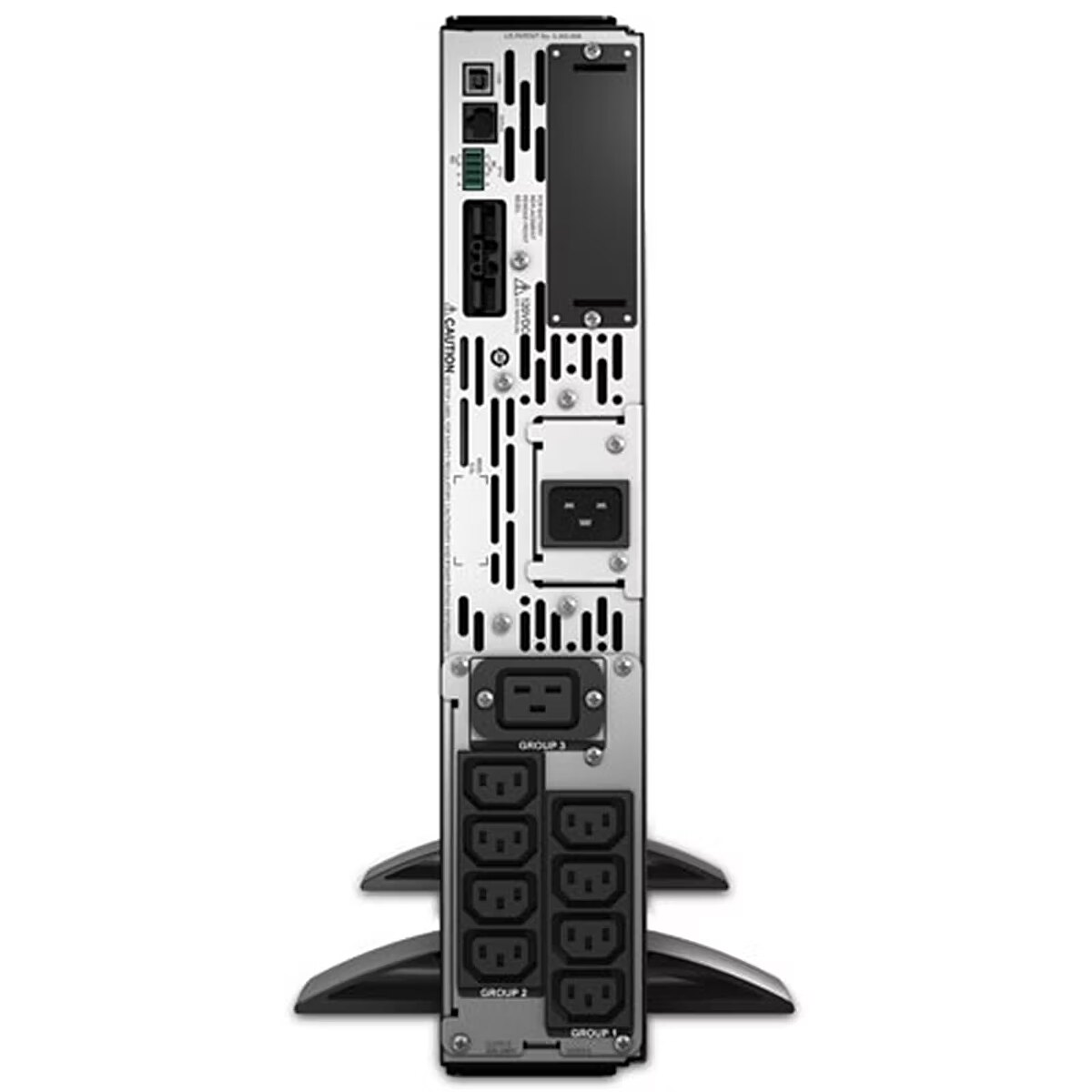

OutputConnections -

(1) IEC 320 C19 (Battery Backup)

(8) IEC 320 C13 (Battery Backup)

(2) IEC Jumpers (Battery Backup)

OutputFrequency - 50/60Hz +/- 3 Hz
Output interface - 8 x IEC 320 C13, 1 x IEC 320 C19, 2 x IEC Jumpers
Output power, W - 1980
Output power capacity (VA) - 2200
Output power ports - 1 x IEC-C19
Output power ports - 8 x IEC-C13
OutputVoltage - 208V, 230V
PackageContents -

CD with software

Documentation CD

Rack Mounting brackets

Smart UPS signalling RS-232 cable

USB cable

User Manual

Packaging data - Cables included - RS-232, USB cable
Packaging data - Manual - Yes
Packaging data - Rack mount kit - Yes
Packaging data - Software CD - Yes
PeriodofWarranty - 3 Y
Ports & interfaces - AC outlets quantity - 9 AC outlet(s)
Ports & interfaces - AC outlet types - C13 coupler, C19 coupler
Ports & interfaces - Number of output IEC jumpers - 2
Ports & interfaces - Power plug - C20 coupler
Ports & interfaces - SmartSlot - Yes
Ports & interfaces - USB port - Yes
PowerVAW - 2200 VA
PowerW - 1980 W
ProdDesc - APC Smart-UPS X 2200VA Rack/Tower LCD 200-240V
producer - APC
ProductName - Smart-UPS X, Line Interactive, 2200VA, Rack/tower convertible 2U, 208V-230V, 8x C13+1x C19 IEC, SmartSlot, Extended runtime
ProductPicture - http://www.tdbaltic.ee/images/ds4/SMX2200RMHV2U-01.jpg
ProductPicture2 -
ProductPicture3 -
ProductPicture4 -
Rack height (units) - 2
RechargeTime - 3 h
RJ45 - -
Runtime - -
Runtime - 10 min (full load) / 25 min (half load)
Short description - APC Smart-UPS X 2200 VA LCD SMX2200RMHV2U+++
ShortSummaryDescription - APC Smart-UPS X, Line Interactive, 2200VA, Rack/tower convertible 2U, 208V-230V, 8x C13+1x C19 IEC, SmartSlot, Extended runtime, Line-Interactive, 2.2 kVA, 1980 W, Sine, 50/60 Hz, 208 V
SmartSlot - Yes
Software -
Special functions - - Boost and Trim Automatic Voltage Regulation (AVR)
- Intelligent battery management
- Power conditioning
- Temperature-compensated battery charging
- Automatic restart of loads after UPS shutdown
- Automatic self-test
- Disconnected battery notification
- Network manageable
- Audible alarms
- LED status indicators
- Serial connectivity
- USB connectivity
- Disconnected battery notification
- User-replaceable batteries
- Hot-swappable batteries
- Predictive failure notification
- Resettable circuit breakers
- Battery failure notification
- Adjustable voltage-transfer points
- Adjustable voltage sensitivity
- Safety-agency approved
Stck_Kart - 1
Stck_Pal - 1
Storage temperature range (T-T), °C - -15 - 45
Storno - Y
Surge energy rating, J - 645
Technical details - Compliance certificates - RoHS
Technical details - Sustainability certificates - Green Premium
Title - APC Smart-UPS X, Line Interactive, 2200VA, Rack/tower convertible 2U, 208V-230V, 8x C13+1x C19 IEC, SmartSlot, Extended runtime
Topology - Line interactive
UPS Architecture - line-interactive
UPS devices and accessories - Yes
URL - https://www.apc.com/
USB - Yes
vendpn - SMX2200RMHV2U
Voltage - 120 V
Warranty - 2 years
WarrantyInfo - 3 years
WaveformType - Sine wave
Weight - 37.32 kg
Weight - 37.320 Kg
Weight - 45.000000
Weight - 46.23
Weight & dimensions - Depth - 667 mm
Weight & dimensions - Height - 85 mm
Weight & dimensions - Package depth - 869 mm
Weight & dimensions - Package height - 243 mm
Weight & dimensions - Package weight - 45.4 kg
Weight & dimensions - Package width - 596 mm
Weight & dimensions - Weight - 37.3 kg
Weight & dimensions - Width - 432 mm
Weight, kg - 37.32
Width - 432 mm
Width - 880.000000
Width, mm - 432
