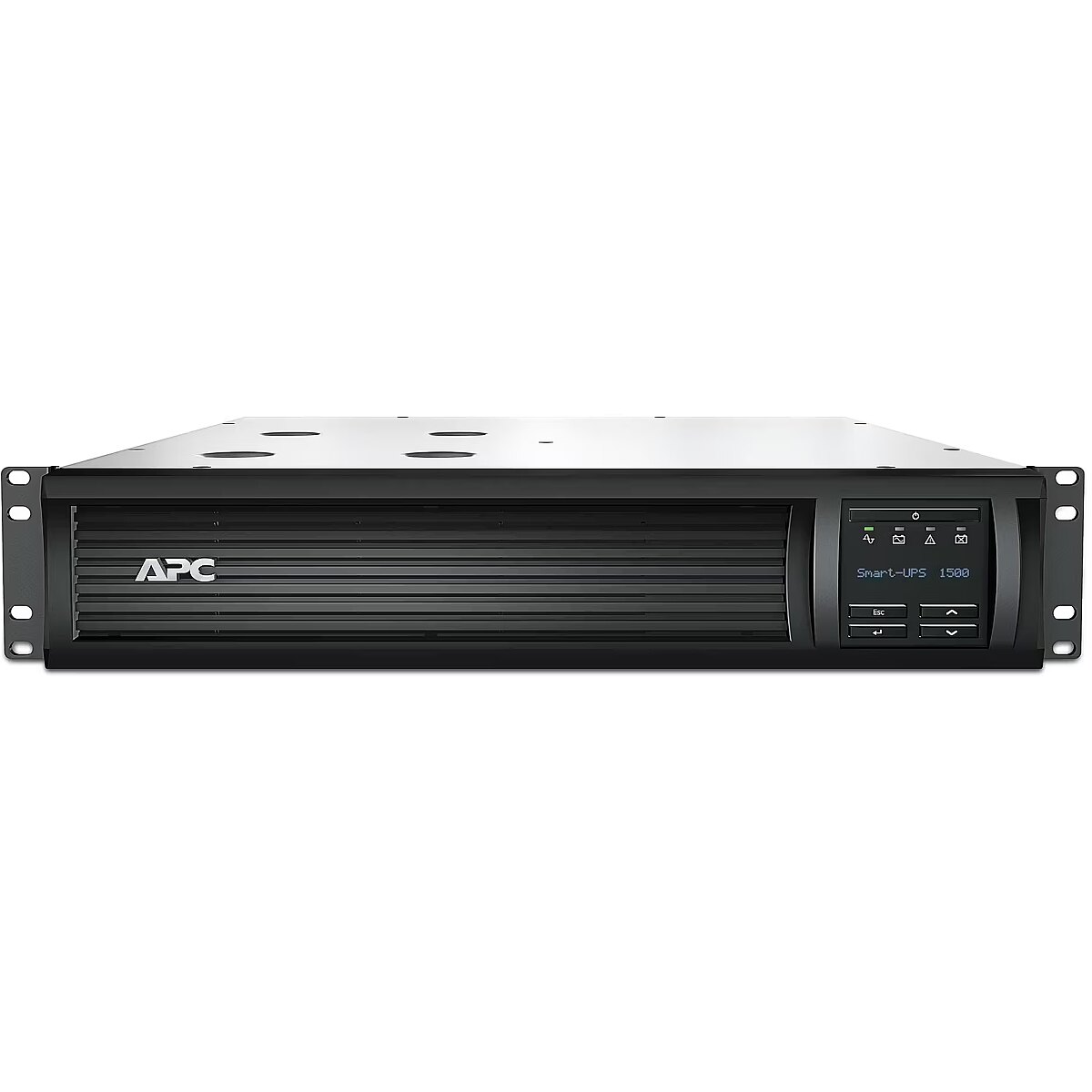

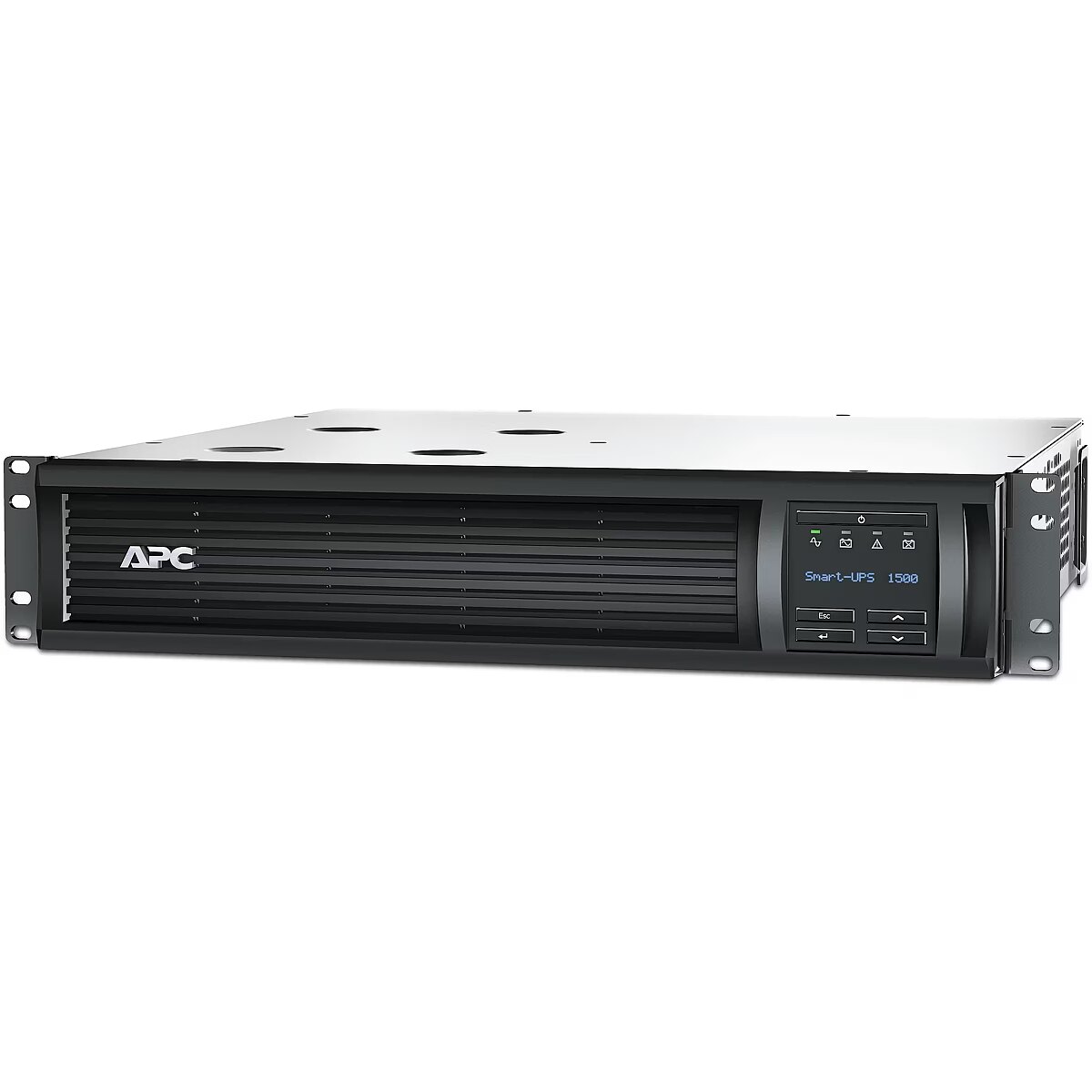

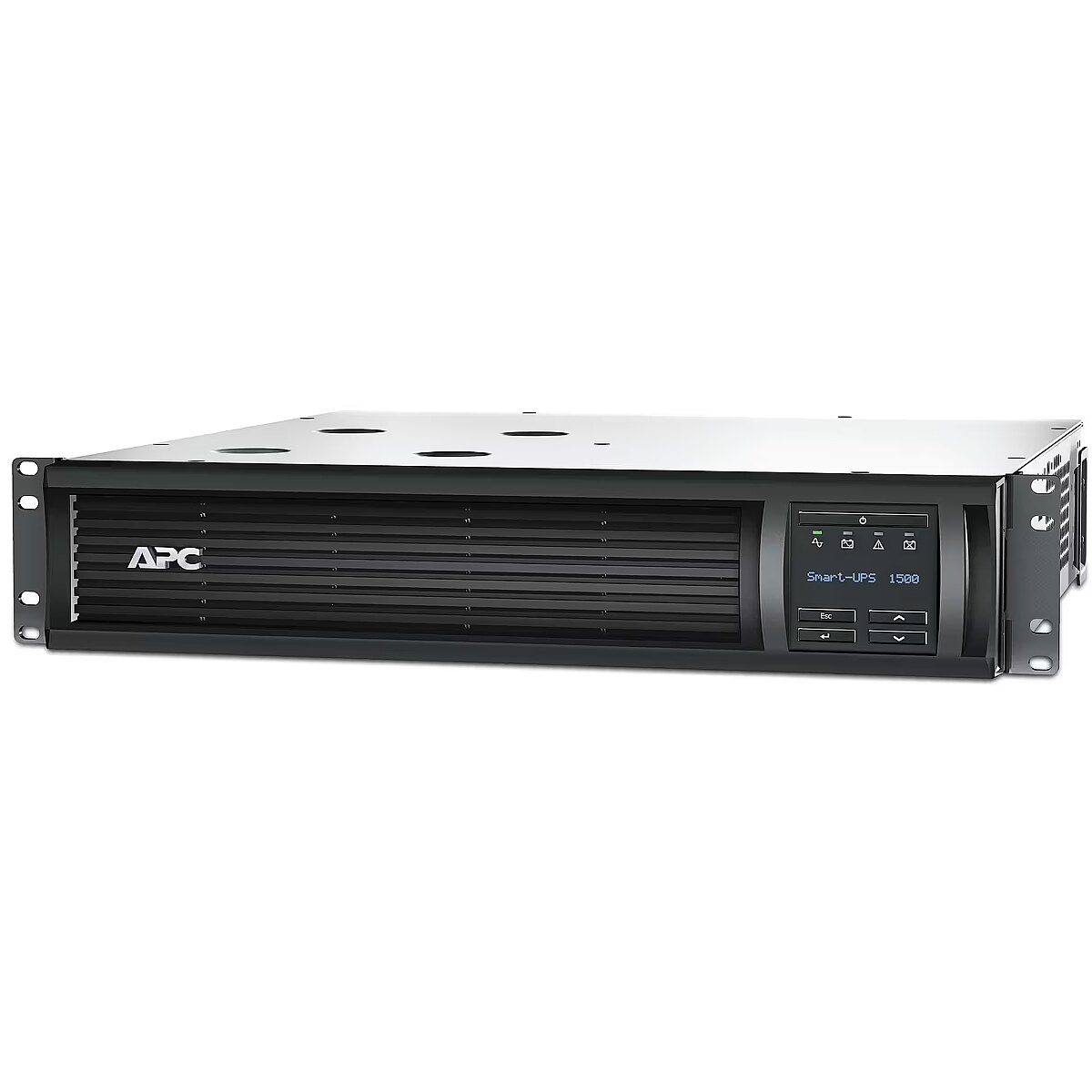

APC Smart-UPS SMT1500RMI2UC 1500VA, 1000W, IEC, 2U

Accessories included - Software CD Documentation CD Installation Guide Mounting rails for rack mounting Smart-UPS signaling cable USB cable
Active power - 1000 W
Alarm - Alarm when on battery : distinctive low battery alarm : configurable delays
Apparent power - 1500 VA
ARTIKEL1 - APC SMART-UPS 1500VA LCD
ARTIKEL2 - RM 2U 230V WITH SMARTCONNECT IN
Backup time (100% load) - 7.2 min
Battery - Automatic battery test - Yes
Battery - Battery life (max) - 6 year(s)
Battery - Battery recharge time - 3 h
Battery - Battery technology - Sealed Lead Acid (VRLA)
Battery - Cold start - Yes
Battery - Hot-swap battery - Yes
Battery - Number of batteries supported - 1
Battery recharge time, h - 3
BatteryType -

Maintenance-free sealed Lead-Acid battery with suspended electrolyte

leakproof

Brand - APC
BrandPartCode - SMT1500RMI2UC
Breite - 0.6
Category - Root/Accessories | Exploitation/Power supply/UPSs and power strips/UPSs
Category - Uninterruptible Power Supplies (UPSs)
Category 1 - Energie & USV
Category 2 - USV & Stromversorgung
Category_1 - Power
Category_2 - UPS
Certification - CE , CSA , EAC , EN/IEC 62040-1 , EN/IEC 62040-2 , ENERGY STAR V1.0 (EU) , RCM , TUV , VDE
Charging time - 3 h
Chassis type - Rack
Color - Black

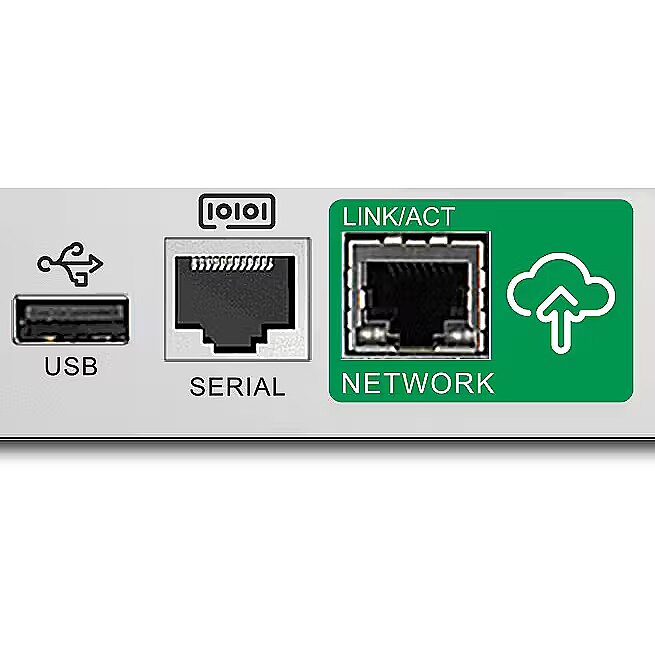

Connections - RJ-45 Serial
Connections - Smart-Slot
Connections - USB
ControlPanel - Multi-function LCD status and control console
Depth - 477 mm
Depth, mm - 457
Description - APC SMART-UPS 1500VA LCD RM 2U 230V WITH SMARTCONNECT
Description - APC Smart-UPS 1500VA LCD RM 2U 230V with SmartConnect
Intelligent and efficient power protection in networks, from the basic level to the possibility of scaling back-up time. The perfect solution for servers, POS terminals, routers, switches, hubs and other network devices.

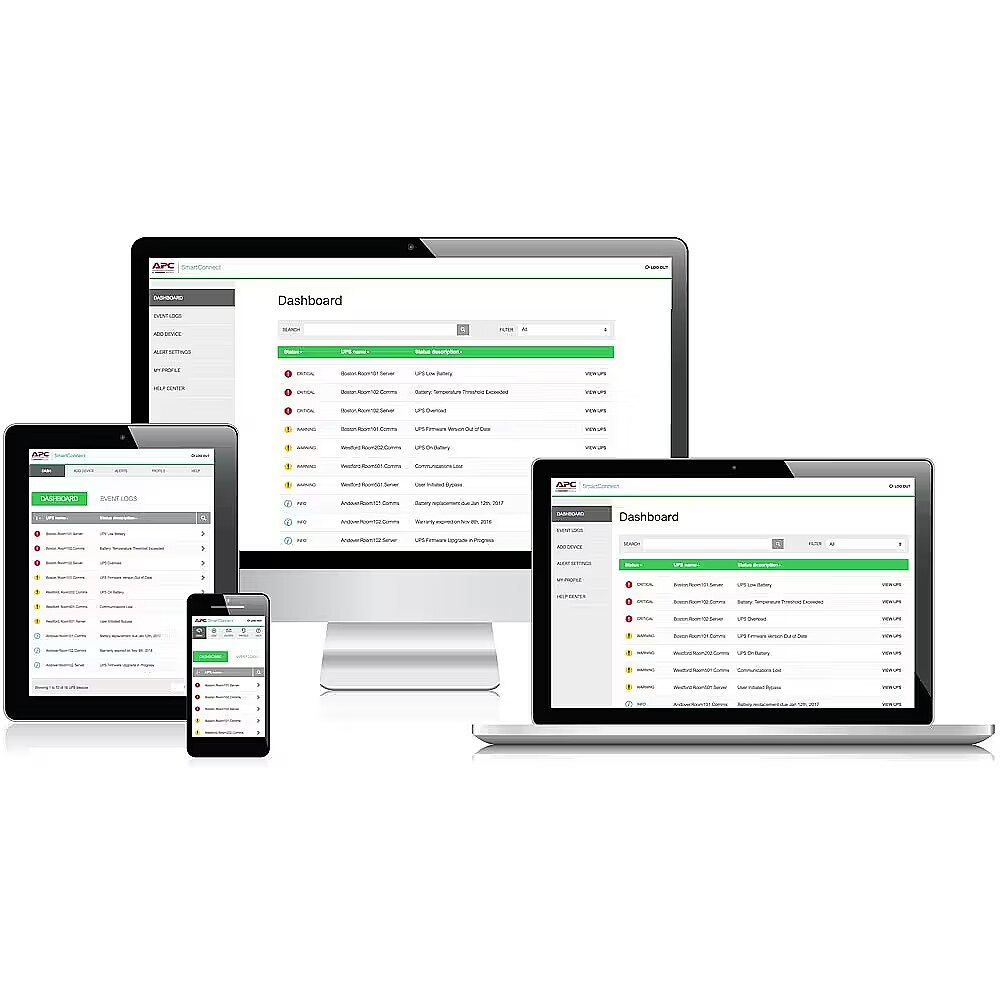

APC SmartConnect - a function that allows you to view the UPS status via a secure internet portal. Thanks to the innovative remote monitoring interface you will receive automatic notifications, firmware updates and advanced support. The easy-to-use APC SmartConnect network communication provides additional value - and even more important - peace of mind.
Design - Certification - CE, EAC, EN / IEC 62040-1, EN / IEC 62040-2, Energy Star 1.0 (EU), RCM, TÜV, VDE
Design - Display type - LCD

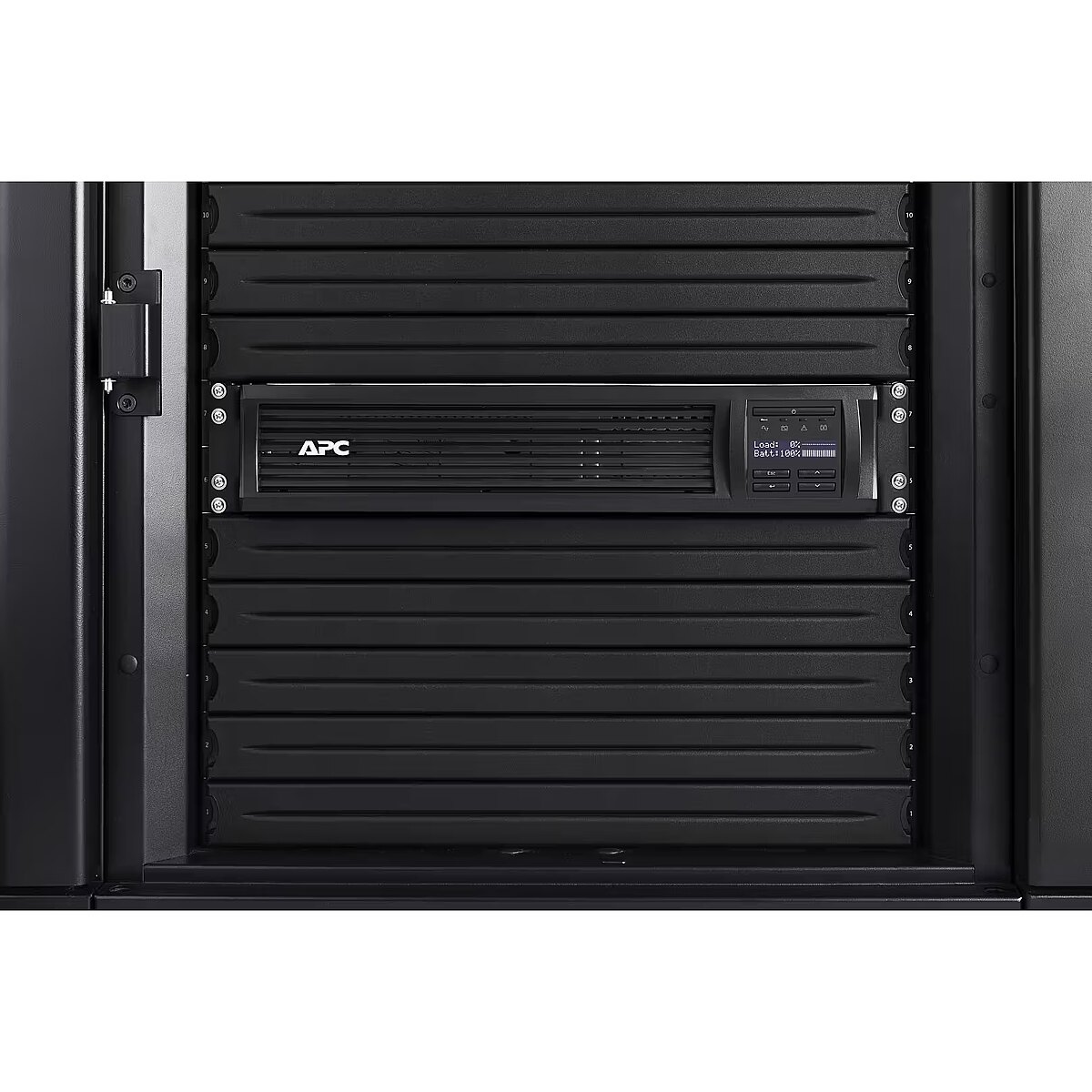

Design - Form factor - Rackmount
Design - LED indicators - Yes
Design - Product colour - Black
Design - Rack capacity - 2U
dimension depth - 255 mm
dimension height - 600 mm
Dimensions - 86 x 432 x 477 mm
dimension weight - 26300 g
dimension width - 600 mm
ean - 731304333005
EAN - 0731304333005
EANCode - 0731304333005
Eans - 731304333005
EAN_code - 0731304333005
Environment requirements - Operating temperature 0 - 40 ° C Relative humidity during operation 0 - 95% Height m.p. during operation 0-3000 meters Temperature (storage) -15 - 45 ° C Relative humidity (storage) 0 - 95% Height m.p. (storage) 0-15000 meters The noise is heard at a distance of 1 m from the surface of the device 45.0dBA Heat dissipation in online mode 56.0BTU / hour.
Features - Audible alarm(s) - Yes
Features - Audible alarm modes - Alarm when on battery, Low battery alarm
Features - Auto-restart - Yes
Features - Input frequency - 50/60 Hz
Features - Input operation voltage (max) - 302 V
Features - Input operation voltage (min) - 151 V
Features - Noise level - 46 dB
Features - Output frequency - 50/60 Hz
Features - Output operation voltage (max) - 240 V
Features - Output operation voltage (min) - 220 V
Features - Output power - 1000 W
Features - Output power capacity - 1.5 kVA
Features - Response time - 10 ms
Features - Surge energy rating - 459 J
Features - UPS topology - Line-Interactive
Features - Waveform - Sine
FormFactor - Rack
Form factor - Rack
Frequency range, Hz - 47 - 53 Hz for 50 Hz nominal , 57 - 63 Hz for 60 Hz nominal
Gewicht - 31.84
GrossWeight - 32.050 kg
Gross Weight Kg - 31,91
GRUPPE1 - Power Protection
GRUPPE2 - UPS (Uninterruptable Power Supply)
GTIN - 731304333005
GTIN - 0731304333005
guarantee - 24
guarantee_type - external
Height - 86 mm
Height - 250.000000
Height, mm - 86
HERSTELLER - APC
Hoehe - 0.25
HSTNUMMER - SMT1500RMI2UC
I/O connectors - 1 x RJ-45 (iLO Remote Management Network)
I/O connectors - 1 x USB (Type B)
Input connection - IEC-320 C14
InputConnections - IEC-320 C14
InputFrequency - 50/60 Hz +/- 3 Hz (auto sensing)
Input frequency, Hz - 50/60 +/- 3
Input power ports - IEC-C14
InputVoltage - 230 V
Input voltage, V - 160 - 286
InterfacePorts -

RJ-45 Serial

Smart-Slot

USB

Laenge - 0.6
Length - 590.000000
Logistics data - Harmonized System (HS) code - 85078000
Logistics data - Products per pallet - 8 pc(s)
LongDesc -

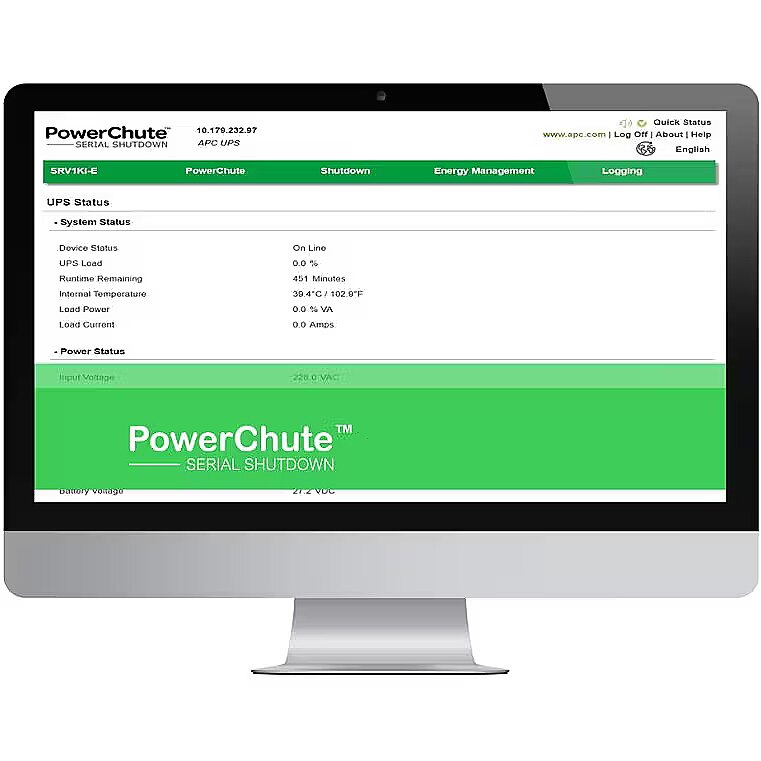

LongDesc - Always stay online and prevent data lossAs soon as the power goes out, an APC Smart-UPS immediately provides emergency power to all connected equipment. Because an APC UPS does this automatically, you prevent unwanted failure of, for example, a PC, server or switch. With the free APC PowerChute software you can even have critical IT hardware shut down automatically and in a controlled manner when the battery of the UPS is almost empty. This way you prevent data loss, downtime and physical damage to hardware.SafetyIn addition, a Smart-UPS protects connected devices against peak voltage caused by lightning, among other things. This APC emergency power supply is ideally suited for (small) business use.Battery lifeYou can easily read the expected battery life in the runtime graph, which you can find between the product images. You can easily see how long the UPS supplies emergency power at a certain load.SmartConnectOut-of-box remote UPS monitoring, free for a 6-month trial period. Using the SmartConnect ethernet port, you can easily connect the Smart-UPS to your network and easily monitor it remotely via the secure APC SmartConnect cloud-based web portal*. In addition, the UPS can always be monitored via this port via EcoStruxure IT Expert (SFTWES1-DIGI).* Extend access to SmartConnect through the following licenses:1 year Standard Plan: ERWPMON1-1Y-DIGI3 year Standard Plan: ERWPMON1-3Y-DIGI1 year Advanced Plan: ERWPLUS1-1Y-DIGI3 year Advanced Plan: ERWPLUS1-3Y-DIGIPowerChuteBy connecting the UPS to a maximum of one server via a USB cable, it can automatically provide it with a shutdown signal during a prolonged power outage and thus prevent a hard shutdown. This exact moment can be set via the free APC PowerChute Serial Edition software.Network Management CardIf you connect the UPS directly to your network via the optional APC Network Management Card (AP9640/AP9641), it can easily be managed remotely via SNMP or our remote management software Ecostruxure IT Expert (SFTWES1-DIGI). You can also automatically send a shutdown signal via the network to multiple physical and/or virtual servers. By means of the APC PowerChute Network Shutdown Software associated with the network card can even be differentiated in the shutdown moment and the order in which this happens.Ease of useBy means of physical buttons and an LCD screen make it possible to set and read the basic functionalities. Thanks to the included 4-post rail kit, you can easily mount the UPS in a rack.Extend the lifespanThe internal battery cartridge (APCRBC133) can be replaced easily, safely and independently by the user. This without having to switch off the APC SMT1500RMI2UC or connected equipment. This way you can easily and cheaply extend the lifespan of the APC Smart-UPS and your equipment always remains online.Warranty extensionThe manufacturer's warranty of the SMT1500RMI2UC is 3 years, with the exception of the battery cartridge, which has a 2-year manufacturer's warranty. Both are extended by 3 years to 6 and 5 years respectively with the APC service pack (WBEXTWAR3YR-SP-03).Switched Outlet Groups: Remote reboot and phased start-upThanks to the Switched Outlet Groups, it is possible to configure a phased/delayed power-on per UPS outlet group. This reduces the peak load on the UPS and brings it closer to the constant load, which limits oversizing of the UPS.It is also possible to reset a group of multiple UPS outputs and the equipment connected to them. If SmartConnect Advanced (ERWPLUS1-1Y-DIGI) is used, a UPS with SmartConnect port + Ecostruxure IT Expert (SFTWES1-DIGI) or a network card (ap9640) in combination with Ecostruxure IT Expert (SFTWES1-DIGI), this is even possible at a distance.Green PremiumThis label represents Schneider Electric's commitment to delivering products with best-in-class environmental performance. Green Premium promises to comply with the latest regulations, transparency on environmental effects and circular and low CO2 emission products.Green Premium:- Stands for an energy-efficient product that helps our customers achieve their CO2 reduction goals and save energy costs at the same time. The energy efficiency of this product is at least 10% higher than the market average.- Provides insight into the environmental effects of the product, this data is available 24/7 via the digital product environmental profile, see https://checkaproduct.se.com/- Commits to minimal use of hazardous substances within and beyond regulatory compliance (RoHS/REACh)Maximize availabilityOr instead of extending the warranty, opt for the even more complete 5-year EcoCare Service to maximize the availability of your APC UPS. In addition to a 5-year warranty, it also includes 24/7 remote monitoring through the Schneider Electric Connected Services Hub and SE's on-site repair service (replacement parts, labor, installation and call-out charges).
LongProductName - APC Smart-UPS SMT1500RMI2UC - 4x C13, USB, Rack Mountable, 2U, SmartConnect, 1500VA
LongSummaryDescription - APC Smart-UPS SMT1500RMI2UC - 4x C13, USB, Rack Mountable, 2U, SmartConnect, 1500VA. UPS topology: Line-Interactive, Output power capacity: 1.5 kVA, Output power: 1000 W. AC outlet types: C13 coupler, IEC Jumpers, Power plug: C14 coupler, AC outlets quantity: 4 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery life (max): 6 year(s), Battery recharge time: 3 h. Form factor: Rackmount, Product colour: Black, Rack capacity: 2U. Width: 432 mm, Depth: 477 mm, Height: 86 mm
Manufacturer - APC
Manufacturer Code - SMT1500RMI2UC
Manufacturer Name - APC by Schneider Electric
ManufacturerPartNumber - SMT1500RMI2UC
Manufacturer_code - SMT1500RMI2UC
MANUFDATASHEET - https://www.apc.com/shop/hr/en/products/APC-Smart-UPS-1500VA-LCD-RM-2U-230V-with-SmartConnect/P-SMT1500RMI2UC
Maximum power, W - 1000
MPN - SMT1500RMI2UC
Name - APC Smart-UPS 1500VA SMT1500RMI2U LCD
Name - APC Smart-UPS Rack 2HE SMT1500RMI2UC 1500VA 1000W Line Interactive
Name - APC Smart SMT1500RMI2UC
name - Uninterruptible Power Supply SMT1500RMI2UC 1500VA/1kW 2U SmartConnect
Nominal input voltage, V - 230
Nominal output voltage, V - 230
Number of phases input - 1 (230V)
Operating relative humidity range, % - 0 - 95
Operating temperature range (T-T), °C - 0 - 40
Operational conditions - Non-operating altitude - 0 - 15000 m
Operational conditions - Operating altitude - 0 - 3000 m
Operational conditions - Operating relative humidity (H-H) - 0 - 95%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 0 - 95%
Operational conditions - Storage temperature (T-T) - -15 - 45 °C
Other features - Confirmation of conformity CSA, EAC, EN / IEC 62040-1, EN / IEC 62040-2, RCM, UL 1778, VDE
Other features - Output voltage - 230 V

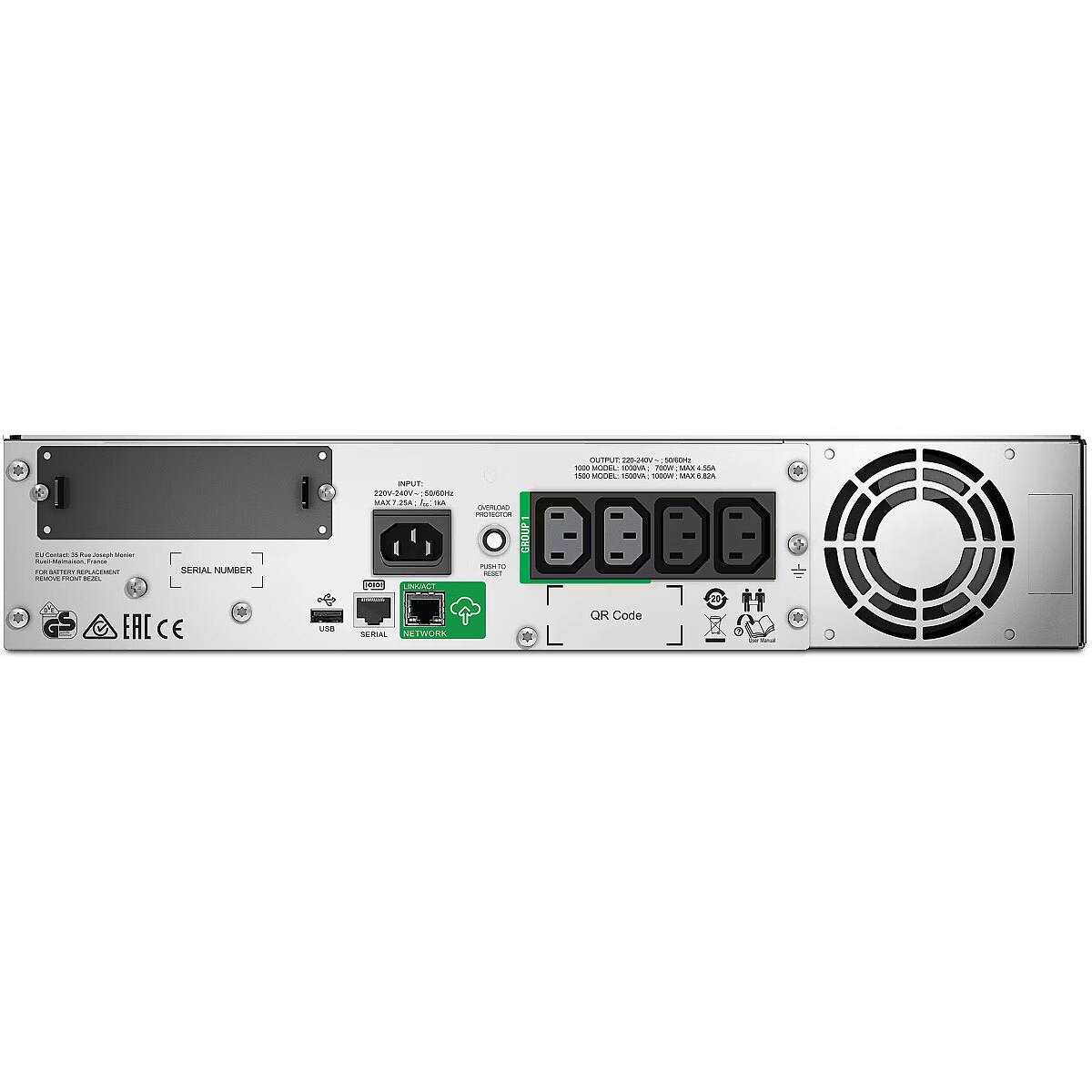

OutputConnections -

(4) IEC 320 C13 (Battery Backup)

(2) IEC Jumpers (Battery Backup)

OutputFrequency - 50/60Hz +/- 3 Hz
Output interface - 2 x IEC Jumpers (Battery Backup)
4 x IEC 320 C13 (Battery Backup)
Output power, W - 1000
Output power capacity (VA) - 1500
Output power ports - 4 x IEC-C13
OutputVoltage - 230 V
PackageContents -

CD with software

Documentation CD

Installation guide

Rack Mounting support rails

USB cable

Packaging data - Cables included - RS-232, USB cable
Packaging data - Manual - Yes
Packaging data - Rack mount kit - Yes
Packaging data - Resource CD - Yes
PeriodofWarranty - 3 Y
Ports & interfaces - AC outlets quantity - 4 AC outlet(s)
Ports & interfaces - AC outlet types - C13 coupler, IEC Jumpers
Ports & interfaces - Power plug - C14 coupler
Ports & interfaces - Serial interface - Yes
Ports & interfaces - Serial interface type - RJ-45
Ports & interfaces - SmartSlot - Yes
Ports & interfaces - USB port - Yes
PowerVAW - 1500 VA
PowerW - 1000 W
ProdDesc - APC Smart-UPS 1500VA LCD RM 2U 230V with SmartConnect
producer - APC
Producer - APC
ProducerCode - SMT1500RMI2UC
ProductName - APC Smart-UPS SMT1500RMI2UC - 4x C13, USB, Rack Mountable, 2U, SmartConnect, 1500VA
ProductPicture - http://www.tdbaltic.ee/images/ds4/SMT1500RMI2UC-01.jpg
ProductPicture2 - http://www.tdbaltic.ee/images/ds4/SMT1500RMI2UC-02.jpg
ProductPicture3 -
ProductPicture4 -
Rack height (units) - 2
RechargeTime - 3 h
RJ45 - -
Runtime - -
ShortDescription -
Short description - APC Smart-UPS 1500 VA LCD RM mit SmartConnect
ShortSummaryDescription - APC Smart-UPS SMT1500RMI2UC - 4x C13, USB, Rack Mountable, 2U, SmartConnect, 1500VA, Line-Interactive, 1.5 kVA, 1000 W, Sine, 151 V, 302 V
SmartSlot - Yes
Software -
Special functions -
Stck_Kart - 1
Stck_Pal - 8
Storage temperature range (T-T), °C - -15 - 45
Storno - Y
Surge energy rating, J - 459
Technical details - Sustainability certificates - ENERGY STAR, Green Premium
Title - APC Smart-UPS SMT1500RMI2UC - 4x C13, USB, Rack Mountable, 2U, SmartConnect, 1500VA
Topology - Line interactive
UPS Architecture - line-interactive
UPS devices and accessories - Yes
URL - https://www.apc.com/
USB - Yes
vendpn - SMT1500RMI2UC
Warranty - -
WarrantyInfo - 3 years
WaveformType - Sine wave
Weight - 27.8 kg
Weight - 28.640 Kg
Weight - 32,10
Weight - 32.000000
Weight - 32.5
Weight & dimensions - Depth - 477 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Package depth - 603 mm
Weight & dimensions - Package height - 251 mm
Weight & dimensions - Package weight - 31.9 kg
Weight & dimensions - Package width - 594 mm
Weight & dimensions - Weight - 26.1 kg
Weight & dimensions - Width - 432 mm
Weight, kg - 28.64
Width - 432 mm
Width - 590.000000
Width, mm - 432
