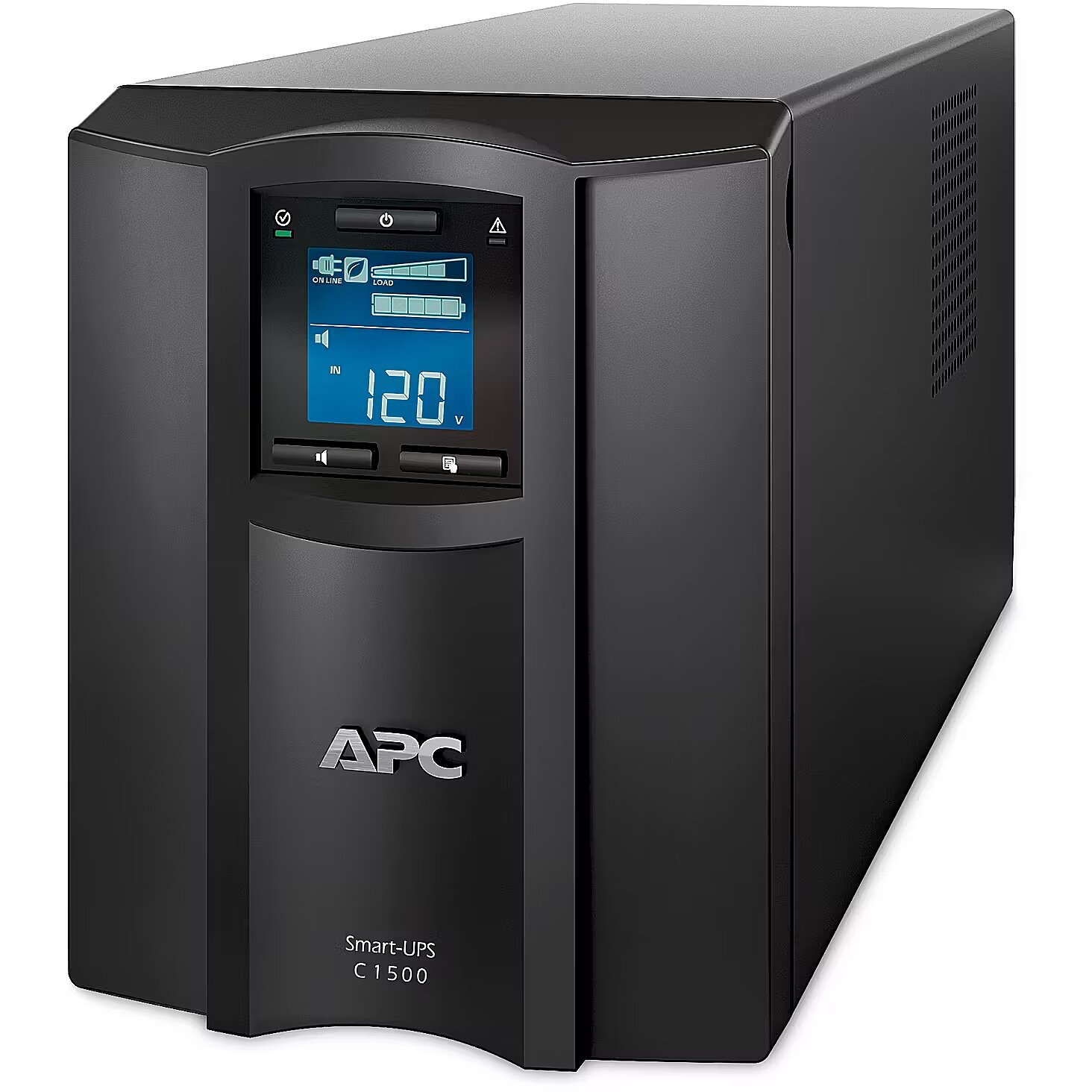

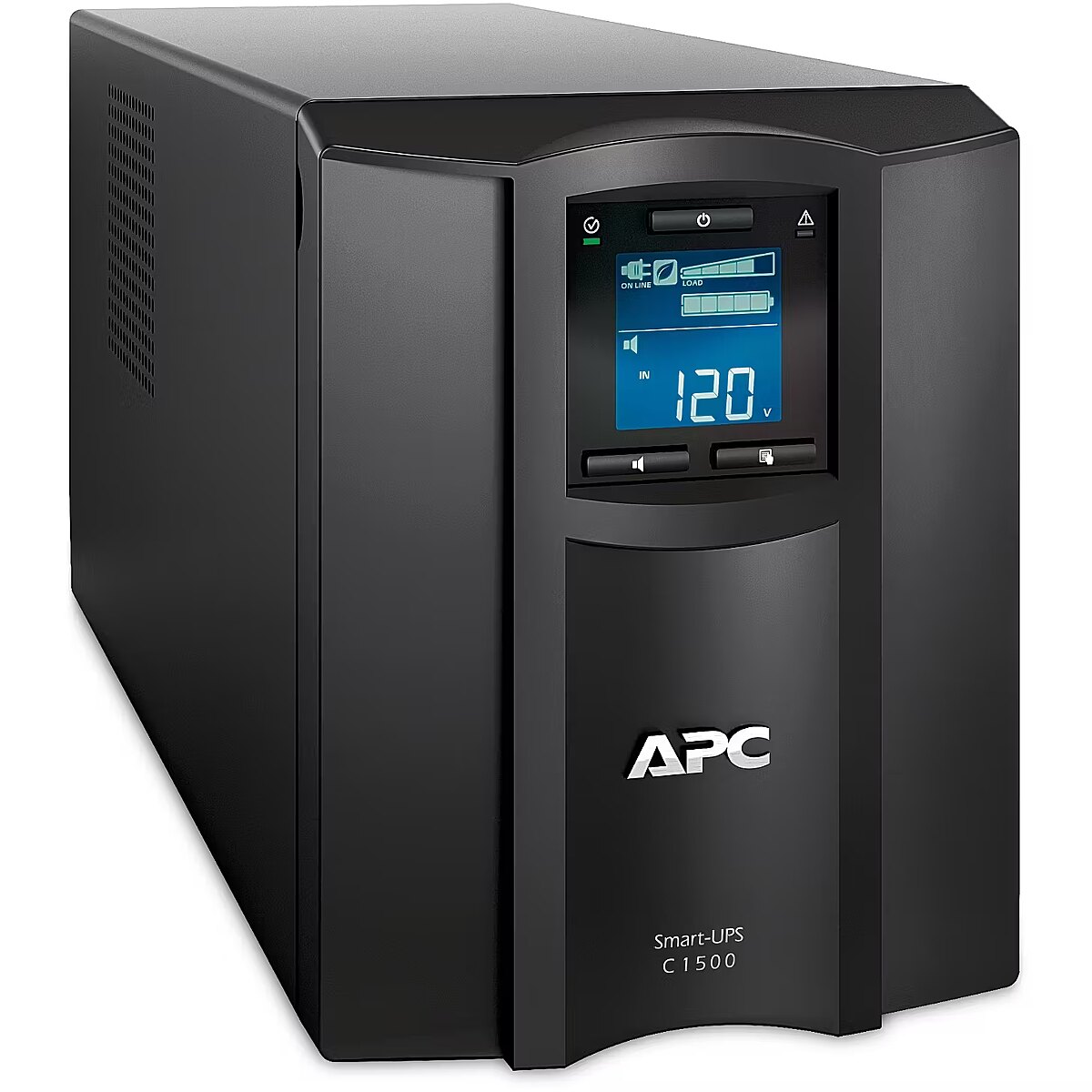

APC Smart-UPS SMC1500IC 1500VA, 900W, IEC

Accessories included - Software CD CD with documentation Installation Guide USB cable
Active power - 900 W
Alarm - Alarm when on battery : distinctive low battery alarm : configurable delays
Apparent power - 1500 VA
ARTIKEL1 - APC SMART-UPS C 1500VA LCD
ARTIKEL2 - 230V WITH SMARTCONNECT IN
Backup time (100% load) - 7.8 min
Battery - Automatic battery test - Yes
Battery - Battery life (max) - 5 year(s)
Battery - Battery recharge time - 3 h
Battery - Battery technology - Sealed Lead Acid (VRLA)
Battery - Cold start - Yes
Battery - Hot-swap battery - Yes
Battery - Number of batteries supported - 1
Battery recharge time, h - 3
BatteryType -

Maintenance-free sealed Lead-Acid battery with suspended electrolyte

leakproof

Brand - APC
BrandPartCode - SMC1500IC
Category - Root/Accessories | Exploitation/Power supply/UPSs and power strips/UPSs
Category - Uninterruptible Power Supplies (UPSs)
Category 1 - Energie & USV
Category 2 - USV & Stromversorgung
Category_1 - Network and Servers
Category_2 - Network - Network Accessories
Certification - CSA, CSA C22.2 No. 107.1, ENERGY STAR V1.0 (USA), FCC Part 15 Class B, ICES-003, UL 1778
Charging time - 3 h
Chassis type - Tower
Color - Black
Color - Gray
Connections - USB
ControlPanel - Multi-function LCD status and control console
Depth - 439 mm
Depth, mm - 439
Description - APC SMART-UPS C 1500VA LCD 230V WITH SMARTCONNECT
Description - APC Smart-UPS C 1500VA LCD 230V with SmartConnect
Intelligent and efficient power protection in networks, from the basic level to the possibility of scaling back-up time. The perfect solution for servers, POS terminals, routers, switches, hubs and other network devices.
APC SmartConnect - a function that allows you to view the UPS status via a secure internet portal. Thanks to the innovative remote monitoring interface you will receive automatic notifications, firmware updates and advanced support. The easy-to-use APC SmartConnect network communication provides additional value - and even more important - peace of mind.
Design - Certification - C-tick, CE, CSA, GOST, UL 1778, VDE
Design - Display type - LCD
Design - Form factor - Mini Tower
Design - LED indicators - Yes
Design - Product colour - Black
dimension depth - 335 mm
dimension height - 595 mm
Dimensions - 21.9 x 17.1 x 43.9 cm
dimension weight - 22580 g
dimension width - 330 mm
ean - 731304332961
EAN - 0731304332961
EANCode - 0731304332961
Eans - 731304332961
EAN_code - 0731304332961
Environment requirements - Operating temperature 0 - 40 ° C Relative humidity during operation 0 - 95% Height m.p. during operation 0-3000 meters Temperature (storage) -15 - 45 ° C Relative humidity (storage) 0 - 95% Height m.p. (storage) 0-15000 meters The noise is heard at a distance of 1 m from the surface of the device 45.0dBA Heat dissipation online 135.0BTU / hour.
Features - Audible alarm(s) - Yes
Features - Audible alarm modes - Alarm when on battery, Low battery alarm, Overload alarm
Features - Auto-restart - Yes
Features - Automatic Voltage Regulation (AVR) - Yes
Features - Input frequency - 50/60 Hz
Features - Input operation voltage (max) - 300 V
Features - Input operation voltage (min) - 170 V
Features - Noise level - 45 dB
Features - Output frequency - 50/60 Hz
Features - Output operation voltage (max) - 240 V
Features - Output operation voltage (min) - 220 V
Features - Output power - 900 W
Features - Output power capacity - 1.5 kVA
Features - Output voltage Total Harmonic Distortion (THD) - 5%
Features - Surge energy rating - 459 J
Features - Temperature voltage compensation - Yes
Features - UPS topology - Line-Interactive
Features - Waveform - Sine
Features - Web-based management - Yes
FormFactor - Tower
Form factor - Tower
Frequency range, Hz - 50/60 +/- 3
GrossWeight - 22.550 kg
Gross Weight Kg - 27,23
GRUPPE1 - Power Protection
GRUPPE2 - UPS (Uninterruptable Power Supply)
GTIN - 731304332961
GTIN - 0731304332961
guarantee - 24
guarantee_type - external
Height - 219 mm
Height - 330.000000
Height, mm - 219
HERSTELLER - APC
Hold-up time (maks) - 10 ms
HSTNUMMER - SMC1500IC
I/O connectors - 1 x RJ-45 (iLO Remote Management Network)
I/O connectors - 1 x USB (Type B)
Input connection - NEMA 5-15P
InputConnections - IEC-320 C14
InputFrequency - 50/60 Hz +/- 3 Hz (auto sensing)
Input frequency, Hz - 50/60 +/- 3
Input power ports - IEC-C14
InputVoltage - 230 V
Input voltage, V - 170 - 300
InterfacePorts - USB
Length - 330.000000
Logistics data - Harmonized System (HS) code - 85078000
Logistics data - Products per pallet - 18 pc(s)
LongDesc -
LongDesc - Always stay online and prevent data lossAs soon as the power goes out, an APC Smart-UPS immediately provides emergency power to all connected equipment. Because an APC UPS does this automatically, you prevent unwanted failure of, for example, a PC, server or switch. With the free APC PowerChute software you can even have critical IT hardware shut down automatically and in a controlled manner when the battery of the UPS is almost empty. This way you prevent data loss, downtime and physical damage to hardware.SafetyIn addition, a Smart-UPS protects connected devices against peak voltage caused by lightning, among other things. This APC emergency power supply is therefore ideally suited for (small) business use.SmartConnectOut-of-box remote UPS monitoring, free for a 6-month trial period. Using the SmartConnect ethernet port, you can easily connect the Smart-UPS to your network and easily monitor it remotely via the secure APC SmartConnect cloud-based web portal*. In addition, the UPS can always be monitored via this port via EcoStruxure IT Expert (SFTWES1-DIGI).* Extend access to SmartConnect through the following licenses:1 year Standard Plan: ERWPMON1-1Y-DIGI3 year Standard Plan: ERWPMON1-3Y-DIGI1 year Advanced Plan: ERWPLUS1-1Y-DIGI3 year Advanced Plan: ERWPLUS1-3Y-DIGIPowerChuteBy connecting the UPS to a maximum of one server via a USB cable, it can automatically provide it with a shutdown signal during a prolonged power outage and thus prevent a hard shutdown. This exact moment can be set via the free APC PowerChute Business Edition software.Ease of useBy means of physical buttons and an LCD screen make it possible to set and read the basic functionalities.Battery lifeYou can easily read the expected battery life in the runtime graph, which you can find between the product images. You can easily see how long the UPS supplies emergency power at a certain load.Extend the lifespanThe internal battery cartridge (RBC6) can be replaced easily, safely and independently by the user. This without having to switch off the APC SMC1500IC or connected equipment. This way you can easily and cheaply extend the lifespan of the APC Smart-UPS and your equipment always remains online.Warranty extensionThe factory warranty of the SMC1500IC is 2 years and you can upgrade to 5 years with the APC service pack (WBEXTWAR3YR-SP-03).Green PremiumThis label represents Schneider Electric's commitment to delivering products with best-in-class environmental performance. Green Premium promises to comply with the latest regulations, transparency on environmental effects and circular and low CO2 emission products.Green Premium:- Stands for an energy-efficient product that helps our customers achieve their CO2 reduction goals and save energy costs at the same time. The energy efficiency of this product is at least 10% higher than the market average.- Provides insight into the environmental effects of the product, this data is available 24/7 via the digital product environmental profile, see https://checkaproduct.se.com/- Commits to minimal use of hazardous substances within and beyond regulatory compliance (RoHS-/REACh)Peace of mind that comes with full equipment compatibility and reliability of a leaderProvides pure sine wave output which is recommended by server manufacturers using active power factor corrected (PFC) power supplies. Safety agency tested and approved means that you can deploy Smart-UPS with confidence that they meet or exceed the industry’s most rigorous standards.Smarter productivity with ability to tailor to your specific application needsIntuitive LCD interface provides clear information with the ability to configure the UPS locally with easy to use navigation keys. Over 15 different programmable settings including switched outlet group control allow for application specific settings, thresholds and notifications.Avoids costly power problems by keeping your IT equipment and data safe and availableNetwork grade power conditioning protects from damaging surges and disruptive noise. Solid state automatic voltage regulation boosts low input voltage up to 30% and trims high voltage up to 12% without battery operation. Reliable battery back-up capacity to power through outages or gracefully shutdown systemsLow operating and maintenance costs with high efficiency, proven reliability and intelligent battery managementPatented green operating mode achieves efficiencies over 97%. Smart-ups was the first network UPS to be Energy Star certified. Intelligent battery management, pioneered by APC, maximizes battery performance and life through intelligent, precision temperature compensated charging. Dynamic battery replacement date indicator and automatic self tests insure battery reliability and warn in advance of needing replacement. Convenient, easy to connect, hot-swappable battery modules provide battery replacement without powering down. Designed and manufactured by APC for over 23 years, Smart-UPS is the world’s most trusted network UPS with over 25 million units sold.Save time with easy and convenient remote accessibilityNetwork manageable via serial, USB or optional ethernet. Includes Powerchute Business Edition Software for convenient monitoring and control, safe operating system shutdown and innovative energy management capabilities.
LongProductName - APC Smart-UPS SMC1500IC - 8x C13, USB, SmartConnect, 1500VA
LongSummaryDescription - APC Smart-UPS SMC1500IC - 8x C13, USB, SmartConnect, 1500VA. UPS topology: Line-Interactive, Output power capacity: 1.5 kVA, Output power: 900 W. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 8 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery life (max): 5 year(s), Battery recharge time: 3 h. Form factor: Mini Tower, Product colour: Black, Display type: LCD. Width: 171 mm, Depth: 439 mm, Height: 219 mm
Manufacturer - APC
Manufacturer Code - SMC1500IC
Manufacturer Name - APC by Schneider Electric
ManufacturerPartNumber - SMC1500IC
Manufacturer_code - SMC1500IC
MANUFDATASHEET - https://www.apc.com/shop/hr/en/products/APC-Smart-UPS-C-1500VA-LCD-230V-with-SmartConnect/P-SMC1500IC?isCurrentSite=true
Maximum power, W - 900
MPN - SMC1500IC
Name - APC Smart-UPS C 1500VA SMC1500IC LCD
Name - APC Smart-UPS Tower SMC1500iC 1500VA 900W mit SmartConnect
Name - APC Smart SMC1500IC
name - Uninterruptible Power Supply SMC1500IC SmartUPS C 15 00VA/900W Tower SmartConnect
Noise level, dB - 45
Nominal input voltage, V - 230
Nominal output voltage, V - 230
Number of phases input - 1 (230V)
Operating relative humidity range, % - 0 - 95
Operating temperature range (T-T), °C - 0 - 40
Operational conditions - Non-operating altitude - 0 - 15000 m
Operational conditions - Operating altitude - 0 - 3000 m
Operational conditions - Operating relative humidity (H-H) - 0 - 95%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 0 - 95%
Operational conditions - Storage temperature (T-T) - -15 - 45 °C
Other features -
OutputConnections -

(8) IEC 320 C13 (Battery Backup)

(2) IEC Jumpers (Battery Backup)

OutputFrequency - 50/60Hz +/- 3 Hz
Output interface - 8 x NEMA 5-15R (Battery Backup)
Output power, W - 900
Output power capacity (VA) - 1440
Output power ports - 8 x IEC-C13
OutputVoltage - 230 V
Output voltage, V - 220, 240
PackageContents -

CD with software

Documentation CD

USB cable

Packaging data - Cables included - USB cable
Packaging data - Package volume - 27230 cm³
Packaging data - Resource CD - Yes
Packaging data - Software CD - Yes
PeriodofWarranty - 2 Y
Ports & interfaces - AC outlets quantity - 8 AC outlet(s)
Ports & interfaces - AC outlet types - C13 coupler
Ports & interfaces - Power plug - C14 coupler
Ports & interfaces - Serial interface - Yes
Ports & interfaces - Serial ports quantity - 1
Ports & interfaces - USB 2.0 ports quantity - 1
Ports & interfaces - USB port - Yes
PowerVAW - 1500 VA
PowerW - 900 W
ProdDesc - APC Smart-UPS C 1500VA LCD 230V with SmartConnect
producer - APC
Producer - APC
ProducerCode - SMC1500IC
ProductName - APC Smart-UPS SMC1500IC - 8x C13, USB, SmartConnect, 1500VA
ProductPicture - http://www.tdbaltic.ee/images/ds4/SMC1500IC-01v2.jpg
ProductPicture2 -
ProductPicture3 -
ProductPicture4 -
RechargeTime - 3 h
RJ45 - -
Runtime - -
ShortDescription -
Short description - APC Smart-UPS C 1500 VA LCD mit SmartConnect
ShortSummaryDescription - APC Smart-UPS SMC1500IC - 8x C13, USB, SmartConnect, 1500VA, Line-Interactive, 1.5 kVA, 900 W, Sine, 170 V, 300 V
SmartSlot - -
Software -
Special functions -
Stck_Kart - 1
Stck_Pal - 18
Storage temperature range (T-T), °C - -15 - 45
Storno - Y
Surge energy rating, J - 680
Technical details - Sustainability certificates - Green Premium
Title - APC Smart-UPS SMC1500IC - 8x C13, USB, SmartConnect, 1500VA
Topology - Line interactive
UPS Architecture - line-interactive
UPS devices and accessories - Yes
URL - https://www.apc.com/shop/hr/en/products/APC-Smart-UPS-C-1500VA-LCD-230V-with-SmartConnect/P-SMC1500IC?isCurrentSite=true
USB - Yes
vendpn - SMC1500IC
Warranty - 2 years
WarrantyInfo - 2 years
WaveformType - Sine wave
Weight - 20.100 Kg
Weight - 22,50
Weight - 22.44
Weight - 22.500000
Weight - 24.09 kg
Weight & dimensions - Depth - 439 mm
Weight & dimensions - Height - 219 mm
Weight & dimensions - Package depth - 595 mm
Weight & dimensions - Package height - 376 mm
Weight & dimensions - Package width - 328 mm
Weight & dimensions - Weight - 24.1 kg
Weight & dimensions - Width - 171 mm
Weight, kg - 20.1
Width - 171 mm
Width - 601.000000
Width, mm - 171
