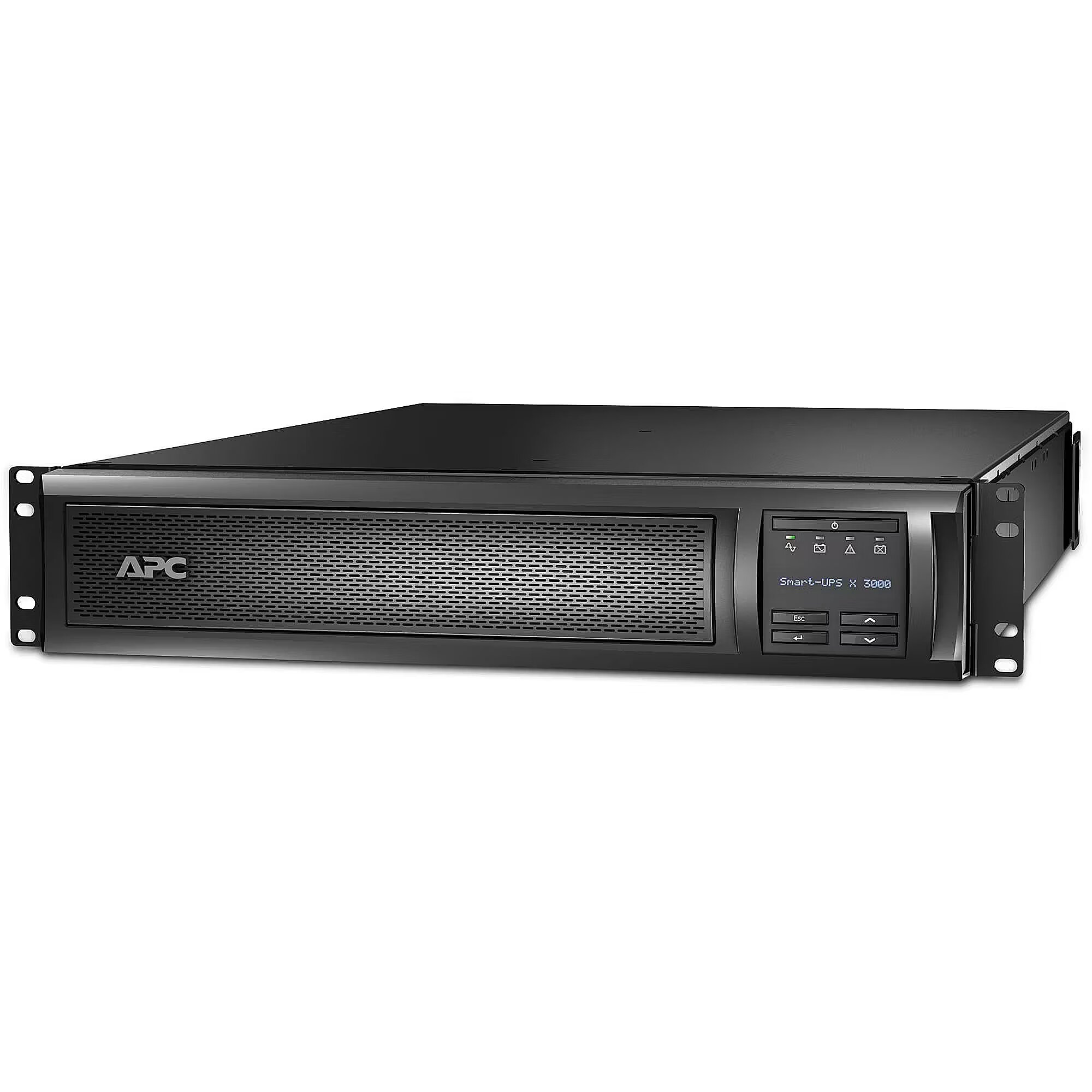

APC Smart-UPS X SMX3000RMHV2UNC 3000VA, 2700W, IEC, 2U

Accessories included - - CD with software
- Rack Mounting support rails
- Smart UPS signalling RS-232 cable
- Temperature Probe
- User Manual
- Web/SNMP Management Card
Active power - 2700 W
Apparent power - 3000 VA
ARTIKEL1 - APC SMART-UPS X 3000VA
ARTIKEL2 - RACK/TOWER LCD 200-240V WITH NIC
Backup time (100% load) - 6.3 min
Battery - Automatic battery test - Yes
Battery - Battery capacity - 738 VAh
Battery - Battery life (max) - 5 year(s)
Battery - Battery recharge time - 3 h
Battery - Battery technology - Sealed Lead Acid (VRLA)
Battery - Hot-swap battery - Yes
Battery - Typical backup time at full load - 6.25 min
Battery - Typical backup time at half load - 18 min
Battery capacity - 600 VAh
Battery recharge time, h - 3
Brand - APC
BrandPartCode - SMX3000RMHV2UNC
Breite - 0.6
Cable length, m - 1.83
Category - Uninterruptible Power Supplies (UPSs)
Category 1 - Energie & USV
Category 2 - USV & Stromversorgung
Certification - C-tick, CE, CSA, EN 50091-1, EN 50091-2, FCC Part 15 Class A, GOST, IEC 60950, IRAM, UL 1778, VDE
Charging time - 3 h
Chassis type - Rack
Chassis type - Tower
Color - Black
Connections - SmartSlot
Connections - USB
Connectors - SmartSlot
Depth, mm - 667
Description - APC SMART-UPS X 3000VA RACK/TOWER LCD 200-240V WITH NETWORK CARD
Description - APC Smart-UPS X 3000VA Rack/Tower LCD 200-240V with Network Card
APC Smart-UPS,2700 Watts /3000 VA ,Input 208V, 230V/Output 230V, Interface Port SmartSlot, Extended runtime model, Rack Height 2 U
Design - Cable length - 2.44 m
Design - Certification - C-tick, CE, EN 50091-1, EN 50091-2, EN 55022 Class A, EN 60950, FCC Part 15 Class A, GOST, IRAM, UL 1778, VDE, REACH, PEP, EOLI
Design - Form factor - Rackmount/Tower
Design - LED indicators - Battery replacement
Design - Product colour - Black
Design - Rack capacity - 2U
dimension depth - 600 mm
dimension height - 240 mm
Dimensions - - Height: 85 mm
- Width: 432 mm
- Depth: 667 mm
- Rack Height 2U
dimension weight - 46600 g
dimension width - 870 mm
ean - 731304272694
EAN - 0731304272694
EANCode - 0731304272694
Environment requirements - - Operating Environment: 0 - 45 °C
- Relative Humidity: 0 - 95%
- The height above sea level Operating: 0-3000 m
- Temperature (storage): -15 - 45 °C
- Relative humidity (storage) 0 - 95%
- The height above sea level (storage): 0-15000 m
- The noise level at 1 meter from surface of unit 55.00 dBA
- Dissipation: 184.00 BTU / hr.
Features - Audible alarm(s) - Yes
Features - Auto-restart - Yes
Features - Automatic Voltage Regulation (AVR) - Yes
Features - Efficiency - 98.5%
Features - Emergency Power Off (EPO) - Yes
Features - Hold time (max) - 10 ms
Features - Hold time (min) - 2 ms
Features - Input frequency - 50/60 Hz
Features - Noise level - 55 dB
Features - Output frequency regulation - 50/60 Hz
Features - Output operation voltage (max) - 240 V
Features - Output operation voltage (min) - 208 V
Features - Output power - 2700 W
Features - Output power capacity - 3 kVA
Features - Surge energy rating - 645 J
Features - Surge protection - Yes
Features - UPS topology - Line-Interactive
Features - Waveform - Sine
Form factor - Rack / Tower
Frequency range, Hz - 50/60 +/- 3
Gewicht - 46
Gross Weight Kg - 45,36
GRUPPE1 - Power Protection
GRUPPE2 - UPS (Uninterruptable Power Supply)
GTIN - 731304272694
GTIN - 0731304272694
guarantee - 36
guarantee_type - external
Height - 246.000000
Height, mm - 85
HERSTELLER - APC
Hoehe - 0.26
Hold-up time (maks) - 4 ms
HSTNUMMER - SMX3000RMHV2UNC
Input connection - IEC-320 C20, CEE 7 / EU1-16P
Input frequency, Hz - 50/60 +/- 3
Input power ports - IEC-C20
Input power ports - Type F Schuko
Input power ports - Type G British
Input voltage, V - 140 - 280
Laenge - 0.88
Length - 860.000000
Logistics data - Harmonized System (HS) code - 85078000
Logistics data - Products per pallet - 8 pc(s)
LongDesc - Always stay online and prevent data lossAs soon as the power goes out, an APC Smart-UPS immediately provides emergency power to all connected equipment. Because an APC UPS does this automatically, you prevent unwanted failure of, for example, a PC, server or switch. With the APC PowerChute Network shutdown software you can even have critical IT hardware shut down automatically and in a controlled manner when the battery of the UPS is almost empty. This way you prevent data loss, downtime and physical damage to hardware.Extend the runtimeYou can easily increase the number of minutes that the APC SMX UPS can independently supply emergency power by connecting external battery packs (SMX120RMBP2U). A runtime of several hours is even possible.SafetyIn addition, a Smart-UPS protects connected devices against peak voltage caused by lightning, among other things. This APC emergency power supply is ideally suited for (small) business use.Manage your Smart-UPSThanks to the pre-installed network card (ap9641), you can easily connect the APC UPS to the network. This way you can monitor and manage the UPS remotely (SNMP) and the UPS can send a shutdown signal to multiple physical and/or virtual servers using PowerChute Network Shutdown software.PowerChute Network ShutdownPowerChute Network Shutdown is UPS management software that works with the UPS Network Management Card to protect Windows, Linux and Host ESXi, as well as hyperconverged and virtual infrastructure*. In the event of a power outage, PowerChute can properly shut down your virtual machines and the preconfigured boot sequence ensures they are turned back on.*An additional license is required for HCI and virtual machine support:1 year: SWPCNS1Y-DIGIUp to (Replace the bold number in the article number for the desired variant)6 years: SWPCNS6Y-DIGIRemote management and monitoring of your networkThe network card can be managed remotely via the easy-to-use web browser interface, remote management software EcoStruxure™ IT (SFTWES1-DIGI) or other SNMP-compatible system. Tip EcoStruxure™ IT also includes the functionalities of the support contract below.Support contractThe optional network card support contract license* ensures you are always up to date and secure and includes additional benefits such as frequent updates with:• New and improved features• Security updates• Advanced support(The support contract functionality is included free of charge in the first year of the UPS)*The above license and available in the variants:1 year: SWNMC3SU-1Y-DIGIUp to (Replace the bold number in the article number for the desired variant)6 years: SWNMC3SU-6Y-DIGIEase of useBy means of physical buttons and an LCD screen make it possible to set and read the basic functionalities.Rack/tower convertibleThe APC Smart-UPS SMX is rack/tower convertible. Because both the feet and the 4-post rack mounting brackets are included, you can mount it in a rack or place it upright.Extend the lifespanThe internal battery cartridge (APCRBC117) can be replaced easily, safely and independently by the user. This without having to switch off the APC SMX3000RMHV2UNC or connected equipment. This way you can easily and cheaply extend the lifespan of the APC Smart-UPS and your equipment always remains online.Warranty extensionThe manufacturer's warranty of the SMX3000RMHV2UNC is 3 years, with the exception of the battery cartridge, which has a 2-year manufacturer's warranty. Both are extended by 3 years to 6 and 5 years respectively with the APC service pack (WBEXTWAR3YR-SP-04).Switched Outlet Groups: Remote reboot and phased start-upThanks to the Switched Outlet Groups, it is possible to configure a phased/delayed power-on per UPS outlet group. This reduces the peak load on the UPS and brings it closer to the constant load, which limits oversizing of the UPS.It is also possible to reset a group of multiple UPS outputs and the equipment connected to them. If a network card (ap9640) is used in combination with Ecostruxure IT Expert (SFTWES1-DIGI), this can even be done remotely.You also cannot eliminate critical loads; This way you extend the runtime for critical equipment.Green PremiumThis label verrepresents Schneider Electric's commitment to delivering products with best-in-class environmental performance. Green Premium promises to comply with the latest regulations, transparency on environmental effects and circular and low CO2 emission products.Green Premium:- Stands for an energy-efficient product that helps our customers achieve their CO2 reduction goals and save energy costs at the same time. The energy efficiency of this product is at least 10% higher than the market average.- Provides insight into the environmental effects of the product, this data is available 24/7 via the digital product environmental profile, see https://checkaproduct.se.com/- Commits to minimal use of hazardous substances within and beyond regulatory compliance (RoHS-/REACh)Included in the box1x SMX3000RMHV2UNC1x USB cable2x C13 to C14 power cord 2 meters1x Schuko to C19 input power cord 2 meters1x C19 to C20 power cord 2.5 meters1x Software CD with PowerChute Network Shutdown Edition1x Documentation CD1x British BS1363A to C19 input power cord2x 4 post rack mounting brackets1x Temperature sensorAvailabilityBoost and Trim Automatic Voltage Regulation (AVR)Gives higher application availability by correcting low and high voltage conditions without using the battery.Intelligent battery managementMaximizes battery performance, life, and reliability through intelligent, precision charging.Power conditioningProtects connected loads from surges, spikes, lightning, and other power disturbances.Temperature-compensated battery chargingProlongs battery life by regulating the charge voltage according to battery temperature.Automatic restart of loads after UPS shutdownAutomatically starts up the connected equipment upon the return of utility power.Automatic self-testPeriodic battery self-test ensures early detection of a battery that needs to be replaced.Disconnected battery notificationWarns when a battery is not available to provide backup power.ManageabilityNetwork manageableProvides remote management of the UPS over the network.Audible alarmsActively let you know if the unit is on battery, if the battery is low or if there is an overload condition.LED status indicatorsQuickly understand unit and power status with visual indicators.Serial ConnectivityProvides management of the UPS via a serial port.USB connectivityProvides management of the UPS via a USB port (not available on all models).Disconnected battery notificationWarns when a battery is not available to provide backup power.ServiceabilityUser-replaceable batteriesIncreases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)Hot-swappable batteriesEnsures clean, uninterrupted power to protected equipment while batteries are being replacedPredictive failure notificationProvides early-warning fault analysis ensuring proactive component replacement.Resettable circuit breakersEnables a quick recovery from overload events.Battery failure notificationProvides early-warning fault analysis on batteries enabling timely preventive maintenanceAdaptabilityAdjustable voltage-transfer pointsMaximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.Adjustable voltage sensitivityProvides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.SafetySafety-agency approvedEnsures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
LongProductName - Smart-UPS X SMX3000RMHV2UNC - 3000VA, 8x C13, 1x C19, USB, NMC
LongSummaryDescription - APC Smart-UPS X SMX3000RMHV2UNC - 3000VA, 8x C13, 1x C19, USB, NMC. UPS topology: Line-Interactive, Output power capacity: 3 kVA, Output power: 2700 W. AC outlet types: C13 coupler, C19 coupler, Power plug: C20 coupler, AC outlets quantity: 9 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 738 VAh, Typical backup time at full load: 6.25 min. Form factor: Rackmount/Tower, Product colour: Black, Rack capacity: 2U. Width: 432 mm, Depth: 667 mm, Height: 85 mm
Manufacturer - APC
Manufacturer Code - SMX3000RMHV2UNC
Manufacturer Name - APC by Schneider Electric
ManufacturerPartNumber - SMX3000RMHV2UNC
Maximum power, W - 2700
MPN - SMX3000RMHV2UNC
Name - APC Smart-UPS X 3000 Rack/Tower SMX3000RMHV2UNC 3000VA 2700W 2HE
name - SMX3000RMHV2UNC 3000VA USB/RS/AP9631/LCD/RT 2U
No. of batteries - 1
Noise level, dB - 55
Nominal input voltage, V - 208, 230 (220, 240)
Nominal output voltage, V - 230 (208, 220, 240)
Number of phases input - 1 (230V)
Operating relative humidity range, % - 0 - 95
Operating temperature range (T-T), °C - 0 - 40
Operational conditions - Non-operating altitude - 0 - 15000 m
Operational conditions - Operating altitude - 0 - 3000 m
Operational conditions - Operating relative humidity (H-H) - 0 - 95%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 0 - 95%
Operational conditions - Storage temperature (T-T) - -15 - 45 °C
Other features - - Output Power: 2700W
- Output voltage: 208/220/230/240V
- Waveform Type: Sine wave
- Crest Factor: 3: 1
- 2 x IEC Jumpers
- Input voltage: 208/230V, 140-280V
- Cord Length: 1.83 m
- Emergency power supply
- Surge energy rating: 645 joules
Other features - Nominal input voltage - 230 V
Other features - Nominal output voltage - 230 V
Other features - Packaging content - Web/SNMP Management Card

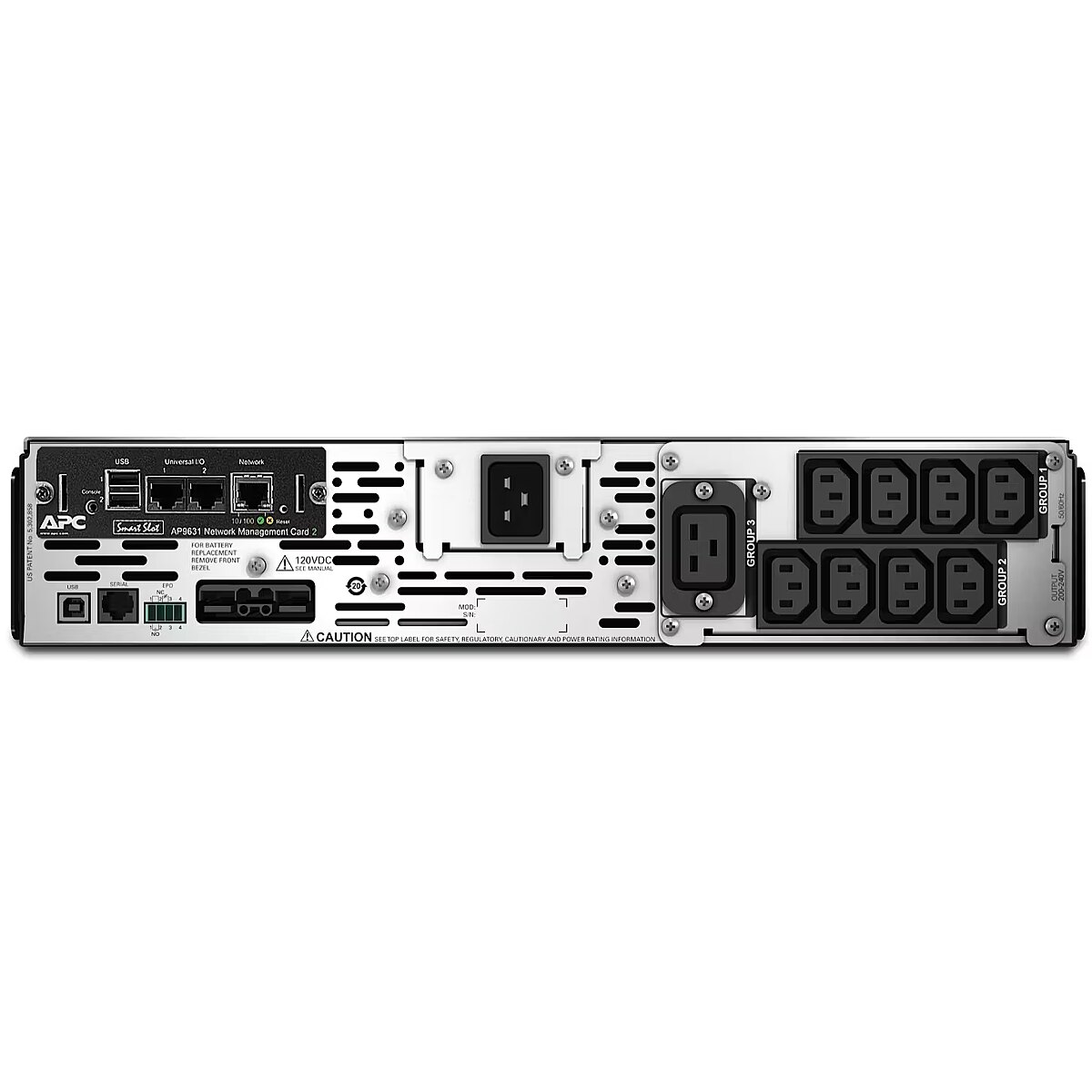

Output interface - 8 x IEC 320 C13, 1 x IEC 320 C19, 2 x IEC Jumpers
Output power, W - 2700
Output power capacity (VA) - 3000
Output power ports - 1 x IEC-C19
Output power ports - 8 x IEC-C13
Packaging data - Cables included - RS-232
Packaging data - Manual - Yes
Packaging data - Rack mount kit - Yes
Packaging data - Software CD - Yes
Packaging data - Temperature sensor - Yes
PeriodofWarranty - 3 Y
Ports & interfaces - AC outlets quantity - 9 AC outlet(s)
Ports & interfaces - AC outlet types - C13 coupler, C19 coupler
Ports & interfaces - Number of output IEC jumpers - 2
Ports & interfaces - Power plug - C20 coupler
Ports & interfaces - SmartSlot - Yes
producer - APC
ProductName - Smart-UPS X SMX3000RMHV2UNC - 3000VA, 8x C13, 1x C19, USB, NMC
Rack height (units) - 2
Runtime - 10 min (full load) / 18 min (half load)
Short description - APC Smart-UPS X 3000 VA LCD SMX3000RMHV2UNC+++
ShortSummaryDescription - APC Smart-UPS X SMX3000RMHV2UNC - 3000VA, 8x C13, 1x C19, USB, NMC, Line-Interactive, 3 kVA, 2700 W, Sine, 50/60 Hz, 208 V
Software -
Special functions - - Boost and Trim Automatic Voltage Regulation (AVR)
- Intelligent battery management
- Power conditioning
- Temperature-compensated battery charging
- Automatic restart of loads after UPS shutdown
- Automatic self-test
- Disconnected battery notification
- Network manageable
- Audible alarms
- LED status indicators
- Serial connectivity
- USB connectivity
- Disconnected battery notification
- User-replaceable batteries
- Hot-swappable batteries
- Predictive failure notification
- Resettable circuit breakers
- Battery failure notification
- Adjustable voltage-transfer points
- Adjustable voltage sensitivity
- Safety-agency approved
Stck_Kart - 1
Stck_Pal - 8
Storage temperature range (T-T), °C - -15 - 45
Storno - Y
Surge energy rating, J - 645
Technical details - Compliance certificates - RoHS
Technical details - Sustainability certificates - Green Premium
Title - APC Smart-UPS X SMX3000RMHV2UNC - 3000VA, 8x C13, 1x C19, USB, NMC
UPS Architecture - line-interactive
UPS devices and accessories - Yes
URL - https://www.apcc.com/products/resource/include/techspec_index.cfm?base_sku=SMX3000RMHV2UNC&tab=models
vendpn - SMX3000RMHV2UNC
Voltage - 120 V
WarrantyInfo - 3 years repair or replace (excluding battery) and 2 years for battery
Weight - 37.32 kg
Weight - 46
Weight - 50.700000
Weight & dimensions - Depth - 667 mm
Weight & dimensions - Height - 85 mm
Weight & dimensions - Package depth - 869 mm
Weight & dimensions - Package height - 85 mm
Weight & dimensions - Package weight - 45.4 kg
Weight & dimensions - Package width - 596 mm
Weight & dimensions - Weight - 37.3 kg
Weight & dimensions - Width - 432 mm
Weight, kg - 37.32
Width - 598.000000
Width, mm - 432
