APC Smart-UPS X SMX3000HV 3000VA, 2700W, IEC, 4U

Accessories included - CD z oprogramowaniem Dokumentacja na CD Klamry do montażu w szafach przemysłowych Kabel do sygnalizacji RS-232 do Smart-UPS Kabel USB Podręcznik użytkownika
Active power - 2700 W
Apparent power - 3000 VA
ARTIKEL1 - SMART-UPS X 3000VA LCD
ARTIKEL2 - RM/TOWER IN
Backup time (100% load) - 6.25 min
Battery - Automatic battery test - Yes
Battery - Battery capacity - 738 VAh
Battery - Battery life (max) - 5 year(s)
Battery - Battery recharge time - 3 h
Battery - Battery technology - Sealed Lead Acid (VRLA)
Battery - Hot-swap battery - Yes
Battery - Typical backup time at full load - 6.25 min
Battery - Typical backup time at half load - 18 min
Battery capacity - 600 VAh
Battery recharge time, h - 3
Brand - APC
BrandPartCode - SMX3000HV
Cable length, m - 1.83
Category - Root/Accessories | Exploitation/Power supply/UPSs and power strips/UPSs
Category - Uninterruptible Power Supplies (UPSs)
Certification - C-tick, CE, CSA, EN 50091-1, EN 50091-2, EN 60950, FCC Part 15 Class A, GOST, IRAM, UL 1778, VDE
Charging time - 3 h
Chassis type - Rack
Chassis type - Tower
Color - Black
Connections - SmartSlot
Connections - USB
Connectors - 1 x USB (Typ B)
Connectors - SmartSlot
Depth, mm - 483
Description - APC Smart-UPS X 3000VA Rack/Tower LCD 200-240V
APC Smart-UPS,2700 Watts /3000 VA, na wejściu 208V, 230V /na wyjściu 230V, Interface Port SmartSlot, Extended runtime model, Wysokość w szafie przemysłowej 4 U
Description - APC SMART-UPS X 3000VA SHORT DEPTH TOWER/RACK CONVERTIBLE LCD 200-240V
Design - Cable length - 1.83 m
Design - Certification - C-tick, CE, CSA, EN 50091-1, EN 50091-2, EN 60950, FCC Part 15 Class A, GOST, IRAM, UL 1778, VDE,
REACH
Design - Display type - LCD
Design - Form factor - Rackmount/Tower
Design - LED indicators - Status
Design - Product colour - Black, Stainless steel
Design - Rack capacity - 4U
dimension depth - 630 mm
dimension height - 345 mm
Dimensions - Wysokość: 432 mm Szerokość: 178 mm Głębokość: 483 mm Wysokość w szafie przemysłowej: 4U
dimension weight - 48600 g
dimension width - 615 mm
ean - 731304292616
EAN - 0731304292616
EANCode - 0731304292616
Eans - 0731304292616
Environment requirements - Środowisko operacyjne: 0-40 stopni C Wilgotność względna podczas pracy: 0-95% Wysokość n.p.m. podczas pracy: 0-3000 m Temperatura (przechowywanie): od -15 do 45 stopni C Wilgotność względna (przechowywanie): 0-95% Wysokość n.p.m. (przechowywanie): 0-15000 m Poziom hałasu: 55 dBA Odprowadzanie ciepła: 184.00 BTU/godz.
Features - Audible alarm(s) - Yes
Features - Auto-restart - Yes
Features - Automatic Voltage Regulation (AVR) - Yes
Features - Crest factor - 3:1
Features - Efficiency - 98.5%
Features - Emergency Power Off (EPO) - Yes
Features - Hold time (max) - 10 ms
Features - Hold time (min) - 2 ms
Features - Input frequency - 50/60 Hz
Features - Input operation voltage (max) - 280 V
Features - Input operation voltage (min) - 140 V
Features - Noise level - 55 dB
Features - Output frequency regulation - 50/60 Hz
Features - Output operation voltage (max) - 240 V
Features - Output operation voltage (min) - 208 V
Features - Output power - 2700 W
Features - Output power capacity - 3 kVA
Features - Surge energy rating - 645 J
Features - Surge protection - Yes
Features - UPS topology - Line-Interactive
Features - Waveform - Sine
Form factor - Rack / Tower
Frequency range, Hz - 50/60 +/- 3
Gross Weight Kg - 47,73
GRUPPE1 - Power Protection
GRUPPE2 - UPS (Uninterruptable Power Supply)
GTIN - 731304292616
GTIN - 0731304292616
guarantee - 36
guarantee_type - external
Height - 590.000000
Height, mm - 432
HERSTELLER - APC
Hold-up time (maks) - 4 ms
HSTNUMMER - SMX3000HV
Input connection - IEC-320 C20, CEE 7 / EU1-16P
Input frequency, Hz - 50/60 +/- 3
Input power ports - IEC-C20
Input power ports - Type F Schuko
Input power ports - Type G British
Input voltage, V - 140 - 280
Length - 330.000000
Logistics data - Harmonized System (HS) code - 85078000
Logistics data - Products per pallet - 6 pc(s)
LongDesc - APC Smart-UPS,2700 Watts /3000 VA,Input 208V, 230V /Output 230V, Interface Port SmartSlot, Extended runtime model, Rack Height 4 UIncludes: CD with software, Documentation CD, Rack Mounting brackets, Smart UPS signalling RS-232 cable, USB cable, User Manual
LongProductName - Smart-UPS X 3000VA - LCD, 200-240V, 2700 W, 230V, 5% THD, SmartSlot, LED, 645 J, 4U, 38.64kg
LongSummaryDescription - APC Smart-UPS. UPS topology: Line-Interactive, Output power capacity: 3 kVA, Output power: 2700 W. AC outlet types: C13 coupler, C19 coupler, Power plug: C20 coupler, AC outlets quantity: 10 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 738 VAh, Typical backup time at full load: 6.25 min. Form factor: Rackmount/Tower, Product colour: Black, Stainless steel, Rack capacity: 4U. Width: 178 mm, Depth: 483 mm, Height: 432 mm
Manufacturer - APC
Manufacturer Code - SMX3000HV
Manufacturer Name - APC by Schneider Electric
ManufacturerPartNumber - SMX3000HV
Maximum power, W - 2700
Name - APC Smart SMX3000HV
name - SMX3000HV SMART X 3000VA R2T 4U LCD 230V
Noise level, dB - 55
Nominal input voltage, V - 208, 230 (208, 220, 240)
Nominal output voltage, V - 230 (208, 220, 240)
Number of phases input - 1 (230V)
Operating relative humidity range, % - 0 - 95
Operating temperature range (T-T), °C - 0 - 40
Operational conditions - Non-operating altitude - 0 - 15000 m
Operational conditions - Operating altitude - 0 - 3000 m
Operational conditions - Operating relative humidity (H-H) - 0 - 95%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 0 - 95%
Operational conditions - Storage temperature (T-T) - -15 - 45 °C
Other features - Napięcie wyjściowe: 208/220/230/240V 50/60Hz 2x IEC Jumpers Napięcie wejściowe: 208/220/230V 50/60Hz Długość przewodu zasilania: 1.83 m Zakres napięcia wejściowego w trybie podstawowym: 140-280V Awaryjny wyłącznik zasilania Znamionowa energia przepięcia: 645 Dżuli
Other features - Nominal output voltage - 230 V

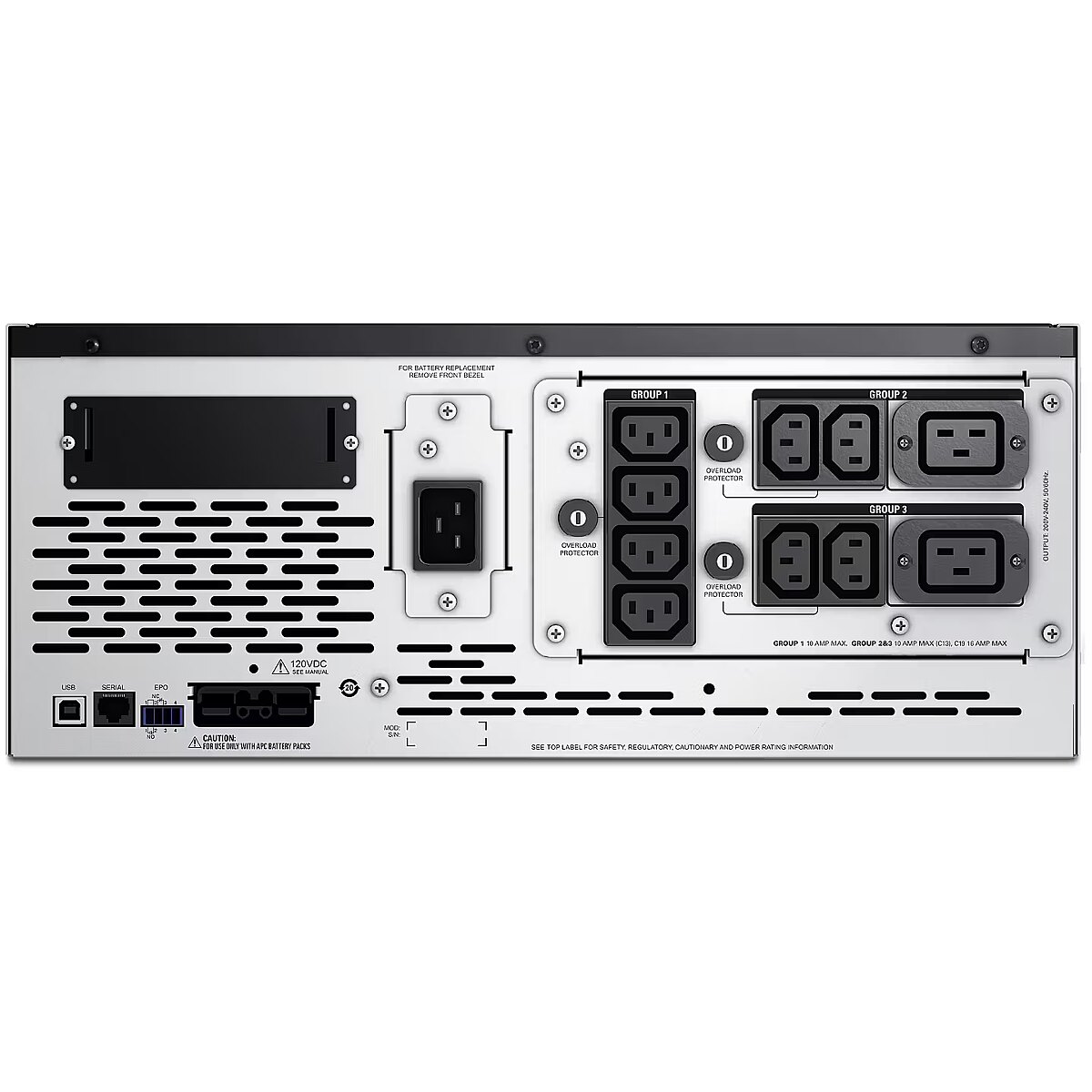

Output interface - 8 x IEC 320 C13, 2 x IEC 320 C19, 2 x IEC Jumpers
Output power, W - 2700
Output power capacity (VA) - 3000
Output power ports - 2 x IEC-C19
Output power ports - 8 x IEC-C13
Packaging data - Cables included - RS-232, USB cable
Packaging data - Manual - Yes
Packaging data - Quick installation guide - Yes
Packaging data - Rack mount kit - Yes
Packaging data - Software CD - Yes
PeriodofWarranty - 3 Y
Ports & interfaces - AC outlets quantity - 10 AC outlet(s)
Ports & interfaces - AC outlet types - C13 coupler, C19 coupler
Ports & interfaces - Number of output IEC jumpers - 2
Ports & interfaces - Power plug - C20 coupler
Ports & interfaces - SmartSlot - Yes
producer - APC
Producer - APC
ProducerCode - SMX3000HV
ProductName - Smart-UPS
Rack height (units) - 4
Runtime - 6 min (full load) / 18 min (half load)
ShortDescription -
Short description - APC Smart-UPS X 3000 VA LCD SMX3000HV+++
ShortSummaryDescription - APC Smart-UPS, Line-Interactive, 3 kVA, 2700 W, Sine, 140 V, 280 V
Software -
Special functions - Automatyczna regulacja napięcia (AVR) Funkcja korekcji niskich i wysokich napięć Inteligentne zarządzanie akumulatorami Filtrowanie napięcia Ładowanie akumulatorów dostosowane do temperatury Automatyczne włączenie UPS-a po powrocie zasilania Automatyczny test Powiadomienie o rozłączeniu akumulatora Zarządzalne sieciowo Alarmy dźwiękowe Wskaźnik statusu LED Port szeregowy Złącze USB Powiadomienie o rozłączeniu akumulatora Akumulatory wymienialne przez użytkownika Akumulatory wymienialne "na gorąco" Powiadamianie o przewidywanych awariach Bezpiecznik automatyczny Powiadomienie o awarii akumulatora Regulowane punkty przełączania napięcia Regulowana czułość na napięcie
Stck_Kart - 1
Stck_Pal - 6
Storage temperature range (T-T), °C - -15 - 45
Storno - Y
Surge energy rating, J - 645
Technical details - Compliance certificates - RoHS
Title - APC Smart-UPS uninterruptible power supply (UPS) Line-Interactive 3 kVA 2700 W 10 AC outlet(s)
UPS Architecture - line-interactive
UPS devices and accessories - Yes
URL - https://www.apc.com/products/resource/include/techspec_index.cfm?base_sku=SMX3000HV&ISOCountryCode=gb
vendpn - SMX3000HV
Voltage - 120 V
WarrantyInfo - 3 years
Weight - 38.64 kg
Weight - 45.000000
Weight & dimensions - Depth - 483 mm
Weight & dimensions - Height - 432 mm
Weight & dimensions - Package depth - 633 mm
Weight & dimensions - Package height - 330 mm
Weight & dimensions - Package weight - 47.7 kg
Weight & dimensions - Package width - 586 mm
Weight & dimensions - Weight - 38.6 kg
Weight & dimensions - Width - 178 mm
Weight, kg - 38.64
Width - 640.000000
Width, mm - 178
