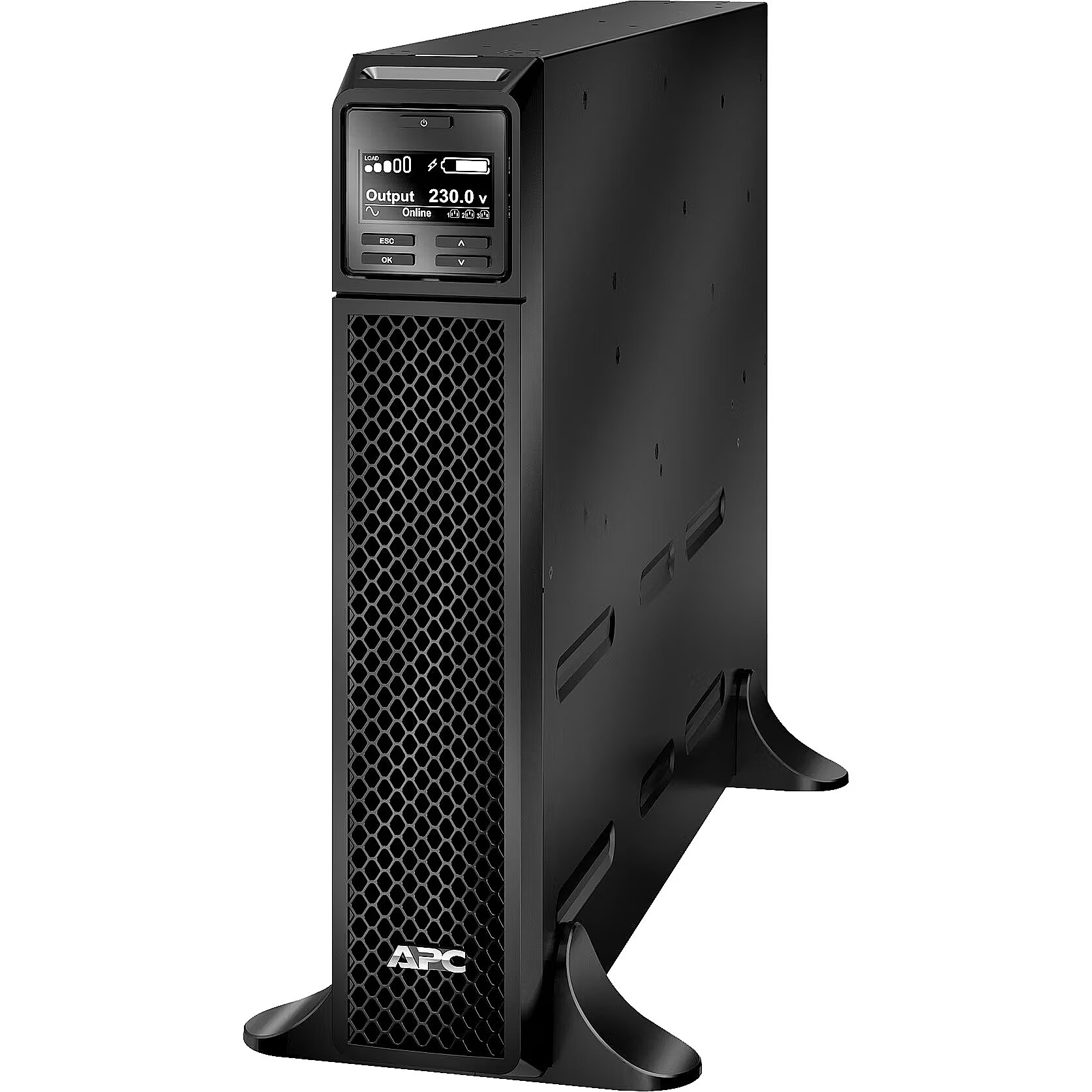

APC Smart-UPS SRT3000XLI 3000VA, 2700W, IEC

Accessories included -
Active power - 2700 W
Alarm - Audible and visible alarms prioritized by severity
Apparent power - 3000 VA
ARTIKEL1 - SMAR TUPS SRT
ARTIKEL2 - 3000VA 230V IN
Battery - Automatic battery test - Yes
Battery - Battery capacity - 505 VAh
Battery - Battery life (max) - 5 year(s)
Battery - Battery recharge time - 3 h
Battery - Battery technology - Sealed Lead Acid (VRLA)
Battery - Cold start - Yes
Battery - Hot-swap battery - Yes
Battery - Number of batteries supported - 1
Battery - Typical backup time at full load - 4 min
Battery - Typical backup time at half load - 11.8 min
Battery capacity - 505 VAh
Battery recharge time, h - 3
Battery technology - Lead-Acid
BatteryType -

Maintenance-free sealed Lead-Acid battery with suspended electrolyte

leakproof

Brand - APC
BrandPartCode - SRT3000XLI
Breite - 0.61
Cable length, m - 2.44
Category - Uninterruptible Power Supplies (UPSs)
Certification - CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, ENERGY STAR (EU), RCM, VDE
Charging time - 3 h
Chassis type - Tower
Color - Black
Connections - RJ-45 Serial
Connections - SmartSlot
Connections - USB
Connectors - 1 x USB (Typ B)
Connectors - RJ-45
ControlPanel - Multi-function LCD status and control console
Depth - 635 mm
Depth, mm - 635
Description - APC Smart-UPS SRT 3000 VA 230 V
Powerful, scalable double-conversion online power protection for scalable, high-density environments.
Main features:
- Battery failure notice: Battery failure analysis with early warning function, which allows for preventive maintenance on time
- ECO mode: A mode of operation where some of the power supply components are skipped for good quality external power supply, ensuring high efficiency without compromising protection.
- Green mode: Mode of operation (patent solution) where some power supply components are omitted in case of good external power supply, which ensures high efficiency while maintaining full protection.
- Graphical LCD display: Text and diagrams showing operating modes, system parameters and alarms.
Can be used in standalone and rack-mount versions: Protect the initial investment in the UPS when replacing rack mount units with rack mount devices.
Description - APC SMART-UPS SRT 3000VA 230V
Design - Cable length - 2.44 m
Design - Certification - CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, VDE, REACH
Design - Display type - LCD
Design - Form factor - Tower
Design - International Protection (IP) code - IP20
Design - LED indicators - Yes
Design - Product colour - Black
dimension depth - 85 mm
dimension height - 440 mm
Dimensions - - Maximum height: 43.2 cm.
- Maximum width: 8.5 cm.
- Maximum depth: 63.5 cm.
dimension weight - 36000 g
dimension width - 640 mm
ean - 731304317678
EANCode - 0731304317678
Environment requirements - - Operating temperature: 0 - 40 ° C
- Relative humidity: 0 - 95% no%
- Height n.p.m. During work: 0-3000 meters
- Temperature (storage): -15 - 45 ° C
- relative humidity (storage): 0 - 95% no%
- Height n.p.m. (Storage): 0-15000 meters
- Noise heard at a distance of 1 m from the surface of the device: 55.0 dBA
- Online heat dissipation: 703.0 BTU / hr.
- Protection class: IP 20
Features - Audible alarm(s) - Yes
Features - Auto-restart - Yes
Features - Crest factor - 3:1
Features - Efficiency - 93.5%
Features - Emergency Power Off (EPO) - Yes
Features - Input frequency - 40/70 Hz
Features - Input operation voltage (max) - 275 V
Features - Input operation voltage (min) - 100 V
Features - Noise level - 55 dB
Features - Output frequency - 50/60 Hz
Features - Output frequency regulation - 50/60 Hz
Features - Output operation voltage (max) - 240 V
Features - Output operation voltage (min) - 220 V
Features - Output power - 2700 W
Features - Output power capacity - 3 kVA
Features - Surge energy rating - 340 J
Features - Surge protection - Yes
Features - UPS topology - Double-conversion (Online)
Features - Waveform - Sine
Features - Web-based management - Yes
Filters / protection - Surge
FormFactor - Tower
Form factor - Tower
Frequency range, Hz - 50/60 +/- 3
Gewicht - 35.44
GrossWeight - 50.000 kg
GRUPPE1 - Power Protection
GRUPPE2 - UPS (Uninterruptable Power Supply)
GTIN - 731304317678
GTIN - 0731304317678
guarantee - 36
guarantee_type - external
Height - 432 mm
Height - 600.000000
Height, mm - 432
HERSTELLER - APC
Hoehe - 0.25
HSTNUMMER - SRT3000XLI
Input connection - British BS1363A, IEC-320 C20, Schuko CEE 7/EU1-16P
InputConnections -

British BS1363A

IEC-320 C20

Schuko CEE 7/EU1-16P

InputFrequency - 40 - 70 Hz (auto sensing)
Input frequency, Hz - 40 - 70
Input power ports - IEC-C20
Input power ports - Type F Schuko
Input power ports - Type G British
InputVoltage - 230 V
InterfacePorts - RJ-45 Serial , Smart-Slot , USB
Length - 300.000000
Logistics data - Harmonized System (HS) code - 85078000
LongDesc -
LongDesc - Smart-UPS On-Line provides high density, true double-conversion on-line power protection for servers, voice / data networks, medical labs, and light industrial applications. Capable of supporting loads from 1 to 20kVA in a rack/tower convertible form, the Smart-UPS On-Line is available from 2U to 12U. Recent family extensions at 15 and 20kVA enable support of power hungry blade servers or heavily loaded equipment racks. When business-critical systems require runtime in hours, not minutes, Smart-UPS On-Line can be configured with matching battery packs to comply with aggressive runtime demands. The included PowerChute management software provides unattended graceful shutdown of network operating systems. All models 5kVA and above include an integrated Network Management Card for remote management (optional on models below 5 kVA). The Smart-UPS On-Line family provides customers with a reliable source of uninterruptible power even in demanding power environments, including very wide input voltage window, extremely tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.High density, double-conversion on-line power protection with scalable runtimeIncludes: CD with software, Country-specific detachable power cord, Documentation CD, Installation guide, Removable support feet, USB cable, Warranty card
LongProductName - Smart-UPS, Double Conversion (Online), 3000VA, 2.7 KW, 230V, RJ-45 Serial, Smart-Slot, USB
LongSummaryDescription - APC SRT3000XLI. UPS topology: Double-conversion (Online), Output power capacity: 3 kVA, Output power: 2700 W. AC outlet types: C13 coupler, C19 coupler, Power plug: C20 coupler, AC outlets quantity: 10 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 505 VAh, Typical backup time at full load: 4 min. Form factor: Tower, Product colour: Black, Cable length: 2.44 m. Width: 85 mm, Depth: 635 mm, Height: 432 mm
Manufacturer - APC
ManufacturerPartNumber - SRT3000XLI
MANUFDATASHEET - http://www.apc.com/shop/ee/en/products/APC-Smart-UPS-SRT-3000VA-230V/P-SRT3000XLI
Maximum output power capacity (VA) - 3000
Maximum power, W - 2700
name - SRT3000XLI Smart-UPS SRT 3000VA/2700W 230V
No. of batteries - 1
Nominal input voltage, V - 230 (220, 240)
Nominal output voltage, V - 230 (220, 240)
Number of phases input - 1 (230V)
Operating relative humidity range, % - 0 - 95
Operating temperature range (T-T), °C - 0 - 40
Operational conditions - Non-operating altitude - 0 - 15000 m
Operational conditions - Operating altitude - 0 - 3000 m
Operational conditions - Operating relative humidity (H-H) - 0 - 95%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 0 - 95%
Operational conditions - Storage temperature (T-T) - -15 - 45 °C
Other features - Certifications and Conformance with CE, CE, EAC, EN / IEC 62040-1, EN / IEC 62040-2, ENERGY STAR (EU), RCM, VDE
Other features - Output voltage - 230 V
Other features - Packaging content - Country-specific detachable power cord
Removable support feet

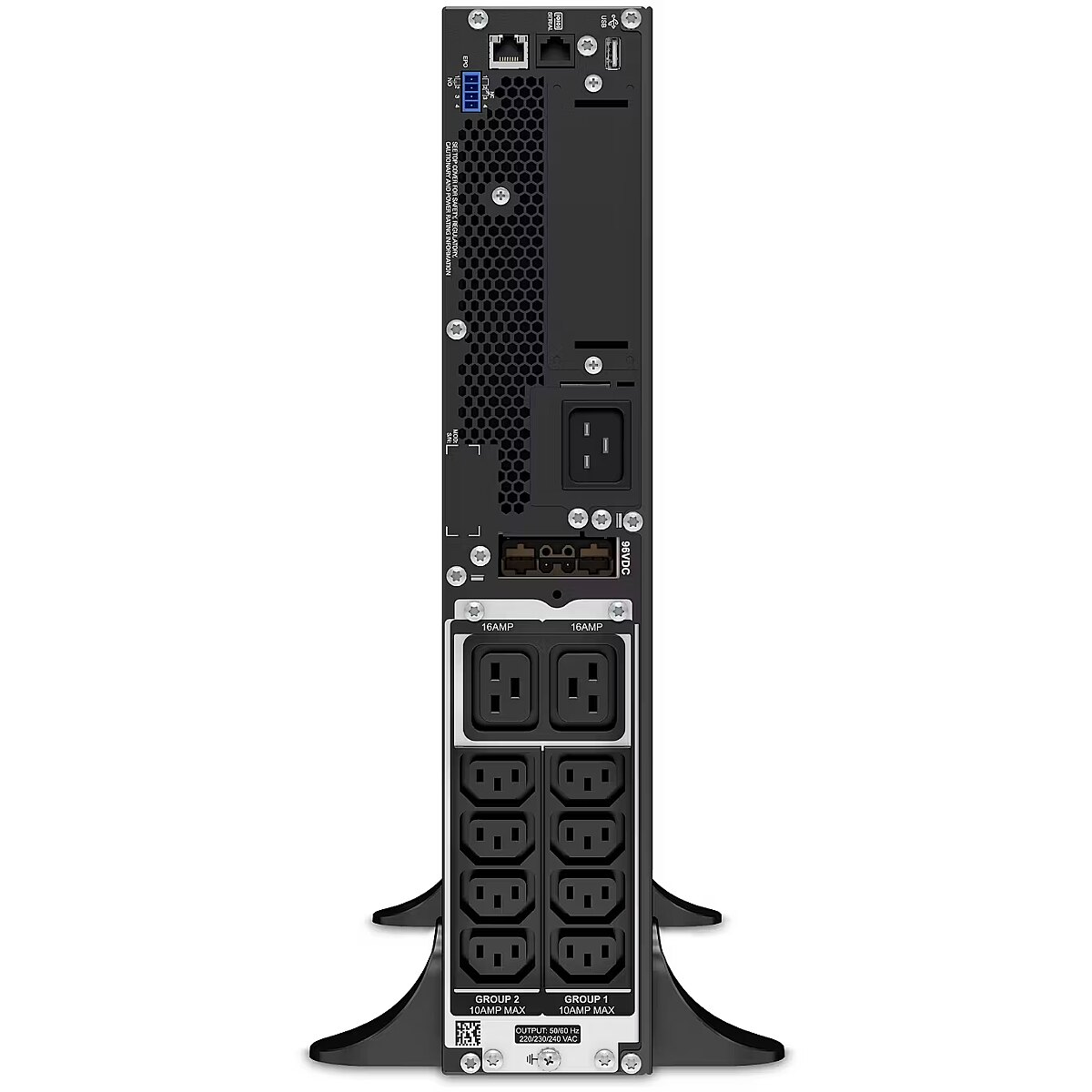

OutputConnections -

(2) IEC 320 C19 (Battery Backup)

(8) IEC 320 C13 (Battery Backup)

OutputFrequency - 50/60Hz +/- 3 Hz
Output interface - 8 x IEC 320 C13, 2 x IEC 320 C19
Output power, W - 2700
Output power capacity (VA) - 3000
Output power ports - 2 x IEC-C19
Output power ports - 8 x IEC-C13
OutputVoltage - 240 V
PackageContents -

CD with software

Country-specific detachable power cord

Documentation CD

Installation guide

Removable support feet

USB cable

Warranty card

Packaging data - Bracket - Yes
Packaging data - Cables included - USB cable
Packaging data - Quick installation guide - Yes
Packaging data - Rack mount kit - Yes
Packaging data - Software CD - Yes
Packaging data - Warranty card - Yes
PeriodofWarranty - 3 Y
Ports & interfaces - AC outlets quantity - 10 AC outlet(s)
Ports & interfaces - AC outlet types - C13 coupler, C19 coupler
Ports & interfaces - Number of output IEC jumpers - 2
Ports & interfaces - Power plug - C20 coupler
Ports & interfaces - Serial interface - Yes
Ports & interfaces - Serial interface type - RJ-45
Ports & interfaces - SmartSlot - Yes
Ports & interfaces - USB port - Yes
PowerVAW - 3000 VA
PowerW - 2700 W
ProdDesc - Smart-UPS SRT 3000VA/2700W 230V online, 4 min@full load
producer - APC
ProductName - SRT3000XLI
ProductPicture - http://www.tdbaltic.ee/images/ds4/SRT3000XLI-01.jpg
ProductPicture2 - http://www.tdbaltic.ee/images/ds4/SRT3000XLI-02.jpg
ProductPicture3 - http://www.tdbaltic.ee/images/ds4/SRT3000XLI-03.jpg
ProductPicture4 - http://www.tdbaltic.ee/images/ds4/SRT3000XLI-04.jpg
RechargeTime - 3 h
RJ45 - Yes
Runtime - 4 min (full load) / 12 min (half load)
Runtime - 11.8/4
ShortSummaryDescription - APC SRT3000XLI, Double-conversion (Online), 3 kVA, 2700 W, Sine, 100 V, 275 V
SmartSlot - Yes
Software - Download from website:
- PowerNet MIB v4.1.7
- PowerNet MIB v4.1.6
Special functions - - Control Panel: Multifunction Control and Information Console LCD
- Audible alarm: Audible and visual alarms according to priority of event priority
- Emergency power switch: Yes
Stck_Kart - 1
Stck_Pal - 8
Storage temperature range (T-T), °C - -15 - 45
Storno - Y
Surge energy rating, J - 340
Technical details - Compliance certificates - RoHS
Technical details - Sustainability certificates - ENERGY STAR, Green Premium
Title - APC SRT3000XLI uninterruptible power supply (UPS) Double-conversion (Online) 3 kVA 2700 W 10 AC outlet(s)
Topology - Online
UPS Architecture - on-line double conversion
UPS devices and accessories - Yes
URL - https://www.apc.com/shop/fi/en/products/APC-Smart-UPS-SRT-3000VA-230V/P-SRT3000XLI
USB - Yes
vendpn - SRT3000XLI
Warranty - 2 years
WarrantyInfo - 3 years
WaveformType - Sine wave
Weight - 31.3 kg
Weight - 31.300 Kg
Weight - 90.000000
Weight & dimensions - Depth - 635 mm
Weight & dimensions - Height - 432 mm
Weight & dimensions - Package depth - 871 mm
Weight & dimensions - Package height - 246 mm
Weight & dimensions - Package weight - 36.7 kg
Weight & dimensions - Package width - 599 mm
Weight & dimensions - Weight - 31.3 kg
Weight & dimensions - Width - 85 mm
Weight, kg - 31.30
Width - 85 mm
Width - 900.000000
Width, mm - 85
