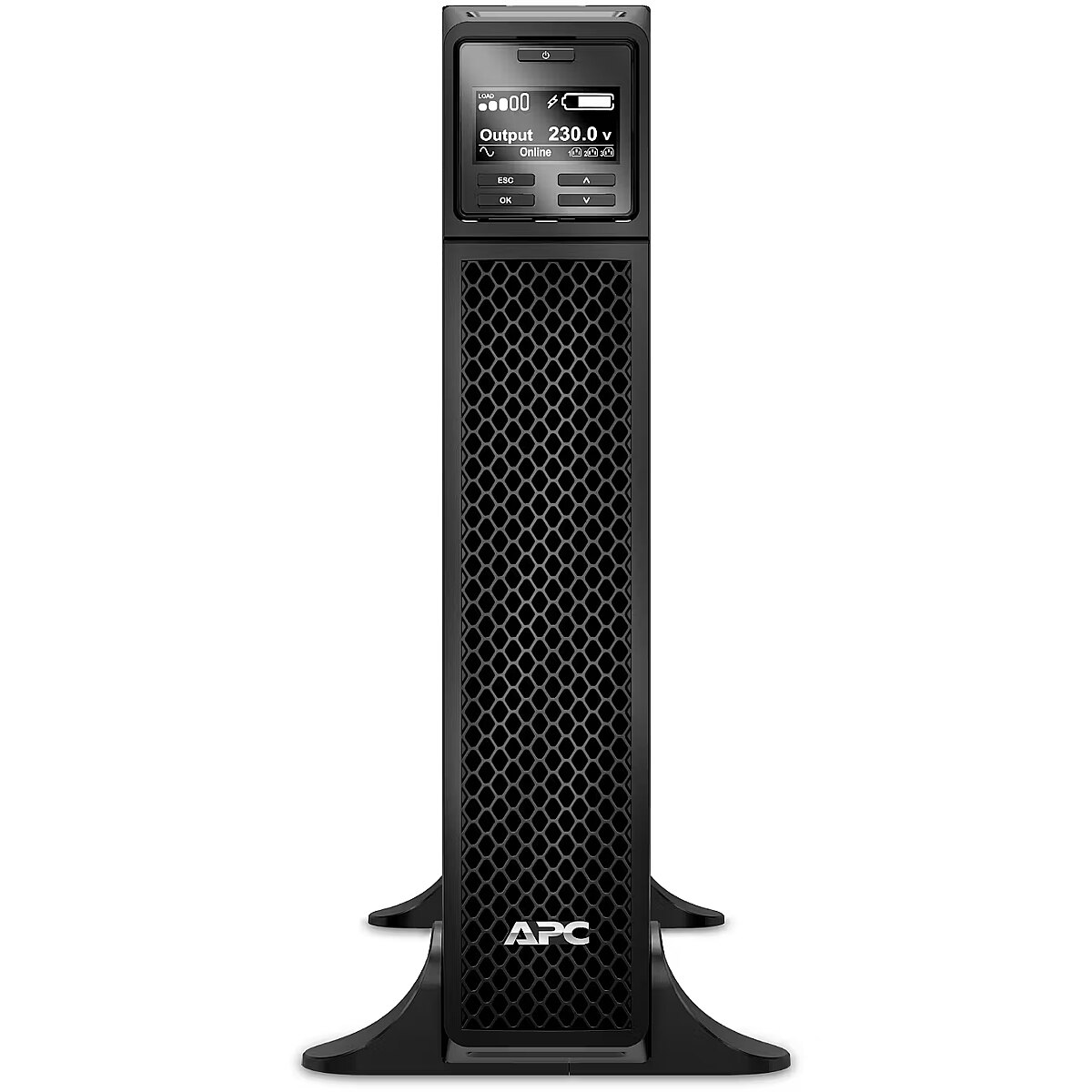

APC Smart-UPS SRT2200XLI 2200VA, 1980W, IEC

Accessories included -
Active power - 1980 W
Alarm - Audible and visible alarms prioritized by severity
Apparent power - 2200 VA
ARTIKEL1 - SMART UPS SRT
ARTIKEL2 - 2200VA 230V IN
Backup time (100% load) - 3.9 min
Battery - Automatic battery test - Yes
Battery - Battery capacity - 367 VAh
Battery - Battery life (max) - 5 year(s)
Battery - Battery recharge time - 3 h
Battery - Battery technology - Sealed Lead Acid (VRLA)
Battery - Cold start - Yes
Battery - Hot-swap battery - Yes
Battery - Number of batteries supported - 1
Battery - Typical backup time at full load - 3.9 min
Battery - Typical backup time at half load - 11.6 min
Battery capacity - 367 Ah
Battery recharge time, h - 3
Battery technology - Lead-Acid
BatteryType -

Maintenance-free sealed Lead-Acid battery with suspended electrolyte

leakproof

Brand - APC
BrandPartCode - SRT2200XLI
Breite - 0.6
Cable length, m - 2.44
Category - Uninterruptible Power Supplies (UPSs)
Category 1 - Energie & USV
Category 2 - USV & Stromversorgung
Certification - CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, ENERGY STAR (EU), RCM, VDE
Charging time - 3 h
Chassis type - Tower
Color - Black
Connections - RJ-45 Serial
Connections - SmartSlot
Connections - USB
ControlPanel - Multi-function LCD status and control console
Depth - 584 mm
Depth, mm - 584
Description -
Description - APC SMART-UPS SRT 2200VA 230V
Design - Cable length - 2.44 m
Design - Certification - CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, VDE, REACH
Design - Display type - LCD
Design - Form factor - Rackmount/Tower
Design - International Protection (IP) code - IP20
Design - LED indicators - Yes
Design - Product colour - Black
dimension depth - 440 mm
dimension height - 590 mm
Dimensions - 43.2 x 8.5 x 58.4 cm
dimension weight - 31000 g
dimension width - 85 mm
ean - 731304317630
EAN - 0731304317630
EANCode - 0731304317630
Environment requirements - Operating Temperature
0 - 40 °C
Operating Relative Humidity
0 - 95% non-condensing %
Operating Elevation
0-3000meters
Storage Temperature
-15 - 45 °C
Storage Relative Humidity
0 - 95% non-condensing %
Storage Elevation
0-15000meters
Audible noise at 1 meter from surface of unit
55.0dBA
Online thermal dissipation
703.0BTU/hr
Protection Class
IP 20
Features - Audible alarm(s) - Yes
Features - Auto-restart - Yes
Features - Crest factor - 3:1
Features - Efficiency - 92.2%
Features - Emergency Power Off (EPO) - Yes
Features - Input frequency - 40/70 Hz
Features - Input operation voltage (max) - 275 V
Features - Input operation voltage (min) - 100 V
Features - Noise level - 55 dB
Features - Output frequency - 50/60 Hz
Features - Output operation voltage (max) - 240 V
Features - Output operation voltage (min) - 220 V
Features - Output power - 1980 W
Features - Output power capacity - 2.2 kVA
Features - Surge energy rating - 340 J
Features - Surge protection - Yes
Features - UPS topology - Double-conversion (Online)
Features - Waveform - Sine
Features - Web-based management - Yes
Filters / protection - Surge
FormFactor - Tower
Form factor - Tower
Frequency range, Hz - 50/60 +/- 3
Gewicht - 31.22
GrossWeight - 30.000 kg
Gross Weight Kg - 30,84
GRUPPE1 - Power Protection
GRUPPE2 - UPS (Uninterruptable Power Supply)
GTIN - 731304317630
GTIN - 0731304317630
guarantee - 36
guarantee_type - external
Height - 432 mm
Height - 610.000000
Height, mm - 432
HERSTELLER - APC
Hoehe - 0.25
HSTNUMMER - SRT2200XLI
I/O connectors - 1 x RJ-45 LAN
I/O connectors - 1 x USB 2.0
Input connection - IEC-320 C20, Schuko CEE 7 / EU1-16P, British BS1363A
InputConnections - IEC-320 C20, Schuko CEE 7 / EU1-16P, British BS1363A
InputFrequency - 40 - 70 Hz (auto sensing)
Input frequency, Hz - 40 - 70
Input power ports - IEC-C20
InputVoltage - 230 V
InterfacePorts - RJ-45 Serial , Smart-Slot , USB
Laenge - 0.82
Length - 250.000000
Logistics data - Harmonized System (HS) code - 85078000
Logistics data - Products per pallet - 12 pc(s)
LongDesc -
LongDesc - This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 2200VA on-line tower UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with BS1363A British, IEC 320 C20, and Schuko CEE 7/EU1-16P inputs, 8x IEC 320 C13 and 2x IEC 320 C19 outlets. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. It comes with BS1363A British, IEC 60320 C20, and Schuko CEE 7/EU1-16P inputs, 8x IEC 320 C13/60320 C13 and 2x IEC 320 C19/60320 C19 outlets. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. The UPS is compatible with SRTRK4 (4-post) and SRTRK3 (2-post) rail kits sold separately. Designed for IT professionals or network administrators providing wide input voltage window, tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.
LongProductName - Smart-UPS On-Line, 2200VA, Tower, 230V, 8x C13+2x C19 IEC outlets, SmartSlot, Extended runtime, W/O rail kit
LongSummaryDescription - APC Smart-UPS On-Line, 2200VA, Tower, 230V, 8x C13+2x C19 IEC outlets, SmartSlot, Extended runtime, W/O rail kit. UPS topology: Double-conversion (Online), Output power capacity: 2.2 kVA, Output power: 1980 W. AC outlet types: C13 coupler, C19 coupler, Power plug: C20 coupler, AC outlets quantity: 10 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 367 VAh, Typical backup time at full load: 3.9 min. Form factor: Rackmount/Tower, Product colour: Black, Cable length: 2.44 m. Width: 85 mm, Depth: 584 mm, Height: 432 mm
Manufacturer - APC
Manufacturer Code - SRT2200XLI
Manufacturer Name - APC by Schneider Electric
ManufacturerPartNumber - SRT2200XLI
MANUFDATASHEET - http://www.apc.com/shop/ee/en/products/APC-Smart-UPS-SRT-2200VA-230V/P-SRT2200XLI
Maximum output power capacity (VA) - 2200
Maximum power, W - 1980
MPN - SRT2200XLI
Name - APC Smart-UPS SRT2200XLI 2200 VA 1980 W 230V
name - SRT2200XLI Smart-UPS SRT 2200VA/1980W 230V
No. of batteries - 1
Nominal input voltage, V - 230 (220, 240)
Nominal output voltage, V - 230 (220, 240)
Number of phases input - 1 (230V)
Operating relative humidity range, % - 0 - 95
Operating temperature range (T-T), °C - 0 - 40
Operational conditions - Non-operating altitude - 0 - 15000 m
Operational conditions - Operating altitude - 0 - 3000 m
Operational conditions - Operating relative humidity (H-H) - 0 - 95%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 0 - 95%
Operational conditions - Storage temperature (T-T) - -15 - 45 °C
Other features -
Other features - Interface - SmartSlot
Other features - Nominal input voltage - 230 V
Other features - Nominal output voltage - 230 V
Other features - Packaging content - Power cord
Removable support feet
OutputConnections -

(2) IEC 320 C19 (Battery Backup)

(8) IEC 320 C13 (Battery Backup)

OutputFrequency - 50/60Hz +/- 3 Hz
Output interface - 2 x IEC 320 C19, 8 x IEC 320 C13
Output power, W - 1980
Output power capacity (VA) - 2200
Output power ports - 2 x IEC-C19
Output power ports - 8 x IEC-C13
OutputVoltage - 240 V
PackageContents -

CD with software

Country-specific detachable power cord

Documentation CD

Installation guide

Removable support feet

USB cable

Warranty card

Packaging data - Bracket - Yes
Packaging data - Cables included - USB cable
Packaging data - Quick installation guide - Yes
Packaging data - Software CD - Yes
Packaging data - Warranty card - Yes
PeriodofWarranty - 3 Y
Ports & interfaces - AC outlets quantity - 10 AC outlet(s)
Ports & interfaces - AC outlet types - C13 coupler, C19 coupler
Ports & interfaces - Number of output IEC jumpers - 2
Ports & interfaces - Power plug - C20 coupler
Ports & interfaces - Serial interface - Yes
Ports & interfaces - Serial interface type - RJ-45
Ports & interfaces - SmartSlot - Yes
Ports & interfaces - USB port - Yes
PowerVAW - 2200 VA
PowerW - 1980 W
ProdDesc - Smart-UPS SRT 2200VA/1980W 230V online, 3.9 min@full load
producer - APC
ProductName - Smart-UPS On-Line, 2200VA, Tower, 230V, 8x C13+2x C19 IEC outlets, SmartSlot, Extended runtime, W/O rail kit
ProductPicture - http://www.tdbaltic.ee/images/ds4/SRT2200XLI-01.jpg
ProductPicture2 - http://www.tdbaltic.ee/images/ds4/SRT2200XLI-02.jpg
ProductPicture3 - http://www.tdbaltic.ee/images/ds4/SRT2200XLI-03.jpg
ProductPicture4 - http://www.tdbaltic.ee/images/ds4/SRT2200XLI-04.jpg
RechargeTime - 3 h
RJ45 - Yes
Runtime - 4 min (full load) / 12 min (half load)
Runtime - 11.6/3.9
Short description - APC Smart-UPS SRT 2200 VA SRT2200XLI
ShortSummaryDescription - APC Smart-UPS On-Line, 2200VA, Tower, 230V, 8x C13+2x C19 IEC outlets, SmartSlot, Extended runtime, W/O rail kit, Double-conversion (Online), 2.2 kVA, 1980 W, Sine, 100 V, 275 V
SmartSlot - Yes
Software -
Special functions -
Stck_Kart - 1
Stck_Pal - 8
Storage temperature range (T-T), °C - -15 - 45
Storno - Y
Surge energy rating, J - 340
Technical details - Compliance certificates - RoHS
Technical details - Sustainability certificates - ENERGY STAR, Green Premium
Title - APC Smart-UPS On-Line, 2200VA, Tower, 230V, 8x C13+2x C19 IEC outlets, SmartSlot, Extended runtime, W/O rail kit
Topology - Online
UPS Architecture - on-line double conversion
UPS devices and accessories - Yes
URL - https://www.apc.com/
USB - Yes
vendpn - SRT2200XLI
Warranty - 3 years
WarrantyInfo - 3 years repair or replace (excluding battery) and 2 years for battery
WaveformType - Sine wave
Weight - 25 kg
Weight - 25.000 Kg
Weight - 30
Weight - 31.000000
Weight & dimensions - Depth - 584 mm
Weight & dimensions - Height - 432 mm
Weight & dimensions - Package depth - 810 mm
Weight & dimensions - Package height - 246 mm
Weight & dimensions - Package weight - 30.8 kg
Weight & dimensions - Package width - 599 mm
Weight & dimensions - Weight - 25 kg
Weight & dimensions - Width - 85 mm
Weight, kg - 25
Width - 85 mm
Width - 810.000000
Width, mm - 85
