ARTIKEL1 - RACK PDU BASIC ZERO U 16A
ARTIKEL2 - 208/230V (15)C13
Brand - APC
BrandPartCode - AP9572
Breite - 0.18
Cable length, m - 2.5
Category - Power Distribution Units (PDUs)
Certificates - Lista cUL, CE, Queensland Australia, UL 60950, Lista UL, VDE
Certification - cUL Listed, CE, Queensland Australia, UL 60950, UL Listed, VDE
Color - Black
Depth, mm - 44

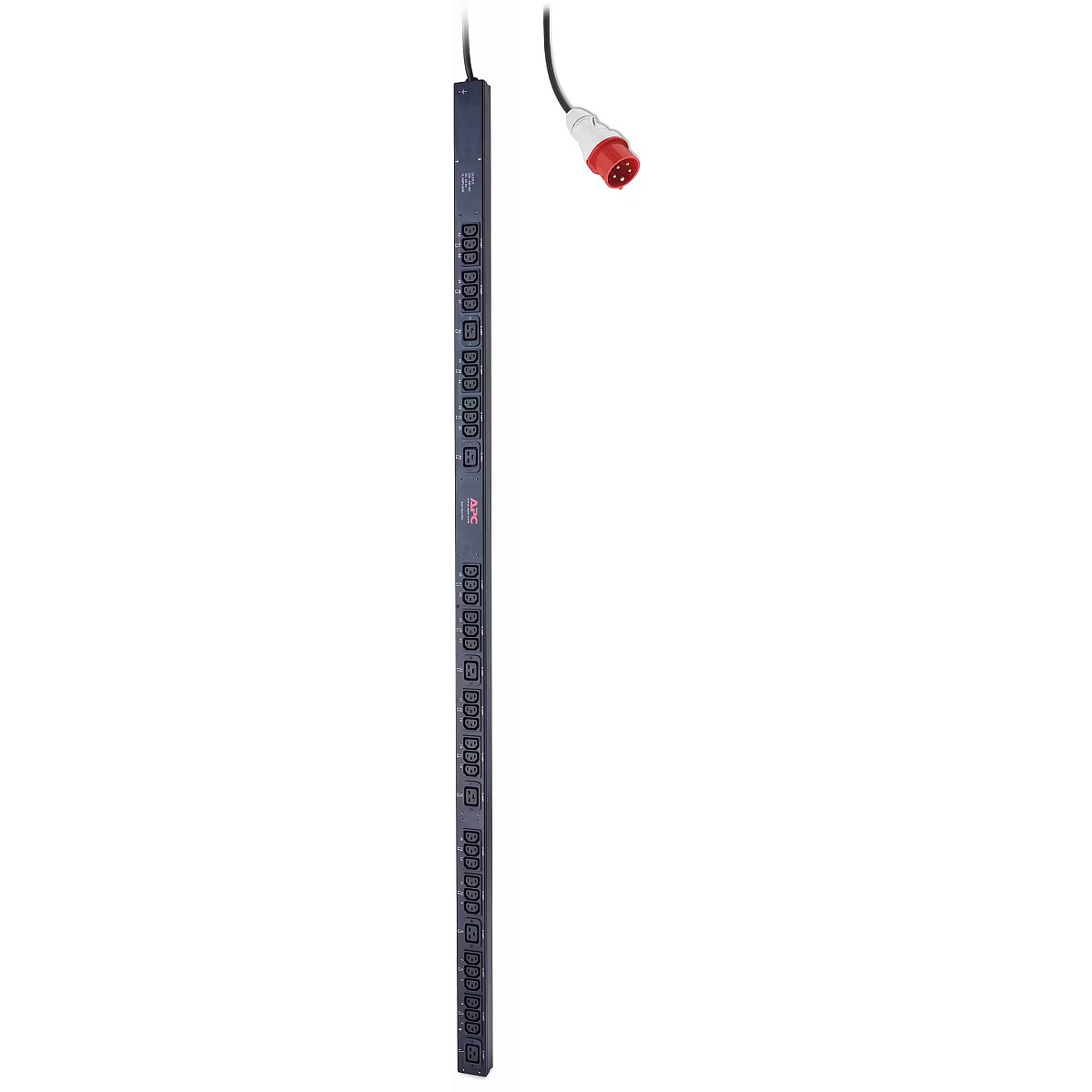

Description - APC RACK PDU, BASIC, ZERO U, 16A, 208/230V, (15) C13
Description - Basic Rack PDU device
Rack PDU, Basic, Zero U, 16A, 208 / 230V, (15) C13
APC Basic Rack PDU, at the input: 200V, 208V, 230V, Input socket type: IEC-320 C20, Power cord length: 8.2 feet (ft.) (2.5 meters), output: 200V, 208V, 230V, Output sockets: IEC 320 C13
Design - Mounting - Vertical
Design - PDU types - Basic
Design - Product colour - Black
Design - Rack capacity - 0U
dimension depth - 640 mm
dimension height - 170 mm
Dimensions - Maximum height: 620.00 mm
Macroscopic width: 44.00 mm
Maximum depth: 44.00 mm
Package weight: 2.73 kg
Height in transport packaging: 638.00 mm
Width in transport packaging: 168.00 mm
Delivery height: 146.00 mm
dimension weight - 2416 g
dimension width - 150 mm
ean - 731304226369
EANCode - 0731304226369
EAN_code - 0731304226369
Features - Cable length - 2.5 m
Gewicht - 2.68
GRUPPE1 - Power Protection
GRUPPE2 - Power Product Cpnt
GTIN - 731304226369
GTIN - 0731304226369
guarantee - 24
guarantee_type - external
Height - 170.000000
Height, mm - 620
HERSTELLER - APC
Hoehe - 0.17
HSTNUMMER - AP9572
Included - Buckles for mounting in industrial cabinets, Kit for assembly without tools, User's guide
Input connection - IEC-320 C20
Input current, A - 16
Input frequency, Hz - 50/60
Laenge - 0.65
Length - 154.000000
LongDesc - Rack PDU, Basic, Zero U, 16A, 208/230V, (15) C13.
LongProductName - Basic Rack PDU AP9572
LongSummaryDescription - APC Basic Rack PDU AP9572. PDU types: Basic, Rack capacity: 0U, Mounting: Vertical. AC outlets quantity: 15 AC outlet(s), AC outlet types: C13 coupler, Power plug: C20 coupler. Cable length: 2.5 m. Nominal input voltage: 23 V, Output voltage: 230 V, Load capacity: 3680 VA. Dimensions (WxDxH): 44 x 44 x 620 mm, Weight: 2 kg
Manufacturer - APC
ManufacturerPartNumber - AP9572
Manufacturer_code - AP9572
Name - APC Basic Rack PDU Zero U 16A AP9572 black
name - RACK PDU BASIC ZERO U 16A 208/230V C13 AP9572
Nominal input voltage, V - 200, 208, 230
Nominal output voltage, V - 200, 208, 230
Operating relative humidity range, % - 5 - 95
Operating temperature range (T-T), °C - 0 - 45
Operational conditions - Operating relative humidity (H-H) - 5 - 95%
Operational conditions - Operating temperature (T-T) - 0 - 45 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 95%
Operational conditions - Storage temperature (T-T) - -25 - 65 °C
Output interface - 15 x IEC 320 C13
Output power capacity (VA) - 3680
PeriodofWarranty - 2 Y
Ports & interfaces - AC outlets quantity - 15 AC outlet(s)
Ports & interfaces - AC outlet types - C13 coupler
Ports & interfaces - Input connection type - IEC-320 C20
Ports & interfaces - Output connections - (15) IEC 320 C13
Ports & interfaces - Power plug - C20 coupler
Power - Load capacity - 3680 VA
Power - Maximum input current per phase - 16 A
Power - Maximum power - 3680 W
Power - Maximum total current draw per phase - 16 A
Power - Nominal input voltage - 23 V
Power - Output voltage - 230 V
producer - APC
ProductName - Basic Rack PDU AP9572
ShortSummaryDescription - APC Basic Rack PDU AP9572, Basic, 0U, Vertical, Black, 15 AC outlet(s), C13 coupler
Stck_Kart - 1
Stck_Pal - 7
Storage temperature range (T-T), °C - -25 - 65
Storno - Y
Technical specifications - At the exit:
Output voltage: 200V, 208V, 230V Maximum total power consumption: 16A Output sockets: (15) IEC 320 C13
At the entrance:
Input voltage: 200V, 208V, 230V Frequency at input: 50/60 Hz Input jack type: IEC-320 C20 Power cord length: 2.5 meters Number of power cables: 1 Maximum current in the line: 16A Maximum input current: 16A Load level: 3680 VA
Environmental parameters:
Operating environment: 0 - 45 ° C Relative humidity during operation: 5 - 95% Height m.p. during work: 0-3000 meters Temperature (storage): -25 - 65 ° C Relative humidity (storage): 5 - 95% Height m.p. (storage): 0-15000 meters
Technical_details - Rack PDU, Basic, Zero U, 16A, 208/230V, (15) C13. Weight & dimensions Product dimensions (WxDxH) 44 x 44 x 620 mm Weight 2000 g Ports & interfaces Input connection type IEC-320 C20 Output connections (15) IEC 320 C13 Power Load capacity 3680 VA Maximum input current per phase 16 A Maximum total current draw per phase 16 A Ergonomics 2.5 m Design Black Operational conditions Operating temperature (T-T) 0 - 45 °C Storage temperature (T-T) -25 - 65 °C Operating relative humidity (H-H) 5 - 95 % Storage relative humidity (H-H) 5 - 95 %
Title - APC Basic Rack PDU AP9572 power distribution unit (PDU) 15 AC outlet(s) 0U Black
URL - https://www.apc.com/resource/include/techspec_index.cfm?base_sku=AP9572
vendpn - AP9572
WarrantyInfo - 2 years repair or replace
Weight - 2 kg
Weight - 2,45
Weight - 2.460000
Weight & dimensions - Dimensions (WxDxH) - 44 x 44 x 620 mm
Weight & dimensions - Weight - 2 kg
Weight, kg - 2
Width - 647.000000
Width, mm - 44
