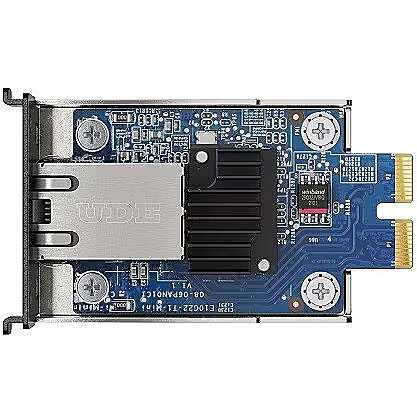

Synology NAS 1x 10GBase-T RJ-45 Netzwerkupgrade-Modul E10G22-T1-Mini

Accessories included -
Antenna - Not applicable
Category - Root/Electronics/PC parts/Controllers
Category 1 - Netzwerk
Category 2 - NAS-Systeme
Category Code - NIC
Category_1 - Network and Servers
Category_2 - Network - Network Accessories
Chipset type -
Compatible with - Seria 22: RS422+, DS1522+
Description - E10G22-T1-Mini 10GbE RJ4 expansion card Improved connectivity for bandwidth intensive applications The E10G22-T1-Mini network expansion module adds 10GbE RJ-45 connectivity to compatible Synology systems, allowing small businesses and home users to maximise the efficiency potential of their deployments with high bandwidth networking. A cost-effective and compact solution for bandwidth expansion The E10G22-T1-Mini's compact form factor instantly increases the bandwidth availability of Synology servers, eliminating bandwidth constraints on the network with simple installation and low deployment cost. The E10G22-T1-Mini is also compatible with 5/2.5/1 Gbps networks and can be easily integrated with any RJ-45 device. High throughput Enhances system capabilities with 10GbE connectivity for higher resolution video editing, simultaneous backup and more. Flexible integration Supports 10/5/2.5/1GbE connections that work with almost any RJ-45 network environment. For Synology, from Synology Designed to ensure maximum performance and reliability for Synology systems.
Description - The Synology E10G22-T1-Mini Network Upgrade Module is designed to easily and quickly upgrade your Synology system with 10GbE connectivity.1 Simple installation, low implementation cost, and support for nearly any network environment makes it the ideal solution for small businesses and home users looking to maximize the performance potential of their deployments.
Design - Compatible products - Synology RS422+, DS1522+
Design - Component for - NAS/storage server
Design - Internal - Yes
Design - Product colour - Blue
Designation - CE+WEEE
dimensionalWeight - 130
dimension depth - 45 mm
dimension height - 100 mm
Dimensions - 26,37 × 45,38 × 75,7 mm
dimension weight - 110 g
dimension width - 145 mm
ean - 4711174724482
EAN - 4711174724482
Eans - 4711174724482
EAN_code - 4711174724482
Full Description Line - PCIE
Gross Weight Kg - 1
guarantee - 36
guarantee_type - normal
I/O ports - 1 x 10GBASE-T
Interface - PCIe
Manufacturer - Synology
Manufacturer Code - E10G22-T1-MINI
Manufacturer Name - Synology
Manufacturer_code - E10G22-T1-mini
Model - E10G22-T1-Mini
MPN - E10G22-T1-MINI
name - Network expansion module E10G22-T1-Mini 10GbE RJ45
Name - Synology E10G22-T1 Mini PCIX, LAN adapter
Name - Synology E10G22-T1-Mini
Name - Synology E10G22-T1-Mini - Erweiterungsmodul - 100M/1G/2.5G/5G/10 Gigabit Ethernet x 1
Network - Auto-negotiation - Yes
Network - Cabling technology - 10GBase-T
Network - Ethernet interface type - 10 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Ethernet LAN data rates - 100
Network - Ethernet LAN data rates - 1000 Mbit/s
Network - Ethernet LAN data rates - 2500 Mbit/s
Network - Ethernet LAN data rates - 5000 Mbit/s
Network - Ethernet LAN data rates - 10000 Mbit/s
Network - Full duplex - Yes
Network - Jumbo frames - 9000
Network - Jumbo frames support - Yes
Network - Maximum data transfer rate - 10000 Mbit/s
Network - Networking standards - IEEE 802.3ab
Network - Networking standards - IEEE 802.3an
Network - Networking standards - IEEE 802.3bz
Network - Networking standards - IEEE 802.3u
Network - Networking standards - IEEE 802.3x
Network - Wi-Fi - No
Number of antennas - Not applicable
Operating frequency - Not applicable
Operational conditions - Operating relative humidity (H-H) - 5 - 95%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage temperature (T-T) - -20 - 60 °C
Other features - Support for 9 KB jumbo frames TCP/UDP/IP checksum portability Automatic negotiation between 10/5/2.5/1 Gb/s and 100 Mb/s High data rate offload (LSO) Receive-side scaling (RSS) General receiving offload (GRO) General segmentation offload (GSO) TCP segmentation offload (TSO)
Other features - Interface type - PCIe 3.0 x2
PCIE Slot Type - Yes
Ports & interfaces - Connectivity technology - Wired
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Ports & interfaces - Host interface - PCI Express
Ports & interfaces - Interface - Ethernet
producer - Synology
Producer - Synology
producerCode - E10G22-T1-Mini
ProducerCode - E10G22-T1-Mini
productName - Synology E10G22-T1-Mini Internal Ethernet 10000 Mbit/s
productSize - Normal
Security -
Shipping Box Depth Shipping/Package Box Dimensions - 14.2 cm
Shipping Box Height Shipping/Package Box Dimensions - 4.6 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 0.11 kg
Shipping Box Width Shipping/Package Box Dimensions - 10 cm
ShortDescription - Moduł rozszerzenia sieci 10 GbE RJ-45 do kompaktowych serwerów Synology
Short description - Synology NAS 1x 10GBase-T RJ45 Netzwerkupgrade-Modul E10G22-T1-Mini
sizeX - 142
sizeY - 100
sizeZ - 46
Standards - 802.3ab
Standards - 802.3an
Standards - 802.3bz
Standards - 802.3u
Standards - 802.3x
System Requirements -
Type - LAN
Unit Brutto Volume - 0.0006532 cubm
Unit Gross Weight - 0.11 kg
Unit Net Weight - 0.1 kg
Vendor Homepage - www.synology.com/en-global/products/E10G22-T1-Mini
vendpn - E10G22-T1-Mini
Warranty - 60 months
warrantyLength - 60
warrantyType - F
Weight - 0,11
Weight - 0.107
weight - 112
Weight & dimensions - Depth - 75.7 mm
Weight & dimensions - Height - 26.4 mm
Weight & dimensions - Width - 45.4 mm
