ARTIKEL1 - GIG PCI-EXPRE FIBER ADAPTCARD
ARTIKEL2 - 990-005056-901 WOL LC CONNECTOR
Brand - Allied Telesis
BrandPartCode - AT-2914SX/LC-001
Category - Network Cards
Design - Certification - UL, FCC/EN55022 Class A, TUV, EN55024, CE, C-TICK, VCCI
Design - Internal - Yes
Design - Product colour - Green, Metallic
EANCode - 0767035210629
GRUPPE1 - Network
GRUPPE2 - Network Adapters
GTIN - 0767035210629
GTIN - 767035210629
HERSTELLER - ALLIED TELESIS
HSTNUMMER - AT-2914SX/LC-901
LongDesc - High reliabilityThe Allied Telesis 2914 Series Gigabit interface includes a comprehensive Microsoft Windows utility which performs detailed tests, diagnostics and analysis.Advanced manageabilityPriority queuing allows users to set up the network based on their individualneeds. A comprehensive diagnostics and configuration software suite provides system administrators and engineers with a powerful tool to analyze the adapter card and check specific data.Wake-on-LAN (WoL)WoL allows users to remotely power on or wake up an otherwise unavailable computer from a remote location. WoL is a versatile technique that allows computers to be deactivated when not required. When WoL is enabled, the computer maintains power to the network adapter, and continues to process network packets. When a valid WoL packet is detected the network adapter powers on or resumes the computer. Effective use of WoL allows system administrators or users to turn computers on remotely, for patch management remote support and remote access. WoL has the potential to greatly increase the use of low-power modes and energy-saving techniques.
LongProductName - PCI-E, LC, 1000 Mbit/s, 1.5W, Metallic/Green
LongSummaryDescription - Allied Telesis AT-2914SX/LC-001. Internal. Connectivity technology: Wired, Host interface: PCI Express, Interface: Fiber. Maximum data transfer rate: 1000 Mbit/s. Product colour: Green, Metallic
Network - Auto-negotiation - Yes
Network - Fiber ethernet cabling technology - 1000BASE-X
Network - Jumbo frames - 9.6
Network - Jumbo frames support - Yes
Network - Load balancing system - Yes
Network - Maximum data transfer rate - 1000 Mbit/s
Network - Networking standards - IEEE 802.1Q, IEEE 802.1p, IEEE 802.2, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3z
Network - Quality of Service (QoS) support - Yes
Network - Security algorithms - SNMP
Network - Wake-on-LAN ready - Yes
Operational conditions - Operating relative humidity (H-H) - -25 - 70%
Operational conditions - Operating temperature (T-T) - 0 - 50 °C
Operational conditions - Storage temperature (T-T) - -25 - 70 °C
Other features - Flow control support - Yes
Ports & interfaces - Connectivity technology - Wired
Ports & interfaces - Fiber optic connector - LC
Ports & interfaces - Fiber ports quantity - 2
Ports & interfaces - Host interface - PCI Express
Ports & interfaces - Interface - Fiber
Power - Power consumption (typical) - 1.5 W
ProductName - AT-2914SX/LC-001
ShortSummaryDescription - Allied Telesis AT-2914SX/LC-001, Internal, Wired, PCI Express, Fiber, 1000 Mbit/s, Green, Metallic
Stck_Kart - 9998
Stck_Pal - 9998
Storno - Y
System requirements - Server operating systems supported - Windows Server 2008 R2, Windows Server 2008 R2 x64, Windows Server 2012 R2 x64, Windows Server 2012 x64
System requirements - Windows operating systems supported - Windows 10, Windows 7, Windows 8, Windows Vista
Technical details - Compliance certificates - RoHS

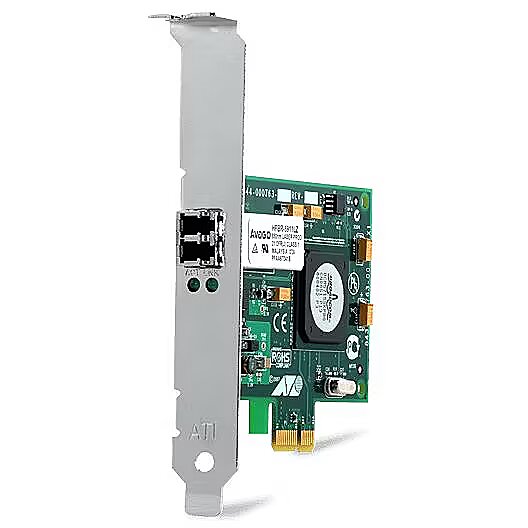

Title - Allied Telesis AT-2914SX/LC-001 network card Internal Fiber 1000 Mbit/s
URL - https://www.alliedtelesis.com/products/network-adapters/2914-series/2914sxlc
WarrantyInfo -
Weight & dimensions - Height - 69 mm
Weight & dimensions - Weight - 68 g
Weight & dimensions - Width - 88 mm
