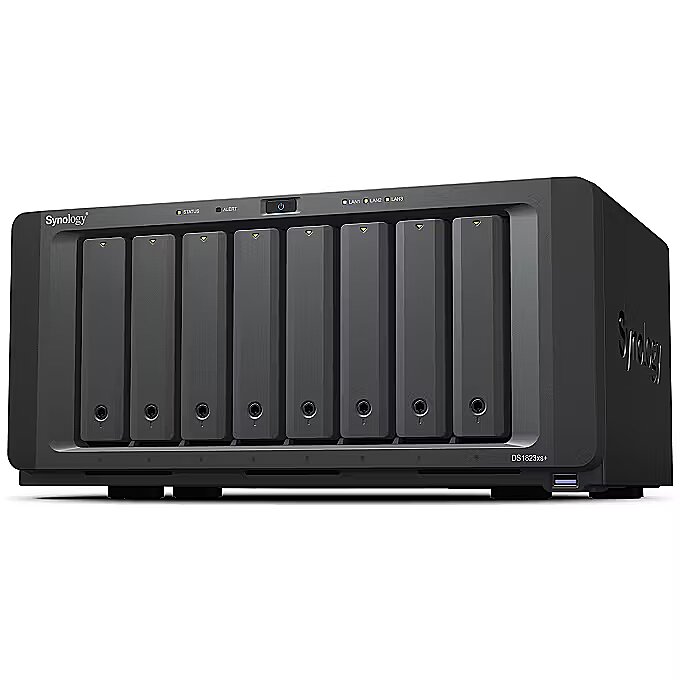

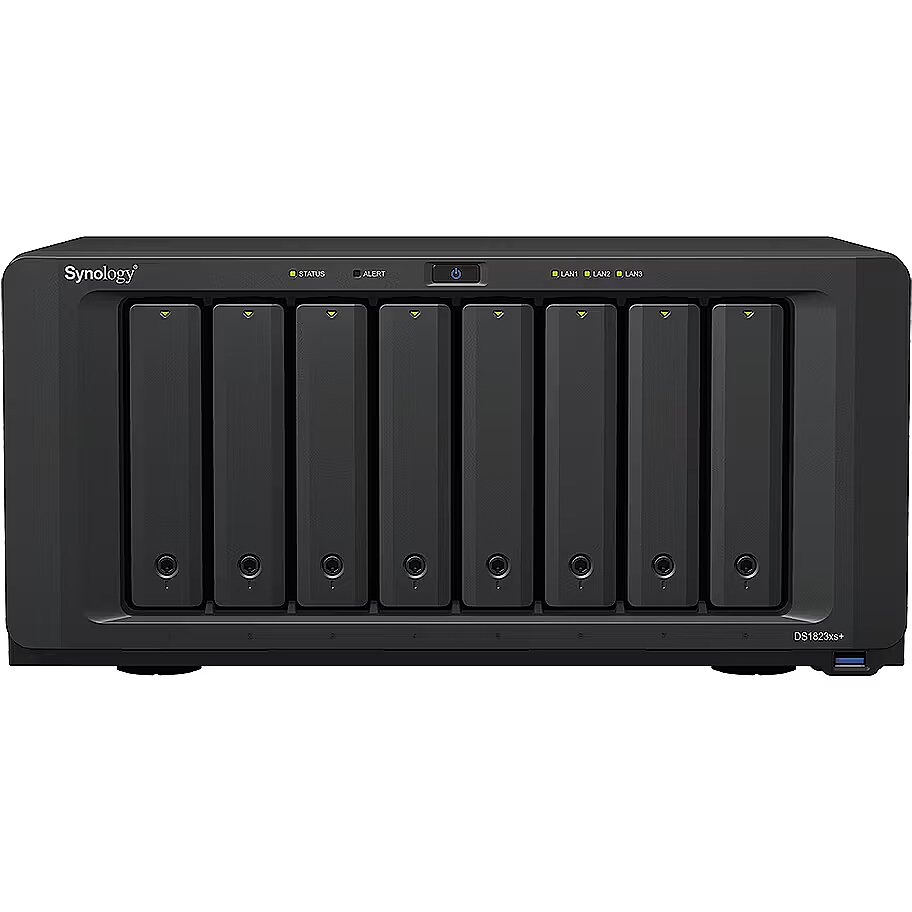

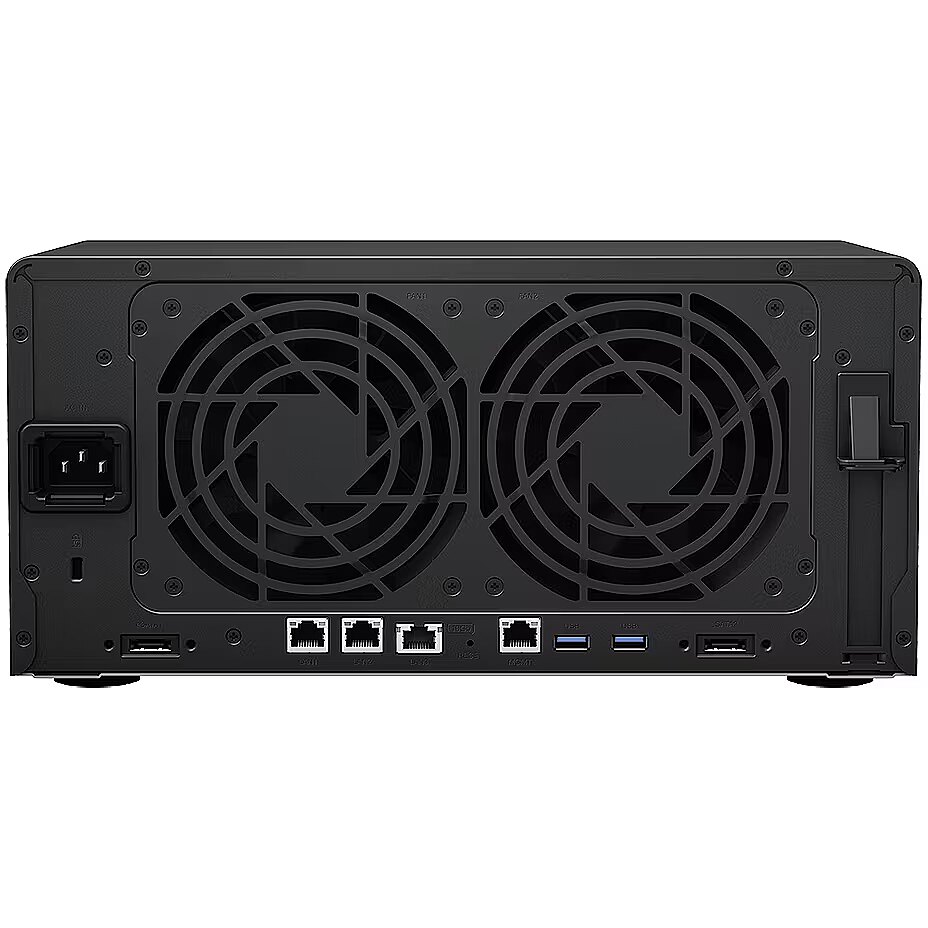

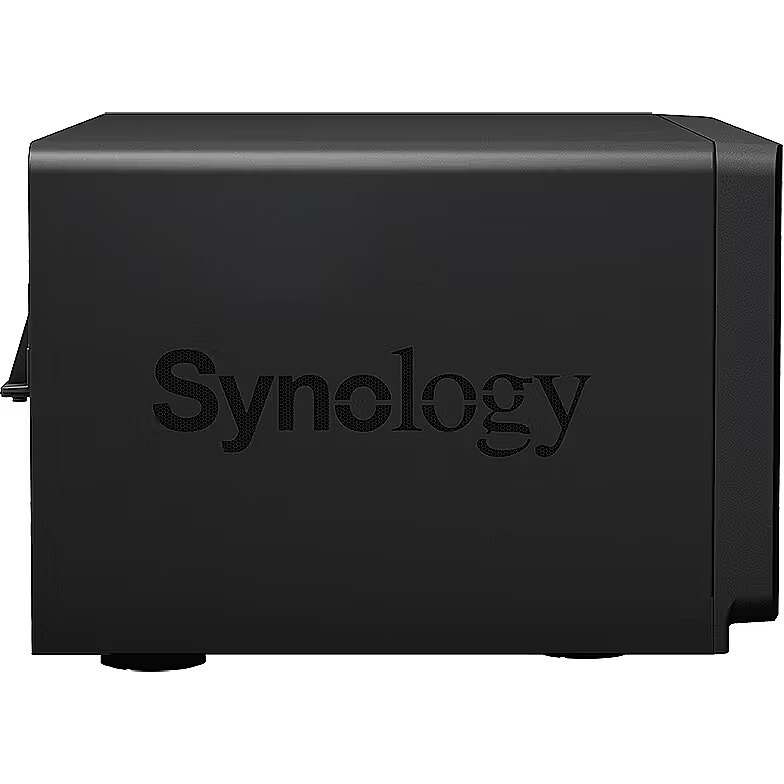

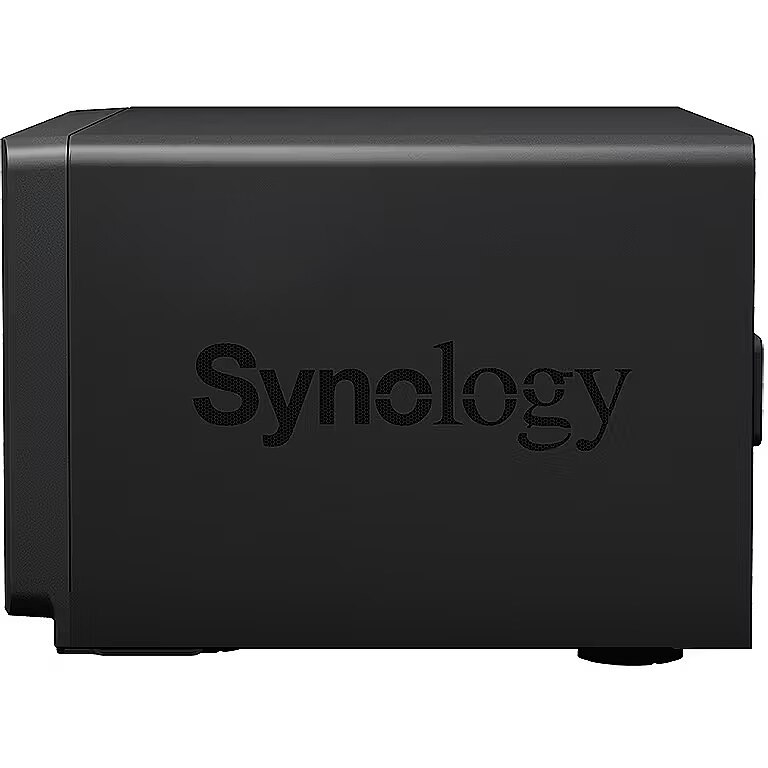

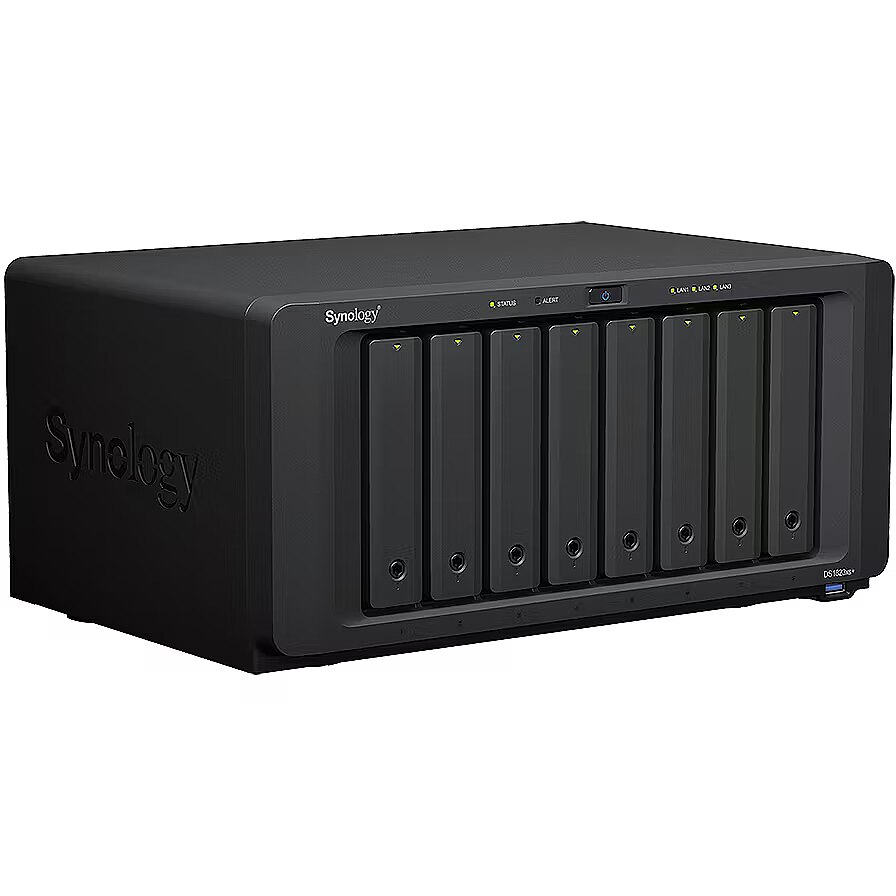

Synology DiskStation DS1823xs+, 8-Bay

Accessories included - Main Unit X 1 Accessory Pack X 1 Power Cable X 1 LAN cable RJ-45 X 2 Quick Installation Guide X 1
Built-in RAM memory - 8 KB
Category 1 - Netzwerk
Category 2 - NAS-Systeme
Category_1 - Network and Servers
Category_2 - NAS
Code - DS1823xs+
Description - A private data center on your desk DS1823xs+ is a powerful central storage server that can be easily deployed anywhere to provide shared storage and data sharing, endpoint and server backup, VM storage, surveillance management, and other business options. This is ideal when a dedicated server rack or data center is not available. Security, reliability and scalability Built-in data integrity protection, remote management options, and easy hardware upgrades make DS1823xs+ reliable, easy to maintain, and cost-effective. Data integrity protection The Btrfs file system helps prevent data corruption or loss through metadata mirroring, automatic file repair, and efficient point-in-time snapshots. ECC memory provides additional integrity protections. Effective remote management Monitor, replace, and manage drives and storage on Synology DSM. Remotely reboot, reset or view logs while the system is down with Out of Band (OOB) management. Plug-and-play expansion DS1823xs+ can be expanded up to 18 bays by adding two DX517 expansion units without system downtime with online storage and volume expansion capabilities. Store, share and protect Manage all your documents, photos and other files, back up applications and devices, and protect your physical assets with professional video surveillance Flexible File Server Use DS1823xs+ as your central file storage and data sharing hub. Provide easy access to business data from computers, phones and other devices, and set up advanced cross-site synchronization to enable collaboration between offices or branches. Backup Repository Back up files, folders, physical devices, VMs, and SaaS applications with free solutions and protect your NAS with built-in technologies. Business application platform Host cost-effective business solutions via containers, virtual machines, or native Synology DiskStation (DSM) solutions, including an advanced free backup package, universal mail server, and VMS monitoring system with transparent licensing.
Design - Built-in display - No
Design - Built-in speaker(s) - No
Design - Cable lock slot - Yes
Design - Cable lock slot type - Kensington
Design - Chassis type - Tower
Design - Cooling type - Active
Design - Fan diameter - 12 cm
Design - LED indicators - Yes
Design - Number of fans - 2 fan(s)
Design - Product colour - Black
Design > Chassis type - Tower
Design > Number of 3.5" bays - 8
dimensionalWeight - 9882
dimension depth - 450 mm
dimension height - 300 mm
Dimensions - 166 x 343 x 243 mm
dimension weight - 8100 g
dimension width - 360 mm
Disk type - HDD
Disk type - SSD
EAN - 4711174724956
ean - 4711174724956
EAN_code - 4711174724956
Expansion slots - 1 x PCIe 3.0 x 8
Fan - 12 cm
Form factor (width) - 2,5'' (SFF)
Form factor (width) - 3,5'' (LFF)
Form factor (width) - M.2
Gross Weight Kg - 6,2
guarantee - 60
guarantee_type - normal
HDD interface - SATA
Hot-swapping support - Yes
Housing - Desktop
I/O connectors - 1 x RJ-45 (management)
I/O connectors - 2 x eSATA
I/O connectors - 3 x RJ-45 LAN
I/O connectors - 4 x USB 3.0
Link - https://www.synology.com/en-us/products/DS1823xs+
Management, monitoring, configuration -
Manufacturer - Synology
Manufacturer Code - DS1823XS+
Manufacturer Name - Synology
Manufacturer_code - DS1823xs+
Max. number of disks - 10
Max memory size - 32 KB
Memory - ECC - Yes
Memory - Internal memory - 8 GB
Memory - Internal memory type - DDR4
Memory - Maximum RAM supported - 32 GB
Memory - Memory form factor - SO-DIMM
Memory - Memory slots - 2
Memory > Internal memory type - DDR4
Memory > Internal RAM - 8 GB
Memory type - SODIMM DDR4
MPN - DS1823XS+
Name - 8-Bay Synology DiskStation DS1823XS+
name - Server NAS DS1823xs+ 8x0HDD 4Core V1780B 3,35Ghz 8GB DDR4 ECC 250W 5Y
Name - Synology DS1823xs+, NAS
Name - Synology | Synology | 8-Bay | DS1823xs+ | Up to 8 HDD/SSD Hot-Swap | AMD Ryzen | V1780B | Processor frequency 3.35 GHz | 8 GB | DDR4
Network - Copper ethernet cabling technology - 10BASE-T
Network - Copper ethernet cabling technology - 10GBASE-T
Network - Copper ethernet cabling technology - 100BASE-TX
Network - Copper ethernet cabling technology - 1000BASE-T
Network - Ethernet LAN - Yes
Network - Ethernet LAN data rates - 10
Network - Ethernet LAN data rates - 100 Mbit/s
Network - Ethernet LAN data rates - 1000
Network - Ethernet LAN data rates - 10000 Mbit/s
Network - Ethernet LAN data rate supported (max) - 10000 Mbit/s
Network - iSCSI support - Yes
Network - Link aggregation - Yes
Network architecture - GigabitEthernet
Network interface - 1 x 10Gbit/s SFP+
Network interface - 2 x 10/100/1000 Mbit/s
Network protocols - SMB/AFP/NFS/FTP/WebDAV
Number of available memory slots - 1
Number of fans - 2
Number of HDDs installed - 0
Number of memory slots used - 1
Operational conditions - Operating relative humidity (H-H) - 5 - 95%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 95%
Operational conditions - Storage temperature (T-T) - -20 - 60 °C
Other disk parameters -
Other features -
Other features - Certification - FCC
BSMI
VCCI
RCM
EAC
CCC
KC
Other features - Compliance certificates - CE
Other features - Compliance certificates - RoHS
Other features > Drive bays - 8
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 166.00 mm
Package features > Gross height (mm) - 243.00 mm
Package features > Gross width (mm) - 343.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 125 pc(s)
Package features > Paper/Pasteboard - 250.00 g
Package features > Plastic (No PET) - 50.00 g
Package features > Tare weight (kg) - 0.30 kg
Package features > Volume (m3) - 0.01 m³
Package features > WEE classification - CL109:5:2017-04-01
Package features > WEEE tax - Yes
Packaging content - Cables included - AC
Packaging content - Cables included - LAN (RJ-45)
Packaging content - Power cables quantity - 1
PDF - https://www.blobs.lt/products/9/0/0/0/9/3/8949943f3fb946bbfb39cc4b5d484574/original.pdf
Performance - Access Control List (ACL) - Yes
Performance - Backup features - Cloud
Performance - Backup features - iSCSI LUN
Performance - Backup function - Yes
Performance - Browser supported - Google Chrome Firefox Microsoft Edge Safari
Performance - Built-in FTP server - Yes
Performance - Card reader integrated - No
Performance - Device class - Small & Medium Business
Performance - Management protocols - SNMP
Performance - Multilingual support - Yes
Performance - Noise level - 23.6 dB
Performance - On/off switch - Yes
Performance - Reset button - Yes
Performance - Security algorithms - AES
Performance - Snapshot - Yes
Performance - System log - Yes
Performance - Type - NAS
Ports & interfaces - eSATA ports quantity - 2
Ports & interfaces - Ethernet LAN (RJ-45) ports - 4
Ports & interfaces - PCI Express x8 (Gen 3.x) slots - 1
Ports & interfaces - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 3
Ports & interfaces - USB port - Yes
Ports & interfaces > Interface - 2x2.5GbE, 3xUSB Type-A 3.2 Gen 1, 1x PCIe Gen3 x8 slot, 2xM.2 2280
Power - AC input frequency - 50 / 60 Hz
Power - AC input voltage - 100 - 240 V
Power - Number of power supply units - 1
Power - Power consumption (typical) - 87.93 W
Power - Power supply location - Built-in
Power - Power supply unit (PSU) capacity - 250 W
Power - Redundant power supply (RPS) support - No
Power supply - Power Supply/Adapter: 250W AC power input voltage: 100V to 240V AC Power frequency: 50/60 Hz, single phase
Processor - AMD Ryzen V1780B
Processor - Number of processors supported - 1
Processor - Processor boost frequency - 3.6 GHz
Processor - Processor cores - 4
Processor - Processor family - AMD Ryzen
Processor - Processor frequency - 3.35 GHz
Processor - Processor manufacturer - AMD
Processor - Processor model - V1780B
Processor > Processor family - AMD Ryzen
Processor > Processor frequency - 3.35 GHz
Processor > Processor model - V1780B
producer - Synology
producerCode - DS1823xs+
Producer product family - 8-Bay
Producer product name - DS1823xs+
productName - Synology DiskStation DS1823XS+ NAS/storage server Tower AMD Ryzen V1780B 8 GB DDR4 DiskStation Manager Black
productSize - Normal
RAID - Yes
RAID levels - 0
RAID levels - 1
RAID levels - 5
RAID levels - 6
RAID levels - 10 (1+0)
RAID levels - JBOD
Short description - Synology NAS Disk Station DS1823xs+ (8 Bay)
sizeX - 450
sizeY - 305
sizeZ - 360
Software - Operating system installed - DiskStation Manager
Software - Operating system version - 7.1.1
Software - Server operating systems supported - Windows Server 2019
Storage - Hot-swap drive bays - Yes
Storage - Installed storage drive type - No
Storage - Number of M.2 (M & B) slots - 2
Storage - Number of storage drives supported - 8
Storage - Online RAID expansion - Yes
Storage - Online RAID migration - Yes
Storage - RAID levels - 0
Storage - RAID levels - 1
Storage - RAID levels - 5
Storage - RAID levels - 6
Storage - RAID levels - 10
Storage - RAID levels - JBOD
Storage - RAID support - Yes
Storage - Storage drives installed - No
Storage - Storage drive sizes supported - 2.5
Storage - Storage drive sizes supported - 3.5
Storage - Storage drive sizes supported - M.2
Storage - Supported file systems - BTRFS
Storage - Supported file systems - exFAT
Storage - Supported file systems - ext3
Storage - Supported file systems - ext4
Storage - Supported file systems - Fat
Storage - Supported file systems - HFS+
Storage - Supported file systems - NTFS
Storage - Supported storage drive interfaces - Serial ATA
Storage - Supported storage drive types - HDD & SSD
Storage > Number of storage drives supported - Up to 8 HDD/SSD Hot-Swap
Sustainability - Sustainability compliance - Yes
Technical details > Gross weight - 6.50 kg
Technical details > Net weight - 6.20 kg
Technical details > Other features - System fan: 2x120mm. Power Supply Unit: 250W, 100-240V AC, 50-60Hz
Technical details > Producer - Synology
Total number of memory slots - 2
vendpn - DS1823xs+
Warranty - 60
Warranty - 60 month(s)
warrantyLength - 60
warrantyType - F
Weight - 6.2 kg
Weight - 8,10
Weight - 8.08
weight - 8100
Weight & dimensions - Depth - 243 mm
Weight & dimensions - Height - 166 mm
Weight & dimensions - Weight - 6.2 kg
Weight & dimensions - Width - 343 mm
