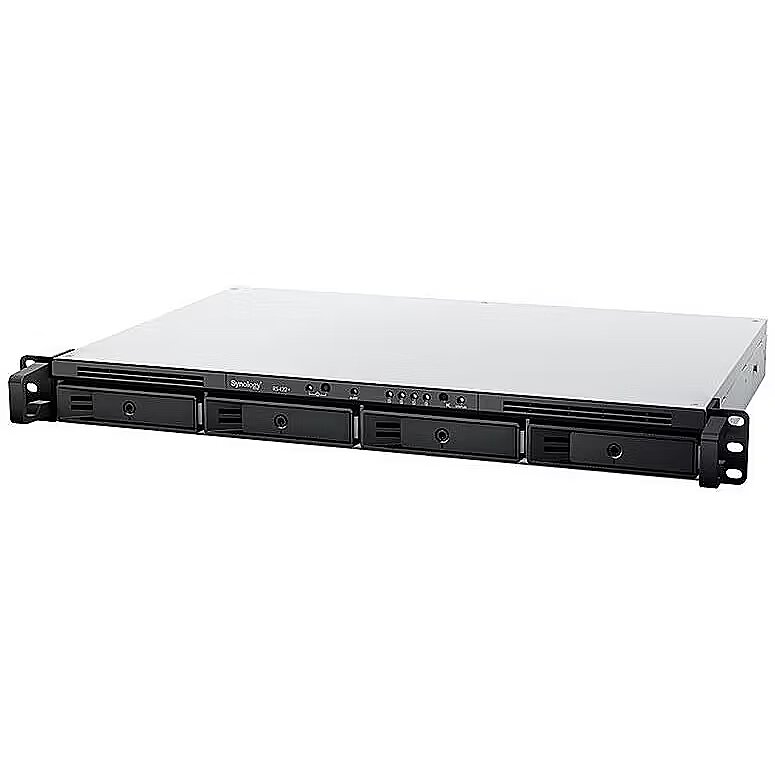

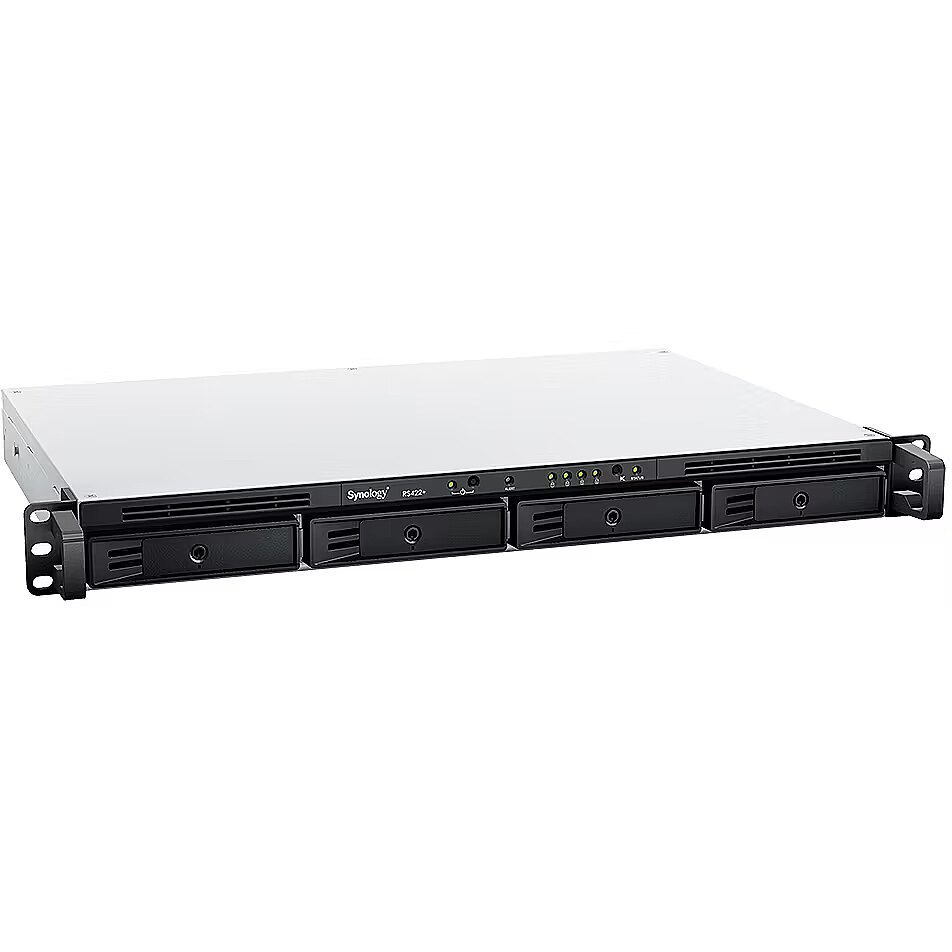

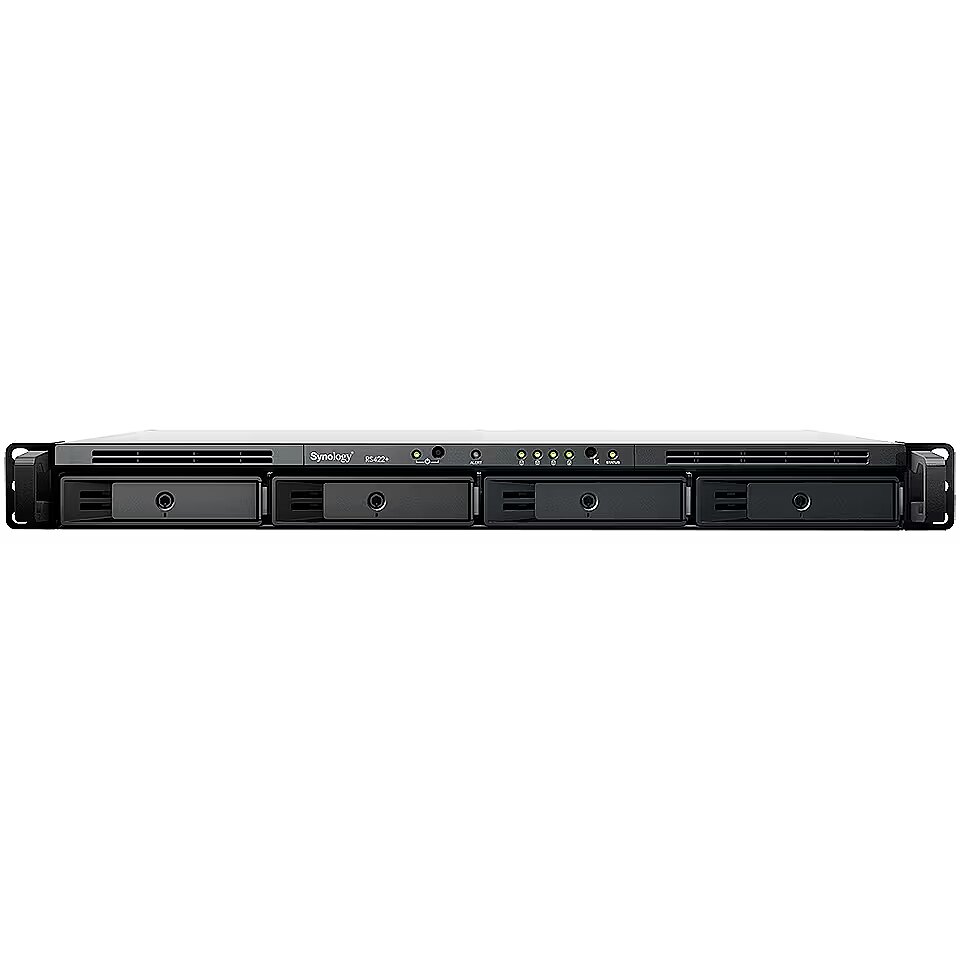

Synology RackStation RS422+, 1U 4-Bay

Accessories included - 1 RS422+ main unit 1 accessory package 1 power cable 1 quick installation guide
Built-in RAM memory - 2 GB
Category - Root/Electronics/Networks and communication/NAS - file servers
Category 1 - Netzwerk
Category 2 - NAS-Systeme
Category Code - STS
Category_1 - Network and Servers
Category_2 - NAS
Code - RS422+
CPU - AMD Ryzen R1600
Description - Compact and versatile storage for efficient data management Synology RackStation RS422+ is a 4-bay rackmount NAS server in a compact 1U form factor. Featuring the operating system, Synology DiskStation Manager (DSM), this server offers a cost-effective, all-in-one solution for data sharing, synchronization, and backup for small businesses and home office owners who want to fulfill daily data management needs. Key features Reliable performance: Over 601/516 MB/s sequential read/write throughput enables stable data transfer1 Compact design: Space-saving design with a depth of just 327.5mm with server brackets installed Redundant connections:  Two 1GbE ports support network failover and load balancing Simple network expansion modules: Plug-and-play network expansion modules make it easy to add 10GbE RJ-45 ports Comprehensive storage platform for home and office RS422+ is designed to support small deployments that require a turnkey data management solution. Performance of over 590 MB/sec sequential write and 521 MB/sec sequential write supports common file management, data backup and surveillance applications Two built-in Gigabit Ethernet ports can be connected with Link Aggregation for redundant connectivity and load balancing, while high-speed 10GbE RJ-45 connectivity can be added with a plug-and-play network expansion module Compact chassis fits into a 2-column or wall-mount rack for deployment flexibility in space-constrained environments Optimised for data protection and integrity Protect your data with the advanced storage management features of Synology DSM, built on the advanced Btrfs file system. Advanced snapshot technology provides scheduled and near-instant data protection for shared folders and LUNs File and folder level restore allows specific files or folders to be restored Configurable memory limits simplify management of available space with the option to set memory limits for shared folders Automatic file repair detects and recovers damaged files using metadata mirroring and RAID configurations Built-in compression minimises storage consumption and extends drive life by compressing data before it is stored in a storage pool File sharing and synchronisation for hybrid teams The RS422+'s compact size and simple installation make it suitable for deployment as an edge server, providing convenient and efficient file access, sharing and synchronisation across multiple locations. Extensive network protocol support ensures seamless file sharing across Windows, Mac and Linux platforms, while Windows AD and LDAP compatibility enables easy integration into any existing network environment Hybrid Share combines the reliability of local storage with the synchronization efficiency of shared folders in the cloud, allowing for seamless cross-site synchronization and local access at LAN speeds2 Synology Drive is a private cloud file management solution that enables remote data access, synchronization, on-demand file restoration, and backup with handy desktop and mobile apps Cloud Sync keeps data stored in Dropbox, Google Drive, Microsoft OneDrive, Baidu or Box in sync with the Synology server Seamless file sharing is combined with a high level of security, including HTTPS support, a built-in firewall, and multiple mechanisms to automatically block intrusions into IP addresses and accounts Comprehensive tools to protect your data and ensure uptime Native backup solutions help maintain high system availability and facilitate data recovery in the event of a disaster or major power outage. Active Backup Suite combines backup tasks and offers fast restores for Windows and Linux endpoints, virtual machines, Synology servers, and SaaS applications Snapshot Replication copies shared folders and LUNs to protect against accidental modifications or ransomware attacks Hyper Backup protects the NAS by backing up data and configurations to multiple destinations with performance provided by built-in deduplication, integrity checks, compression and versioning storage C2 Storage for Hyper Backup is a dedicated and secure public cloud destination for backup data on Synology NAS Private Video Surveillance  Synology Surveillance Station turns RS422+ into an advanced Network Video Recorder with support for up to 40 IP cameras, making it perfect for retail shops or small businesses who want to secure their properties conveniently and cost-effectively. Over 8,300 supported camera models ONVIF support prevents dependency on a single manufacturer Private storage of recordings without subscription Access via web browsers, desktop clients or mobile apps Event-based rules to trigger specific actions Email, SMS or push notification options
Description - With its compact 1U form factor and powerful Synology DiskStation Manager (DSM) operating system, the 4-bay Synology RackStation RS422+ is an affordable all-in-one solution for small businesses and home lab owners looking to meet their daily data management, sharing, synchronization, and backup needs. “This products is eligible for Synology Extended Warranty Plus. You can purchase Extended Warranty Plus either from the DSM interface (version 7.1 and above) or from your Synology Account.” “For this Synology product we are offering additional*, paid, support packages provided by Tehnogroup. Technogroup support packages includes services like on-site support, on-site post-warranty and NBD replacement. Please contact your Account Manager for individual price offer. *Synology product price do not include additional support package costs”
Design - Chassis type - Rack (1U)
Design - Cooling type - Active
Design - Fan diameter - 4 cm
Design - LED indicators - Yes
Design - Number of fans - 3 fan(s)
Design - Product colour - Black
Design > Chassis type - Rack
Design > Number of 3.5" bays - 4
dimensionalWeight - 5936
dimension depth - 140 mm
dimension height - 525 mm
Dimensions - 44 mm x 478 mm x 327.5 mm
Dimensions - 44 × 430.5 × 295.5 mm 44 × 478 × 327.5 mm (with server brackets)
dimension weight - 6100 g
dimension width - 400 mm
Disk type - HDD
Disk type - SSD
EAN - 4711174724475
ean - 4711174724475
Eans - 4711174724475
EAN_code - 4711174724475
Fan - 4 cm
File System - EXT4
Form factor (width) - 2,5'' (SFF)
Form factor (width) - 3,5'' (LFF)
Full Description Line - CPU AMD Ryzen R1600|Drives/bays 4|Rack 1U|1xUSB 3.2|2xRJ45|Memory 2 GB|DDR4|1xPCI-E|File System EXT4|Power consumption 37.93 Watts
Gross Weight Kg - 5
guarantee - 36
guarantee_type - normal
HDD interface - SATA
Hot-swapping support - Yes
Housing - Rack 1U

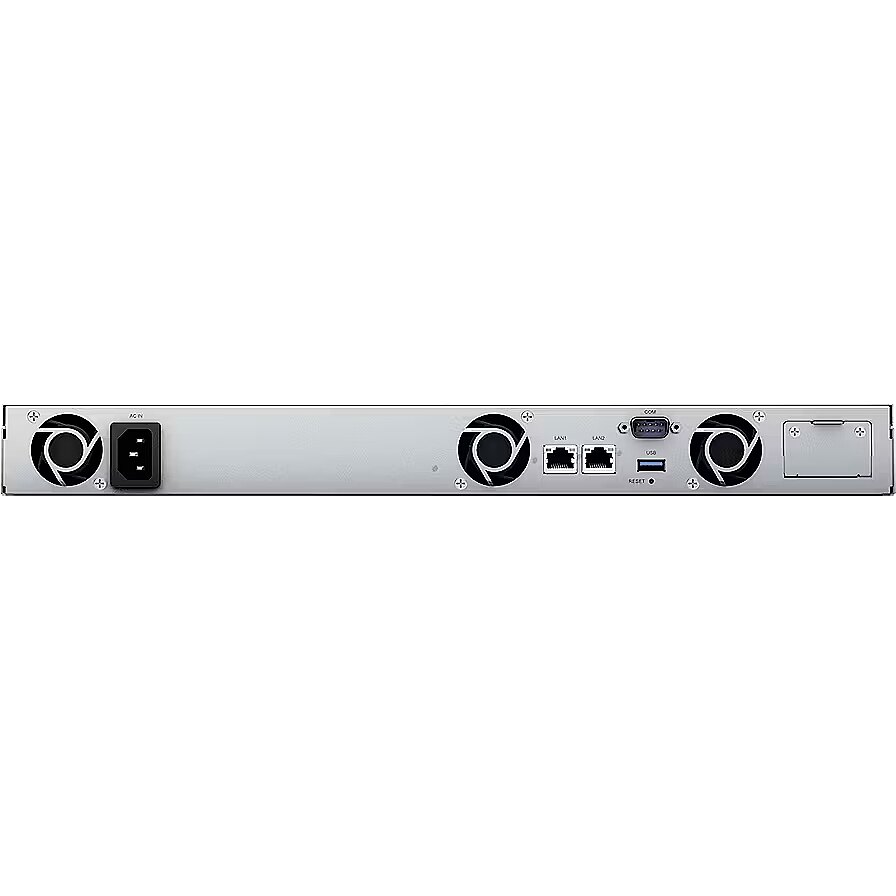

I/O connectors - 1 x RS-232 (COM)
I/O connectors - 1 x USB 3.0
I/O connectors - 2 x RJ-45 LAN
Important - Uzyskaj cenę specjalną na ten produkt wypełniając formularz rejestracji projektu. Odeślij do swojego handlowca lub  maciej.michalak@ab.pl
Link - https://www.synology.com/en-my/products/RS422+
Logistics data - Harmonized System (HS) code - 84714100
Management, monitoring, configuration - Synology Directory Server: Provides a flexible and cost-effective domain controller solution Central Management System: Provides a single interface to manage and monitor multiple Synology NAS servers VPN Server: Maximum number of connections: 40; Supported VPN Protocols: PPTP, OpenVPN, L2DTP/IPSec Active Insight: Monitor statistics on the health, logging activity, and backup status of your Synology servers worldwide, and receive notifications and advice from our centralized, cloud-based management platform Storage Analyzer: Displays volume and allocation space utilization, total number of files, volume utilization and historical trend analysis, shared folder size, large files, last modified files and least used files Antivirus Essential: Provides a full system scan, scheduled scans, customizable whitelist, and automatic updating of virus definitions Web Station: Hosts up to 30 websites with PHP/MariaDB and external applications Other packages: DNS Server, RADIUS Server and Log Center
Manufacturer - Synology
Manufacturer Code - RS422+
Manufacturer Name - Synology
Manufacturer_code - RS422+
Max. number of disks - 4
Memory - 2 GB
Memory - ECC - Yes
Memory - Internal memory - 2 GB
Memory - Internal memory type - DDR4
Memory > Internal memory type - DDR4
Memory > Internal RAM - 2 GB
Memory type - DDR4
Memory type - DDR4
MPN - RS422+
Name - 4-Bay Synology RackStation RS422+
name - Server NAS RS422+ R1600 AMD Ryzen 2,6Ghz 4x0HDD 2x1GbE RJ45 1xUSB3.2.1 1U
Name - Synology RS422+
Name - Synology RS422+, NAS
Name - Synology | RS422+ | Up to 4 HDD/SSD Hot-Swap | AMD Ryzen | Ryzen R1600 | Processor frequency 2.6 GHz | 2 GB | DDR4
Network - Ethernet LAN - Yes
Network - Ethernet LAN data rates - 1000 Mbit/s
Network - Supported network protocols - SMB, AFP, NFS, FTP, WebDAV, CalDAV, iSCSI, Telnet, SSH, SNMP, and VPN (PPTP, OpenVPN, L2TP)
Network - Wake-on-LAN ready - Yes
Network architecture - GigabitEthernet
Network interface - 2 x 10/100/1000 Mbit/s
Network protocols - SMB, AFP, NFS, FTP, WebDAV, CalDAV, iSCSI, Telnet, SSH, SNMP VPN (PPTP, OpenVPN, L2TP)
Number of drives/bays - 4
Number of fans - 3
Number of HDDs installed - 0
Operational conditions - Operating altitude - 0 - 5000 m
Operational conditions - Operating relative humidity (H-H) - 8 - 80%
Operational conditions - Operating temperature (T-T) - 0 - 35 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 95%
Operational conditions - Storage temperature (T-T) - -20 - 60 °C
Other disk parameters -
Other features -
Other features - Compliance certificates - RoHS
Other features - I/O ports - Console Port
Other features > Drive bays - 4
Other features > Ethernet LAN (RJ-45) ports - 2
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 399 mm
Package features > Gross height (mm) - 137 mm
Package features > Gross width (mm) - 527 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 60 pc(s)
Package features > Paper/Pasteboard - 700.00 g
Package features > Plastic (No PET) - 50.00 g
Package features > Tare weight (kg) - 0.75 kg
Package features > Volume (m3) - 0.028807401 m³
Package features > WEE classification - CL109:4:2017-04-01
Package features > WEEE tax - Yes
Packaging content - Cables included - AC
Packaging content - Quick installation guide - Yes
Packaging content - Rack mount kit - Yes
PCI-E Expansion slots - 1
Performance - Access Control List (ACL) - Yes
Performance - Backup function - Yes
Performance - Device class - Home & Home Office
Performance - Number of users - 2048 user(s)
Performance - On/off switch - Yes
Performance - Reset button - Yes
Performance - Share folder - 1024
Performance - Share folder access right management - Yes
Performance - Type - NAS
Ports & interfaces - Ethernet LAN (RJ-45) ports - 2
Ports & interfaces - Expansion ports quantity - 1
Ports & interfaces - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 1
Ports & interfaces - USB port - Yes
Ports & interfaces > Interface - 2x1GbE/1xUSB3.2
Power - AC input frequency - 50 - 60 Hz
Power - AC input voltage - 100 - 240 V
Power consumption - 37.93 Watts
Power supply - AC input voltage: 100 V 240 V AC
Processor - AMD Ryzen R1600 dual-core CPU (4-threaded) at 2.6 GHz (up to 3.1 GHz)
Processor - On-board graphics card model - Not available
Processor - Processor boost frequency - 3.1 GHz
Processor - Processor cores - 2
Processor - Processor family - Ryzen Embedded
Processor - Processor frequency - 2.6 GHz
Processor - Processor generation - AMD Ryzen Embedded R1000 Series
Processor - Processor manufacturer - AMD
Processor - Processor model - R1600
Processor - Processor threads - 4
Processor > Processor family - AMD Ryzen
Processor > Processor frequency - 2.6 GHz
Processor > Processor model - Ryzen R1600
producer - Synology
Producer - Synology
producerCode - RS422+
ProducerCode - RS422+
Producer product name - RS422+
productName - Synology RackStation RS422+ NAS/storage server Rack (1U) Ryzen Embedded R1600 2 GB DDR4 DSM Black
productSize - Normal
Rack 1U Mounting Type - Yes
RAID - Yes
RAID levels - 0
RAID levels - 1
RAID levels - 5
RAID levels - 6
RAID levels - 10 (1+0)
RAID levels - JBOD
RJ45 Input/Output connectors - 2
Shipping Box Depth Shipping/Package Box Dimensions - 52.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 13.5 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 6.1 kg
Shipping Box Width Shipping/Package Box Dimensions - 40 cm
ShortDescription -
Short description - Synology NAS Rack Station RS422+ (4 Bay) 1U
sizeX - 140
sizeY - 530
sizeZ - 400
Software - Operating system installed - DSM
Software - Operating system version - 7.1
Storage - Hot-swap drive bays - Yes
Storage - Installed storage drive type - No
Storage - Number of storage drives supported - 4
Storage - RAID levels - 0
Storage - RAID levels - 1
Storage - RAID levels - 5
Storage - RAID levels - 6
Storage - RAID levels - 10
Storage - RAID levels - JBOD
Storage - RAID support - Yes
Storage - Storage drives installed - No
Storage - Storage drive sizes supported - 2.5
Storage - Storage drive sizes supported - 3.5"
Storage - Supported file systems - BTRFS
Storage - Supported file systems - exFAT
Storage - Supported file systems - ext3
Storage - Supported file systems - ext4
Storage - Supported file systems - FAT32
Storage - Supported file systems - HFS+
Storage - Supported file systems - NTFS
Storage - Supported storage drive interfaces - Serial ATA
Storage - Supported storage drive types - HDD & SSD
Storage > Number of storage drives supported - Up to 4 HDD/SSD Hot-Swap
Storage > RAID levels - RAID 0,1,5,6,10,Hybrid
Supported drives - 3.5" SATA HDD; 2.5" SATA SSD
Technical details > Gross weight - 6.05 kg
Technical details > Net weight - 5.3 kg
Technical details > Other features - 3x Fans 40 mm x 40 mm
Technical details > Producer - Synology
Technical details > Warranty - 36 month(s)
Total capacity of all disks installed - 0 KB
Unit Box Height - 0.135
Unit Box Length - 0.525
Unit Box Width - 0.4
Unit Brutto Volume - 0.02835 cubm
Unit Gross Weight - 6.1 kg
Unit Net Weight - 4.38 kg
USB 3.2 Input/Output connectors - 1
Vendor Homepage - www.synology.com/en-af/products/RS422+
vendpn - RS422+
Warranty - 36
Warranty - 36 months
warrantyLength - 36
warrantyType - G
Weight - 4.38 kg
Weight - 6,00
Weight - 6.2
weight - 6165
Weight & dimensions - Depth - 295.5 mm
Weight & dimensions - Height - 44 mm
Weight & dimensions - Weight - 4.38 kg
Weight & dimensions - Width - 430.5 mm
