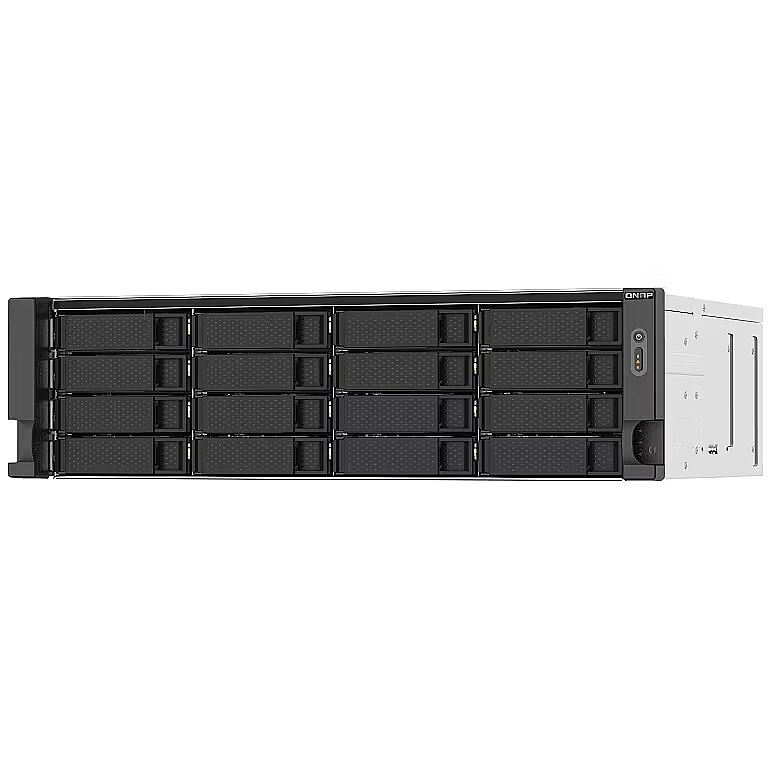

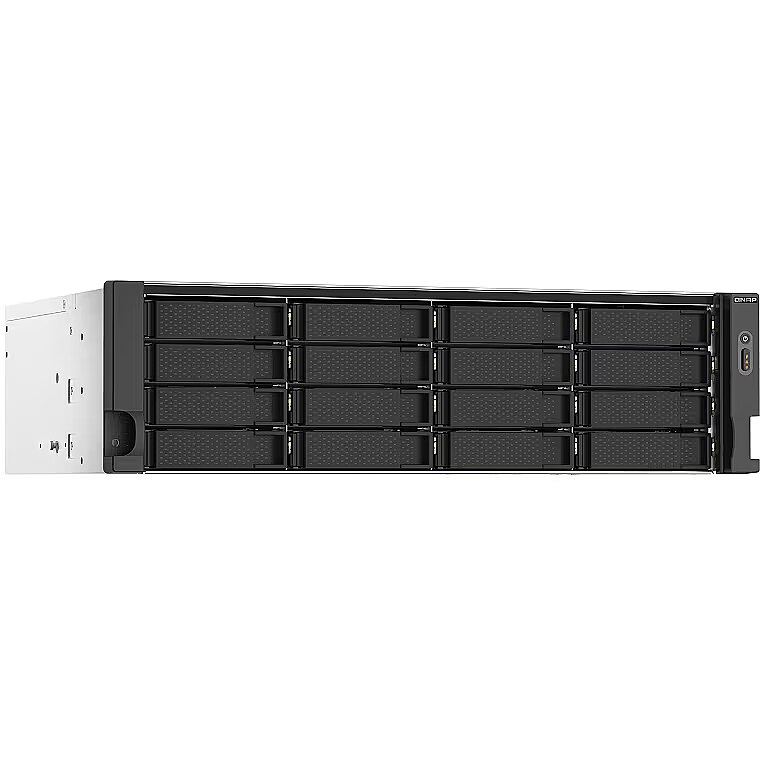

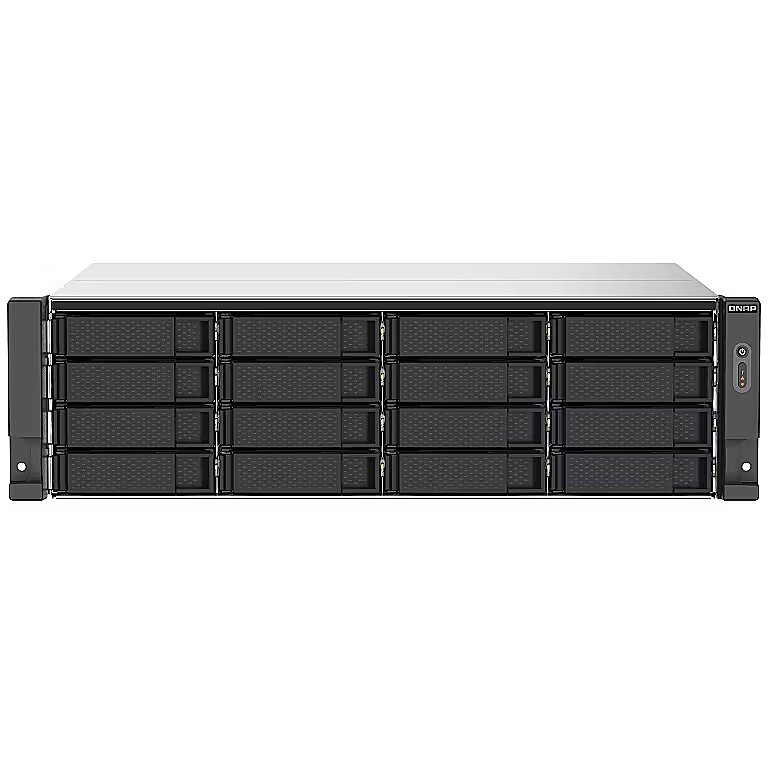

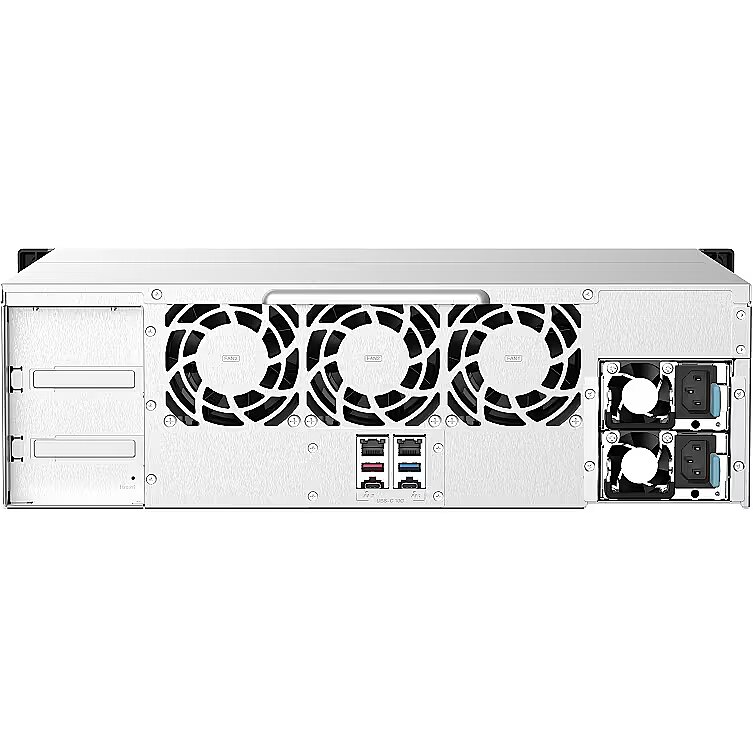

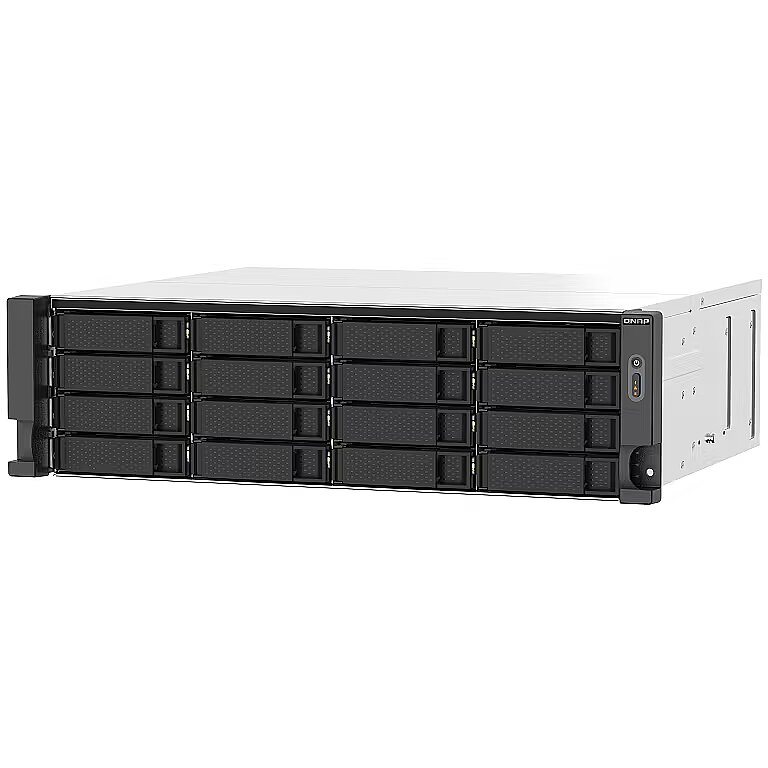

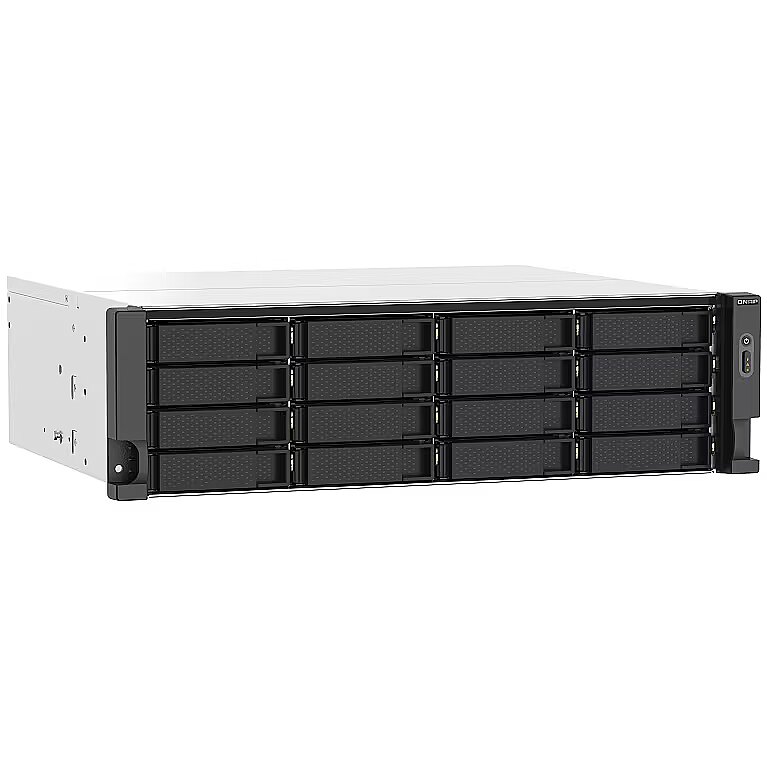

Qnap TS-1673AU-RP-16G, 3U 16-Bay

Accessories included - Kabel Ethernet Kabel zasilający x2 Śruba do montażu 3,5" HDD x64 Śruba do montażu 2,5" HDD x48 Instrukcja instalacji
ARTIKEL1 - TS-1673AU-RP-16G 3U 16BAY2.2GHZ
ARTIKEL2 - QC 16GB DDR 4 2X 2.5GBE 2X 550W
Brand - QNAP
BrandPartCode - TS-1673AU-RP-16G
Breite - 0.59
Built-in flash memory - 5 GB
Built-in RAM memory - 16 GB
Category - NAS & Storage Servers
Description - Serwer NAS QNAP TS-1673AU-RP-16G
Wysokowydajny serwer NAS z dwoma portami 2,5GbE i czterordzeniowym procesorem AMD Ryzen, z obsługą łączności 10GbE lub buforowania M.2 SSD, i możliwością rozbudowy PCIe na potrzeby wirtualnych aplikacji. Model TS-1673AU-RP, z zaawansowanym procesorem AMD Ryzen V1000 serii V1500B, zapewnia możliwość zwiększenia wydajności maszyny wirtualnej do maksymalnie 4 rdzeni/8 wątków przy taktowaniu 2,2 GHz. Model TS-1673AU-RP zapewnia dwa porty 2,5GbE i dwa gniazda PCIe Gen 3, oferując szybkie połączenia sieciowe i możliwość dodawania kolejnych funkcji i rozszerzania zastosowań. Serwer TS-1673AU-RP wyposażono też w zasilacz nadmiarowy, aby w ten sposób zapewnić jak najdłuższy czas działania systemu bez przestojów. Nowoczesny sprzęt wyposażony w kompleksowe rozwiązania oprogramowania sprawia, że model TS-1673AU-RP świetnie nadaje się do zastosowań i zadań wymagających pod względem zasobów.
Design - Chassis type - Rack (3U)
Design - Cooling type - Active
Design - Fan diameter - 8 cm
Design - LED indicators - HDD, LAN, Power, Status, USB
Design - Number of fans - 3 fan(s)
Design - Product colour - Black, Grey
dimension depth - 500 mm
dimension height - 290 mm
Dimensions - 132 × 482 × 425 mm
dimension weight - 17000 g
dimension width - 300 mm
Disk type - HDD
ean - 4713213517895
EAN - 4713213517895
EANCode - 4713213517895
Expansion slots - 2 x PCIe 3.0 x 4
Fan - 8 cm
Form factor (width) - 3,5'' (LFF)
Gewicht - 17.18
Gross Weight Kg - 17,15
GRUPPE1 - Storage
GRUPPE2 - Raid System
GTIN - 0885022019915
GTIN - 885022019915
GTIN - 4713213517895
guarantee - 36
guarantee_type - normal
HDD interface - SATA II - 3 Gb/s
HDD interface - SATA III - 6 Gb/s
HERSTELLER - QNAP
Hoehe - 0.31
Hot-swapping support - No
Housing - Rack 3U
HSTNUMMER - TS-1673AU-RP-16G
I/O connectors - 1 x USB 3.0
I/O connectors - 1 x USB 3.1
I/O connectors - 2 x RJ-45 LAN
I/O connectors - 2 x USB (Type C)
Laenge - 0.6
Logistics data - Harmonized System (HS) code - 84714100
LongDesc - TS-1673AU-RPHigh-performance dual-2.5GbE NAS Powered by a Quad-core AMD Ryzen™ processor, supporting 10GbE or M.2 SSD caching PCIe expandability for virtual applications(Supports QTS or QuTS hero system)With its powerful AMD Ryzen™ V1000 series V1500B Quad-core processor, the TS-1673AU-RP is capable of boosting virtual machine performance with up to 4 cores/8 threads at 2.2GHz. The TS-1673AU-RP includes two 2.5GbE ports and two PCIe Gen 3 slots, providing you with fast network connectivity and the ability to add extra functionality and additional application potential. Absolute performance with AMD Ryzen™ and up to 64GB RAMPowered by a 4-core/8-thread AMD Ryzen™ V1500B 2.2GHz processor with AES-NI encryption acceleration and up to 64GB DDR4 RAM, the rackmount TS-1673AU-RP delivers aggressive yet power-smart performance to drive resource-demanding business applications such as VDI, R&D, private cloud, and server virtualization.Block-based iSCSI LUN: Ideal choice for virtualization storageThe TS-1673AU-RP supports block-based iSCSI LUN and is compatible for VMware®, Citrix®, Microsoft® Hyper-V®, and Windows Server® 2019 virtualization environments to provide a high-performance and affordable storage solution. The TS-1673AU-RP also supports VMware VAAI and Microsoft ODX to increase performance by offloading server loading for ESXi server and Hyper-V respectively, and supporting QNAP vSphere Client plug-in with enhanced operational efficiency and management in virtualization applications.Optimized performance for VMware Virtualization with iSERThe iSCSI Extensions for RDMA (iSER) protocol boosts the data transfer performance of VMware® ESXi storage and reduces the CPU load of the ESXi server. iSER support can be added to the TS-1673AU-RP by installing a QNAP QXG-10G2SF-CX4 10GbE PCIe card, which uses the NVIDIA® Mellanox ConnectX-4 controller. iSER can provide a significant increase in performance, providing an essential tool to optimize demanding virtualization applications.All-in-one server to host virtual machines and containersRegardless of your virtualization needs, you can count on Virtualization Station and Container Station for complete virtualization support. Use the Network & Virtual Switch app to allocate adequate physical network resources to virtual machines, containers, and the TS-1673AU-RP to simplify network deployment.Upgrade to 2.5GbE networkingThe TS-1673AU-RP comes with two 2.5GbE RJ45 LAN ports that allow you to use existing CAT5e cables to upgrade network speeds from 1 Gigabit to 2.5 Gigabit. 5GbE speeds can also be attained by using Port Trunking. To upgrade your laptops and desktops to take advantage of high-speed networks, QNAP offer various adapters and peripherals, including a USB 3.2 Gen 1 to 5GbE adapter (Model name QNA-UC5G1T) and 5GbE PCIe expansion card (Model name QXG-5G1T-111C).Transform your network with a wallet-friendly 2.5GbE switchUpgrading your network shouldn’t break the bank, and 2.5GbE connectivity provides immediately noticeable improvements compared to standard 1GbE. The QSW-1105-5T is an unmanaged switch with five 2.5GbE ports (backwards compatible with 1G/100M) and supports CAT5e cables to connect multiple computers and NAS. The QSW-1105-5T is energy-saving, low-noise, plug-and-use, and supports loop detection and blocking to provide a simple and effective high-speed network environment.Abundant I/O capabilities with PCIe expansionThe TS-1673AU-RP includes two PCIe Gen 3 x4 slots, allowing you to add additional functionality with compatible PCIe cards. By using a suitable adapter, you can consolidate both slots into a single PCIe Gen 3 x8 slot.GPU-accelerated computingGraphics cards are optimized for graphical calculations and transformations, but require significantly more power than other hardware. The TS-1673AU-RP supports entry-level low-profile NVIDIA® GeForce® graphics cards (such as the GT 1030 or GT 1050) that do not require additional power. Installing a graphics card can boost performance of applications such as video editing, 4K video transcoding, imaging processing in QTS and the performance of virtual machines via GPU passthrough.Accelerate IOPS performance with SSD CachingAdding an SSD cache to the TS-1673AU-RP is an easy way to increase IOPS performance and reducing storage volume latency. It is perfect for IOPS-demanding applications (including databases and virtualization) and can significantly improve overall workflows. You can launch, stop, or change settings to meet your needs at any moment without shutting down the system.Optimum Performance and ReliabilityThe TS-1673AU-RP supports advanced business features to provide maximized efficiency, performance, and to ensure round-the-clock services.Move business data to the cloud flexibly and economicallyBy deploying cloud storage gateways and enabling local caching on the TS-1673AU-RP, you can seamlessly use the cloud for storage, backup, and data recovery with low-latency access, providing an innovative hybrid cloud experience.High-speed VM Backup SolutionWith Hyper Data Protector, the TS-1673AU-RP becomes an agentless backup tool for unlimited VMware® vSphere and Microsoft® Hyper-V VM backup. Hyper Data Protector features incremental backup, global deduplication, backup scheduling and recovery compression that provides you with a cost-effective and reliable disaster recovery plan, ensuring 24/7 operation of your services.Build an affordable Fibre Channel SAN environmentCommon Fibre Channel Storage Area Networks (SAN) devices are often costly. By installing a QNAP 16Gb Fibre Channel card (QXP-16G2FC 16Gb) in the TS-1673AU-RP, you can set a Fibre Channel Target using the iSCSI & Fibre Channel app. Moreover, the LUN Masking and Port Binding features provide an additional layer of data security.Flexible and economical storage expansionQNAP provides easy storage expansion solutions. Here are several ways to expand the storage of your TS-1673AU-RP to accommodate data and business growth:Attach Expansion EnclosuresBesides supporting SAS or QXP SATA expansion cards, the TS-1673AU-RP provides USB interfaces to connect a RAID Expansion Enclosure. Use the QTS Storage & Snapshots Manager to easily handle NAS capacity expansion.VJBODUse VJBOD (Virtual JBOD) to expand your storage capacity by using the unused storage of other QNAP NAS. Up to eight QNAP NAS can be mounted as local disks on the TS-1673AU-RP.Upgrade RAID CapacityHot swap lower-capacity drives with larger-capacity drives so that your TS-1673AU-RP can grow with your business.Migrate to a New NASInstall your TS-1673AU-RP hard drives into a larger QNAP NAS and retain all your existing data and configurations.
LongProductName - 16 x 3.5", AMD Ryzen Embedded V1500B, 16 GB UDIMM DDR4, 5 GB Flash, LAN, 2 x 550 W, 100-240 V, 132 x 482 x 425 mm, 12 kg
LongSummaryDescription - QNAP TS-1673AU-RP-16G. Type: NAS. Chassis type: Rack (3U). Device class: Small & Medium Business. Processor family: Ryzen Embedded, Processor model: V1500B, Processor frequency: 2.2 GHz. Internal memory: 16 GB, Internal memory type: DDR4. Total installed storage capacity: 0 TB. Operating system installed: QNAP QTS
Management, monitoring, configuration -
Manufacturer Code - TS-1673AU-RP-16G
Manufacturer Name - QNAP
Max. number of disks - 16
Max memory size - 32 GB
Memory - Flash memory - 5000 MB
Memory - Internal memory - 16 GB
Memory - Internal memory type - DDR4
Memory - Maximum RAM supported - 32 GB
Memory - Memory form factor - UDIMM
Memory - Memory slots - 2
Memory type - DDR4
name - TS-1673AU-RP-16G 16x0HDD 2.2GHz 16GB UDIMM DDR4
Network - DHCP client - Yes
Network - DHCP server - Yes
Network - Dynamic DNS (DDNS) - Yes
Network - Ethernet LAN - Yes
Network - Ethernet LAN data rates - 10,100,1000,2500 Mbit/s
Network - iSCSI support - Yes
Network - Jumbo frames support - Yes
Network architecture - GigabitEthernet
Network interface - 2 x 10/100/1000/2500 Mbit/s
Network protocols -
Number of available memory slots - 1
Number of fans - 3
Number of HDDs installed - 0
Number of memory slots used - 1
Operational conditions - Operating relative humidity (H-H) - 5 - 95%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage temperature (T-T) - -20 - 70 °C
Other disk parameters -
Other features - Typowy pobór mocy w trybie pracy: 97.34 W Poziom dżwięku: 23~47.9 db(A)
Packaging content - Cables included - AC, LAN (RJ-45)
Packaging content - Number of screws - 64
Performance - Access Control List (ACL) - Yes
Performance - Backup features - Cloud, iSCSI LUN
Performance - Backup function - Yes
Performance - Browser supported - Apple Safari 7+, Google Chrome, Microsoft Internet Explorer 10+, Mozilla Firefox
Performance - Built-in FTP server - Yes
Performance - Built-in iTunes server - Yes
Performance - Buzzer - Yes
Performance - Device class - Small & Medium Business
Performance - Hot spare - Yes
Performance - Multilingual support - Yes
Performance - On/off switch - Yes
Performance - Reset button - Yes
Performance - S.M.A.R.T. support - Yes
Performance - Security algorithms - 256-bit AES, FIPS 140-2, HTTPS, SNMPv3, SSH, SSL/TLS
Performance - Share folder - CIFS/SMB
Performance - Snapshot - Yes
Performance - System log - Yes
Performance - Third-party support - Yes
Performance - Type - NAS
Performance - Universal Plug and Play (UPnP) - Yes
Performance - Web-based management - Yes
Ports & interfaces - Ethernet LAN (RJ-45) ports - 2
Ports & interfaces - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 1
Ports & interfaces - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 1
Ports & interfaces - USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity - 2
Ports & interfaces - USB port - Yes
Power - AC input frequency - 50 - 60 Hz
Power - AC input voltage - 100 - 240 V
Power - Fan voltage - 12 V
Power - Number of power supply units - 2
Power - Power consumption (sleep) - 47.75 W
Power - Power consumption (typical) - 97.34 W
Power - Power supply location - Built-in
Power - Power supply unit (PSU) capacity - 550 W
Power supply - Zasilacz 550W x2, 100-240V AC, 50-60Hz, 7-3.5A
Processor - Czterordzeniowy wbudowany procesor AMD Ryzen V1500B o taktowaniu 2,2 GHz
Processor - L2 cache - 2 MB
Processor - L3 cache - 4 MB
Processor - On-board graphics card model - Not available
Processor - Processor cores - 4
Processor - Processor family - Ryzen Embedded
Processor - Processor frequency - 2.2 GHz
Processor - Processor generation - AMD Ryzen Embedded V1000 Series
Processor - Processor manufacturer - AMD
Processor - Processor model - V1500B
Processor - Processor threads - 8
producer - QNAP
ProductName - TS-1673AU-RP-16G
RAID - No
Short description - QNAP NAS TS-1673AU-RP-16G (16 Bay) 3U
ShortSummaryDescription - QNAP TS-1673AU-RP-16G, NAS, Rack (3U), Ryzen Embedded, V1500B, 16 GB, DDR4
Software - Linux operating systems supported - Yes
Software - Mac operating systems supported - Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina
Software - Operating system installed - QNAP QTS
Software - Operating system version - 5.0.0
Software - Other operating systems supported - Solaris 10
Software - Server operating systems supported - Windows Server 2008 R2, Windows Server 2008 R2 x64, Windows Server 2012, Windows Server 2012 R2, Windows Server 2012 R2 x64, Windows Server 2012 x64, Windows Server 2016, Windows Server 2016 x64, Windows Server 2019
Software - Windows operating systems supported - Windows 10, Windows 7, Windows 8
Stck_Kart - 1
Stck_Pal - 2
Storage - Bad block scan - Yes
Storage - Hot-swap drive bays - Yes
Storage - Installed storage drive type - No
Storage - Number of storage drives supported - 16
Storage - Online RAID expansion - Yes
Storage - Online RAID migration - Yes
Storage - RAID levels - 0, 1, 5, 6, 10, 50, 60, JBOD
Storage - RAID rebuild - Yes
Storage - RAID support - Yes
Storage - Storage drive capacity - 0 GB
Storage - Storage drives installed - Yes
Storage - Storage drive sizes supported - 2.5,3.5"
Storage - Supported file systems - FAT32, HFS+, NTFS, ext3, ext4
Storage - Supported storage drive interfaces - Serial ATA II, Serial ATA III
Storage - Supported storage drive types - HDD & SSD
Storage - Total installed storage capacity - 0 TB
Storno - Y
Title - QNAP TS-1673AU-RP-16G NAS/storage server Rack (3U) Ryzen Embedded V1500B 16 GB DDR4 0 TB QNAP QTS Black, Grey
Total number of memory slots - 2
URL - https://www.qnap.com/en/product/ts-1673au-rp
vendpn - TS-1673AU-RP-16G
WarrantyInfo - 3 year
Weight - 12 kg
Weight & dimensions - Depth - 425 mm
Weight & dimensions - Height - 132 mm
Weight & dimensions - Package weight - 17.1 kg
Weight & dimensions - Weight - 12 kg
Weight & dimensions - Width - 482 mm
