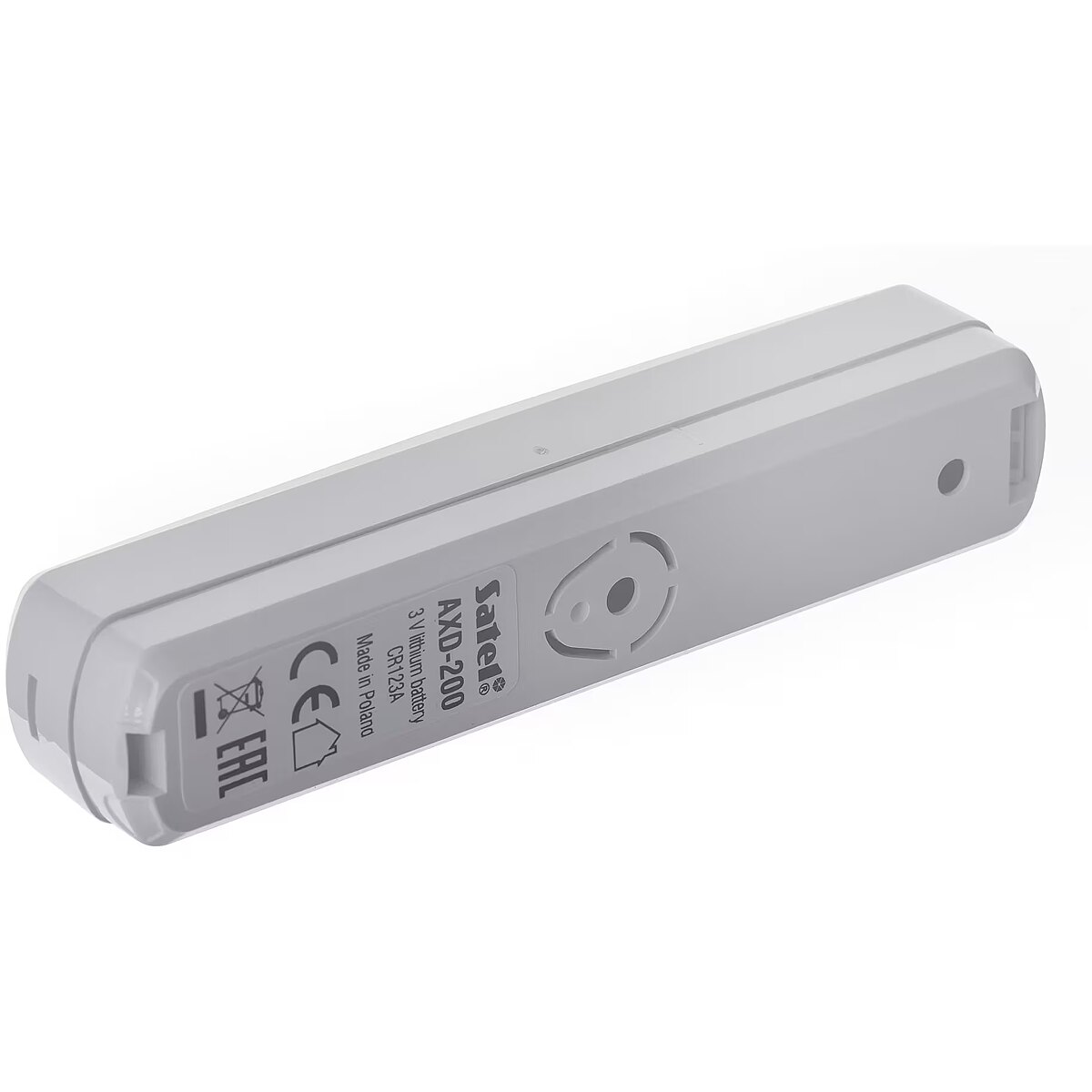

Satel UNIVERSAL WIRELESS DETECTOR SATEL AXD-200

Battery - Battery life (max) - 2 year(s)
Battery - Battery type - CR123A
Battery - Battery voltage - 3 V
Category Code - MDE
Colour - White
Communication - Wireless
Description - Wireless universal detector AXD-200 is a multifunction device operating as part of the ABAX 2/ABAX two-way wireless system. It meets the EN 50131 Grade 2 requirements. The device can work in one of 7 modes as a magnetic contact, two-channel magnetic, magnetic with roller shutter input, shock and magnetic, reorientation, temperature or flood detector. To change the mode, you must knock on the detector enclosure appropriately. This procedure is performed before enrolling the device into the controller.
Detection technology - Magnetic
Detector Type - Fire/Flood/Magnetic contact
dimensionalWeight - 48
Features - Accuracy - 1 °C
Features - Certification - EN 50130-4, EN 50130-5, EN 50131-1, EN 50131-2-6, EN 50131-5-3
Features - Connectivity technology - Wireless
Features - Purpose - Indoor
Features - RF transmission frequency - 868 MHz
Features - Sensor type - Temperature sensor
Features - Temperature measuring range - -10 - 55 °C
Features - Type - Freestanding
Full Description Line - Detector Type Magnetic contact/Fire/Flood|Detection technology Magnetic|Wireless|Operating temperature range -10°C...+55°C|Power supply requirements CR123A 3V|Colour White
Operating temperature range - -10°C...+55°C
Operational conditions - Operating relative humidity (H-H) - 0 - 93%
Operational conditions - Operating temperature (T-T) - -10 - 55 °C
Power supply requirements - CR123A 3V
producerCode - AXD-200
productName - SATEL WIRELESS UNIVERSAL DETECTOR AXD-200 (WHITE)
Product Net Weight - 0.059 kg
productSize - Normal
Safety warning - Warnings - Do not throw into regular trash - product requires special disposal.
Shipping Box Depth Shipping/Package Box Dimensions - 12 cm
Shipping Box Height Shipping/Package Box Dimensions - 4 cm
Shipping Box Weight Shipping/Package Box Dimensions - 0.085 kg
Shipping Box Width Shipping/Package Box Dimensions - 5 cm
sizeX - 118
sizeY - 40
sizeZ - 51
Unit Box Height - 0.04
Unit Box Length - 0.12
Unit Box Width - 0.05
Unit Calculated Volume - 0.00024 cubm
Unit Calculated Weight - 0.085 kg
Units per Shipping Box - 1
Vendor Homepage - www.satel.pl/en/product/10106/AXD-200,Wireless-universal-detector
Warranty - 36 months
warrantyLength - 24
warrantyType - G
weight - 85
Weight & dimensions - Depth - 102 mm
Weight & dimensions - Height - 23 mm
Weight & dimensions - Weight - 59 g
Weight & dimensions - Width - 20 mm
