Accessories included - 1 x user manual 2 x SATA data cables 5 x screws for M.2 sockets
Audio-In Input/Output connectors - 1
Audio-Out Input/Output connectors - 1
BIOS - 128Mb AMI UEFI Legal BIOS with GUI support
BIOS - BIOS type - UEFI AMI
category - PC Components|Mainboards|Intel Mainboards|Sockel 1700
Category - Root/Electronics/PC parts/Motherboards
Category Code - MBI
Category_1 - Motherboards
Category_2 - Motherboards - Intel 1700
Chipset - Intel Z790
Chipset manufacturer - Intel
Chipset type - Intel Z790
code - 90-MXBJX0-A0UAYZ
Code - Z790 PG RIPTIDE
COM connector / port - No
CPU socket - LGA1700
Description - - Supports 13th Gen & 12th Gen Intel® Core™ Processors - 14+1+1 Phase Power Design, Dr.MOS for VCore+GT - 4 x DDR5 DIMMs, supports up to 6800+(OC) - 1 PCIe 5.0 x16, 1 PCIe 4.0 x16, 1 PCIe 3.0 x1, 1 M.2 Key-E for WiFi - Graphics Output Options: 1 HDMI, 1 DisplayPort - 7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio - 1 Blazing M.2 (PCIe Gen5x4), 4 Hyper M.2 (PCIe Gen4x4), 8 SATA3 - 1 USB 3.2 Gen2x2 Type-C (Front), 2 USB 3.2 Gen2 Type-A (Rear), 1 USB 3.2 Gen1 Type-C (Rear), 6 USB 3.2 Gen1 Type-A (4 Rear, 2 Front), 6 USB 2.0 (2 Rear, 4 Front) - Killer 2.5G LAN
Description - Z790 PG Riptide motherboard Supports 13th and 12th generation Intel Core processors 14+1+1 phase power design, Dr.MOS for VCore+GT 4 x DDR5 DIMM, supports up to 6800+(OC) 1 PCIe 5.0 x16, 1 PCIe 4.0 x16, 1 PCIe 3.0 x1, 1 M.2 Key-E for Wi-Fi Graphics output options: 1 HDMI, 1 DisplayPort 7.1-channel HD audio (Realtek ALC897 audio codec), Nahimic Audio 1 Super M.2 (PCIe Gen5x4), 4 Hyper M.2 (PCIe Gen4x4), 8 SATA3 1 USB 3.2 Gen2 Gen2 Type-C (front), 2 USB 3.2 Gen2 Type-A (rear), 1 USB 3.2 Gen1 Type-C (rear), 6 USB 3.2 Gen1 Type-A (4 rear, 2 front), 6 USB 2.0 ports (2 rear, 4 front) Killer 2.5G LAN
Detailed data on disk/drive interfaces - CPU: 1 x gniazdo Hyper M.2 (M2_1, Key M), obsługuje tryb 2280 PCIe Gen4x4 (64 Gb/s)* 1 x gniazdo Blazing M.2 (M2_5, Key M), obsługuje tryb 2280 PCIe Gen5x4 (128 Gb/s)* Chipset: 1 x gniazdo Hyper M.2 (M2_2, Key M), obsługuje tryb 2260/2280 PCIe Gen4x4 (64 Gb/s)* 1 x gniazdo Hyper M.2 (M2_3, Key M), obsługuje tryb 2260/2280 PCIe Gen4x4 (64 Gb/s)* 1 x gniazdo Hyper M.2 (M2_4, Key M), obsługuje tryb 2260/2280 PCIe Gen4x4 (64 Gb/s)* 8 x złącza SATA3 6,0 Gb/s *Obsługuje urządzenie Intel Volume Management Device (VMD). Obsługuje NVMe SSD jako dyski rozruchowe
Jeśli M2_5 jest zajęty, PCIE1 obniży się do trybu x8. Można używać jednocześnie M2_1 lub M2_5.
dimensionalWeight - 2290
dimension depth - 96 mm
dimension height - 385 mm
Dimensions - 30.5 x 24.4 cm
dimension weight - 2075 g
dimension width - 320 mm
DisplayPort Input/Output connectors - 1
EAN - 4710483940989
ean - 4710483940989
Eans - 4710483940989
EAN_code - 4710483940989
Expansion slots - 1 x M.2
Expansion slots - 1 x PCIe 3.0 x 1
Expansion slots - 1 x PCIe 4.0 x 16
Expansion slots - 1 x PCIe 5.0 x 16
Expansion slots - Number of M.2 (M) slots - 1
Expansion slots - PCI Express x1 (Gen 3.x) slots - 1
Expansion slots - PCI Express x16 (Gen 4.x) slots - 1
Expansion slots - PCI Express x16 (Gen 5.x) slots - 1
External connectors - 1 x DisplayPort
External connectors - 1 x HDMI
External connectors - 1 x Line In
External connectors - 1 x Line Out
External connectors - 1 x MIC
External connectors - 1 x RJ-45
External connectors - 1 x USB 3.1 Type-C
External connectors - 2 x USB 2.0
External connectors - 2 x USB 3.1
External connectors - 4 x USB 3.0
Features - Audio chip - Realtek ALC897
Features - Audio output channels - 7.1 channels
Features - Motherboard chipset - Intel Z790
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - ATX
Features - Windows operating systems supported - Windows 10 x64
Features - Windows operating systems supported - Windows 11 x64
FireWire (IEEE 1394) - No
Form Factor - ATX
Form factor - ATX
Frequency speed - 6800 MHz
Full Description Line - Intel Z790|LGA1700|ATX|DDR5|6800 MHz|Memory slots 4|1xPCI-Express 3.0 1x|1xPCI-Express 4.0 16x|1xPCI-Express 5.0 16x|5xM.2|1xHDMI|1xDisplayPort|1xAudio-In|1xAudio-Out|1xMicrophone|2xUSB 2.0|6xUSB 3.2|1xUSB-C|1xRJ45|SATA|USB 2.0|USB 3.2|Video Depending on CPU|LAN 2.5 Gigabit|Audio Realtek ALC897|RAID SATA 0, 1, 5, 10; NVMe 0, 1, 5|TPM Header
Graphics - Intel Xe (Gen 12) graphics architecture 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz *Intel UHD Graphics Built-in Visuals and VGA outputs can only be supported with GPU-integrated processors.
Gross weight - 2.30 kg
guarantee - 36
guarantee_type - normal
HDMI Input/Output connectors - 1
Included Accessories - - 1 x User Manual
- 2 x SATA Data Cables
- 5 x Screws for M.2 Sockets
Integrated audio - Realtek ALC897
Integrated CPU - No
Integrated LAN - 2.5 Gigabit
Integrated video - Depending on CPU
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Number of SATA III connectors - 8
Internal I/O - RGB LED pin header - Yes
Internal I/O - Thunderbolt headers - 1
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1
Internal I/O - USB 3.2 Gen 2 (3.1 Gen 2) connectors - 1
Internal I/O > Number of SATA connectors - 8
Internal I/O > Supported hard disk drive interfaces - SATA3, M.2
Link - https://pg.asrock.com/mb/Intel/Z790%20PG%20Riptide/index.us.asp
LPT connector / port - No
M.2 Expansion slots - 5
Manufacturer - Asrock
Manufacturer_code - 90-MXBJX0-A0UAYZ
Max. number of ATA devices - 0
Max. number of SATA devices - 8
Max memory size - 128 GB
Memory - ECC сompatibility - Non-ECC
Memory - Maximum internal memory - 128 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 4
Memory - Supported memory types - DDR5-SDRAM
Memory - Unbuffered memory - Yes
Memory > Memory slots - 4
Memory > Supported memory types - DDR5 DIMM
Memory bus frequency - 6800 MHz
Memory slots - 4
Memory type - DDR5
Memory type - DDR5
Microphone Input/Output connectors - 1
Model - Z790 PG Riptide

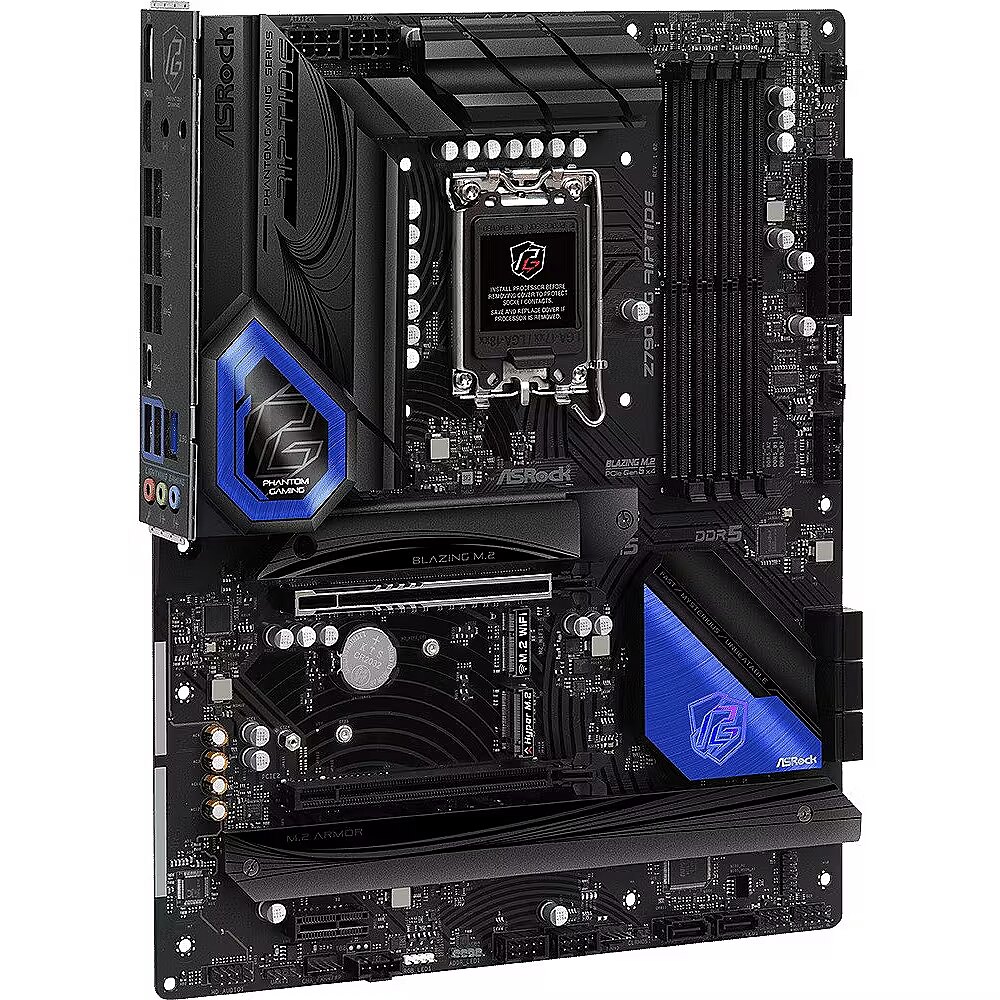

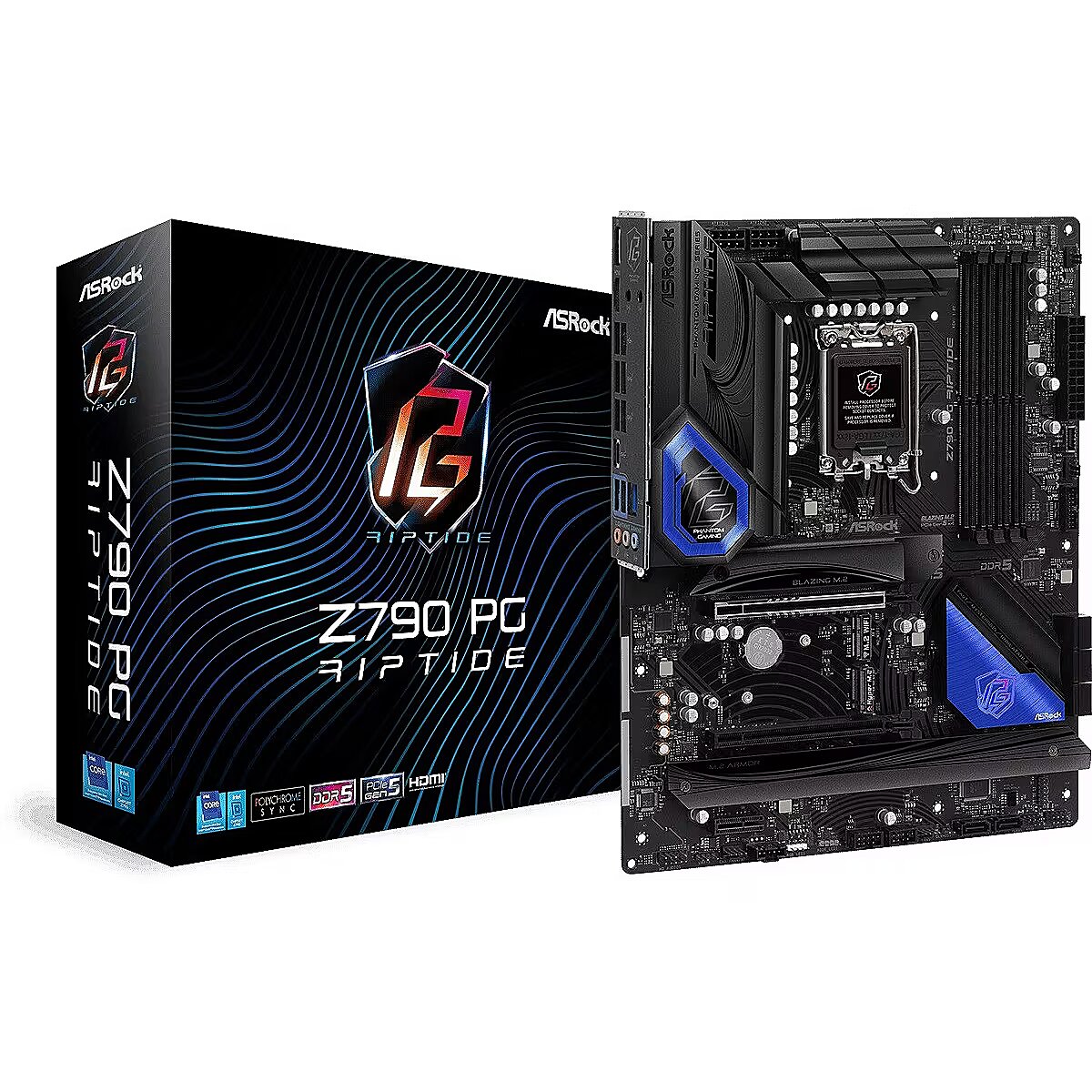

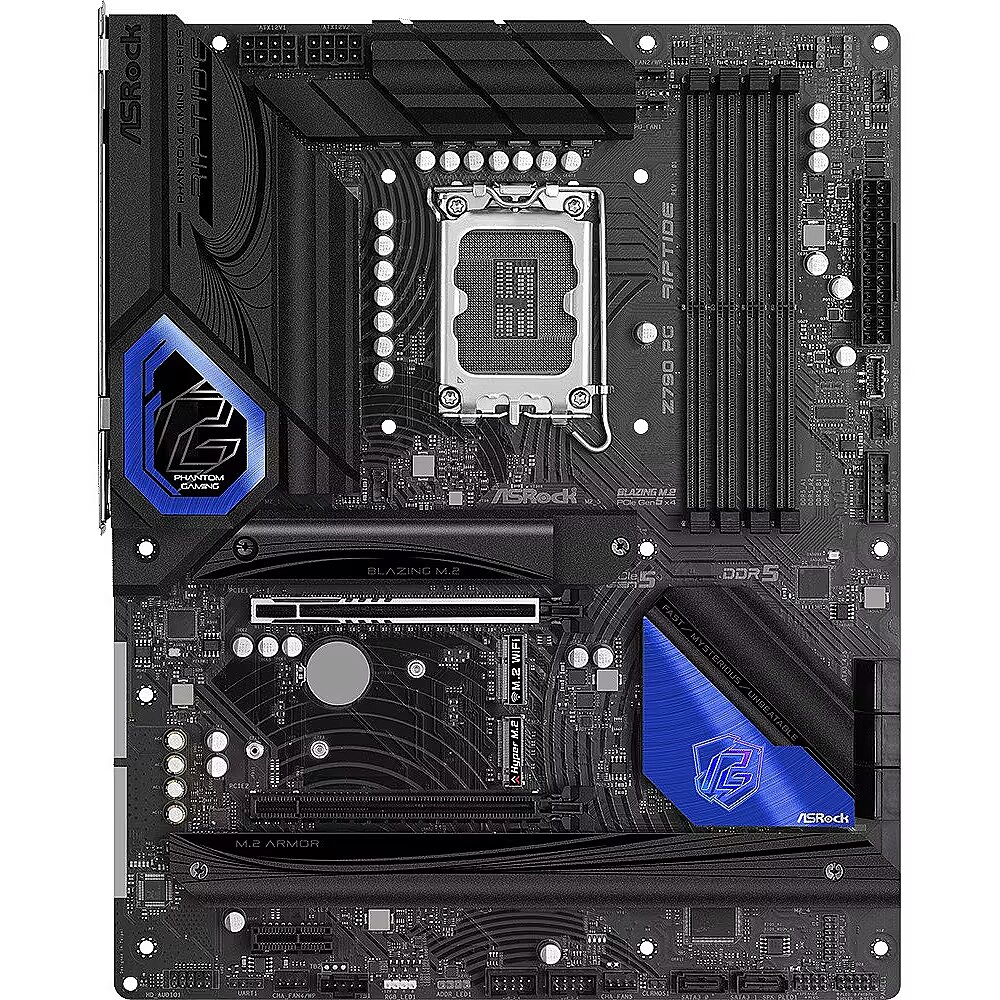

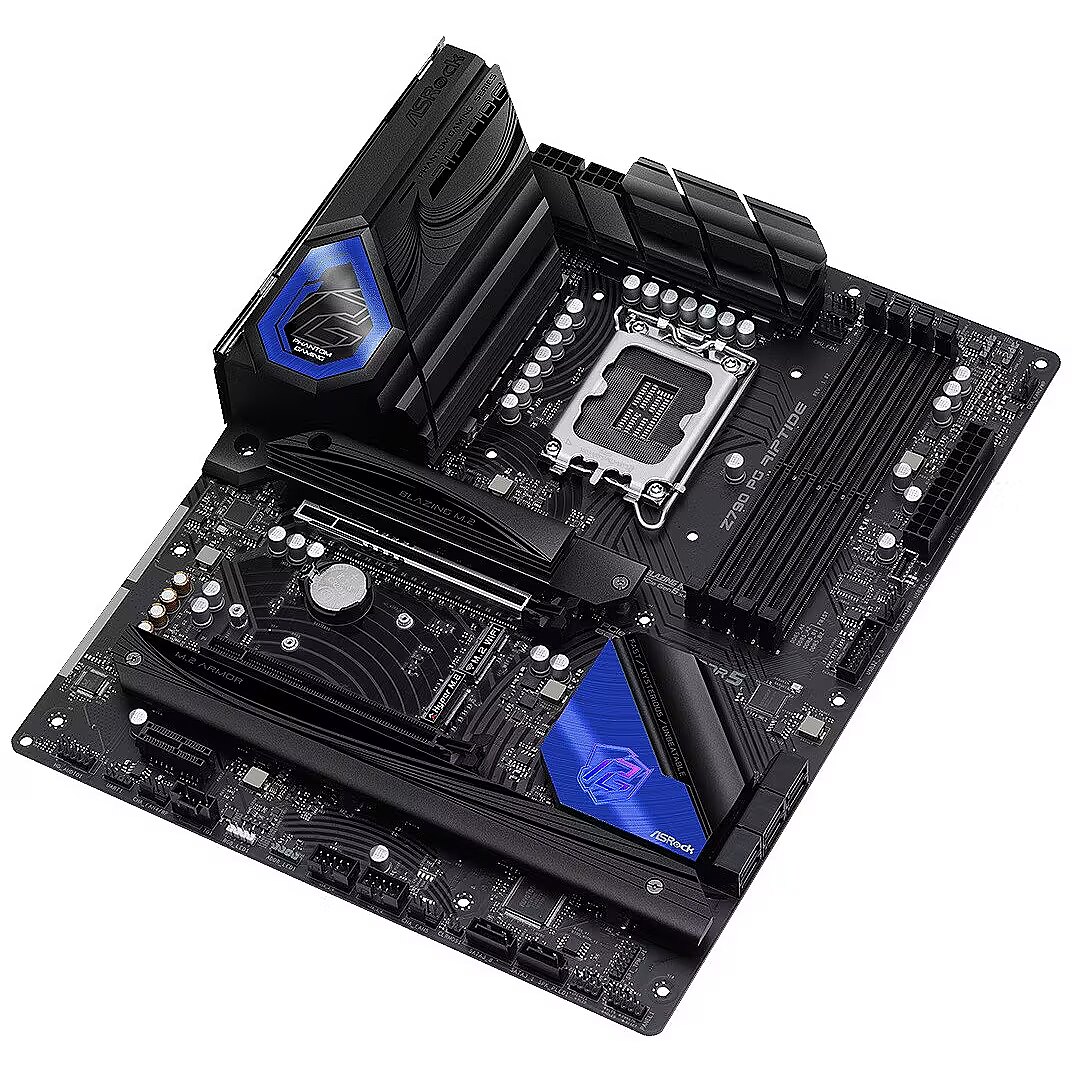

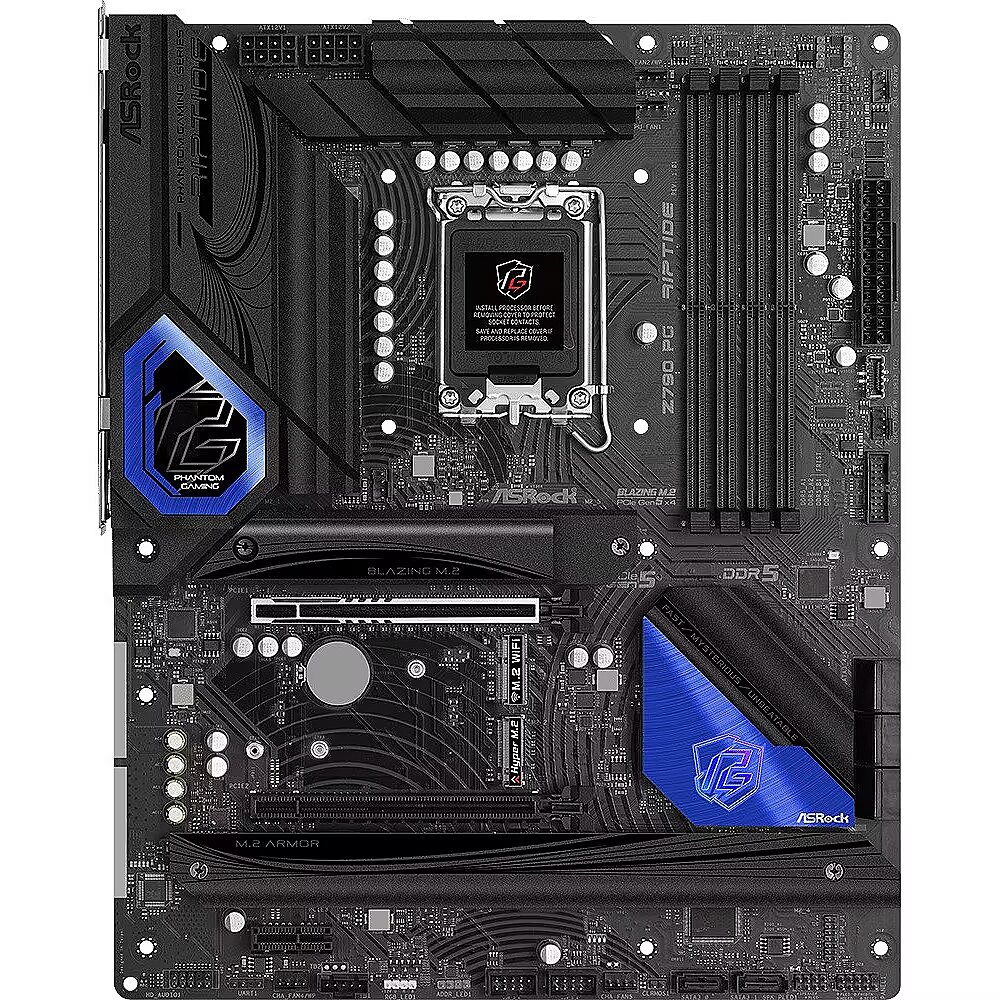

Name - ASRock Z790 PG Riptide
name - ASRock Z790 PG Riptide, Intel Z790 Mainboard - Sockel 1700, DDR5
Name - ASRock Z790 PG RIPTIDE, motherboard - 1700
Name - ASRock | Z790 PG Riptide | Processor family Intel | Processor socket LGA1700 | DDR5 DIMM | Memory slots 4 | Supported hard disk drive interfaces SATA3, M.2 | Number of SATA connectors 8 | Chipset Z790 | ATX
name - Z790 PG RIPTIDE S1700 4DDR5 HDMI/DP ATX
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - LAN controller - Killer E3100G
Network - Wi-Fi - No
Network interface -
Network interface - 1 x 10/100/1000/2500 Mbit/s
Number of DDR5 slots - 4
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 7
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 3
Onboard connectors - 1 x 4-pin water-pump-fan
Onboard connectors - 1 x 4pin CPU fan
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x Thunderbolt header
Onboard connectors - 1 x TPM header
Onboard connectors - 1 x USB 3.0 header
Onboard connectors - 1 x USB C
Onboard connectors - 2 x 8pin 12V
Onboard connectors - 2 x USB 2.0/1.1 header
Other information -
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 70.00 mm
Package features > Gross height (mm) - 295.00 mm
Package features > Gross width (mm) - 360.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 232 pc(s)
Package features > Paper/Pasteboard - 490.00 g
Package features > Plastic (No PET) - 10.00 g
Package features > Tare weight (kg) - 0.50 kg
Package features > Volume (m3) - 0.01 m³
Package features > WEEE tax - No
PCI-Express 3.0 1x Expansion slots - 1
PCI-Express 4.0 16x Expansion slots - 1
PCI-Express 5.0 16x Expansion slots - 1
Performance > Chipset - Z790
Performance > Motherboard form factor - ATX
Processor - Compatible processor series - Intel® Core™ i5
Processor - Compatible processor series - Intel® Core™ i7
Processor - Compatible processor series - Intel® Core™ i9
Processor - Maximum number of SMP processors - 1
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1700
Processor > Compatible processor series - Supports 13th Gen & 12th Gen and Next Gen Intel Core Processors
Processor > Processor family - Intel
Processor > Processor socket - LGA1700
Processor family - Intel Core
producer - ASRock
Producer - ASRock
producerCode - Z790 PG Riptide
ProducerCode - Z790 PG Riptide
Producer product name - Z790 PG Riptide
productName - Asrock Z790 PG Riptide Intel Z790 LGA 1700 ATX
productSize - Normal
RAID - SATA 0, 1, 5, 10; NVMe 0, 1, 5
RAID - Yes

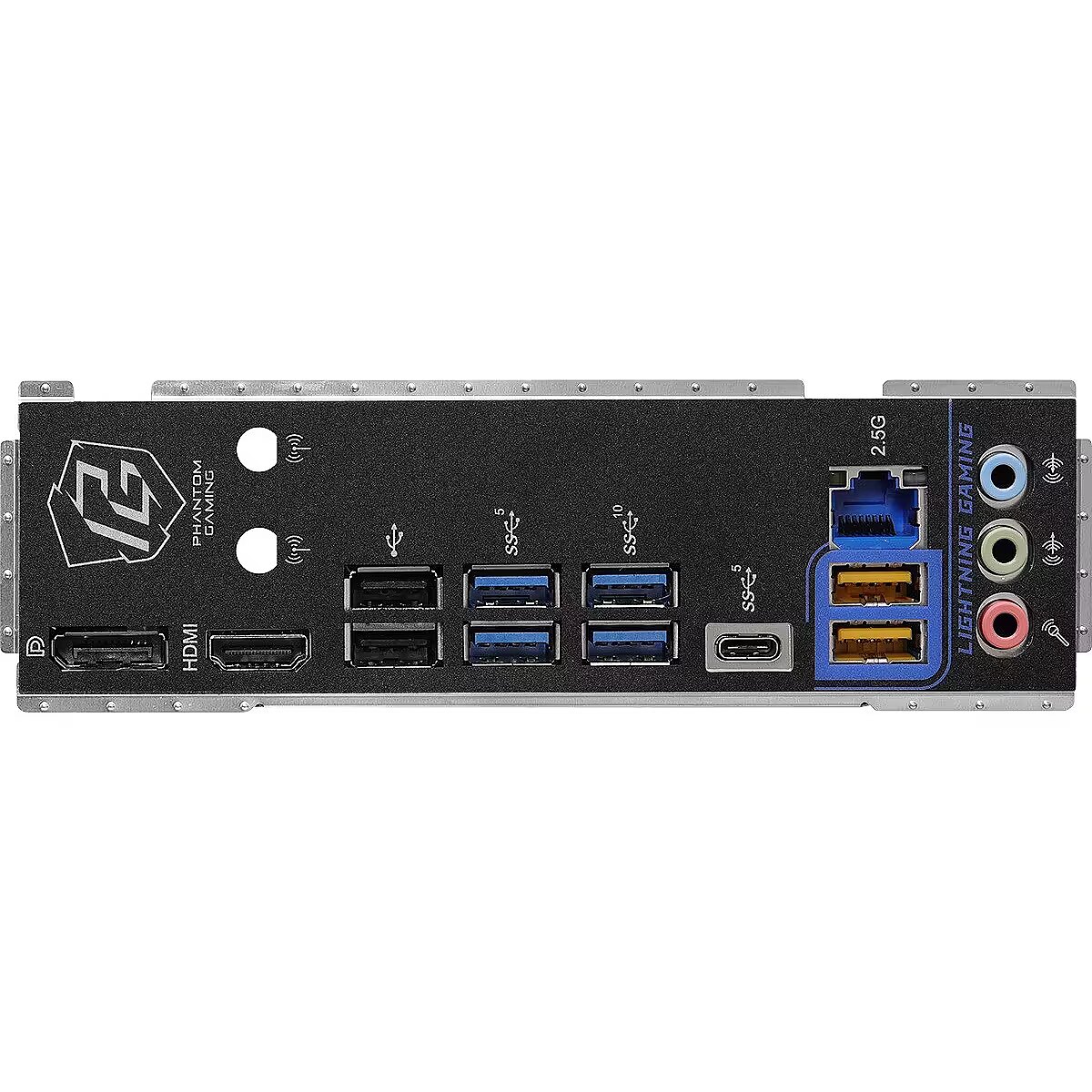

Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - DisplayPort version - 1.4
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - Headphone outputs - 1
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - USB 2.0 ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity - 1
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 2
RJ45 Input/Output connectors - 1
SATA Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 38.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 10 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 2.08 kg
Shipping Box Width Shipping/Package Box Dimensions - 32 cm
ShortDescription - Socket 1700 | Chipset Intel Z790 | DDR5 |
sizeX - 382
sizeY - 94
sizeZ - 319
Socket - LGA1700
Software - Software ASRock Motherboard Utility (Phantom Gaming Tuning) Killer Control Center ASRock Polychrome SYNC* UEFI ASRock EZ Mode ASRock Full HD UEFI ASRock My Favorites in UEFI ASRock Auto Driver Installer ASRock Instant Flash ASRock Easy RAID Installer
Sound card - 7.1 CH HD Audio (Realtek ALC897 Audio Codec) Nahimic Audio
Special functions -
Storage controllers - RAID levels - 0
Storage controllers - RAID levels - 1
Storage controllers - RAID levels - 5
Storage controllers - RAID levels - 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Supported operating systems - Windows 10
Supported operating systems - Windows 11
Technical details > Net weight - 1.80 kg
Technical details > Producer - ASRock
TPM - Header
Unit Box Height - 0.1
Unit Box Length - 0.385
Unit Box Width - 0.32
Unit Brutto Volume - 0.01232 cubm
Unit Gross Weight - 2.08 kg
Unit Net Weight - 1.1 kg
USB-C Input/Output connectors - 1
USB 2.0 Input/Output connectors - 2
USB 2.0 Interface - Yes
USB 3.2 Input/Output connectors - 6
USB 3.2 Interface - Yes
USB ports at back panel - 9
USB ports on motherboard - 8
Vendor Homepage - www.asrock.com/mb/Intel/Z790%20PG%20Riptide/
vendpn - Z790 PG RIPTIDE
Warranty - 24
Warranty - 24 month(s)
Warranty - 36 months
warrantyLength - 36
warrantyType - G
Weight - 12,00
weight - 2115
Weight & dimensions - Depth - 244 mm
Weight & dimensions - Width - 305 mm
