15pin D-sub Input/Output connectors - 1
Audio-In Input/Output connectors - 2
Audio-Out Input/Output connectors - 1
BIOS - BIOS memory size - 128 Mbit
BIOS - BIOS type - UEFI AMI
BIOS - Clear CMOS jumper - Yes
Brand - ASUS
BrandPartCode - 90MB17C0-M0EAY0
Category - Motherboards
Category - Root/Electronics/PC parts/Motherboards
Category 1 - Mainboards & Zubehör
Category 2 - Mainboards - Intel
Category Code - MBI
Category_1 - Motherboards
Category_2 - Motherboards - Intel 1200
Chipset - Intel H510

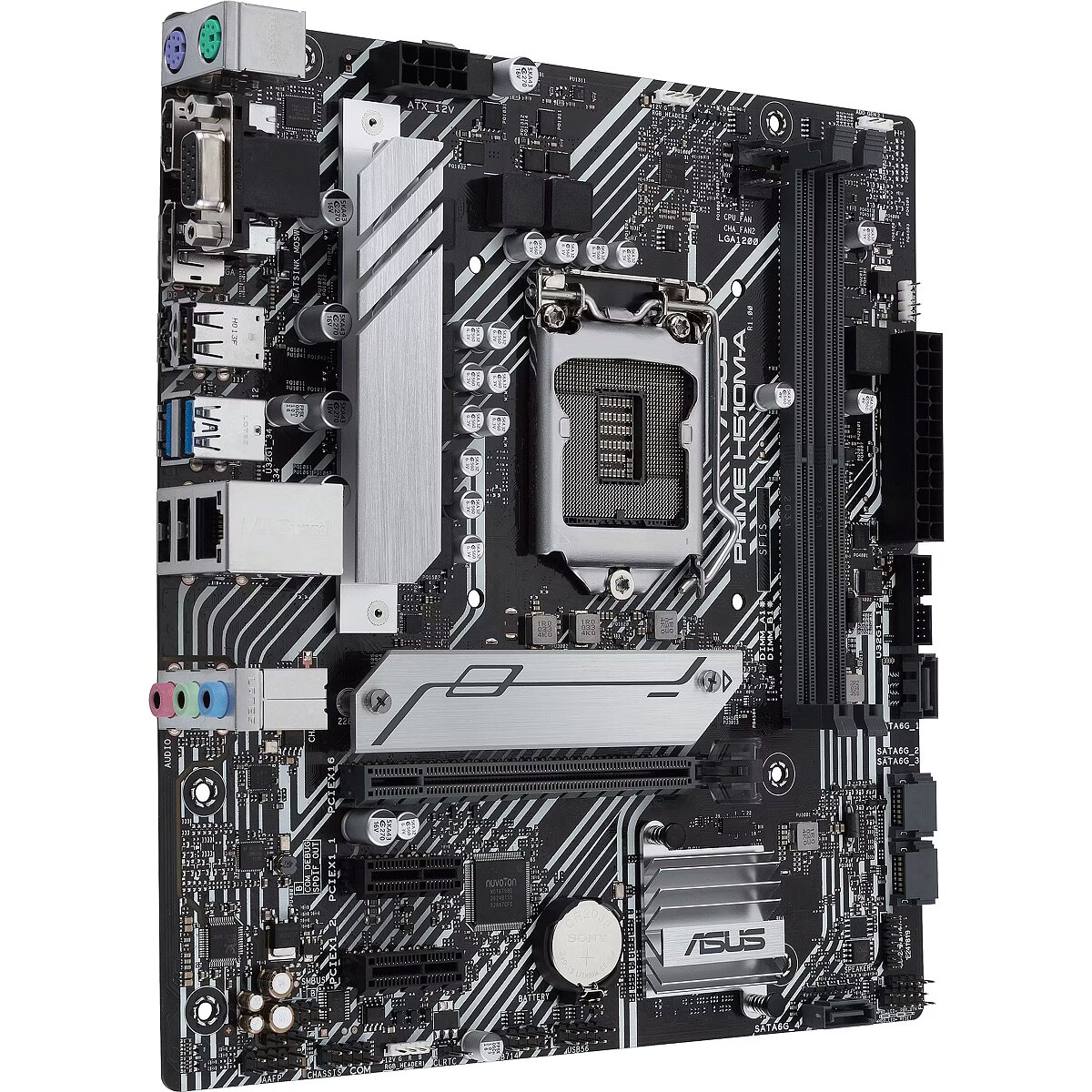

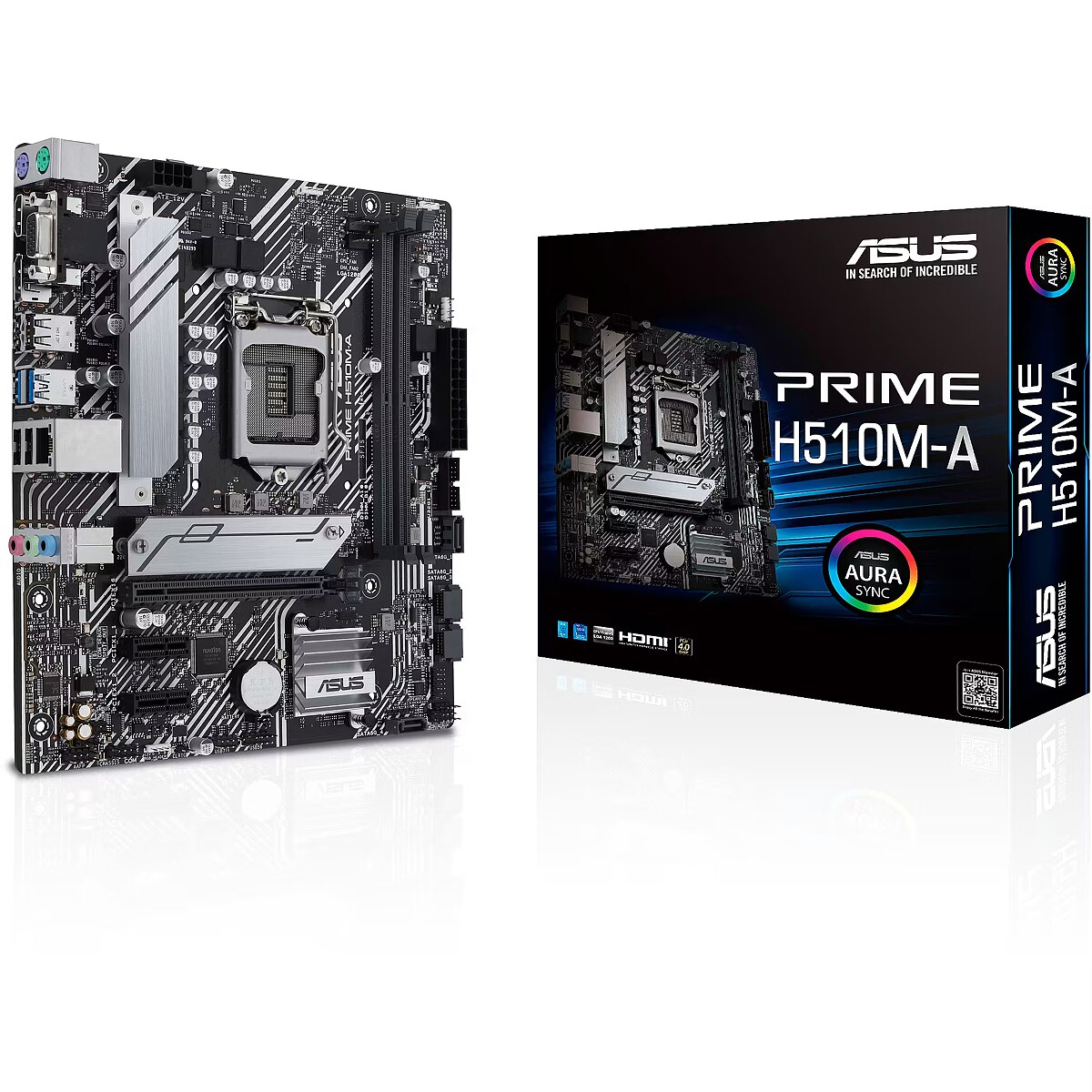

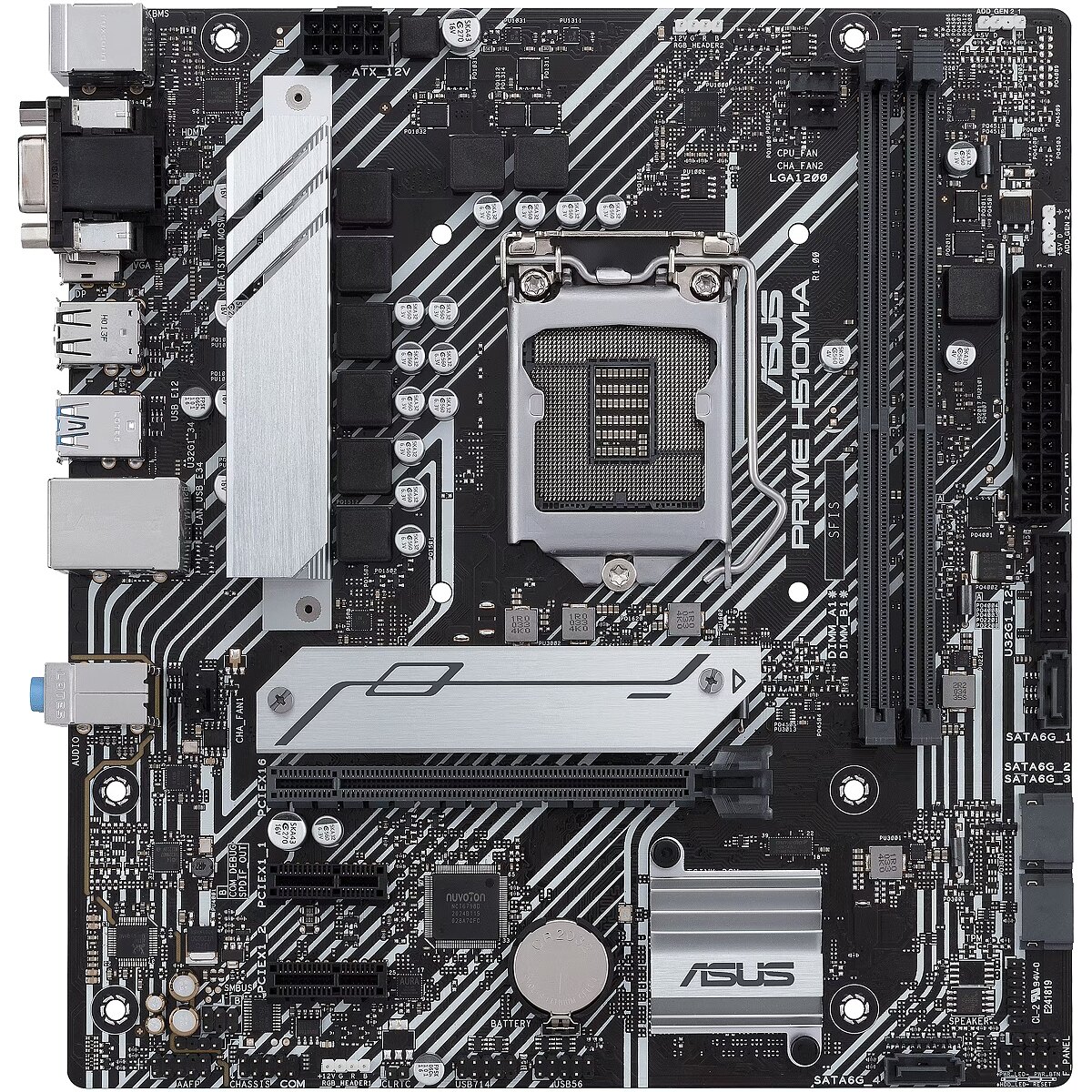

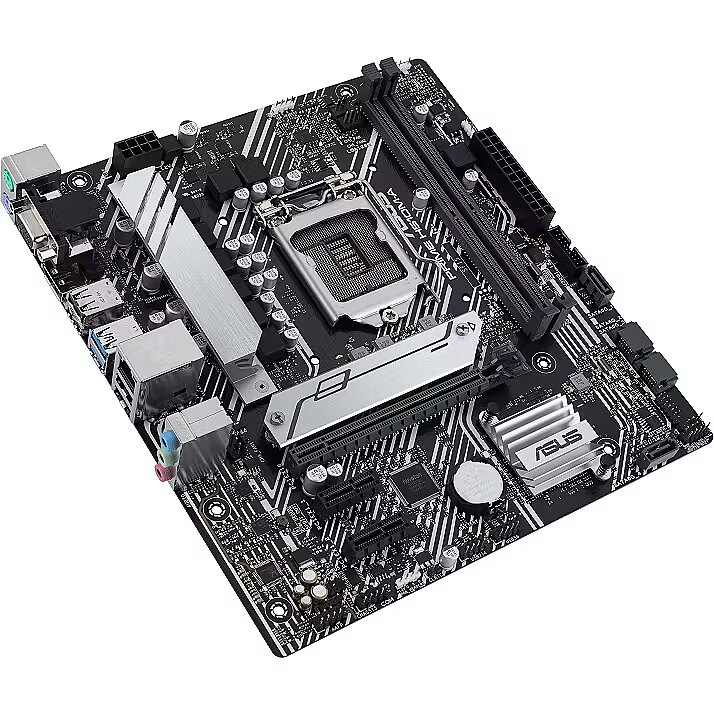

Description - PRIME H510M-A Intel® H510 (LGA 1200) micro ATX motherboard with PCIe 4.0, 32Gbps M.2 slot, Intel® 1 Gb Ethernet, DisplayPort, HDMI, D-Sub, USB 3.2 Gen 1 Type-A, SATA 6 Gbps, and AURA Addressable Gen 2 headers - Intel® LGA 1200 socket: Ready for 11th and 10th Gen Intel® Processors - Comprehensive cooling: VRM heatsink, M.2 heatsink, PCH heatsink and Fan Xpert 2+ - Ultrafast connectivity: PCIe 4.0, 32Gbps M.2 slot, Intel® 1 Gb Ethernet and USB 3.2 Gen 1 - Aura Sync RGB: Onboard addressable Gen 2 headers for RGB LED strips, easily synced with Aura Sync-capable hardware
DisplayPort Input/Output connectors - 1
EAN - 4711081128465
Eans - 4711081128465
EAN_code - 4711081128465
Expansion slots - Number of M.2 (M) slots - 1
Expansion slots - PCI Express x1 (Gen 3.x) slots - 2
Expansion slots - PCI Express x16 (Gen 4.x) slots - 1
Features - Audio chip - Realtek ALC887 / Realtek ALC897
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Motherboard chipset - Intel H510
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - micro ATX
Features - Number of mounting holes - 6
Features - Power source type - ATX
Features - Windows operating systems supported - Windows 10 x64
Form Factor - Micro-ATX
Frequency speed - 2133/2400/2666/2800/2933/3200 MHz
Full Description Line - Intel H510|LGA1200|Micro-ATX|DDR4|3200/2933/2800/2666/2400/2133 MHz|Memory slots 2|2xPCI-Express 3.0 1x|1xPCI-Express 4.0 16x|1xM.2|1x15pin D-sub|1xHDMI|1xDisplayPort|2xAudio-In|1xAudio-Out|4xUSB 2.0|2xUSB 3.2|2xPS/2|1xRJ45|SATA|Video|LAN Gigabit|Audio Realtek ALC897|TPM Header
Graphics - Maximum resolution - 4096 x 2304 pixels
Graphics - Number of displays supported - 3
Gross Weight Kg - 1
GTIN - 4711081128465
HDMI Input/Output connectors - 1
Integrated audio - Realtek ALC897
Integrated LAN - Gigabit
Integrated video - Yes
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - Audio connector - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Number of chassis fan connectors - 2
Internal I/O - Number of COM connectors - 1
Internal I/O - Number of EATX power connectors - 1
Internal I/O - Number of SATA III connectors - 4
Internal I/O - Peripheral (Molex) power connectors (4-pin) - 3
Internal I/O - RGB LED pin header - Yes
Internal I/O - S/PDIF out connector - Yes
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1
Logistics data - Harmonized System (HS) code - 84733020
LongDesc - Intel® H510 (LGA 1200) micro ATX motherboard with PCIe 4.0, 32Gbps M.2 slot, Intel® 1 Gb Ethernet, DisplayPort, HDMI, D-Sub, USB 3.2 Gen 1 Type-A, SATA 6 Gbps, and AURA Addressable Gen 2 headers
LongProductName - Intel® H510, LGA1200, 2 x DDR4, 64GB max, M.2, 4 x SATA, Ethernet, 2 x USB 3.2 Gen 1, 4 x USB 2.0, DisplayPort, D-Sub, HDMI, 3 x Audio jacks, 2 x PS/2, 128 Mb Flash ROM, UEFI AMI BIOS, microATX, 22.6 x 21.1cm
LongSummaryDescription - ASUS PRIME H510M-A. Processor manufacturer: Intel, Processor socket: LGA 1200 (Socket H5), Compatible processor series: Intel® Celeron®, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®. Supported memory types: DDR4-SDRAM, Maximum internal memory: 64 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA, Supported storage drive types: HDD & SSD. Maximum resolution: 4096 x 2304 pixels. Ethernet interface type: Gigabit Ethernet, LAN controller: Intel® I219-V
M.2 Expansion slots - 1
Manufacturer - Asus
Manufacturer - ASUS
Manufacturer Code - 90MB17C0-M0EAY0
Manufacturer Name - Asustek
Manufacturer_code - 90MB17C0-M0EAY0
Memory - Maximum internal memory - 64 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Non-ECC - Yes
Memory - Number of memory slots - 2
Memory - Supported memory clock speeds - 2133,2400,2666,2800,2933 MHz
Memory - Supported memory types - DDR4-SDRAM
Memory - Unbuffered memory - Yes
Memory slots - 2
Memory type - DDR4
MPN - 90MB17C0-M0EAY0
Name - 1200 ASUS PRIME H510M-A
Name - ASUS PRIME H510M-A
Name - Asus PRIME H510M-A H510 - Socket 1200 - Mainboard
Network - Ethernet interface type - Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - LAN controller - Intel® I219-V
Network - Wi-Fi - No
Packaging content - Cables included - SATA
Packaging content - Drivers included - Yes
PCI-Express 3.0 1x Expansion slots - 2
PCI-Express 4.0 16x Expansion slots - 1
Processor - Compatible processor series - Intel® Celeron®, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®
Processor - Maximum number of SMP processors - 1
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1200 (Socket H5)
Producer - Asus
ProducerCode - PRIME H510M-A
ProductName - PRIME H510M-A
PS/2 Input/Output connectors - 2

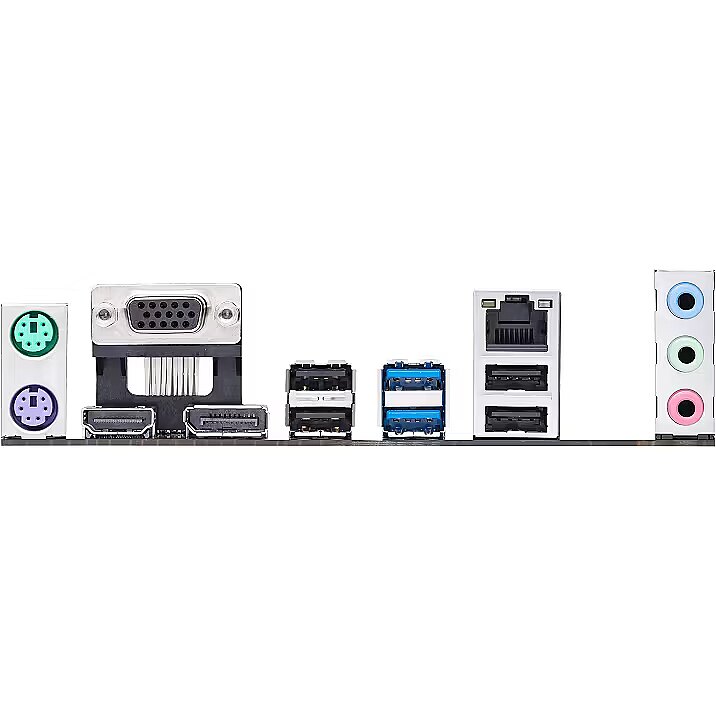

Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - DisplayPort version - 1.4
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - HDMI version - 2.0
Rear panel I/O ports - Headphone outputs - 1
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - PS/2 ports quantity - 2
Rear panel I/O ports - USB 2.0 ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 2
Rear panel I/O ports - VGA (D-Sub) ports quantity - 1
RJ45 Input/Output connectors - 1
SATA Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 27 cm
Shipping Box Height Shipping/Package Box Dimensions - 5 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 0.91 kg
Shipping Box Width Shipping/Package Box Dimensions - 26 cm
Short description - ASUS PRIME H510M-A S1200/DDR4/DP-HDMI-VGA/1xM.2/µATX
ShortDescription - Socket 1200| Chipset Intel H510 | DDR4 |
ShortSummaryDescription - ASUS PRIME H510M-A, Intel, LGA 1200 (Socket H5), Intel® Celeron®, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®, DDR4-SDRAM, 64 GB, DIMM
Socket - LGA1200
Storage controllers - Number of storage drives supported - 5
Storage controllers - Supported storage drive interfaces - M.2, SATA
Storage controllers - Supported storage drive types - HDD & SSD
Title - ASUS PRIME H510M-A Intel H510 LGA 1200 (Socket H5) micro ATX
TPM - Header
Unit Box Height - 0.05
Unit Box Length - 0.27
Unit Box Width - 0.26
Unit Brutto Volume - 0.00351 cubm
Unit Gross Weight - 0.91 kg
Unit Net Weight - 0.55 kg
URL - https://www.asus.com/Motherboards-Components/Motherboards/All-series/PRIME-H510M-A/
USB 2.0 Input/Output connectors - 4
USB 3.2 Input/Output connectors - 2
Vendor Homepage - www.asus.com/Motherboards-Components/Motherboards/All-series/PRIME-H510M-A/
Warranty - 36 months
WarrantyInfo -
Weight - 0,90
Weight - 0.92
Weight & dimensions - Depth - 211 mm
Weight & dimensions - Width - 226 mm
