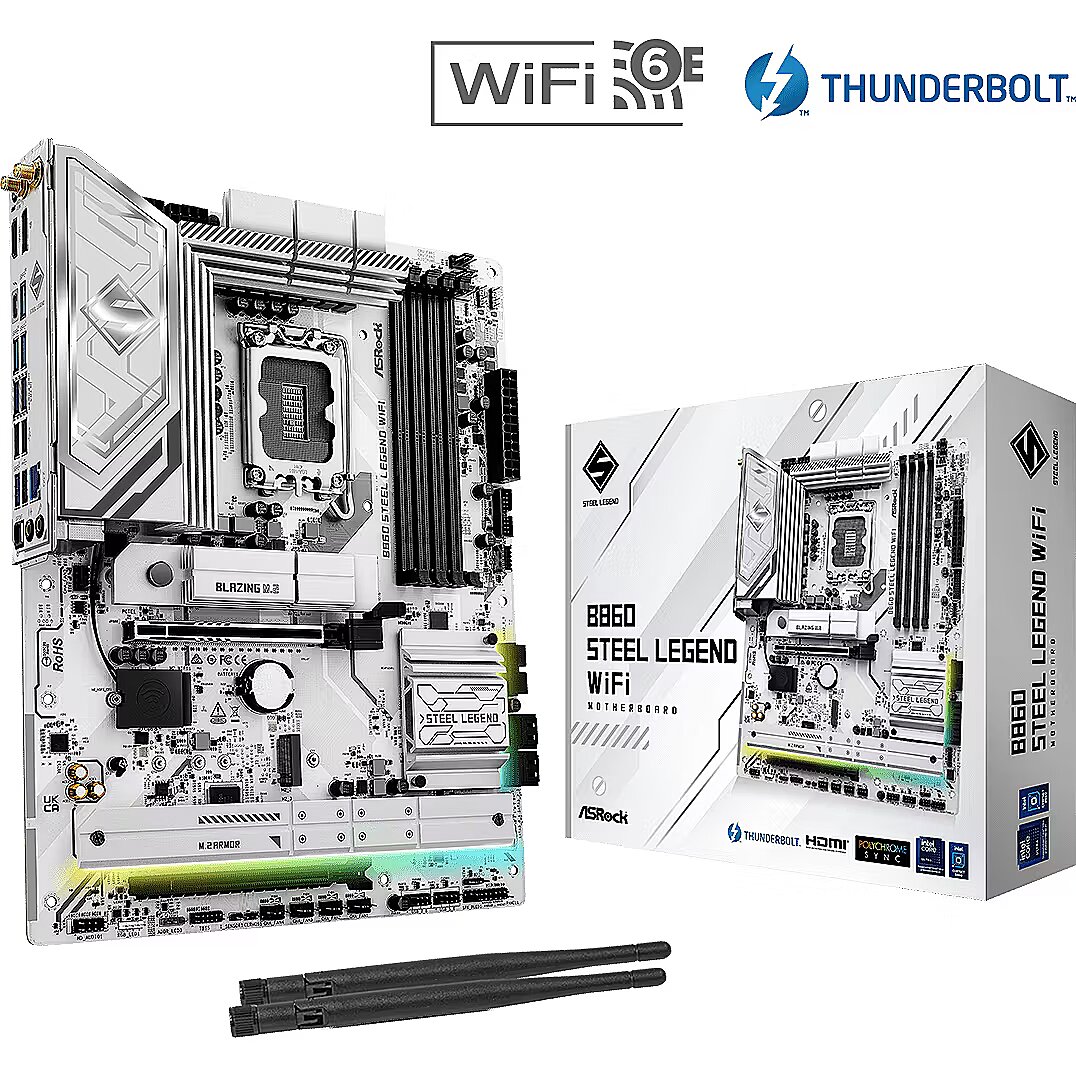

Accessories included - 2 x Kabel danych SATA 2 x Antena ASRock WiFi 2,4/5/6 GHz Kabel termistora
Audio-Out Input/Output connectors - 1
BIOS - 256Mb AMI UEFI Legal BIOS with GUI support
BIOS - BIOS type - UEFI AMI
Bluetooth Interface - Yes
Category Code - MBI
Chipset - Intel B860 Express
Chipset manufacturer - Intel
Chipset type - Intel B860
COM connector / port - No
CPU socket - LGA1851

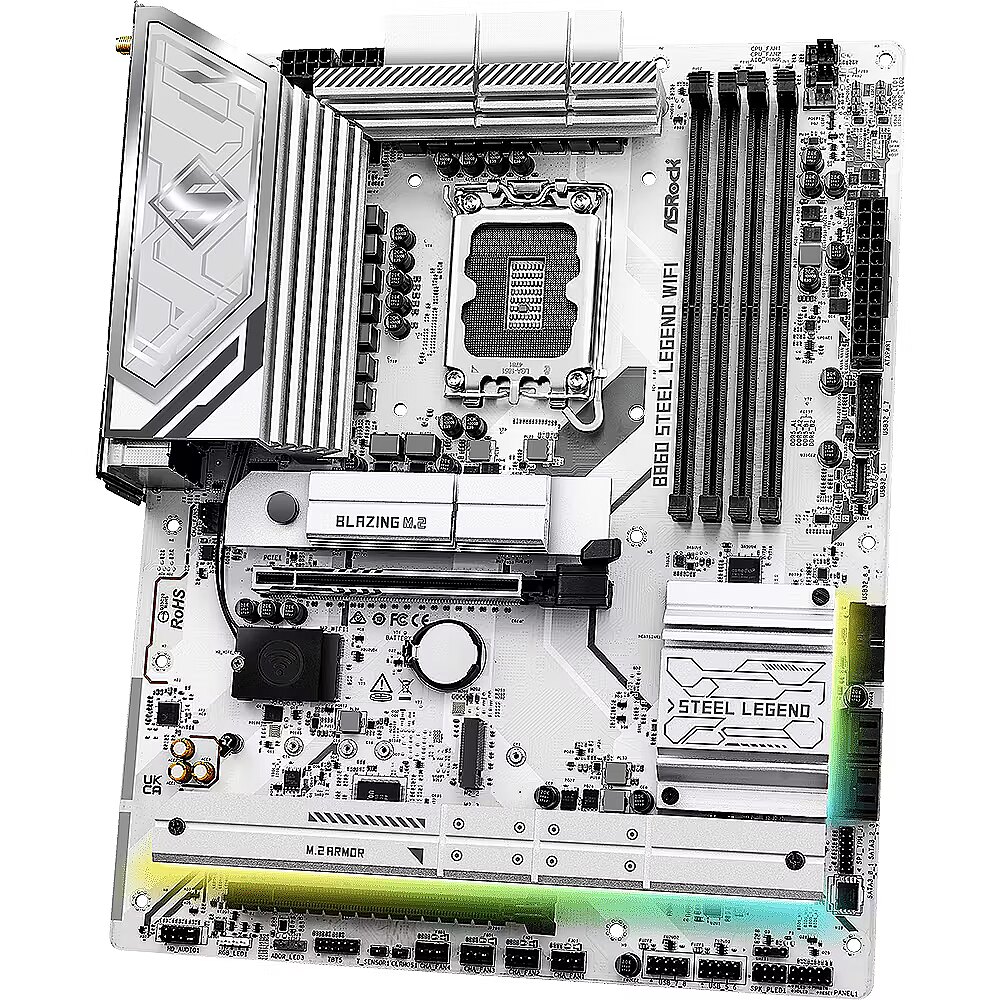

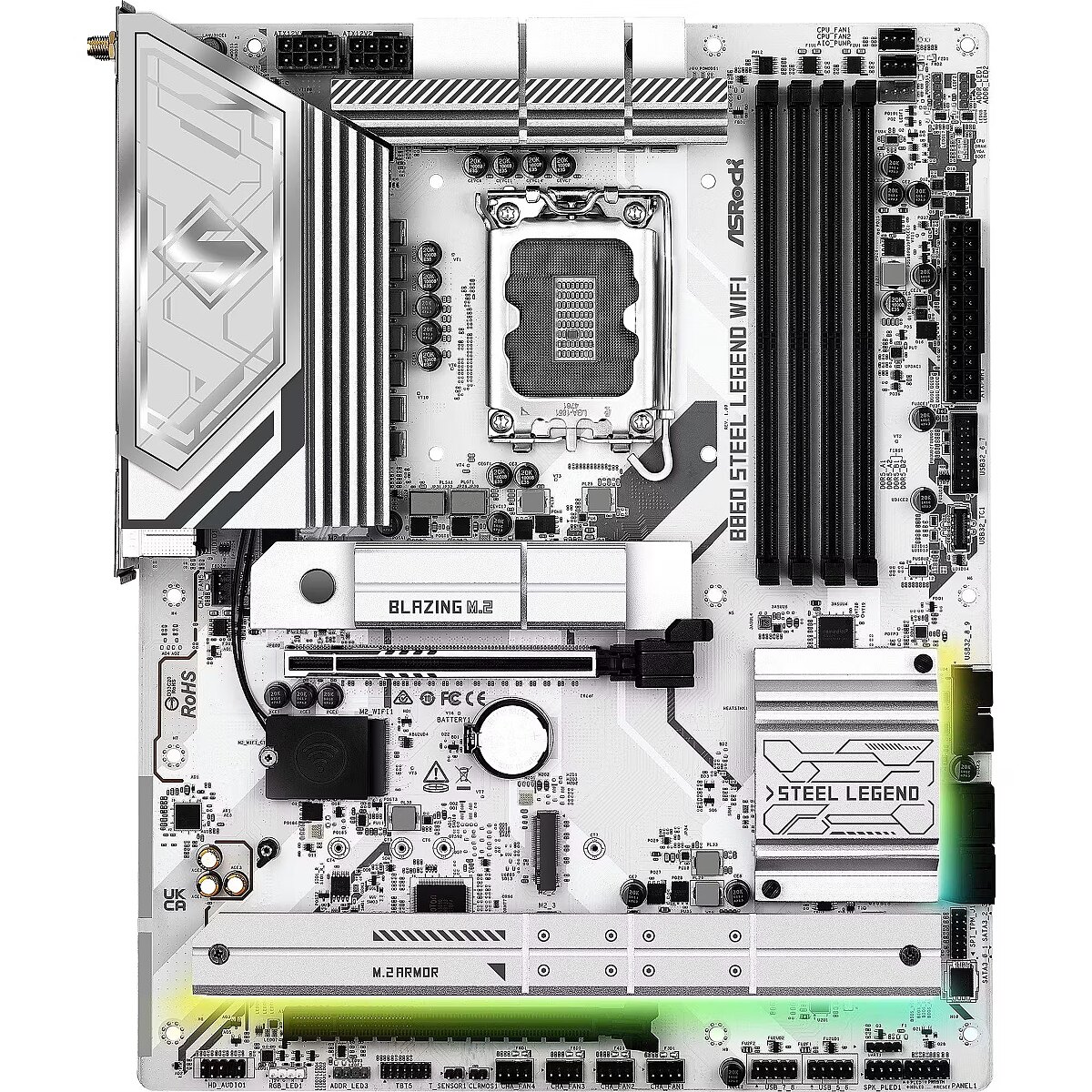

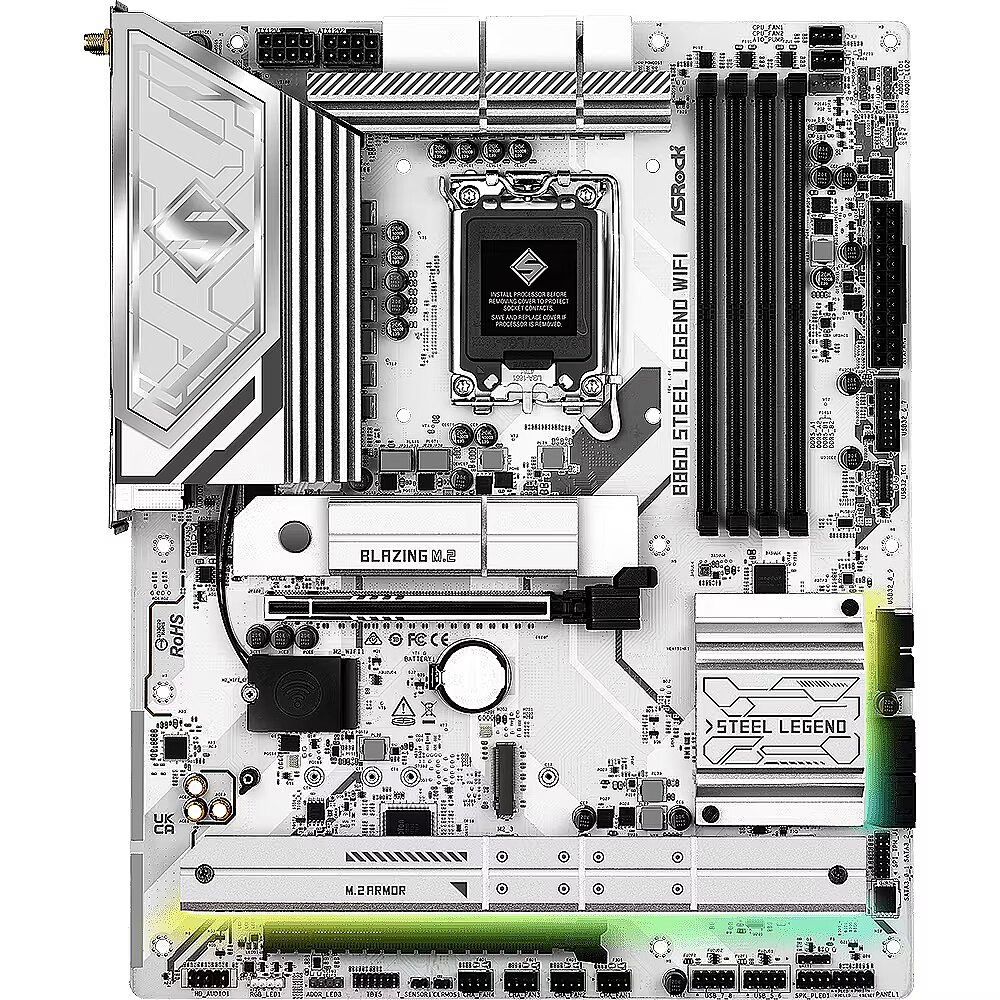

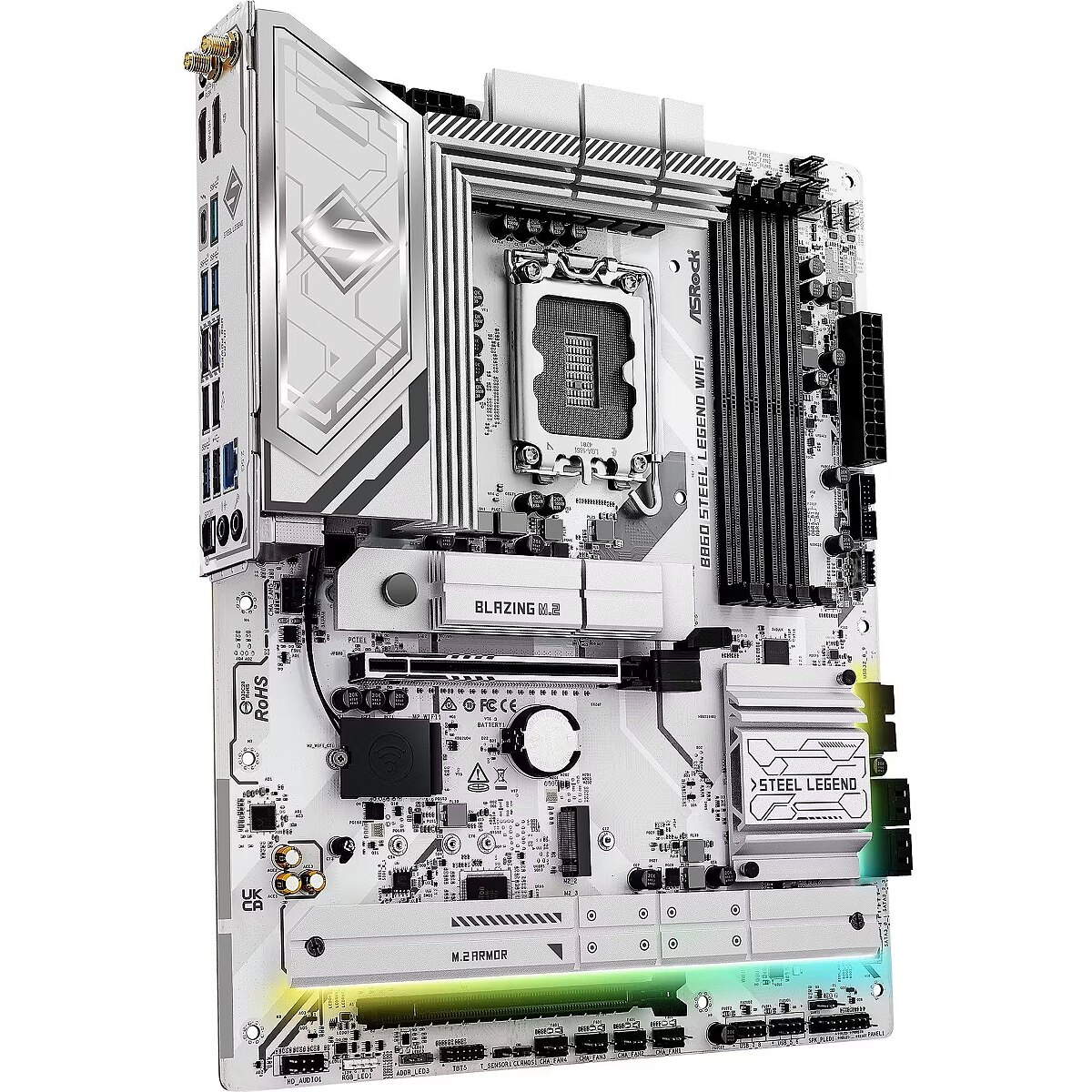

Description - B860 Steel Legend WiFi
Steel Legend reprezentuje filozoficzny stan solidnej jak skała trwałości i nieodpartej estetyki. Zbudowana wokół najbardziej wymagających specyfikacji i funkcji, seria Steel Legend jest skierowana do codziennych użytkowników i entuzjastów głównego nurtu! Zapewniając solidny zestaw materiałów/komponentów, aby zapewnić stabilną i niezawodną wydajność. Ekskluzywny kondensator 20K o pojemności 1000uF
Ulepszony czarny kondensator 20K nie tylko wydłuża żywotność do 20 000 godzin, ale także zwiększa wartość pojemności z 560uF do 1000uF, co przynosi kilka korzyści: Większa pojemność: Większe magazynowanie ładunku dla lepszego wsparcia przy dużych obciążeniach. Niższe tętnienie: Zmniejszone wahania mocy wyjściowej, poprawa jakości. Bardziej stabilny prąd wyjściowy: Stabilne zasilanie, minimalizujące wpływ napięcia. Lepsza wydajność i stabilność systemu: Zwiększona niezawodność i stała wydajność. 14+1+1 Power Phase Design
Zestaw solidnych komponentów i całkowicie płynne dostarczanie mocy do procesora. Ponadto oferuje niezrównane możliwości podkręcania i zwiększoną wydajność przy najniższej temperaturze, co jest również przydatne dla zaawansowanych graczy. Dr. MOS
Dr.MOS to zintegrowane rozwiązanie stopnia mocy, które jest zoptymalizowane pod kątem synchronicznych zastosowań obniżających napięcie buck-set! W porównaniu do tradycyjnych dyskretnych tranzystorów MOSFET inteligentnie dostarcza wyższy prąd dla każdej fazy, zapewniając tym samym lepszy wynik termiczny i lepszą wydajność. Złącze zasilania Hi-Density
Podkręcanie procesora wymaga wyższego prądu. Złącza zasilania ASRock Hi-Density są zaprojektowane tak, aby wytrzymywać wyższe prądy w porównaniu do tradycyjnych złączy zasilania procesora i ATX, zapewniając bardziej stabilny system i zmniejszając ryzyko pożaru podczas intensywnego podkręcania.
Description - Steel Legend represents the philosophical state of rock-solid durability and irresistible aesthetics. Built around most demanding specs and features, the Steel Legend series aims at daily users and mainstream enthusiasts! Providing a strong array of materials/components to ensure a stable and reliable performance. Supports Intel® Core™ Ultra Processors (Series 2) 14+1+1+1+1 Phase Power Design, 80A Dr.MOS for VCore+GT+SA 4 x DDR5 DIMMs Supports Dual Channel, up to 8666+ (OC) 1 PCIe 5.0 x16, 1 PCIe 4.0 x16 Graphics Output Options: 1 HDMI, 1 DisplayPort, 1 Thunderbolt™ 4 Type-C Realtek ALC1220 7.1 CH HD Audio Codec, Nahimic Audio 1 Blazing M.2 (PCIe Gen5x4) 2 Hyper M.2 (PCIe Gen4x4) 1 M.2 (PCIe Gen4x2) 4 SATA3 1 Thunderbolt™ 4 Type-C (Rear) 1 USB 3.2 Gen2x2 Type-C (Front) 2 USB 3.2 Gen2 (Rear) 8 USB 3.2 Gen1 (4 Rear, 4 Front) 7 USB 2.0 (3 Rear, 4 Front) Realtek 2.5G LAN 802.11axe Wi-Fi 6E + Bluetooth Supports Lite Release Design, Toolless Multi-Layer M.2 Heatsink
Designation - CE+WEEE
Detailed data on disk/drive interfaces - CPU:
- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*
Chipset:
- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2230/2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
- 1 x M.2 Socket (M2_4, Key M), supports type 2280 PCIe Gen4x2 (32 Gb/s) mode*
- 4 x SATA3 6.0 Gb/s Connectors
dimensionalWeight - 1458
dimensionalWeight - 1638
dimension depth - 75 mm
dimension height - 280 mm
Dimensions - 30.5 cm x 24.4 cm
dimension weight - 1935 g
dimension width - 350 mm
DisplayPort Input/Output connectors - 1
ean - 4711581490123
Expansion slots - 1 x M.2
Expansion slots - 1 x PCIe 4.0 x 16
Expansion slots - 1 x PCIe 5.0 x 16
Expansion slots - 1st M.2 highest PCI Express generation - 5.0
Expansion slots - 1st M.2 largest key size - 2280
Expansion slots - 2nd M.2 highest PCI Express generation - 4.0
Expansion slots - 2nd M.2 largest key size - 2280
Expansion slots - 3rd M.2 highest PCI Express generation - 4.0
Expansion slots - 3rd M.2 largest key size - 2280
Expansion slots - 4th M.2 highest PCI Express generation - 4.0
Expansion slots - 4th M.2 largest key size - 2280
Expansion slots - Number of M.2 (M) slots - 4
Expansion slots - PCI Express x16 (Gen 4.x) slots - 1
Expansion slots - PCI Express x16 (Gen 5.x) slots - 1
External connectors - 1 x DisplayPort
External connectors - 1 x Flash BIOS Button
External connectors - 1 x HDMI
External connectors - 1 x Line Out
External connectors - 1 x MIC
External connectors - 1 x RJ-45
External connectors - 1 x S/PDIF
External connectors - 1 x Thunderbolt 4
External connectors - 2 x SMA
External connectors - 2 x USB 3.2 Gen 2 Type-A
External connectors - 3 x USB 2.0
External connectors - 4 x USB 3.2 Gen 1 Type-A
Features - Audio chip - Realtek ALC1220
Features - Audio output channels - 7.1 channels
Features - Certification - FCC, CE, ErP/EuP
Features - Motherboard chipset - Intel B860
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - ATX
Features - Product colour - White
Features - Windows operating systems supported - Windows 11 x64
FireWire (IEEE 1394) - No
Form Factor - ATX
Form factor - ATX
Frequency speed - 8666 MHz
Full Description Line - Intel B860 Express|LGA1851|ATX|DDR5|8666 MHz|Memory slots 4|1xPCI-Express 4.0 16x|1xPCI-Express 5.0 16x|1xM.2|1xHDMI|1xDisplayPort|1xAudio-Out|1xMicrophone|3xUSB 2.0|6xUSB 3.2|1xUSB-C w/Thunderbolt|1xOptical S/PDIF|1xRJ45|SATA|USB-C|USB 2.0|USB 3.2|Thunderbolt|Bluetooth|WiFi|SATA 3.0|Video Depending on CPU|LAN 2.5 Gigabit|Audio Realtek ALC1220|RAID SATA 0, 1, 5, 10|TPM Header
Graphics - Intel Xe LPG Graphics Architecture 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz 1 x Intel Thunderbolt 4, supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
Graphics - HDCP - Yes
Graphics - Maximum resolution - 7680 x 4320 pixels
Graphics - Parallel processing technology support - Not supported
guarantee - 36
guarantee_type - normal
HDMI Input/Output connectors - 1
Integrated audio - Realtek ALC1220
Integrated CPU - No
Integrated LAN - 2.5 Gigabit
Integrated video - Depending on CPU
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Number of chassis fan connectors - 5
Internal I/O - Number of CPU fan connectors - 2
Internal I/O - Number of EPS power connectors (8-pin) - 2
Internal I/O - Number of RGB LED pin headers - 1
Internal I/O - Number of SATA III connectors - 4
Internal I/O - Number of water pump connectors - 1
Internal I/O - RGB LED pin header - Yes
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 2
Internal I/O - USB 3.2 Gen 2x2 connectors - 1
LPT connector / port - No
M.2 Expansion slots - 1
Max. number of SATA devices - 4
Max memory size - 256 GB
Memory - ECC сompatibility - Non-ECC
Memory - Maximum internal memory - 256 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 4
Memory - Supported memory types - DDR5-SDRAM
Memory - Unbuffered memory - Yes
Memory bus frequency - 8666 MHz
Memory slots - 4
Memory type - DDR5
Memory type - DDR5
Microphone Input/Output connectors - 1
Model - B860 Steel Legend WiFi
Model - B860 STEEL LEGEND WIFI
name - Motherboard B860 Steel Legend WiFi s1851 4DDR5 TB ATX
Network - Bluetooth - Yes
Network - Bluetooth version - 5.3
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - LAN controller - Dragon RTL8125BG
Network - Top Wi-Fi standard - Wi-Fi 6E (802.11ax)
Network - Wi-Fi - Yes
Network - Wi-Fi standards - 802.11a
Network - Wi-Fi standards - 802.11b
Network - Wi-Fi standards - 802.11g
Network - Wi-Fi standards - Wi-Fi 4 (802.11n)
Network - Wi-Fi standards - Wi-Fi 5 (802.11ac)
Network - Wi-Fi standards - Wi-Fi 6 (802.11ax)
Network - Wi-Fi standards - Wi-Fi 6E (802.11ax)
Network interface - 1 x 10/100/1000/2500 Mbit/s
Network interface - Bluetooth
Network interface - LAN 2.5 Gigabit LAN 10/100/1000/2500 Mb/s Dragon RTL8125BG Supports Dragon 2.5G LAN Software Smart Auto Adjust Bandwidth Control Visual User Friendly UI Visual Network Usage Statistics Optimized Default Setting for Game, Browser, and Streaming Modes User Customized Priority Control Wireless LAN 802.11axe Wi-Fi 6E Module Supports IEEE 802.11a/b/g/n/ac/ax/axe Supports Dual-Band 2x2 with extended 6GHz band* support 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology Supports Bluetooth 5.3 Supports MU-MIMO
Network interface - Wi-Fi 802.11a/b/g/n/ac/ax/be
Number of DDR5 slots - 4
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 8
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 4
Onboard connectors - 1 x 4-pin water-pump-fan
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x Power LED and Speaker Header
Onboard connectors - 1 x RGB LED strip header
Onboard connectors - 1 x SPI
Onboard connectors - 1 x Thermistor Cable Header
Onboard connectors - 1 x USB 3.2 Gen 2 Type-C
Onboard connectors - 2 x 4pin wentylator CPU
Onboard connectors - 2 x 8pin 12V
Onboard connectors - 2 x USB 2.0/1.1 header
Onboard connectors - 2 x USB 3.2 Gen 1 Type-A
Onboard connectors - 3 x Addressable LED
Onboard connectors - 5 x 4pin Chassis fan
Optical S/PDIF Input/Output connectors - 1
Other information -
Packaging content - Antenna included - Yes
Packaging content - Cables included - SATA
PCI-Express 4.0 16x Expansion slots - 1
PCI-Express 5.0 16x Expansion slots - 1
Processor - Compatible processor series - Intel Core Ultra (Series 2)
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1851 (Socket V1)
Processor - Supported processor sockets - LGA 1851
Processor family - Intel Core Ultra
producer - ASRock
producerCode - B860 STEEL LEGEND WIFI
producerCode - B860 Steel Legend WiFi
productName - Asrock B860 Steel Legend WiFi Intel B860 LGA 1851 (Socket V1) ATX
productSize - Normal
RAID - SATA 0, 1, 5, 10
RAID - Yes
Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - DisplayPort version - 1.4
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - HDMI version - 2.1
Rear panel I/O ports - Headphone outputs - 1
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - S/PDIF out port - Yes
Rear panel I/O ports - Thunderbolt ports quantity - 1
Rear panel I/O ports - USB 2.0 ports quantity - 3
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 2
Rear panel I/O ports - USB connector type - USB Type-A
Rear panel I/O ports - USB connector type - USB Type-C
Rear panel I/O ports - WiFi-AP antenna jack - 2
RJ45 Input/Output connectors - 1
SATA 3.0 Interface - Yes
SATA Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 40 cm
Shipping Box Height Shipping/Package Box Dimensions - 30.5 cm
Shipping box quantity - 5
Shipping Box Weight Shipping/Package Box Dimensions - 10.83 kg
Shipping Box Width Shipping/Package Box Dimensions - 36 cm
sizeX - 346
sizeX - 390
sizeY - 281
sizeY - 300
sizeZ - 70
sizeZ - 75
Socket - LGA1851
Software - Software ASRock Motherboard Utility (A-Tuning) ASRock Dragon 2.5G LAN Software ASRock Polychrome SYNC* UEFI ASRock EZ Mode ASRock Full HD UEFI ASRock My Favorites in UEFI ASRock Auto Driver Installer ASRock Instant Flash
Sound card - 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec) Impedance Sensing on Rear Out port Individual PCB Layers for R/L Audio Channel Nahimic Audio
Special functions -
Storage controllers - Number of storage drives supported - 8
Storage controllers - RAID levels - 0
Storage controllers - RAID levels - 1
Storage controllers - RAID levels - 5
Storage controllers - RAID levels - 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - PCI Express 4.0, PCI Express 5.0, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Supported operating systems - Windows 11
Thunderbolt Interface - Yes
TPM - Header
Unit Box Height - 0.075
Unit Box Length - 0.355
Unit Box Width - 0.28
Unit Brutto Volume - 0.008784 cubm
Unit Gross Weight - 2.17 kg
Unit Net Weight - 1.4 kg
USB-C Interface - Yes
USB-C w/Thunderbolt Input/Output connectors - 1
USB 2.0 Input/Output connectors - 3
USB 2.0 Interface - Yes
USB 3.2 Input/Output connectors - 6
USB 3.2 Interface - Yes
USB ports at back panel - 10
USB ports on motherboard - 9
Vendor Homepage - www.asrock.com/MB/Intel/B860%20Steel%20Legend%20WiFi/index.asp
vendpn - B860 Steel Legend WiFi
Warranty - 36 months
warrantyLength - 36
warrantyType - G
weight - 1400
weight - 1915
Weight & dimensions - Depth - 244 mm
Weight & dimensions - Width - 305 mm
WiFi Interface - Yes
