Audio port Input/Output connectors - 5
BIOS - BIOS memory size - 256 Mbit
BIOS - BIOS type - UEFI AMI
Bluetooth Interface - Yes
Brand - ASUS
BrandPartCode - 90MB1IQ0-M0EAY0
Category - Motherboards
category - PC Components|Mainboards|Intel Mainboards
Category 1 - Mainboards & Zubehör
Category 2 - Mainboards - Intel
Category Code - MBI
Chipset - Intel Z890
CnCode CnCode - 84733020
code - 90MB1IQ0-M0EAY0
Code - 90MB1IQ0-M0EAY0

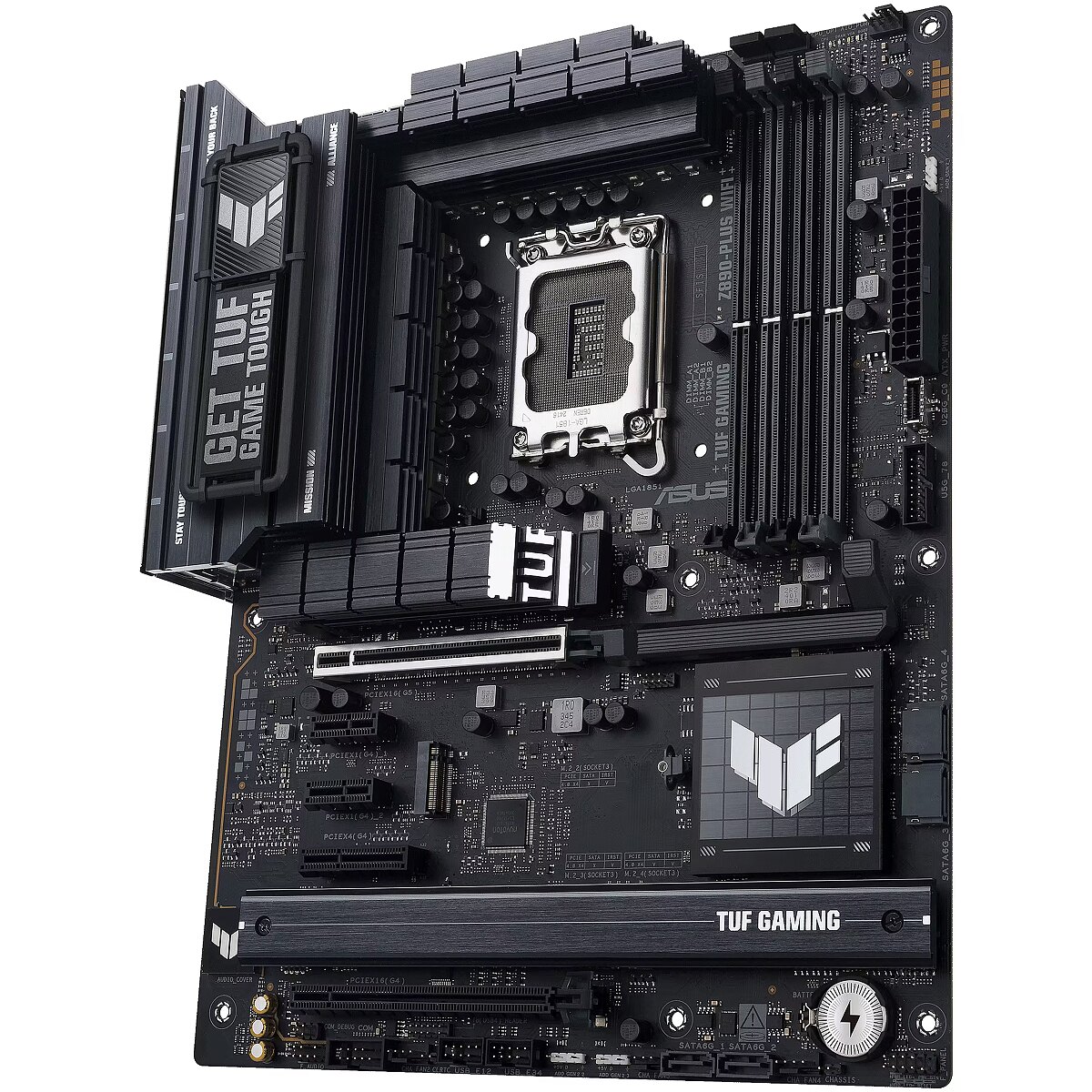

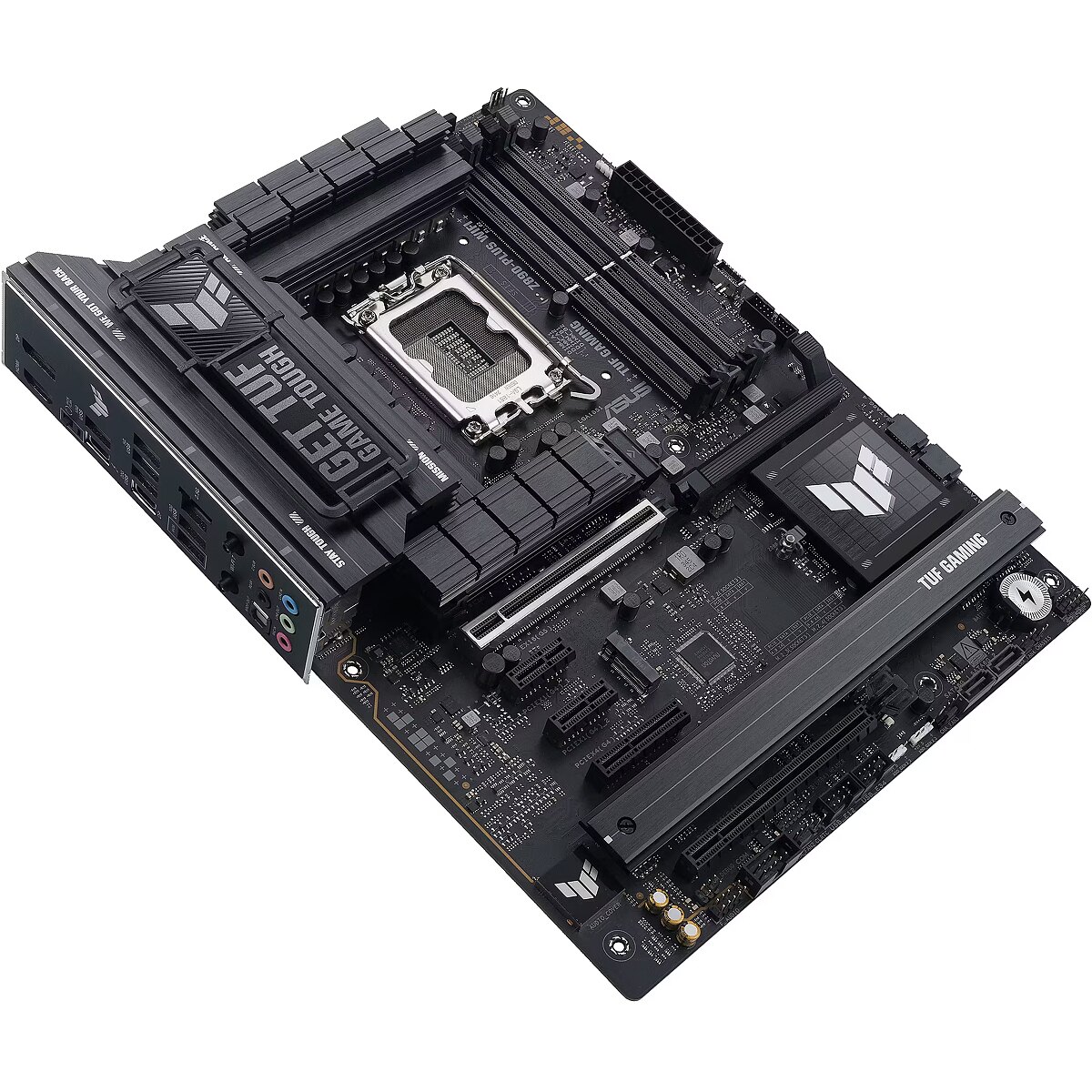

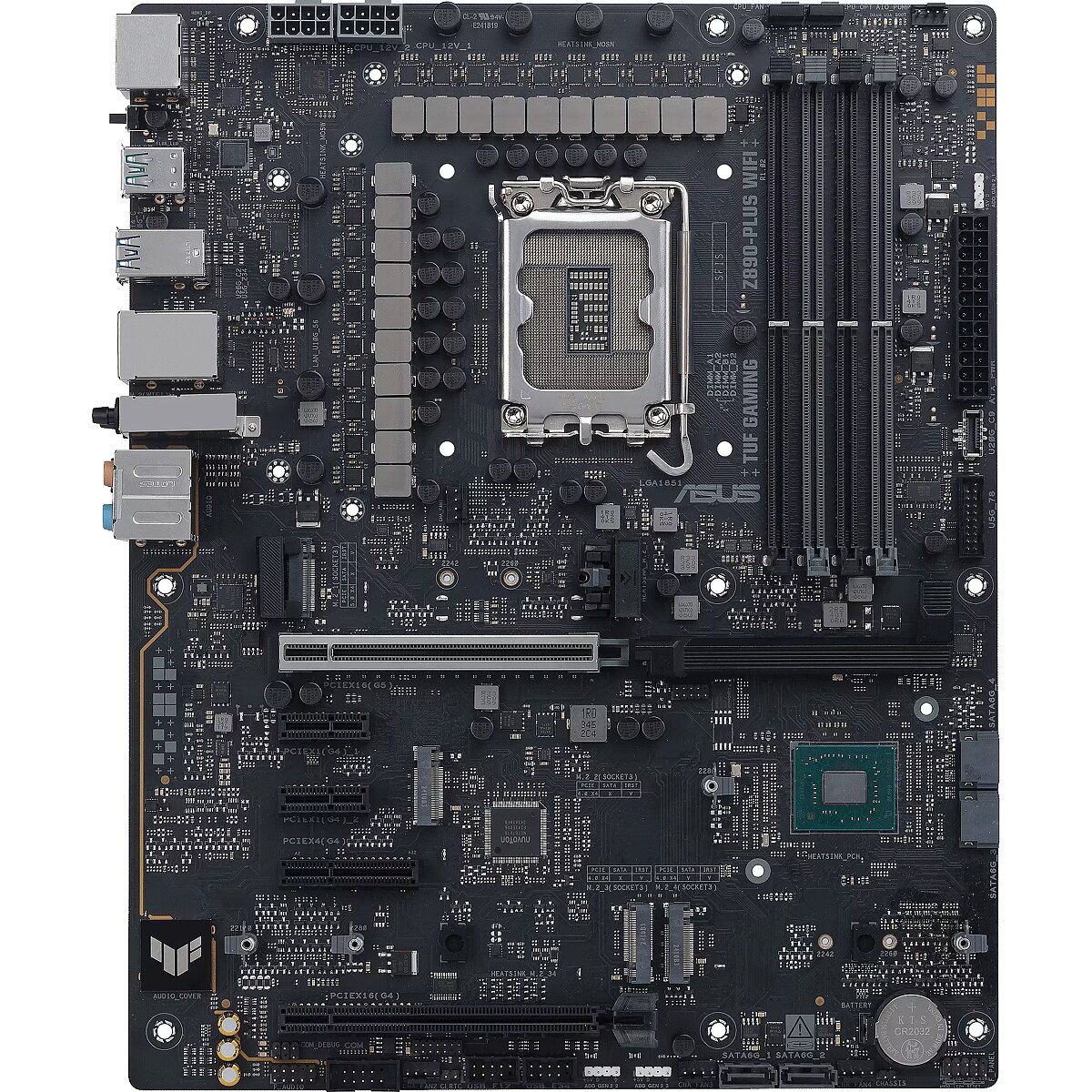

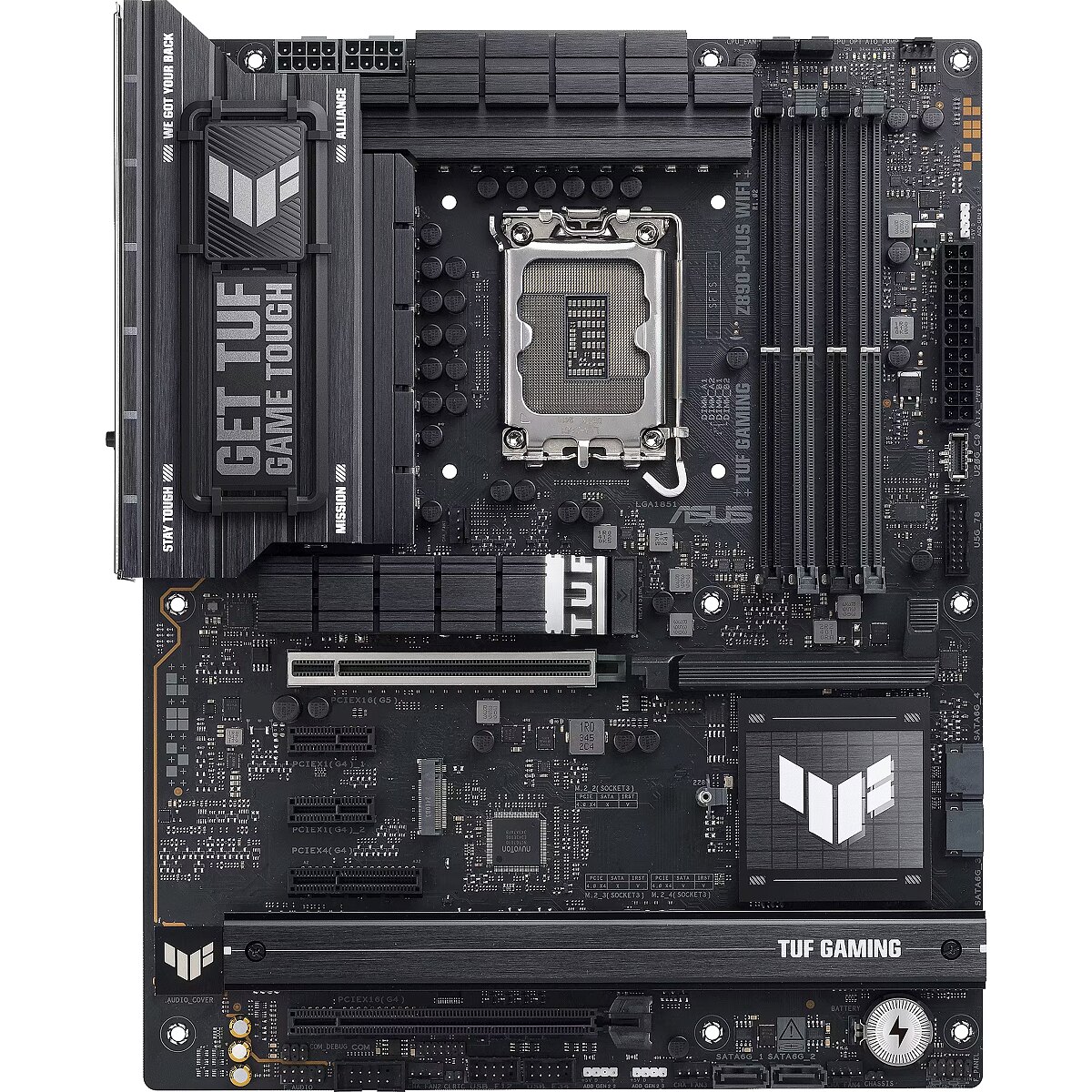

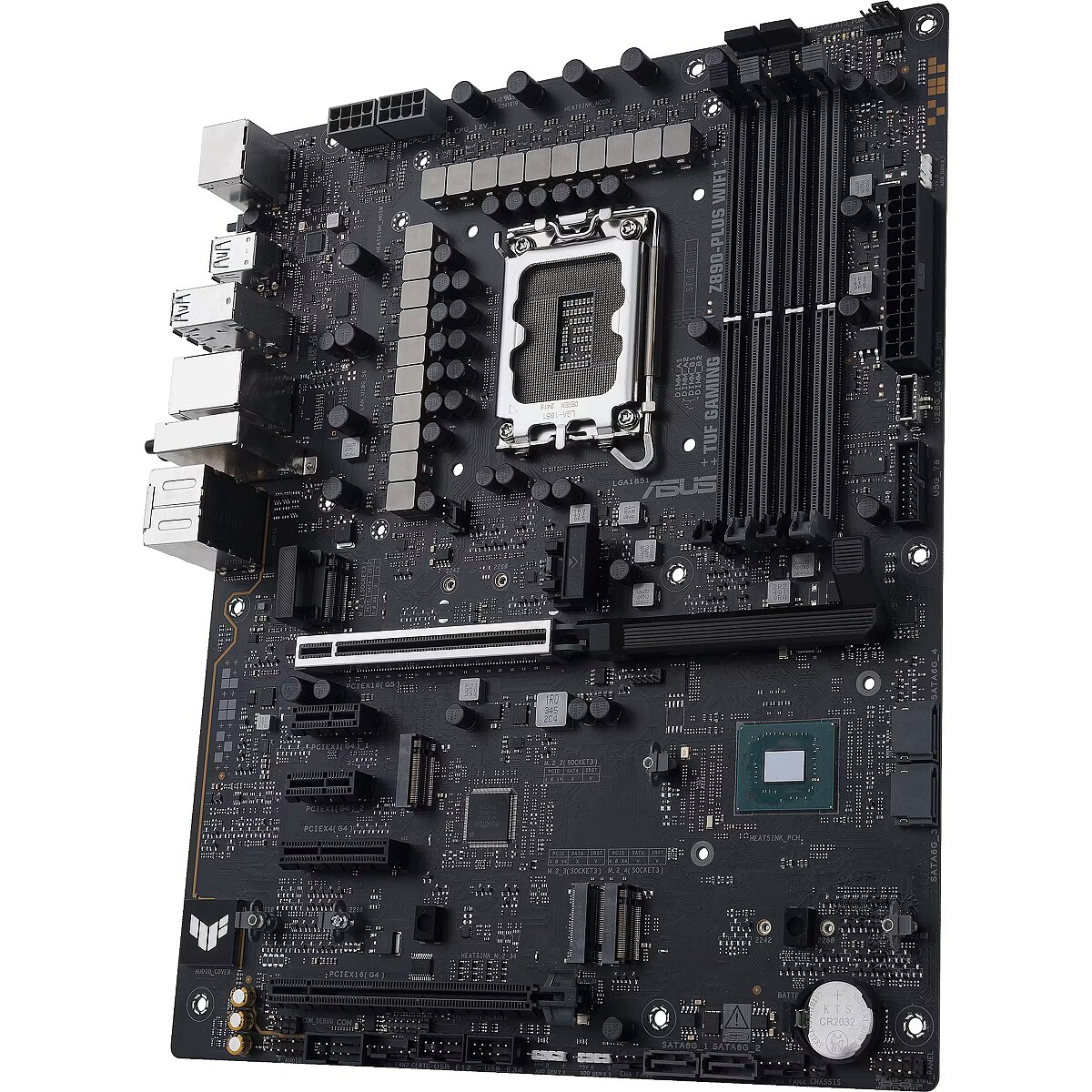

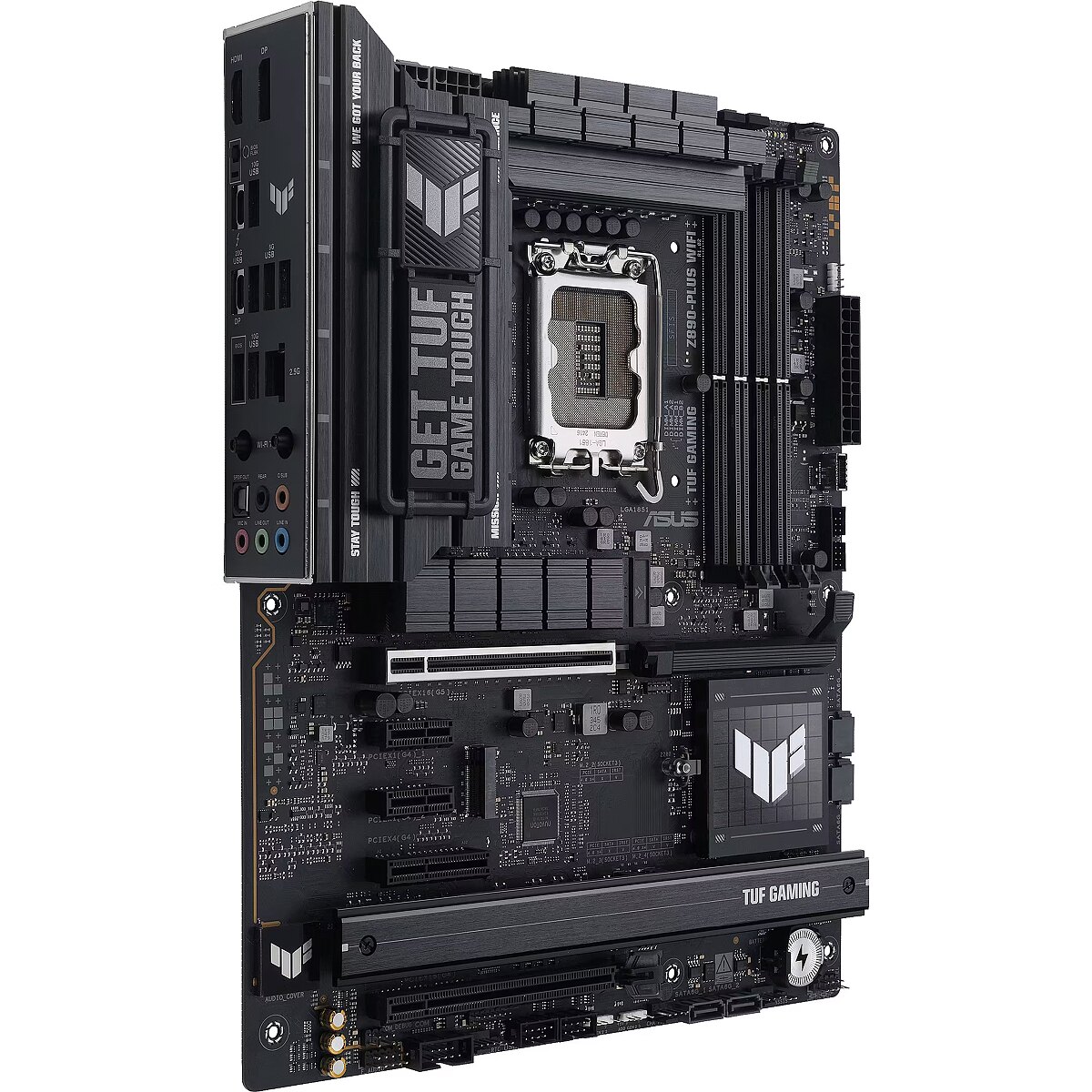

Description - ASUS TUF GAMING Z890-PLUS WIFI takes all the essential elements of the latest Intel® Core™ Ultra Processors (Series 2) processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. This platform delivers the power and connectivity that advanced AI PC applications demand.
dimensionalWeight - 1366
DisplayPort Input/Output connectors - 1
EAN - 4711387763926
ean - 4711387763926
Expansion slots - Number of M.2 (M) slots - 4
Expansion slots - PCI Express x4 (Gen 1.x) slots - 2
Expansion slots - PCI Express x4 (Gen 4.x) slots - 1
Expansion slots - PCI Express x16 (Gen 4.x) slots - 1
Expansion slots - PCI Express x16 (Gen 5.x) slots - 1
Features - Audio chip - Realtek ALC1220P
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Cooling type - Passive
Features - Motherboard chipset - Intel Z890
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - ATX
Features - Power source type - ATX
Features - Product colour - Black
Features - Windows operating systems supported - Windows 11
Form Factor - ATX
Full Description Line - Intel Z890|LGA1851|ATX|DDR5|Memory slots 4|2xPCI-Express 4.0 1x|1xPCI-Express 4.0 4x |1xPCI-Express 4.0 16x|1xPCI-Express 5.0 16x|4xM.2|1xHDMI|1xDisplayPort|3xUSB 3.0|3xUSB 3.1|1xUSB-C|1xUSB-C w/Thunderbolt|1xOptical S/PDIF|1xRJ45|5xAudio port|SATA|USB-C|USB 2.0|USB 3.0|Bluetooth|WiFi|SATA 3.0|Video|LAN 2.5 Gigabit|Audio Realtek ALC1220P|RAID SATA 0, 1, 5, 10
Graphics - On-board graphics card - No
Graphics - Parallel processing technology support - Not supported
GTIN - 4711387763926
HDMI Input/Output connectors - 1

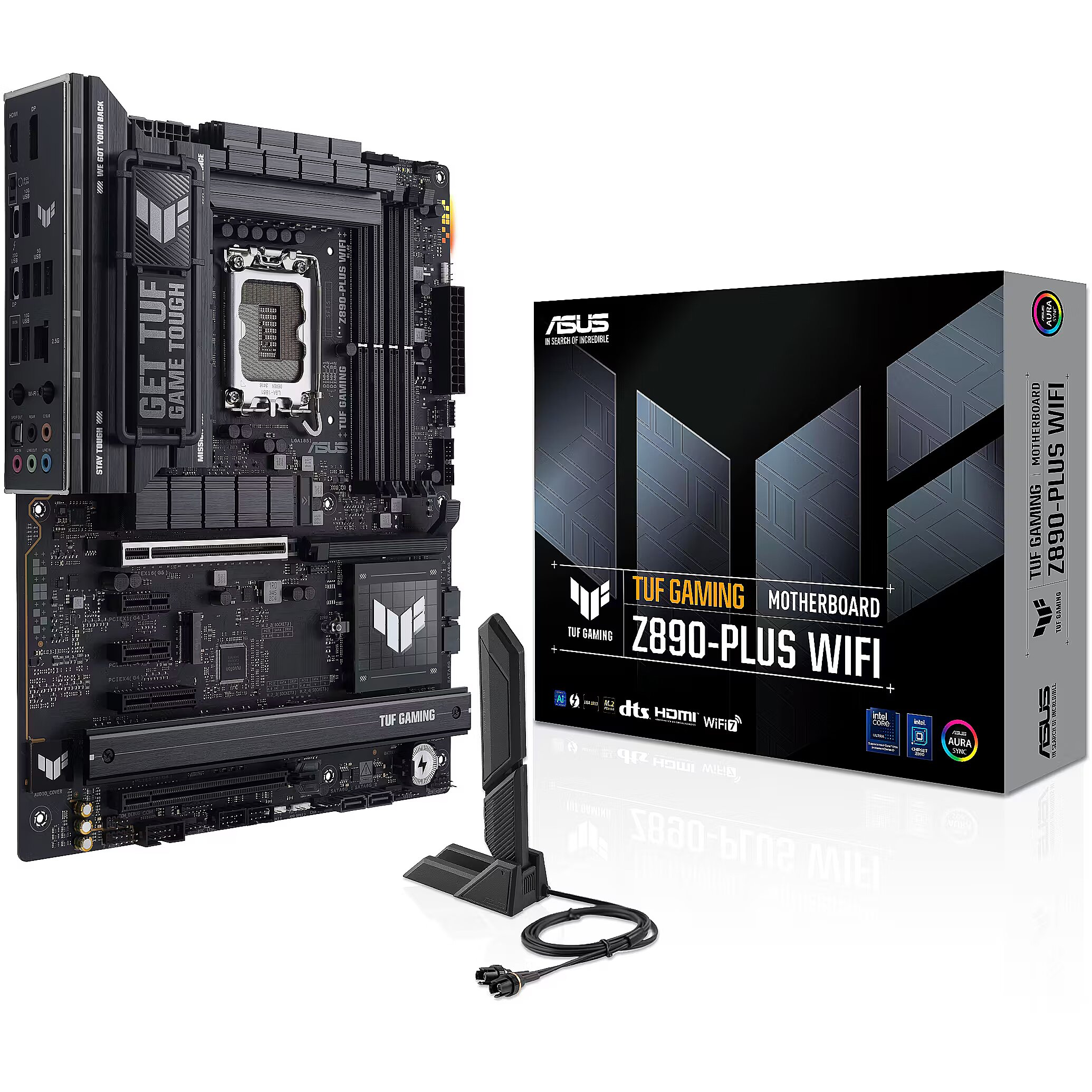

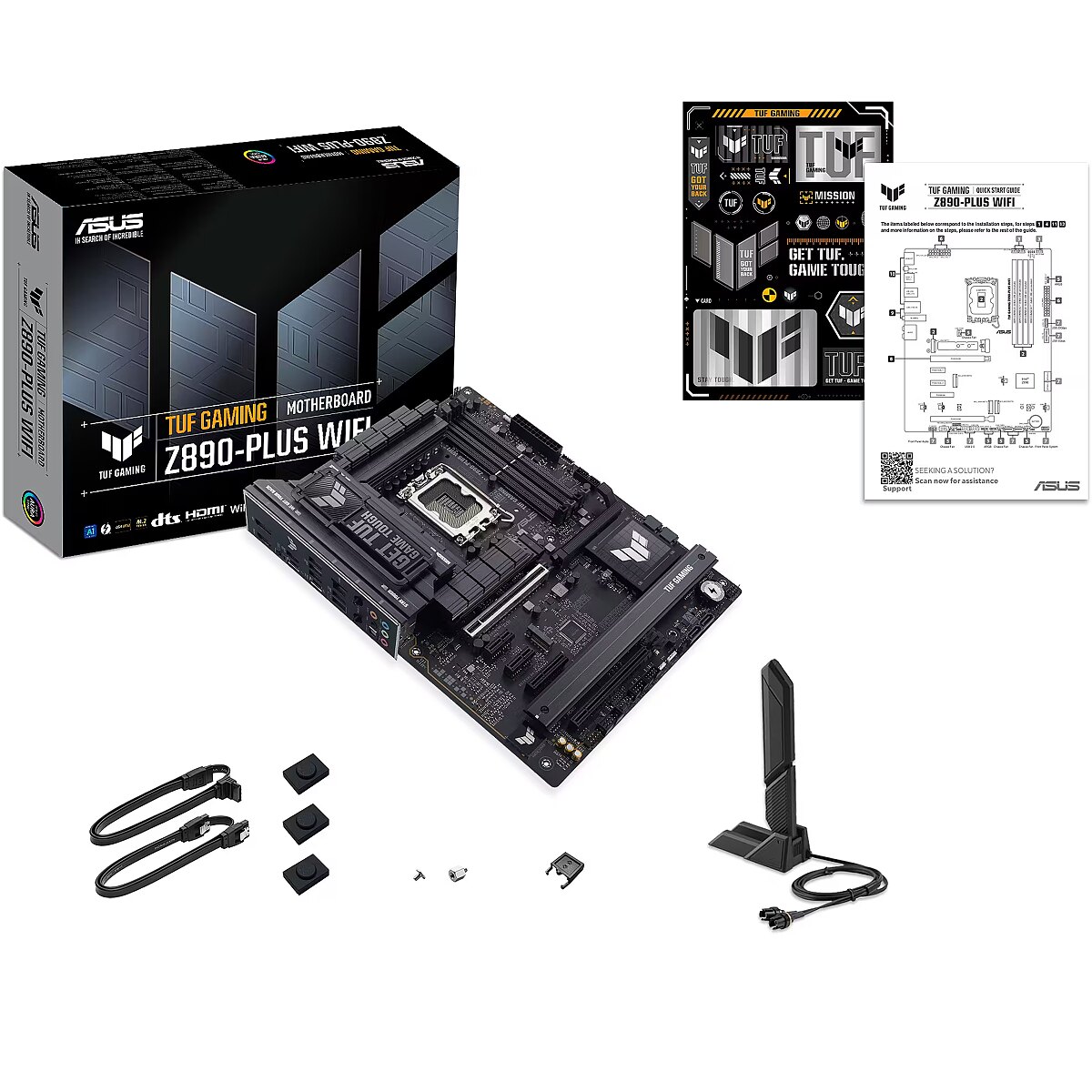

Included Accessories - Cables:
2 x SATA 6Gb/s cables
Miscellaneous:

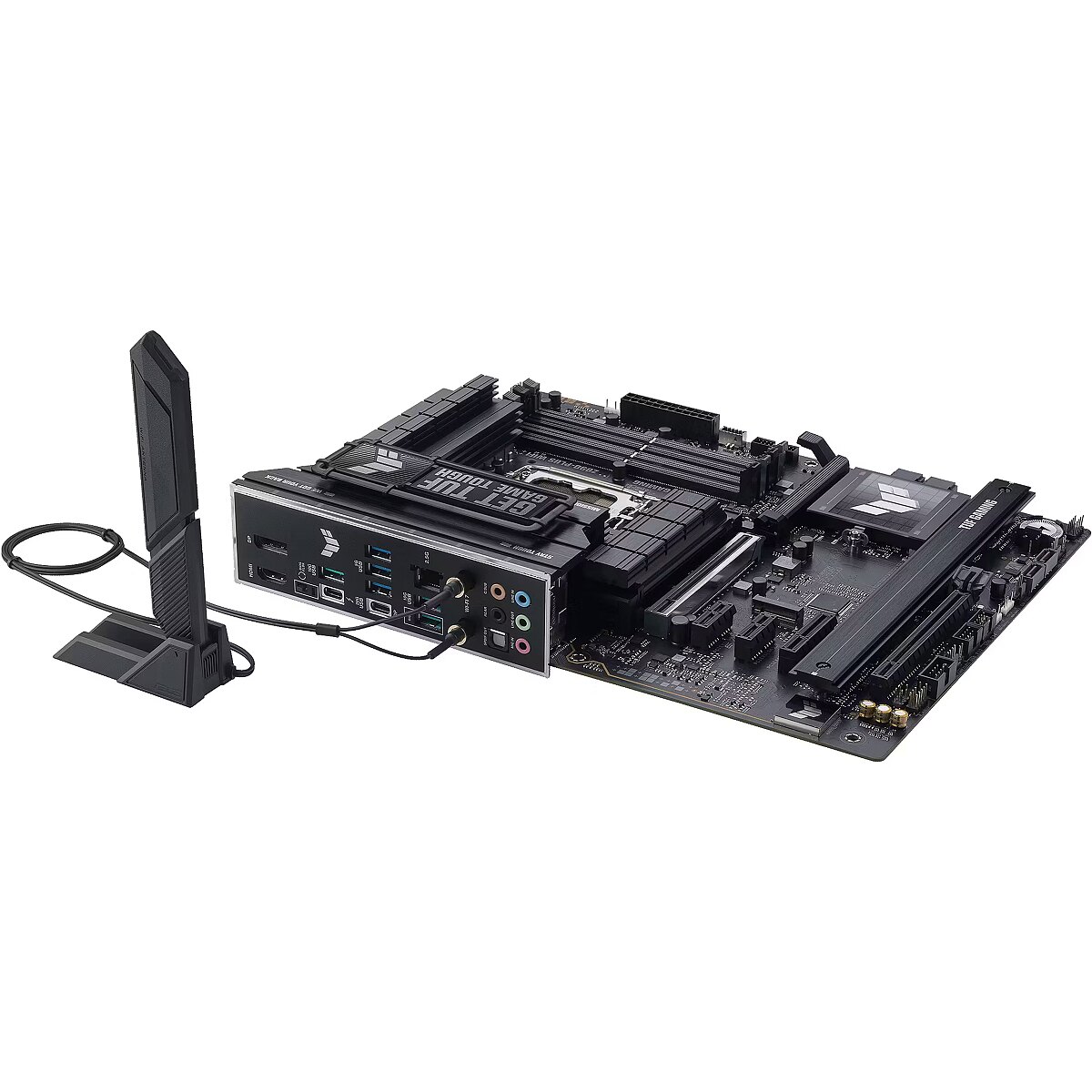

1 x ASUS WiFi Q-Antenna
1 x M.2 Q-Slide package
2 x M.2 rubber packages
1 x Screw package for M.2 SSD
1 x TUF GAMING sticker
1 x TUF GAMING removable nameplate
Documentation:
1 x Quick start guide
Integrated audio - Realtek ALC1220P
Integrated LAN - 2.5 Gigabit
Integrated video - Yes
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - Chassis intrusion connector - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Number of chassis fan connectors - 4
Internal I/O - Number of COM connectors - 1
Internal I/O - Number of SATA III connectors - 4
Internal I/O - RGB LED pin header - Yes
Internal I/O - Thunderbolt headers - 1
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 2
Internal I/O - USB 3.2 Gen 2 (3.1 Gen 2) connectors - 1
Internal I/O > Number of SATA connectors - 4
Internal I/O > Supported hard disk drive interfaces - M.2, SATA
Link - https://www.asus.com/motherboards-components/motherboards/tuf-gaming/tuf-gaming-z890-plus-wifi/
LongDesc - ASUS TUF GAMING Z890-PLUS WIFI takes all the essential elements of the latest Intel® Core™ Ultra Processors (Series 2) processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. This platform delivers the power and connectivity that advanced AI PC applications demand.IntelligentComplete AI SolutionASUS AI Solutions – including AI Advisor, AI Cooling II for thermal control and AI Networking II for real-time bandwidth optimization – offer smart assistance, efficient cooling and new levels of ultrafast connectivity.AI AdvisorAn ASUS technical expert that's always available to answer your questions.* Availability of ASUS AI Advisor may vary by region.AI Cooling IIOptimized thermals, and reduced noise via dynamic adjustment of fan speeds, based on CPU temperatures.AI Networking IIOptimized network performance, helping to ensure seamless connectivity and maximized WiFi 7 speeds.IntelligentOverclockingNPU BoostThe integrated NPU in Intel® Core™ Ultra Processors (Series 2) efficiently accelerates AI workflows — and NPU Boost lets you do more with it. This BIOS feature overclocks the NPU with just one click, increasing performance by up to 24%.* This feature only supports Intel K series processors ** The overclocking performance may vary depending on the CPU series and motherboard used. *** Testing was conducted with an Intel Arrow Lake QS Q2HA Ultra 9 285K processor, ROG Maximus Z890 Extreme motherboard, GeForce RTX™ 4090 24GB graphics card, and XPG Lancer DDR5 memory modules (model AX5U6000C4016G).IntelligentIntelligent ControlUEFI BIOSThe UEFI interface delivers easy-to-use configuration options for PC beginners, and advanced features for veterans.UEFI BIOSThe renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners and comprehensive features for seasoned veterans.BIOS Q-DashboardSimplify your motherboard configuration with BIOS Q-Dashboard. Its intuitive visual representation of hardware connections and corresponding BIOS settings takes the complexity out of setting up your system. Upgrade now, and discover the power of BIOS Q-Dashboard to easily and efficiently enhance your computing setup.TurboV CoreTurboV Core is engineered for overclocking enthusiasts to elevate system capability with unprecedented simplicity. Accessed via ASUS DriverHub, TurboV Core provides intuitive configuration of CPU and DRAM parameters to unlock your computer's potential. No need to enter the BIOS, you can seamlessly modify settings directly from the Windows interface, and apply them right away without restart interruptions.ASUS DriverHubSimplify driver management with automatic detection, one-click installation and update for smooth, efficient system performance.ASUS GlideXEnable seamless screen sharing and control across PCs, tablets, and smartphones via USB or WiFi, supporting multiple platforms.Power SavingProvides easy-to-use configuration options for PC beginners and advanced features for veterans.Armoury CrateCustomize Aura Sync RGB and control ASUS devices. Includes product registration and updates.PerformancePremium Power DesignStable power is crucial for maximizing the performance of Intel processors. The motherboard is designed to meet the needs of high-core-count CPUs. It features 16(80A) + 1(80A) + 2(80A) + 1(80A) power stages that integrate high-side and low-side MOSFETs and drivers into packages rated for up to 80A each. This configuration ensures optimal power delivery, efficiency, stability and performance for both current and future Intel processors.Eight Layered PCB designEnhanced stability and overclocking.ProCool Power ConnectorsProprietary 8+8 pin connectors improve PSU connection.TUF ComponentsTUF chokes and capacitors offer rock-solid durability and stability.Digi+VRM ControlReal-time voltage control.PerformanceMemory & StorageDRAM Overclocking PerformanceComprehensive memory tuning options are the cornerstone of TUF GAMING motherboards. With the motherboard, you can extract all the potential out of your DDR5 modules*, whether they're from an extreme-speed kit or an entry-level set that would otherwise be locked.* Memory overclocking may vary between CPU series. Please refer to the spec table for detailed information.AEMP IIIASUS Enhanced Memory Profile III (AEMP III) is an advanced firmware feature that empowers users to achieve unparalleled memory performance with cutting-edge CUDIMM memory. Through a two-phase comprehensive tuning process, AEMP III first optimizes the clock driver and then the memory frequency. This results in the best balance between performance and stability, even at cutting-edge speeds of DDR5-8000 or higher.**Results may vary according to individual system specifications. Currently, only 2-DIMM configurations are supported. Results are based on a test with an Intel Core Ultra 9 285K processor and 2x16GB SK Hynix DDR5-6400 Clocked Unbuffered DIMM RAM, model HMCG78AHBCA326N.DIMM FitDIMM Fit is an ASUS-exclusive BIOS feature that precisely analyzes individual memory modules to optimize performance and pinpoint potential issues. This offers peak efficiency, compatibility, and system stability.Whether you are an overclocker seeking ultimate performance, a competitor pursuing the most responsive gameplay, or a content creator prioritizing rock-solid stability, DIMM Fit provides optimizations tailored to your needs and your hardware configuration.M.2 PCIe 5.0 SupportThis motherboard also features one PCIe 5.0 M.2 slots to enjoy the fastest data transfers of up to 128 Gbps*, and all M.2 slots support NVMe RAID configurations to take advantage of the latest available speeds.CoolingCooler by DesignCoolingCooler CompatibilityASUS AIO coolers offer robust performance, high overclocking potential, bold aesthetics and customizable functionality for new TUF Gaming motherboards, empowering you to build your dream gaming rig.ConnectivityEmpowering ConnectionThis motherboard offers a versatile range of connectivity with PCIe 5.0, Thunderbolt™ 4 and front USB 20Gbps Type-C® connectors.PCIe 5.0 for Graphics CardPCIe 5.0 offers twice the data transfer speed of PCIe 4.0, making it robust enough to handle new data-heavy tasks. PCIe 5.0 also brings other benefits, such as electrical changes to improve signal integrity, backward-compatible CEM connectors for add-in cards and backward compatibility with previous versions of the PCIe bus.Thunderbolt™ 4 SupportEach port delivers up to 40Gbps of bi-directional bandwidth for the latest super-speed devices and drives. Both ports can be employed for up to two external 4K displays.Front USB 20Gbps Type-C®This motherboard features a USB 20Gbps Type-C® front panel connector for speedy data transfers of up to 20Gbps.DIYEasy PC DIYPCIe Slot Q-ReleaseA physical button unlocks the first PCIe slot’s security latch with one tap, greatly simplifying the process of detaching a PCIe card from the motherboard when it’s time to upgrade to a new GPU or other compatible device.M.2 Q-ReleaseThe M.2 heatsink features a convenient switch* to quickly remove it, eliminating the need for tiny screws during SSD installation. Its strong locking mechanism also provides a snug contact surface, helping to ensure reliable heat dissipation for your SSD.*Switch may be a lever or button, depending on motherboard model.M.2 Q-SlideThis new sliding M.2 latch design supports sizes 2242 and 2260 for easy device installation.M.2 Q-LatchThe innovative ASUS Q-Latch makes it easy to install or remove an M.2 SSD without the need for specific tools or screws. This design employs a simple locking mechanism to secure the drive and neatly detach it with one tap.Q-AntennaWith Q-Antenna, attaching a WiFi antenna to your PC is now easy and fast. Instead of slowly rotating two fasteners until they finally lock in, they just snap into place. Less hassle, and more consistent performance.BIOS FlashBack™BIOS FlashBack™ simplifies BIOS updates. Just load the BIOS file onto a FAT32 USB stick, insert it into the BIOS FlashBack™ port, and press a button—no CPU or memory needed.DIYProtectionDIYBuild With ConfidenceTUF GAMING Alliance is a collaboration between ASUS and trusted PC component brands to ensure compatibility across a wide range of parts, such as PC cases, power supplies, CPU coolers, memory kits and more. With new partnerships and components being added regularly, the TUF GAMING Alliance will continue to grow even stronger.GamingUltrafast NetworkingProvide a feature-packed high-performance gaming package, with ultrafast networking for smoother online gameplay.Intel® 2.5Gb EthernetOn-board Intel® 2.5Gb Ethernet kicks your LAN connection up a notch by improving bandwidth speeds up to 2.5X faster than 1Gb connections.WiFi 7WiFi 7 ensures stable connections and low latency.ASUS WiFi Q-AntennaASUS WiFi Q-Antenna delivers up to 18% stronger wireless signal reception compared to the previous generation.AudioRealtek 7.1 Channel AudioALC1220PThis motherboard utilizes an audio codec designed in close collaboration with Realtek — the Realtek ALC1220P. It features an unprecedented 120 dB signal-to-noise (SNR) ratio for the stereo line out and a 113 dB SNR for the line in, providing pristine audio quality. Additionally, an impedance-sensing circuit automatically adjusts gain to ensure an optimal volume range for your headphones.DTS Audio ProcessingDTS® Audio Processing enhances gaming headset and speaker audio experiences by reducing distortion and by providing deeper bass, so games, movies and music sound better. It also allows you to customize audio settings.LightingOutshine The CompetitionASUS Aura Sync offers synchronized lighting with other Aura Sync products, including motherboards, graphics cards, monitors and peripherals.Addressable Gen2 RGB HeadersAutomatically optimize lighting effects for the number of LEDs present in compatible ARGB gear.In Search of Sustainable SolutionASUS is on a mission to create a sustainable future where all can flourish on the planet we call home.Every step counts, and as part of ASUS’s commitment to creating a more sustainable future, ASUS has begun to utilize post-consumer recycled (PCR) plastic and paper materials certified by the Forest Stewardship Council (FSC™) in the packaging of motherboard.Join us on our journey as we make the world a better place.
LongProductName - TUF GAMING Z890-PLUS WIFI motherboard socket Intel LGA 1851 (ATX, PCIe 5.0, DDR5, DisplayPort, HDMI, Thunderbolt 4, 4x M.2, WiFi 7, Q-Release, Aura Sync)
LongSummaryDescription - ASUS TUF GAMING Z890-PLUS WIFI. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E.... Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: Intel
M.2 Expansion slots - 4
Manufacturer - ASUS
Memory - ECC сompatibility - Non-ECC
Memory - Maximum internal memory - 192 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 4
Memory - Supported memory clock speed (max) - 8600 MHz
Memory - Supported memory types - DDR5-SDRAM
Memory - Unbuffered memory - Yes
Memory > Supported memory types - DDR5
Memory slots - 4
Memory type - DDR5
Model - TUF GAMING Z890-PLUS WIFI
MPN - 90MB1IQ0-M0EAY0
Name - 1851 ASUS TUF GAMING Z890-PLUS WIFI
name - ASUS TUF Gaming Z890-Plus WiFi Mainboard, Sockel LGA 1851, Intel Z890, ATX, DDR5
Name - Asus TUF GAMING Z890-PLUS WIFI | Processor family Intel | Processor socket LGA1851 | DDR5 | Supported hard disk drive interfaces M.2, SATA | Number of SATA connectors 4
Network - Bluetooth - Yes
Network - Bluetooth version - 5.4
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Top Wi-Fi standard - Wi-Fi 7 (802.11be)
Network - Wi-Fi - Yes
Network - Wi-Fi standards - 802.11a
Network - Wi-Fi standards - 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
Network - Wi-Fi standards - 802.11b
Network - Wi-Fi standards - 802.11g
Network - Wi-Fi standards - Wi-Fi 4 (802.11n)
Network - Wi-Fi standards - Wi-Fi 5 (802.11ac)
Network - Wi-Fi standards - Wi-Fi 6 (802.11ax)
Network - Wi-Fi standards - Wi-Fi 6E (802.11ax)
Network - Wi-Fi standards - Wi-Fi 7 (802.11be)
Optical S/PDIF Input/Output connectors - 1
Other features - Back-to-BIOS button - Yes
Other features - Quick installation guide - Yes
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 305.00 mm
Package features > Gross height (mm) - 100.00 mm
Package features > Gross width (mm) - 234.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 121 pc(s)
Package features > Paper/Pasteboard - 80.00 g
Package features > Plastic (No PET) - 20.00 g
Package features > Tare weight (kg) - 0.10 kg
Package features > Volume (m3) - 0.01 m³
Package features > WEE classification - CL109:5:2017-04-01
Package features > WEEE tax - Yes
Packaging content - Cables included - SATA
Packaging data - Package depth - 273 mm
Packaging data - Package height - 68 mm
Packaging data - Package weight - 2.34 kg
Packaging data - Package width - 353 mm
PCI-Express 4.0 1x Expansion slots - 2
PCI-Express 4.0 4x Expansion slots - 1
PCI-Express 4.0 16x Expansion slots - 1
PCI-Express 5.0 16x Expansion slots - 1
Processor - Compatible processor series - Intel Core Ultra (Series 2)
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1851 (Socket V1)
Processor > Processor family - Intel
Processor > Processor socket - LGA1851
producerCode - 90MB1IQ0-M0EAY0
productName - ASUS TUF GAMING Z890-PLUS WIFI Intel Z890 LGA 1851 (Socket V1) ATX
ProductName - TUF GAMING Z890-PLUS WIFI
productSize - Normal
RAID - SATA 0, 1, 5, 10

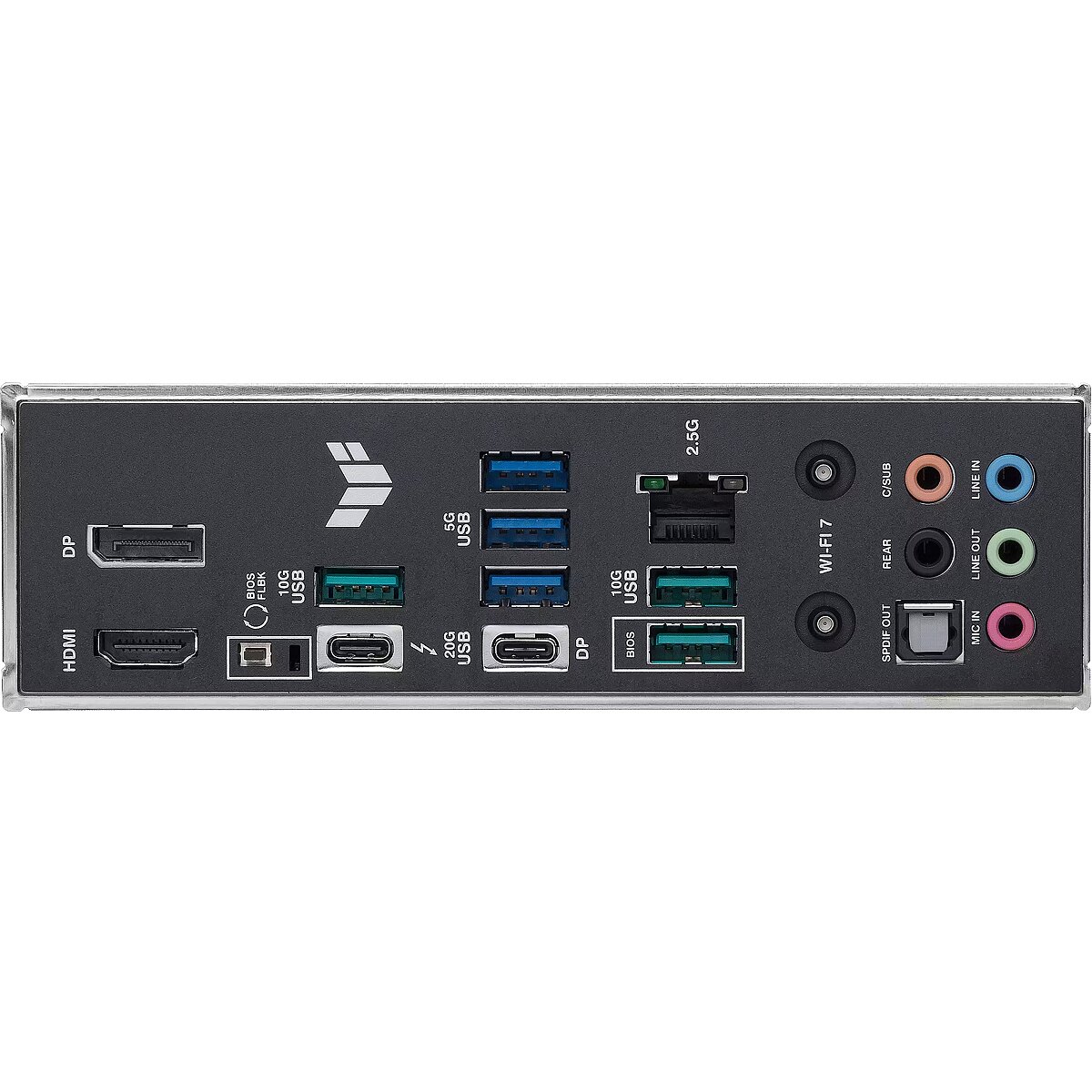

Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - DisplayPort version - 1.4
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - HDMI version - 2.1
Rear panel I/O ports - Headphone outputs - 1
Rear panel I/O ports - Line-in - Yes
Rear panel I/O ports - S/PDIF out port - Yes
Rear panel I/O ports - Thunderbolt ports quantity - 1
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 3
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 3
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity - 1
Rear panel I/O ports - WiFi-AP antenna jack - 2
RJ45 Input/Output connectors - 1
SATA 3.0 Interface - Yes
SATA Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 37 cm
Shipping Box Height Shipping/Package Box Dimensions - 30 cm
Shipping box quantity - 4
Shipping Box Weight Shipping/Package Box Dimensions - 9.2 kg
Shipping Box Width Shipping/Package Box Dimensions - 30 cm
ShortSummaryDescription - ASUS TUF GAMING Z890-PLUS WIFI, Intel, LGA 1851 (Socket V1), Intel Core Ultra (Series 2), DDR5-SDRAM, 192 GB, DIMM
sizeX - 355
sizeY - 70
sizeZ - 275
Socket - LGA1851
Storage controllers - Number of HDDs supported - 4
Storage controllers - Number of storage drives supported - 8
Storage controllers - RAID levels - 0
Storage controllers - RAID levels - 0, 1, 5, 10
Storage controllers - RAID levels - 1
Storage controllers - RAID levels - 5
Storage controllers - RAID levels - 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Technical details > Gross weight - 0.88 kg
Technical details > Net weight - 0.78 kg
Technical details > Producer - Asus
Technical details > Producer product name - TUF GAMING Z890-PLUS WIFI
Title - ASUS TUF GAMING Z890-PLUS WIFI Intel Z890 LGA 1851 (Socket V1) ATX
Unit Box Height - 0.07
Unit Box Length - 0.27
Unit Box Width - 0.355
Unit Brutto Volume - 0.008325 cubm
Unit Gross Weight - 2.3 kg
Unit Net Weight - 1.6 kg
URL - https://www.asus.com/motherboards-components/motherboards/all-series/tuf-gaming-z890-plus-wifi/
USB-C Input/Output connectors - 1
USB-C Interface - Yes
USB-C w/Thunderbolt Input/Output connectors - 1
USB 2.0 Interface - Yes
USB 3.0 Input/Output connectors - 3
USB 3.0 Interface - Yes
USB 3.1 Input/Output connectors - 3
Vendor Homepage - www.asus.com/motherboards-components/motherboards/tuf-gaming/tuf-gaming-z890-plus-wifi/
Warranty - 36
Warranty - 36 month(s)
Warranty - 36 months
WarrantyInfo -
warrantyLength - 36
warrantyType - G
Weight - 2.14
weight - 2125
Weight & dimensions - Depth - 244 mm
Weight & dimensions - Width - 305 mm
WiFi Interface - Yes
