Accessories included -
Audio port Input/Output connectors - 5
BIOS -
BIOS - BIOS memory size - 256 Mbit
BIOS - BIOS type - UEFI AMI
BIOS - Desktop Management Interface (DMI) version - 6.4
BIOS - System Management BIOS (SMBIOS) version - 3.5
Bluetooth Interface - Yes
Brand - MSI
BrandPartCode - PRO Z790-A MAX WIFI
Category - Motherboards
category - PC Components|Mainboards|Intel Mainboards|Sockel 1700
Category 1 - Mainboards & Zubehör
Category 2 - Mainboards - Intel
Category Code - MBI
Category_1 - Motherboards
Category_2 - Motherboards - Intel 1700
category_en - Computers & Components > Computer components > Motherboards > Intel motherboards
category_lv - Datortehnika > Datoru komponentes > Pamatplates > Intel mātesplates
category_ru - Datortehnika > Datoru komponentes > Pamatplates > Intel mātesplates
Chipset - Intel Z790
Chipset manufacturer - Intel
Chipset type - Intel Z790
code - 7E07-014R
Code - PRO Z790-A MAX WIFI
COM connector / port - No
CPU socket - LGA1700
Description - PRO Z790-A MAX WIFI - Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket - Supports DDR5 Memory, Dual Channel DDR5 7800+MHz (OC) - Enhanced Power Design: 16+1+1 DRPS with 80A SPS, dual 8-pin CPU power connectors, Core Boost, Memory Boost - Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience - High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material - Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2 - Intel Turbo USB 3.2 Gen 2: Powered by Intel USB 3.2 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds - 2.5G LAN with Wi-Fi 7 Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection - AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
Description - PRO Z790-A MAX WiFi motherboard Support for Intel Core 14./13./12. generation, Intel Pentium Gold and Celeron processors for the LGA 1700 socket\ Supports DDR5 memory, dual-channel DDR5 7800+MHz (OC) Improved power design: 16+1+1 DRPS with 80A SPS, dual 8-pin CPU power connectors, core reinforcement, memory increase. Premium thermal solution: extended heatsink, 7W/mK MOSFET thermal pads, additional thermal pads with chokes and M.2 Shield Frozr connector ensure high system performance and uninterrupted gameplay High-quality PCB: 6-layer PCB made of 2-ounce copper and server-grade material Lightning-fast gaming experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2 Intel Turbo USB 3.2 Gen 2: Powered by the Intel USB 3.2 Gen2 controller, Turbo USB ensures an uninterrupted connection with greater stability and the fastest USB speeds 2.5G LAN solution with Wi-Fi 7: Enhanced networking solution for professional and multimedia applications. Provides a safe, stable and fast network connection Audio Boost 5: Studio-quality audio for the most immersive gaming experience
description_en - Series: MSI PRO
Connector: LGA 1700
Chipset: Intel Z790
Board size: ATX
Memory type: DDR5
Memory slots: 4
Built-in Wi-Fi: Yes
description_lv - Sērija: MSI PRO
Ligzda (socket): LGA 1700
Mikroshēmu kopne (chipset): Intel Z790
Plates izmērs: ATX
Atmiņas tips: DDR5
Atmiņas sloti: 4
Iebūvēts Wi-Fi: Ir
description_ru - Серия: MSI PRO
Разъем: LGA 1700
Чипсет: Intel Z790
Размер платы: ATX
Тип памяти: DDR5
Слоты памяти: 4
Встроенный Wi-Fi: Да
Designation - CE+WEEE
Detailed data on disk/drive interfaces - 4x M.2 M.2_1 source (from CPU) supports up to PCIe 4.0 x4, supports 22110/2280/2260/2242 devices M.2_2 source (from chipset) supports up to PCIe 4.0 x4, supports 2280/2260/2242 devices M.2_3 source (from chipset) supports PCIe 4.0 x4/SATA mode, supports 2280/2260/2242 devices M.2_4 source (from chipset) supports PCIe 4.0 x4/SATA mode, supports 2280/2260/2242 devices 6x SATA 6G
dimensionalWeight - 1428
dimension depth - 75 mm
dimension height - 273 mm
Dimensions - 243.84 x 304.8 mm
dimension weight - 2030 g
dimension width - 373 mm
DisplayPort Input/Output connectors - 1
EAN - 4711377139939
ean - 4711377139939
EAN_code - 4711377139939
Expansion slots - 1 x PCIe 3.0 x 1
Expansion slots - 1 x PCIe 4.0 x 4
Expansion slots - Number of M.2 (M) slots - 4
Expansion slots - PCI Express x1 slots - 1
Expansion slots - PCI Express x16 slots - 3

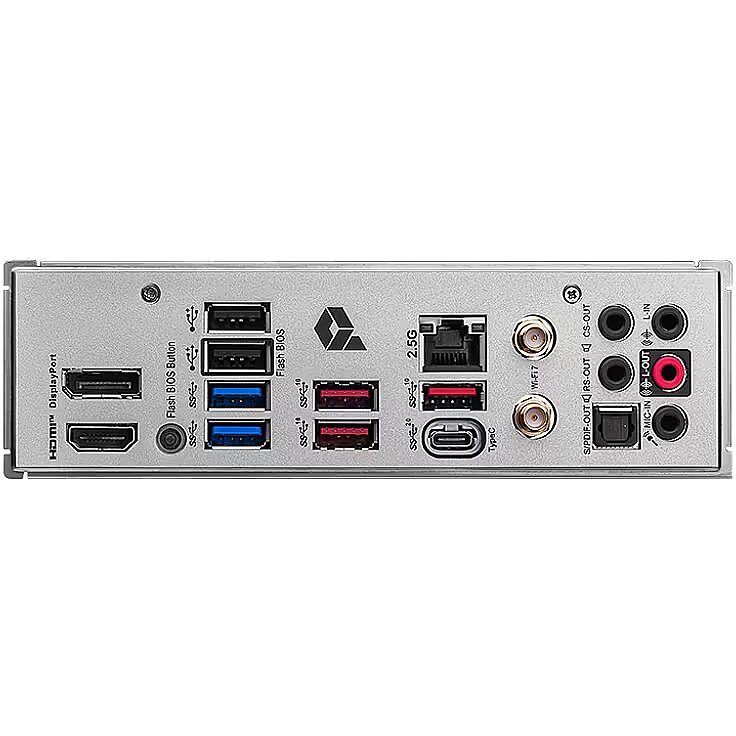

External connectors - 1 x Central Speaker / Subwoofer
External connectors - 1 x DisplayPort
External connectors - 1 x Flash BIOS Button
External connectors - 1 x HDMI
External connectors - 1 x Line In
External connectors - 1 x Line Out
External connectors - 1 x MIC
External connectors - 1 x Rear Speaker
External connectors - 1 x RJ-45
External connectors - 1 x S/PDIF
External connectors - 1 x USB 3.1 Type-C
External connectors - 2 x SMA
External connectors - 2 x USB 2.0
External connectors - 2 x USB 3.0
External connectors - 3 x USB 3.1
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Motherboard chipset - Intel Z790
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - ATX
Features - Product colour - Aluminium
Features - Product colour - Aluminium, Black
Features - Product colour - Black
Features - Windows operating systems supported - Windows 10 x64
Features - Windows operating systems supported - Windows 10 x64, Windows 11 x64
Features - Windows operating systems supported - Windows 11 x64
FireWire (IEEE 1394) - No
Form Factor - ATX
Form factor - ATX
Frequency speed - 4800/5000/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000/7200/7400/7600/7800 MHz
Full Description Line - Intel Z790|LGA1700|ATX|DDR5|7800/7600/7400/7200/7000/6800/6600/6400/6200/6000/5800/5600/5400/5200/5000/4800 MHz|Memory slots 4|1xPCI-Express 1x|3xPCI-Express 16x|4xM.2|1xHDMI|1xDisplayPort|1xUSB 2.0|5xUSB 3.2|1xUSB-C|1xOptical S/PDIF|1xRJ45|5xAudio port|SATA|USB 2.0|USB 3.2|Bluetooth|WiFi|Video Depending on CPU|LAN 2.5 Gigabit|Audio Realtek ALC4080|RAID SATA 0, 1, 5, 10; NVMe 0, 1, 5, 10|TPM Header
Graphics - 1xHDMI HDMI 2.1 support with HDR, maximum resolution 4K 60 Hz 1x DisplayPort Support DP 1.4, maximum resolution 8K 60Hz
Graphics - On-board graphics card - No
Gross weight - 1.64 kg
gross_weight - 1.64 kg
GTIN - 0824142337301
GTIN - 824142337301
GTIN - 4711377139939
guarantee - 36
guarantee_type - normal
HDMI Input/Output connectors - 1
Integrated audio - Realtek ALC4080
Integrated CPU - No
Integrated LAN - 2.5 Gigabit
Integrated video - Depending on CPU
Internal I/O - Chassis intrusion connector - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Front panel connector - Yes
Internal I/O - Number of SATA III connectors - 6
Internal I/O - RGB LED pin header - Yes
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 4
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 2
Internal I/O - USB 3.2 Gen 2 (3.1 Gen 2) connectors - 1
Internal I/O > Number of SATA connectors - 6
Internal I/O > Supported hard disk drive interfaces - SATA, M.2
Link - https://www.msi.com/Motherboard/PRO-Z790-A-MAX-WIFI
LongDesc - PRO Z790-A MAX WIFI offers a simple design with a harmonious silver color scheme that perfectly matches white and black PC builds. It is engineered with many exclusive features of MSI, a convenient Wi-Fi 7 solution, and DDR5 optimization for Intel® Core™ 14th Gen and 13th Gen processors.Extended HeatsinkExtended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.M.2 Shield FrozrStrengthened M.2 thermal solution helps keep M.2 SSD safe and ensures incredible performance.Heavy Plated VRM HeatsinkThe VRM heatsink covers the upper MOS and helps dissipate the heat.7W/mK Thermal Pad & Additional Choke PadHigh-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are runnging at high speed.Enlarged Chipset HeatsinkThe enlarged heatsink is designed to reduce dust and noise and capable of maintaining high efficiency of heat dissipation.SMT PCIE 5.0 SLOTThe advanced SMT(Surface Mount Technology) PCIE slot diminish interference and electrical noise, fully support the PCI-E 5.0 signal.THE ISOLATED ANALOGY STRUCTURE FOR AUDIO CONNECTORSTo provide clear voice, MSI develops a unique structure – Isolated Analogy Structure. The external metal framework of the audio connectors is separated from the internal layout, which ensures the sound quality crisp.
LongProductName - LGA 1700, Z790, 4x DDR5, Wi-Fi 6E, 2.5G LAN, AMI UEFI BIOS
LongSummaryDescription - MSI PRO Z790-A MAX WIFI. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Pentium®, Intel® Pentium® Gold. Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory channels: Dual-channel. Supported storage drive interfaces: M.2, PCI Express, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 6 (802.11ax), Wi-Fi standards: 802.11a, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: Intel
LPT connector / port - No
M.2 Expansion slots - 4
Manufacturer - MSI
Manufacturer_code - 7E07-014R
Max. number of ATA devices - 0
Max. number of SATA devices - 6
Max memory size - 192 GB
Memory - ECC сompatibility - Non-ECC
Memory - Maximum internal memory - 128 GB
Memory - Memory channels - Dual-channel
Memory - Number of memory slots - 4
Memory - Supported memory clock speed (max) - 7200 MHz
Memory - Supported memory clock speeds - 4800
Memory - Supported memory clock speeds - 4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000 MHz
Memory - Supported memory clock speeds - 5000
Memory - Supported memory clock speeds - 5200
Memory - Supported memory clock speeds - 5400
Memory - Supported memory clock speeds - 5600
Memory - Supported memory clock speeds - 5800
Memory - Supported memory clock speeds - 6000
Memory - Supported memory clock speeds - 6200
Memory - Supported memory clock speeds - 6400
Memory - Supported memory clock speeds - 6600
Memory - Supported memory clock speeds - 6800
Memory - Supported memory clock speeds - 7000
Memory - Supported memory types - DDR5-SDRAM
Memory - Unbuffered memory - Yes
Memory > Supported memory types - DDR5 UDIMM
Memory bus frequency - 4800 MHz
Memory bus frequency - 5000 MHz
Memory bus frequency - 5200 MHz
Memory bus frequency - 5400 MHz
Memory bus frequency - 5600 MHz
Memory bus frequency - 5800 MHz
Memory bus frequency - 6000 MHz
Memory bus frequency - 6200 MHz
Memory bus frequency - 6400 MHz
Memory bus frequency - 6600 MHz
Memory bus frequency - 6800 MHz
Memory bus frequency - 7000 MHz
Memory bus frequency - 7200 MHz
Memory bus frequency - 7400 MHz
Memory bus frequency - 7600 MHz
Memory bus frequency - 7800 MHz
Memory slots - 4
Memory type - DDR5
Memory type - DDR5
Model - Pro Max Z790-A
Model - Pro Z790-A
Model - PRO Z790-A MAX WIFI
MPN - 7E07-014R
Name - 1700 MSI PRO Z790-A Max WIFI DDR5 ATX
name - MSI Pro Z790-A Max WiFi, Intel Z790 Mainboard - Sockel 1700, DDR5
Name - MSI PRO Z790-A MAX WIFI - Socket 1700 - motherboard
Name - MSI | PRO Z790-A MAX WIFI | Processor family Intel | Processor socket LGA1700 | DDR5 UDIMM | Supported hard disk drive interfaces SATA, M.2 | Number of SATA connectors 6
name - PRO Z790-A MAX WIFI s1700 4DDR5 HDMI/DP ATX
Network - Bluetooth - Yes
Network - Bluetooth version - 5.3
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Top Wi-Fi standard - Wi-Fi 6 (802.11ax)
Network - Wi-Fi - Yes
Network - Wi-Fi standards - 802.11a
Network - Wi-Fi standards - 802.11a, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Network - Wi-Fi standards - 802.11g
Network - Wi-Fi standards - Wi-Fi 4 (802.11n)
Network - Wi-Fi standards - Wi-Fi 5 (802.11ac)
Network - Wi-Fi standards - Wi-Fi 6 (802.11ax)
Network interface - Bluetooth
Network interface - Intel 2.5Gbps LAN WiFi 7 The wireless module is pre-installed in the M.2 (Key-E) slot. Supports MU-MIMO TX/RX, 2.4 GHz / 5 GHz / 6 GHz (320 MHz) up to 5.8 Gbps Supports 802.11 a/b/g/n/ac/ax/be Supports Bluetooth 5.4, MLO, 4KQAM
Network interface - Wi-Fi 802.11a/b/g/n/ac/ax/be
Number of DDR5 slots - 4
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 4
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 5
Onboard connectors - 1 x 4pin CPU fan
Onboard connectors - 1 x Chassis intrusion header
Onboard connectors - 1 x TPM header
Onboard connectors - 1 x USB C
Onboard connectors - 2 x System panel header
Onboard connectors - 2 x USB 3.0 header
Onboard connectors - 4 x USB 2.0/1.1
Optical S/PDIF Input/Output connectors - 1
Other information -
Package features > Classification of battery - CL126:NE:2016-12-09
Package features > Composition of battery - CL127:KT:2016-12-09
Package features > Embeeded battery - Yes
Package features > Gross depth (mm) - 319.00 mm
Package features > Gross height (mm) - 352.00 mm
Package features > Gross width (mm) - 86.00 mm
Package features > Inner carton packing Qty - 1.00 pc(s)
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 179 pc(s)
Package features > Paper/Pasteboard - 600.00 g
Package features > Plastic (No PET) - 75.00 g
Package features > Tare weight (kg) - 0.68 kg
Package features > TI weight (kg) - 0.05 kg
Package features > Type of battery - Accumulator
Package features > Volume (m3) - 0.01 m³
Package features > WEEE tax - No
Packaging content - Cables included - SATA
PCI-Express 1x Expansion slots - 1
PCI-Express 16x Expansion slots - 3
Processor - Compatible processor series - Intel® Celeron®
Processor - Compatible processor series - Intel® Celeron®, Intel® Pentium®, Intel® Pentium® Gold
Processor - Compatible processor series - Intel® Pentium®
Processor - Compatible processor series - Intel® Pentium® Gold
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1700
Processor - Supported processor sockets - LGA 1700
Processor > Processor family - Intel
Processor > Processor socket - LGA1700
Processor family - Intel Celeron
Processor family - Intel Core
Processor family - Intel Pentium
producer - MSI
Producer - MSI
producerCode - 7E07-014R
Producer product name - PRO Z790-A MAX WIFI
productName - MSI PRO Z790-A MAX WIFI motherboard Intel Z790 LGA 1700 ATX
ProductName - PRO Z790-A MAX WIFI
productSize - Normal
RAID - SATA 0, 1, 5, 10; NVMe 0, 1, 5, 10
RAID - Yes
Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - S/PDIF out port - Yes
Rear panel I/O ports - USB 2.0 ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 3
Rear panel I/O ports - USB 3.2 Gen 2x2 Type-C ports quantity - 1
RJ45 Input/Output connectors - 1
SATA Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 38.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 37 cm
Shipping box quantity - 5
Shipping Box Weight Shipping/Package Box Dimensions - 10.75 kg
Shipping Box Width Shipping/Package Box Dimensions - 28 cm
ShortSummaryDescription - MSI PRO Z790-A MAX WIFI, Intel, LGA 1700, Intel® Celeron®, Intel® Pentium®, Intel® Pentium® Gold, LGA 1700, DDR5-SDRAM, 128 GB
sizeX - 350
sizeY - 272
sizeZ - 75
Socket - LGA1700
Software -
Sound card - Realtek ALC4080 codec 7.1-channel high-performance USB audio Supports S/PDIF output
Special functions -
Storage controllers - Number of storage drives supported - 10
Storage controllers - RAID levels - 0
Storage controllers - RAID levels - 0, 1, 5, 10
Storage controllers - RAID levels - 1
Storage controllers - RAID levels - 5
Storage controllers - RAID levels - 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, PCI Express
Storage controllers - Supported storage drive types - HDD & SSD
Supported operating systems - Windows 11
Technical details > Net weight - 0.97 kg
Technical details > Producer - MSI
Title - MSI PRO Z790-A MAX WIFI motherboard Intel Z790 LGA 1700 ATX
title_en - MSI Pro Max Z790-A WiFi-Motherboard
title_lv - MSI Pro Max Z790-A WiFi-Mātestplate
title_ru - MSI Pro Max Z790-A WiFi-Материнская Плата
TPM - Header
Unit Box Height - 0.072
Unit Box Length - 0.345
Unit Box Width - 0.27
Unit Brutto Volume - 0.007977 cubm
Unit Gross Weight - 2.15 kg
Unit Net Weight - 1.5 kg
URL - https://www.msi.com/Motherboard/PRO-Z790-A-MAX-WIFI
USB-C Input/Output connectors - 1
USB 2.0 Input/Output connectors - 1
USB 2.0 Interface - Yes
USB 3.2 Input/Output connectors - 5
USB 3.2 Interface - Yes
USB ports at back panel - 8
Vendor Homepage - www.msi.com/Motherboard/PRO-Z790-A-MAX-WIFI
vendpn - PRO Z790-A MAX WIFI
Warranty - 36
Warranty - 36 month(s)
Warranty - 36 months
WarrantyInfo -
warrantyLength - 36
warrantyType - G
weight - 1.5 kg
Weight - 1.971
Weight - 2,00
weight - 1980
Weight & dimensions - Depth - 243.8 mm
Weight & dimensions - Width - 304.8 mm
WiFi Interface - Yes
