Audio port Input/Output connectors - 5
BIOS - BIOS memory size - 256 Mbit
BIOS - BIOS type - UEFI AMI
Brand - ASUS
BrandPartCode - 90MB1BY0-M0EAY0
Category - Motherboards
category - PC Components|Mainboards|AMD Mainboards|Socket AM5
Category - Root/Electronics/PC parts/Motherboards
Category Code - MBA
Category_1 - Motherboards
Category_2 - Motherboards - AMD AM5
Chipset - AMD B650
code - 90MB1BY0-M0EAY0
Code - 90MB1BY0-M0EAY0
Description - TUF GAMING B650-PLUS ASUS TUF GAMING B650-PLUS takes all the essential elements of the latest AMD Ryzen 7000-series processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. Aesthetically, this model incorporates rugged off-black and geometric design elements to reflect the dependability and stability that defines the TUF GAMING series.
dimensionalWeight - 1530
DisplayPort Input/Output connectors - 1
EAN - 4711081912767
ean - 4711081912767
Eans - 4711081912767
EAN_code - 4711081912767
Expansion slots - Number of M.2 (M) slots - 3
Expansion slots - PCI Express x4 (Gen 1.x) slots - 2
Expansion slots - PCI Express x16 (Gen 4.x) slots - 2
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Motherboard chipset - AMD B650
Features - Motherboard chipset family - AMD
Features - Motherboard form factor - ATX
Features - Power source type - ATX
Features - Windows operating systems supported - Windows 10
Features - Windows operating systems supported - Windows 10, Windows 11 x64
Features - Windows operating systems supported - Windows 11 x64
Form Factor - ATX
Frequency speed - 4800/5000/5200/5400/5600/5800/6000/6200/6400 MHz
Full Description Line - AMD B650|SAM5|ATX|DDR5|6400/6200/6000/5800/5600/5400/5200/5000/4800 MHz|Memory slots 4|2xPCI-Express 4.0 1x|2xPCI-Express 4.0 16x|3xM.2|1xHDMI|1xDisplayPort|4xUSB 2.0|2xUSB 3.2|2xUSB-C|1xRJ45|5xAudio port|USB 2.0|USB 3.2|SATA 3.0|Video Depending on CPU|Audio|LAN 2.5 Gigabit
Graphics - Parallel processing technology support - Not supported
GTIN - 4711081912767
HDMI Input/Output connectors - 1
Integrated audio - Yes
Integrated LAN - 2.5 Gigabit
Integrated video - Depending on CPU
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Number of chassis fan connectors - 4
Internal I/O - Number of COM connectors - 1
Internal I/O - Number of SATA III connectors - 4
Internal I/O - RGB LED pin header - Yes
Internal I/O - Thunderbolt headers - 1
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 2
Internal I/O > Number of SATA connectors - 4
Internal I/O > Supported hard disk drive interfaces - SATA-600 (RAID), 3 x M.2
Link - https://webshop.asus.com/ch-en/90MB1BY0-M0EAY0/TUF-GAMING-B650-PLUS
LongDesc - ASUS TUF GAMING B650-PLUS takes all the essential elements of the latest AMD Ryzen 7000-series processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. Aesthetically, this model incorporates rugged off-black and geometric design elements to reflect the dependability and stability that defines the TUF GAMING series.INTELLIGENT CONTROLComprehensive controls form the foundation of the ASUS TUF GAMING series. The TUF GAMING B650 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.CPU Performance BoostAMD Precision Boost Overdrive(PBO) pushes the CPU current and voltage budget to opportunistically increase performance. By aggressively tuning the PBO parameters, AMD‘s algorithm can leverage the motherboard’s robust power solution to ramp up performance even higher.All-Around Energy EfficiencyThe Power Saving function contains several settings can easily optimize power consumption and maximize energy savings. You can enable a CPU power limit, darken Aura lighting, and set the fan profile to a power saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows.UEFI BIOSThe renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners and comprehensive features for seasoned veterans.Armoury CrateThe ASUS-exclusive Armoury Crate centralizes easy control of supported gaming products. A single intuitive interface lets you customize RGB lighting for all compatible devices and link them to Aura Sync for unified illumination. It also offers information and control for a select and growing hardware ecosystem, with input device settings, Fan Xpert 4 and Two-Way AI Noise Cancelation. Armoury Crate even features product registration, and a news section to stay in touch with the gaming community.ROCK-SOLID PERFORMANCEWith upgraded power delivery and comprehensive cooling options to fuel AMD's latest CPUs, plus support for faster memory and storage, TUF GAMING B650 motherboards are the perfect foundation for your next high-core-count AMD battle rig.Teamed Power Stages12+2 power stages are each rated to handle 60 amperes, combining high-side and low-side MOSFETS and drivers into a single package to deliver power, efficiency and stable performance for all compatible AMD processors.8+4 PIN ProCool Power ConnectorsCompared to traditional power inputs, ASUS ProCool connectors are built to tight specifications to ensure full contact with PSU power cables. The resulting lower impedance helps prevent hotspots and connector failure.TUF ComponentsTUF ChokesCertified military-grade TUF chokes deliver rock-solid power to the CPU, improving system stability.TUF CapacitorsThe TUF 5K black metallic capacitors provide 52% wider temperature tolerance and a 2.5X-longer lifespan than standard motherboard capacitors.Digi+ VRMThe integrated Digi+ voltage-regulator module (VRM) is one of the finest in the industry, optimized for ultra-smooth and ultra-clean power delivery to the CPU at all times.DRAM Overclocking PerformanceDDR5 OC 6400Comprehensive memory tuning options are the cornerstone of TUF GAMING motherboards. With TUF GAMING B650 motherboards, you can extract all of the potential out of your DDR5 modules, whether they're from an extreme-speed kit or an entry-level set that would otherwise be locked.PCIe 5.0 SupportTUF GAMING B650 motherboards also feature one PCIe 5.0 M.2 slot to enjoy the fastest data transfers of up to 128 Gbps*, and all M.2 slots support for NVMe RAID configurations to take advantage of the latest available speeds.Cooler By Design1. Enlarged VRM HeatsinkThe extensive surface area of this heatsink covers the VRMs and chokes to improve heat dissipation.2. Optimized M.2 Heatsink DesignAll M.2 slots have dedicated heatsinks, keeping M.2 SSDs at optimal operating temperatures to ensure consistent performance and reliability.Comprehensive Fan ControlsTUF GAMING B650 motherboards feature comprehensive fan controls that can be configured via Fan Xpert 4 utility in Armoury Crate or the award-winning ASUS UEFI BIOS.ConnectivityTUF-GAMING B650 motherboards reach new heights of performance potential with the latest version of PCI Express, while an arsenal of USB ports includes three Type-C® connections, and Thunderbolt™ (USB4®) expands compatibility and bandwidth even further.EASY PC DIYThe TUF GAMING line offers easy setup for all builders. The TUF GAMING Alliance ecosystem grants compatibility, while Armoury Crate has Fan Xpert 4, hardware info, Two-Way AI Noise Cancelation, RGB options and peripheral settings. This platform has intuitive tools to build and optimize dream rigs.Build With ConfidenceTUF GAMING Alliance is a collaboration between ASUS and trusted PC component brands to ensure compatibility across a wide range of parts, such as PC cases, power supplies, CPU coolers, memory kits and more. With new partnerships and components being added regularly, the TUF GAMING Alliance will continue to grow even stronger.Safeslot Core+ & SafeDIMMSafeSlot Core+ is a reinforced metal sheath added to a PCIe slot to keep a card firmly installed. Meanwhile, strong ASUS SafeDIMM sheathes support and protect memory modules on select ASUS motherboards, empowering you to insert your modules with speed, accuracy and confidence.ESD GuardsESD Guards prolong the life of components while preventing damage from electrostatic discharge, providing protection for up to +/- 10 kV of air discharge and +/- 6 kV of contact discharge — greatly surpassing the respective industry standards of +/- 6 kV and +/- 4 kV. Surface-mounted TVS diodes in a dual in-line package help protect your PC from voltage spikes.TUF LANGuardTUF LANGuard is a military-grade innovation that integrates advanced signal-coupling technology and premium surface-mounted capacitors to improve throughput, protecting the motherboard from lightning strikes and static electricity.Stainless Steel Back I/O PanelTUF GAMING motherboards have a corrosion-resistant stainless steel back I/O panel bonded with chromium oxide to provide a lifespan that’s three times longer than traditional panels. With this protective feature, TUF GAMING motherboards passed 72-hour salt fog testing, while other brands only passed 24-hour testing.M.2 Q-LatchThe innovative Q-Latch makes it easy to install or remove an M.2 SSD without the need for specific tools. The design employs a simple locking mechanism to secure the M.2 SSD, neatly eliminating the need for screws.Removable Captive ScrewsSpecialized M.2 slot screws reduce the risk of dropping or losing a screw somewhere in your case during M.2 heatsink removal.Q-LEDThe on-board Q-LED troubleshooting lights give PC builders a quick indicator to confirm that key components ― CPU, RAM, graphics card, storage devices ― are functioning normally during startup.IMMERSIVE GAMINGTUF GAMING B650 motherboards provide a feature-packed high-performance gaming package, with ultrafast networking for smoother online gameplay, pristine audio with positional cues for FPS Gaming, and onboard RGB lighting that syncs with attached gear to personalize your gaming atmosphere.2.5 Gb Ethernet2.5 Gb on-board Ethernet kicks your LAN connection up a notch with a bandwidth improvement of up to 2.5X. Using your existing LAN cable, you can take advantage this networking upgrade to experience smoother, lag-free gaming, immediately stream high-resolution videos and enjoy faster file transfers.Two-Way AI Noise CancelationThis powerful ASUS-exclusive utility leverages a massive deep-learning database to reduce background noise from the microphone* and incoming audio while preserving voices. Distracting keyboard clatter, mouse clicks and other ambient noises are removed so you can hear and be heard with perfect clarity while gaming or during calls.*An audio splitter (3.5 mm audio jack Y-cable) is necessary when using a 3.5 mm headset.Realtek 7.1 Surround SoundThe unique audio codec designed in close collaboration with Realtek for TUF GAMING B650 motherboards features an unprecedented 108 dB signal-to-noise ratio for the stereo line out and a 103dB SNR for the line in, providing pristine audio quality.DTS Audio ProcessingDTS® Audio Processing enhances gaming headset and speaker audio experiences by reducing distortion and by providing deeper bass, so games, movies and music sound better. It also allows you to customize audio settings.Addressable Gen 2 RGB HeaderThree addressable Gen 2 RGB headers will support up to 500 LEDs on Gen 2 RGB devices, empowering Aura Sync to automatically tailor lighting effects across your whole system. The new headers also offer full backward compatibility with existing Aura Sync gear.THIS CHANGES EVERYTHINGFROM THIS NEW PLATFORM,YOU CAN SEE THE FUTUREBuild your next rig with an AMD Ryzen™ 7000 Series processor and ASUS TUF GAMING motherboards to experience advanced performance. With up to 16 “Zen 4” cores and 32 threads, boost clocks of up to 5.7GHz, and 80MB cache, the AMD Ryzen™ 7000 Series keeps you ahead of the game.1You’ll also gain access to new features for gamers with AMD Socket AM5, from the speed of DDR5 memory to the increased bandwidth of PCIe® 5.0. AMD Ryzen™ 7000 Series processors and AMD socket AM5 motherboards are unlocked for overclocking to personalize your experience. Gain even more performance when you overclock your DDR5 memory with AMD EXPO™ technology.2
LongProductName - TUF GAMING B650-PLUS Mainboard Sockel AMD AM5 (Ryzen 7000, ATX, PCIe 5.0, DDR5-Speicher, 14 Power Stages, USB 3.2 Gen 2x2 Typ-C, 2.5G Ethernet, Aura Sync)
LongSummaryDescription - ASUS TUF GAMING B650-PLUS. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen™ 3, AMD Ryzen™ 7, AMD Ryzen 9 7th Gen. Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Ethernet interface type: 2.5 Gigabit Ethernet. Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: AMD
M.2 Expansion slots - 3
Manufacturer - Asus
Manufacturer_code - 90MB1BY0-M0EAY0
Memory - ECC - Yes
Memory - Maximum internal memory - 128 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Non-ECC - Yes
Memory - Number of memory slots - 4
Memory - Supported memory clock speed (max) - 6400 MHz
Memory - Supported memory clock speeds - 4800
Memory - Supported memory clock speeds - 4800,5000,5200,5400,5600,5800,6000,6200,6400 MHz
Memory - Supported memory clock speeds - 5000
Memory - Supported memory clock speeds - 5200
Memory - Supported memory clock speeds - 5400
Memory - Supported memory clock speeds - 5600
Memory - Supported memory clock speeds - 5800
Memory - Supported memory clock speeds - 6000
Memory - Supported memory clock speeds - 6200
Memory - Supported memory clock speeds - 6400
Memory - Supported memory types - DDR5-SDRAM
Memory - Unbuffered memory - Yes
Memory > Memory slots - 4
Memory > Supported memory types - 4 DIMM slots - DDR5, non-ECC, ECC, on-die ECC, unbuffered
Memory slots - 4
Memory type - DDR5
Model - TUF GAMING B650-PLUS

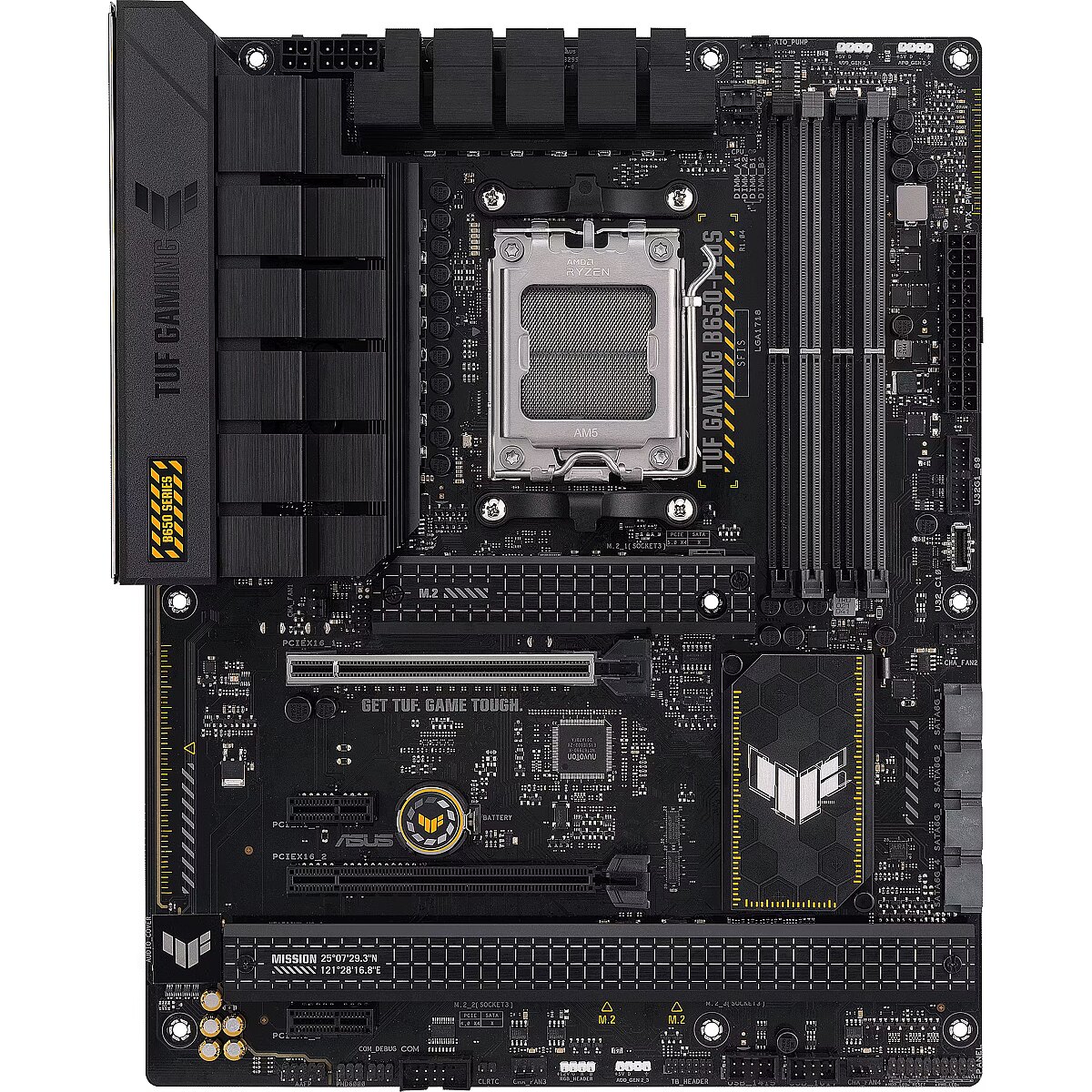

Name - ASUS TUF GAMING B650-PLUS
name - ASUS TUF Gaming B650-Plus, AMD B650 Mainboard - Sockel AM5, DDR5
Name - ASUS TUF GAMING B650-PLUS, Mainboard (black/light orange) - AM5
Name - ASUS TUF GAMING B650-PLUS | Asus | TUF Gaming B650-Plus - motherboard - ATX | Processor family AMD B650 | Processor socket 1 x Socket AM5 | 4 DIMM slots - DDR5, non-ECC, ECC, on-die ECC, unbuffered | Memory slots 4 | Supported hard disk drive interfaces SATA-600 (RAID), 3 x M.2 | Number of SATA connectors 4
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Wi-Fi - No
Other features - Back-to-BIOS button - Yes
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 305.00 mm
Package features > Gross height (mm) - 100.00 mm
Package features > Gross width (mm) - 234.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 121 pc(s)
Package features > Paper/Pasteboard - 80.00 g
Package features > Plastic (No PET) - 20.00 g
Package features > Tare weight (kg) - 0.10 kg
Package features > Volume (m3) - 0.01 m³
Package features > WEE classification - CL109:5:2017-04-01
Package features > WEEE tax - Yes
Packaging data - Package depth - 273 mm
Packaging data - Package height - 68 mm
Packaging data - Package weight - 1.36 kg
Packaging data - Package width - 338 mm
PCI-Express 4.0 1x Expansion slots - 2
PCI-Express 4.0 16x Expansion slots - 2
Processor - Compatible processor series - AMD Ryzen 9 7th Gen
Processor - Compatible processor series - AMD Ryzen™ 3
Processor - Compatible processor series - AMD Ryzen™ 3, AMD Ryzen™ 7, AMD Ryzen 9 7th Gen
Processor - Compatible processor series - AMD Ryzen™ 7
Processor - Processor manufacturer - AMD
Processor - Processor socket - Socket AM5
Processor - Supported processor sockets - Socket AM5
Processor > Processor family - AMD B650
Processor > Processor socket - 1 x Socket AM5
Producer - Asus
producerCode - 90MB1BY0-M0EAY0
ProducerCode - TUF GAMING B650-PLUS
productName - ASUS TUF GAMING B650-PLUS AMD B650 Socket AM5 ATX
ProductName - TUF GAMING B650-PLUS
productSize - Normal

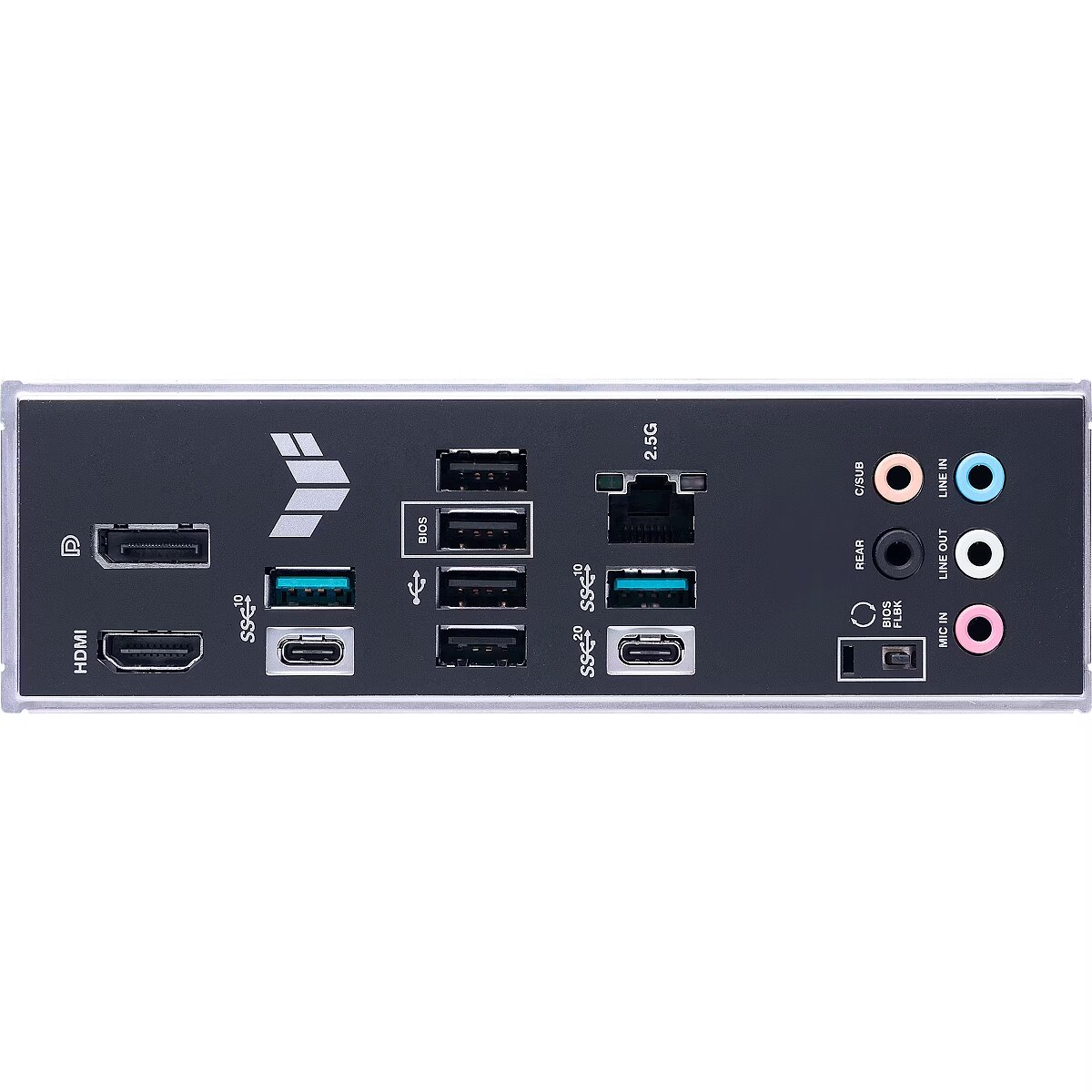

Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - DisplayPort version - 1.4
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - HDMI version - 2.1
Rear panel I/O ports - Headphone outputs - 1
Rear panel I/O ports - Line-in - Yes
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - USB 2.0 ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity - 1
Rear panel I/O ports - USB 3.2 Gen 2x2 Type-C ports quantity - 1
RJ45 Input/Output connectors - 1
SATA 3.0 Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 34 cm
Shipping Box Height Shipping/Package Box Dimensions - 7 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 1.729 kg
Shipping Box Width Shipping/Package Box Dimensions - 27.5 cm
ShortDescription - Socket AM5 | Chipset AMD B650 | DDR5
ShortSummaryDescription - ASUS TUF GAMING B650-PLUS, AMD, Socket AM5, AMD Ryzen™ 3, AMD Ryzen™ 7, AMD Ryzen 9 7th Gen, Socket AM5, DDR5-SDRAM, 128 GB
sizeX - 85
sizeY - 300
sizeZ - 300
Socket - SAM5
Storage controllers - RAID levels - 0
Storage controllers - RAID levels - 0, 1, 10
Storage controllers - RAID levels - 1
Storage controllers - RAID levels - 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Technical details > Gross weight - 0.88 kg
Technical details > Net weight - 0.78 kg
Technical details > Producer - Asus
Technical details > Producer product name - TUF Gaming B650-Plus - motherboard - ATX
Technical details > Warranty - 36 month(s)
Title - ASUS TUF GAMING B650-PLUS AMD B650 Socket AM5 ATX
Unit Box Height - 0.07
Unit Box Length - 0.34
Unit Box Width - 0.275
Unit Brutto Volume - 0.006545 cubm
Unit Gross Weight - 1.73 kg
Unit Net Weight - 1.5 kg
URL - https://www.asus.com/Motherboards-Components/Motherboards/TUF-Gaming/TUF-GAMING-B650-PLUS/
USB-C Input/Output connectors - 2
USB 2.0 Input/Output connectors - 4
USB 2.0 Interface - Yes
USB 3.2 Input/Output connectors - 2
USB 3.2 Interface - Yes
Vendor Homepage - www.asus.com/Motherboards-Components/Motherboards/TUF-Gaming/TUF-GAMING-B650-PLUS/
Warranty - 36
Warranty - 36 months
WarrantyInfo -
warrantyLength - 36
warrantyType - G
Weight - 2,50
weight - 1560
Weight & dimensions - Depth - 244 mm
Weight & dimensions - Width - 305 mm
