Accessories included -
Audio port Input/Output connectors - 2
BIOS -
Bluetooth Interface - Yes
Brand - MSI
BrandPartCode - MPG X870E CARBON WIFI
Category - Motherboards
Category 1 - Mainboards & Zubehör
Category 2 - Mainboards - AMD
Category Code - MBA
Chipset - AMD X870E
Chipset manufacturer - AMD
Chipset type - AMD X870E
CnCode CnCode - 84733020
Code - MPG X870E CARBON WIFI
COM connector / port - No
CPU socket - Socket AM5
Description - MPG X870E CARBON WIFI - Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors - Supports DDR5 Memory, Dual Channel DDR5 8400+ MT/s (OC) - Ultra Performance: 18+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 8-layer PCB made by 2oz thickened copper and server-grade level material - Frozr Guard: Enlarged heatsink with heat-pipe, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience - EZ DIY: EZ PCIe Release, EZ M.2 Shield Frozr II, EZ M.2 Clip II and EZ Antenna - Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2 - Ultra Connect: USB4 and 5G LAN + 2.5G LAN with Wi-Fi 7 Solution - The latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission - Audio Boost 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
Description - MPG X870E CARBON WIFI Obsługuje procesory stacjonarne AMD Ryzen serii 9000 / 8000 / 7000 Obsługuje pamięć DDR5, dwukanałową DDR5 8400+ MT/s (OC) Ultra wydajność: 18+2+1 Duet Rail Power System, dwa 8-pinowe złącza zasilania procesora, Core Boost, Memory Boost, 8-warstwowa płytka PCB wykonana z 2-uncjowej pogrubionej miedzi i materiału klasy serwerowej Frozr Guard: Powiększony radiator z rurką cieplną, podkładki termiczne MOSFET o mocy 7 W/mk, dodatkowe podkładki termiczne dławików i M.2 Shield Frozr są zbudowane z myślą o wysokiej wydajności systemu i nieprzerwanym graniu EZ DIY: EZ PCIe Release, EZ M.2 Shield Frozr II, EZ M.2 Clip II i EZ Antenna Błyskawiczne wrażenia z gry: gniazdo PCIe 5.0, Lightning Gen 5 M.2 Ultra Connect: USB4 i 5G LAN + 2.5G LAN z rozwiązaniem Wi-Fi 7 najnowsze rozwiązanie do zastosowań profesjonalnych i multimedialnych, zapewniające bezpieczne, stabilne i szybkie sieciowanie oraz transmisję danych Audio Boost 5: Nagradzaj swoje uszy jakością dźwięku klasy studyjnej, aby uzyskać najbardziej wciągające wrażenia z gry
Detailed data on disk/drive interfaces - 3x PCI-E x16 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 5.0 supports up to x4 (From CPU)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI_E1 & PCI_E2 slots
Supports PCIe 5.0 x16/x0 or x8/x4 (For Ryzen 9000/ 7000 Series processors)
Supports PCIe 4.0 x8/x0 (For Ryzen 8700/ 8600/ 8400 Series processors)
Supports PCIe 4.0 x4/x0 (For Ryzen 8500/ 8300 Series processor)
PCI_E3 slot
Supports up to PCIe 4.0 x4
dimensionalWeight - 1427
dimension depth - 70 mm
dimension height - 270 mm
Dimensions - 243.84 mm x 304.8 mm
dimension weight - 2558 g
dimension width - 340 mm
EAN - 4711377253536
ean - 4711377253536
Expansion slots - 1 x PCIe 4.0 x 4
Expansion slots - 1 x PCIe 4.0 x 8
Expansion slots - 1 x PCIe 5.0 x 16
Expansion slots - 3 x PCIe x 16
Expansion slots - 4 x M.2
Expansion slots - Number of M.2 (M) slots - 4
Expansion slots - PCI Express x16 (Gen 5.x) slots - 1

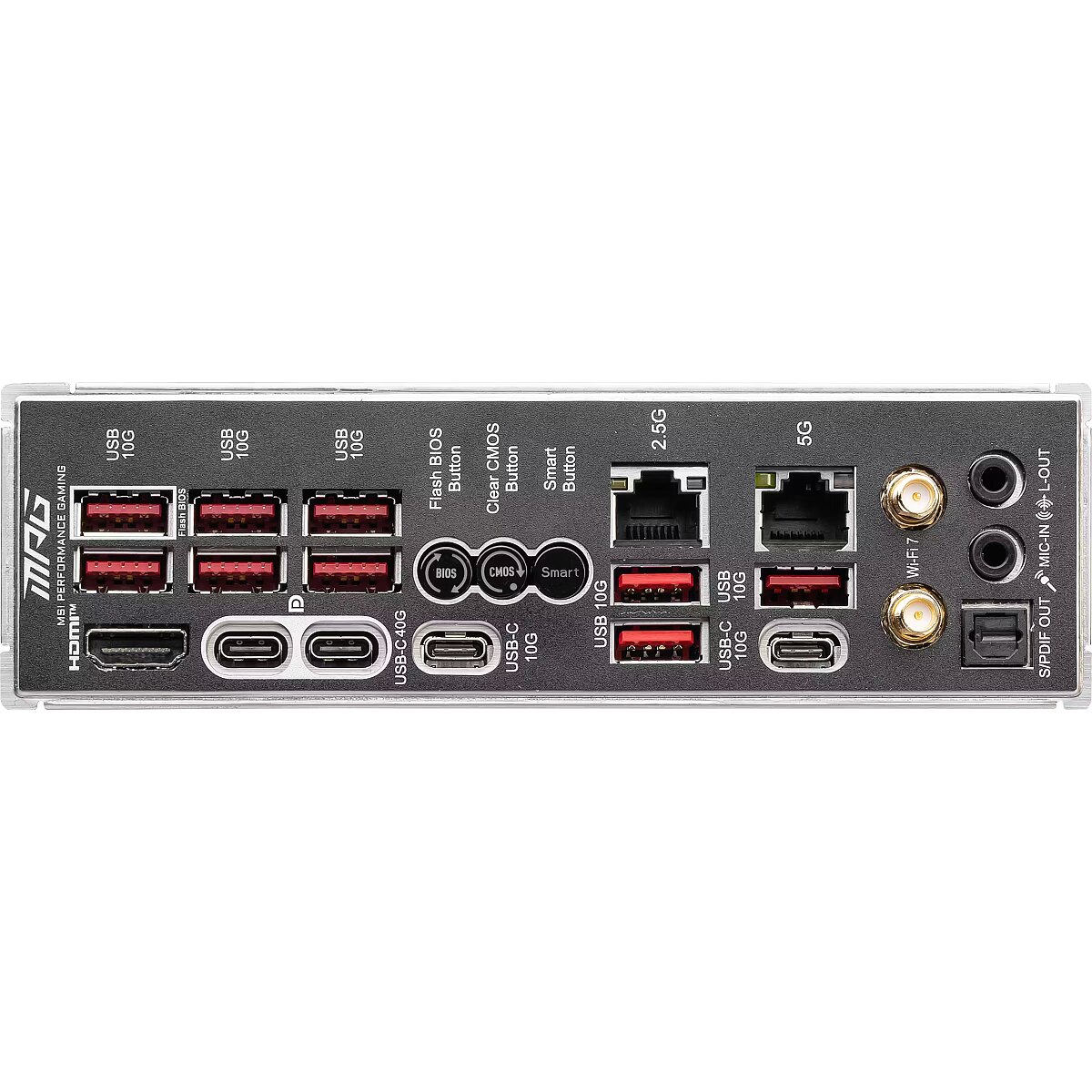

External connectors - 1 x Flash BIOS Button
External connectors - 1 x HDMI
External connectors - 1 x Line Out (front)
External connectors - 1 x MIC
External connectors - 1 x Przycisk Clear CMOS
External connectors - 1 x S/PDIF
External connectors - 1 x Smart Button
External connectors - 2 x RJ-45
External connectors - 2 x USB 3.1 Type-C
External connectors - 2 x USB4 Type-C
External connectors - 8 x USB 3.1
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Motherboard chipset - AMD X870E
Features - Motherboard chipset family - AMD
Features - Motherboard form factor - ATX
Features - PC health monitoring - CPU
Features - PC health monitoring - CPU, Fan, Temperature, Voltage
Features - PC health monitoring - Fan
Features - PC health monitoring - Temperature
Features - PC health monitoring - Voltage
Features - Product colour - Black
FireWire (IEEE 1394) - No
Form Factor - ATX
Form factor - ATX
Frequency speed - 4800/5000/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000/7200/7400/7600/7800/8000/8200/8400 MHz
Full Description Line - AMD X870E|SAM5|ATX|DDR5|8400/8200/8000/7800/7600/7400/7200/7000/6800/6600/6400/6200/6000/5800/5600/5400/5200/5000/4800 MHz|Memory slots 4|3xPCI-Express 16x|1xPCI-Express 4.0 4x |1xPCI-Express 5.0 4x|1xPCI-Express 5.0 16x|4xM.2|4xUSB 2.0|4xUSB 3.2|3xUSB-C|1xOptical S/PDIF|2xRJ45|2xAudio port|SATA|USB-C|USB 2.0|USB 3.2|Bluetooth|WiFi|Audio Realtek ALC4080|LAN 5 Gigabit|RAID SATA 0, 1, 10; NVMe 0, 1, 10|TPM Header
Graphics - 1x HDMI Obsługa HDMITM 2.1 z portem FRL, maksymalna rozdzielczość 8K 60Hz* 2x Type-C DisplayPort Port USB4, obsługa DisplayPort 1.4 z HBR3 przez USB Type-C, maksymalna rozdzielczość 4K@60Hz*
*Dostępne tylko w procesorach ze zintegrowaną grafiką. Specyfikacje graficzne mogą się różnić w zależności od zainstalowanego procesora.
Graphics - On-board graphics card - No
GTIN - 4711377253536
guarantee - 36
guarantee_type - normal
Integrated audio - Realtek ALC4080
Integrated CPU - No
Integrated LAN - 5 Gigabit
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Number of SATA III connectors - 4
Internal I/O - Total number of SATA connectors - 4
Internal I/O - USB 2.0 connectors - 4
Internal I/O > Number of SATA connectors - 4
Internal I/O > Supported hard disk drive interfaces - SATA, M.2
Link - https://www.msi.com/Motherboard/MPG-X870E-CARBON-WIFI
LongDesc -
LongProductName - 4 X DDR5 , Socket AM5, Wi -Fi 7, 2,5GBE LAN, 4 X M.2
LongSummaryDescription - MSI MPG X870E CARBON WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen™ 7. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi standards: Wi-Fi 7 (802.11be). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: AMD
LPT connector / port - No
M.2 Expansion slots - 4
Manufacturer - MSI
Max. number of ATA devices - 0
Max. number of SATA devices - 4
Max memory size - 256 GB
Memory - Maximum internal memory - 256 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Non-ECC - Yes
Memory - Number of memory slots - 4
Memory - Supported memory types - DDR5-SDRAM
Memory > Supported memory types - DDR5 UDIMM
Memory bus frequency - 4800 MHz
Memory bus frequency - 5000 MHz
Memory bus frequency - 5200 MHz
Memory bus frequency - 5400 MHz
Memory bus frequency - 5600 MHz
Memory bus frequency - 5800 MHz
Memory bus frequency - 6000 MHz
Memory bus frequency - 6200 MHz
Memory bus frequency - 6400 MHz
Memory bus frequency - 6600 MHz
Memory bus frequency - 6800 MHz
Memory bus frequency - 7000 MHz
Memory bus frequency - 7200 MHz
Memory bus frequency - 7400 MHz
Memory bus frequency - 7600 MHz
Memory bus frequency - 7800 MHz
Memory bus frequency - 8000 MHz
Memory bus frequency - 8200 MHz
Memory bus frequency - 8400 MHz
Memory slots - 4
Memory type - DDR5
Memory type - DDR5
Model - MPG X870E CARBON WIFI
MPN - 7E49-001R
Name - AM5 MSI MPG X870E CARBON WIFI ATX
name - Motherboard MPG X870E CARBON WIFI AM5 4DDR5 ATX
Name - MSI Processor family AMD | Processor socket AM5 | DDR5 UDIMM | Supported hard disk drive interfaces SATA, M.2 | Number of SATA connectors 4
Network - Bluetooth - Yes
Network - Bluetooth version - 5.4
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Top Wi-Fi standard - Wi-Fi 7 (802.11be)
Network - Wi-Fi - Yes
Network - Wi-Fi standards - Wi-Fi 7 (802.11be)
Network interface - 1 x 10/100/1000/2500 Mbit/s
Network interface - 1 x 10/100/1000/2500/5000 Mbit/s
Network interface - 1x Realtek 8126 5G LAN 1x Realtek 8125 2.5G LAN Sieć bezprzewodowa i bluetooth Rozwiązanie Wi-Fi 7 Moduł bezprzewodowy jest wstępnie zainstalowany w gnieździe M.2 (Key-E) Obsługuje MU-MIMO TX/RX, 2,4 GHz/ 5 GHz/ 6 GHz* (320 MHz) do 5,8 Gb/s Obsługuje 802.11 a/ b/ g/ n/ ac/ ax/ be Obsługuje Bluetooth 5.4**, MLO, 4KQAM
Network interface - Bluetooth
Network interface - Wi-Fi 802.11a/b/g/n/ac/ax/be
Number of DDR5 slots - 4
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 4
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 11
Onboard connectors - 1 x 4-pin water-pump-fan
Onboard connectors - 1 x 4pin CPU fan
Onboard connectors - 1 x 8pin 12V power
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Chassis intrusion header
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x RGB LED strip header
Onboard connectors - 1 x Thermal sensor connector
Onboard connectors - 1 x USB C
Onboard connectors - 2 x System panel header
Onboard connectors - 3 x Addressable LED
Onboard connectors - 4 x EZ Debug LED
Onboard connectors - 4 x USB 2.0/1.1
Onboard connectors - 4 x USB 3.0
Onboard connectors - 5 x 4pin Chassis fan
Optical S/PDIF Input/Output connectors - 1
Other information -
Package features > Classification of battery - CL126:NE:2016-12-09
Package features > Composition of battery - CL127:KT:2016-12-09
Package features > Embeeded battery - Yes
Package features > Gross depth (mm) - 342.00 mm
Package features > Gross height (mm) - 70.00 mm
Package features > Gross width (mm) - 268.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 135 pc(s)
Package features > Paper/Pasteboard - 500.00 g
Package features > Plastic (No PET) - 175.00 g
Package features > Tare weight (kg) - 0.68 kg
Package features > TI weight (kg) - 0.05 kg
Package features > Type of battery - Accumulator
Package features > Volume (m3) - 0.01 m³
Package features > WEEE tax - No
PCI-Express 4.0 4x Expansion slots - 1
PCI-Express 5.0 4x Expansion slots - 1
PCI-Express 5.0 16x Expansion slots - 1
PCI-Express 16x Expansion slots - 3
Processor - Compatible processor series - AMD Ryzen™ 7
Processor - Processor manufacturer - AMD
Processor - Processor socket - Socket AM5
Processor - Supported processor sockets - Socket AM5
Processor > Processor family - AMD
Processor > Processor socket - AM5
Processor family - AMD Ryzen 3
Processor family - AMD Ryzen 5
Processor family - AMD Ryzen 7
Processor family - AMD Ryzen 9
producer - MSI
producerCode - MPG X870E CARBON WIFI
ProductName - MPG X870E CARBON WIFI
productName - MSI MPG X870E CARBON WIFI motherboard AMD X870E Socket AM5 ATX
productSize - Normal
RAID - SATA 0, 1, 10; NVMe 0, 1, 10
RAID - Yes
Rear panel I/O ports - DisplayPorts quantity - 2
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - S/PDIF out port - Yes
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 6
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 2
Rear panel I/O ports - USB4 Gen 2x2 ports quantity - 2
RJ45 Input/Output connectors - 2
SATA Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 37.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 37 cm
Shipping box quantity - 5
Shipping Box Weight Shipping/Package Box Dimensions - 13.63 kg
Shipping Box Width Shipping/Package Box Dimensions - 29 cm
ShortSummaryDescription - MSI MPG X870E CARBON WIFI, AMD, Socket AM5, AMD Ryzen™ 7, Socket AM5, DDR5-SDRAM, 256 GB
sizeX - 75
sizeY - 346
sizeZ - 275
Socket - SAM5
Software -
Sound card - Kodek Realtek ALC4080 7.1-kanałowy dźwięk USB o wysokiej wydajności Obsługuje odtwarzanie do 32-bitów/384 kHz na panelu przednim Obsługuje wyjście S/PDIF
Special functions -
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Supported operating systems - Windows 11
Technical details > Gross weight - 1.64 kg
Technical details > Net weight - 0.97 kg
Technical details > Producer - MSI
Title - MSI MPG X870E CARBON WIFI motherboard AMD X870E Socket AM5 ATX
TPM - Header
Unit Box Height - 0.07
Unit Box Length - 0.345
Unit Box Width - 0.27
Unit Brutto Volume - 0.008048 cubm
Unit Gross Weight - 2.73 kg
Unit Net Weight - 1.5 kg
URL - https://www.msi.com/index.php
USB-C Input/Output connectors - 3
USB-C Interface - Yes
USB 2.0 Input/Output connectors - 4
USB 2.0 Interface - Yes
USB 3.2 Input/Output connectors - 4
USB 3.2 Interface - Yes
USB ports at back panel - 15
USB ports on motherboard - 9
Vendor Homepage - www.msi.com/Motherboard/MPG-X870E-CARBON-WIFI
vendpn - MPG X870E CARBON WIFI
Warranty - 36
Warranty - 36 month(s)
Warranty - 36 months
WarrantyInfo -
warrantyLength - 36
warrantyType - G
Weight - 2.563
weight - 2566
WiFi Interface - Yes
