Accessories included - Przedłużacz ARGB RGB 4 x kable SATA 6Gb/s ASUS WiFi Q-Antenna Złącze Q 2 x pakiet M.2 Q-Latch 3 x pakiet M.2 Q-Slide 5 x pakiet gumowy M.2 Naklejki ROG Karta z podziękowaniami ROG Otwieracz do butelek ROG Dysk USB z narzędziami i sterownikami Skrócona instrukcja obsługi
Audio-In Input/Output connectors - 1
Audio-Out Input/Output connectors - 1
BIOS - 256Mb Flash ROM, UEFI AMI BIOS
BIOS - BIOS memory size - 256 Mbit
BIOS - BIOS type - UEFI AMI
BIOS - Clear CMOS button - Yes
Brand - ASUS
BrandPartCode - 90MB1IE0-M0EAY0
Category - Motherboards
category - PC Components|Mainboards|AMD Mainboards|Socket AM5
Category - Root/Electronics/PC parts/Motherboards
Category Code - MBA
Chipset - AMD X870E
Chipset manufacturer - AMD
Chipset type - AMD X870E
code - 90MB1IE0-M0EAY0
Code - 90MB1IE0-M0EAY0
COM connector / port - No
CPU socket - Socket AM5

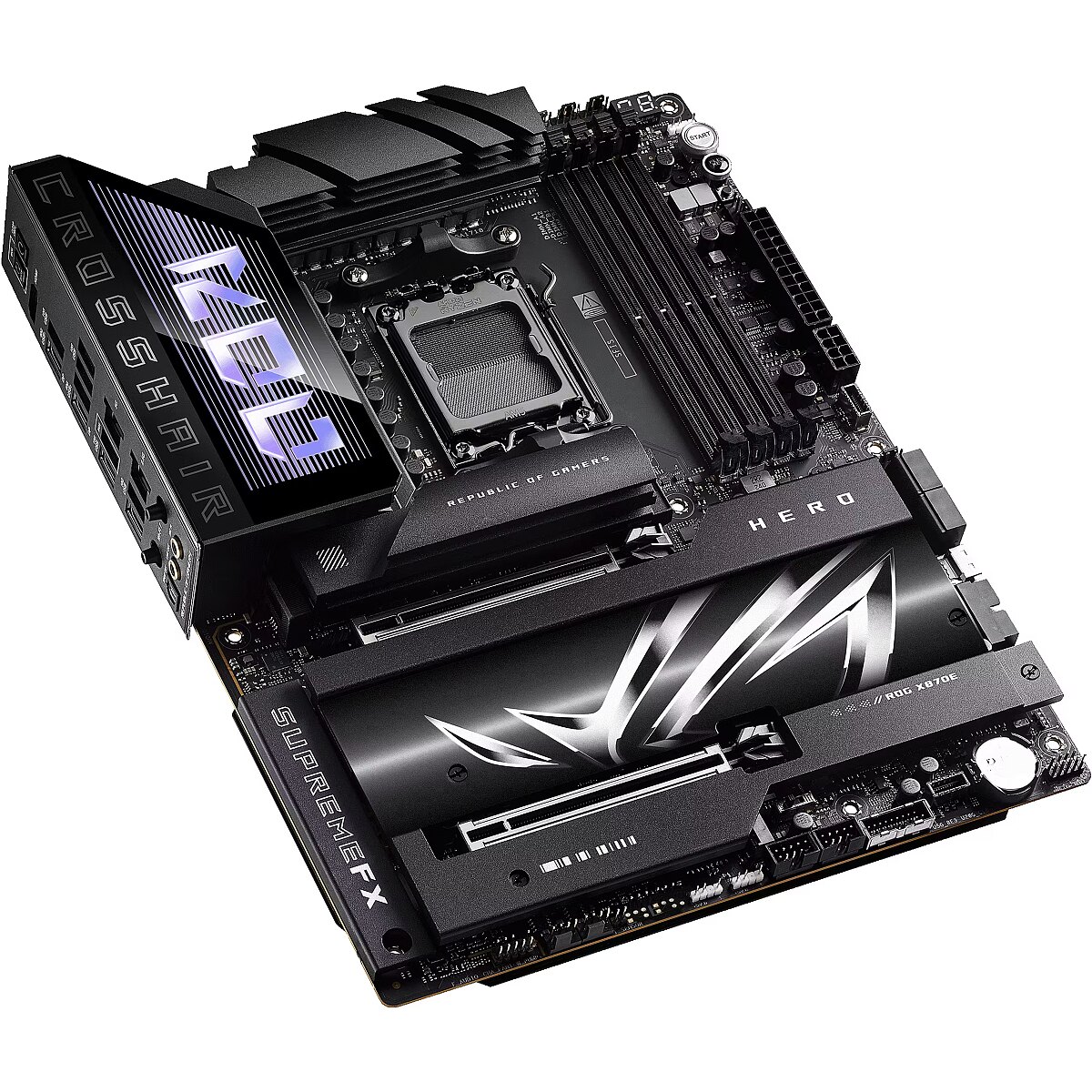

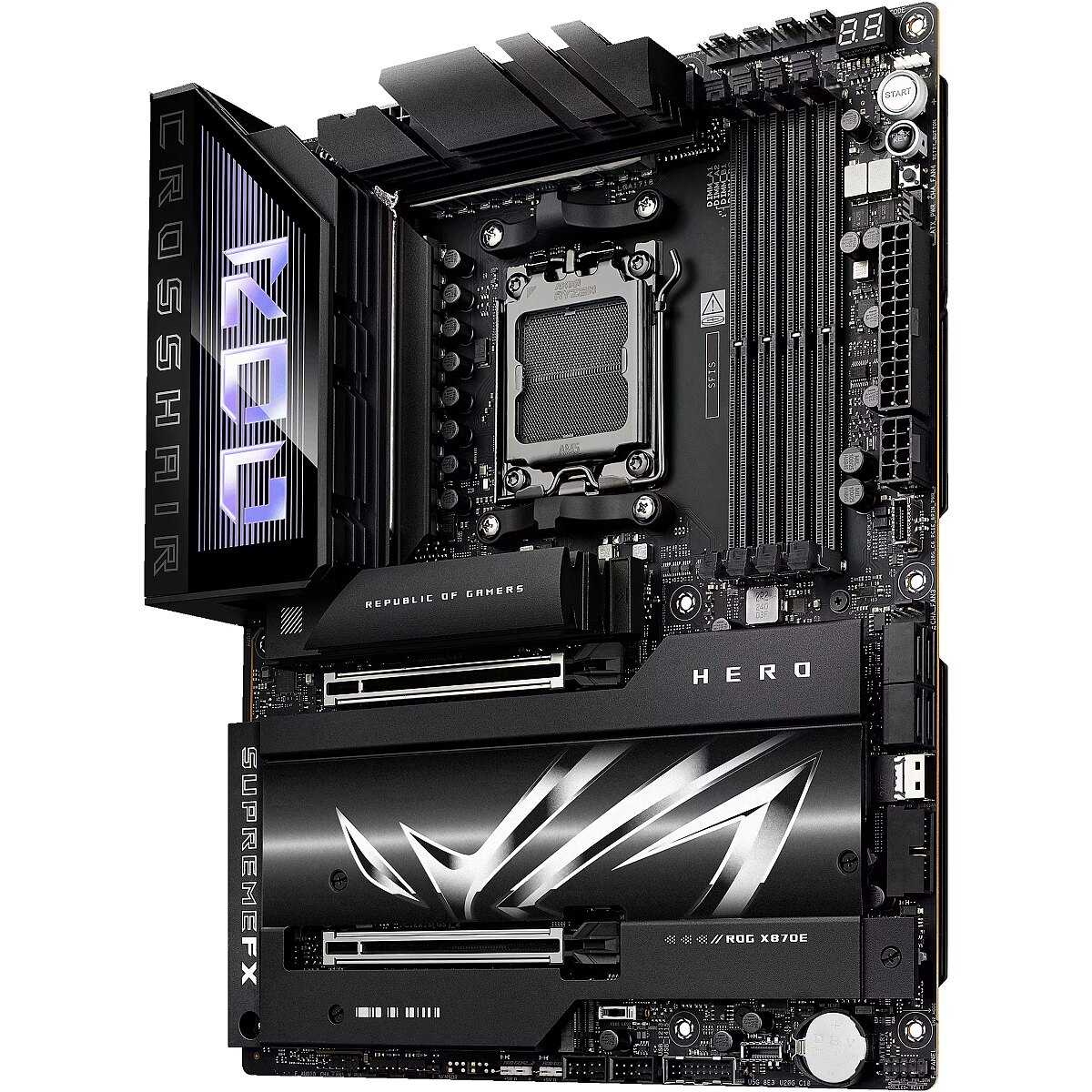

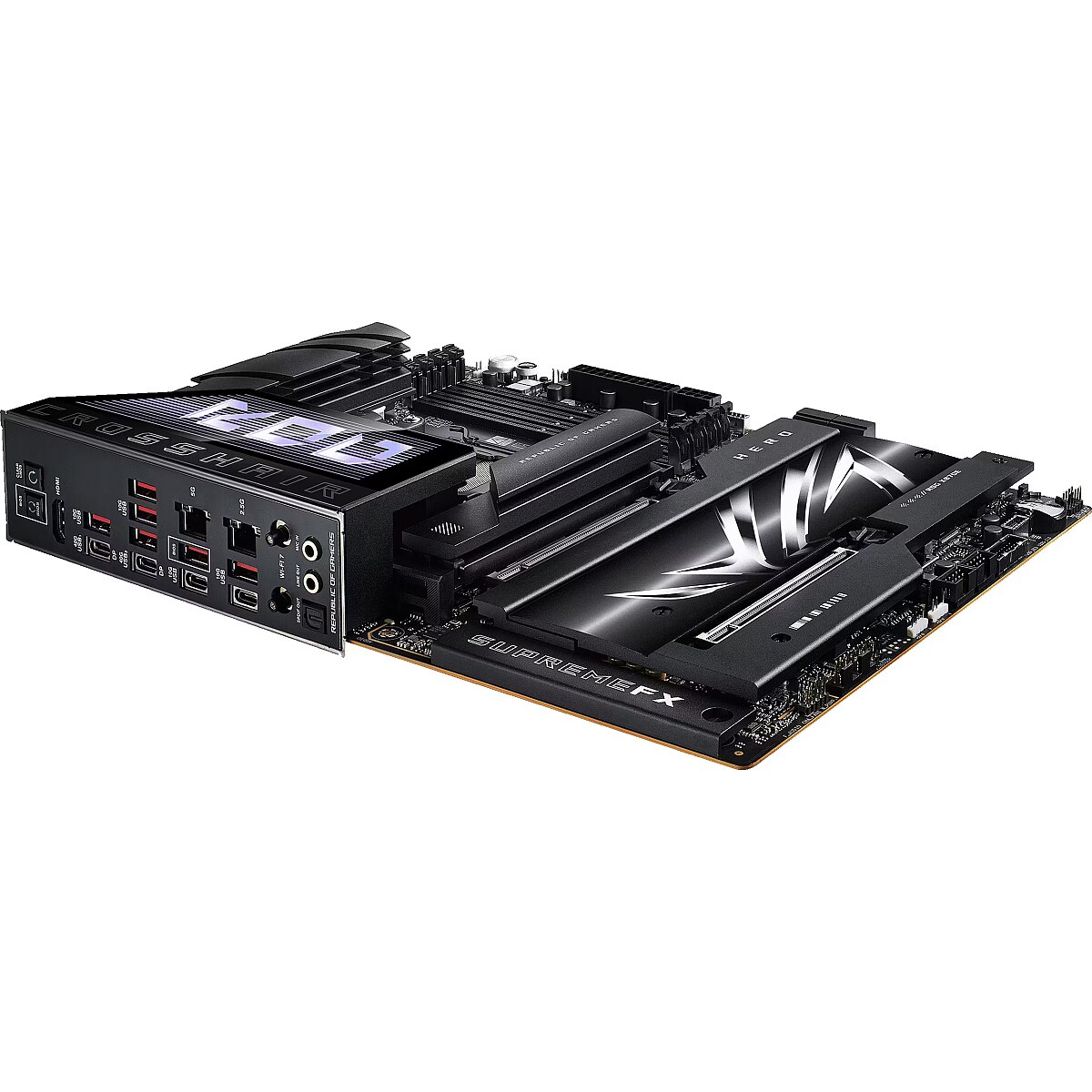

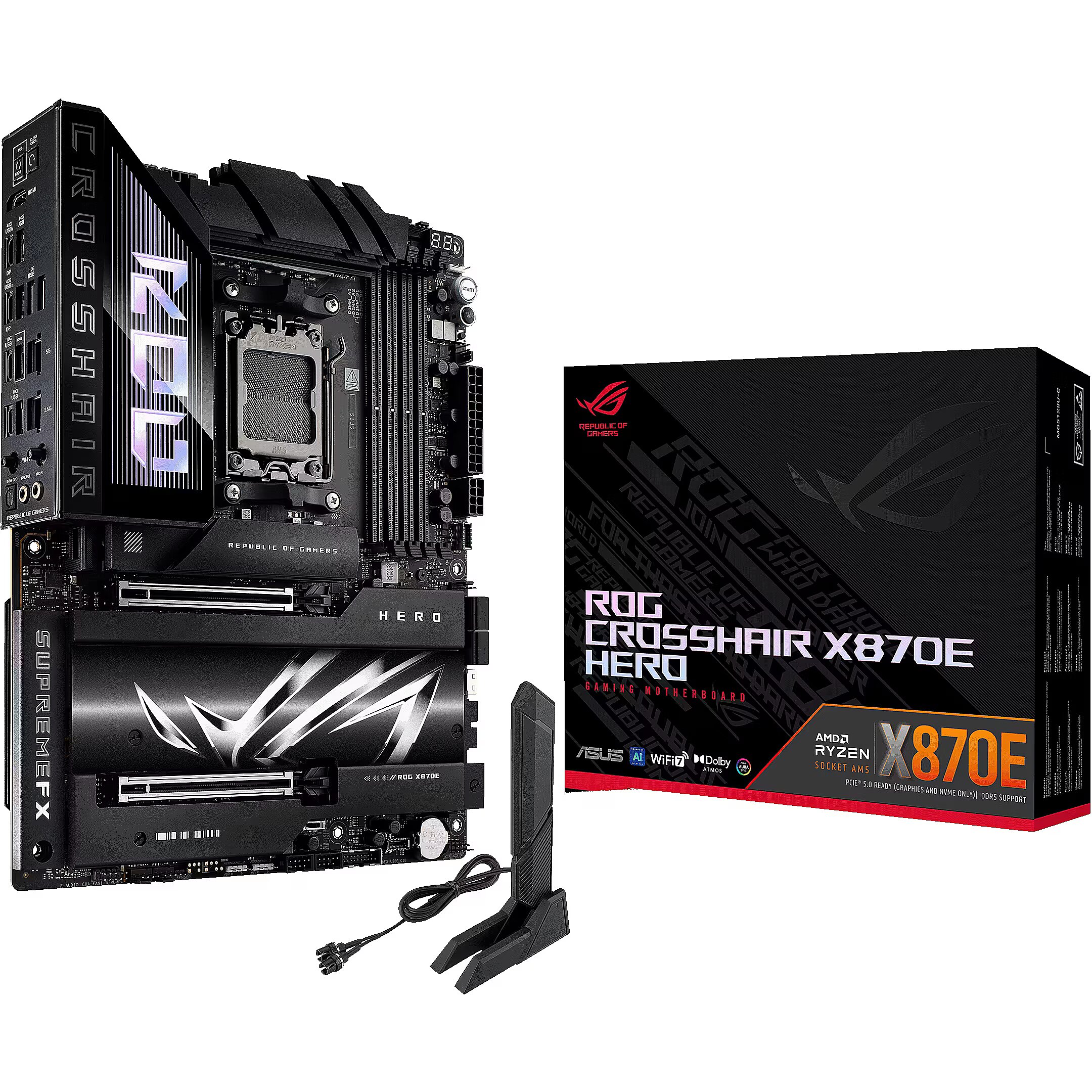

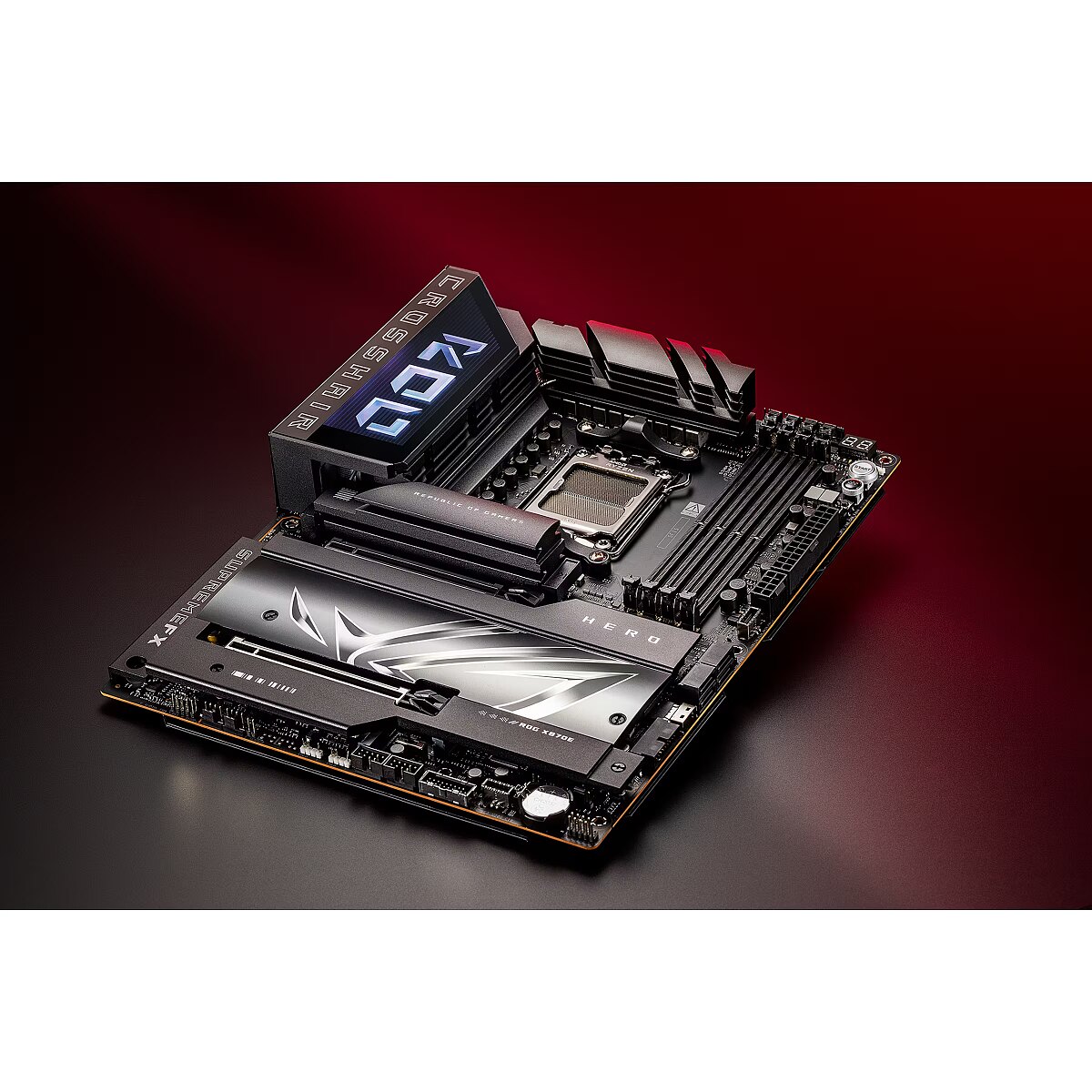

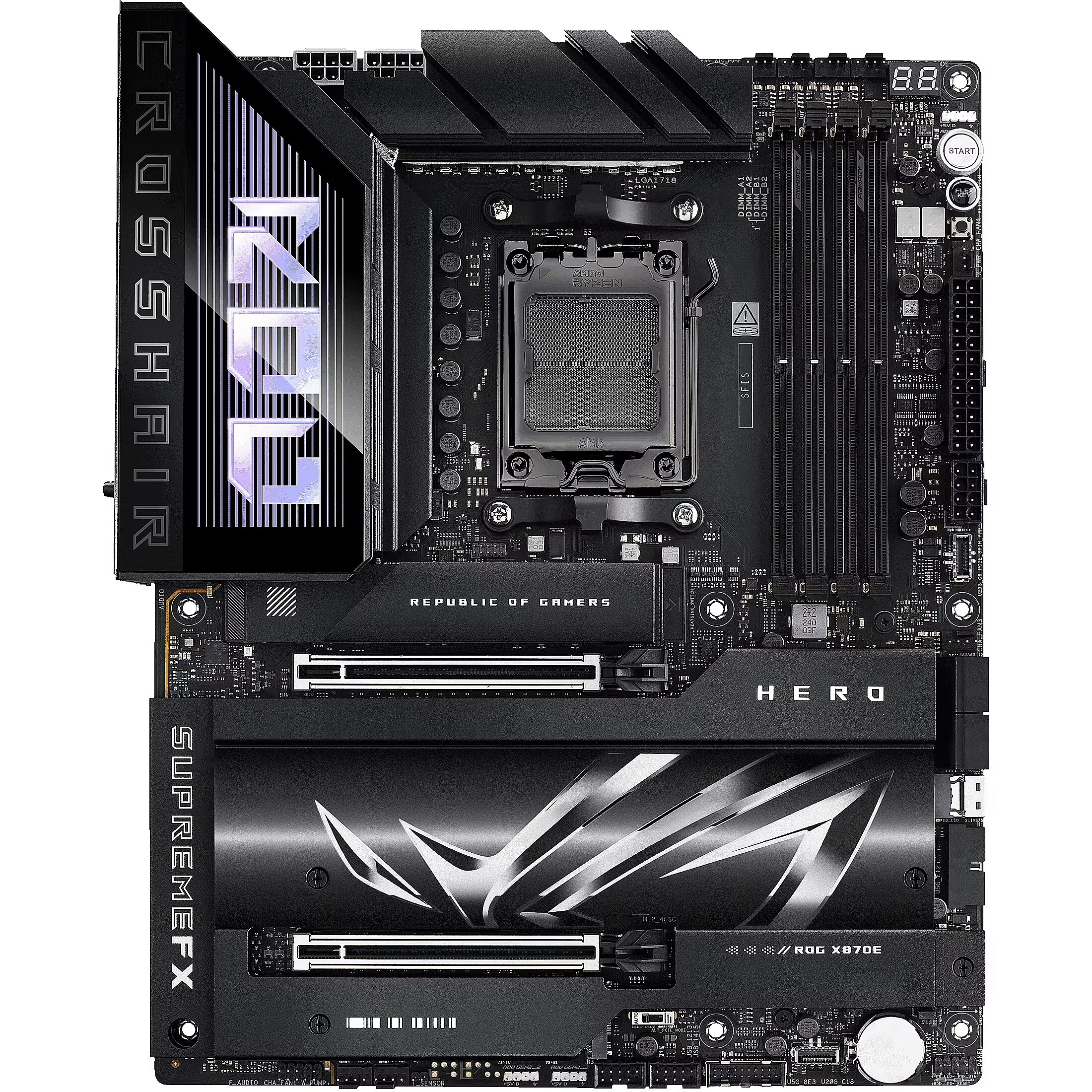

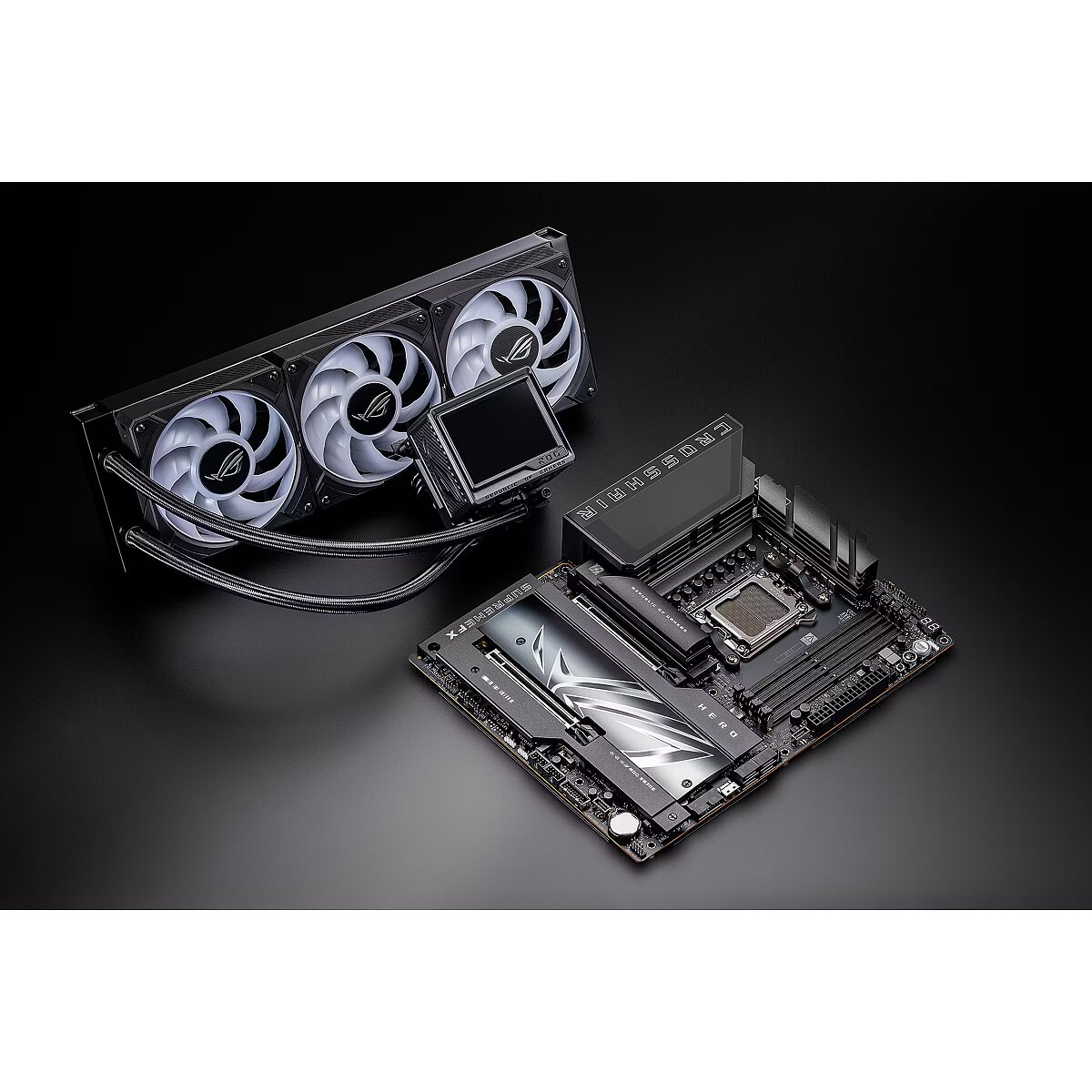

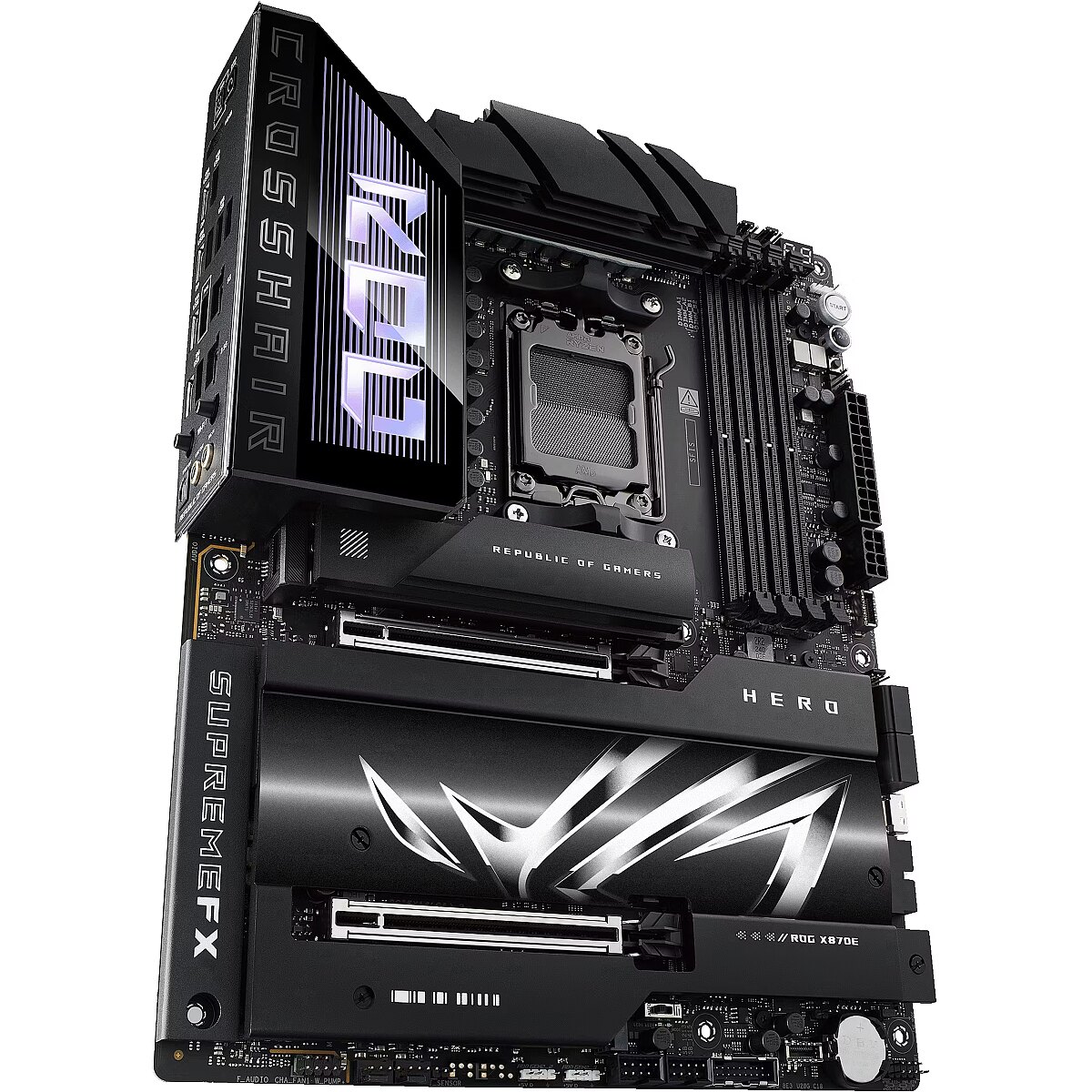

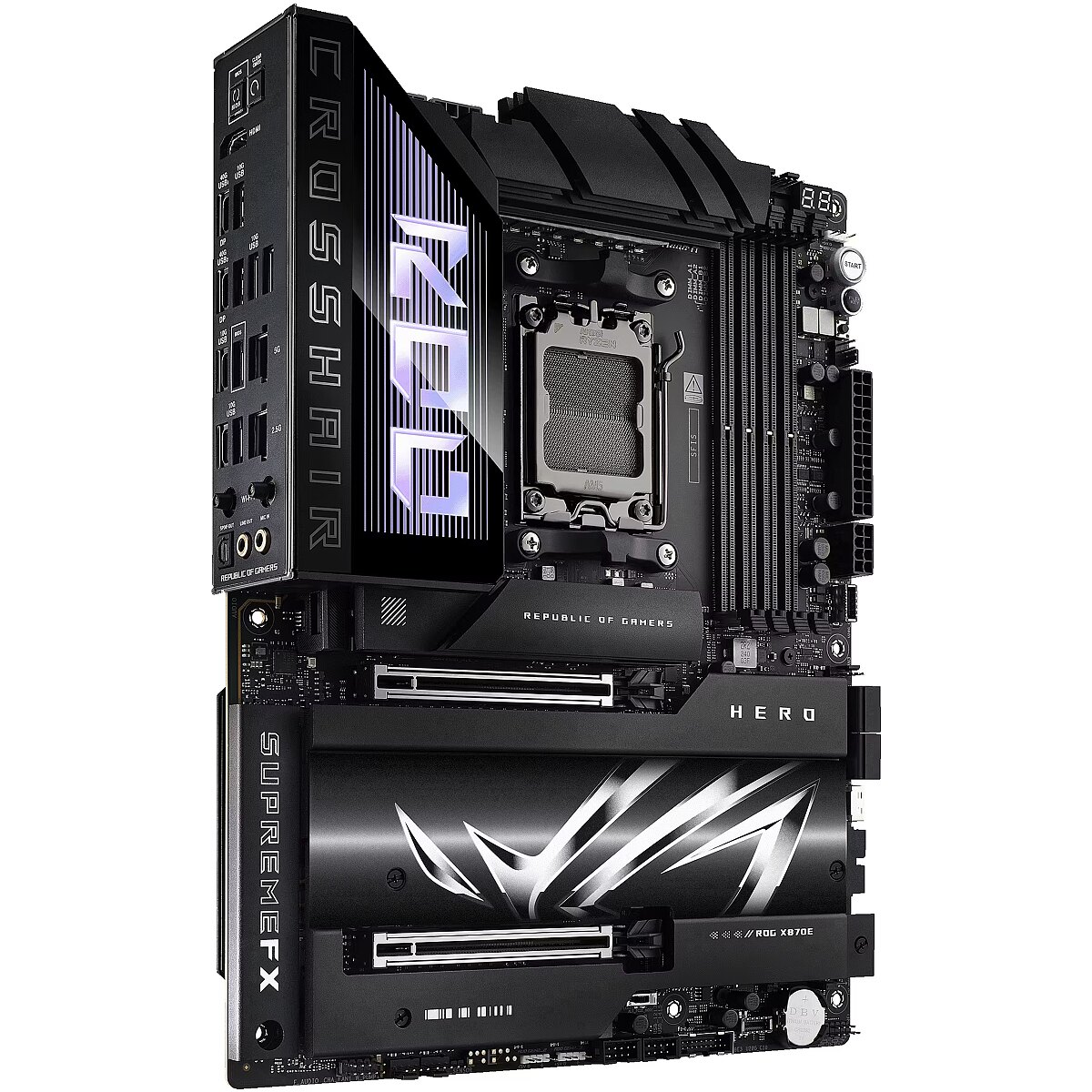

Description - ROG Crosshair X870E HERO
The AI PC-ready ROG Crosshair X870E Hero offers unyielding power delivery, robust thermal management, hyperspeed connectivity, comprehensive PCIE 5.0 and DDR5 support to unleash the performance of AMD Ryzen 9000 Series processors. Dark hues predominate across this motherboard, drawing your attention to premium metallic textures, nickel-plated surfaces, sleek contours and a stereoscopic visual effect on the large M.2 and chipset heatsink. This board also features the Polymo Lighting II effect. This upgraded lighting module built into the I/O shroud provides more dynamic RGB illumination for the signature ROG logo.
Description - The AI PC-ready ROG Crosshair X870E Hero offers unyielding power delivery, robust thermal management, hyperspeed connectivity, comprehensive PCIE 5.0 and DDR5 support to unleash the performance of AMD Ryzen™ 9000 Series processors. Dark hues predominate across this motherboard, drawing your attention to premium metallic textures, nickel-plated surfaces, sleek contours and a stereoscopic visual effect on the large M.2 and chipset heatsink. This board also features the Polymo Lighting II effect. This upgraded lighting module built into the I/O shroud provides more dynamic RGB illumination for the signature ROG logo.
Detailed data on disk/drive interfaces - Obsługuje 5 gniazd M.2 i 1 złącze SlimSAS oraz 4 porty SATA 6 Gb/s* Procesory stacjonarne AMD Ryzen serii 9000 i 7000 Gniazdo M.2_1 (klucz M), typ 2242/2260/2280 (obsługuje tryb PCIe 5.0 x4) Gniazdo M.2_2 (klucz M), typ 2242/2260/2280 (obsługuje tryb PCIe 5.0 x4) Gniazdo M.2_3 (klucz M), typ 2242/2260/2280 (obsługuje tryb PCIe 5.0 x4) Procesory stacjonarne AMD Ryzen serii 8000 Gniazdo M.2_1 (klucz M), typ 2242/2260/2280 (obsługuje tryb PCIe 4.0 x4) Gniazdo M.2_2 (Klucz M), typ 2242/2260/2280 (Nieobsługiwane) Gniazdo M.2_3 (Klucz M), typ 2242/2260/2280 (Nieobsługiwane) Chipset AMD X870E Gniazdo M.2_4 (Klucz M), typ 2242/2260/2280 (obsługuje tryb PCIe 4.0 x4) Gniazdo M.2_5 (Klucz M), typ 2280 (obsługuje tryb PCIe 4.0 x4) Gniazdo SlimSAS obsługuje tryb PCIe 4.0 x4. 4 porty SATA 6 Gb/s *Technologia AMD RAIDXpert2 obsługuje zarówno PCIe RAID 0/1/5/10, jak i SATA RAID 0/1/5/10. Funkcja RAID 5 jest obsługiwana tylko przez procesory AMD Ryzen serii 9000. ** Gdy M.2_2 i M.2_3 są włączone jednocześnie, PCIEX16_2 zostanie wyłączone. *** Gdy M.2_3 jest włączone, PCIEX16_1 będzie działać x8, a PCIEX16_2 będzie działać x4, M.2_2 zostanie wyłączone.
dimensionalWeight - 246
dimension depth - 120 mm
dimension height - 310 mm
Dimensions - 30.5 cm x 24.4 cm
dimension weight - 4000 g
dimension width - 370 mm
EAN - 4711387710302
ean - 4711387710302
Eans - 4711387710302
Expansion slots - 2 x PCIe 5.0 x16
Expansion slots - 4 x PCIe 4.0 x 16
Expansion slots - 5 x M.2
Expansion slots - Number of M.2 (M) slots - 5
Expansion slots - PCI Express x16 (Gen 4.x) slots - 4
Expansion slots - PCI Express x16 (Gen 5.x) slots - 2
External connectors - 1 x HDMI
External connectors - 1 x Line Out (front)
External connectors - 1 x MIC (front)
External connectors - 1 x Przycisk Clear CMOS
External connectors - 1 x S/PDIF
External connectors - 1 x USB BIOS Flashback button
External connectors - 2 x RJ-45
External connectors - 2 x USB 3.1 Type-C
External connectors - 2 x USB4 Type-C
External connectors - 6 x USB 3.1
Features - Audio chip - Realtek ALC4082
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Motherboard chipset - AMD X870E
Features - Motherboard chipset family - AMD
Features - Motherboard form factor - ATX
Features - Windows operating systems supported - Windows 11
FireWire (IEEE 1394) - No
Form Factor - ATX
Form factor - ATX
Frequency speed - 8000/8200/8600 MHz
Full Description Line - AMD X870E|SAM5|ATX|DDR5|8600/8200/8000 MHz|Memory slots 4|2xPCI-Express 4.0 16x|2xPCI-Express 5.0 16x|4xM.2|1xHDMI|1xAudio-In|1xAudio-Out|6xUSB 3.2|2xUSB-C|2xUSB4|1xOptical S/PDIF|1xRJ45|SATA|SATA 3.0|Video|Audio Realtek ALC4082|LAN 2.5 Gigabit|RAID SATA 0, 1, 5, 10
Graphics - 1 x port HDMI* 2 x porty USB4 (40 Gb/s) obsługują wyjścia wyświetlacza USB Type-C** *Obsługuje 4K@60Hz zgodnie ze specyfikacją HDMI 2.1. **Obsługuje maks. 4K@60Hz zgodnie ze specyfikacją DisplayPort 1.4a
Graphics - Parallel processing technology support - Not supported
GTIN - 4711387710302
guarantee - 36
guarantee_type - normal
HDMI Input/Output connectors - 1
Integrated audio - Realtek ALC4082
Integrated CPU - No
Integrated LAN - 2.5 Gigabit
Integrated video - Yes
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Number of chassis fan connectors - 4
Internal I/O - Number of SATA III connectors - 4
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 2
Internal I/O - USB 3.2 Gen 2x2 connectors - 2
Internal I/O > Number of SATA connectors - 4
Internal I/O > Supported hard disk drive interfaces - SATA, M.2
Link - https://rog.asus.com/motherboards/rog-crosshair/rog-crosshair-x870e-hero/
LongDesc - ASUS AI INTELLIGENCEAI NETWORKING IIAI Networking II combines intelligent technologies to continuously optimize network performance, provide trustworthy and seamless connectivity, and unleash the full speed of WiFi 7*.ai OVERCLOCKINGTuning is now faster and smarter than ever before.AI COOLING IIBalance the thermals and acoustics of any build with a single click.PerformanceOVERCLOCKINGDynamic OC SwitcherDynamic OC Switcher maximizes CPU performance by letting you set current and temperature thresholds to automatically switch between a manual overlock for heavy multithreaded workloads and Precision Boost Overdrive for single-threaded tasks. The latest Overclocking Load Guard has an enhanced instantaneous current protection mechanism to prevent users from experiencing system crashes during overclocking.
LongProductName - Teamed Power Solution, AI Networking II, Overclocking Effortless performance boost, AI Cooling II, DDR5 Max. 192GB, NitroPath DRAM Technology, AEMP, PCIe Gen 5, WIFI 7
LongSummaryDescription - ASUS ROG CROSSHAIR X870E HERO. Processor manufacturer: AMD, Processor socket: Socket AM5, Supported processor sockets: Socket AM5. Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, SlimSAS, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10, 5. Ethernet interface type: 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi standards: Wi-Fi 7 (802.11be). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: AMD
LPT connector / port - No
M.2 Expansion slots - 4
Max. number of SATA devices - 4
Max memory size - 192 GB
Memory - ECC - Yes
Memory - Maximum internal memory - 192 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Non-ECC - Yes
Memory - Number of memory slots - 4
Memory - Supported memory types - DDR5-SDRAM
Memory - Unbuffered memory - Yes
Memory > Supported memory types - DDR5
Memory bus frequency - 7000 MHz
Memory bus frequency - 8000 MHz
Memory bus frequency - 8200 MHz
Memory bus frequency - 8600 MHz
Memory bus frequency - 9000 MHz
Memory slots - 4
Memory type - DDR5
Memory type - DDR5
Model - ROG CROSSHAIR X870E HERO
Name - ASUS ROG CROSSHAIR X870E HERO
name - ASUS ROG Crosshair X870E Hero Mainboard, AMD X870E, Sockel AM5, DDR5
Name - Asus ROG CROSSHAIR X870E HERO | Processor family AMD | Processor socket AM5 | DDR5 | Supported hard disk drive interfaces SATA, M.2 | Number of SATA connectors 4
name - ROG CROSSHAIR X870E HERO AM5 4DDR5 HDMI/USB-C
Network - Bluetooth - Yes
Network - Bluetooth version - 5.4
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet interface type - 2.5 Gigabit Ethernet, 5 Gigabit Ethernet
Network - Ethernet interface type - 5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Top Wi-Fi standard - Wi-Fi 7 (802.11be)
Network - Wi-Fi - Yes
Network - Wi-Fi standards - Wi-Fi 7 (802.11be)
Network interface - 1 x 10/100/1000/2500 Mbit/s
Network interface - 1 x 10/100/1000/2500/5000 Mbit/s
Network interface - Bluetooth
Network interface - Wi-Fi 7* 2x2 Wi-Fi 7 (802.11be) Obsługuje pasmo częstotliwości 2,4/5/6 GHz** Obsługuje pasmo Wi-Fi 7 320 MHz, do 6,5 Gb/s szybkości transferu. Bluetooth v5.4*** * Funkcje Wi-Fi mogą się różnić w zależności od systemu operacyjnego
W przypadku systemu Windows 11 Wi-Fi 7 będzie wymagać wersji 24H2 lub nowszej do pełnej funkcjonalności, Windows 11 21H2/22H2/23H2 obsługuje tylko Wi-Fi 6E.
W przypadku systemu Windows 10 należy pamiętać, że nie ma dostępnego sterownika, zapoznaj się ze stroną internetową dostawcy chipsetu Wi-Fi, aby uzyskać szczegółowe informacje.
** Pasmo częstotliwości Wi-Fi 6 GHz i przepisy dotyczące przepustowości mogą się różnić w zależności od kraju.
*** Wersja Bluetooth może się różnić, zapoznaj się ze stroną internetową producenta modułu Wi-Fi, aby uzyskać najnowsze specyfikacje.
Network interface - Wi-Fi 802.11a/b/g/n/ac/ax/be
Number of DDR5 slots - 4
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 6
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 10
Onboard connectors - 1 x 4-pin water-pump-fan
Onboard connectors - 1 x 4pin CPU/Water Pump Fan Connector
Onboard connectors - 1 x 4pin CPU fan
Onboard connectors - 1 x 4pin wentylator OPT CPU
Onboard connectors - 1 x 8pin 12V power
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Flex Key pin
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x OC PCIe switch
Onboard connectors - 1 x ReTry button
Onboard connectors - 1 x Thermal sensor connector
Onboard connectors - 2 x USB 2.0/1.1 header
Onboard connectors - 2 x USB 3.0 header
Onboard connectors - 2 x USB C
Onboard connectors - 3 x Addressable LED
Onboard connectors - 4 x 4pin Chassis fan
Onboard connectors - 4 x SATA III 6Gb/s
Onboard connectors - 5 x M.2
Optical S/PDIF Input/Output connectors - 1
Other features - Weight - 2.55 kg
Other information -
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 305.00 mm
Package features > Gross height (mm) - 100.00 mm
Package features > Gross width (mm) - 234.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 121 pc(s)
Package features > Paper/Pasteboard - 80.00 g
Package features > Plastic (No PET) - 20.00 g
Package features > Tare weight (kg) - 0.10 kg
Package features > Volume (m3) - 0.01 m³
Package features > WEE classification - CL109:5:2017-04-01
Package features > WEEE tax - Yes
Packaging content - Cables included - SATA
Packaging content - Drivers included - Yes
Packaging data - Package depth - 312 mm
Packaging data - Package height - 108 mm
Packaging data - Package weight - 4.26 kg
Packaging data - Package width - 370 mm
PCI-Express 4.0 16x Expansion slots - 2
PCI-Express 5.0 16x Expansion slots - 2
Processor - Processor manufacturer - AMD
Processor - Processor socket - Socket AM5
Processor - Supported processor sockets - Socket AM5
Processor > Processor family - AMD
Processor > Processor socket - AM5
Processor family - AMD Ryzen 3
Processor family - AMD Ryzen 5
Processor family - AMD Ryzen 7
Processor family - AMD Ryzen 9
producer - Asus
Producer - Asus
producerCode - 90MB1IE0-M0EAY0
ProducerCode - ROG CROSSHAIR X870E HERO
productName - ASUS ROG CROSSHAIR X870E HERO AMD X870E Socket AM5 ATX
ProductName - ROG CROSSHAIR X870E HERO
productSize - Normal
RAID - SATA 0, 1, 5, 10
RAID - Yes
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 2
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - Headphone outputs - 1
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - S/PDIF out port - Yes
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 6
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity - 2
Rear panel I/O ports - USB4 Gen 2x2 ports quantity - 2
Rear panel I/O ports - WiFi-AP antenna jack - 1
RJ45 Input/Output connectors - 1
SATA 3.0 Interface - Yes
SATA Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 46 cm
Shipping Box Height Shipping/Package Box Dimensions - 33.5 cm
Shipping box quantity - 4
Shipping Box Weight Shipping/Package Box Dimensions - 17.25 kg
Shipping Box Width Shipping/Package Box Dimensions - 38.5 cm
ShortDescription - Socket AM5 | Chipset AMD X870E | DDR5
ShortSummaryDescription - ASUS ROG CROSSHAIR X870E HERO, AMD, Socket AM5, Socket AM5, DDR5-SDRAM, 192 GB, DIMM
sizeX - 34
sizeY - 313
sizeZ - 116
Socket - SAM5
Software - Oprogramowanie ROG Exclusive
- ROG CPU-Z
- Dolby Atmos
- Internet Security (pełna wersja na 1 rok)
- Polymo Lighting II
Oprogramowanie ASUS Exclusive
- Armoury Crate
- AIDA64 Extreme (pełna wersja na 1 rok)
- Aura Creator
- Aura Sync
- Fan Xpert 4 (z AI Cooling II)
- GameFirst
- HWiNFO
- Power Saving
ASUS DriverHub
ASUS GlideX
USB Wattage Watcher
TurboV Core
WinRAR (40-dniowy bezpłatny okres próbny)
Adobe Creative Cloud (bezpłatny okres próbny)
UEFI BIOS
AI Overclocking Guide
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey
FlexKey
Sound card - ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082*
- Wykrywanie impedancji dla przednich i tylnych wyjść słuchawkowych
- Obsługuje: wykrywanie gniazda, przesyłanie strumieniowe, zmianę przeznaczenia gniazda mikrofonowego na przednim panelu
- Wysokiej jakości wyjście odtwarzania stereo SNR 120 dB i wejście nagrywania SNR 110 dB
- Obsługuje odtwarzanie do 32-bitów/384 kHz na przednim panelu
Funkcje audio
- Technologia ekranowania SupremeFX
- ESS ES9219 QUAD DAC
- Pozłacane gniazda audio
- Tylny optyczny port wyjściowy S/PDIF
- Kondensatory audio klasy premium
* Do obsługi wyjścia audio 7.1 Surround Sound wymagana jest obudowa z modułem audio HD na przednim panelu.
** Port LINE OUT na tylnym panelu nie obsługuje dźwięku przestrzennego. Jeśli chcesz korzystać z dźwięku przestrzennego, podłącz urządzenie wyjściowe audio do gniazda audio na przednim panelu obudowy lub skorzystaj z urządzenia audio z interfejsem USB.
Special functions -
Storage controllers - Number of HDDs supported - 5
Storage controllers - Number of storage drives supported - 10
Storage controllers - RAID levels - 0
Storage controllers - RAID levels - 0, 1, 10, 5
Storage controllers - RAID levels - 1
Storage controllers - RAID levels - 5
Storage controllers - RAID levels - 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA III, SlimSAS
Storage controllers - Supported storage drive types - HDD & SSD
Supported operating systems - Windows 11
Technical details > Gross weight - 0.88 kg
Technical details > Net weight - 0.78 kg
Technical details > Producer - Asus
Technical details > Producer product name - ROG CROSSHAIR X870E HERO
Technical details > Warranty - 36 month(s)
Title - ASUS ROG CROSSHAIR X870E HERO AMD X870E Socket AM5 ATX
Unit Box Height - 0.115
Unit Box Length - 0.375
Unit Box Width - 0.315
Unit Brutto Volume - 0.01483 cubm
Unit Gross Weight - 4.31 kg
Unit Net Weight - 3.2 kg
URL - https://rog.asus.com/motherboards/rog-crosshair/rog-crosshair-x870e-hero/
USB-C Input/Output connectors - 2
USB 3.2 Input/Output connectors - 6
USB4 Input/Output connectors - 2
USB ports at back panel - 10
USB ports on motherboard - 10
Vendor Homepage - rog.asus.com/motherboards/rog-crosshair/rog-crosshair-x870e-hero/
vendpn - ROG CROSSHAIR X870E HERO
Warranty - 36
Warranty - 36 months
WarrantyInfo -
warrantyLength - 36
warrantyType - G
weight - 4036
Weight & dimensions - Depth - 244 mm
Weight & dimensions - Height - 50 mm
Weight & dimensions - Width - 305 mm
