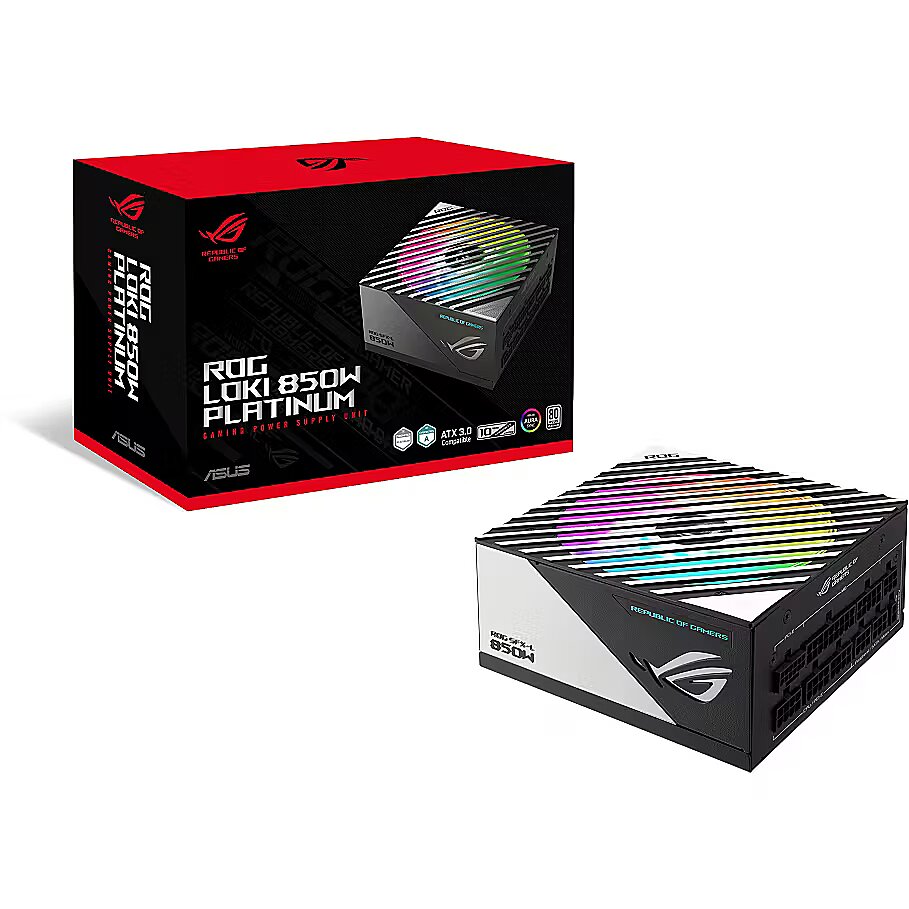

Asus ROG Loki SFX-L Platinum, 850W, 80PLUS Platinum

8-pin 12V power connectors - 0
Accessories included - Power cord Motherboard power cable (450 mm) 2 x CPU Cable (550 mm) PCI-E 16-pin Gen 5 cable (450 mm) PCI-E cable (16-pin to 8-pin-8-pin)(450 mm) PCI-E 1 to 1 cable (450 mm) 2 x SATA Cable 1 to 3 (300+200+100 mm) Peripheral cable 1 to 4 (300+100+100+100 mm) RGB addressable cable (800 mm) ATX to SFX adapter bracket User manual
Brand - ASUS
BrandPartCode - 90YE00N3-B0NA00
category - PC Components|Power Supplies|PCIe 5.0
Category - Power Supply Units
Category - Root/Electronics/PC parts/PC power supply units
Category_1 - Power
Category_2 - Computer Power Supplies
Certificates 80+ - 80 PLUS Platinum
code - 90YE00N3-B0NA00
Description - Rog Loki SFX-L 850W Platinum 80+ Aura ATX 3.0 power supply black The quietest SFX-L power unit Based on the ROG Thor, the ROG Loki SFX-L 850W Platinum White Edition power unit offers the same enthusiast-grade components and features, all in an SFX-L form factor. Offering quiet operation and high performance, the Loki power unit is ideal for powering your next small form factor (SFF) system. ROG heatsinks They also stay cool under pressure ROG heatsinks ensure lower temperatures, longer component life, and extended operating time in 0dB mode. Axial-tech fan Better, faster, stronger The Axial-tech fan has a smaller hub with longer blades and a locking ring to increase downward air pressure. For ROG Loki power supplies, we've modified this design to 120mm, so they provide efficient cooling at low RPM while producing less noise. Fan with double ball bearings 2x longer service life The fan blade is mounted on a double ball bearing, which guarantees twice as long service life compared to solutions with flange bearings. 0dB technology Silence intelligently ensured To reduce noise levels, the PWM-controlled fan turns off completely when the power supply load is 40% or less. Lambda A Certification Surprisingly quiet operation ROG Loki emits an average of less than 25 dB of noise, which allowed it to achieve the sought-after Cybenetics Lambda A certification. 80 PLUS Platinum certification High performance Low ESR capacitors made in Japan further improve efficiency and reduce heat generation. Thanks to this, ROG Loki is ready to reliably power your system for many years. Compatible with ATX 3.0 Direction: future The latest power solutions are now available. ATX 3.0 introduces more stringent voltage and current regulation guidelines for the latest generation of hardware, and ROG Loki is ahead of the competition in this respect, ensuring full compliance with this standard. The power unit comes with a 16-pin PCIe cable that allows power to be delivered up to 600W to PCIe Gen 5.0-connected graphics cards, providing great performance in small form factor (SFF) systems. Fan with ARGB lighting and Aura Sync Magic glow The 120mm fan installed in the Loki power supply is equipped with eight addressable LEDs that can be customized via the Aura Sync app to create consistent lighting effects throughout the system. * If no connecting cable is used, the default color effect is rainbow. * To use Aura Sync, an Aura Sync-compatible ASUS or ROG motherboard is required. Likewise, the Intelligent Mode lighting effect, which reflects GPU temperature, requires the use of a compatible ASUS or ROG graphics card. 10 years warranty A decade of power We are so confident in the reliability of the ROG Loki SFX-L 850W Platinum White Edition power supply that we provide it with a 10-year warranty. *The main functionality of the product is guaranteed for a period of 10 years. RGB LEDs are covered by a 3-year warranty.
Design - Fan diameter - 12 cm
Design - Illumination - Yes
Design - Number of fans - 1 fan(s)
Design - Product colour - Black, Silver
dimension depth - 100 mm
dimension height - 310 mm
Dimensions - 125 x 125 x 63,5 mm
dimension weight - 2053 g
dimension width - 370 mm
ean - 4711081722557
Eans - 4711081722557
EAN_code - 4711081722557
Fan - 12 cm
Floppy power connectors - 0
GTIN - 4711081722557
guarantee - 120
guarantee_type - normal
LongDesc - ROG Loki 850W PlatinumThe Quietest SFX-L PSUTaking after the ROG Thor, the ROG Loki SFX-L 850W Platinum brandishes the same enthusiast-grade components and features, all packed into an SFX-L form factor. Boasting quiet operation and high performance, the Loki is primed to power your next SFF build.ROG HeatsinksCool under pressureROG heatsinks facilitate lower temperatures, longer component lifespan, and extended 0dB operation.80 PLUS Platinum CertifiedEffortless outputLow-ESR Japanese capacitors further improve efficiency and reduce heat, readying ROG Loki to reliably fuel your build for years to come.ATX 3.0 CompatibleStep into the futureThe latest power specification updates have landed. ATX 3.0 ushers in tighter voltage and current regulation guidelines for next-gen hardware - and ROG Loki steps ahead of the curve by being fully compliant. A 16-pin PCIe cable ripe for piping up to 600W of power to PCIe Gen 5.0 graphics cards is bundled with the PSU, bringing large-scale capabilities to SFF rigs.ARGB-illuminated Fan & Aura SyncMagical glowThe Loki's 120 mm fan features eight addressable LEDs ready to be customized with Aura Sync to create coordinated lighting patterns across your build.* If the connector cable is not used, the default color effect is rainbow.* To enjoy Aura Sync, you’ll need an Aura Sync-compatible ASUS or ROG motherboard. Similarly, the Smart Mode lighting effect, which reflects GPU temperature, requires use of a compatible ASUS or ROG graphics card.
LongProductName - SFX-L, 80Plus Platinum, 850W, 100 - 240V, 1.815kg
LongSummaryDescription - ASUS ROG Loki SFX-L 850W Platinum. Total power: 850 W, AC input voltage: 100 - 240 V, Combined power (+3.3V): 110 W. Motherboard power connector: 24-pin ATX, Cabling type: Fully-Modular. Purpose: PC, Power supply unit (PSU) form factor: SFX, 80 PLUS certification: 80 PLUS Platinum. Product colour: Black, Silver, Fan diameter: 12 cm, Number of fans: 1 fan(s). Width: 125 mm, Depth: 125 mm, Height: 63.5 mm
Manufacturer - Asus
Manufacturer_code - 90YE00N3-B0NA00
MB power connector - 20 + 4 pin
Modular power supply - Yes
MOLEX power connectors - 4
Name - ASUS ROG-LOKI-850P-SFX-L-GAMING
name - ASUS ROG Loki 850P SFX-L Platinum, 80 PLUS Platinum Netzteil, modular, PCIe 5.0 - 850 Watt
Name - ASUS ROG Loki 850W Platinum, PC power supply (black, 4x PCIe, cable management, 850 watts)
name - Power supply Rog Loki SFX-L 850W Platinum 80+ Aura ATX 3.0 black
Number of connectors PATA - 0
Number of power connectors 12VHPWR - 0
Number of power connectors PCI-E 16-pin Gen 5 - 1
Number of power supply connector 4+4-pin 12V - 2
Number of power supply connector 4-pin 12V - 0
Number of power supply connectors PCI-E 6 +2 pin - 3
Other features -
Packaging data - Package depth - 190 mm
Packaging data - Package height - 100 mm
Packaging data - Package type - Box
Packaging data - Package weight - 2.5 kg
Packaging data - Package width - 285 mm
PCI-E 6-pin power connectors - 0
PCI-E 8-pin power connectors - 0
Performance - 80 PLUS certification - 80 PLUS Platinum
Performance - Certification - OPP/OVP/UVP/SCP/OCP/OTP
Performance - Power supply unit (PSU) form factor - SFX
Performance - Purpose - PC
Performance - Silent mode - Yes
Performance - Supported motherboard form factors - ATX
PFC - Active
Ports & interfaces - Cabling type - Fully-Modular
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - Motherboard power connector - 24-pin ATX
Ports & interfaces - Number of SATA power connectors - 6
Ports & interfaces - PCI Express power connectors (8-pin) - 3
Ports & interfaces - PCI Express power connectors (16-pin) - 1
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 4
Power - AC input voltage - 100 - 240 V
Power - Combined power (+3.3V) - 110 W
Power - Combined power (+5V) - 110 W
Power - Combined power (+5Vsb) - 12.5 W
Power - Combined power (+12V) - 850 W
Power - Combined power (-12V) - 9.6 W
Power - Max output current (+3.3V) - 20 A
Power - Max output current (+5V) - 20 A
Power - Max output current (+5Vsb) - 2.5 A
Power - Max output current (+12V) - 70.8 A
Power - Max output current (-12V) - 0.8 A
Power - Total power - 850 W
Power supply - 850 W
producer - Asus
Producer - Asus
ProducerCode - 90YE00N3-B0NA00
ProductName - ROG Loki SFX-L 850W Platinum
SATA power connectors - 6
ShortDescription - 850 | ATX | 135mm | 20 + 4 pin | 80 Plus Platinum| 125 x 125 x 63.5 mm |
ShortSummaryDescription - ASUS ROG Loki SFX-L 850W Platinum, 850 W, 100 - 240 V, 110 W, 850 W, 110 W, 9.6 W
Technical details - Compliance certificates - RoHS
Title - ASUS ROG Loki SFX-L 850W Platinum power supply unit 24-pin ATX Black, Silver
URL - https://rog.asus.com/power-supply-units/rog-loki/rog-loki-850p-sfx-l-gaming-model/
vendpn - 90YE00N3-B0NA00
WarrantyInfo -
Weight - 2,58
Weight & dimensions - Depth - 125 mm
Weight & dimensions - Height - 63.5 mm
Weight & dimensions - Weight - 1.81 kg
Weight & dimensions - Width - 125 mm
